EN IEC 62590-1:2025

Railway applications - Electronic power converters for fixed installations - Part 1: General requirements

IEC 62590-1:2025 specifies the common requirements and definitions for all power converter applications in fixed installations for power supply of railway systems. This document applies to fixed installations of following electric traction systems: railway networks, metropolitan transport networks including metros, tramways, trolleybuses and fully automated transport systems, magnetic levitated transport systems, electric road systems. This document applies to AC/DC converters, DC converters and AC converters. Converters for improvement of power quality and for energy saving are also included. Converters connected to electric traction systems feeding 3AC, 1AC or DC systems for auxiliary purpose are not in the scope of this document but some aspects such as insulation coordination and railway specific conditions can be referred to. This document, in conjunction with the other parts of IEC 62590, cancels and replaces IEC 62589:2010 and the former IEC 62590:2019. This document includes the following significant technical changes with respect to IEC 62589:2010 and the former IEC 62590:2019: a) Split into common requirements and special requirements for different converters; b) Interface Model for the different systems connected; c) Split into circuits with their requirements like insulation coordination; d) Energy efficiency addressed.

Bahnanwendungen - Leistungselektronische Stromrichter für ortsfeste Anlagen - Teil 1: Allgemeine Anforderungen

Applications ferroviaires - Convertisseurs électroniques de puissance pour installations fixes - Partie 1: Exigences générales

La CEI 62590-1: 2025 spécifie les exigences communes et les définitions pour toutes les applications de convertisseurs de puissance dans les installations fixes pour l'alimentation électrique des systèmes ferroviaires. Ce document s'applique aux installations fixes des systèmes de traction électrique suivants : réseaux ferroviaires, réseaux de transport métropolitain, y compris les métros, les tramways, les trolleybus et les systèmes de transport entièrement automatisés, les systèmes de transport à sustentation magnétique, les systèmes routiers électriques. Ce document s'applique aux convertisseurs CA/CC, aux convertisseurs CC et aux convertisseurs CA. Les convertisseurs destinés à améliorer la qualité de l'énergie et à économiser l'énergie sont également inclus. Les convertisseurs connectés aux systèmes de traction électrique alimentant des systèmes 3AC, 1AC ou DC à des fins auxiliaires n'entrent pas dans le champ d'application du présent document, mais certains aspects tels que la coordination de l'isolation et les conditions spécifiques aux chemins de fer peuvent être mentionnés. Le présent document, conjointement avec les autres parties de la CEI 62590, annule et remplace la CEI 62589:2010 et l'ancienne CEI 62590:2019. Ce document inclut les changements techniques significatifs suivants par rapport à la CEI 62589:2010 et à l'ancienne CEI 62590:2019 : a) Séparation en exigences communes et en exigences spéciales pour les différents convertisseurs ; b) Modèle d'interface pour les différents systèmes connectés ; c) Séparation en circuits avec leurs exigences, comme la coordination de l'isolation ; d) L'efficacité énergétique est prise en compte.

Železniške naprave - Elektronski elektroenergetski pretvornik za fiksne postroje - 1. del: Splošne zahteve

General Information

• Status: Published
• Publication Date: 26-Jun-2025
• ICS: 29.280 - Electric traction equipment
• ICS: 45.060.01 - Railway rolling stock in general
• Technical Committee: CLC/TC 9X - Electrical and electronic applications for railways
• Drafting Committee: IEC/TC 9 - IEC_TC_9
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 27-Jun-2025
• Due Date: 31-Jan-2022
• Completion Date: 27-Jun-2025
• Ref Project: SIST EN IEC 62590-1:2025 - Railway applications - Electronic power converters for fixed installations - Part 1: General requirements

Standards Content (Sample)

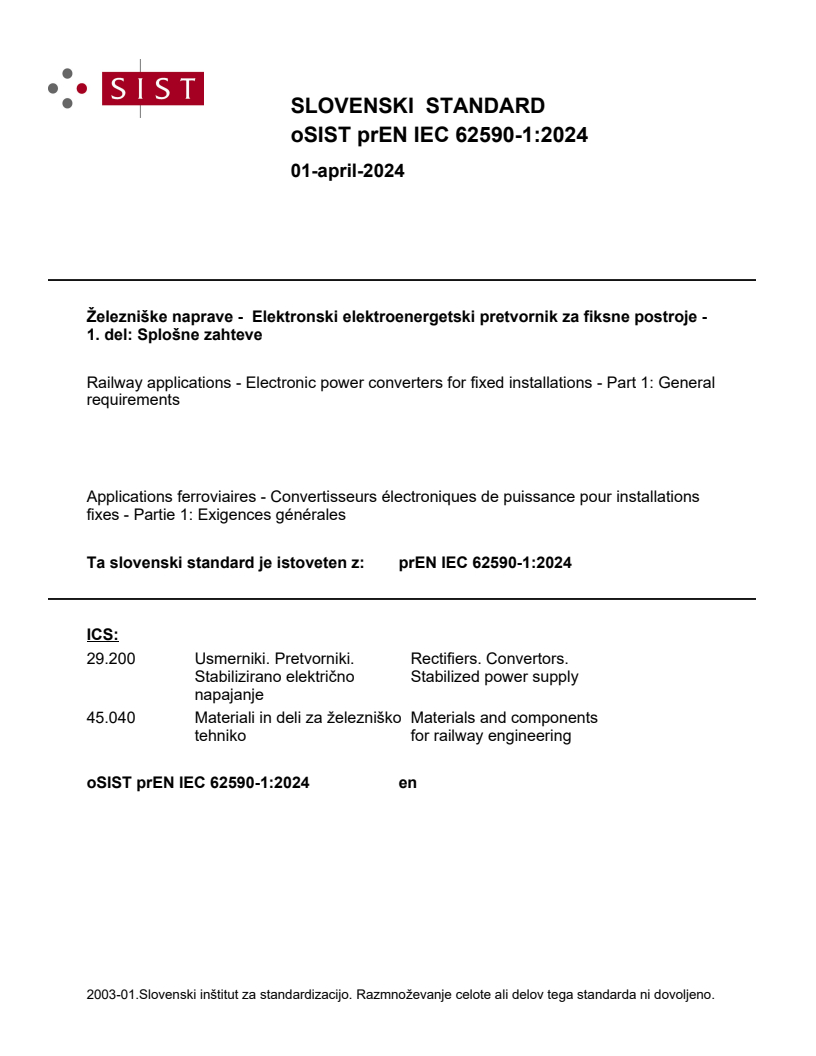

SLOVENSKI STANDARD
oSIST prEN IEC 62590-1:2024
01-april-2024
Železniške naprave - Elektronski elektroenergetski pretvornik za fiksne postroje -
1. del: Splošne zahteve
Railway applications - Electronic power converters for fixed installations - Part 1: General
requirements
Applications ferroviaires - Convertisseurs électroniques de puissance pour installations
fixes - Partie 1: Exigences générales
Ta slovenski standard je istoveten z: prEN IEC 62590-1:2024
ICS:
29.200 Usmerniki. Pretvorniki. Rectifiers. Convertors.
Stabilizirano električno Stabilized power supply
napajanje
45.040 Materiali in deli za železniško Materials and components
tehniko for railway engineering
oSIST prEN IEC 62590-1:2024 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

oSIST prEN IEC 62590-1:2024
oSIST prEN IEC 62590-1:2024

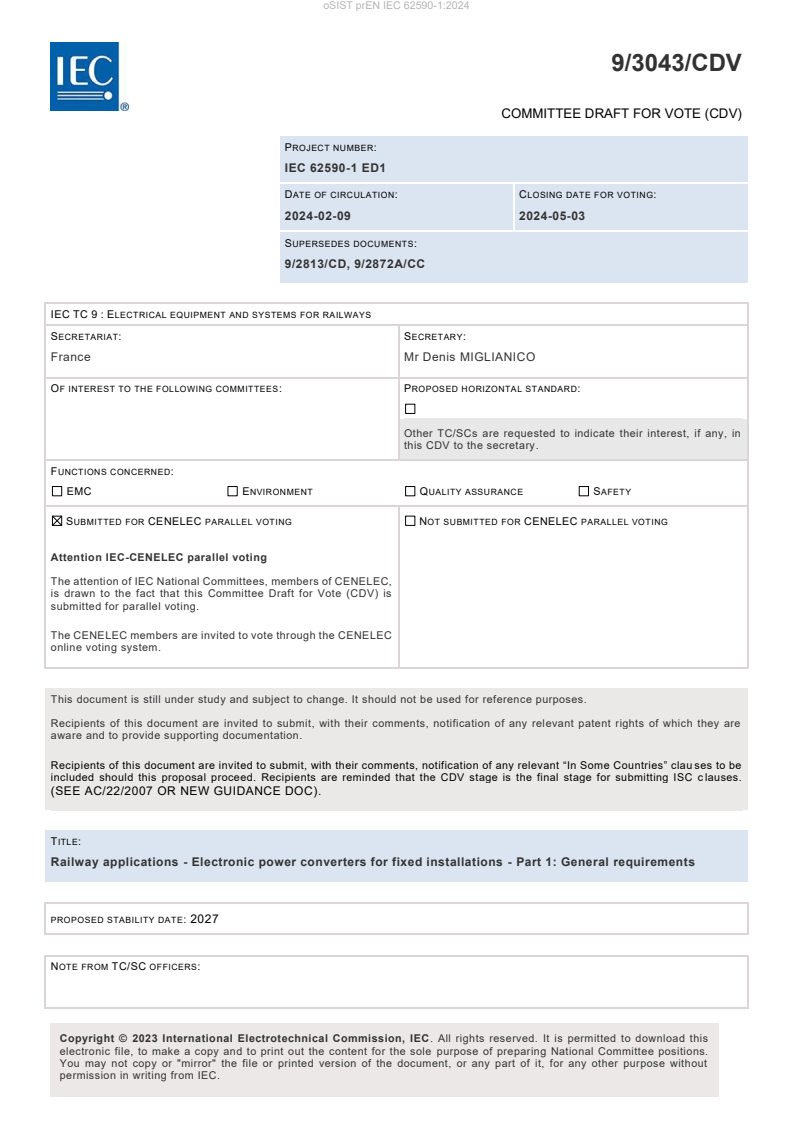

9/3043/CDV
COMMITTEE DRAFT FOR VOTE (CDV)
PROJECT NUMBER:
IEC 62590-1 ED1
DATE OF CIRCULATION: CLOSING DATE FOR VOTING:
2024-02-09 2024-05-03
SUPERSEDES DOCUMENTS:
9/2813/CD, 9/2872A/CC
IEC TC 9 : ELECTRICAL EQUIPMENT AND SYSTEMS FOR RAILWAYS
SECRETARIAT: SECRETARY:
France Mr Denis MIGLIANICO
OF INTEREST TO THE FOLLOWING COMMITTEES: PROPOSED HORIZONTAL STANDARD:

Other TC/SCs are requested to indicate their interest, if any, in
this CDV to the secretary.
FUNCTIONS CONCERNED:
EMC ENVIRONMENT QUALITY ASSURANCE SAFETY
SUBMITTED FOR CENELEC PARALLEL VOTING NOT SUBMITTED FOR CENELEC PARALLEL VOTING
Attention IEC-CENELEC parallel voting
The attention of IEC National Committees, members of CENELEC,
is drawn to the fact that this Committee Draft for Vote (CDV) is
submitted for parallel voting.
The CENELEC members are invited to vote through the CENELEC
online voting system.
This document is still under study and subject to change. It should not be used for reference purposes.
Recipients of this document are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Recipients of this document are invited to submit, with their comments, notification of any relevant “In Some Countries” clau ses to be
included should this proposal proceed. Recipients are reminded that the CDV stage is the final stage for submitting ISC c lauses.
(SEE AC/22/2007 OR NEW GUIDANCE DOC).

TITLE:
Railway applications - Electronic power converters for fixed installations - Part 1: General requirements

PROPOSED STABILITY DATE: 2027
NOTE FROM TC/SC OFFICERS:
electronic file, to make a copy and to print out the content for the sole purpose of preparing National Committee positions.
You may not copy or "mirror" the file or printed version of the document, or any part of it, for any other purpose without

permission in writing from IEC.

oSIST prEN IEC 62590-1:2024
9/3043/CDV – 2 – IEC CDV 62590-1 © IEC: 2024
CONTENTS
FOREWORD . 5
INTRODUCTION . 7
1 Scope . 8
2 Normative references . 8
3 Terms and definitionsFor the purposes of this document, the following terms and
definitions apply. . 9
3.1 Electrical Circuits . 9
3.2 Semiconductor devices and combinations . 11
3.3 Rated values . 12
3.4 Cooling . 13
3.5 Principal letter symbols . 13
3.6 Abbreviated Terms . 14
4 System Configurations . 14
4.1 General Configurations . 14
4.2 Components of an electronic power converter . 14
4.3 Types of converters . 15
4.3.1 General overview . 15
4.3.2 AC/DC converter . 16
4.3.3 DC converter . 16
4.3.4 3AC to 1AC converters . 16
4.3.5 1AC to 1AC converter . 17
4.3.6 1AC converter . 17
4.3.7 3AC converter . 18
5 Performance requirements . 18
5.1 Environmental conditions . 18
5.1.1 General . 18
5.1.2 Storage . 18
5.1.3 Transportation and Handling . 18
5.1.4 Normal conditions for operation including off-load periods . 18
5.1.5 Vibrations . 19
5.2 Insulation coordination . 19
5.2.1 Electric traction power supply system . 19
5.2.2 3AC power network . 20
5.2.3 LV systems . 20
5.3 Voltage conditions . 20
5.4 Frequency conditions . 20
5.5 Harmonics in connected systems . 20
5.5.1 General . 20
5.5.2 3AC power network side . 20
5.5.3 Traction power supply side . 21
5.6 Losses and efficiency. 21
5.7 Load requirements, duty class and load cycles . 21
5.7.1 General . 21
5.7.2 Rated current and duty class . 22
5.7.3 Load Cycle . 22

oSIST prEN IEC 62590-1:2024
IEC CDV 62590-1 © IEC: 2024 – 3 – 9/3043/CDV
5.8 Short time withstand current . 22
5.9 Cooling Methods . 22
5.9.1 General . 22
5.9.2 Letters to be used . 22
5.9.3 Arrangement of letters . 23
5.10 Interlocking . 24
5.11 Mechanical conditions . 24
5.11.1 General . 24
5.11.2 Earthing . 24
5.11.3 Degree of protection . 25
5.12 Failure modes . 25
5.13 Audible Sound . 26
5.14 Marking . 26
5.14.1 Rating plate . 26
5.14.2 Main circuit terminals . 26
6 Tests . 26
6.1 General requirements . 26
6.1.1 General . 26
6.1.2 Type test . 26
6.1.3 Routine test . 27
6.1.4 Overview of tests . 27
6.2 Test items . 27
6.2.1 Visual inspection . 27
6.2.2 Test of accessory and auxiliary components . 28
6.2.3 Insulation test . 28
6.2.4 Operational Sequence test . 29
6.2.5 Checking of protective functions . 29
6.2.6 Control function test . 29
6.2.7 Light Load functional test . 30
6.2.8 Load test . 30
6.2.9 Inherent voltage drop . 30
6.2.10 Temperature rise test . 30
6.2.11 Short time withstand current . 34
6.2.12 Power loss determination. 34
6.2.13 Audible Sound . 34
6.2.14 EMC test . 34
6.2.15 Harmonic test . 34
6.2.16 Power factor measurement . 34
6.2.17 Mechanical Test . 34
Annex A (normative) Standardized duty classes . 35
Annex B (informative) Duty cycle test with limited rate of rise . 36
B.1 Comparison of duty cycle with the test cycle . 36
Annex C (informative) Traction load and duty cycle . 38
C.1 Background . 38
C.2 Evaluation of traction load. 38
C.3 Transformation of time-weighted RMS into rated current and duty class. 40
C.4 Examples . 40
C.4.1 Evaluation of traction load . 40

oSIST prEN IEC 62590-1:2024
9/3043/CDV – 4 – IEC CDV 62590-1 © IEC: 2024
C.4.2 Benefit of using rated current I and duty class . 41
N
C.5 Transformation of traction load into a rated current in conjunction with a duty
class .
...
