Power losses in voltage sourced converter (VSC) valves for high-voltage direct current (HVDC) systems - Part 2: Modular multilevel converters

This part of IEC 62751 gives the detailed method to be adopted for calculating the power
losses in the valves for an HVDC system based on the “modular multi-level converter”, where
each valve in the converter consists of a number of self-contained, two-terminal controllable
voltage sources connected in series. It is applicable both for the cases where each modular
cell uses only a single turn-off semiconductor device in each switch position, and the case
where each switch position consists of a number of turn-off semiconductor devices in series
(topology also referred to as “cascaded two-level converter”). The main formulae are given for
the two-level “half-bridge” configuration but guidance is also given in Annex A as to how to
extend the results to certain other types of MMC building block configuration.
The standard is written mainly for insulated gate bipolar transistors (IGBTs) but may also be
used for guidance in the event that other types of turn-off semiconductor devices are used.
Power losses in other items of equipment in the HVDC station, apart from the converter
valves, are excluded from the scope of this standard.
This standard does not apply to converter valves for line-commutated converter HVDC
systems.

Bestimmung der Leistungsverluste in Spannungszwischenkreis-Stromrichtern (VSC) für Hochspannungsgleichstrom(HGÜ)-Systeme - Teil 2: Modulare Mehrpunkt-Stromrichter

Pertes de puissance dans les valves à convertisseur de source de tension (VSC) des systèmes en courant continu à haute tension (CCHT) - Partie 2: Convertisseurs multiniveaux modulaires

Ugotavljanje izgub moči v napetostnih pretvorniških ventilih za visokonapetostne enosmerne sisteme - 2. del: Modularni večnivojski pretvorniki (IEC 62751-2:2014/A1:2019)

Ta del standarda IEC 62751 podaja podrobno metodo, ki naj bi se sprejela za izračun izgub moči v ventilih za sistem HVDC na osnovi »modularnega večnivojskega pretvornika«, pri katerem je vsak ventil v pretvorniku sestavljen iz številnih zaporedno vezanih samostojnih, krmiljenih napetostnih virov z dvema priključkoma. Uporablja se v primerih, kjer je posamezna modularna celica uporablja samo eno izklopno polprevodniško napravo pri vsakem stikalnem položaju, in v primerih, kjer posamezni stikalni položaj vsebuje več zaporedno vezanih izklopnih polprevodniških naprav (topologija: imenovan tudi »kaskadni dvonivojski pretvornik«). Glavne formule so podane za dvonivojsko »pol mostično« konfiguracijo, vendar so v dodatku A podane tudi smernice, kako rezultate razširiti na določene druge vrste konfiguracije gradnikov MMC. Standard je zapisan zlasti za bipolarne tranzistorje z izoliranimi vrati (IGBT), vendar se lahko uporablja tudi za navodila v primeru, da se uporabljajo druge vrste izklopnih polprevodniškh naprav. Izgube moči v drugih elementih opreme v napravi HVDC, razen pretvorniških ventilov, so izključene iz področja uporabe tega standarda. Ta standard se ne uporablja za pretvorniške ventile za sisteme HVDC s pretvorniki z linijsko komutacijo.

General Information

Status
Withdrawn
Publication Date
26-Dec-2019
Withdrawal Date
26-Sep-2022
Technical Committee
Drafting Committee
Current Stage
6060 - Document made available - Publishing
Start Date
25-Oct-2019
Completion Date
25-Oct-2019

Relations

Buy Standard

Amendment
EN 62751-2:2014/A1:2020 - BARVE
English language
14 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day
Amendment
EN 62751-2:2014/oprA1:2018 - BARVE na PDF-str 10
English language
13 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 62751-2:2014/A1:2020
01-januar-2020
Ugotavljanje izgub moči v napetostnih pretvorniških ventilih za visokonapetostne
enosmerne sisteme - 2. del: Modularni večnivojski pretvorniki (IEC 62751-
2:2014/A1:2019)

Power losses in voltage sourced converter (VSC) valves for high-voltage direct current

(HVDC) systems - Part 2: Modular multilevel converters (IEC 62751-2:2014/A1:2019)

Bestimmung der Leistungsverluste in Spannungszwischenkreis-Stromrichtern (VSC) für

Hochspannungsgleichstrom(HGÜ)-Systeme - Teil 2: Modulare Mehrpunkt-Stromrichter
(IEC 62751-2:2014/A1:2019)

Pertes de puissance dans les valves à convertisseur de source de tension (VSC) des

systèmes en courant continu à haute tension (CCHT) - Partie 2: Convertisseurs
multiniveaux modulaires (IEC 62751-2:2014/A1:2019)
Ta slovenski standard je istoveten z: EN 62751-2:2014/A1:2019
ICS:
29.200 Usmerniki. Pretvorniki. Rectifiers. Convertors.
Stabilizirano električno Stabilized power supply
napajanje
29.240.01 Omrežja za prenos in Power transmission and
distribucijo električne energije distribution networks in
na splošno general
SIST EN 62751-2:2014/A1:2020 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 62751-2:2014/A1:2020
---------------------- Page: 2 ----------------------
SIST EN 62751-2:2014/A1:2020
EUROPEAN STANDARD EN 62751-2:2014/A1
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2019
ICS 29.200; 29.240
English Version
Power losses in voltage sourced converter (VSC) valves for
high-voltage direct current (HVDC) systems - Part 2: Modular
multilevel converters
(IEC 62751-2:2014/A1:2019)

Pertes de puissance dans les valves à convertisseur de Bestimmung der Leistungsverluste in

source de tension (VSC) des systèmes en courant continu Spannungszwischenkreis-Stromrichtern (VSC) für

à haute tension (CCHT) - Partie 2: Convertisseurs Hochspannungsgleichstrom(HGÜ)-Systeme - Teil 2:

multiniveaux modulaires Modulare Mehrpunkt-Stromrichter
(IEC 62751-2:2014/A1:2019) (IEC 62751-2:2014/A1:2019)

This amendment A1 modifies the European Standard EN 62751-2:2014; it was approved by CENELEC on 2019-09-27. CENELEC

members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the

status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the

responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as

the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the

Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2019 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN 62751-2:2014/A1:2019 E
---------------------- Page: 3 ----------------------
SIST EN 62751-2:2014/A1:2020
EN 62751-2:2014/A1:2019 (E)

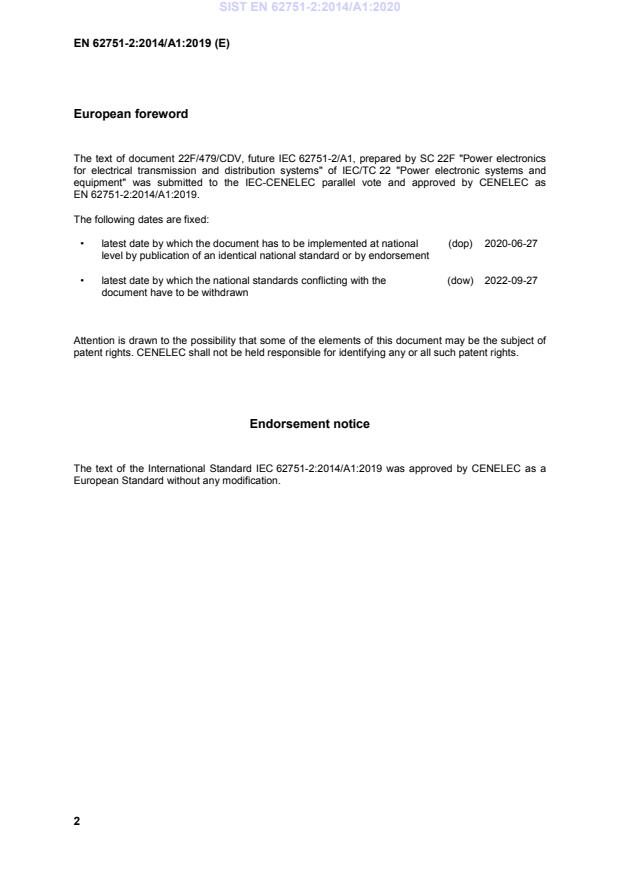

European foreword

The text of document 22F/479/CDV, future IEC 62751-2/A1, prepared by SC 22F "Power electronics

for electrical transmission and distribution systems" of IEC/TC 22 "Power electronic systems and

equipment" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as

EN 62751-2:2014/A1:2019.
The following dates are fixed:

• latest date by which the document has to be implemented at national (dop) 2020-06-27

level by publication of an identical national standard or by endorsement

• latest date by which the national standards conflicting with the (dow) 2022-09-27

document have to be withdrawn

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

Endorsement notice

The text of the International Standard IEC 62751-2:2014/A1:2019 was approved by CENELEC as a

European Standard without any modification.
---------------------- Page: 4 ----------------------
SIST EN 62751-2:2014/A1:2020
EN 62751-2:2014/A1:2019 (E)
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments)

applies.

NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the relevant

EN/HD applies.

NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:

www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 61803 - Determination of power losses in high- EN 61803 -
voltage direct current (HVDC) converter
stations
---------------------- Page: 5 ----------------------
SIST EN 62751-2:2014/A1:2020
---------------------- Page: 6 ----------------------
SIST EN 62751-2:2014/A1:2020
IEC 62751-2
Edition 1.0 2019-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
A MENDMENT 1
AM ENDEMENT 1
Power losses in voltage sourced converter (VSC) valves for high-voltage direct
current (HVDC) systems –
Part 2: Modular multilevel converters
Pertes de puissance dans les valves à convertisseur de source de tension (VSC)
des systèmes en courant continu à haute tension (CCHT) –
Partie 2: Convertisseurs multiniveaux modulaires
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.200; 29.240 ISBN 978-2-8322-7218-3

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 7 ----------------------
SIST EN 62751-2:2014/A1:2020
– 2 – IEC 62751-2:2014/AMD1:2019
© IEC 2019
FOREWORD

This amendment has been prepared by subcommittee 22F: Power electronics for electrical

transmission and distribution systems, of IEC technical committee 22: Power electronic

systems and equipment.
The text of this amendment is based on the following documents:
CDV Report on voting
22F/479/CDV 22F/488B/RVC

Full information on the voting for the approval of this amendment can be found in the report

on voting indicated in the above table.

The committee has decided that the contents of this amendment and the base publication will

remain unchanged until the stability date indicated on the IEC website under

"http://webstore.iec.ch" in the data related to the specific publication. At this date, the

publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
_____________
2 Normative references
Add the following new reference:

IEC 61803, Determination of power losses in high-voltage direct current (HVDC) converter

stations
3.1.11
no-load operating state
Add, after the existing definition, the following new note:

Note 1 to entry: In the no-load state, in principle no switching should occur as the valve is blocked. However, in

some designs, it may be necessary to make occasional switching operations to balance voltages between different

parts of the converter. Here, some losses may occur and need to be accounted for.

---------------------- Page: 8 ----------------------
SIST EN 62751-2:2014/A1:2020
IEC 62751-2:2014/AMD1:2019 – 3 –
© IEC 2019
4 General conditions
4.1 General

Replace, in the third sentence of the existing paragraph, the abbreviated term "CTLC" by

"CTL".
4.2 Principles for loss determination
Add, to the end of the first existing paragraph, the following new sentence:

The manufacturer shall justify, in the loss calculation report, how the uncertainties have been

considered.

Replace the last two sentences of the third existing paragraph by the following new sentences:

In practice, this measurement would require the use of state-of-the-art measurement

equipment that rivals the best equipment available at national metrology institutes. To date,

although some industry/academic partnership projects have demonstrated prototypes of

measurement equipment claiming sufficient accuracy, there is little industry experience with

using such equipment on site. The feasibility of using laboratory measurements on VSC

valves to support a more accurate determination of valve losses is now under study in

CIGRÉ WG B4-75.
4.4 Loss calculation method

Replace the first sentence of the existing second paragraph by the following new sentence:

An important requirement for such simulations is an accurate modelling of the system under

investigation.
4.5.2 Input data for numerical simulations
Replace the last item of the existing dash list by the following new items:

– For calculating converter valve currents and MMC building block capacitor currents, which

are the basis for the calculation of corresponding losses, it is sufficient to use a simplified

model in which the on-state and switching characteristics of the IGBTs and diodes are

represented by worst-case characteristics applicable to their maximum rated junction

temperature.

– For the detailed calculation of losses, the simulation shall also consider the junction

temperature dependent semiconductor properties, such as on-state voltages, switching

and recovery losses. These properties are based on the characterisation testing as

described in IEC 62751-1:2014, 4.4.2. The steady-state junction temperatures of the

semiconductors are calculated iteratively for the relevant operating point to derive the

semiconductor losses.
4.5.3 Input data coming from numerical simulations
Add, to the last existing paragraph, the following new sentence:

The mean and rms currents in IGBTs and diodes are not required if conduction losses in

IGBTs and diodes are calculated using polynomials as discussed in 5.1.
4.5.4 Converter station data
Add, to the sixth dash of the existing list, the words "(for CTL designs)".
---------------------- Page: 9 ----------------------
SIST EN 62751-2:2014/A1:2020
– 4 – IEC 62751-2:2014/AMD1:2019
© IEC 2019
Add, after the existing 4.5.5, the following new subclause:
4.6 Contents and structure of valve loss determination report

The manufacturer or bidder shall prepare and submit to the purchaser a detailed report

explaining how the losses in the VSC valves have been determined and including a

breakdown of the valve losses into the constituent parts P to P for each operating

V1 V9
condition at which losses are required to be guaranteed.

At the bid stage, and (where requested in the contract) after contract award but before the

manufacturing of valve components, the report shall document the assumptions used in

arriving at the calculated value of losses. After manufacturing, the report shall document the

actual values of test data derived from characterisation tests and routine tests on components.

Although a breakdown of the valve losses into the constituent parts P to P is requested,

V1 V9
only the total valve losses P shall be subject to financial evaluation.
A recommended list of data to be included in the report is presented in Annex B.
5.1 General
Add, after the existing Figure 2, the following new paragraphs:

To simplify the process of mathematically analysing conduction losses, the on-state voltage of

IGBTs and diodes is usually represen
...

SLOVENSKI STANDARD
SIST EN 62751-2:2014/oprA1:2018
01-april-2018
8JRWDYOMDQMHL]JXEPRþLYQDSHWRVWQLKSUHWYRUQLãNLKYHQWLOLK]DYLVRNRQDSHWRVWQH
HQRVPHUQHVLVWHPHGHO0RGXODUQLYHþQLYRMVNLSUHWYRUQLNL

Power losses in voltage sourced converter (VSC) valves for high-voltage direct current

(HVDC) systems - Part 2: Modular multilevel converters

Bestimmung der Leistungsverluste in Spannungszwischenkreis-Stromrichtern (VSC) für

Hochspannungsgleichstrom(HGÜ)-Systeme - Teil 2: Modulare Mehrpunkt-Stromrichter

Pertes de puissance dans les valves à convertisseur de source de tension (VSC) des

systèmes en courant continu à haute tension (CCHT) - Partie 2: Convertisseurs
multiniveaux modulaires
Ta slovenski standard je istoveten z: EN 62751-2:2014/prA1:2018
ICS:
29.200 8VPHUQLNL3UHWYRUQLNL Rectifiers. Convertors.
6WDELOL]LUDQRHOHNWULþQR Stabilized power supply
QDSDMDQMH
29.240.01 2PUHåMD]DSUHQRVLQ Power transmission and
GLVWULEXFLMRHOHNWULþQHHQHUJLMH distribution networks in
QDVSORãQR general
SIST EN 62751-2:2014/oprA1:2018 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 62751-2:2014/oprA1:2018
---------------------- Page: 2 ----------------------
SIST EN 62751-2:2014/oprA1:2018
22F/479/CDV
COMMITTEE DRAFT FOR VOTE (CDV)
PROJECT NUMBER:
IEC 62751-2/AMD1 ED1
DATE OF CIRCULATION: CLOSING DATE FOR VOTING:
2018-02-02 2018-04-27
SUPERSEDES DOCUMENTS:
22F/454/CD,22F/462/CC

IEC SC 22F : POWER ELECTRONICS FOR ELECTRICAL TRANSMISSION AND DISTRIBUTION SYSTEMS

SECRETARIAT: SECRETARY:
Russian Federation Mr Lev Travin
OF INTEREST TO THE FOLLOWING COMMITTEES: PROPOSED HORIZONTAL STANDARD:
TC 115
Other TC/SCs are requested to indicate their interest, if any,
in this CDV to the secretary.
FUNCTIONS CONCERNED:
EMC ENVIRONMENT QUALITY ASSURANCE SAFETY

SUBMITTED FOR CENELEC PARALLEL VOTING NOT SUBMITTED FOR CENELEC PARALLEL VOTING

Attention IEC-CENELEC parallel voting
The attention of IEC National Committees, members of
CENELEC, is drawn to the fact that this Committee Draft for
Vote (CDV) is submitted for parallel voting.
The CENELEC members are invited to vote through the
CENELEC online voting system.

This document is still under study and subject to change. It should not be used for reference purposes.

Recipients of this document are invited to submit, with their comments, notification of any relevant patent rights of which they

are aware and to provide supporting documentation.
TITLE:

Power losses in voltage sourced converter (VSC) valves for high-voltage direct current (HVDC) systems -

Part 2: Modular multilevel converters
PROPOSED STABILITY DATE: 2025
NOTE FROM TC/SC OFFICERS:

This document is circulated as a CDV in accordance with the decision taken at SC 22F meeting held in Xi'an,

China, on October 23-24, 2017 (see 22F/472/RM, Item 9, Decision 2017-07, Action 2017-04). The Working Draft

of the Amendment was developed by SC 22F Maintenance Team 31 (convenor Mr. Colin Davidson, Great

Britain).

Copyright © 2018 International Electrotechnical Commission, IEC. All rights reserved. It is permitted to download this

electronic file, to make a copy and to print out the content for the sole purpose of preparing National Committee positions.

You may not copy or "mirror" the file or printed version of the document, or any part of it, for any other purpose without

permission in writing from IEC.
---------------------- Page: 3 ----------------------
SIST EN 62751-2:2014/oprA1:2018

62751-2/Ed1/A1/CDV © IEC (E) - 2 - 22F/479/CDV

1 FOREWORD

2 This amendment has been prepared by subcommittee 22F: Power electronics for electrical

3 transmission and distribution systems, of IEC technical committee 22: Power electronic

4 systems and equipment.
5 The text of this amendment is based on the following documents:
FDIS Report on voting
22F/xxx/FDIS 22F/xxx/RVD

7 Full information on the voting for the approval of this amendment can be found in the report

8 on voting indicated in the above table.

9 The committee has decided that the contents of this amendment and the base publication will

10 remain unchanged until the stability date indicated on the IEC web site under

11 "http://webstore.iec.ch" in the data related to the specific publication. At this date, the

12 publication will be
13 • reconfirmed,
14 • withdrawn,
15 • replaced by a revised edition, or
16 • amended.
---------------------- Page: 4 ----------------------
SIST EN 62751-2:2014/oprA1:2018

62751-2/Ed1/A1/CDV © IEC (E) - 3 - 22F/479/CDV

29 3 Terms, definitions, symbols and abbreviated terms
30 3.1.11
31 no-load operating state
32 Add note:

33 NOTE: In the no-load state, in principle no switching should occur as the valve is blocked. However in some

34 designs it may be necessary to make occasional switching operations to balance voltages between different parts

35 of the converter. Here some losses may occur and need to be accounted for.
36 4 General conditions
37 4.1 General
38 Replace the abbreviation “CTLC” by “CTL”.
39 Replace “IEC TR 62543” by “IEC/TR 62543”.
40 4.2 Principles for loss determination
41 Add to the end of the first paragraph:

42 The manufacturer shall justify, in the loss calculation report, how the uncertainties have been

43 considered.
44 Replace the last two sentences of the third paragraph by:

45 In practice this measurement would require the use of state-of-the-art measurement

46 equipment that rivals the best equipment available at national metrology institutes. To date,

47 although some industry/academic partnership projects have demonstrated prototypes of

48 measurement equipment claiming sufficient accuracy, there is little industry experience with

49 using such equipment on site. The feasibility of using laboratory measurements on VSC

50 valves to support a more accurate determination of valve losses is now under study in CIGRÉ

51 WG B4-75.
52 4.4 Loss calculation method
53 Replace the first sentence of the second paragraph by:

54 An important requirement for such simulations is an accurate modelling of the system under

55 investigation.
56 4.5.2 Input data for numerical simulations
57 Replace the last item of the bulleted list by:

58 - For calculating converter valve currents and MMC building block capacitor currents,

59 which are the basis for the calculation of corresponding losses, it is sufficient to use a

60 simplified model in which the on-state and switching characteristics of the IGBTs and

61 diodes are represented by worst-case characteristics applicable to their maximum

62 rated junction temperature.

63 - For the detailed calculation of losses, the simulation shall also consider the junction

64 temperature dependent semiconductor properties, such as on-state voltages,

65 switching and recovery losses. These properties are based on the characterisation

66 testing as described in IEC 62751-1:2014, 4.4.2. The steady-state junction

67 temperatures of the semiconductors are calculated iteratively for the relevant

68 operating point to derive the semiconductor losses.
69 4.5.3 Input data coming from numerical simulations
70 Add, after the last sentence:

71 The mean and rms currents in IGBTs and diodes are not required if conduction losses in

72 IGBTs and diodes are calculated using polynomials as discussed in 5.1.
---------------------- Page: 5 ----------------------
SIST EN 62751-2:2014/oprA1:2018

62751-2/Ed1/A1/CDV © IEC (E) - 4 - 22F/479/CDV

73 4.5.4 Converter station data
74 Change the sixth bullet point of the list to read:
75 number of VSC levels per cell (for CTL designs);
76 Add new sub-clause:
77 4.6 Contents and structure of valve loss determination report

78 The manufacturer or bidder shall prepare and submit to the purchaser a detailed report

79 explaining how the losses in the VSC valves have been determined and including a

80 breakdown of the valve losses into the constituent parts P to P for each operating

V1 V9
81 condition at which losses are required to be guaranteed.

82 At the bid stage, and (where requested in the contract) after contract award but before the

83 manufacturing of valve components, the report shall document the assumptions used in

84 arriving at the calculated value of losses. After manufacturing, the report shall document the

85 actual values of test data derived from characterisation tests and routine tests on components.

86 Although a breakdown of the valve losses into the constituent parts P to P is requested,

V1 V9
87 only the total valve losses P shall be subject to financial evaluation.

88 A recommended list of data to be included in the report is presented in Annex B,

89 5 Conduction losses
90 5.1 General
91 Add at the end of 5.1:

92 To simplify the process of mathematically analysing conduction losses, the on-state voltage of

93 IGBTs and diodes is usually represented as a piecewise-linear approximation with a threshold

94 voltage V and a slope resistance R , as shown on Figure 2 of IEC 62751-1.
0 0

95 It is possible to obtain greater accuracy by using a more exact model of the device on-state

96 voltage (for example, using a polynomial function to represent the on-state voltage) rather

97 than the piecewise linear approximation, and then performing a direct numerical integration.

98 However, the piecewise-linear approximation is preferred because it simplifies the calculation

99 process, allows greater transparency and still permits good accuracy to be obtained, provided

100 the measurements used to derive the piecewise-linear approximation are made at appropriate

101 values of current. Therefore it is recommended that V and R are determined by measuring

0 0

102 on-state voltage at 100 % and 33 % of the device rated current and performing a linear

103 extrapolation.

104 In the event that the purchaser prefers to use the more accurate method using a polynomial

105 function then this shall be clearly stated in the purchasing specification and all bidders are

106 expected to calculate power losses in a comparable way.
107 5.2 IGBT conduction loss

108 Replace all text and equations (2) – (5) after explanations of values for equation (1) by:

109 By means of numerical simulation the currents shall be calculated for the IGBTs T1 and T2 for

110 each MMC building block, respectively:
t (2)
111 I = ⋅ i (t)⋅ dt
T1av T1
t (3)
112 I = ⋅ i (t)⋅ dt
T2av T2
---------------------- Page: 6 ----------------------
SIST EN 62751-2:2014/oprA1:2018

62751-2/Ed1/A1/CDV © IEC (E) - 5 - 22F/479/CDV

t (4)
113 I = ⋅ i (t) ⋅ dt
T1rms T1
i 0
t (5)
114 I = ⋅ i (t) ⋅ dt
T2rms T2
115 where
116 t is the integration time used in the simulation;
117 t shall not be less than 1 s.

118 If different IGBT types are used for T1 and T2, corresponding values for threshold voltages

119 and slope resistances shall be used accordingly.
120 5.3 Diode conduction losses

121 Replace all text and equations (7) – (10) after explanations of values for equation (6) by:

122 By means of numerical simulation the currents shall be calculated for the diodes D1 and D2

123 for each MMC building block, respectively:

124 I = ⋅ i (t)⋅ dt (7)

D1av D1

125 I = ⋅ i (t)⋅ dt (8)

D2av D2

126 (9)

I = ⋅ i (t) ⋅ dt
D1rms D1

127 (10)

I = ⋅ i (t) ⋅ dt
D2rms D2
128 where
129 t is the integration time used in the simulation;
130 t shall not be less than 1 s.

131 If different diode types are used for D1 and D2, corresponding values for threshold voltages

132 and slope resistances shall be used accordingly.
133 5.4 Other conduction losses
134 Replace the second sentence of the first paragraph by:

135 For modular multi-level converters this mainly consists of interconnecting busbars. Losses in

136 valve reactors shall be considered separately from valve losses and calculated using the

137 principles defined for AC filter reactors in IEC 61803.
138 9 Other losses
139 9.1 Snubber circuit losses
140 Replace the note by the following, and include it in the main text:
---------------------- Page: 7 ----------------------
SIST EN 62751-2:2014/oprA1:2018

62751-2/Ed1/A1/CDV © IEC (E) - 6 - 22F/479/CDV

141 Including a snubber parallel to a VSC valve level influences the turn-on/turn-off behaviour of

142 the IGBT/diode which means that the snubber circuits shall be correctly represented during

143 the characterisation tests on the semiconductor devices.
144 9.2.1 General
145 Replace the first sentence of the fourth paragraph by:

146 The power consumption of each valve electronics unit should be determined by direct

147 measurement on a sample of real valve electronics units under representative switching

148 conditions (voltage, current, switching frequency etc). Tests shall be performed on a

149 minimum quantity of valve electronics units equivalent to five submodules or 10 VSC valve

150 levels (for the CTL design).
151 Annex A: Description of power loss mechanisms in MMC valves
152 A.1 Introduction to MMC Converter topology
153 Figure A.2
154 Replace “VSC valve leve” by “VSC valve level”.
155 Figure A.3
156 Replace “I ” by “I ”.
L C
157 A.2.1 Simplified analysis with voltage and current in phase
158 Figure A.4
159 Replace “I G ” by “I × ”.
L C
160 Replace “I /3+I × ≈ I ” by “I /3+ I × ≈ I ”
d L dc d C dc
161 A.2.3 Effects of third harmonic injection
162 Figure A.6
163 Replace “I ” by “I ”.
L C
164 A.3.1 Description of conduction paths
165 Figure A.9
166 Replace the existing title of Figure 9

167 Typical patterns of conduction for inverter operation (left) and rectifier operation (right)

168 by a new title:

169 Typical patterns of conduction for inverter operation (left) and rectifier operation (right), based

170 on the submodule configuration of Figure A.7 (a).
171 Figure A.10
172 Replace “I ” by “I ”.
L C
173 Replace the first sentence in paragraph 5 from the end of subclause A.3.1:

174 All series connected MMC building blocks will be stressed with the same switching events, but

175 at different occasions.
176 by the following sentence

177 Although different MMC building blocks in the valve experience switching events at different

178 times, on average the stress is the same on all series-connected MMC building blocks in the

179 valve.
---------------------- Page: 8 ----------------------
SIST EN 62751-2:2014/oprA1:2018

62751-2/Ed1/A1/CDV © IEC (E) - 7 - 22F/479/CDV

180 A.3.2.1 Approximate analytical solution
181 Replace the existing text of A.3.2.1 by the following text:

182 It will be noted from Figure A.8 that at any time there is always one, and only one, current

183 path conducting in
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
