TECHNICAL REPORT
CLC/TR 50501-2
RAPPORT TECHNIQUE
August 2012
TECHNISCHER BERICHT
ICS 35.240.60; 45.020
English version
Railway applications -
Rolling stock -
Intercommunication between vehicles and train/wayside -
Part 2: Technical contents of standardization work in the field of
intercommunication
Applications ferroviaires -  Bahnanwendungen -
Matériel roulant - Interkommunikation zwischen Fahrzeugen
Communications entre véhicules et und Fahrweg -
communications sol/train - Teil 2: Technischer Inhalt der Normung
Partie 2: Contenu technique du travail de auf dem Gebiet der Interkommunikation
normalisation dans le domaine de la
communication
This Technical Report was approved by CENELEC on 2012-02-13.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2012 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. CLC/TR 50501-2:2012 E

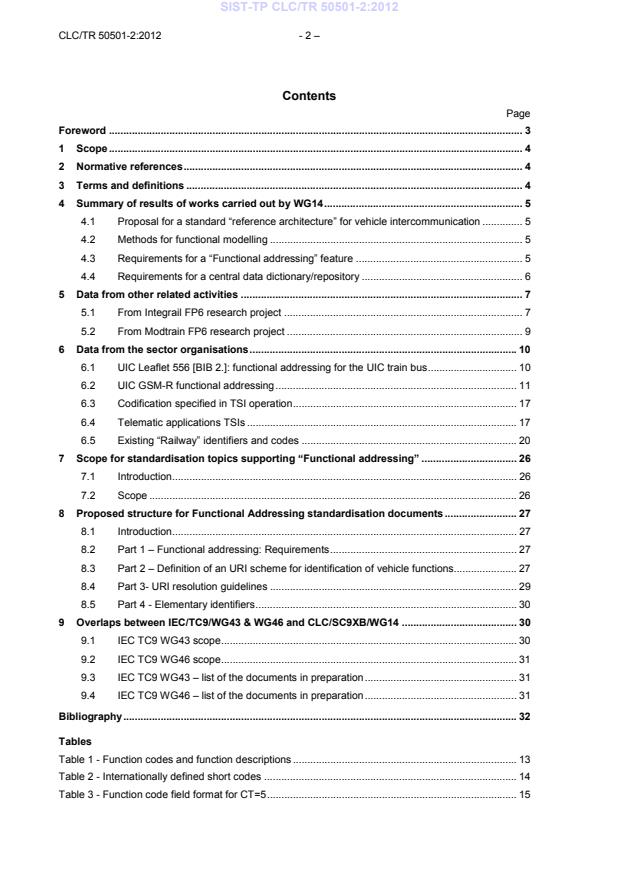

Contents
Page
Foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Summary of results of works carried out by WG14 . 5
4.1 Proposal for a standard “reference architecture” for vehicle intercommunication . 5
4.2 Methods for functional modelling . 5
4.3 Requirements for a “Functional addressing” feature . 5
4.4 Requirements for a central data dictionary/repository . 6
5 Data from other related activities . 7
5.1 From Integrail FP6 research project . 7
5.2 From Modtrain FP6 research project . 9
6 Data from the sector organisations . 10
6.1 UIC Leaflet 556 [BIB 2.]: functional addressing for the UIC train bus . 10
6.2 UIC GSM-R functional addressing . 11
6.3 Codification specified in TSI operation . 17
6.4 Telematic applications TSIs . 17
6.5 Existing “Railway” identifiers and codes . 20
7 Scope for standardisation topics supporting “Functional addressing” . 26
7.1 Introduction . 26
7.2 Scope . 26
8 Proposed structure for Functional Addressing standardisation documents . 27
8.1 Introduction . 27
8.2 Part 1 – Functional addressing: Requirements . 27
8.3 Part 2 – Definition of an URI scheme for identification of vehicle functions. 27
8.4 Part 3- URI resolution guidelines . 29
8.5 Part 4 - Elementary identifiers . 30
9 Overlaps between IEC/TC9/WG43 & WG46 and CLC/SC9XB/WG14 . 30
9.1 IEC TC9 WG43 scope . 30
9.2 IEC TC9 WG46 scope . 31
9.3 IEC TC9 WG43 – list of the documents in preparation . 31
9.4 IEC TC9 WG46 – list of the documents in preparation . 31
Bibliography . 32
Tables
Table 1 - Function codes and function descriptions . 13
Table 2 - Internationally defined short codes . 14
Table 3 - Function code field format for CT=5 . 15

- 3 - CLC/TR 50501-2:2012
Foreword
This document (CLC/TR 50501-2:2012) has been prepared by CLC/SC 9XB "Electromechanical material on
board rolling stock", of CLC/TC 9X, "Electrical and electronic applications for railways".
It provides information asked for by resolutions 33/03 and 34/04 of SC9XB.

Rev. Status Date Author Modified Modification description
(sub)clause
number
V1 First draft 2008/07/16 G. Demars
V2 Second 2008/10/15 G. Demars Intro, 4.1; Updates, and corrections
draft Annex A following comments of S.
Ingenhorst
V3 Third draft 2009/11/16 G. Demars All Incorporation of information
collected from InteGRail
project, and sector
organisations
V4.1 Fourth draft 2009/12/11 G. Demars 4.4 Update after WG14 meeting #21
V4.2  G. Demars 6.2 Addition § functional open
coupling
V4.3 Working 2010/01/29 G.Demars various Remarks on remaining actions
version
V4.4 Final 2010/05/12 JL Profizi 6.4 Inserted Mr Demars paragraphs
V4 draft on telematics in 6.4
Submitted to WG14 approval
V4.5 Final 2011/08/18 JL Profizi 10 Re-shaping of the bibliography
version as Clause 10 and references
marked in yellow in the text .

1 Scope
The scope of this Technical Report is to summarize all available data on standardization work in the field of
Intercommunication including
1. the results of work of WG B14 carried out so far,
2. data from other related activities such as the research projects MODTRAIN and INTEGRAIL,
3. data from the sector organisation TMP.
NOTE “TMP”, Technical Management Platform, is one of the structures created by the rail representatives associations in order to
express common views on TSI open issues or standardization work programs (not active anymore).
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
CLC/TR 50501-1:2007, Railway applications - Rolling stock - Intercommunication between vehicles and
train/wayside - Part 1: Data dictionary and rules for functional standardisation
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
consist
train set
rake of coaches
single vehicle or a group of vehicles which are not separated during normal operation.
Note 1 to entry: A consist contains no, one or several consist networks.
assembly of vehicles (may be reduced to a single vehicle), which are permanently coupled while in service,
and fitted with a “vehicle communication system”, linking the devices, and providing one interface with the
train level (such a communication system may be a vehicle bus, spanning over all the vehicle of the consist).
Note 2 to entry: A physical consist which is not capable of data communication with other consist or ground installation is not in the
scope of the Reference Architecture. A consist is described by a set of static properties (as in UIC Leaflet 556 [BIB 2.])
3.2
entity
anything of interest (such as a person, material object, place or process) within a given domain of
discourse.
Note 1 to entry: An entity class is a stereotyped class used to model long-lived information that may be persistent. An entity is said
complex when it can be described by at least two other entities. Otherwise, it is called a simple entity or primitive
3.3
functional requirement
an action that the target system is able to perform
3.4
functional specification
specification of functions performed by the entities in a given application, in a manner that is independent of
the technology adopted to implement the specified functions

- 5 - CLC/TR 50501-2:2012
3.5
train
assembly of coupled consists (may be reduced to a single consist), configured for autonomous operation on
the railway system. and in use for an operational mission; the train is a dynamic object, identified with a “train
running number”, active only during its operational mission
4 Summary of results of works carried out by WG14
The main results of works carried out by WG14 so far, are documented in CLC/TR 50501-1, and are
summarised below:
4.1 Proposal for a standard “reference architecture” for vehicle intercommunication
Functions which are in the scope of this series of standards are supported by distributed applications.
Functional standardisation activities are supported by production of functional models.
The elaboration of a functional model for a specific function of the railway system, belonging to categories
STD2 and STD3 defined in the global scope of WG14, shall use a “reference architecture”.
The purpose of this Reference Architecture is to support the standardisation of the communication
procedures between vehicles and train/wayside.
To provide a common understanding among the standardisation working groups, this reference architecture
includes
• a list of the interacting entities which are considered in the reference architecture
o rolling stock entities: train, vehicles, devices,
o external entities interacting with rolling stock entities
o interfaces considered in the reference architecture because they are “interoperability
relevant”
4.2 Methods for functional modelling
The functional modelling framework which is described is derived from MODTRAIN European project results.
This framework is intended to provide a “common language” for the experts involved functional
standardisation of “communication” rail vehicle functions with interoperability constraints (i.e in the scope of
further standardisation works).
4.3 Requirements for a “Functional addressing” feature
Functional addressing was identified as an important issue in CLC/TR 50501-1:2007, 4.3, 4.5.4, and 5.4.2.
Annex B is dedicated to functional addressing in GSM-R and UIC leaflet 556. Is to be noted that GSM-R
consider “functional addressing” as one of the main “railway specific feature” which has been added to the
standard GSM communication system.
Requirements relative to functional addressing, already given in CLC/TR 50501-1, are
• a functional addressing scheme should be provided, which permits entities to be identified by a
“name”, used as a “functional address”, representative of their functional roles rather than by
“numbers” tied to the interface equipment they are using;
• use of functional addressing will include identifying on-train functions and other users performing
particular roles such as train driver, passenger, train conductor, etc.;

NOTE  Communications protocols not belonging to the “application levels”, which are using functional addresses, and are necessary for
the implementation of communications systems, sh
...
