Overview

EN 60300-3-12:2011 (IEC 60300-3-12:2011) is an application guide within the dependability management series that explains how to establish an Integrated Logistic Support (ILS) management system. The standard is intended for a wide range of suppliers - large and small - who need to deliver items optimized for the purchaser and supplier across the complete life cycle. This edition improves the overview of the entire ILS process and aligns the guidance with later dependability standards.

Key topics and technical requirements

The standard provides practical guidance and structured topics that support ILS implementation and logistic support analysis (LSA). Major technical topics include:

• Principles and objectives of ILS - defining the scope and purpose of integrated logistic support to improve supportability and life‑cycle performance.
• Planning and management - management structure, responsibilities, documentation control and review procedures for an ILS program.
• Logistic Support Analysis (LSA) - methodologies for identifying, recording and analysing logistic requirements and supportability factors throughout life‑cycle phases.
• Identification of maintenance and support activities - techniques for defining Maintenance Support Tasks (MST), post‑production support (PPS) and trade‑off studies to select optimal support options.
• Verification and acceptance - strategies for verifying logistic supportability, test and evaluation procedures and monitoring of field data.
• ILS outputs - required outputs used to influence design and deliver support elements: maintenance plans, provisioning of spares, support equipment, training and certification, technical documentation, facilities, packaging/handling/storage/transportation (PHS&T) and software support.
• LSA database and configuration management - guidance on data format, interfaces, tailoring and configuration control for the LSA database.
• Supportability reporting - templates and reporting to capture customer constraints, harmonization, improvement opportunities and technological options.

Applications and who should use it

EN 60300-3-12 is practical for organizations and roles that manage product life‑cycle support and dependability, including:

• Systems engineers, ILS engineers and logistic support analysts
• Maintenance planners and reliability/maintainability engineers
• Procurement and program managers specifying life‑cycle requirements
• Suppliers in defence, transportation, industrial equipment and complex electronics
• Small and medium enterprises seeking competitive, life‑cycle‑optimized product offers

Using this standard helps teams reduce through‑life costs, improve availability and ensure supportability requirements are embedded early in design.

Related standards

EN 60300-3-12 is part of the IEC 60300 dependability series and references related guides such as:

• IEC/EN 60300-3-1, -3-2, -3-3, -3-4, -3-10, -3-11, -3-14, -3-16
• IEC 60706 series (maintainability), IEC 60812 (FMEA), IEC 62402 (obsolescence management), IEC 62508 (human aspects of dependability)

Keywords: EN 60300-3-12, IEC 60300-3-12, integrated logistic support, ILS management system, logistic support analysis, LSA database, dependability management, supportability, maintenance support.

Standards Content (Sample)

SLOVENSKI STANDARD
01-maj-2011
1DGRPHãþD
SIST EN 60300-3-12:2004
9RGHQMH]DJRWRYOMLYRVWLGHO9RGLOR]DXSRUDER,QWHJULUDQDORJLVWLþQD
SRGSRUD,(&
Dependability management - Part 3-12: Application guide - Integrated logistic support
(IEC 60300-3-12:2011)
Zuverlässigkeitsmanagement - Teil 3-12: Anwendungsleitfaden - Integrierte logistische
Unterstützung (IEC 60300-3-12:2011)
Gestion de la sûreté de fonctionnement - Partie 3-12: Guide d'application - Soutien
logistique intégré (CEI 60300-3-12:2011)
Ta slovenski standard je istoveten z: EN 60300-3-12:2011
ICS:
03.120.01 Kakovost na splošno Quality in general
21.020 =QDþLOQRVWLLQQDþUWRYDQMH Characteristics and design of
VWURMHYDSDUDWRYRSUHPH machines, apparatus,
equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 60300-3-12
NORME EUROPÉENNE
March 2011
EUROPÄISCHE NORM
ICS 03.120.30; 21.020 Supersedes EN 60300-3-12:2004

English version
Dependability management -
Part 3-12: Application guide -
Integrated logistic support
(IEC 60300-3-12:2011)
Gestion de la sûreté de fonctionnement - Zuverlässigkeitsmanagement -
Partie 3-12: Guide d'application - Teil 3-12: Anwendungsleitfaden -
Soutien logistique intégré Integrierte logistische Unterstützung
(CEI 60300-3-12:2011) (IEC 60300-3-12:2011)

This European Standard was approved by CENELEC on 2011-03-24. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2011 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60300-3-12:2011 E

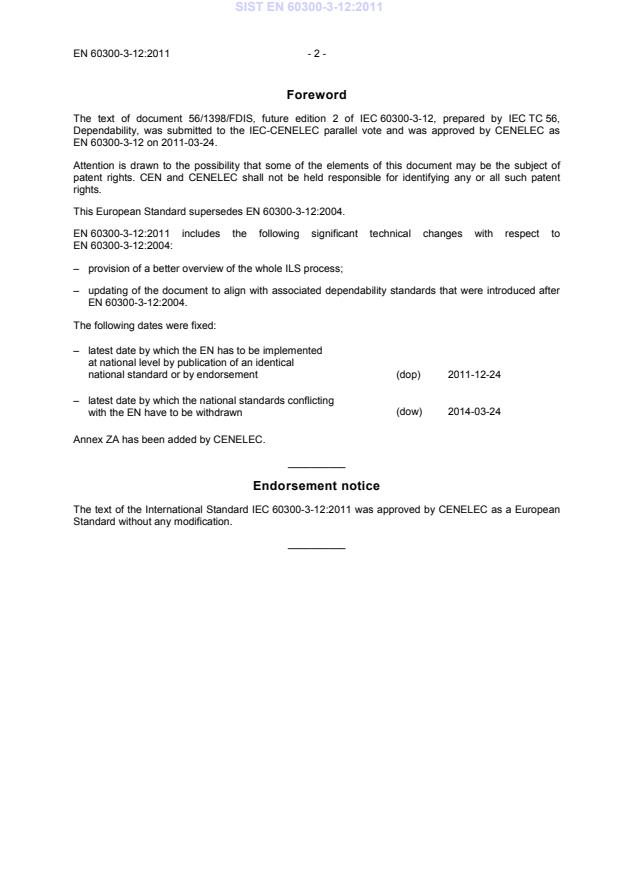

Foreword
