Standards Content (Sample)

ETSI TR 100 392-17-6 V1.2.1 (2022-05)

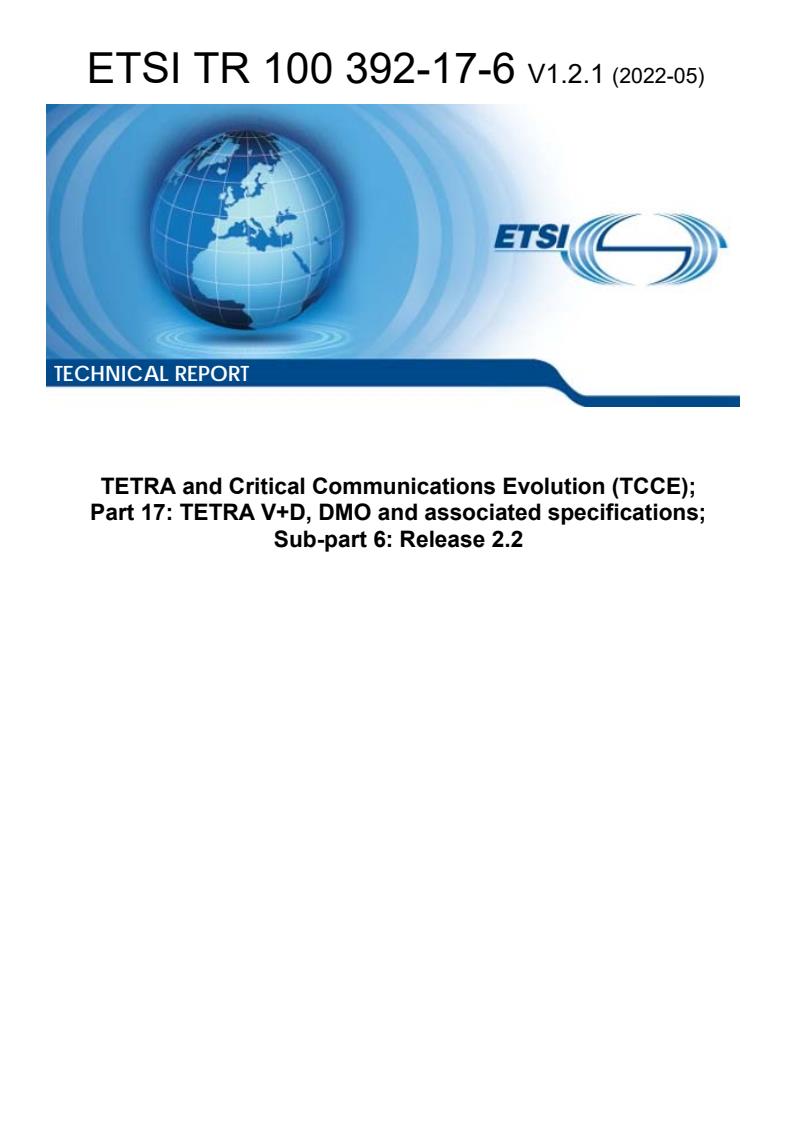

TECHNICAL REPORT
TETRA and Critical Communications Evolution (TCCE);
Part 17: TETRA V+D, DMO and associated specifications;
Sub-part 6: Release 2.2

---------------------- Page: 1 ----------------------
2 ETSI TR 100 392-17-6 V1.2.1 (2022-05)

Reference
RTR/TCCE-00252
Keywords
air interface, TETRA, V+D

ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure Program:
https://www.etsi.org/standards/coordinated-vulnerability-disclosure
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
No representation or warranty is made that this deliverable is technically accurate or sufficient or conforms to any law
and/or governmental rule and/or regulation and further, no representation or warranty is made of merchantability or fitness
for any particular purpose or against infringement of intellectual property rights.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2022.
All rights reserved.

ETSI

---------------------- Page: 2 ----------------------
3 ETSI TR 100 392-17-6 V1.2.1 (2022-05)

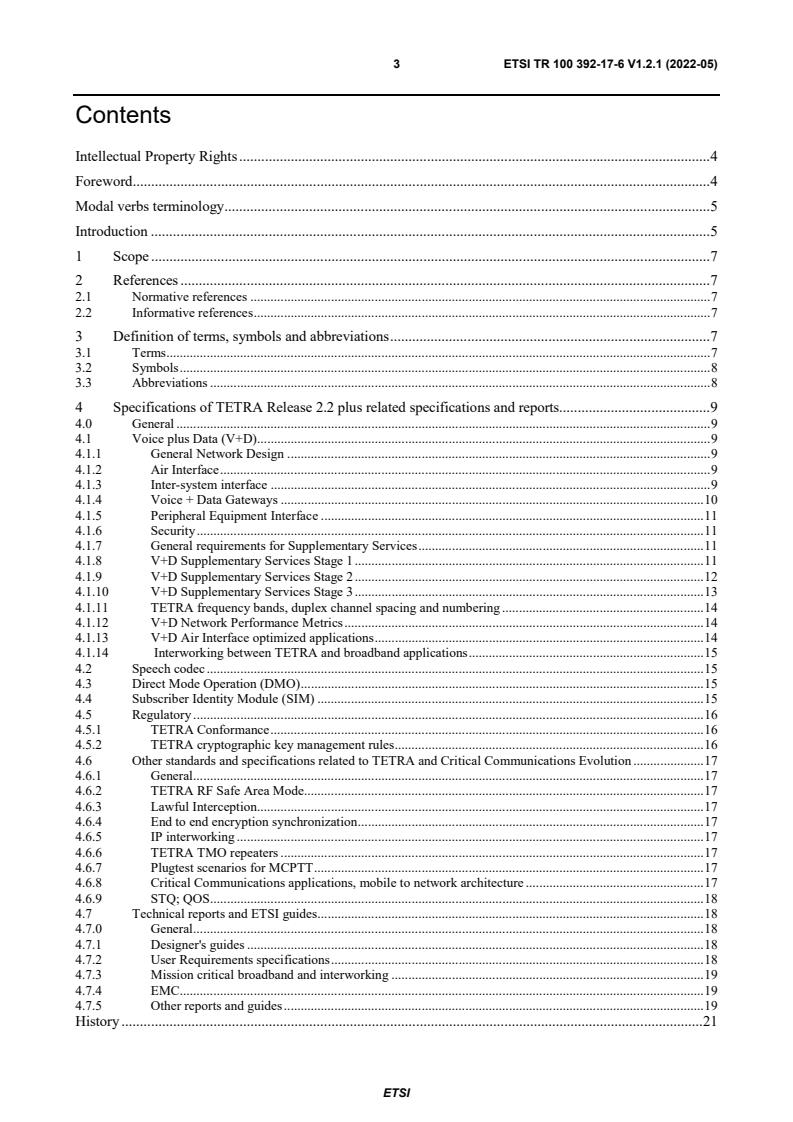

Contents
Intellectual Property Rights . 4
Foreword . 4
Modal verbs terminology . 5
Introduction . 5
1 Scope . 7
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 7
3 Definition of terms, symbols and abbreviations . 7
3.1 Terms . 7
3.2 Symbols . 8
3.3 Abbreviations . 8
4 Specifications of TETRA Release 2.2 plus related specifications and reports. 9
4.0 General . 9
4.1 Voice plus Data (V+D). 9
4.1.1 General Network Design . 9
4.1.2 Air Interface . 9
4.1.3 Inter-system interface . 9
4.1.4 Voice + Data Gateways . 10
4.1.5 Peripheral Equipment Interface . 11
4.1.6 Security . 11
4.1.7 General requirements for Supplementary Services . 11
4.1.8 V+D Supplementary Services Stage 1 . 11
4.1.9 V+D Supplementary Services Stage 2 . 12
4.1.10 V+D Supplementary Services Stage 3 . 13
4.1.11 TETRA frequency bands, duplex channel spacing and numbering . 14
4.1.12 V+D Network Performance Metrics . 14
4.1.13 V+D Air Interface optimized applications . 14
4.1.14 Interworking between TETRA and broadband applications . 15
4.2 Speech codec . 15
4.3 Direct Mode Operation (DMO) . 15
4.4 Subscriber Identity Module (SIM) . 15
4.5 Regulatory . 16
4.5.1 TETRA Conformance . 16
4.5.2 TETRA cryptographic key management rules . 16
4.6 Other standards and specifications related to TETRA and Critical Communications Evolution . 17
4.6.1 General . 17
4.6.2 TETRA RF Safe Area Mode. 17
4.6.3 Lawful Interception. 17
4.6.4 End to end encryption synchronization . 17
4.6.5 IP interworking . 17
4.6.6 TETRA TMO repeaters . 17
4.6.7 Plugtest scenarios for MCPTT . 17
4.6.8 Critical Communications applications, mobile to network architecture . 17
4.6.9 STQ; QOS . 18
4.7 Technical reports and ETSI guides . 18
4.7.0 General . 18
4.7.1 Designer's guides . 18
4.7.2 User Requirements specifications . 18
4.7.3 Mission critical broadband and interworking . 19
4.7.4 EMC. 19
4.7.5 Other reports and guides . 19
History . 21

ETSI

---------------------- Page: 3 ----------------------
4 ETSI TR 100 392-17-6 V1.2.1 (2022-05)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the
®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
This Technical Report (TR) has been produced by ETSI Technical Committee TETRA and Critical Communications
Evolution (TCCE).
The present document is part 17, sub-part 6 of a multi-part deliverable covering Terrestrial Trunked Radio (TETRA);
Voice plus Data (V+D), as identified below:
ETSI EN 300 392-1: "General network design";
ETSI EN 300 392-2: "Air Interface (AI)";
ETSI EN 300 392-3: "Interworking at the Inter-System Interface (ISI)";
ETSI ETS 300 392-4: "Gateways basic operation";
ETSI EN 300 392-5: "Peripheral Equipment Interface (PEI)";
ETSI EN 300 392-7: "Security";
ETSI EN 300 392-9: "General requirements for supplementary services";
ETSI EN 300 392-10: "Supplementary services stage 1";
ETSI EN 300 392-11: "Supplementary services stage 2";
ETSI EN 300 392-12: "Supplementary services stage 3";
ETSI ETS 300 392-13: "SDL model of the Air Interface (AI)";
ETSI ETS 300 392-14: "Protocol Implementation Conformance Statement (PICS) proforma specification";
ETSI TS 100 392-15: "TETRA frequency bands, duplex spacings and channel numbering";
ETSI TS 100 392-16: "Network Performance Metrics";
ETSI

---------------------- Page: 4 ----------------------
5 ETSI TR 100 392-17-6 V1.2.1 (2022-05)
ETSI TR 100 392-17: "TETRA V+D, DMO and associated specifications":
Sub-part 1: "Release 1.1";
Sub-part 2: "Release 1.2";
Sub-part 3: "Release 1.3";
Sub-part 4: "Release 2.0";
Sub-part 5: "Release 2.1";
Sub-part 6: "Release 2.2";
ETSI TS 100 392-18: "Air interface optimized applications".
ETSI TS 100 392-19: "Interworking between TETRA and Broadband systems".
NOTE 1: Part 3, sub-parts 6 and 7 (Speech format implementation), part 4, sub-part 3 (Data networks gateway),
part 10, sub-part 15 (Transfer of control), part 13 (SDL) and part 14 (PICS) of this multi-part deliverable
are in status "historical" and are not maintained.
NOTE 2: Some parts are also published as Technical Specifications such as ETSI TS 100 392-2 and those may be
the latest version of the document.
Related specifications and reports outside of TETRA V+D and DMO release 2.2 are also included in the present
document. These include Harmonised ENs covering EMC standards and specifications regarding Lawful Interception,
QOS and mission-critical broadband. Technical reports are included as they provide very useful information on TETRA
and critical communications.
Modal verbs terminology
In the present document "should", "should not", "may", "need not", "will", "will not", "can" and "cannot" are to be
interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
Introduction
The TETRA standard was developed to meet the needs of Professional Mobile Radio (PMR) user organizations for
secure, reliable and robust critical communications. In particular, the following important services have been specified:
• Wide area fast call set-up "all informed net" group calls.
• Direct Mode Operation (DMO) allowing "back to back" communications between radio terminals independent
of the network.
• High level voice encryption to meet the security needs of public safety organizations.
• An Emergency Call facility that gets through even if the system is busy.
• Full duplex voice for PABX and PSTN telephony communications.
• In addition to the needs of traditional PMR users, TETRA has been developed to meet the needs of Public
Access Mobile Radio (PAMR)operators.
To meet the ever-changing user requirements and utilize the latest in technology developments, TETRA continues to be
evolved and enhanced with the development of new standards including:
• TETRA Release 2, which incorporates the TETRA Enhanced Data Service (TEDS) that provides wideband
high-speed data communication services.
ETSI

---------------------- Page: 5 ----------------------
6 ETSI TR 100 392-17-6 V1.2.1 (2022-05)
• The interfacing between TETRA systems and mission-critical broadband services in order to allow
interworking.
• TETRA Releases 2.x are defined in the Terms of Reference of ETSI technical committee and are continuously
maintained.
• Work has been ongoing since 2010 in developing specifications and reports related to the evolution to
broadband critical communications and these are listed as they are either directly relevant to TETRA r2.2. e.g.
interworking between TETRA and broadband systems or indirectly e.g. aspects of security for critical
communications broadband systems.
ETSI

---------------------- Page: 6 ----------------------
7 ETSI TR 100 392-17-6 V1.2.1 (2022-05)
1 Scope
The present document identifies ETSI specifications and reports for TETRA V+D and DMO Release 2.2. It also
includes ETSI specifications and reports relating to Critical Communications evolution undertaken by TC TCCE as well
as relevant specifications produced by other ETSI technical committees. The present document is a revision of ETSI
TR 100 392-17-6 V1.1.1 published in 2018 and contains the specifications and reports that have been produced since
then.
ENs relating to TETRA specifications are often updated by first introducing an ETSI Technical Specification (TS)
which will contain new features and change requests. Therefore, in these cases, the latest specification is shown along
with the previous version, if one is an EN and the other a TS. In the same way, EN versions of the same specification
nd
will also be updated, replacing a TS in some cases. Release 2.2 specifications were functionally frozen after the 52 TC
TCCE meeting in October 2018.
Release 2.2 specifications contain corrections and enhancements to Release 2.1 including a major development of the
Inter System Interface specifications to develop separate specifications for IP and PSS1 over E.1 transport layers as well
as transport layer independent parts.
NOTE 1: Functionally frozen means that no further functionality/features may be incorporated into the set of
specifications, and that only corrective Change Requests (CRs) are to be accepted and agreed.
NOTE 2: It can be expected that corrective CRs will be introduced into the Release 2.2 specifications.
NOTE 3: Some of the CRs that will be produced will be for the next Release as they add new
functionalities/features.
2 References
2.1 Normative references
Normative references are not applicable in the present document.
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the
harmonisation of the laws of the Member States relating to the making available on the market of
radio equipment and repealing Directive 1999/5/EC.
3 Definition of terms, symbols and abbreviations
3.1 Terms
Void.
ETSI

---------------------- Page: 7 ----------------------
8 ETSI TR 100 392-17-6 V1.2.1 (2022-05)
3.2 Symbols
Void.
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AGA Air-Ground-Air
AI Air Interface
AL Ambience Listening
AMR Adaptive Multi-Rate
ANF Additional Network Feature
ANF-ISIGC Additional Network Feature - Inter-System Interface Group Call
ANF-ISIIC Additional Network Feature - Inter-System Interface Individual Call
ANF-ISIMM Additional Network Feature - Inter-System Interface Mobility Management
ANF-ISISDS Additional Network Feature - Inter-System Interface Short Data Service
AP Access Priority
AS Area Selection
BIC Barring of Incoming Calls
BOC Barring of Outgoing Calls
CAD Call Authorized by Dispatcher
CCBS Call Completion to Busy Subscriber
CCNR Call Completion on No Reply
CF Call Forwarding
CI Call Identification
CR Change Request
CRT Call Retention
CW Call Waiting
DG Designer's Guide
DGNA Dynamic Group Number Assignment
DL Discreet Listening
DMO Direct Mode Operation
DOTAM Direct mode Over The Air Management
EMC Electromagnetic Compatibility
EU European Union
HOLD Call Hold
HSD High Speed Data
IC Include Call
IC Integrated Circuit
IP Internet Protocol
IPI Internet Protocol Interworking
ISDN Integrated Services Digital Network
ISI Inter-System Interface
LE Late Entry
LI Lawful Interception
LIP Location Information Protocol
LSC List Search Call
MCPTT Mission Critical Press To Talk
MS-MS Mobile Station to Mobile Station
NAP Net Assist Protocol
PABX Private Automatic Base eXchange
PAMR Public Access Mobile Radio
PC Priority Call
PEI Peripheral Equipment Interface
PICS Protocol Implementation Conformance Statement
PMR Private/Professional Mobile Radio
PPC Pre-emptive Priority Call
PSS Public Security and Safety
PSTN Public Switched Telephone Network
QAM Quadrature Amplitude Modulation
ETSI

---------------------- Page: 8 ----------------------
9 ETSI TR 100 392-17-6 V1.2.1 (2022-05)
QOS Quality Of Service
R&TTE Radio and Terminal Telecommunications Equipment
RF Radio Frequency
SC Smart Card
SDL Specification and Description Language
SIM Subscriber Identity Module
SIM-ME Subscriber Identity Module to Mobile Equipment
SNA Short Number Addressing
SPAN Service and Protocols for Advanced Networks
SSD Service Specific Details
STQ Speech and multi-media Transmission Quality
TEDS TETRA Enhanced Data Service
TMO Trunked Mode Operation
TPI Talking Party Identification
TR Technical Report
TSIM TETRA SIM
UHF Ultra High Frequency
UICC Universal Integrated Circuit Card
V+D Voice plus Data
4 Specifications of TETRA Release 2.2 plus related
specifications and reports
4.0 General
The following clauses contain ETSI deliverables included in TETRA V+D and DMO Release 2.2.
NOTE: After the list of TETRA V+D and DMO specifications, there are listed specifications and reports
applicable to TETRA including evolution to critical communications broadband.
4.1 Voice plus Data (V+D)
4.1.1 General Network Design
ETSI EN 300 392-1 V1.6.1 (2020-04): "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 1: General network design".
ETSI TS 100 392-1 V1.5.1 (2018-04): "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 1: General network design".
4.1.2 Air Interface
ETSI TS 100 392-2 V3.9.2 (2020-06): "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D); Part 2: Air
Interface (AI)".
NOTE: An update is in preparation (Improvements to Group Addressed Packet Data).
ETSI EN 300 392-2 V3.8.1 (2016-08): "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 2: Air Interface (AI)".
4.1.3 Inter-system interface
NOTE: The ISI specifications have been completely changed with the introduction of separate specifications for
IP bearers, circuit mode bearers and common aspects. The new ENs and TSs that now comprise the
current ISI specification are listed. The original EN specifications have now been withdrawn.
ETSI

---------------------- Page: 9 ----------------------
10 ETSI TR 100 392-17-6 V1.2.1 (2022-05)
ETSI EN 300 392-3-8 V1.4.1 (2020-04): "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 3: Interworking at the Inter-System Interface (ISI); Sub-part 8: Generic Speech Format Implementation".
ETSI TS 100 392-3-8 V1.3.1 (2018-05): "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 3: Interworking at the Inter-System Interface (ISI); Sub-part 8: Generic Speech Format Implementation".
ETSI EN 300 392-3-9 V1.2.1 (2020-04): "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 3: Interworking at the Inter-System Interface (ISI); Sub-part 9: Transport layer independent, General design".
ETSI TS 100 392-3-9 V1.1.1 (2018-05): "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 3: Interworking at the Inter-System Interface (ISI); Sub-part 9: Transport Layer Independent, General Design".
ETSI EN 300 392-3-10 V1.2.1 (2020-04): "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 3: Interworking at the Inter-System Interface (ISI); Sub-part 10: General design, PSS1 over E.1".
ETSI TS 100 392-3-10 V1.2.1 (2018-05): "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 3: Interworking at the Inter-System Interface (ISI); Sub-part 10: General Design, PSS1 over E.1".
ETSI EN 300 392-3-11 V1.2.1 (2020-04): "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 3: Interworking at the Inter-System Interface (ISI); Sub-part 11: General design, SIP/IP".
ETSI TS 100 392-3-11 V1.1.1 (2018-05): "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 3: Interworking at the Inter-System Interface (ISI); Sub-part 11: General Design, SIP/IP".
ETSI EN 300 392-3-12 V1.2.1 (2020-04): "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 3: Interworking at the Inter-System Interface (ISI); Sub-part 12: Transport layer independent Additional Network
Feature Individual Call (ANF-ISIIC)".
ETSI TS 100 392-3-12 V1.3.1 (2021-09): "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 3: Interworking at the Inter-System Interface (ISI); Sub-part 12: Transport Layer Independent Additional Network
Features Individual Call (ANF-ISIIC)".
ETSI EN 300 392-3-13 V1.2.1 (2020-04): "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 3: Interworking at the Inter-System Interface (ISI); Sub-part 13: Transport layer independent Additional Network
Feature Group Call (ANF-ISIGC)".
ETSI TS 100 392-3-13 V1.1.1 (2018-05): "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 3: Interworking at the Inter-System Interface (ISI); Sub-part 13: Transport Layer Independent Additional Network
features, Group Call (ANF- ISIGC)".
ETSI EN 300 392-3-14 V1.2.1 (2020-04): "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 3: Interworking at the Inter-System Interface (ISI); Sub-part 14: Transport layer independent Additional Network
Feature Short Data Service (ANF-ISISDS)".
ETSI TS 100 392-3-14 V1.1.1 (2018-05): "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 3: Interworking at the Inter-System Interface (ISI); Sub-part 14: Transport Layer Independent Additional Network
features, Short Data Service (ANF-ISISDS)".
ETSI EN 300 392-3-15 V1.2.1 (2020-04): "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 3: Interworking at the Inter-System Interface (ISI); Sub-part 15: Transport layer independent Additional Network
Feature, Mobility Management (ANF-ISIMM)":
ETSI TS 100 392-3-15 V1.3.1 (2021-10): "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 3: Interworking at the Inter-System Interface (ISI); Sub-part 15: Transport Layer Independent Additional Network
features, Mobility Management (ANF-ISIMM)".
4.1.4 Voice + Data Gateways
ETSI ETS 300 392-4-1 Ed.1 (1999-01): "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 4: Gateways basic operation; Sub-part 1: Public Switched Telephone Network (PSTN)".
ETSI ETS 300 392-4-2 Ed.1 (2000-09): "Terrestrial Trunked Radio (TETRA); Voice plus Data (V+D);
Part 4: Gateways basic operation; Sub-part 2: Integrated Services Digital Network (ISDN) gateway".
ETSI

---------------------- Page: 10 ----------------------
11 ETSI TR 100 392-17-6 V1.2.1 (2022-05)
4.1.5 Peripheral Equipment Interface
ETSI EN 300 392-5 V2.7.1 (2020-04): "Terrestrial Tr
...
