Draft ETSI EN 301 908-15 V5.1.1 (2010-10)
Harmonized European Standard (Telecommunications series)
Base Stations (BS), Repeaters and User Equipment (UE)
for IMT-2000 Third-Generation cellular networks;
Part 15: Harmonized EN for IMT-2000,
Evolved Universal Terrestrial Radio Access (E-UTRA)
(FDD Repeaters) covering the essential requirements
of article 3.2 of the R&TTE Directive
2 Draft ETSI EN 301 908-15 V5.1.1 (2010-10)
Reference
REN/MSG-TFES-008-15
Keywords
3G, 3GPP, cellular, digital, IMT-2000, mobile,
radio, regulation, repeater, UMTS, WCDMA;
E-UTRA; LTE
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2010.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 Draft ETSI EN 301 908-15 V5.1.1 (2010-10)
Contents
Intellectual Property Rights . 5
Foreword . 5
Introduction . 6
1 Scope . 7
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 8
3 Definitions, symbols and abbreviations . 8
3.1 Definitions . 8
3.2 Symbols . 9
3.3 Abbreviations . 10
4 Technical requirements specifications . 10
4.1 Environmental profile . 10
4.2 Conformance requirements . 10
4.2.1 Introduction. 11
4.2.2 Operating band unwanted emissions . 11
4.2.2.1 Definition . 11
4.2.2.2 Limit . 11
4.2.2.2.1 General operating band unwanted emissions . 12
4.2.2.2.2 Protection of the BS receiver in the operating band . 16
4.2.2.2.3 Co-existence with services in adjacent frequency bands . 16
4.2.2.2.4 Protection of DTT. 17
4.2.2.3 Conformance . 17
4.2.3 Spurious emissions . 17
4.2.3.1 Definition . 17
4.2.3.2 Limit . 17
4.2.3.2.1 Spurious emissions . 18
4.2.3.2.2 Co-existence with other systems in the same geographical area . 18
4.2.3.3 Conformance . 19
4.2.4 Maximum output power . 19
4.2.4.1 Definition . 19
4.2.4.2 Limit . 19
4.2.4.3 Conformance . 20
4.2.5 Input intermodulation . 20
4.2.5.1 Definition . 20
4.2.5.2 Limit . 20
4.2.5.2.1 General input intermodulation requirement . 20
4.2.5.2.2 Co-existence with other systems . 21
4.2.5.3 Conformance . 22
4.2.6 Out of band gain . 22
4.2.6.1 Definition . 22
4.2.6.2 Limits . 22
4.2.6.3 Conformance . 22
4.2.7 Adjacent Channel Rejection Ratio . 22
4.2.7.1 Definition . 22
4.2.7.2 Limit . 23
4.2.7.2.1 ACRR . 23
4.2.7.2.2 Co-existence with UTRA . 23
4.2.7.3 Conformance . 23
4.2.8 Output intermodulation . 23
4.2.8.1 Definition . 23
4.2.8.2 Limit . 24
4.2.8.3 Conformance . 24
ETSI
4 Draft ETSI EN 301 908-15 V5.1.1 (2010-10)
5 Testing for compliance with technical requirements . 24
5.1 Environmental conditions for testing . 24
5.2 Interpretation of the measurement results . 24
5.3 Essential radio test suites . 26
5.3.1 Operating band unwanted emissions . 26
5.3.1.1 Initial conditions . 26
5.3.1.2 Procedures . 26
5.3.2 Spurious emissions . 27
5.3.2.1 Initial conditions . 27
5.3.2.2 Procedures . 27
5.3.3 Maximum output power . 28
5.3.3.1 Initial conditions . 28
5.3.3.2 Procedures . 28
5.3.4 Input intermodulation . 28
5.3.4.1 Initial conditions . 28
5.3.4.2 Procedures . 29
5.3.5 Out of band gain . 29
5.3.5.1 Initial conditions . 29
5.3.5.2 Procedures . 29
5.3.6 Adjacent Channel Rejection Ratio . 30
5.3.6.1 Initial conditions . 30
5.3.6.2 Procedures . 30
5.3.7 Output intermodulation . 30
5.3.7.1 Initial conditions . 30
5.3.7.2 Procedures . 30
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 32
Annex B (normative): Repeater configurations . 34
B.1 Power supply . 34
B.2 Power supply options . 34
B.3 Combining of Repeaters . 34
Annex C (normative): Repeater stimulus signal spectral purity requirements . 35
Annex D (informative): Environmental profile specification . 36
Annex E (informative): The EN title in the official languages . 37
Annex F (informative): Bibliography . 38
History . 39
ETSI
5 Draft ETSI EN 301 908-15 V5.1.1 (2010-10)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee
Mobile Standards Group (MSG), and is now submitted for the Public Enquiry phase of the ETSI standards Two-step
Approval Procedure.
The present document has been produced by ETSI in response to a mandate M/284 from the European Commission
issued under Council Directive 98/34/EC [i.1] (as amended) laying down a procedure for the provision of information
in the field of technical standards and regulations.
The present document is intended to become a Harmonized Standard, the reference of which will be published in the
Official Journal of the European Union referencing the Directive 1999/5/EC [i.2] of the European Parliament and of the
Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition
of their conformity ("the R&TTE Directive").
The requirements relevant to Directive 1999/5/EC [i.2] are summarised in annex A.
The present document is part 15 of a multi-part deliverable covering the Base Stations (BS), Repeaters and User
Equipment (UE) for IMT-2000 Third-Generation cellular networks, as identified below:
Part 1: "Harmonized EN for IMT-2000, introduction and common requirements, covering the essential
requirements of article 3.2 of the R&TTE Directive";
Part 2: "Harmonized EN for IMT-2000, CDMA Direct Spread (UTRA FDD and E-UTRA FDD) (UE) covering
the essential requirements of article 3.2 of the R&TTE Directive";
Part 3: "Harmonized EN for IMT-2000, CDMA Direct Spread (UTRA FDD and E-UTRA FDD) (BS) covering
the essential requirements of article 3.2 of the R&TTE Directive";
Part 4: "Harmonized EN for IMT-2000, CDMA Multi-Carrier (cdma2000) and Evolved CDMA Multi-Carrier
Ultra Mobile Broadband (UMB) (UE) covering the essential requirements of article 3.2 of the R&TTE
Directive";
Part 5: "Harmonized EN for IMT-2000, CDMA Multi-Carrier (cdma2000) and Evolved CDMA Multi-Carrier
Ultra Mobile Broadband (UMB) (BS) covering the essential requirements of article 3.2 of the R&TTE
Directive";
Part 6: "Harmonized EN for IMT-2000, CDMA TDD (UTRA TDD and E-UTRA TDD) (UE) covering the
essential requirements of article 3.2 of the R&TTE Directive";
Part 7: "Harmonized EN for IMT-2000, CDMA TDD (UTRA TDD and E-UTRA TDD) (BS) covering the
essential requirements of article 3.2 of the R&TTE Directive";
Part 8: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (UE) covering essential requirements
of article 3.2 of the R&TTE Directive";
Part 9: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (BS) covering essential requirements
of article 3.2 of the R&TTE Directive";
ETSI
6 Draft ETSI EN 301 908-15 V5.1.1 (2010-10)
Part 10: "Harmonized EN for IMT-2000, FDMA/TDMA (DECT) covering essential requirements of article 3.2 of
the R&TTE Directive";
Part 11: "Harmonized EN for IMT-2000, CDMA Direct Spread (UTRA FDD and E-UTRA FDD) (Repeaters)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 12: "Harmonized EN for IMT-2000, CDMA Multi-Carrier (cdma2000) (Repeaters) covering the essential
requirements of article 3.2 of the R&TTE Directive";
Part 13: "Harmonized EN for IMT-2000, Evolved Universal Terrestrial Radio Access (E-UTRA) (UE) covering
the essential requirements of article 3.2 of the R&TTE Directive";
Part 14: "Harmonized EN for IMT-2000, Evolved Universal Terrestrial Radio Access (E-UTRA) (BS) covering
the essential requirements of article 3.2 of the R&TTE Directive";
Part 15: "Harmonized EN for IMT-2000, Evolved Universal Terrestrial Radio Access (E-UTRA) (FDD
Repeaters) covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 16: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (UE)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 17: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (BS)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 18: "Harmonized EN for Multi-Standard Radio (UTRA, E-UTRA, GSM/EDGE) Base Stations (BS) covering
the essential requirements of article 3.2 of the R&TTE Directive";
Part 19: "Harmonized EN for IMT-2000, OFDMA TDD WMAN (Mobile WiMAX) TDD User Equipment (UE)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 20: "Harmonized EN for IMT-2000, OFDMA TDD WMAN (Mobile WiMAX) TDD Base Station (BS)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 21: "Harmonized EN for IMT-2000, OFDMA TDD WMAN (Mobile WiMAX) FDD User Equipment (UE)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 22: "Harmonized EN for IMT-2000, OFDMA TDD WMAN (Mobile WiMAX) FDD Base Stations (BS)
covering the essential requirements of article 3.2 of the R&TTE Directive".
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The
modular structure is shown in EG 201 399 [i.3].
ETSI
7 Draft ETSI EN 301 908-15 V5.1.1 (2010-10)
1 Scope
The present document applies to the following radio equipment types:
• Repeaters for Evolved Universal Terrestrial Radio Access (E-UTRA) (FDD).
These radio equipment types are capable of operating in all or any part of the operating bands given in table 1-1.
Table 1-1: E-UTRA Repeater operating bands
E-UTRA FDD Direction of transmission E-UTRA Repeater operating bands
band
1 Downlink 2 110 MHz to 2 170 MHz
Uplink 1 920 MHz to 1 980 MHz
3 Downlink 1 805 MHz to 1 880 MHz
Uplink 1 710 MHz to 1 785 MHz
7 Downlink 2 620 MHz to 2 690 MHz
Uplink 2 500 MHz to 2 570 MHz
8 Downlink 925 MHz to 960 MHz
Uplink 880 MHz to 915 MHz
20 Downlink 791 MHz to 821 MHz
Uplink 832 MHz to 862 MHz
The present document covers requirements for E-UTRA Repeaters for Release 8 and 9.
The present document is intended to cover the provisions of Directive 1999/5/EC [i.2] (R&TTE Directive), article 3.2,
which states that "…. radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive [i.2] may apply to equipment within the scope of the present
document.
NOTE: A list of such ENs is included on the web site http://www.newapproach.org.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 301 908-1 (V5.1.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Base Stations (BS), Repeaters and User Equipment (UE) for IMT-2000 Third-Generation cellular
networks; Part 1: Harmonized EN for IMT-2000, introduction and common requirements,
covering the essential requirements of article 3.2 of the R&TTE Directive".
[2] ETSI TS 136 143 (V9.1.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); FDD
repeater conformance testing (3GPP TS 36.143 version 9.1.0 Release 9)".
ETSI
8 Draft ETSI EN 301 908-15 V5.1.1 (2010-10)
[3] Void.
[4] ITU-R Recommendation SM.329-10 (2003): "Unwanted emissions in the spurious domain".
[5] IEC 60068-2-1 (2007): "Environmental testing - Part 2-1: Tests - Test A: Cold".
[6] IEC 60068-2-2 (2007): "Environmental testing - Part 2-2: Tests - Test B: Dry heat".
[7] ETSI EN 301 908-11 (V5.1.1): "Base Stations (BS), Repeaters and User Equipment (UE) for
IMT-2000 Third-Generation cellular networks; Part 11: Harmonized EN for IMT-2000, CDMA
Direct Spread (UTRA FDD and E-UTRA FDD) (Repeaters) covering the essential requirements of
article 3.2 of the R&TTE Directive".
[8] ETSI TS 136 141 (V9.5.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); Base
Station (BS) conformance testing (3GPP TS 36.141 version 9.5.0 Release 9)".
[9] ETSI TS 125 141 (V9.5.0): "Universal Mobile Telecommunications System (UMTS); Base
Station (BS) conformance testing (FDD) (3GPP TS 25.141 version 9.5.0 Release 9)".
[10] ETSI TS 136 104 (V9.5.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); Base
Station (BS) radio transmission and reception (3GPP TS 36.104 version 9.5.0 Release 9)".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
[i.2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[i.3] ETSI EG 201 399 (V2.2.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
A guide to the production of Harmonized Standards for application under the R&TTE Directive".
[i.4] ETSI TR 102 215 (V1.3.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Recommended approach, and possible limits for measurement uncertainty for the measurement of
radiated electromagnetic fields above 1 GHz".
[i.5] ETSI TR 100 028 (all parts) (V1.4.1): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Uncertainties in the measurement of mobile radio equipment characteristics".
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
carrier: modulated waveform conveying the E-UTRA or UTRA (WCDMA) physical channels
channel bandwidth: RF bandwidth supporting a single E-UTRA RF carrier with the transmission bandwidth
configured in the uplink or downlink of a cell
NOTE: The channel bandwidth is measured in MHz and is used as a reference for transmitter and receiver RF
requirements.
channel edge: lowest and highest frequency of the E-UTRA carrier, separated by the channel bandwidth
donor coupling loss: coupling loss between the repeater and the donor Base Station
ETSI
9 Draft ETSI EN 301 908-15 V5.1.1 (2010-10)
downlink: signal path where Base Station transmits and mobile receives
downlink operating band: part of the operating band designated for downlink
nominal passband edge: lowest and highest frequency of the pass band of the repeater
operating band: frequency range in which E-UTRA FDD operates, that is defined with a specific set of technical
requirements
NOTE 1: The operating band(s) for an E-UTRA Repeater is declared by the manufacturer according to the
designations in clause 1, table 1-1.
NOTE 2: Unless specified, operating band refers to the uplink operating band and downlink operating band.
output power, Pout: mean power of one carrier at maximum repeater gain delivered to a load with resistance equal to
the nominal load impedance of the transmitter
pass band: repeater can have one or several pass bands
NOTE: The pass band is the frequency range that the repeater operates in with operational configuration. This
frequency range can correspond to one or several consecutive nominal channels. If they are not
consecutive each subset of channels is considered as an individual pass band.
rated output power: rated output power of the repeater is the mean power level per carrier that the manufacturer has
declared to be available at the antenna connector
repeater: device that receives, amplifies and transmits the radiated or conducted RF carrier both in the downlink
direction (from the Base Station to the mobile area) and in the uplink direction (from the mobile to the Base Station)
transmission bandwidth: bandwidth of an instantaneous transmission from a UE or BS, measured in Resource Block
units
transmission bandwidth configuration: highest transmission bandwidth allowed for uplink or downlink in a given
channel bandwidth, measured in Resource Block units
uplink: signal path where mobile transmits and Base Station receives
uplink operating band: part of the operating band designated for uplink
3.2 Symbols
For the purposes of the present document, the following symbols apply:
Δf The separation between the nominal pass band edge frequency and the nominal -3 dB point of the
measuring filter closest to the carrier frequency
Δf The largest value of Δf used for defining the requirement
max
BW Channel bandwidth
Channel
BW Transmission bandwidth configuration, expressed in MHz, where BW = N × 180 kHz in
Config Config RB
the uplink and BW = 15 kHz + N × 180 kHz in the downlink
Config RB
BW Measurement bandwidth
Meas
BW Bandwidth of the repeater pass band
Pass band
f_offset The largest value of f_offset used for defining the requirement
max
F The lowest frequency of the downlink operating band
DL_low
F The highest frequency of the downlink operating band
DL_high
F Filter centre frequency
filter
ETSI
10 Draft ETSI EN 301 908-15 V5.1.1 (2010-10)
F The lowest frequency of the uplink operating band
UL_low
F The highest frequency of the uplink operating band
UL_high
N Downlink EARFCN
DL
N Offset used for calculating downlink EARFCN
Offs-DL
N Offset used for calculating uplink EARFCN
Offs-UL
N Transmission bandwidth configuration, expressed in units of resource blocks
RB
N Uplink EARFCN
UL
P Declared emission level for channel N
EM,N
Pmax Maximum output power
Pout Output power
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ACLR Adjacent Channel Leakage Ratio
ACRR Adjacent Channel Rejection Ratio
BS Base Station
BW Bandwidth
CW Continuous Wave
DTT Digital Terrestrial Television
EARFCN E-UTRA Absolute Radio Frequency Channel Number
E-TM E-UTRA Test Model
E-UTRA Evolved Universal Terrestrial Radio Access
FDD Frequency Division Duplex
PCCPCH Primary Common Control Physical Channel
RF Radio Frequency
RMS Root Mean Square (value)
RRC Root Raised Cosine
SCCPCH Secondary Common Control Physical Channel
TDD Time Division Duplex
UARFCN UTRA Absolute Radio Frequency Channel Number
UMB Ultra Mobile Broadband
UTRA Universal Terrestrial Radio Access
4 Technical requirements specifications
4.1 Environmental profile
The technical requirements of the present document apply under the environmental profile for operation of the
equipment, which shall be declared by the supplier. The equipment shall comply with all the technical requirements of
the present document at all times when operating within the boundary limits of the declared operational environmental
profile.
For guidance on how a supplier can declare the environmental profile, see annex C.
4.2 Conformance requirements
The requirements in the present document are based on the assumption that the operating band (see table 1-1) is shared
between systems of the IMT-2000 family (for bands 3 and 8 also GSM) or systems having compatible characteristics.
ETSI
11 Draft ETSI EN 301 908-15 V5.1.1 (2010-10)
4.2.1 Introduction
To meet the essential requirement under article 3.2 of Directive 1999/5/EC [i.2] (R&TTE Directive) for IMT-2000
Repeaters five essential parameters in addition to those in EN 301 908-1 [1] have been identified. Table 4.2.1-1
provides a cross reference between these five essential parameters and the corresponding seven technical requirements
for equipment within the scope of the present document.
Table 4.2.1-1: Cross references
Essential parameter Corresponding technical requirements
Spectrum emissions mask 4.2.2 Operating band unwanted emissions
Conducted spurious emissions from the antenna connector 4.2.3 Spurious emissions
Accuracy of maximum output power 4.2.4 Maximum output power
4.2.5 Input intermodulation
Receiver immunity 4.2.6 Out of band gain
4.2.7 Adjacent Channel Rejection Ratio
Intermodulation attenuation of the output 4.2.8 Output intermodulation
4.2.2 Operating band unwanted emissions
4.2.2.1 Definition
Unwanted emissions consist of out of band emissions and spurious emissions (ITU-R Recommendation
SM.329-10 [4]). Out of band emissions are emissions immediately outside the pass band bandwidth resulting from the
modulation process and non-linearity in the transmitter, but excluding spurious emissions. Spurious emissions are
emissions which are caused by unwanted transmitter effects such as harmonics emission, parasitic emission,
intermodulation products and frequency conversion products, but exclude out of band emissions.
The out of band emissions requirement for repeater is specified both in terms operating band unwanted emissions and
protection of the BS receiver in the uplink operating band. The operating band unwanted emissions define all unwanted
emissions in the repeater operating band plus the frequency ranges 10 MHz above and 10 MHz below that band.
Unwanted emissions outside of this frequency range are limited by a spurious emissions requirement.
4.2.2.2 Limit
Emissions shall not exceed the maximum levels specified in the tables below, where:
• Δf is the separation between the nominal pass band edge frequency and the nominal -3 dB point of the
measuring filter closest to the carrier frequency.
• Nominal passband edge is the lowest and highest frequency of the pass band of the repeater.
• BW is the measurement bandwidth.
Meas
• BW is the bandwidth of the repeaters pass band.
Pass band
• f_offset is the separation between the nominal pass band edge frequency and the centre of the measuring filter.
• f_offset is the offset to the frequency 10 MHz outside the repeater operating band.
max
• Δf is equal to f_offset minus half of the bandwidth of the measuring filter.
max max
Unless otherwise stated, all requirements are measured as mean power (RMS).
This requirement applies to the uplink and downlink of the repeater, at maximum gain, and with the following input
signals:
• without E-UTRA input signal;
• with E-UTRA input signals in the pass band of the repeater, at levels that produce the maximum rated power
output per channel;
ETSI
12 Draft ETSI EN 301 908-15 V5.1.1 (2010-10)
• with 10 dB increased E-UTRA input signals in all channels in the pass band, compared to the input level
producing the maximum rated output power.
4.2.2.2.1 General operating band unwanted emissions
For E-UTRA FDD repeater operating in bands 3 or 8 emissions shall not exceed the maximum levels specified in
tables 4.2.2.2.1-1 and 4.2.2.2.1-2. The measurements shall apply to both paths uplink and downlink of the Repeater.
Table 4.2.2.2.1-1: General operating band unwanted emission limits for repeater pass band
lower than 5 MHz for (E-UTRA bands 3 and 8)
Frequency offset of measurement Frequency offset of Test requirement Measurement
filter -3 dB point, Δf measurement filter bandwidth
centre frequency,
f_offset
0 MHz ≤ Δf < 0,2 MHz 0,015 MHz ≤ f_offset -12,5 dBm 30 kHz
< 0,215 MHz
30 kHz
0,2 MHz ≤ Δf < 1 MHz 0,215 MHz ≤ f_offset
f _ offset
⎛ ⎞
−12,5dBm −15* − 0,215 dB
< 1,015 MHz ⎜ ⎟
MHz
⎝ ⎠
1,015 MHz ≤ f_offset -24,5 dBm 30 kHz
< 1,5 MHz
1 MHz ≤ Δf < 2 × BW 1,5 MHz ≤ f_offset < -11,5 dBm 1 MHz
Pass band
2 × BW +
Pass band
0,5 MHz
2 × BW + -15 dBm 1 MHz
2 × BW ≤ Δf ≤ Δf
Pass band
Pass band max
0,5 MHz ≤ f_offset <
f_offset
max
NOTE 1: Frequencies and bandwidth are given in MHz.
NOTE 2: If the repeater input signal consists of E-UTRA signals with a channel bandwidth of 1,4 MHz or 3 MHz placed so
that the channel edge is less than 200 kHz from the pass band edge, the requirements in table 4.2.2.2.1-3
supersede table 4.2.2.2.1-1 for applicable frequency offsets.
Table 4.2.2.2.1-2: General operating band unwanted emission limits for repeater pass band
5 MHz and above for (E-UTRA band 3 and 8)
Frequency offset of measurement Frequency offset of Test requirement Measurement
filter -3 dB point, Δf measurement filter bandwidth
centre frequency,
f_offset
0 MHz ≤ Δf < 0,2 MHz 0,015 MHz ≤ f_offset < -12,5 dBm 30 kHz
0,215 MHz
0,2 MHz ≤ Δf < 1 MHz 0,215 MHz ≤ f_offset < 30 kHz
⎛ f _ offset ⎞
−12,5 dBm −15*⎜ − 0,215⎟dB
1,015 MHz
MHz
⎝ ⎠
1,015 MHz ≤ f_offset < -24,5 dBm 30 kHz
1,5 MHz
-11,5 dBm 1 MHz
1 MHz ≤ Δf < 10 MHz 1,5 MHz ≤ f_offset <
10,5 MHz
-15 dBm 1 MHz
10 MHz ≤ Δf ≤ Δf 10,5 MHz ≤ f_offset <
max
f_offset
max
NOTE 1: Frequencies and bandwidth are given in MHz.
NOTE 2: If the repeater input signal consists of E-UTRA signals with a channel bandwidth of 1,4 MHz or 3 MHz placed so
that the channel edge is less than 200 kHz from the pass band edge, the requirements in table 4.2.2.2.1-3
supersede table 4.2.2.2.1-2 for applicable frequency offsets.
ETSI
13 Draft ETSI EN 301 908-15 V5.1.1 (2010-10)
Table 4.2.2.2.1-3: Conditional operating band unwanted emission limits
for (E-UTRA band 3 and 8)
Frequency offset of Frequency offset of Test requirement Measurement
measurement filter bandwidth
measurement filter -3 dB point, Δf
centre frequency,
f_offset
30 kHz
0 MHz ≤ Δf < 0,05 MHz 0,015 MHz ≤ f_offset < f _ offset
⎛ ⎞
6,5 dBm − 60 ⋅ − 0,015 dB
⎜ ⎟
0,065 MHz
MHz
⎝ ⎠
30 kHz
0,05 MHz ≤ Δf < 0,15 MHz 0,065 MHz ≤ f_offset < f _ offset
⎛ ⎞
3,5 dBm −160 ⋅⎜ − 0,065⎟dB
0,165 MHz
MHz
⎝ ⎠
-12,5 dBm 30 kHz
0,15 MHz ≤ Δf < 0,2 MHz 0,165 MHz ≤ f_offset <
0,215 MHz
NOTE: Frequencies and bandwidth are given in MHz.
For E-UTRA FDD repeater operating in bands 1 and 7 emissions shall not exceed the maximum levels specified in
tables 4.2.2.2.1-3 and 4.2.2.2.1-4. The measurements shall apply to both paths uplink and downlink of the Repeater.
Table 4.2.2.2.1-4: General operating band unwanted emission limits
for repeater pass band lower than 5 MHz (E-UTRA bands 1 and 7)
Frequency offset of Frequency offset Test requirement Measurement
measurement filter of measurement bandwidth
filter centre
-3 dB point, Δf
frequency, f_offset
0 MHz ≤ Δf < BW BW /2 ≤ f_offset 100 kHz
Max[]− 2,5∗ BW + 2,5;−1∗ BW − 2 dBm +
Pass Meas
Passband Passband
band
< BW +
Pass band
BW
⎛ ⎞
Max[]−10;1,5* BW −14,5
Passband meas
⎜ ⎟
BW /2
* f _ offset − dB
Meas
⎜ 2 ⎟
BW
Passband
⎝ ⎠
+ 1,5 dB
BW ≤ Δf < BW + 100 kHz
Max[]− 2,5∗ BW − 7,5;0,5∗ BW −16,5 dBm
Pass band Pass band
Passband Passband
2*BW BW /2 ≤ f_offset
+ 1,5 dB
Pass band Meas
<
2* BW +
Pass band
BW /2
Meas
2*BW ≤ Δf ≤ 2* BW + -15 dBm 1 MHz
Pass band Pass band
BW /2 ≤ f_offset
Δf
Meas
max
< f_offset
max
NOTE 1: Frequencies and bandwidth are given in MHz.
NOTE 2: If the repeater input signal consists of E-UTRA signals with a channel bandwidth of 1,4 MHz placed so that the
channel edge is less than 200 kHz from the pass band edge, the requirements in table 4.2.2.2.1-6 supersede
tables 4.2.2.2.1-4 and 4.2.2.2.1-5 for applicable frequency offsets.
NOTE 3: If the repeater input signal consists of E-UTRA signals with a channel bandwidth of 3 MHz placed so that the
channel edge is less than 200 kHz from the pass band edge, the requirements in table 4.2.2.2.1-7 supersede
tables 4.2.2.2.1-4 and 4.2.2.2.1-5 for applicable frequency offsets.
ETSI
14 Draft ETSI EN 301 908-15 V5.1.1 (2010-10)
Table 4.2.2.2.1-5: General operating band unwanted emission limits
for repeater pass band 5 MHz and above (E-UTRA bands 1 and 7)
Frequency offset of Frequency offset of Test requirement Measurement
measurement filter measurement filter centre bandwidth
-3dB point, Δf frequency, f_offset
0 MHz ≤ Δf < 5 MHz 0,05 MHz ≤ f_offset < 5,05 MHz 100 kHz
7 f _ offset
⎛ ⎞
− 5,5dBm− ⋅ − 0,05 dB
⎜ ⎟
5 MHz
⎝ ⎠
5 MHz ≤ Δf < 10 MHz 5,05 MHz ≤ f_offset < 10,05 MHz -12,5 dBm 100 kHz
-15 dBm 1 MHz
10 MHz ≤ Δf ≤ Δf 10,5 MHz ≤ f_offset < f_offset
max max
NOTE 1: Frequencies and bandwidth are given in MHz.
NOTE 2: If the repeater input signal consists of E-UTRA signals with a channel bandwidth of 1,4 MHz placed so that the
channel edge is less than 200 kHz from the pass band edge, the requirements in table 4.2.2.2.1-6 supersede
tables 4.2.2.2.1-4 and 4.2.2.2.1-5 for applicable frequency offsets.
NOTE 3: If the repeater input signal consists of E-UTRA signals with a channel bandwidth of 3 MHz placed so that the
channel edge is less than 200 kHz from the pass band edge, the requirements in table 4.2.2.2.1-7 supersede
tables 4.2.2.2.1-4 and 4.2.2.2.1-5 for applicable frequency offsets.
Table 4.2.2.2.1-6: Conditional operating band unwanted emission limits
for repeater input signal bandwidth of 1,4 MHz (E-UTRA bands 1 and 7)
Frequency offset of Frequency offset of Test requirement Measurement
measurement filter measurement filter centre bandwidth
-3dB point, Δf frequency, f_offset
100 kHz
10 f _offset
⎛ ⎞
+ 0,5dBm− ⋅⎜ − 0,05⎟dB
0 MHz ≤ Δf < 1,05 MHz 0,05 MHz ≤ f_offset < 1,1 MHz
1,4 MHz
⎝ ⎠
Table 4.2.2.2.1-7: Conditional operating band unwanted emission limits
for repeater input signal bandwidth of 3 MHz (E-UTRA bands 1 and 7)
Frequency offset of Frequency offset of Test requirement Measurement
measurement filter measurement filter centre bandwidth
-3dB point, Δf frequency, f_offset
100 kHz
10 f _offset
⎛ ⎞
−3,5dBm− ⋅ −0,05 dB
0 MHz ≤ Δf < 1,05 MHz 0,05 MHz ≤ f_offset < 1,1 MHz ⎜ ⎟
3 MHz
⎝ ⎠
For E-UTRA FDD repeater operating in bands 20 emissions shall not exceed the maximum levels specified in
tables 4.2.2.2.1-8 and 4.2.2.2.1-9. The measurements shall apply to both paths uplink and downlink of the Repeater.
ETSI
...

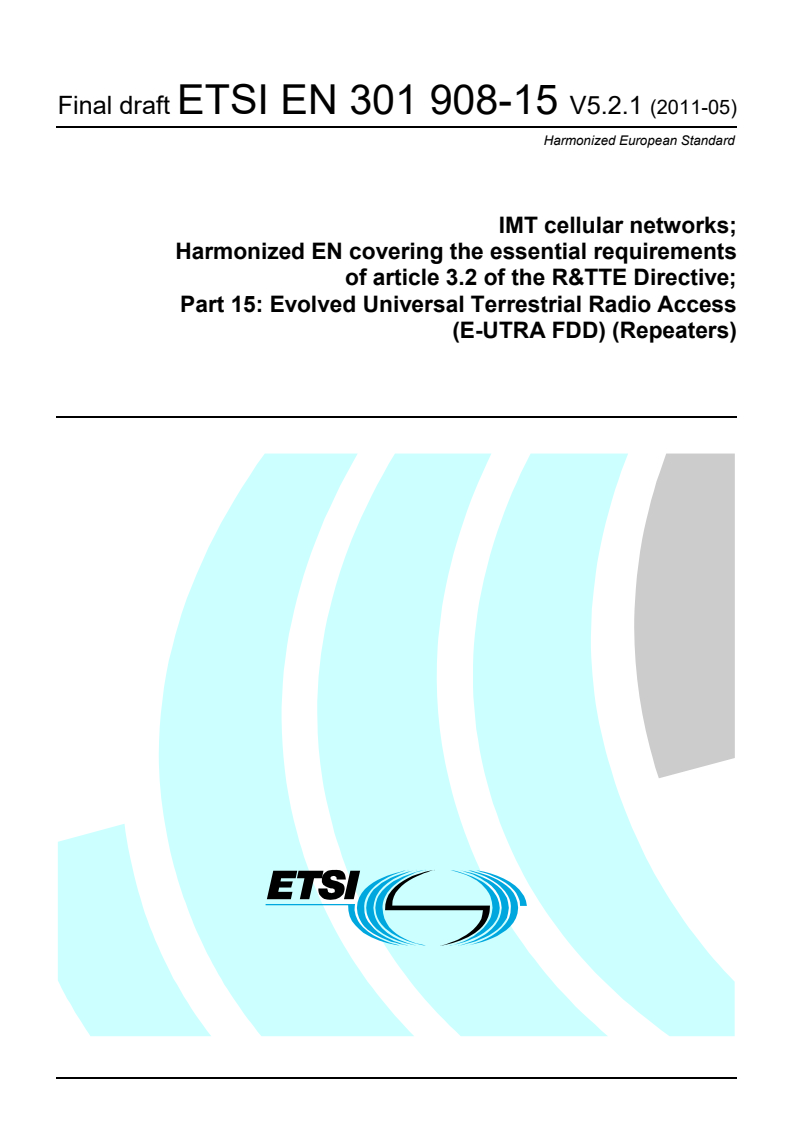

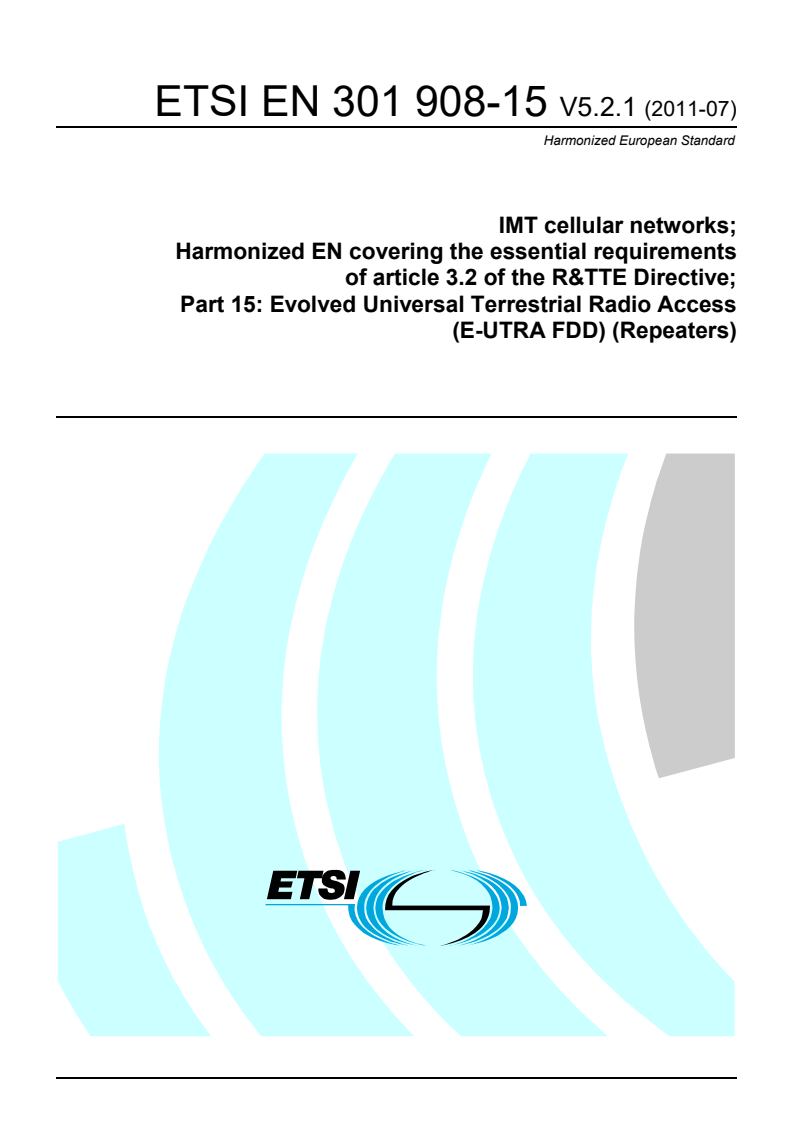

Harmonized European Standard
IMT cellular networks;
Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive;
Part 15: Evolved Universal Terrestrial Radio Access
(E-UTRA FDD) (Repeaters)

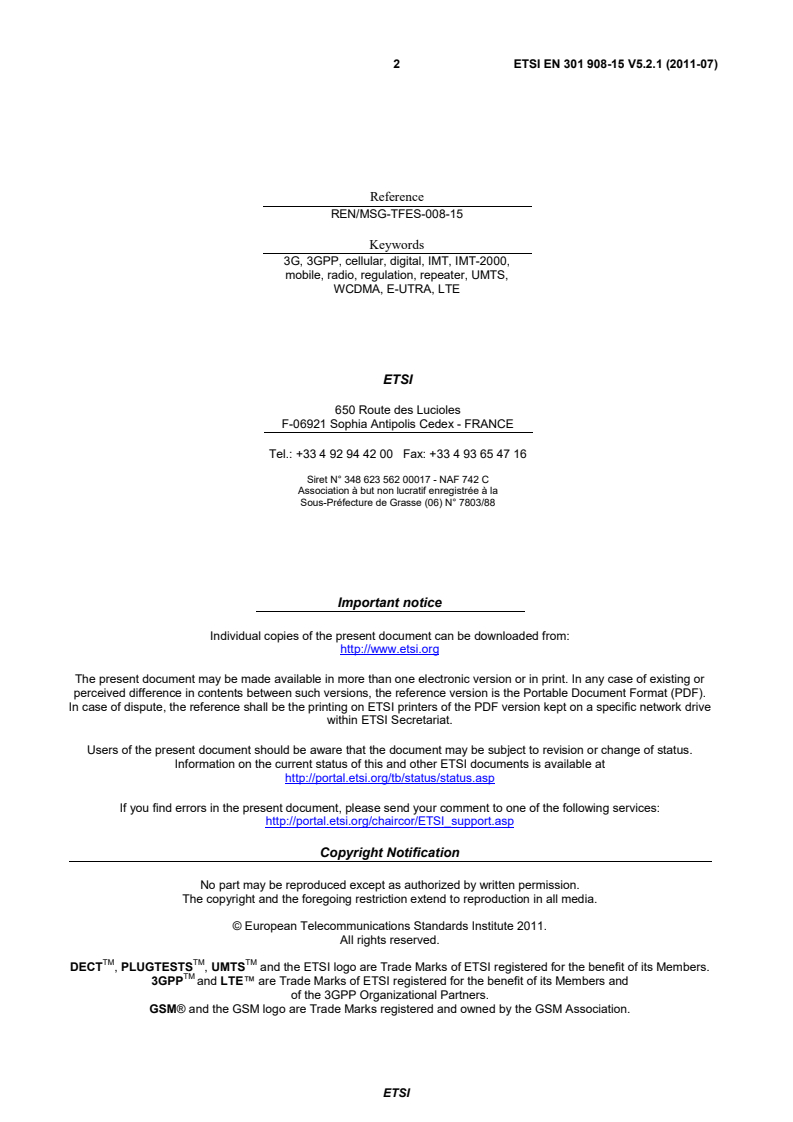

2 ETSI EN 301 908-15 V5.2.1 (2011-07)
Reference
REN/MSG-TFES-008-15
Keywords
3G, 3GPP, cellular, digital, IMT, IMT-2000,
mobile, radio, regulation, repeater, UMTS,
WCDMA, E-UTRA, LTE
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2011.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI EN 301 908-15 V5.2.1 (2011-07)
Contents
Intellectual Property Rights . 5
Foreword . 5
Introduction . 6
1 Scope . 7
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 8
3 Definitions, symbols and abbreviations . 8
3.1 Definitions . 8
3.2 Symbols . 9
3.3 Abbreviations . 10
4 Technical requirements specifications . 10
4.1 Environmental profile . 10
4.2 Conformance requirements . 10
4.2.1 Introduction. 11
4.2.2 Operating band unwanted emissions . 11
4.2.2.1 Definition . 11
4.2.2.2 Limit . 11
4.2.2.2.1 General operating band unwanted emissions . 12
4.2.2.2.2 Protection of the BS receiver in the operating band . 16
4.2.2.2.3 Co-existence with services in adjacent frequency bands . 16
4.2.2.2.4 Protection of DTT. 17
4.2.2.3 Conformance . 17
4.2.3 Spurious emissions . 17
4.2.3.1 Definition . 17
4.2.3.2 Limit . 17
4.2.3.2.1 Spurious emissions . 18
4.2.3.2.2 Co-existence with other systems in the same geographical area . 18
4.2.3.3 Conformance . 19
4.2.4 Maximum output power . 19
4.2.4.1 Definition . 19
4.2.4.2 Limit . 19
4.2.4.3 Conformance . 20
4.2.5 Input intermodulation . 20
4.2.5.1 Definition . 20
4.2.5.2 Limit . 20
4.2.5.2.1 General input intermodulation requirement . 20
4.2.5.2.2 Co-existence with other systems . 21
4.2.5.3 Conformance . 22
4.2.6 Out of band gain . 22
4.2.6.1 Definition . 22
4.2.6.2 Limits . 22
4.2.6.3 Conformance . 22
4.2.7 Adjacent Channel Rejection Ratio . 22
4.2.7.1 Definition . 22
4.2.7.2 Limit . 23
4.2.7.2.1 ACRR . 23
4.2.7.2.2 Co-existence with UTRA . 23
4.2.7.3 Conformance . 23
4.2.8 Output intermodulation . 23
4.2.8.1 Definition . 23
4.2.8.2 Limit . 24
4.2.8.3 Conformance . 24
ETSI
4 ETSI EN 301 908-15 V5.2.1 (2011-07)
5 Testing for compliance with technical requirements . 24
5.1 Environmental conditions for testing . 24
5.2 Interpretation of the measurement results . 24
5.3 Essential radio test suites . 26
5.3.1 Operating band unwanted emissions . 26
5.3.1.1 Initial conditions . 26
5.3.1.2 Procedures . 26
5.3.2 Spurious emissions . 27
5.3.2.1 Initial conditions . 27
5.3.2.2 Procedures . 27
5.3.3 Maximum output power . 28
5.3.3.1 Initial conditions . 28
5.3.3.2 Procedures . 28
5.3.4 Input intermodulation . 28
5.3.4.1 Initial conditions . 28
5.3.4.2 Procedures . 29
5.3.5 Out of band gain . 29
5.3.5.1 Initial conditions . 29
5.3.5.2 Procedures . 29
5.3.6 Adjacent Channel Rejection Ratio . 30
5.3.6.1 Initial conditions . 30
5.3.6.2 Procedures . 30
5.3.7 Output intermodulation . 30
5.3.7.1 Initial conditions . 30
5.3.7.2 Procedures . 30
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 32
Annex B (normative): Repeater configurations . 34
B.1 Power supply . 34
B.2 Power supply options . 34
B.3 Combining of Repeaters . 34
Annex C (normative): Repeater stimulus signal spectral purity requirements . 35
Annex D (informative): Environmental profile specification . 36
Annex E (informative): The EN title in the official languages . 37
Annex F (informative): Bibliography . 38
History . 39
ETSI
5 ETSI EN 301 908-15 V5.2.1 (2011-07)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (EN) has been produced by ETSI Technical Committee Mobile Standards Group
(MSG).
The present document has been produced by ETSI in response to mandate M/284 from the European Commission
issued under Council Directive 98/34/EC [i.1] (as amended) laying down a procedure for the provision of information
in the field of technical standards and regulations.
The title and reference to the present document are intended to included in the publication in the Official Journal of the
European Union of titles and references of Harmonized Standard under the Directive 1999/5/EC [i.2].
See article 5.1 of Directive 1999/5/EC [i.2] for information on presumption of conformity and Harmonised Standards or
parts thereof the references of which have been published in the Official Journal of the European Union.
The requirements relevant to Directive 1999/5/EC [i.2] are summarised in annex A.
The present document is part 15 of a multi-part deliverable covering the essential requirements under article 3.2 of
Directive 1999/5/EC [i.2] (R&TTE Directive) for Base Stations (BS), Repeaters and User Equipment (UE) for IMT
cellular networks, as identified below:
Part 1: "Introduction and common requirements";
Part 2: "CDMA Direct Spread (UTRA FDD) User Equipment (UE)";
Part 3: "CDMA Direct Spread (UTRA FDD) Base Stations (BS)";
Part 4: "CDMA Multi-Carrier (cdma2000) User Equipment (UE)";
Part 5: "CDMA Multi-Carrier (cdma2000) Base Stations (BS)";
Part 6: "CDMA TDD (UTRA TDD) User Equipment (UE)";
Part 7: "CDMA TDD (UTRA TDD) Base Stations (BS)";
Part 8: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (UE) covering essential requirements
of article 3.2 of the R&TTE Directive";
Part 9: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (BS) covering essential requirements
of article 3.2 of the R&TTE Directive";
Part 10: "Harmonized EN for IMT-2000, FDMA/TDMA (DECT) covering essential requirements of article 3.2 of
the R&TTE Directive";
Part 11: "CDMA Direct Spread (UTRA FDD) (Repeaters)";
Part 12: "Harmonized EN for IMT-2000, CDMA Multi-Carrier (cdma2000) (Repeaters) covering the essential
requirements of article 3.2 of the R&TTE Directive";
Part 13: "Evolved Universal Terrestrial Radio Access (E-UTRA) User Equipment (UE)";
ETSI
6 ETSI EN 301 908-15 V5.2.1 (2011-07)
Part 14: "Evolved Universal Terrestrial Radio Access (E-UTRA) Base Stations (BS)";
Part 15: "Evolved Universal Terrestrial Radio Access (E-UTRA FDD) (Repeaters)";
Part 16: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (UE)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 17: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (BS)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 18: "E-UTRA, UTRA and GSM/EDGE Multi-Standard Radio (MSR) Base Station (BS)";
Part 19: "OFDMA TDD WMAN (Mobile WiMAX) TDD User Equipment (UE)";
Part 20: "OFDMA TDD WMAN (Mobile WiMAX) TDD Base Stations (BS)";
Part 21: "OFDMA TDD WMAN (Mobile WiMAX) FDD User Equipment (UE)";
Part 22: "OFDMA TDD WMAN (Mobile WiMAX) FDD Base Stations (BS)".
National transposition dates
Date of adoption of this EN: 4 July 2011
Date of latest announcement of this EN (doa): 31 October 2011
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 30 April 2012
Date of withdrawal of any conflicting National Standard (dow): 30 April 2013
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The
modular structure is shown in EG 201 399 [i.3].
ETSI
7 ETSI EN 301 908-15 V5.2.1 (2011-07)
1 Scope
The present document applies to the following radio equipment type:
• Repeaters for Evolved Universal Terrestrial Radio Access (E-UTRA) (FDD).
This radio equipment type is capable of operating in all or any part of the frequency bands given in table 1-1.
Table 1-1: E-UTRA Repeater operating bands
E-UTRA FDD Direction of transmission E-UTRA Repeater operating bands
band
1 Downlink 2 110 MHz to 2 170 MHz
Uplink 1 920 MHz to 1 980 MHz
3 Downlink 1 805 MHz to 1 880 MHz
Uplink 1 710 MHz to 1 785 MHz
7 Downlink 2 620 MHz to 2 690 MHz
Uplink 2 500 MHz to 2 570 MHz
8 Downlink 925 MHz to 960 MHz
Uplink 880 MHz to 915 MHz
20 Downlink 791 MHz to 821 MHz
Uplink 832 MHz to 862 MHz
The present document covers requirements for E-UTRA Repeaters for Release 8 and 9.
The present document is intended to cover the provisions of Directive 1999/5/EC [i.2] (R&TTE Directive), article 3.2,
which states that "…. radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive [i.2] may apply to equipment within the scope of the present
document.
NOTE: A list of such ENs is included on the web site http://www.newapproach.org.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 301 908-1 (V5.2.1): "IMT cellular networks; Harmonized EN covering the essential
requirements of article 3.2 of the R&TTE Directive; Part 1: Introduction and common
requirements".
[2] ETSI TS 136 143 (V9.2.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); FDD
repeater conformance testing (3GPP TS 36.143 version 9.2.0 Release 9)".
[3] Void.
ETSI
8 ETSI EN 301 908-15 V5.2.1 (2011-07)
[4] ITU-R Recommendation SM.329-11 (2011): "Unwanted emissions in the spurious domain".
[5] IEC 60068-2-1 (2007): "Environmental testing - Part 2-1: Tests - Test A: Cold".
[6] IEC 60068-2-2 (2007): "Environmental testing - Part 2-2: Tests - Test B: Dry heat".
[7] ETSI EN 301 908-11 (V5.2.1): "IMT cellular networks; Harmonized EN covering the essential
requirements of article 3.2 of the R&TTE Directive; Part 11: CDMA Direct Spread (UTRA FDD)
(Repeaters)".
[8] ETSI TS 136 141 (V9.7.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); Base
Station (BS) conformance testing (3GPP TS 36.141 version 9.7.0 Release 9)".
[9] ETSI TS 125 141 (V9.7.0): "Universal Mobile Telecommunications System (UMTS); Base
Station (BS) conformance testing (FDD) (3GPP TS 25.141 version 9.7.0 Release 9)".
[10] ETSI TS 136 104 (V9.7.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); Base
Station (BS) radio transmission and reception (3GPP TS 36.104 version 9.7.0 Release 9)".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
[i.2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[i.3] ETSI EG 201 399 (V2.2.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
A guide to the production of Harmonized Standards for application under the R&TTE Directive".
[i.4] ETSI TR 102 215 (V1.3.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Recommended approach, and possible limits for measurement uncertainty for the measurement of
radiated electromagnetic fields above 1 GHz".
[i.5] ETSI TR 100 028 (all parts) (V1.4.1): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Uncertainties in the measurement of mobile radio equipment characteristics".
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
carrier: modulated waveform conveying the E-UTRA or UTRA (WCDMA) physical channels
channel bandwidth: RF bandwidth supporting a single E-UTRA RF carrier with the transmission bandwidth
configured in the uplink or downlink of a cell
NOTE: The channel bandwidth is measured in MHz and is used as a reference for transmitter and receiver RF
requirements.
channel edge: lowest and highest frequency of the E-UTRA carrier, separated by the channel bandwidth
donor coupling loss: coupling loss between the repeater and the donor Base Station
downlink: signal path where Base Station transmits and mobile receives
downlink operating band: part of the operating band designated for downlink
ETSI
9 ETSI EN 301 908-15 V5.2.1 (2011-07)
nominal passband edge: lowest and highest frequency of the pass band of the repeater
operating band: frequency range in which E-UTRA FDD operates, that is defined with a specific set of technical
requirements
NOTE 1: The operating band(s) for an E-UTRA Repeater is declared by the manufacturer according to the
designations in clause 1, table 1-1.
NOTE 2: Unless specified, operating band refers to the uplink operating band and downlink operating band.
output power, Pout: mean power of one carrier at maximum repeater gain delivered to a load with resistance equal to
the nominal load impedance of the transmitter
pass band: repeater can have one or several pass bands
NOTE: The pass band is the frequency range that the repeater operates in with operational configuration. This
frequency range can correspond to one or several consecutive nominal channels. If they are not
consecutive each subset of channels is considered as an individual pass band.
rated output power: rated output power of the repeater is the mean power level per carrier that the manufacturer has
declared to be available at the antenna connector
repeater: device that receives, amplifies and transmits the radiated or conducted RF carrier both in the downlink
direction (from the Base Station to the mobile area) and in the uplink direction (from the mobile to the Base Station)
transmission bandwidth: bandwidth of an instantaneous transmission from a UE or BS, measured in Resource Block
units
transmission bandwidth configuration: highest transmission bandwidth allowed for uplink or downlink in a given
channel bandwidth, measured in Resource Block units
uplink: signal path where mobile transmits and Base Station receives
uplink operating band: part of the operating band designated for uplink
3.2 Symbols
For the purposes of the present document, the following symbols apply:
Δf The separation between the nominal pass band edge frequency and the nominal -3 dB point of the
measuring filter closest to the carrier frequency
Δf The largest value of Δf used for defining the requirement
max
BW Channel bandwidth
Channel
BW Transmission bandwidth configuration, expressed in MHz, where BW = N × 180 kHz in
Config Config RB
the uplink and BW = 15 kHz + N × 180 kHz in the downlink
Config RB
BW Measurement bandwidth
Meas
BW Bandwidth of the repeater pass band
Pass band
f_offset The largest value of f_offset used for defining the requirement
max
F The lowest frequency of the downlink operating band
DL_low
F The highest frequency of the downlink operating band
DL_high
F Filter centre frequency
filter
F The lowest frequency of the uplink operating band
UL_low
F The highest frequency of the uplink operating band
UL_high
N Downlink EARFCN
DL
N Offset used for calculating downlink EARFCN
Offs-DL
N Offset used for calculating uplink EARFCN
Offs-UL
N Transmission bandwidth configuration, expressed in units of resource blocks
RB
N Uplink EARFCN
UL
P Declared emission level for channel N
EM,N
ETSI
10 ETSI EN 301 908-15 V5.2.1 (2011-07)
Pmax Maximum output power
Pout Output power
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ACLR Adjacent Channel Leakage Ratio
ACRR Adjacent Channel Rejection Ratio
BS Base Station
BW Bandwidth
CW Continuous Wave
DTT Digital Terrestrial Television
DUT Device Under Test
EARFCN E-UTRA Absolute Radio Frequency Channel Number
E-TM E-UTRA Test Model
E-UTRA Evolved Universal Terrestrial Radio Access
ERM Electromagnetic compatibility and Radio spectrum Matters
EUT Equipment Under Test
FDD Frequency Division Duplex
ITU-R International Telecommunication Union - Radiocommunication
GSM Global System for Mobile Communications
IMT International Mobile Telecommunications
LTE Long Term Evolution, also known as E-UTRA
MS Mobile Station
NOTE: For GSM.
MSG Mobile Standards Group
PCCPCH Primary Common Control Physical Channel
R&TTE Radio and Telecommunications Terminal Equipment
RF Radio Frequency
RMS Root Mean Square (value)
RRC Root Raised Cosine
RSS Root Sum Square
SCCPCH Secondary Common Control Physical Channel
TDD Time Division Duplex
TFES Task Force for European Standards for IMT
UARFCN UTRA Absolute Radio Frequency Channel Number
UMB Ultra Mobile Broadband
UTRA Universal Terrestrial Radio Access
WCDMA Wideband Code Division Multiple Access
4 Technical requirements specifications
4.1 Environmental profile
The technical requirements of the present document apply under the environmental profile for operation of the
equipment, which shall be declared by the supplier. The equipment shall comply with all the technical requirements of
the present document at all times when operating within the boundary limits of the declared operational environmental
profile.
For guidance on how a supplier can declare the environmental profile, see annex C.
4.2 Conformance requirements
The requirements in the present document are based on the assumption that the operating band (see table 1-1) is shared
between systems of the IMT family (for bands 3 and 8 also GSM) or systems having compatible characteristics.
ETSI
11 ETSI EN 301 908-15 V5.2.1 (2011-07)
4.2.1 Introduction
To meet the essential requirement under article 3.2 of Directive 1999/5/EC [i.2] (R&TTE Directive) for IMT Repeaters
five essential parameters in addition to those in EN 301 908-1 [1] have been identified. Table 4.2.1-1 provides a cross
reference between these five essential parameters and the corresponding seven technical requirements for equipment
within the scope of the present document.
Table 4.2.1-1: Cross references
Essential parameter Corresponding technical requirements
Spectrum emissions mask 4.2.2 Operating band unwanted emissions
Conducted spurious emissions from the antenna connector 4.2.3 Spurious emissions
Accuracy of maximum output power 4.2.4 Maximum output power
4.2.5 Input intermodulation
Receiver immunity 4.2.6 Out of band gain
4.2.7 Adjacent Channel Rejection Ratio
Intermodulation attenuation of the output 4.2.8 Output intermodulation
4.2.2 Operating band unwanted emissions
4.2.2.1 Definition
Unwanted emissions consist of out of band emissions and spurious emissions (ITU-R Recommendation
SM.329-11 [4]). Out of band emissions are emissions immediately outside the pass band bandwidth resulting from the
modulation process and non-linearity in the transmitter, but excluding spurious emissions. Spurious emissions are
emissions which are caused by unwanted transmitter effects such as harmonics emission, parasitic emission,
intermodulation products and frequency conversion products, but exclude out of band emissions.
The out of band emissions requirement for repeater is specified both in terms operating band unwanted emissions and
protection of the BS receiver in the uplink operating band. The operating band unwanted emissions define all unwanted
emissions in the repeater operating band plus the frequency ranges 10 MHz above and 10 MHz below that band.
Unwanted emissions outside of this frequency range are limited by a spurious emissions requirement.
4.2.2.2 Limit
Emissions shall not exceed the maximum levels specified in the tables below, where:
• Δf is the separation between the nominal pass band edge frequency and the nominal -3 dB point of the
measuring filter closest to the carrier frequency.
• Nominal passband edge is the lowest and highest frequency of the pass band of the repeater.
• BW is the measurement bandwidth.
Meas
• BW is the bandwidth of the repeaters pass band.
Pass band
• f_offset is the separation between the nominal pass band edge frequency and the centre of the measuring filter.
• f_offset is the offset to the frequency 10 MHz outside the repeater operating band.
max
• Δf is equal to f_offset minus half of the bandwidth of the measuring filter.
max max
Unless otherwise stated, all requirements are measured as mean power (RMS).
This requirement applies to the uplink and downlink of the repeater, at maximum gain, and with the following input
signals:
• without E-UTRA input signal;
• with E-UTRA input signals in the pass band of the repeater, at levels that produce the maximum rated power
output per channel;
ETSI
12 ETSI EN 301 908-15 V5.2.1 (2011-07)
• with 10 dB increased E-UTRA input signals in all channels in the pass band, compared to the input level
producing the maximum rated output power.
4.2.2.2.1 General operating band unwanted emissions
For E-UTRA FDD repeater operating in bands 3 or 8 emissions shall not exceed the maximum levels specified in
tables 4.2.2.2.1-1 and 4.2.2.2.1-2. The measurements shall apply to both paths uplink and downlink of the Repeater.
Table 4.2.2.2.1-1: General operating band unwanted emission limits for repeater pass band
lower than 5 MHz for (E-UTRA bands 3 and 8)
Frequency offset of measurement Frequency offset of Test requirement Measurement
filter -3 dB point, Δf measurement filter bandwidth
centre frequency,
f_offset
0 MHz ≤ Δf < 0,2 MHz 0,015 MHz ≤ f_offset -12,5 dBm 30 kHz
< 0,215 MHz
30 kHz
0,2 MHz ≤ Δf < 1 MHz 0,215 MHz ≤ f_offset
f _ offset
⎛ ⎞
−12,5dBm −15* − 0,215 dB
< 1,015 MHz ⎜ ⎟
MHz
⎝ ⎠
1,015 MHz ≤ f_offset -24,5 dBm 30 kHz
< 1,5 MHz
1 MHz ≤ Δf < 2 × BW 1,5 MHz ≤ f_offset < -11,5 dBm 1 MHz
Pass band
2 × BW +
Pass band
0,5 MHz
2 × BW + -15 dBm 1 MHz
2 × BW ≤ Δf ≤ Δf
Pass band
Pass band max
0,5 MHz ≤ f_offset <
f_offset
max
NOTE 1: Frequencies and bandwidth are given in MHz.
NOTE 2: If the repeater input signal consists of E-UTRA signals with a channel bandwidth of 1,4 MHz or 3 MHz placed so
that the channel edge is less than 200 kHz from the pass band edge, the requirements in table 4.2.2.2.1-3
supersede table 4.2.2.2.1-1 for applicable frequency offsets.
Table 4.2.2.2.1-2: General operating band unwanted emission limits for repeater pass band
5 MHz and above for (E-UTRA band 3 and 8)
Frequency offset of measurement Frequency offset of Test requirement Measurement
filter -3 dB point, Δf measurement filter bandwidth
centre frequency,
f_offset
0 MHz ≤ Δf < 0,2 MHz 0,015 MHz ≤ f_offset < -12,5 dBm 30 kHz
0,215 MHz
0,2 MHz ≤ Δf < 1 MHz 0,215 MHz ≤ f_offset < 30 kHz
⎛ f _ offset ⎞
−12,5 dBm −15*⎜ − 0,215⎟dB
1,015 MHz
MHz
⎝ ⎠
1,015 MHz ≤ f_offset < -24,5 dBm 30 kHz
1,5 MHz
-11,5 dBm 1 MHz
1 MHz ≤ Δf < 10 MHz 1,5 MHz ≤ f_offset <
10,5 MHz
-15 dBm 1 MHz
10 MHz ≤ Δf ≤ Δf 10,5 MHz ≤ f_offset <
max
f_offset
max
NOTE 1: Frequencies and bandwidth are given in MHz.
NOTE 2: If the repeater input signal consists of E-UTRA signals with a channel bandwidth of 1,4 MHz or 3 MHz placed so
that the channel edge is less than 200 kHz from the pass band edge, the requirements in table 4.2.2.2.1-3
supersede table 4.2.2.2.1-2 for applicable frequency offsets.
ETSI
13 ETSI EN 301 908-15 V5.2.1 (2011-07)
Table 4.2.2.2.1-3: Conditional operating band unwanted emission limits
for (E-UTRA band 3 and 8)
Frequency offset of Frequency offset of Test requirement Measurement
measurement filter bandwidth
measurement filter -3 dB point, Δf
centre frequency,
f_offset
30 kHz
0 MHz ≤ Δf < 0,05 MHz 0,015 MHz ≤ f_offset < f _ offset
⎛ ⎞
6,5 dBm − 60 ⋅ − 0,015 dB
⎜ ⎟
0,065 MHz
MHz
⎝ ⎠
30 kHz
0,05 MHz ≤ Δf < 0,15 MHz 0,065 MHz ≤ f_offset < f _ offset
⎛ ⎞
3,5 dBm −160 ⋅⎜ − 0,065⎟dB
0,165 MHz
MHz
⎝ ⎠
-12,5 dBm 30 kHz
0,15 MHz ≤ Δf < 0,2 MHz 0,165 MHz ≤ f_offset <
0,215 MHz
NOTE: Frequencies and bandwidth are given in MHz.
For E-UTRA FDD repeater operating in bands 1 and 7 emissions shall not exceed the maximum levels specified in
tables 4.2.2.2.1-3 and 4.2.2.2.1-4. The measurements shall apply to both paths uplink and downlink of the Repeater.
Table 4.2.2.2.1-4: General operating band unwanted emission limits
for repeater pass band lower than 5 MHz (E-UTRA bands 1 and 7)
Frequency offset of Frequency offset Test requirement Measurement
measurement filter of measurement bandwidth
filter centre
-3 dB point, Δf
frequency, f_offset
0 MHz ≤ Δf < BW BW /2 ≤ f_offset 100 kHz
Max[]− 2,5∗ BW + 2,5;−1∗ BW − 2 dBm +
Pass Meas
Passband Passband
band
< BW +
Pass band
BW
⎛ ⎞
Max[]−10;1,5* BW −14,5
Passband meas
⎜ ⎟
BW /2
* f _ offset − dB
Meas
⎜ 2 ⎟
BW
Passband
⎝ ⎠
+ 1,5 dB
BW ≤ Δf < BW + 100 kHz
Max[]− 2,5∗ BW − 7,5;0,5∗ BW −16,5 dBm
Pass band Pass band
Passband Passband
2*BW BW /2 ≤ f_offset
+ 1,5 dB
Pass band Meas
<
2* BW +
Pass band
BW /2
Meas
2*BW ≤ Δf ≤ 2* BW + -15 dBm 1 MHz
Pass band Pass band
BW /2 ≤ f_offset
Δf
Meas
max
< f_offset
max
NOTE 1: Frequencies and bandwidth are given in MHz.
NOTE 2: If the repeater input signal consists of E-UTRA signals with a channel bandwidth of 1,4 MHz placed so that the
channel edge is less than 200 kHz from the pass band edge, the requirements in table 4.2.2.2.1-6 supersede
tables 4.2.2.2.1-4 and 4.2.2.2.1-5 for applicable frequency offsets.
NOTE 3: If the repeater input signal consists of E-UTRA signals with a channel bandwidth of 3 MHz placed so that the
channel edge is less than 200 kHz from the pass band edge, the requirements in table 4.2.2.2.1-7 supersede
tables 4.2.2.2.1-4 and 4.2.2.2.1-5 for applicable frequency offsets.
ETSI
14 ETSI EN 301 908-15 V5.2.1 (2011-07)
Table 4.2.2.2.1-5: General operating band unwanted emission limits
for repeater pass band 5 MHz and above (E-UTRA bands 1 and 7)
Frequency offset of Frequency offset of Test requirement Measurement
measurement filter measurement filter centre bandwidth
-3dB point, Δf frequency, f_offset
0 MHz ≤ Δf < 5 MHz 0,05 MHz ≤ f_offset < 5,05 MHz 100 kHz
7 f _ offset
⎛ ⎞
− 5,5dBm− ⋅ − 0,05 dB
⎜ ⎟
5 MHz
⎝ ⎠
5 MHz ≤ Δf < 10 MHz 5,05 MHz ≤ f_offset < 10,05 MHz -12,5 dBm 100 kHz
-15 dBm 1 MHz
10 MHz ≤ Δf ≤ Δf 10,5 MHz ≤ f_offset < f_offset
max max
NOTE 1: Frequencies and bandwidth are given in MHz.
NOTE 2: If the repeater input signal consists of E-UTRA signals with a channel bandwidth of 1,4 MHz placed so that the
channel edge is less than 200 kHz from the pass band edge, the requirements in table 4.2.2.2.1-6 supersede
tables 4.2.2.2.1-4 and 4.2.2.2.1-5 for applicable frequency offsets.
NOTE 3: If the repeater input signal consists of E-UTRA signals with a channel bandwidth of 3 MHz placed so that the
channel edge is less than 200 kHz from the pass band edge, the requirements in table 4.2.2.2.1-7 supersede
tables 4.2.2.2.1-4 and 4.2.2.2.1-5 for applicable frequency offsets.
Table 4.2.2.2.1-6: Conditional operating band unwanted emission limits
for repeater input signal bandwidth of 1,4 MHz (E-UTRA bands 1 and 7)
Frequency offset of Frequency offset of Test requirement Measurement
measurement filter measurement filter centre bandwidth
-3dB point, Δf frequency, f_offset
100 kHz
10 f _offset
⎛ ⎞
+ 0,5dBm− ⋅⎜ − 0,05⎟dB
0 MHz ≤ Δf < 1,05 MHz 0,05 MHz ≤ f_offset < 1,1 MHz
1,4 MHz
⎝ ⎠
Table 4.2.2.2.1-7: Conditional operating band unwanted emission limits
for repeater input signal bandwidth of 3 MHz (E-UTRA bands 1 and 7)
Frequency offset of Frequency offset of Test requirement Measurement
measurement filter measurement filter centre bandwidth
-3dB point, Δf frequency, f_offset
100 kHz
10 f _offset
⎛ ⎞
−3,5dBm− ⋅ −0,05 dB
0 MHz ≤ Δf < 1,05 MHz 0,05 MHz ≤ f_offset < 1,1 MHz ⎜ ⎟
3 MHz
⎝ ⎠
For E-UTRA FDD repeater operating in bands 20 emissions shall not exceed the maximum levels specified in
tables 4.2.2.2.1-8 and 4.2.2.2.1-9. The measurements shall apply to both paths uplink and downlink of the Repeater.
ETSI
15 ETSI EN 301 908-15 V5.2.1 (2011-07)
Table 4.2.2.2.1-8: General operating band unwanted emission limits
for repeater pass band bandwidth lower than 5 MHz (E-UTRA bands 20)
Frequency offset of Frequency offset Test requirement Measurement
measurement filter of measurement bandwidth
-3dB point, Δf filter centre
frequency, f_offset
100 kHz
BW /2 ≤ f_offset
Meas Max[]− 2,5∗ BW + 2,5;−1∗ BW − 2 dBm +
Passband Passband
< BW +
Pass band
BW
⎛ ⎞
0 MHz ≤ Δf < BW BW /2 Max[]−10;1,5* BW −14,5
Pass Meas
Passband meas
⎜ ⎟
* f _ offset − dB
band
⎜ ⎟
BW
Passband
⎝ ⎠
+ 1,5 dB
BW ≤ Δf < BW + 100 kHz
Pass band Pass band
Max[]− 2,5∗ BW − 7,5;0,5∗ BW −16,5 dBm
Passband Passband
2*BW BW /2 ≤ f_offset
Pass band Meas
+ 1,5 dB
<
2* BW +
Pass band
BW /2
Meas
2*BW ≤ Δf ≤ 2* BW + -16 dBm 100 kHz
Pass band Pass band
BW /2 ≤ f_offset
Δf Meas
max
< f_offset
max
NOTE 1: Frequencies and bandwidth are given in MHz.
NOTE 2: If the repeater input signal consists of E-UTRA signals with a channel bandwidth of 1,4 MHz placed so that the
channel edge is less than 200 kHz from the pass band edge, the requirements in table 4.2.2.2.1.10 supersedes
tables 4.2.2.2.1.8 and 4.2.2.2.1.9 for applicable frequency offsets.
NOTE 3: If the repeater input signal consists of E-UTRA signals with a channel bandwidth of 3 MHz placed so that the
channel edge is less than 200 kHz from the pass band edge, the requirements in table 4.2.2.2.1.11 supersedes
tables 4.2.2.2.1.8 and 4.2.2.2.1.9 for applicable frequency offsets.
Table 4.2.2.2.1-9: General operating band unwanted emission limits for repeater pass band
bandwidth 5 MHz and above (E-UTRA bands 20)
Frequency offset of Frequency offset of Test requirement Measurement
measurement filter measurement filter centre bandwidth
frequency, f_offset
-3dB
...
Final draft ETSI EN 301 908-15 V5.2.1 (2011-05)
Harmonized European Standard
IMT cellular networks;
Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive;
Part 15: Evolved Universal Terrestrial Radio Access
(E-UTRA FDD) (Repeaters)
2 Final draft ETSI EN 301 908-15 V5.2.1 (2011-05)
Reference
REN/MSG-TFES-008-15
Keywords
3G, 3GPP, cellular, digital, IMT, IMT-2000,
mobile, radio, regulation, repeater, UMTS,
WCDMA, E-UTRA, LTE
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2011.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 Final draft ETSI EN 301 908-15 V5.2.1 (2011-05)
Contents
Intellectual Property Rights . 5
Foreword . 5
Introduction . 6
1 Scope . 7
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 8
3 Definitions, symbols and abbreviations . 8
3.1 Definitions . 8
3.2 Symbols . 9
3.3 Abbreviations . 10
4 Technical requirements specifications . 10
4.1 Environmental profile . 10
4.2 Conformance requirements . 10
4.2.1 Introduction. 11
4.2.2 Operating band unwanted emissions . 11
4.2.2.1 Definition . 11
4.2.2.2 Limit . 11
4.2.2.2.1 General operating band unwanted emissions . 12
4.2.2.2.2 Protection of the BS receiver in the operating band . 16
4.2.2.2.3 Co-existence with services in adjacent frequency bands . 16
4.2.2.2.4 Protection of DTT. 17
4.2.2.3 Conformance . 17
4.2.3 Spurious emissions . 17
4.2.3.1 Definition . 17
4.2.3.2 Limit . 17
4.2.3.2.1 Spurious emissions . 18
4.2.3.2.2 Co-existence with other systems in the same geographical area . 18
4.2.3.3 Conformance . 19
4.2.4 Maximum output power . 19
4.2.4.1 Definition . 19
4.2.4.2 Limit . 19
4.2.4.3 Conformance . 20
4.2.5 Input intermodulation . 20
4.2.5.1 Definition . 20
4.2.5.2 Limit . 20
4.2.5.2.1 General input intermodulation requirement . 20
4.2.5.2.2 Co-existence with other systems . 21
4.2.5.3 Conformance . 22
4.2.6 Out of band gain . 22
4.2.6.1 Definition . 22
4.2.6.2 Limits . 22
4.2.6.3 Conformance . 22
4.2.7 Adjacent Channel Rejection Ratio . 22
4.2.7.1 Definition . 22
4.2.7.2 Limit . 23
4.2.7.2.1 ACRR . 23
4.2.7.2.2 Co-existence with UTRA . 23
4.2.7.3 Conformance . 23
4.2.8 Output intermodulation . 23
4.2.8.1 Definition . 23
4.2.8.2 Limit . 24
4.2.8.3 Conformance . 24
ETSI
4 Final draft ETSI EN 301 908-15 V5.2.1 (2011-05)
5 Testing for compliance with technical requirements . 24
5.1 Environmental conditions for testing . 24
5.2 Interpretation of the measurement results . 24
5.3 Essential radio test suites . 26
5.3.1 Operating band unwanted emissions . 26
5.3.1.1 Initial conditions . 26
5.3.1.2 Procedures . 26
5.3.2 Spurious emissions . 27
5.3.2.1 Initial conditions . 27
5.3.2.2 Procedures . 27
5.3.3 Maximum output power . 28
5.3.3.1 Initial conditions . 28
5.3.3.2 Procedures . 28
5.3.4 Input intermodulation . 28
5.3.4.1 Initial conditions . 28
5.3.4.2 Procedures . 29
5.3.5 Out of band gain . 29
5.3.5.1 Initial conditions . 29
5.3.5.2 Procedures . 29
5.3.6 Adjacent Channel Rejection Ratio . 30
5.3.6.1 Initial conditions . 30
5.3.6.2 Procedures . 30
5.3.7 Output intermodulation . 30
5.3.7.1 Initial conditions . 30
5.3.7.2 Procedures . 30
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 32
Annex B (normative): Repeater configurations . 34
B.1 Power supply . 34
B.2 Power supply options . 34
B.3 Combining of Repeaters . 34
Annex C (normative): Repeater stimulus signal spectral purity requirements . 35
Annex D (informative): Environmental profile specification . 36
Annex E (informative): The EN title in the official languages . 37
Annex F (informative): Bibliography . 38
History . 39
ETSI
5 Final draft ETSI EN 301 908-15 V5.2.1 (2011-05)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This final draft Harmonized European Standard (EN) has been produced by ETSI Technical Committee Mobile
Standards Group (MSG), and is now submitted for the Vote phase of the ETSI standards Two-step Approval Procedure.
The present document has been produced by ETSI in response to mandate M/284 from the European Commission
issued under Council Directive 98/34/EC [i.1] (as amended) laying down a procedure for the provision of information
in the field of technical standards and regulations.
The title and reference to the present document are intended to included in the publication in the Official Journal of the
European Union of titles and references of Harmonized Standard under the Directive 1999/5/EC [i.2].
See article 5.1 of Directive 1999/5/EC [i.2] for information on presumption of conformity and Harmonised Standards or
parts thereof the references of which have been published in the Official Journal of the European Union.
The requirements relevant to Directive 1999/5/EC [i.2] are summarised in annex A.
The present document is part 15 of a multi-part deliverable covering the essential requirements under article 3.2 of
Directive 1999/5/EC [i.2] (R&TTE Directive) for Base Stations (BS), Repeaters and User Equipment (UE) for IMT
cellular networks, as identified below:
Part 1: "Introduction and common requirements";
Part 2: "CDMA Direct Spread (UTRA FDD) User Equipment (UE)";
Part 3: "CDMA Direct Spread (UTRA FDD) Base Stations (BS)";
Part 4: "CDMA Multi-Carrier (cdma2000) User Equipment (UE)";
Part 5: "CDMA Multi-Carrier (cdma2000) Base Stations (BS)";
Part 6: "CDMA TDD (UTRA TDD) User Equipment (UE)";
Part 7: "CDMA TDD (UTRA TDD) Base Stations (BS)";
Part 8: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (UE) covering essential requirements
of article 3.2 of the R&TTE Directive";
Part 9: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (BS) covering essential requirements
of article 3.2 of the R&TTE Directive";
Part 10: "Harmonized EN for IMT-2000, FDMA/TDMA (DECT) covering essential requirements of article 3.2 of
the R&TTE Directive";
Part 11: "CDMA Direct Spread (UTRA FDD) (Repeaters)";
Part 12: "Harmonized EN for IMT-2000, CDMA Multi-Carrier (cdma2000) (Repeaters) covering the essential
requirements of article 3.2 of the R&TTE Directive";
Part 13: "Evolved Universal Terrestrial Radio Access (E-UTRA) User Equipment (UE)";
ETSI
6 Final draft ETSI EN 301 908-15 V5.2.1 (2011-05)
Part 14: "Evolved Universal Terrestrial Radio Access (E-UTRA) Base Stations (BS)";
Part 15: "Evolved Universal Terrestrial Radio Access (E-UTRA FDD) (Repeaters)";
Part 16: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (UE)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 17: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (BS)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 18: "E-UTRA, UTRA and GSM/EDGE Multi-Standard Radio (MSR) Base Station (BS)";
Part 19: "OFDMA TDD WMAN (Mobile WiMAX) TDD User Equipment (UE)";
Part 20: "OFDMA TDD WMAN (Mobile WiMAX) TDD Base Stations (BS)";
Part 21: "OFDMA TDD WMAN (Mobile WiMAX) FDD User Equipment (UE)";
Part 22: "OFDMA TDD WMAN (Mobile WiMAX) FDD Base Stations (BS)".
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The
modular structure is shown in EG 201 399 [i.3].
ETSI
7 Final draft ETSI EN 301 908-15 V5.2.1 (2011-05)
1 Scope
The present document applies to the following radio equipment type:
• Repeaters for Evolved Universal Terrestrial Radio Access (E-UTRA) (FDD).
This radio equipment type is capable of operating in all or any part of the frequency bands given in table 1-1.
Table 1-1: E-UTRA Repeater operating bands
E-UTRA FDD Direction of transmission E-UTRA Repeater operating bands
band
1 Downlink 2 110 MHz to 2 170 MHz
Uplink 1 920 MHz to 1 980 MHz
3 Downlink 1 805 MHz to 1 880 MHz
Uplink 1 710 MHz to 1 785 MHz
7 Downlink 2 620 MHz to 2 690 MHz
Uplink 2 500 MHz to 2 570 MHz
8 Downlink 925 MHz to 960 MHz
Uplink 880 MHz to 915 MHz
20 Downlink 791 MHz to 821 MHz
Uplink 832 MHz to 862 MHz
The present document covers requirements for E-UTRA Repeaters for Release 8 and 9.
The present document is intended to cover the provisions of Directive 1999/5/EC [i.2] (R&TTE Directive), article 3.2,
which states that "…. radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive [i.2] may apply to equipment within the scope of the present
document.
NOTE: A list of such ENs is included on the web site http://www.newapproach.org.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 301 908-1 (V5.2.1): "IMT cellular networks; Harmonized EN covering the essential
requirements of article 3.2 of the R&TTE Directive; Part 1: Introduction and common
requirements".
[2] ETSI TS 136 143 (V9.2.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); FDD
repeater conformance testing (3GPP TS 36.143 version 9.2.0 Release 9)".
[3] Void.
ETSI
8 Final draft ETSI EN 301 908-15 V5.2.1 (2011-05)
[4] ITU-R Recommendation SM.329-11 (2011): "Unwanted emissions in the spurious domain".
[5] IEC 60068-2-1 (2007): "Environmental testing - Part 2-1: Tests - Test A: Cold".
[6] IEC 60068-2-2 (2007): "Environmental testing - Part 2-2: Tests - Test B: Dry heat".
[7] ETSI EN 301 908-11 (V5.2.1): "IMT cellular networks; Harmonized EN covering the essential
requirements of article 3.2 of the R&TTE Directive; Part 11: CDMA Direct Spread (UTRA FDD)
(Repeaters)".
[8] ETSI TS 136 141 (V9.7.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); Base
Station (BS) conformance testing (3GPP TS 36.141 version 9.7.0 Release 9)".
[9] ETSI TS 125 141 (V9.7.0): "Universal Mobile Telecommunications System (UMTS); Base
Station (BS) conformance testing (FDD) (3GPP TS 25.141 version 9.7.0 Release 9)".
[10] ETSI TS 136 104 (V9.7.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); Base
Station (BS) radio transmission and reception (3GPP TS 36.104 version 9.7.0 Release 9)".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
[i.2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[i.3] ETSI EG 201 399 (V2.2.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
A guide to the production of Harmonized Standards for application under the R&TTE Directive".
[i.4] ETSI TR 102 215 (V1.3.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Recommended approach, and possible limits for measurement uncertainty for the measurement of
radiated electromagnetic fields above 1 GHz".
[i.5] ETSI TR 100 028 (all parts) (V1.4.1): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Uncertainties in the measurement of mobile radio equipment characteristics".
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
carrier: modulated waveform conveying the E-UTRA or UTRA (WCDMA) physical channels
channel bandwidth: RF bandwidth supporting a single E-UTRA RF carrier with the transmission bandwidth
configured in the uplink or downlink of a cell
NOTE: The channel bandwidth is measured in MHz and is used as a reference for transmitter and receiver RF
requirements.
channel edge: lowest and highest frequency of the E-UTRA carrier, separated by the channel bandwidth
donor coupling loss: coupling loss between the repeater and the donor Base Station
downlink: signal path where Base Station transmits and mobile receives
downlink operating band: part of the operating band designated for downlink
ETSI
9 Final draft ETSI EN 301 908-15 V5.2.1 (2011-05)
nominal passband edge: lowest and highest frequency of the pass band of the repeater
operating band: frequency range in which E-UTRA FDD operates, that is defined with a specific set of technical
requirements
NOTE 1: The operating band(s) for an E-UTRA Repeater is declared by the manufacturer according to the
designations in clause 1, table 1-1.
NOTE 2: Unless specified, operating band refers to the uplink operating band and downlink operating band.
output power, Pout: mean power of one carrier at maximum repeater gain delivered to a load with resistance equal to
the nominal load impedance of the transmitter
pass band: repeater can have one or several pass bands
NOTE: The pass band is the frequency range that the repeater operates in with operational configuration. This
frequency range can correspond to one or several consecutive nominal channels. If they are not
consecutive each subset of channels is considered as an individual pass band.
rated output power: rated output power of the repeater is the mean power level per carrier that the manufacturer has
declared to be available at the antenna connector
repeater: device that receives, amplifies and transmits the radiated or conducted RF carrier both in the downlink
direction (from the Base Station to the mobile area) and in the uplink direction (from the mobile to the Base Station)
transmission bandwidth: bandwidth of an instantaneous transmission from a UE or BS, measured in Resource Block
units
transmission bandwidth configuration: highest transmission bandwidth allowed for uplink or downlink in a given
channel bandwidth, measured in Resource Block units
uplink: signal path where mobile transmits and Base Station receives
uplink operating band: part of the operating band designated for uplink
3.2 Symbols
For the purposes of the present document, the following symbols apply:
Δf The separation between the nominal pass band edge frequency and the nominal -3 dB point of the
measuring filter closest to the carrier frequency
Δf The largest value of Δf used for defining the requirement
max
BW Channel bandwidth
Channel
BW Transmission bandwidth configuration, expressed in MHz, where BW = N × 180 kHz in
Config Config RB
the uplink and BW = 15 kHz + N × 180 kHz in the downlink
Config RB
BW Measurement bandwidth
Meas
BW Bandwidth of the repeater pass band
Pass band
f_offset The largest value of f_offset used for defining the requirement
max
F The lowest frequency of the downlink operating band
DL_low
F The highest frequency of the downlink operating band
DL_high
F Filter centre frequency
filter
F The lowest frequency of the uplink operating band
UL_low
F The highest frequency of the uplink operating band
UL_high
N Downlink EARFCN
DL
N Offset used for calculating downlink EARFCN
Offs-DL
N Offset used for calculating uplink EARFCN
Offs-UL
N Transmission bandwidth configuration, expressed in units of resource blocks
RB
N Uplink EARFCN
UL
P Declared emission level for channel N
EM,N
ETSI
10 Final draft ETSI EN 301 908-15 V5.2.1 (2011-05)
Pmax Maximum output power
Pout Output power
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ACLR Adjacent Channel Leakage Ratio
ACRR Adjacent Channel Rejection Ratio
BS Base Station
BW Bandwidth
CW Continuous Wave
DTT Digital Terrestrial Television
DUT Device Under Test
EARFCN E-UTRA Absolute Radio Frequency Channel Number
E-TM E-UTRA Test Model
E-UTRA Evolved Universal Terrestrial Radio Access
ERM Electromagnetic compatibility and Radio spectrum Matters
EUT Equipment Under Test
FDD Frequency Division Duplex
ITU-R International Telecommunication Union - Radiocommunication
GSM Global System for Mobile Communications
IMT International Mobile Telecommunications
LTE Long Term Evolution, also known as E-UTRA
MS Mobile Station
NOTE: For GSM.
MSG Mobile Standards Group
PCCPCH Primary Common Control Physical Channel
R&TTE Radio and Telecommunications Terminal Equipment
RF Radio Frequency
RMS Root Mean Square (value)
RRC Root Raised Cosine
RSS Root Sum Square
SCCPCH Secondary Common Control Physical Channel
TDD Time Division Duplex
TFES Task Force for European Standards for IMT
UARFCN UTRA Absolute Radio Frequency Channel Number
UMB Ultra Mobile Broadband
UTRA Universal Terrestrial Radio Access
WCDMA Wideband Code Division Multiple Access
4 Technical requirements specifications
4.1 Environmental profile
The technical requirements of the present document apply under the environmental profile for operation of the
equipment, which shall be declared by the supplier. The equipment shall comply with all the technical requirements of
the present document at all times when operating within the boundary limits of the declared operational environmental
profile.
For guidance on how a supplier can declare the environmental profile, see annex C.
4.2 Conformance requirements
The requirements in the present document are based on the assumption that the operating band (see table 1-1) is shared
between systems of the IMT family (for bands 3 and 8 also GSM) or systems having compatible characteristics.
ETSI
11 Final draft ETSI EN 301 908-15 V5.2.1 (2011-05)
4.2.1 Introduction
To meet the essential requirement under article 3.2 of Directive 1999/5/EC [i.2] (R&TTE Directive) for IMT Repeaters
five essential parameters in addition to those in EN 301 908-1 [1] have been identified. Table 4.2.1-1 provides a cross
reference between these five essential parameters and the corresponding seven technical requirements for equipment
within the scope of the present document.
Table 4.2.1-1: Cross references
Essential parameter Corresponding technical requirements
Spectrum emissions mask 4.2.2 Operating band unwanted emissions
Conducted spurious emissions from the antenna connector 4.2.3 Spurious emissions
Accuracy of maximum output power 4.2.4 Maximum output power
4.2.5 Input intermodulation
Receiver immunity 4.2.6 Out of band gain
4.2.7 Adjacent Channel Rejection Ratio
Intermodulation attenuation of the output 4.2.8 Output intermodulation
4.2.2 Operating band unwanted emissions
4.2.2.1 Definition
Unwanted emissions consist of out of band emissions and spurious emissions (ITU-R Recommendation
SM.329-11 [4]). Out of band emissions are emissions immediately outside the pass band bandwidth resulting from the
modulation process and non-linearity in the transmitter, but excluding spurious emissions. Spurious emissions are
emissions which are caused by unwanted transmitter effects such as harmonics emission, parasitic emission,
intermodulation products and frequency conversion products, but exclude out of band emissions.
The out of band emissions requirement for repeater is specified both in terms operating band unwanted emissions and
protection of the BS receiver in the uplink operating band. The operating band unwanted emissions define all unwanted
emissions in the repeater operating band plus the frequency ranges 10 MHz above and 10 MHz below that band.
Unwanted emissions outside of this frequency range are limited by a spurious emissions requirement.
4.2.2.2 Limit
Emissions shall not exceed the maximum levels specified in the tables below, where:
• Δf is the separation between the nominal pass band edge frequency and the nominal -3 dB point of the
measuring filter closest to the carrier frequency.
• Nominal passband edge is the lowest and highest frequency of the pass band of the repeater.
• BW is the measurement bandwidth.
Meas
• BW is the bandwidth of the repeaters pass band.
Pass band
• f_offset is the separation between the nominal pass band edge frequency and the centre of the measuring filter.
• f_offset is the offset to the frequency 10 MHz outside the repeater operating band.
max
• Δf is equal to f_offset minus half of the bandwidth of the measuring filter.
max max
Unless otherwise stated, all requirements are measured as mean power (RMS).
This requirement applies to the uplink and downlink of the repeater, at maximum gain, and with the following input
signals:
• without E-UTRA input signal;
• with E-UTRA input signals in the pass band of the repeater, at levels that produce the maximum rated power
output per channel;
ETSI
12 Final draft ETSI EN 301 908-15 V5.2.1 (2011-05)
• with 10 dB increased E-UTRA input signals in all channels in the pass band, compared to the input level
producing the maximum rated output power.
4.2.2.2.1 General operating band unwanted emissions
For E-UTRA FDD repeater operating in bands 3 or 8 emissions shall not exceed the maximum levels specified in
tables 4.2.2.2.1-1 and 4.2.2.2.1-2. The measurements shall apply to both paths uplink and downlink of the Repeater.
Table 4.2.2.2.1-1: General operating band unwanted emission limits for repeater pass band
lower than 5 MHz for (E-UTRA bands 3 and 8)
Frequency offset of measurement Frequency offset of Test requirement Measurement
filter -3 dB point, Δf measurement filter bandwidth
centre frequency,
f_offset
0 MHz ≤ Δf < 0,2 MHz 0,015 MHz ≤ f_offset -12,5 dBm 30 kHz
< 0,215 MHz
30 kHz
0,2 MHz ≤ Δf < 1 MHz 0,215 MHz ≤ f_offset
f _ offset
⎛ ⎞
−12,5dBm −15* − 0,215 dB
< 1,015 MHz ⎜ ⎟
MHz
⎝ ⎠
1,015 MHz ≤ f_offset -24,5 dBm 30 kHz
< 1,5 MHz
1 MHz ≤ Δf < 2 × BW 1,5 MHz ≤ f_offset < -11,5 dBm 1 MHz
Pass band
2 × BW +
Pass band
0,5 MHz
2 × BW + -15 dBm 1 MHz
2 × BW ≤ Δf ≤ Δf
Pass band
Pass band max
0,5 MHz ≤ f_offset <
f_offset
max
NOTE 1: Frequencies and bandwidth are given in MHz.
NOTE 2: If the repeater input signal consists of E-UTRA signals with a channel bandwidth of 1,4 MHz or 3 MHz placed so
that the channel edge is less than 200 kHz from the pass band edge, the requirements in table 4.2.2.2.1-3
supersede table 4.2.2.2.1-1 for applicable frequency offsets.
Table 4.2.2.2.1-2: General operating band unwanted emission limits for repeater pass band
5 MHz and above for (E-UTRA band 3 and 8)
Frequency offset of measurement Frequency offset of Test requirement Measurement
filter -3 dB point, Δf measurement filter bandwidth
centre frequency,
f_offset
0 MHz ≤ Δf < 0,2 MHz 0,015 MHz ≤ f_offset < -12,5 dBm 30 kHz
0,215 MHz
0,2 MHz ≤ Δf < 1 MHz 0,215 MHz ≤ f_offset < 30 kHz
⎛ f _ offset ⎞
−12,5 dBm −15*⎜ − 0,215⎟dB
1,015 MHz
MHz
⎝ ⎠
1,015 MHz ≤ f_offset < -24,5 dBm 30 kHz
1,5 MHz
-11,5 dBm 1 MHz
1 MHz ≤ Δf < 10 MHz 1,5 MHz ≤ f_offset <
10,5 MHz
-15 dBm 1 MHz
10 MHz ≤ Δf ≤ Δf 10,5 MHz ≤ f_offset <
max
f_offset
max
NOTE 1: Frequencies and bandwidth are given in MHz.
NOTE 2: If the repeater input signal consists of E-UTRA signals with a channel bandwidth of 1,4 MHz or 3 MHz placed so
that the channel edge is less than 200 kHz from the pass band edge, the requirements in table 4.2.2.2.1-3
supersede table 4.2.2.2.1-2 for applicable frequency offsets.
ETSI
13 Final draft ETSI EN 301 908-15 V5.2.1 (2011-05)
Table 4.2.2.2.1-3: Conditional operating band unwanted emission limits
for (E-UTRA band 3 and 8)
Frequency offset of Frequency offset of Test requirement Measurement
measurement filter bandwidth
measurement filter -3 dB point, Δf
centre frequency,
f_offset
30 kHz
0 MHz ≤ Δf < 0,05 MHz 0,015 MHz ≤ f_offset < f _ offset
⎛ ⎞
6,5 dBm − 60 ⋅ − 0,015 dB
⎜ ⎟
0,065 MHz
MHz
⎝ ⎠
30 kHz
0,05 MHz ≤ Δf < 0,15 MHz 0,065 MHz ≤ f_offset < f _ offset
⎛ ⎞
3,5 dBm −160 ⋅⎜ − 0,065⎟dB
0,165 MHz
MHz
⎝ ⎠
-12,5 dBm 30 kHz
0,15 MHz ≤ Δf < 0,2 MHz 0,165 MHz ≤ f_offset <
0,215 MHz
NOTE: Frequencies and bandwidth are given in MHz.
For E-UTRA FDD repeater operating in bands 1 and 7 emissions shall not exceed the maximum levels specified in
tables 4.2.2.2.1-3 and 4.2.2.2.1-4. The measurements shall apply to both paths uplink and downlink of the Repeater.
Table 4.2.2.2.1-4: General operating band unwanted emission limits
for repeater pass band lower than 5 MHz (E-UTRA bands 1 and 7)
Frequency offset of Frequency offset Test requirement Measurement
measurement filter of measurement bandwidth
filter centre
-3 dB point, Δf
frequency, f_offset
0 MHz ≤ Δf < BW BW /2 ≤ f_offset 100 kHz
Max[]− 2,5∗ BW + 2,5;−1∗ BW − 2 dBm +
Pass Meas
Passband Passband
band
< BW +
Pass band
BW
⎛ ⎞
Max[]−10;1,5* BW −14,5
Passband meas
⎜ ⎟
BW /2
* f _ offset − dB
Meas
⎜ 2 ⎟
BW
Passband
⎝ ⎠
+ 1,5 dB
BW ≤ Δf < BW + 100 kHz
Max[]− 2,5∗ BW − 7,5;0,5∗ BW −16,5 dBm
Pass band Pass band
Passband Passband
2*BW BW /2 ≤ f_offset
+ 1,5 dB
Pass band Meas
<
2* BW +
Pass band
BW /2
Meas
2*BW ≤ Δf ≤ 2* BW + -15 dBm 1 MHz
Pass band Pass band
BW /2 ≤ f_offset
Δf
Meas
max
< f_offset
max
NOTE 1: Frequencies and bandwidth are given in MHz.
NOTE 2: If the repeater input signal consists of E-UTRA signals with a channel bandwidth of 1,4 MHz placed so that the
channel edge is less than 200 kHz from the pass band edge, the requirements in table 4.2.2.2.1-6 supersede
tables 4.2.2.2.1-4 and 4.2.2.2.1-5 for applicable frequency offsets.
NOTE 3: If the repeater input signal consists of E-UTRA signals with a channel bandwidth of 3 MHz placed so that the
channel edge is less than 200 kHz from the pass band edge, the requirements in table 4.2.2.2.1-7 supersede
tables 4.2.2.2.1-4 and 4.2.2.2.1-5 for applicable frequency offsets.
ETSI
14 Final draft ETSI EN 301 908-15 V5.2.1 (2011-05)
Table 4.2.2.2.1-5: General operating band unwanted emission limits
for repeater pass band 5 MHz and above (E-UTRA bands 1 and 7)
Frequency offset of Frequency offset of Test requirement Measurement
measurement filter measurement filter centre bandwidth
-3dB point, Δf frequency, f_offset
0 MHz ≤ Δf < 5 MHz 0,05 MHz ≤ f_offset < 5,05 MHz 100 kHz
7 f _ offset
⎛ ⎞
− 5,5dBm− ⋅ − 0,05 dB
⎜ ⎟
5 MHz
⎝ ⎠
5 MHz ≤ Δf < 10 MHz 5,05 MHz ≤ f_offset < 10,05 MHz -12,5 dBm 100 kHz
-15 dBm 1 MHz
10 MHz ≤ Δf ≤ Δf 10,5 MHz ≤ f_offset < f_offset
max max
NOTE 1: Frequencies and bandwidth are given in MHz.
NOTE 2: If the repeater input signal consists of E-UTRA signals with a channel bandwidth of 1,4 MHz placed so that the
channel edge is less than 200 kHz from the pass band edge, the requirements in table 4.2.2.2.1-6 supersede
tables 4.2.2.2.1-4 and 4.2.2.2.1-5 for applicable frequency offsets.
NOTE 3: If the repeater input signal consists of E-UTRA signals with a channel bandwidth of 3 MHz placed so that the
channel edge is less than 200 kHz from the pass band edge, the requirements in table 4.2.2.2.1-7 supersede
tables 4.2.2.2.1-4 and 4.2.2.2.1-5 for applicable frequency offsets.
Table 4.2.2.2.1-6: Conditional operating band unwanted emission limits
for repeater input signal bandwidth of 1,4 MHz (E-UTRA bands 1 and 7)
Frequency offset of Frequency offset of Test requirement Measurement
measurement filter measurement filter centre bandwidth
-3dB point, Δf frequency, f_offset
100 kHz
10 f _offset
⎛ ⎞
+ 0,5dBm− ⋅⎜ − 0,05⎟dB
0 MHz ≤ Δf < 1,05 MHz 0,05 MHz ≤ f_offset < 1,1 MHz
1,4 MHz
⎝ ⎠
Table 4.2.2.2.1-7: Conditional operating band unwanted emission limits
for repeater input signal bandwidth of 3 MHz (E-UTRA bands 1 and 7)
Frequency offset of Frequency offset of Test requirement Measurement
measurement filter measurement filter centre bandwidth
-3dB point, Δf frequency, f_offset
100 kHz
10 f _offset
⎛ ⎞
−3,5dBm− ⋅ −0,05 dB
0 MHz ≤ Δf < 1,05 MHz 0,05 MHz ≤ f_offset < 1,1 MHz ⎜ ⎟
3 MHz
⎝ ⎠
For E-UTRA FDD repeater operating in bands 20 emissions shall not exceed the maximum levels specified in
tables 4.2.2.2.1-8 and 4.2.2.2.1-9. The measurements shall apply to both paths uplink and downlink of the Repeater.
ETSI
15 Final draft ETSI EN 301 908-15 V5.2.1 (2011-05)
Table 4.2.2.2.1-8: General operating band unwanted emission limits
for repeater pass band bandwidth lower than 5 MHz (E-UTRA bands 20)
Frequency offset of Frequency offset Test requirement Measurement
measurement filter of measurement bandwidth
-3dB point, Δf filter centre
frequency, f_offset
100 kHz
BW /2 ≤ f_offset
Meas Max[]− 2,5∗ BW + 2,5;−1∗ BW − 2 dBm +
Passband Passband
< BW +
Pass band
BW
⎛ ⎞
0 MHz ≤ Δf < BW BW /2 Max[]−10;1,5* BW −14,5
Pass Meas
Passband meas
⎜ ⎟
* f _ offset − dB
band
⎜ ⎟
BW
Passband
⎝ ⎠
+ 1,5 dB
BW ≤ Δf < BW + 100 kHz
Pass band Pass band
Max[]− 2,5∗ BW − 7,5;0,5∗ BW −16,5 dBm
Passband Passband
2*BW BW /2 ≤ f_offset
Pass band Meas
+ 1,5 dB
<
2* BW +
Pass band
BW /2
Meas
2*BW ≤ Δf ≤ 2* BW + -16 dBm 100 kHz
Pass band Pass band
BW /2 ≤ f_offset
Δf Meas
max
< f_offset
max
NOTE 1: Frequencies and bandwidth are given in MHz.
NOTE 2: If the repeater input signal consists of E-UTRA signals with a channel bandwidth of 1,4 MHz placed so that the
channel edge is less than 200 kHz from the pass band edge, the requirements in table 4.2.2.2.1.10 supersedes
tables 4.2.2.2.1.8 and 4.2.2.2.1.9 for applicable frequency offsets.
NOTE 3: If the repeater input signal consists of E-UTRA signals with a channel bandwidth of 3 MHz placed so that the
c
...
SLOVENSKI STANDARD
01-september-2011
&HOLþQDRPUHåMD,07+DUPRQL]LUDQL(1NL]DMHPDELVWYHQH]DKWHYHþOHQD
GLUHNWLYH5 77(GHO 5D]YLWLSUL]HPQLUDGLMVNLGRVWRS]D8076 (875$)''
SRQDYOMDOQLNL UHSHWLWRUML
IMT cellular networks - Harmonized EN covering the essential requirements of article 3.2
of the R&TTE Directive - Part 15: Evolved Universal Terrestrial Radio Access (E-UTRA
FDD) (Repeaters)
Ta slovenski standard je istoveten z: EN 301 908-15 Version 5.2.1
ICS:
33.060.99 Druga oprema za radijske Other equipment for
komunikacije radiocommunications
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
Harmonized European Standard
IMT cellular networks;
Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive;
Part 15: Evolved Universal Terrestrial Radio Access
(E-UTRA FDD) (Repeaters)
2 ETSI EN 301 908-15 V5.2.1 (2011-07)
Reference
REN/MSG-TFES-008-15
Keywords
3G, 3GPP, cellular, digital, IMT, IMT-2000,
mobile, radio, regulation, repeater, UMTS,
WCDMA, E-UTRA, LTE
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2011.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI EN 301 908-15 V5.2.1 (2011-07)
Contents
Intellectual Property Rights . 5
Foreword . 5
Introduction . 6
1 Scope . 7
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 8
3 Definitions, symbols and abbreviations . 8
3.1 Definitions . 8
3.2 Symbols . 9
3.3 Abbreviations . 10
4 Technical requirements specifications . 10
4.1 Environmental profile . 10
4.2 Conformance requirements . 10
4.2.1 Introduction. 11
4.2.2 Operating band unwanted emissions . 11
4.2.2.1 Definition . 11
4.2.2.2 Limit . 11
4.2.2.2.1 General operating band unwanted emissions . 12
4.2.2.2.2 Protection of the BS receiver in the operating band . 16
4.2.2.2.3 Co-existence with services in adjacent frequency bands . 16
4.2.2.2.4 Protection of DTT. 17
4.2.2.3 Conformance . 17
4.2.3 Spurious emissions . 17
4.2.3.1 Definition . 17
4.2.3.2 Limit . 17
4.2.3.2.1 Spurious emissions . 18
4.2.3.2.2 Co-existence with other systems in the same geographical area . 18
4.2.3.3 Conformance . 19
4.2.4 Maximum output power . 19
4.2.4.1 Definition . 19
4.2.4.2 Limit . 19
4.2.4.3 Conformance . 20
4.2.5 Input intermodulation . 20
4.2.5.1 Definition . 20
4.2.5.2 Limit . 20
4.2.5.2.1 General input intermodulation requirement . 20
4.2.5.2.2 Co-existence with other systems . 21
4.2.5.3 Conformance . 22
4.2.6 Out of band gain . 22
4.2.6.1 Definition . 22
4.2.6.2 Limits . 22
4.2.6.3 Conformance . 22
4.2.7 Adjacent Channel Rejection Ratio . 22
4.2.7.1 Definition . 22
4.2.7.2 Limit . 23
4.2.7.2.1 ACRR . 23
4.2.7.2.2 Co-existence with UTRA . 23
4.2.7.3 Conformance . 23
4.2.8 Output intermodulation . 23
4.2.8.1 Definition . 23
4.2.8.2 Limit . 24
4.2.8.3 Conformance . 24
ETSI
4 ETSI EN 301 908-15 V5.2.1 (2011-07)
5 Testing for compliance with technical requirements . 24
5.1 Environmental conditions for testing . 24
5.2 Interpretation of the measurement results . 24
5.3 Essential radio test suites . 26
5.3.1 Operating band unwanted emissions . 26
5.3.1.1 Initial conditions . 26
5.3.1.2 Procedures . 26
5.3.2 Spurious emissions . 27
5.3.2.1 Initial conditions . 27
5.3.2.2 Procedures . 27
5.3.3 Maximum output power . 28
5.3.3.1 Initial conditions . 28
5.3.3.2 Procedures . 28
5.3.4 Input intermodulation . 28
5.3.4.1 Initial conditions . 28
5.3.4.2 Procedures . 29
5.3.5 Out of band gain . 29
5.3.5.1 Initial conditions . 29
5.3.5.2 Procedures . 29
5.3.6 Adjacent Channel Rejection Ratio . 30
5.3.6.1 Initial conditions . 30
5.3.6.2 Procedures . 30
5.3.7 Output intermodulation . 30
5.3.7.1 Initial conditions . 30
5.3.7.2 Procedures . 30
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 32
Annex B (normative): Repeater configurations . 34
B.1 Power supply . 34
B.2 Power supply options . 34
B.3 Combining of Repeaters . 34
Annex C (normative): Repeater stimulus signal spectral purity requirements . 35
Annex D (informative): Environmental profile specification . 36
Annex E (informative): The EN title in the official languages . 37
Annex F (informative): Bibliography . 38
History . 39
ETSI
5 ETSI EN 301 908-15 V5.2.1 (2011-07)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (EN) has been produced by ETSI Technical Committee Mobile Standards Group
(MSG).
The present document has been produced by ETSI in response to mandate M/284 from the European Commission
issued under Council Directive 98/34/EC [i.1] (as amended) laying down a procedure for the provision of information
in the field of technical standards and regulations.
The title and reference to the present document are intended to included in the publication in the Official Journal of the
European Union of titles and references of Harmonized Standard under the Directive 1999/5/EC [i.2].
See article 5.1 of Directive 1999/5/EC [i.2] for information on presumption of conformity and Harmonised Standards or
parts thereof the references of which have been published in the Official Journal of the European Union.
The requirements relevant to Directive 1999/5/EC [i.2] are summarised in annex A.
The present document is part 15 of a multi-part deliverable covering the essential requirements under article 3.2 of
Directive 1999/5/EC [i.2] (R&TTE Directive) for Base Stations (BS), Repeaters and User Equipment (UE) for IMT
cellular networks, as identified below:
Part 1: "Introduction and common requirements";
Part 2: "CDMA Direct Spread (UTRA FDD) User Equipment (UE)";
Part 3: "CDMA Direct Spread (UTRA FDD) Base Stations (BS)";
Part 4: "CDMA Multi-Carrier (cdma2000) User Equipment (UE)";
Part 5: "CDMA Multi-Carrier (cdma2000) Base Stations (BS)";
Part 6: "CDMA TDD (UTRA TDD) User Equipment (UE)";
Part 7: "CDMA TDD (UTRA TDD) Base Stations (BS)";
Part 8: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (UE) covering essential requirements
of article 3.2 of the R&TTE Directive";
Part 9: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (BS) covering essential requirements
of article 3.2 of the R&TTE Directive";
Part 10: "Harmonized EN for IMT-2000, FDMA/TDMA (DECT) covering essential requirements of article 3.2 of
the R&TTE Directive";
Part 11: "CDMA Direct Spread (UTRA FDD) (Repeaters)";
Part 12: "Harmonized EN for IMT-2000, CDMA Multi-Carrier (cdma2000) (Repeaters) covering the essential
requirements of article 3.2 of the R&TTE Directive";
Part 13: "Evolved Universal Terrestrial Radio Access (E-UTRA) User Equipment (UE)";
ETSI
6 ETSI EN 301 908-15 V5.2.1 (2011-07)
Part 14: "Evolved Universal Terrestrial Radio Access (E-UTRA) Base Stations (BS)";
Part 15: "Evolved Universal Terrestrial Radio Access (E-UTRA FDD) (Repeaters)";
Part 16: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (UE)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 17: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (BS)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 18: "E-UTRA, UTRA and GSM/EDGE Multi-Standard Radio (MSR) Base Station (BS)";
Part 19: "OFDMA TDD WMAN (Mobile WiMAX) TDD User Equipment (UE)";
Part 20: "OFDMA TDD WMAN (Mobile WiMAX) TDD Base Stations (BS)";
Part 21: "OFDMA TDD WMAN (Mobile WiMAX) FDD User Equipment (UE)";
Part 22: "OFDMA TDD WMAN (Mobile WiMAX) FDD Base Stations (BS)".
National transposition dates
Date of adoption of this EN: 4 July 2011
Date of latest announcement of this EN (doa): 31 October 2011
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 30 April 2012
Date of withdrawal of any conflicting National Standard (dow): 30 April 2013
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The
modular structure is shown in EG 201 399 [i.3].
ETSI
7 ETSI EN 301 908-15 V5.2.1 (2011-07)
1 Scope
The present document applies to the following radio equipment type:
• Repeaters for Evolved Universal Terrestrial Radio Access (E-UTRA) (FDD).
This radio equipment type is capable of operating in all or any part of the frequency bands given in table 1-1.
Table 1-1: E-UTRA Repeater operating bands
E-UTRA FDD Direction of transmission E-UTRA Repeater operating bands
band
1 Downlink 2 110 MHz to 2 170 MHz
Uplink 1 920 MHz to 1 980 MHz
3 Downlink 1 805 MHz to 1 880 MHz
Uplink 1 710 MHz to 1 785 MHz
7 Downlink 2 620 MHz to 2 690 MHz
Uplink 2 500 MHz to 2 570 MHz
8 Downlink 925 MHz to 960 MHz
Uplink 880 MHz to 915 MHz
20 Downlink 791 MHz to 821 MHz
Uplink 832 MHz to 862 MHz
The present document covers requirements for E-UTRA Repeaters for Release 8 and 9.
The present document is intended to cover the provisions of Directive 1999/5/EC [i.2] (R&TTE Directive), article 3.2,
which states that "…. radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive [i.2] may apply to equipment within the scope of the present
document.
NOTE: A list of such ENs is included on the web site http://www.newapproach.org.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 301 908-1 (V5.2.1): "IMT cellular networks; Harmonized EN covering the essential
requirements of article 3.2 of the R&TTE Directive; Part 1: Introduction and common
requirements".
[2] ETSI TS 136 143 (V9.2.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); FDD
repeater conformance testing (3GPP TS 36.143 version 9.2.0 Release 9)".
[3] Void.
ETSI
8 ETSI EN 301 908-15 V5.2.1 (2011-07)
[4] ITU-R Recommendation SM.329-11 (2011): "Unwanted emissions in the spurious domain".
[5] IEC 60068-2-1 (2007): "Environmental testing - Part 2-1: Tests - Test A: Cold".
[6] IEC 60068-2-2 (2007): "Environmental testing - Part 2-2: Tests - Test B: Dry heat".
[7] ETSI EN 301 908-11 (V5.2.1): "IMT cellular networks; Harmonized EN covering the essential
requirements of article 3.2 of the R&TTE Directive; Part 11: CDMA Direct Spread (UTRA FDD)
(Repeaters)".
[8] ETSI TS 136 141 (V9.7.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); Base
Station (BS) conformance testing (3GPP TS 36.141 version 9.7.0 Release 9)".
[9] ETSI TS 125 141 (V9.7.0): "Universal Mobile Telecommunications System (UMTS); Base
Station (BS) conformance testing (FDD) (3GPP TS 25.141 version 9.7.0 Release 9)".
[10] ETSI TS 136 104 (V9.7.0): "LTE; Evolved Universal Terrestrial Radio Access (E-UTRA); Base
Station (BS) radio transmission and reception (3GPP TS 36.104 version 9.7.0 Release 9)".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
[i.2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[i.3] ETSI EG 201 399 (V2.2.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
A guide to the production of Harmonized Standards for application under the R&TTE Directive".
[i.4] ETSI TR 102 215 (V1.3.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Recommended approach, and possible limits for measurement uncertainty for the measurement of
radiated electromagnetic fields above 1 GHz".
[i.5] ETSI TR 100 028 (all parts) (V1.4.1): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Uncertainties in the measurement of mobile radio equipment characteristics".
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
carrier: modulated waveform conveying the E-UTRA or UTRA (WCDMA) physical channels
channel bandwidth: RF bandwidth supporting a single E-UTRA RF carrier with the transmission bandwidth
configured in the uplink or downlink of a cell
NOTE: The channel bandwidth is measured in MHz and is used as a reference for transmitter and receiver RF
requirements.
channel edge: lowest and highest frequency of the E-UTRA carrier, separated by the channel bandwidth
donor coupling loss: coupling loss between the repeater and the donor Base Station
downlink: signal path where Base Station transmits and mobile receives
downlink operating band: part of the operating band designated for downlink
ETSI
9 ETSI EN 301 908-15 V5.2.1 (2011-07)
nominal passband edge: lowest and highest frequency of the pass band of the repeater
operating band: frequency range in which E-UTRA FDD operates, that is defined with a specific set of technical
requirements
NOTE 1: The operating band(s) for an E-UTRA Repeater is declared by the manufacturer according to the
designations in clause 1, table 1-1.
NOTE 2: Unless specified, operating band refers to the uplink operating band and downlink operating band.
output power, Pout: mean power of one carrier at maximum repeater gain delivered to a load with resistance equal to
the nominal load impedance of the transmitter
pass band: repeater can have one or several pass bands
NOTE: The pass band is the frequency range that the repeater operates in with operational configuration. This
frequency range can correspond to one or several consecutive nominal channels. If they are not
consecutive each subset of channels is considered as an individual pass band.
rated output power: rated output power of the repeater is the mean power level per carrier that the manufacturer has
declared to be available at the antenna connector
repeater: device that receives, amplifies and transmits the radiated or conducted RF carrier both in the downlink
direction (from the Base Station to the mobile area) and in the uplink direction (from the mobile to the Base Station)
transmission bandwidth: bandwidth of an instantaneous transmission from a UE or BS, measured in Resource Block
units
transmission bandwidth configuration: highest transmission bandwidth allowed for uplink or downlink in a given
channel bandwidth, measured in Resource Block units
uplink: signal path where mobile transmits and Base Station receives
uplink operating band: part of the operating band designated for uplink
3.2 Symbols
For the purposes of the present document, the following symbols apply:
Δf The separation between the nominal pass band edge frequency and the nominal -3 dB point of the
measuring filter closest to the carrier frequency
Δf The largest value of Δf used for defining the requirement
max
BW Channel bandwidth
Channel
BW Transmission bandwidth configuration, expressed in MHz, where BW = N × 180 kHz in
Config Config RB
the uplink and BW = 15 kHz + N × 180 kHz in the downlink
Config RB
BW Measurement bandwidth
Meas
BW Bandwidth of the repeater pass band
Pass band
f_offset The largest value of f_offset used for defining the requirement
max
F The lowest frequency of the downlink operating band
DL_low
F The highest frequency of the downlink operating band
DL_high
F Filter centre frequency
filter
F The lowest frequency of the uplink operating band
UL_low
F The highest frequency of the uplink operating band
UL_high
N Downlink EARFCN
DL
N Offset used for calculating downlink EARFCN
Offs-DL
N Offset used for calculating uplink EARFCN
Offs-UL
N Transmission bandwidth configuration, expressed in units of resource blocks
RB
N Uplink EARFCN
UL
P Declared emission level for channel N
EM,N
ETSI
10 ETSI EN 301 908-15 V5.2.1 (2011-07)
Pmax Maximum output power
Pout Output power
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ACLR Adjacent Channel Leakage Ratio
ACRR Adjacent Channel Rejection Ratio
BS Base Station
BW Bandwidth
CW Continuous Wave
DTT Digital Terrestrial Television
DUT Device Under Test
EARFCN E-UTRA Absolute Radio Frequency Channel Number
E-TM E-UTRA Test Model
E-UTRA Evolved Universal Terrestrial Radio Access
ERM Electromagnetic compatibility and Radio spectrum Matters
EUT Equipment Under Test
FDD Frequency Division Duplex
ITU-R International Telecommunication Union - Radiocommunication
GSM Global System for Mobile Communications
IMT International Mobile Telecommunications
LTE Long Term Evolution, also known as E-UTRA
MS Mobile Station
NOTE: For GSM.
MSG Mobile Standards Group
PCCPCH Primary Common Control Physical Channel
R&TTE Radio and Telecommunications Terminal Equipment
RF Radio Frequency
RMS Root Mean Square (value)
RRC Root Raised Cosine
RSS Root Sum Square
SCCPCH Secondary Common Control Physical Channel
TDD Time Division Duplex
TFES Task Force for European Standards for IMT
UARFCN UTRA Absolute Radio Frequency Channel Number
UMB Ultra Mobile Broadband
UTRA Universal Terrestrial Radio Access
WCDMA Wideband Code Division Multiple Access
4 Technical requirements specifications
4.1 Environmental profile
The technical requirements of the present document apply under the environmental profile for operation of the
equipment, which shall be declared by the supplier. The equipment shall comply with all the technical requirements of
the present document at all times when operating within the boundary limits of the declared operational environmental
profile.
For guidance on how a supplier can declare the environmental profile, see annex C.
4.2 Conformance requirements
The requirements in the present document are based on the assumption that the operating band (see table 1-1) is shared
between systems of the IMT family (for bands 3 and 8 also GSM) or systems having compatible characteristics.
ETSI
11 ETSI EN 301 908-15 V5.2.1 (2011-07)
4.2.1 Introduction
To meet the essential requirement under article 3.2 of Directive 1999/5/EC [i.2] (R&TTE Directive) for IMT Repeaters
five essential parameters in addition to those in EN 301 908-1 [1] have been identified. Table 4.2.1-1 provides a cross
reference between these five essential parameters and the corresponding seven technical requirements for equipment
within the scope of the present document.
Table 4.2.1-1: Cross references
Essential parameter Corresponding technical requirements
Spectrum emissions mask 4.2.2 Operating band unwanted emissions
Conducted spurious emissions from the antenna connector 4.2.3 Spurious emissions
Accuracy of maximum output power 4.2.4 Maximum output power
4.2.5 Input intermodulation
Receiver immunity 4.2.6 Out of band gain
4.2.7 Adjacent Channel Rejection Ratio
Intermodulation attenuation of the output 4.2.8 Output intermodulation
4.2.2 Operating band unwanted emissions
4.2.2.1 Definition
Unwanted emissions consist of out of band emissions and spurious emissions (ITU-R Recommendation
SM.329-11 [4]). Out of band emissions are emissions immediately outside the pass band bandwidth resulting from the
modulation process and non-linearity in the transmitter, but excluding spurious emissions. Spurious emissions are
emissions which are caused by unwanted transmitter effects such as harmonics emission, parasitic emission,
intermodulation products and frequency conversion products, but exclude out of band emissions.
The out of band emissions requirement for repeater is specified both in terms operating band unwanted emissions and
protection of the BS receiver in the uplink operating band. The operating band unwanted emissions define all unwanted
emissions in the repeater operating band plus the frequency ranges 10 MHz above and 10 MHz below that band.
Unwanted emissions outside of this frequency range are limited by a spurious emissions requirement.
4.2.2.2 Limit
Emissions shall not exceed the maximum levels specified in the tables below, where:
• Δf is the separation between the nominal pass band edge frequency and the nominal -3 dB point of the
measuring filter closest to the carrier frequency.
• Nominal passband edge is the lowest and highest frequency of the pass band of the repeater.
• BW is the measurement bandwidth.
Meas
• BW is the bandwidth of the repeaters pass band.
Pass band
• f_offset is the separation between the nominal pass band edge frequency and the centre of the measuring filter.
• f_offset is the offset to the frequency 10 MHz outside the repeater operating band.
max
• Δf is equal to f_offset minus half of the bandwidth of the measuring filter.
max max
Unless otherwise stated, all requirements are measured as mean power (RMS).
This requirement applies to the uplink and downlink of the repeater, at maximum gain, and with the following input
signals:
• without E-UTRA input signal;
• with E-UTRA input signals in the pass band of the repeater, at levels that produce the maximum rated power
output per channel;
ETSI
12 ETSI EN 301 908-15 V5.2.1 (2011-07)
• with 10 dB increased E-UTRA input signals in all channels in the pass band, compared to the input level
producing the maximum rated output power.
4.2.2.2.1 General operating band unwanted emissions
For E-UTRA FDD repeater operating in bands 3 or 8 emissions shall not exceed the maximum levels specified in
tables 4.2.2.2.1-1 and 4.2.2.2.1-2. The measurements shall apply to both paths uplink and downlink of the Repeater.
Table 4.2.2.2.1-1: General operating band unwanted emission limits for repeater pass band
lower than 5 MHz for (E-UTRA bands 3 and 8)
Frequency offset of measurement Frequency offset of Test requirement Measurement
filter -3 dB point, Δf measurement filter bandwidth
centre frequency,
f_offset
0 MHz ≤ Δf < 0,2 MHz 0,015 MHz ≤ f_offset -12,5 dBm 30 kHz
< 0,215 MHz
30 kHz
0,2 MHz ≤ Δf < 1 MHz 0,215 MHz ≤ f_offset
f _ offset
⎛ ⎞
−12,5dBm −15* − 0,215 dB
< 1,015 MHz ⎜ ⎟
MHz
⎝ ⎠
1,015 MHz ≤ f_offset -24,5 dBm 30 kHz
< 1,5 MHz
1 MHz ≤ Δf < 2 × BW 1,5 MHz ≤ f_offset < -11,5 dBm 1 MHz
Pass band
2 × BW +
Pass band
0,5 MHz
2 × BW + -15 dBm 1 MHz
2 × BW ≤ Δf ≤ Δf
Pass band
Pass band max
0,5 MHz ≤ f_offset <
f_offset
max
NOTE 1: Frequencies and bandwidth are given in MHz.
NOTE 2: If the repeater input signal consists of E-UTRA signals with a channel bandwidth of 1,4 MHz or 3 MHz placed so
that the channel edge is less than 200 kHz from the pass band edge, the requirements in table 4.2.2.2.1-3
supersede table 4.2.2.2.1-1 for applicable frequency offsets.
Table 4.2.2.2.1-2: General operating band unwanted emission limits for repeater pass band
5 MHz and above for (E-UTRA band 3 and 8)
Frequency offset of measurement Frequency offset of Test requirement Measurement
filter -3 dB point, Δf measurement filter bandwidth
centre frequency,
f_offset
0 MHz ≤ Δf < 0,2 MHz 0,015 MHz ≤ f_offset < -12,5 dBm 30 kHz
0,215 MHz
0,2 MHz ≤ Δf < 1 MHz 0,215 MHz ≤ f_offset < 30 kHz
⎛ f _ offset ⎞
−12,5 dBm −15* ⎜ − 0,215 ⎟dB
1,015 MHz
MHz
⎝ ⎠
1,015 MHz ≤ f_offset < -24,5 dBm 30 kHz
1,5 MHz
-11,5 dBm 1 MHz
1 MHz ≤ Δf < 10 MHz 1,5 MHz ≤ f_offset <
10,5 MHz
-15 dBm 1 MHz
10 MHz ≤ Δf ≤ Δf 10,5 MHz ≤ f_offset <
max
f_offset
max
NOTE 1: Frequencies and bandwidth are given in MHz.
NOTE 2: If the repeater input signal consists of E-UTRA signals with a channel bandwidth of 1,4 MHz or 3 MHz placed so
that the channel edge is less than 200 kHz from the pass band edge, the requirements in table 4.2.2.2.1-3
supersede table 4.2.2.2.1-2 for applicable frequency offsets.
ETSI
13 ETSI EN 301 908-15 V5.2.1 (2011-07)
Table 4.2.2.2.1-3: Conditional operating band unwanted emission limits
for (E-UTRA band 3 and 8)
Frequency offset of Frequency offset of Test requirement Measurement
measurement filter bandwidth
measurement filter -3 dB point, Δf
centre frequency,
f_offset
30 kHz
0 MHz ≤ Δf < 0,05 MHz 0,015 MHz ≤ f_offset < f _ offset
⎛ ⎞
6,5 dBm − 60 ⋅ − 0,015 dB
⎜ ⎟
0,065 MHz
MHz
⎝ ⎠
30 kHz
0,05 MHz ≤ Δf < 0,15 MHz 0,065 MHz ≤ f_offset < f _ offset
⎛ ⎞
3,5 dBm −160 ⋅ ⎜ − 0,065 ⎟dB
0,165 MHz
MHz
⎝ ⎠
-12,5 dBm 30 kHz
0,15 MHz ≤ Δf < 0,2 MHz 0,165 MHz ≤ f_offset <
0,215 MHz
NOTE: Frequencies and bandwidth are given in MHz.
For E-UTRA FDD repeater operating in bands 1 and 7 emissions shall not exceed the maximum levels specified in
tables 4.2.2.2.1-3 and 4.2.2.2.1-4. The measurements shall apply to both paths uplink and downlink of the Repeater.
Table 4.2.2.2.1-4: General operating band unwanted emission limits
for repeater pass band lower than 5 MHz (E-UTRA bands 1 and 7)
Frequency offset of Frequency offset Test requirement Measurement
measurement filter of measurement bandwidth
filter centre
-3 dB point, Δf
frequency, f_offset
0 MHz ≤ Δf < BW BW /2 ≤ f_offset 100 kHz
Max[]− 2,5∗ BW + 2,5;−1∗ BW − 2 dBm +
Pass Meas
Passband Passband
band
< BW +
Pass band
BW
⎛ ⎞
Max[]−10;1,5* BW −14,5
Passband meas
⎜ ⎟
BW /2
* f _ offset − dB
Meas
⎜ 2 ⎟
BW
Passband
⎝ ⎠
+ 1,5 dB
BW ≤ Δf < BW + 100 kHz
Max[]− 2,5∗ BW − 7,5;0,5∗ BW −16,5 dBm
Pass band Pass band
Passband Passband
2*BW BW /2 ≤ f_offset
+ 1,5 dB
Pass band Meas
<
2* BW +
Pass band
BW /2
Meas
2*BW ≤ Δf ≤ 2* BW + -15 dBm 1 MHz
Pass band Pass band
BW /2 ≤ f_offset
Δf
Meas
max
< f_offset
max
NOTE 1: Frequencies and bandwidth are given in MHz.
NOTE 2: If the repeater input signal consists of E-UTRA signals with a channel bandwidth of 1,4 MHz placed so that the
channel edge is less than 200 kHz from the pass band edge, the requirements in table 4.2.2.2.1-6 supersede
tables 4.2.2.2.1-4 and 4.2.2.2.1-5 for applicable frequency offsets.
NOTE 3: If the repeater input signal consists of E-UTRA signals with a channel bandwidth of 3 MHz placed so that the
channel edge is less than 200 kHz from the pass band edge, the requirements in table 4.2.2.2.1-7 supersede
tables 4.2.2.2.1-4 and 4.2.2.2.1-5 for applicable frequency offsets.
ETSI
14 ETSI EN 301 908-15 V5.2.1 (2011-07)
Table 4.2.2.2.1-5: General operating band unwanted emission limits
for repeater pass band 5 MHz and above (E-UTRA bands 1 and 7)
Frequency offset of Frequency offset of Test requirement Measurement
measurement filter measurement filter centre bandwidth
-3dB point, Δf frequency, f_offset
0 MHz ≤ Δf < 5 MHz 0,05 MHz ≤ f_offset < 5,05 MHz 100 kHz
7 f _ offset
⎛ ⎞
− 5,5dBm− ⋅ − 0,05 dB
⎜ ⎟
5 MHz
⎝ ⎠
5 MHz ≤ Δf < 10 MHz 5,05 MHz ≤ f_offset < 10,05 MHz -12,5 dBm 100 kHz
-15 dBm 1 MHz
10 MHz ≤ Δf ≤ Δf 10,5 MHz ≤ f_offset < f_offset
max max
NOTE 1: Frequencies and bandwidth are given in MHz.
NOTE 2: If the repeater input signal consists of E-UTRA signals with a channel bandwidth of 1,4 MHz placed so that the
channel edge is less than 200 kHz from the pass band edge, the requirements in table 4.2.2.2.1-6 supersede
tables 4.2.2.2.1-4 and 4.2.2.2.1-5 for applicable frequency offsets.
NOTE 3: If the repeater input signal consists of E-UTRA signals with a channel bandwidth of 3 MHz placed so that the
channel edge is less than 200 kHz from the pass band edge, the requirements in table 4.2.2.2.1-7 supersede
tables 4.2.2.2.1-4 and 4.2.2.2.1-5 for applicable frequency offsets.
Table 4.2.2.2.1-6: Conditional operating band unwanted emission limits
for repeater input signal bandwidth of 1,4 MHz (E-UTRA bands 1 and 7)
Frequency offset of Frequency offset of Test requirement Measurement
measurement filter measurement filter centre bandwidth
-3dB point, Δf frequency, f_offset
100 kHz
10 f _offset
⎛ ⎞
+ 0,5dBm− ⋅ ⎜ − 0,05 ⎟dB
0 MHz ≤ Δf < 1,05 MHz 0,05 MHz ≤ f_offset < 1,1 MHz
1,4 MHz
⎝ ⎠
Table 4.2.2.2.1-7: Conditional operating band unwanted emission limits
for repeater input signal bandwidth of 3 MHz (E-UTRA bands 1 and 7)
Frequency offset of Frequency offset of Test requirement Measurement
measurement filter measurement filter centre bandwidth
-3dB point, Δf frequency, f_offset
100 kHz
10 f _offset
⎛ ⎞
−3,5dBm− ⋅ −0,05 dB
0 MHz ≤ Δf < 1,05 MHz 0,05 MHz ≤ f_offset < 1,1 MHz ⎜ ⎟
3 MHz
⎝ ⎠
For E-UTRA FDD repeater operating in bands 20 emissions shall not exceed the maximum levels specified in
tables 4.2.2.2.1-8 and 4.2.2.2.1-9. The measurements shall apply to both paths uplink and downlink of the Repeater.
ETSI
15 ETSI EN 301 908-15 V5.2.1 (2011-07)
Table 4.2.2.2.1-8: General operating band unwanted emission limits
for repeater pass band bandwidth lower than 5 MHz (E-UTRA bands 20)
Frequency offset of Frequency offset Test requirement Measurement
measurement filter of measurement bandwidth
-3dB point, Δf filter centre
frequency, f_offset
100 kHz
BW /2 ≤ f_offset
Meas Max[]− 2,5∗ BW
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
