TECHNICAL SPECIFICATION
Emergency Communications (EMTEL);
Transporting Handset Location to PSAPs for
Emergency Communications - Advanced Mobile Location

2 ETSI TS 103 625 V1.2.1 (2022-04)

Reference
RTS/EMTEL-00056
Keywords
emergency, handset, location, mobile, transport
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure Program:
https://www.etsi.org/standards/coordinated-vulnerability-disclosure
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
No representation or warranty is made that this deliverable is technically accurate or sufficient or conforms to any law
rule and/or regulation and further, no representation or warranty is made of merchantability or fitness
and/or governmental
for any particular purpose or against infringement of intellectual property rights.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2022.
All rights reserved.
ETSI
3 ETSI TS 103 625 V1.2.1 (2022-04)

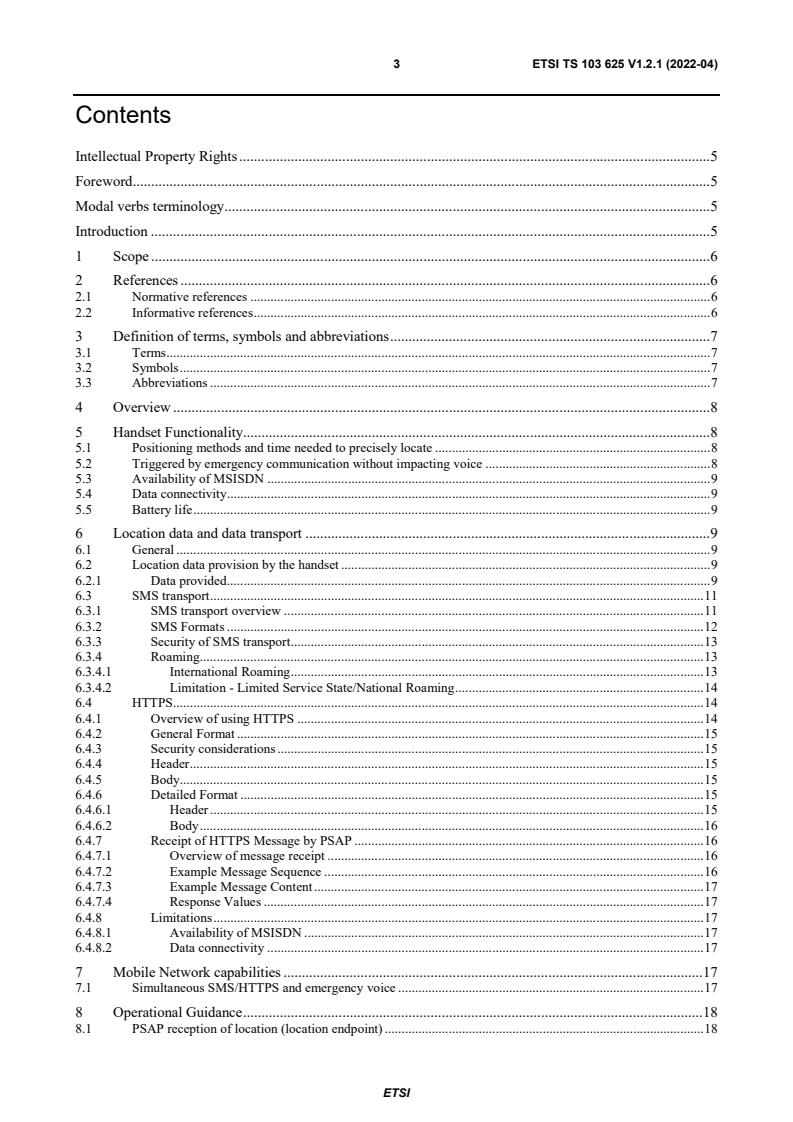

Contents
Intellectual Property Rights . 5
Foreword . 5
Modal verbs terminology . 5
Introduction . 5
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 6
3 Definition of terms, symbols and abbreviations . 7
3.1 Terms . 7
3.2 Symbols . 7
3.3 Abbreviations . 7
4 Overview . 8
5 Handset Functionality. 8
5.1 Positioning methods and time needed to precisely locate . 8
5.2 Triggered by emergency communication without impacting voice . 8
5.3 Availability of MSISDN . 9
5.4 Data connectivity . 9
5.5 Battery life . 9
6 Location data and data transport . 9
6.1 General . 9
6.2 Location data provision by the handset . 9
6.2.1 Data provided . 9
6.3 SMS transport . 11
6.3.1 SMS transport overview . 11
6.3.2 SMS Formats . 12
6.3.3 Security of SMS transport . 13
6.3.4 Roaming . 13
6.3.4.1 International Roaming . 13
6.3.4.2 Limitation - Limited Service State/National Roaming . 14
6.4 HTTPS . 14
6.4.1 Overview of using HTTPS . 14
6.4.2 General Format . 15
6.4.3 Security considerations . 15
6.4.4 Header . 15
6.4.5 Body. 15
6.4.6 Detailed Format . 15
6.4.6.1 Header . 15
6.4.6.2 Body . 16
6.4.7 Receipt of HTTPS Message by PSAP . 16
6.4.7.1 Overview of message receipt . 16
6.4.7.2 Example Message Sequence . 16
6.4.7.3 Example Message Content . 17
6.4.7.4 Response Values . 17
6.4.8 Limitations . 17
6.4.8.1 Availability of MSISDN . 17
6.4.8.2 Data connectivity . 17
7 Mobile Network capabilities . 17
7.1 Simultaneous SMS/HTTPS and emergency voice . 17
8 Operational Guidance . 18
8.1 PSAP reception of location (location endpoint) . 18
ETSI
4 ETSI TS 103 625 V1.2.1 (2022-04)
9 Next Generation 112 . 18
Annex A (normative): SMS Format . 19
Annex B (normative): HTTPS message format . 22
B.1 HTTPS fields . 22
Annex C (informative): Management of location best practice by PSAPs . 24
History . 25

ETSI
5 ETSI TS 103 625 V1.2.1 (2022-04)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the ®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
This Technical Specification (TS) has been produced by ETSI Special Committee Emergency Communications
(EMTEL).
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
Introduction
One of the biggest challenges facing the Emergency Services is determining the location of mobile callers. Cell based
location has been available to the Emergency Services since 2003. While cell data can help with verbal establishment of
a caller's location, a more precise location will allow an even quicker emergency response.
TM
Advanced Mobile Location (AML) allows use of native smart phone technology to pass (Assisted) GNSS or Wi-Fi
based location data to Emergency Service PSAPs. These technologies can provide a location precision as good as 5 m
outdoors (and averaging to within circular areas of ~25 m radius for indoor locations), a significant improvement on
existing cell coverage provided by mobile networks, which average (across the UK as an example) circular areas of
about 1,75 km radius.
The present document builds a second version on the Advanced Mobile Location. The AML initiative is described in
ETSI TR 103 393 [i.1] and is now being used in an increasing number of countries to improve the precision and
accuracy of a caller's location information for emergency communications from mobile handsets.
ETSI
6 ETSI TS 103 625 V1.2.1 (2022-04)
1 Scope
The present document describes the content and the transport methods used for AML messages with handset derived
location information and associated data.
It also considers the future evolution of transport methods as PSAPs, networks and terminals become increasingly IP
based.
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference/.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] ETSI TS 123 040: "Digital cellular telecommunications system (Phase 2+) (GSM); Universal
Mobile Telecommunications System (UMTS); LTE; 5G; Technical realization of the Short
Message Service (SMS) (3GPP TS 23.040)".
[2] Void.
[3] IETF RFC 6442: "Location Conveyance for the Session Initiation Protocol".
[4] Void.
[5] ETSI TS 103 479: "Emergency Communications (EMTEL); Core elements for network
independent access to emergency services".
[6] ETSI TS 123 038: "Digital cellular telecommunications system (Phase 2+) (GSM); Universal
Mobile Telecommunications System (UMTS); LTE; Alphabets and language-specific information
(3GPP TS 23.038)".
TM
[7] GSMA NG.119: "Emergency communication".
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI TR 103 393 (V1.1.1): "Emergency Communications (EMTEL); Advanced Mobile Location
for emergency calls".
ETSI
7 ETSI TS 103 625 V1.2.1 (2022-04)
3 Definition of terms, symbols and abbreviations
3.1 Terms
Void.
3.2 Symbols
Void.
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
3GPP 3G (mobile) Partnership Project
AGNSS Assisted Global Navigation Satellite System
AML Advanced Mobile Location
ASCII American Standard Code for Information Interchange
DCS Data Coding Scheme
GMLC Gateway Mobile Location Centre
GNSS Global Navigation Satellite System
GSM Global System for Mobile
GSMA Global System for Mobile communications Association
HTTP HyperText Transfer Protocol
HTTPS HyperText Transfer Protocol Secure
ICCID Integrated Circuit Card Identifier
ID Identifier
IEI Information Element Identifier
IMEI International Mobile Equipment Identity
IMSI International Mobile Subscriber Identity
IP Internet Protocol
ISDN Integrated Services Digital Network
LOC Level Of Confidence
LS Location Server
LTE Long Term Evolution
MCC Mobile Country Code
MIME Multipurpose Internet Mail Extensions
MNC Mobile Network Code
MNO Mobile Network Operator
MSC Mobile Switching Centre
MSISDN Mobile Station International Subscriber Directory Number
NG Next Generation
NTP Network Time Protocol
OS Operating System
PDU Packet Data Unit
PSAP Public Safety Answering Point
RFC Request For Comments
SIM Subscriber Identity Module
SIP Session Initiation Protocol
SMPP Short Message Peer to Peer
SMS Short Message Service
SMSC Short Message Service Centre
ToC Time of Communication
ToP Time of Positioning
UCS Universal Character Set
UTC Universal Time Coordinated
VoLTE Voice over LTE
VoNR Voice over New Radio
ETSI
8 ETSI TS 103 625 V1.2.1 (2022-04)
WGS World Geodetic System
4 Overview
AML functionality is triggered by an emergency communication (which is progressed normally by the handset and the
network), and is designed to supplement the basic network location provided wherever possible, i.e. with some
TM
acknowledgement of limitations in GNSS or Wi-Fi availability for the handset and the time required to acquire
location using GNSS.
TM
Location information established by the handset, using its built-in GNSS and Wi-Fi connectivity, together with user
plane assistance data from a handset-selected service where available, is transported (e.g. through use of SMS) to the
Emergency Service PSAPs. Handsets can use more than one location technology to establish a location, for example the
TM
handset may combine location information from Cell and Wi-Fi sources to obtain the best possible, "hybridised",
result.
It is important that AML does not interfere with the voice call so both the handset and mobile network shall be
configured to be able to simultaneously support a standard 3GPP mobile emergency voice call, location determination
TM
using GNSS/Wi-Fi capabilities and SMS and/or HTTPS transmission of the location information over the 3GPP
mobile network.
5 Handset Functionality
5.1 Positioning methods and time needed to precisely locate
GNSS, or Assisted GNSS, normally offers the best location information but is slower than other methods. At the other
end of the spectrum cell based location is quick but typically returns a larger location area. The general rule is that
PSAPs need the best data as long as it does not take too long to determine, so a 'send us what you have now' timeout
[T1] is used.
T1 is the maximum time between the emergency communication being initiated and the location message being sent.
T1 should be configurable with a T1 value selected in consultation with the provider of the AML functionality on the
handset to give best balance between quicker availability to PSAPs and the even higher precision that may become
available with a longer T1.
As soon as the emergency communication is initiated the handset shall immediately attempt to determine the best
possible current location within the period set by the T1 timeout.
This should allow all location capabilities that the handset provides to be used, respecting the end user's preferences by
enabling any capability not normally available only to assist for AML functions on an emergency communication, and
subject to a battery check.
If it has not been possible to get a location from any method then a message shall be sent indicating that all positioning
methods have failed.
5.2 Triggered by emergency communication without impacting
voice
The AML software shall be integrated into all existing emergency communications mechanisms available on the
handset including manual dial of 112 (or any other national emergency number specified for the mobile network and
country being used), and use of the Emergency Call button (as appropriate).
In an emergency callers are often stressed or panicking so it is important that the AML functionality and transmission of
the AML message shall be automatically triggered without any manual intervention by the user. The handset software
shall be invisible to the users so as not to cause confusion when they are trying to get help, and so as not to attract
attention from those who intend to abuse the facility. No record of the AML message shall be available to the user
either during or after the emergency communication.
ETSI
9 ETSI TS 103 625 V1.2.1 (2022-04)
If an emergency SMS service, typically for deaf or hard of hearing users is provided in a country, then AML shall also
be triggered by an emergency SMS message being sent.
5.3 Availability of MSISDN
PSAPs need to be able to match the voice call with the AML data, and to do so they use the MSISDN (Mobile Station
International Subscriber Directory Number). The MSISDN is included within an SMS message so this is
straightforward if SMS is used for AML transport. In some instances, the MSISDN can be accessed by the handset's
AML functionality and, if AML is using HTTPS to transport the location data, it should be included in the HTTPS data
string (see clause B.1).
5.4 Data connectivity
The mobile handset requires data connectivity to allow communication with servers operated by the providers of the
phone's operating system that:
a) provide assistance information to allow quick establishment of a GNSS position (AGNSS); and
TM
b) provide access to primarily crowd sourced databases for location information related to Wi-Fi access points.
In addition such a data connection may support one of the transport mechanisms for AML using an HTTPS message
(see clause 6.4).
TM
This data connectivity can be through the mobile network or Wi-Fi access points.
Without such a data connection AML messages are still possible using a GNSS location (without assistance) and SMS
transport (see clause 6.3).
5.5 Battery life
Before invoking the AML functionality, the handset should check there is sufficient battery life so that the caller can
still make a short 5 minute voice call. The priority in the emergency situation is to allow voice connection to the PSAP.
6 Location data and data transport
6.1 General
In order for a PSAP to be able to process messages of a later version than the PSAP currently supports, the PSAP shall
ignore all attributes that it cannot process.
6.2 Location data provision by the handset
6.2.1 Data provided
The following attributes are those that are normative for implementation using transport methods described in
clauses 6.3 and 6.4:
• AML is required to communicate a location in the form of a circle. The location and size of the circle
determined by the handset shall be communicated using the attributes of a WGS 84 latitude and longitude
measured in decimal degrees for the centre of the circle, and a radius measurement for the location circle in
metres. A precision of 5 decimal degrees should be provided which will equate to 1,1 m precision on the
ground.
ETSI
10 ETSI TS 103 625 V1.2.1 (2022-04)
• The Time of Positioning (ToP): The accuracy of this date and time is important as it will be used to filter out
any messages that appear to be too old or have a time in the future. In the first instance the handset should
attempt to use the time established by an NTP server, this should be possible if a network connection is
available. If NTP is not available then GNSS can be used to give time. Only if these two methods fail then, as
a last resort, the handset time and date can be used.
• The confidence level (1 % to 99 %) at which handset location is reported. The default is 1-sigma, or 68 %
confidence, but it is common that more reliable results are required and the handset may be configured to
report at confidence levels of 90 % or 95 %. The selection of a common confidence level for location reporting
makes it easier for the end point operator to make comparisons between locations being provided by multiple
sources. The predominant positioning method used to determine the location area is indicated as one of the
following:
- GNSS or AGNSS;
TM
- Wi-Fi signals;
- Cell;
- Hybridised results shall be used and should be classified according to predominant location method. It
shall also be indicated if it has not been possible to determine the location - see annexes A and B.
• The SIM card identifier of the handset that has made the emergency communication (IMSI) and the identifier
of the handset that made the emergency communication (IMEI):
- For privacy reasons IMSI information is handled differently, depending upon the transport mechanism
SMS/HTTPS as detailed in annexes A and B.
- For privacy reasons IMEI information may also be handled differently, specifically when only SMS is
used a partial IMEI may be sent as detailed in annex A.
• Mobile Country Code of the network (MCC), used to confirm/determine the country in which the emergency
communication was made.
• Mobile Network Code (MNC), to confirm/determine the mobile network used to make the emergency
communication.
NOTE 1: The MCC and MNC of the network will normally be the same as the MCC and MNC within the IMSI.
Differences between them indicate if the handset is roaming.
• A header attribute shall be used to differentiate AML messages from other emergency SMS messages and to
also indicate a version number for the interface. For SMS transport, a Message Length attribute shall also be
used - see annex A.
The following attributes are those that are optional for implementation using transport methods described in clauses 6.3
and 6.4:
• The Altitude shall be provided in metres (above the WGS 84 ellipsoid) together with the Altitude Variance
that indicates the vertical variance, plus or minus, from given altitude.
NOTE 2: The WGS 84 ellipsoid is a reasonable approximation for the shape of the earth. Altitude above the
WGS 84 ellipsoid can differ from the actual altitude above mean sea level.
• The Time of Communication (ToC) is the time when the user started the call. It will be used, together with the
parameter ToP, to place the received messages in the right order. This attribute is specially important in case of
multiple locations reception. The "time of emergency call" helps to match voice call, SMS and HTTP data.
ETSI
11 ETSI TS 103 625 V1.2.1 (2022-04)
6.3 SMS transport
6.3.1 SMS transport overview
When SMS transport is selected (see clause 8), the standard mobile network SMS service shall be used to send the
AML message from the phone to the SMSC (SMS Centre) within each mobile network (using normal 3GPP network
standards).
The Short Message Peer-to-Peer (SMPP) open industry standard protocol for transfer of short message data outside
mobile networks should then be used to transport the data from the SMSC to the SMS Aggregator (organization that
aggregates SMS messages from various mobile networks).
The Aggregator should then forward the message to the PSAP using an Aggregator-defined format, typically an HTTPS
post message that includes all the AML data, including the MSISDN which forms part of the SMS message. The PSAP
then makes the AML location available to be used to supplement the location available from the mobile network. Either
the Aggregator or the PSAP operating the AML Reception server may decode the binary data within the SMS payload -
see clause 6.3.2.
Figure 1 shows how the AML location may reach a PSAP organization. The exact details for how AML information is
made available to the PSAP that has received the associated voice call will vary from country to country, depending on
how PSAPs are organized in that country. This is considered further in clause 8.
Short Message Peer-to-Peer (SMPP)
SMS message
open industry protocol
SMS Aggregation
SMSC in
Service
each
network
Mobile
Handset
Aggregator defined
Voice
format for HTTPS
emergency
AML reception
Post message
call
server
PSAP's
PSAP
Location
Server
GMLC in
Location(s)
each
network
Figure 1: Example of AML location path to reach a PSAP
Figure 2 gives an example of the SMS message used in the AML solution.
ETSI
12 ETSI TS 103 625 V1.2.1 (2022-04)
A"ML=1;lt=+54.76397;lg=-
5;rd=50;t
0.18305;rd=50;top=20130717141935;lc=90;pm=W;si=123456789012345;ei=1234567890123456;mcc=234;mnc=30; ml=128
Attribute
Attribute
Separator
Separator
(;)
(;)
Attribute
Attribute
Name
value
Pair Separator
(=)
Figure 2: Example of SMS message for AML
More important attributes (latitude, longitude, radius) will appear at the beginning of the SMS with less important
attributes towards the end. The table in annex A gives a detailed description of each attribute with the ordering of
attributes in the table also how they should normally appear in the SMS.
To assist with compatibility, servers shall be able to process the attributes in any order in which they are received.
Servers shall also be able to ignore any attributes that are not recognized while still processing the other attributes.
The example in figure 2 is encoded per the rules of annex A. It should be noted that for privacy reasons only a partial
IMSI consisting of only the MCC/MNC elements followed by zero values of the handset that has made the emergency
communication is included. It should also be noted that for devices that only support SMS transport the IMEI may be
also optionnaly opfuscated.
6.3.2 SMS Formats
It is important to note that 2 types of SMS are used to provide the AML location information. Which type of SMS is
used may depend on the options open to handset manufacturers or Operating System (OS) providers to suppress a
record of a sent AML location message on the handset:
a) Regular SMSs are used by handset manufacturers providing their own OS and AML service. These handset
manufacturers can readily suppress the AML messages from the "sent messages" section of the smartphone.
The processing of such regular SMSs is widely known and not discussed further in the present document.
b) So-called "Data SMS". The reason for choosing this type of SMS is to ensure that the Operating System (OS)
will not automatically store a data SMS into the user's "sent messages" section. "Data SMS" is a particular
subset of the SMS standard (ETSI TS 123 040 [1]). It is important to note that this is NOT an SMS message
sent through a data connection, this is simply an SMS which contains a particular type of binary data format as
a payload, and is addressed to a particular port on the receiving end (calling it a Data SMS is a bit of a
misnomer for this reason). These types of SMS are not as familiar but are in common use by mobile networks,
for example in setting the Voice Mail waiting indicator on a phone (or other network services), or for over the
air handset updates, or for changes to SIM card settings.
As these "Data SMSs" are less familiar more detail is provided. The SMS sent from the handset to the mobile service
centre (SMSC) is an SMS-SUBMIT (mobile originated) PDU type message. SMSCs are required to receive these
messages without problems as they are part of the normal SMS standard. In the following, an SMS-SUBMIT message
from the handset to the SMSC is considered, which follows normal SMS standards (ETSI TS 123 040 [1]).
The fields within an SMS message include: the SMSC number, sending address (caller's MSISDN), as well as the
Protocol Data Unit type with a protocol identifier (00 - default short message), the DCS (data coding scheme), a time
stamp and user data length. This is then followed by the User Data which is the AML message in this case.
ETSI
13 ETSI TS 103 625 V1.2.1 (2022-04)
The "Data SMS" is a subset of normal SMS that:
• Has the User-Data-Header-Indicator flag set in the PDU type field of the SMS message.
• Contains a User-Data-Header within the User-Data of the SMS.
• The User-Data-Header contains an application port address Information Element Identifier (IEI). The port
number shall be fixed by each OS provider and made known to the PSAPs receiving AML messages.
Note that the particular Data Coding Scheme (DCS) is not specified here. The DCS is used to identify the encoding
within the User-Data segment. There are three options currently for the DCS:
• GSM 7-bit default alphabet (which includes national language shift tables) and is used for regular text
messages in Europe.
• UCS-2 (for 16 bit characters).
• 8-bit data.
If the selected DCS is 8-bit data, the standard does not make any particular guarantees about the details of the encoding.
Given that the User-Data segment has a maximum of 140 bytes, and that the minimum size of a User-Data-Header that
includes port information is 7 bytes (a length field plus 6 bytes to indicate the port number), this leaves a maximum of
133 bytes to encode the actual AML emergency message. In order to maximize the amount of information in the AML
message, even if the 8-bit DCS flag is set, the encoding used by the OS provider should be the GSM 7-bit alphabet, with
each 7-bit encoded element occupying only 7 bits, not 8 bits. So the AML information is packed using 7-bit characters,
giving a maximum of 152 characters for the AML message, so the first 7 bits of the first byte make the first character,
then the last bit of the first byte and the first 6 of the second make the second character and so on. The definition of the
7 bit encoding can be found in ETSI TS 123 038 [6] (see clause 6.1.2.1.1 specifically).
NOTE 1: The 7 bit encoding originally used by the AML in legacy implementations of Data SMS differs in one
aspect from that expected in that when the AML message is encoded with ETSI TS 123 038 [6], it is done
so in big endian byte order, rather than the expected little endian byte order. While continuing to support
the originally used version, any new country implementations should follow the expected byte order of
the ETSI TS 123 038 [6].
The PSAP receiving the AML SMS message forwarded by the SMSC (and any SMS Aggregator in the chain) should
decode the AML payload found in the User Data segment of the SMS using the above knowledge of how the message is
constructed.
NOTE 2: Handsets do not store a "Data SMS", because these are addressed not only to a particular destination
through the destination number, but to a particular port, and normally need particular data decoding. That
port usually means a specific application of some sort on the receiver. It would therefore be inappropriate
to store/show this as a regular SMS, as the "Data SMS" may only have been intended for one particular
application, not the handset in general.
6.3.3 Security of SMS transport
SMS access to the mobile network is authenticated and is also encrypted over the air between the handset and the base
station.
In terms of interception on the air interface there is a very low risk for individual users as AML SMS is only triggered
when an emergency communication is made, which is a random event for individuals in any location.
6.3.4 Roaming
6.3.4.1 International Roaming
For international roaming, there are challenges since an SMS is returned to the home country's SMS Centre for routing
and the AML SMS is not received by the most appropriate PSAP, e.g. the PSAP receiving the voice call.
The approach to support AML for foreign users is to change SMS home routing paradigm and to force AML SMS to be
routed via an SMSC in the visited network like described in GSMA NG.119 [7] (see section 3 - Advanced Mobile
Location).
ETSI
14 ETSI TS 103 625 V1.2.1 (2022-04)
Visited Network
Emergency Call
PSAP
MSC
SMSC
Location SMS
Public Service
(SMSCaddr=MCC+112)
Answering Point
Figure 3: AML SMS for Roamers
Depending on the location of the visited network, handset should use this new SMSC address to deliver SMS AML to
most appropriate PSAP.
The SMSC in the visited network should be designed based on the following principles:
• SMSC E.164 address should be a combination of Mobile Country Code (MCC) of the visited network and an
emergency short number (112). Using MCC of the visited network, roaming handsets should be able to submit
SMS AML even if the home operator applies SMS barring such as Call Barring Outgoing International except
Home Country (CBOIexHC).
• Access to the SMSC is limited to handsets located on the visited network submitting SMS to Emergency
number (e.g. 112).
In this solution, MSC should route AML SMS to the SMSC in the visited country.
MSC should also generate SMS billing records, which should be easily rated to zero like for emergency communication
in order to avoid user billing for AML SMS.
Another option that is used today, for example, is to send a message from a phone in the UK with a foreign SIM to the
UK AML destination using a "long number": a full length E.164 number including country code,
e.g. +44NNNNNNNNNN (N representing digits in a normal UK telephone number), which although it looks like a
normal mobile phone number is a "virtual mobile number" as it does not terminate on a mobile phone, but can be routed
by the hosting mobile network to a network termination point, in this case a PSAP. This avoids the issue of the foreign
SIM's home SMSC not being able to route the normal 999 code for UK AML messages back to the UK AML
destination. However it does mean that the SMS is not automatically zero charged.
6.3.4.2 Limitation - Limited Service State/National Roaming
In case the citizen initiates an emergency communication but the handset has no coverage from the home MNO, the call
is handled by another mobile network operator with signal coverage in that area, even if the handset is not be able to
register on this network. In this limited service state it is currently not possible to send an SMS, as the technical
standards only allow emergency voice calls (normally without it being possible to supply an MSISDN), nor would
transport using HTTPS always be possible (which requires a data subscription to be verified on home network or a
TM
Wi-Fi connection).
6.4 HTTPS
6.4.1 Overview of using HTTPS
When HTTPS transport is selected (see clause 8.1), HTTPS POST messages shall be used to transfer the emergency
location information and associated data described in annex B. The HTTPS message includes additional fields that
cannot be sent via SMS due to the restricted length of the SMS.
ETSI
15 ETSI TS 103 625 V1.2.1 (2022-04)
The AML endpoint (AML Reception Server in figure 1) provided by the PSAP (see clause 8.1) shall be capable of
receiving HTTPS messages and should generally be able to handle messages with missing/malformed fields. It is
recommended that, with exception of those fields with key data described in clause 6.2.1, every other field should be
considered optional to ease message handling.
Endpoints shall return 2XX success codes to indicate successful reception of the HTTPS message.
In order to be able to match the voice call and the HTTPS message, it is adviced to use both methods, SMS and HTTPS
rather than HTTPS only. This way two parameters can be used for this purpose: IMEI and "time of emergency call".
6.4.2 General Format
The web-based AML messages are sent using the HTTPS protocol, which offers encryption and authentication to secure
the delivery of location messages. Each message consists of a number of header fields and a body, holding the content
for the message. For an AML message it shall use the common format used for web-based forms, sending the media
using a MIME type of "application/x-www-form-urlencoded".
6.4.3 Security considerations
There are two possible routes for the message to be sent to the Public Safety Answering Point (PSAP). Either the
message is sent directly from the handset, or it could be sent via an intermediate server (i.e. not the AML endpoint
server):
a) If direct from the handset, the handset's Operating System (OS) will not be expected to provide any extra
header information in the message.
NOTE: The PSAP should make sure their server is robust enough to handle false messages, badly formatted
messages and denial of service attacks, since it should be available to any other node on the internet.
b) If the messages are sent via an intermediate server it should include the extra header fields specified in the
detailed format description in clause 6.4.4. These will help confirm the sender and categorize the messages. In
addition the PSAP server would only need to open its firewall to the
...
