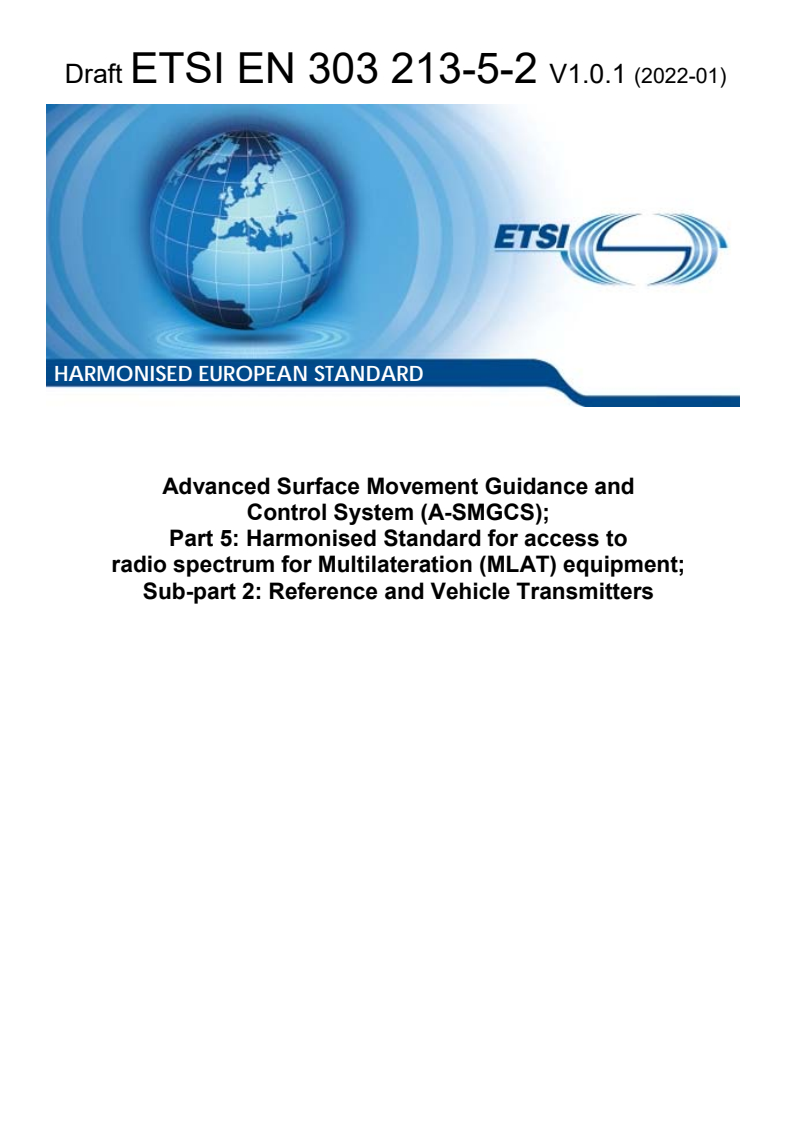

Draft ETSI EN 303 213-5-2 V1.0.1 (2022-01)
HARMONISED EUROPEAN STANDARD
Advanced Surface Movement Guidance and
Control System (A-SMGCS);
Part 5: Harmonised Standard for access to
radio spectrum for Multilateration (MLAT) equipment;
Sub-part 2: Reference and Vehicle Transmitters
2 Draft ETSI EN 303 213-5-2 V1.0.1 (2022-01)
Reference
DEN/ERM-TGAERO-37-5-2
Keywords
aeronautical, harmonised standard,
interoperability, radio
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.
Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2022.
All rights reserved.
ETSI
3 Draft ETSI EN 303 213-5-2 V1.0.1 (2022-01)

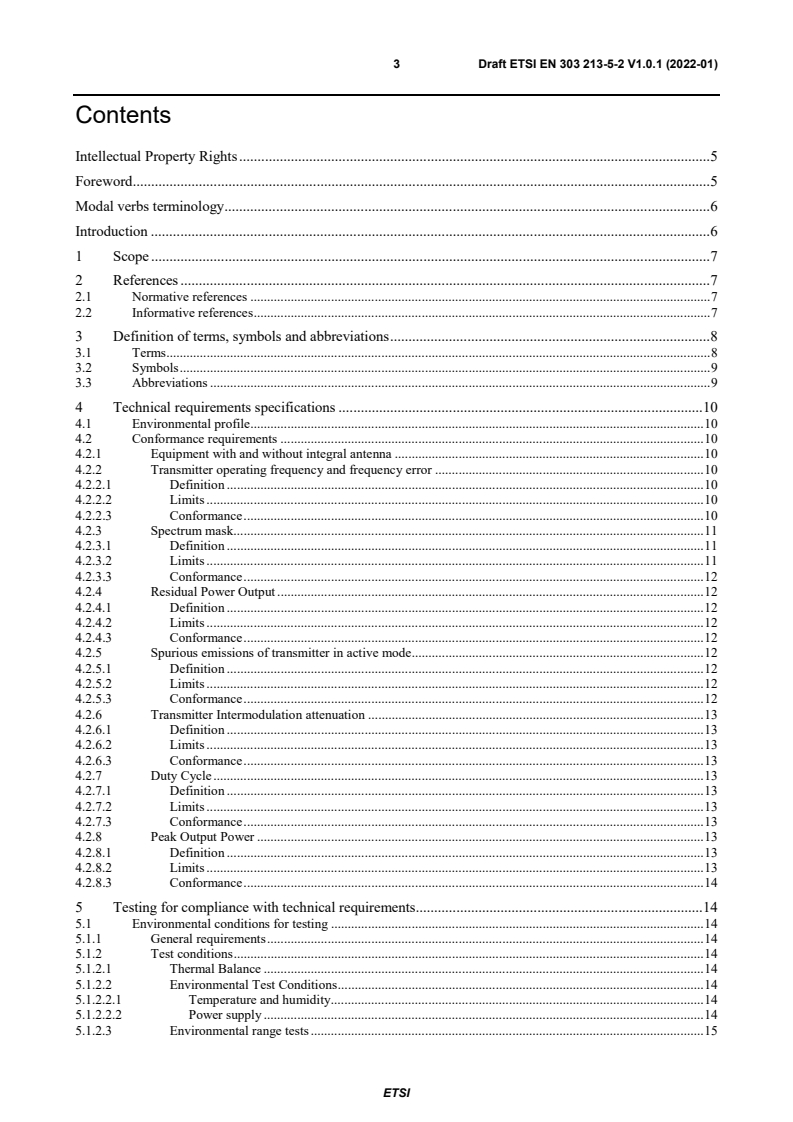

Contents
Intellectual Property Rights . 5
Foreword . 5
Modal verbs terminology . 6
Introduction . 6
1 Scope . 7
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 7
3 Definition of terms, symbols and abbreviations . 8
3.1 Terms . 8
3.2 Symbols . 9
3.3 Abbreviations . 9
4 Technical requirements specifications . 10
4.1 Environmental profile . 10
4.2 Conformance requirements . 10
4.2.1 Equipment with and without integral antenna . 10
4.2.2 Transmitter operating frequency and frequency error . 10
4.2.2.1 Definition . 10
4.2.2.2 Limits . 10
4.2.2.3 Conformance . 10
4.2.3 Spectrum mask . 11
4.2.3.1 Definition . 11
4.2.3.2 Limits . 11
4.2.3.3 Conformance . 12
4.2.4 Residual Power Output . 12
4.2.4.1 Definition . 12
4.2.4.2 Limits . 12
4.2.4.3 Conformance . 12
4.2.5 Spurious emissions of transmitter in active mode . 12
4.2.5.1 Definition . 12
4.2.5.2 Limits . 12
4.2.5.3 Conformance . 12
4.2.6 Transmitter Intermodulation attenuation . 13
4.2.6.1 Definition . 13
4.2.6.2 Limits . 13
4.2.6.3 Conformance . 13
4.2.7 Duty Cycle . 13
4.2.7.1 Definition . 13
4.2.7.2 Limits . 13
4.2.7.3 Conformance . 13
4.2.8 Peak Output Power . 13
4.2.8.1 Definition . 13
4.2.8.2 Limits . 13
4.2.8.3 Conformance . 14
5 Testing for compliance with technical requirements . 14
5.1 Environmental conditions for testing . 14
5.1.1 General requirements . 14
5.1.2 Test conditions . 14
5.1.2.1 Thermal Balance . 14
5.1.2.2 Environmental Test Conditions . 14
5.1.2.2.1 Temperature and humidity. 14
5.1.2.2.2 Power supply . 14
5.1.2.3 Environmental range tests . 15
ETSI
4 Draft ETSI EN 303 213-5-2 V1.0.1 (2022-01)
5.1.2.3.1 Temperature range . 15
5.1.2.3.2 Extreme Power supply . 15
5.2 Transmitter test signals . 15
5.2.1 General Considerations . 15
5.2.2 Test signal A . 15
5.3 Transmitter tests . 16
5.3.1 Operating frequency and frequency error . 16
5.3.1.1 Description . 16
5.3.1.2 Test conditions . 16
5.3.1.3 Method of measurement . 16
5.3.1.4 Measurement procedure . 16
5.3.2 Peak Output Power . 16
5.3.2.1 Description . 16
5.3.2.2 Test conditions . 16
5.3.2.3 Method of measurement . 17
5.3.2.4 Measurement procedure . 17
5.3.3 Spectrum mask . 17
5.3.3.1 Description . 17
5.3.3.2 Test conditions . 17
5.3.3.3 Method of measurement . 17
5.3.3.4 Measurement procedure . 17
5.3.4 Residual Power Output . 18
5.3.4.1 Description . 18
5.3.4.2 Test conditions . 18
5.3.4.3 Method of measurement . 18
5.3.4.4 Measurement procedure . 18
5.3.5 Spurious emissions of transmitter in active mode . 18
5.3.5.1 Description . 18
5.3.5.2 Test conditions . 19
5.3.5.3 Method of measurement . 19
5.3.5.4 Measurement Procedure . 19
5.3.6 Transmitter Intermodulation attenuation . 20
5.3.6.1 Description . 20
5.3.6.2 Test Conditions . 20
5.3.6.3 Method of Measurement . 20
5.3.6.4 Measurement Procedure . 20
5.3.7 Duty Cycle . 21
5.3.7.1 Description . 21
5.3.7.2 Test conditions . 21
5.3.7.3 Method of measurement . 21
5.3.7.4 Measurement procedure . 21
Annex A (informative): Relationship between the present document and the essential
requirements of Directive 2014/53/EU . 22
Annex B (informative): Maximum Measurement Uncertainty . 24
Annex C (informative): Checklist . 25
Annex D (informative): Bibliography . 26
History . 27
ETSI
5 Draft ETSI EN 303 213-5-2 V1.0.1 (2022-01)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its
Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the ®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
This draft Harmonised European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic
compatibility and Radio spectrum Matters (ERM), and is now submitted for the combined Public Enquiry and Vote
phase of the ETSI standards EN Approval Procedure.
The present document has been prepared under the Commission's standardisation request C (2015) 5376 final [i.3] to
provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation
of the laws of the Member States relating to the making available on the market of radio equipment and repealing
Directive 1999/5/EC [i.1].
Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with
the normative clauses of the present document given in Table A.1 confers, within the limits of the scope of the present
document, a presumption of conformity with the corresponding essential requirements of that Directive and associated
EFTA regulations.
The present document is part 5, sub-part 2, of a multi-part deliverable covering Advanced Surface Movement Guidance
and Control System (A-SMGCS), as identified below:
Part 1: "Community Specification for A-SMGCS surveillance service including external interfaces";
Part 2: "Community Specification for A-SMGCS airport safety support service";
Part 3: "Community Specification for a deployed cooperative sensor including its interfaces";
Part 4: "Community Specification for a deployed non-cooperative sensor including its interfaces";
Part 5: "Harmonised Standard for access to radio spectrum for Multilateration (MLAT) equipment":
Sub-part 1: "Receivers and Interrogators";
Sub-part 2: "Reference and Vehicle Transmitters";
Part 6: "Harmonised Standard for access to radio spectrum for deployed surface movement radar sensors";
ETSI
6 Draft ETSI EN 303 213-5-2 V1.0.1 (2022-01)
Part 7: "Community Specification for A-SMGCS routing service";
Part 8: "Community Specification for A-SMGCS guidance service".
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
Introduction
A-SMGCS are systems providing routing, guidance, surveillance and control to aircraft and affected vehicles in order to
maintain movement rate under all local weather conditions within the Aerodrome Visibility Operational Level (AVOL)
whilst maintaining the required level of safety.
ETSI
7 Draft ETSI EN 303 213-5-2 V1.0.1 (2022-01)
1 Scope
The present document specifies technical characteristics and methods of measurements for the following equipment:
1) devices transmitting in the 1 090 MHz band, used as ground-based reference transmitters in Mode S
multilateration equipment in an Advanced Surface Movement Guidance and Control System (A-SMGCS);
2) devices transmitting in the 1 090 MHz band, used for ground vehicle tracking in an Advanced Surface
Movement Guidance and Control System (A-SMGCS).
Antennas for this equipment are considered to be passive without an additional amplifier.
NOTE: The relationship between the present document and essential requirements of article 3.2 of Directive
2014/53/EU [i.1] is given in Annex A.
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference/.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] EUROCAE ED-117A (September 2016): "Minimum operational performance specification for
Mode S Multilateration Systems for Use in Advanced Surface Movement Guidance and Control
Systems (A-SMGCS)".
[2] ETSI EN 300 019-1-3 (V2.4.1) (04-2014): "Environmental Engineering (EE); Environmental
conditions and environmental tests for telecommunications equipment; Part 1-3: Classification of
environmental conditions; Stationary use at weatherprotected locations".
[3] ETSI EN 300 019-1-4 (V2.2.1) (04-2014): "Environmental Engineering (EE); Environmental
conditions and environmental tests for telecommunications equipment; Part 1-4: Classification of
environmental conditions; Stationary use at non-weatherprotected locations".
th
[4] ICAO Annex 10, Volume IV: "Surveillance Radar and Collision Avoidance systems", 5 edition,
July 2014, including amendments up to amendment 90, November 2018.
ETSI
8 Draft ETSI EN 303 213-5-2 V1.0.1 (2022-01)
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the
harmonisation of the laws of the Member States relating to the making available on the market of
radio equipment and repealing Directive 1999/5/EC.
[i.2] ETSI EG 203 336 (V1.2.1): "Guide for the selection of technical parameters for the production of
Harmonised Standards covering article 3.1(b) and article 3.2 of Directive 2014/53/EU".
[i.3] Commission Implementing Decision C(2015) 5376 final of 4.8.2015 on a standardisation request
to the European Committee for Electrotechnical Standardisation and to the European
Telecommunications Standards Institute as regards radio equipment in support of Directive
2014/53/EU of the European Parliament and of the Council.
[i.4] ERC Recommendation 74-01 (2019): "Unwanted emissions in spurious domain".
[i.5] EUROCAE ED-102B (December 2020): "MOPS for 1090 MHz Extended Squitter ADS-B and
TIS-B".
[i.6] ICAO, Doc-9871: "Technical Provisions for Mode S Services and Extended Squitter", edition 2,
2012.
[i.7] ITU Radio Regulations (2020).
3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the following terms apply:
conducted measurements: measurements which are made using a wired connection to the EUT
environmental profile: range of environmental conditions under which the EUT is declared by the manufacturer to
comply with the provisions of the present document
equipment under test: system of constituents provided by the manufacturer for qualification under the present
document
ground based multilateration equipment or ground station: aeronautical station equipment intended for use in an
A-SMGCS multilateration component
NOTE: A ground station can include sensor, interrogator and/or transponder components. A ground station can be
fixed or mobile.
inactive state: entire period between transmissions, less 100 μs transition periods preceding and following the
transmission
integral antenna: antenna which is integrated into the EUT without the use of an external connector, and which is
considered to be part of the EUT
interrogator: aeronautical station equipment including at least one transmitter designed to produce aeronautical mobile
service signals at 1 030 MHz
ETSI
9 Draft ETSI EN 303 213-5-2 V1.0.1 (2022-01)
Mode S: particular type of transponder uplink or downlink message defined in ICAO Annex 10, Volume IV [4]
multilateration: surveillance technique which provides position derived from the Secondary Surveillance Radar (SSR)
transponder signals (replies or squitters) primarily using Time Difference Of Arrival (TDOA) techniques
NOTE: Additional information, including identification, can be extracted from the received signals.
observation bandwidth: bandwidth in which the energy of an equipment is considered for the purposes of assessing
transmission timings
Operating Channel (OC): frequency range in which the transmission from the EUT occurs, or in which the EUT is
intended to receive transmissions
operating frequency: centre of the OC
out of band emissions: power transmitted at frequencies outside the OC but within the specified spectral mask
probability of detection: rate of correctly received and decoded squitter messages
radiated measurements: measurements which involve the measurement of a radiated field in the vicinity of the EUT
receiver: EUT which includes the capability to convert RF signals into binary content
resolution bandwidth: frequency span of the final filter that is applied to the input signal controlling the frequency
resolution of the resulting spectrum
NOTE: Smaller resolution bandwidths provide finer frequency resolution and the ability to differentiate signals
that have frequencies that are closer together.
sensor: aeronautical station equipment including at least one receiver designed to receive aeronautical mobile service
signals at 1 030 MHz and/or 1 090 MHz
spurious emissions: power transmitted at frequencies below or above the Out of Band domain
NOTE: Spurious emissions include harmonic emissions, parasitic emissions, intermodulation products and
frequency conversion products, but exclude Out of Band emissions.
transmission: radio emission consisting of one uplink or downlink Mode S message
transmitter: EUT which includes the capability to convert binary content into RF signals
unwanted signal: any signal other than the wanted signal or as described in a specific test case
wanted signal: in-band signal modulated according to the Mode S Specification
3.2 Symbols
For the purposes of the present document, the following symbols apply:
dB deciBel
dBc power in dB relative to carrier
dBm power in dB relative to 1 milliwatt
f measurement frequency
µs microsecond
Ω Ohm
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AC Alternating Current
ADS-B Automatic Dependant Surveillance Broadcast
A-SMGCS Advanced Surface Movement Guidance and Control System
AVOL Aerodrome Visibility Operational Level
ETSI
10 Draft ETSI EN 303 213-5-2 V1.0.1 (2022-01)
CL Code Label
CW Continuous Wave
DC Direct Current
Doc Document
ERC European Radiocommunications Committee
EUROCAE European Organization for Civil Aviation Equipment
EUT Equipment Under Test
IC Interrogator Code
ICAO International Civil Aviation Organization
ITU International Telecommunication Union
ITU-R International Telecommunication Union - Radiocommunication
MOPS Minimum Operational Performance Specification
NA Not Applicable
OC Operating Channel
OOB Out Of Band
PEP Peak Envelope Power
RBW Reference BandWidth
ref
RF Radio Frequency
RMS Root Mean Square
SSR Secondary Surveillance Radar
4 Technical requiremen
...
HARMONISED EUROPEAN STANDARD
Advanced Surface Movement Guidance and
Control System (A-SMGCS);
Part 5: Harmonised Standard for access to
radio spectrum for Multilateration (MLAT) equipment;
Sub-part 2: Reference and Vehicle Transmitters
2 ETSI EN 303 213-5-2 V1.1.1 (2022-04)
Reference
DEN/ERM-TGAERO-37-5-2
Keywords
aeronautical, harmonised standard,
interoperability, radio
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure Program:
https://www.etsi.org/standards/coordinated-vulnerability-disclosure
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.
Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2022.
All rights reserved.
ETSI
3 ETSI EN 303 213-5-2 V1.1.1 (2022-04)
Contents
Intellectual Property Rights . 5
Foreword . 5
Modal verbs terminology . 6
Introduction . 6
1 Scope . 7
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 7
3 Definition of terms, symbols and abbreviations . 8
3.1 Terms . 8
3.2 Symbols . 9
3.3 Abbreviations . 9
4 Technical requirements specifications . 10
4.1 Environmental profile . 10
4.2 Conformance requirements . 10
4.2.1 Equipment with and without integral antenna . 10
4.2.2 Transmitter operating frequency and frequency error . 10
4.2.2.1 Definition . 10
4.2.2.2 Limits . 10
4.2.2.3 Conformance . 10
4.2.3 Spectrum mask . 11
4.2.3.1 Definition . 11
4.2.3.2 Limits . 11
4.2.3.3 Conformance . 12
4.2.4 Residual Power Output . 12
4.2.4.1 Definition . 12
4.2.4.2 Limits . 12
4.2.4.3 Conformance . 12
4.2.5 Spurious emissions of transmitter in active mode . 12
4.2.5.1 Definition . 12
4.2.5.2 Limits . 12
4.2.5.3 Conformance . 12
4.2.6 Transmitter Intermodulation attenuation . 13
4.2.6.1 Definition . 13
4.2.6.2 Limits . 13
4.2.6.3 Conformance . 13
4.2.7 Duty Cycle . 13
4.2.7.1 Definition . 13
4.2.7.2 Limits . 13
4.2.7.3 Conformance . 13
4.2.8 Peak Output Power . 13
4.2.8.1 Definition . 13
4.2.8.2 Limits . 13
4.2.8.3 Conformance . 14
5 Testing for compliance with technical requirements . 14
5.1 Environmental conditions for testing . 14
5.1.1 General requirements . 14
5.1.2 Test conditions . 14
5.1.2.1 Thermal Balance . 14
5.1.2.2 Environmental Test Conditions . 14
5.1.2.2.1 Temperature and humidity. 14
5.1.2.2.2 Power supply . 14
5.1.2.3 Environmental range tests . 15
ETSI
4 ETSI EN 303 213-5-2 V1.1.1 (2022-04)
5.1.2.3.1 Temperature range . 15
5.1.2.3.2 Extreme Power supply . 15
5.2 Transmitter test signals . 15
5.2.1 General Considerations . 15
5.2.2 Test signal A . 15
5.3 Transmitter tests . 16
5.3.1 Operating frequency and frequency error . 16
5.3.1.1 Description . 16
5.3.1.2 Test conditions . 16
5.3.1.3 Method of measurement . 16
5.3.1.4 Measurement procedure . 16
5.3.2 Peak Output Power . 16
5.3.2.1 Description . 16
5.3.2.2 Test conditions . 16
5.3.2.3 Method of measurement . 17
5.3.2.4 Measurement procedure . 17
5.3.3 Spectrum mask . 17
5.3.3.1 Description . 17
5.3.3.2 Test conditions . 17
5.3.3.3 Method of measurement . 17
5.3.3.4 Measurement procedure . 17
5.3.4 Residual Power Output . 18
5.3.4.1 Description . 18
5.3.4.2 Test conditions . 18
5.3.4.3 Method of measurement . 18
5.3.4.4 Measurement procedure . 18
5.3.5 Spurious emissions of transmitter in active mode . 18
5.3.5.1 Description . 18
5.3.5.2 Test conditions . 19
5.3.5.3 Method of measurement . 19
5.3.5.4 Measurement Procedure . 19
5.3.6 Transmitter Intermodulation attenuation . 20
5.3.6.1 Description . 20
5.3.6.2 Test Conditions . 20
5.3.6.3 Method of Measurement . 20
5.3.6.4 Measurement Procedure . 20
5.3.7 Duty Cycle . 21
5.3.7.1 Description . 21
5.3.7.2 Test conditions . 21
5.3.7.3 Method of measurement . 21
5.3.7.4 Measurement procedure . 21
Annex A (informative): Relationship between the present document and the essential
requirements of Directive 2014/53/EU . 22
Annex B (informative): Maximum Measurement Uncertainty . 24
Annex C (informative): Checklist . 25
Annex D (informative): Bibliography . 26
History . 27
ETSI
5 ETSI EN 303 213-5-2 V1.1.1 (2022-04)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its
Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the ®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
This Harmonised European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic
compatibility and Radio spectrum Matters (ERM).
The present document has been prepared under the Commission's standardisation request C (2015) 5376 final [i.3] to
provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation
of the laws of the Member States relating to the making available on the market of radio equipment and repealing
Directive 1999/5/EC [i.1].
Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with
the normative clauses of the present document given in Table A.1 confers, within the limits of the scope of the present
document, a presumption of conformity with the corresponding essential requirements of that Directive and associated
EFTA regulations.
The present document is part 5, sub-part 2, of a multi-part deliverable covering Advanced Surface Movement Guidance
and Control System (A-SMGCS), as identified below:
Part 1: "Community Specification for A-SMGCS surveillance service including external interfaces";
Part 2: "Community Specification for A-SMGCS airport safety support service";
Part 3: "Community Specification for a deployed cooperative sensor including its interfaces";
Part 4: "Community Specification for a deployed non-cooperative sensor including its interfaces";
Part 5: "Harmonised Standard for access to radio spectrum for Multilateration (MLAT) equipment":
Sub-part 1: "Receivers and Interrogators";
Sub-part 2: "Reference and Vehicle Transmitters";
Part 6: "Harmonised Standard for access to radio spectrum for deployed surface movement radar sensors";
Part 7: "Community Specification for A-SMGCS routing service";
ETSI
6 ETSI EN 303 213-5-2 V1.1.1 (2022-04)
Part 8: "Community Specification for A-SMGCS guidance service".
National transposition dates
Date of adoption of this EN: 26 April 2022
Date of latest announcement of this EN (doa): 31 July 2022
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 January 2023
Date of withdrawal of any conflicting National Standard (dow): 31 January 2024
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
Introduction
A-SMGCS are systems providing routing, guidance, surveillance and control to aircraft and affected vehicles in order to
maintain movement rate under all local weather conditions within the Aerodrome Visibility Operational Level (AVOL)
whilst maintaining the required level of safety.
ETSI
7 ETSI EN 303 213-5-2 V1.1.1 (2022-04)
1 Scope
The present document specifies technical characteristics and methods of measurements for the following equipment:
1) devices transmitting in the 1 090 MHz band, used as ground-based reference transmitters in Mode S
multilateration equipment in an Advanced Surface Movement Guidance and Control System (A-SMGCS);
2) devices transmitting in the 1 090 MHz band, used for ground vehicle tracking in an Advanced Surface
Movement Guidance and Control System (A-SMGCS).
Antennas for this equipment are considered to be passive without an additional amplifier.
NOTE: The relationship between the present document and essential requirements of article 3.2 of Directive
2014/53/EU [i.1] is given in Annex A.
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference/.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] EUROCAE ED-117A (September 2016): "Minimum operational performance specification for
Mode S Multilateration Systems for Use in Advanced Surface Movement Guidance and Control
Systems (A-SMGCS)".
[2] ETSI EN 300 019-1-3 (V2.4.1) (04-2014): "Environmental Engineering (EE); Environmental
conditions and environmental tests for telecommunications equipment; Part 1-3: Classification of
environmental conditions; Stationary use at weatherprotected locations".
[3] ETSI EN 300 019-1-4 (V2.2.1) (04-2014): "Environmental Engineering (EE); Environmental
conditions and environmental tests for telecommunications equipment; Part 1-4: Classification of
environmental conditions; Stationary use at non-weatherprotected locations".
th
[4] ICAO Annex 10, Volume IV: "Surveillance Radar and Collision Avoidance systems", 5 edition,
July 2014, including amendments up to amendment 90, November 2018.
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
ETSI
8 ETSI EN 303 213-5-2 V1.1.1 (2022-04)
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the
harmonisation of the laws of the Member States relating to the making available on the market of
radio equipment and repealing Directive 1999/5/EC.
[i.2] ETSI EG 203 336 (V1.2.1): "Guide for the selection of technical parameters for the production of
Harmonised Standards covering article 3.1(b) and article 3.2 of Directive 2014/53/EU".
[i.3] Commission Implementing Decision C(2015) 5376 final of 4.8.2015 on a standardisation request
to the European Committee for Electrotechnical Standardisation and to the European
Telecommunications Standards Institute as regards radio equipment in support of Directive
2014/53/EU of the European Parliament and of the Council.
[i.4] ERC Recommendation 74-01 (2019): "Unwanted emissions in spurious domain".
[i.5] EUROCAE ED-102B (December 2020): "MOPS for 1090 MHz Extended Squitter ADS-B and
TIS-B".
[i.6] ICAO, Doc-9871: "Technical Provisions for Mode S Services and Extended Squitter", edition 2,
2012.
[i.7] ITU Radio Regulations (2020).
3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the following terms apply:
conducted measurements: measurements which are made using a wired connection to the EUT
environmental profile: range of environmental conditions under which the EUT is declared by the manufacturer to
comply with the provisions of the present document
equipment under test: system of constituents provided by the manufacturer for qualification under the present
document
ground based multilateration equipment or ground station: aeronautical station equipment intended for use in an
A-SMGCS multilateration component
NOTE: A ground station can include sensor, interrogator and/or transponder components. A ground station can be
fixed or mobile.
inactive state: entire period between transmissions, less 100 μs transition periods preceding and following the
transmission
integral antenna: antenna which is integrated into the EUT without the use of an external connector, and which is
considered to be part of the EUT
interrogator: aeronautical station equipment including at least one transmitter designed to produce aeronautical mobile
service signals at 1 030 MHz
Mode S: particular type of transponder uplink or downlink message defined in ICAO Annex 10, Volume IV [4]
multilateration: surveillance technique which provides position derived from the Secondary Surveillance Radar (SSR)
transponder signals (replies or squitters) primarily using Time Difference Of Arrival (TDOA) techniques
NOTE: Additional information, including identification, can be extracted from the received signals.
observation bandwidth: bandwidth in which the energy of an equipment is considered for the purposes of assessing
transmission timings
ETSI
9 ETSI EN 303 213-5-2 V1.1.1 (2022-04)
Operating Channel (OC): frequency range in which the transmission from the EUT occurs, or in which the EUT is
intended to receive transmissions
operating frequency: centre of the OC
out of band emissions: power transmitted at frequencies outside the OC but within the specified spectral mask
probability of detection: rate of correctly received and decoded squitter messages
radiated measurements: measurements which involve the measurement of a radiated field in the vicinity of the EUT
receiver: EUT which includes the capability to convert RF signals into binary content
resolution bandwidth: frequency span of the final filter that is applied to the input signal controlling the frequency
resolution of the resulting spectrum
NOTE: Smaller resolution bandwidths provide finer frequency resolution and the ability to differentiate signals
that have frequencies that are closer together.
sensor: aeronautical station equipment including at least one receiver designed to receive aeronautical mobile service
signals at 1 030 MHz and/or 1 090 MHz
spurious emissions: power transmitted at frequencies below or above the Out of Band domain
NOTE: Spurious emissions include harmonic emissions, parasitic emissions, intermodulation products and
frequency conversion products, but exclude Out of Band emissions.
transmission: radio emission consisting of one uplink or downlink Mode S message
transmitter: EUT which includes the capability to convert binary content into RF signals
unwanted signal: any signal other than the wanted signal or as described in a specific test case
wanted signal: in-band signal modulated according to the Mode S Specification
3.2 Symbols
For the purposes of the present document, the following symbols apply:
dB deciBel
dBc power in dB relative to carrier
dBm power in dB relative to 1 milliwatt
f measurement frequency
µs microsecond
Ω Ohm
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AC Alternating Current
ADS-B Automatic Dependant Surveillance Broadcast
A-SMGCS Advanced Surface Movement Guidance and Control System
AVOL Aerodrome Visibility Operational Level
CL Code Label
CW Continuous Wave
DC Direct Current
Doc Document
ERC European Radiocommunications Committee
EUROCAE European Organization for Civil Aviation Equipment
EUT Equipment Under Test
IC Interrogator Code
ICAO International Civil Aviation Organization
ETSI
10 ETSI EN 303 213-5-2 V1.1.1 (2022-04)
ITU International Telecommunication Union
ITU-R International Telecommunication Union - Radiocommunication
MOPS Minimum Operational Performance Specification
NA Not Applicable
OC Operating Channel
OOB Out Of Band
PEP Peak Envelope Pow
...
SLOVENSKI STANDARD
01-junij-2022
Napredni sistem za vodenje in nadzor gibanja po zemlji (A-SMGCS) - 5. del:
Harmonizirani standard za dostop do radijskega spektra za večplastno (MLAT)
opremo - 2. poddel: Referenca in oddajniki za vozila
Advanced Surface Movement Guidance and Control System (A-SMGCS) - Part 5:
Harmonised Standard for access to radio spectrum for Multilateration (MLAT) equipment
- Sub-part 2: Reference and Vehicle Transmitters
Ta slovenski standard je istoveten z: ETSI EN 303 213-5-2 V1.1.1 (2022-04)
ICS:
33.060.20 Sprejemna in oddajna Receiving and transmitting
oprema equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
HARMONISED EUROPEAN STANDARD
Advanced Surface Movement Guidance and
Control System (A-SMGCS);
Part 5: Harmonised Standard for access to
radio spectrum for Multilateration (MLAT) equipment;
Sub-part 2: Reference and Vehicle Transmitters
2 ETSI EN 303 213-5-2 V1.1.1 (2022-04)
Reference
DEN/ERM-TGAERO-37-5-2
Keywords
aeronautical, harmonised standard,
interoperability, radio
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure Program:
https://www.etsi.org/standards/coordinated-vulnerability-disclosure
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.
Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2022.
All rights reserved.
ETSI
3 ETSI EN 303 213-5-2 V1.1.1 (2022-04)
Contents
Intellectual Property Rights . 5
Foreword . 5
Modal verbs terminology . 6
Introduction . 6
1 Scope . 7
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 7
3 Definition of terms, symbols and abbreviations . 8
3.1 Terms . 8
3.2 Symbols . 9
3.3 Abbreviations . 9
4 Technical requirements specifications . 10
4.1 Environmental profile . 10
4.2 Conformance requirements . 10
4.2.1 Equipment with and without integral antenna . 10
4.2.2 Transmitter operating frequency and frequency error . 10
4.2.2.1 Definition . 10
4.2.2.2 Limits . 10
4.2.2.3 Conformance . 10
4.2.3 Spectrum mask . 11
4.2.3.1 Definition . 11
4.2.3.2 Limits . 11
4.2.3.3 Conformance . 12
4.2.4 Residual Power Output . 12
4.2.4.1 Definition . 12
4.2.4.2 Limits . 12
4.2.4.3 Conformance . 12
4.2.5 Spurious emissions of transmitter in active mode . 12
4.2.5.1 Definition . 12
4.2.5.2 Limits . 12
4.2.5.3 Conformance . 12
4.2.6 Transmitter Intermodulation attenuation . 13
4.2.6.1 Definition . 13
4.2.6.2 Limits . 13
4.2.6.3 Conformance . 13
4.2.7 Duty Cycle . 13
4.2.7.1 Definition . 13
4.2.7.2 Limits . 13
4.2.7.3 Conformance . 13
4.2.8 Peak Output Power . 13
4.2.8.1 Definition . 13
4.2.8.2 Limits . 13
4.2.8.3 Conformance . 14
5 Testing for compliance with technical requirements . 14
5.1 Environmental conditions for testing . 14
5.1.1 General requirements . 14
5.1.2 Test conditions . 14
5.1.2.1 Thermal Balance . 14
5.1.2.2 Environmental Test Conditions . 14
5.1.2.2.1 Temperature and humidity. 14
5.1.2.2.2 Power supply . 14
5.1.2.3 Environmental range tests . 15
ETSI
4 ETSI EN 303 213-5-2 V1.1.1 (2022-04)
5.1.2.3.1 Temperature range . 15
5.1.2.3.2 Extreme Power supply . 15
5.2 Transmitter test signals . 15
5.2.1 General Considerations . 15
5.2.2 Test signal A . 15
5.3 Transmitter tests . 16
5.3.1 Operating frequency and frequency error . 16
5.3.1.1 Description . 16
5.3.1.2 Test conditions . 16
5.3.1.3 Method of measurement . 16
5.3.1.4 Measurement procedure . 16
5.3.2 Peak Output Power . 16
5.3.2.1 Description . 16
5.3.2.2 Test conditions . 16
5.3.2.3 Method of measurement . 17
5.3.2.4 Measurement procedure . 17
5.3.3 Spectrum mask . 17
5.3.3.1 Description . 17
5.3.3.2 Test conditions . 17
5.3.3.3 Method of measurement . 17
5.3.3.4 Measurement procedure . 17
5.3.4 Residual Power Output . 18
5.3.4.1 Description . 18
5.3.4.2 Test conditions . 18
5.3.4.3 Method of measurement . 18
5.3.4.4 Measurement procedure . 18
5.3.5 Spurious emissions of transmitter in active mode . 18
5.3.5.1 Description . 18
5.3.5.2 Test conditions . 19
5.3.5.3 Method of measurement . 19
5.3.5.4 Measurement Procedure . 19
5.3.6 Transmitter Intermodulation attenuation . 20
5.3.6.1 Description . 20
5.3.6.2 Test Conditions . 20
5.3.6.3 Method of Measurement . 20
5.3.6.4 Measurement Procedure . 20
5.3.7 Duty Cycle . 21
5.3.7.1 Description . 21
5.3.7.2 Test conditions . 21
5.3.7.3 Method of measurement . 21
5.3.7.4 Measurement procedure . 21
Annex A (informative): Relationship between the present document and the essential
requirements of Directive 2014/53/EU . 22
Annex B (informative): Maximum Measurement Uncertainty . 24
Annex C (informative): Checklist . 25
Annex D (informative): Bibliography . 26
History . 27
ETSI
5 ETSI EN 303 213-5-2 V1.1.1 (2022-04)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its
Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the ®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
This Harmonised European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic
compatibility and Radio spectrum Matters (ERM).
The present document has been prepared under the Commission's standardisation request C (2015) 5376 final [i.3] to
provide one voluntary means of conforming to the essential requirements of Directive 2014/53/EU on the harmonisation
of the laws of the Member States relating to the making available on the market of radio equipment and repealing
Directive 1999/5/EC [i.1].
Once the present document is cited in the Official Journal of the European Union under that Directive, compliance with
the normative clauses of the present document given in Table A.1 confers, within the limits of the scope of the present
document, a presumption of conformity with the corresponding essential requirements of that Directive and associated
EFTA regulations.
The present document is part 5, sub-part 2, of a multi-part deliverable covering Advanced Surface Movement Guidance
and Control System (A-SMGCS), as identified below:
Part 1: "Community Specification for A-SMGCS surveillance service including external interfaces";
Part 2: "Community Specification for A-SMGCS airport safety support service";
Part 3: "Community Specification for a deployed cooperative sensor including its interfaces";
Part 4: "Community Specification for a deployed non-cooperative sensor including its interfaces";
Part 5: "Harmonised Standard for access to radio spectrum for Multilateration (MLAT) equipment":
Sub-part 1: "Receivers and Interrogators";
Sub-part 2: "Reference and Vehicle Transmitters";
Part 6: "Harmonised Standard for access to radio spectrum for deployed surface movement radar sensors";
Part 7: "Community Specification for A-SMGCS routing service";
ETSI
6 ETSI EN 303 213-5-2 V1.1.1 (2022-04)
Part 8: "Community Specification for A-SMGCS guidance service".
National transposition dates
Date of adoption of this EN: 26 April 2022
Date of latest announcement of this EN (doa): 31 July 2022
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 January 2023
Date of withdrawal of any conflicting National Standard (dow): 31 January 2024
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
Introduction
A-SMGCS are systems providing routing, guidance, surveillance and control to aircraft and affected vehicles in order to
maintain movement rate under all local weather conditions within the Aerodrome Visibility Operational Level (AVOL)
whilst maintaining the required level of safety.
ETSI
7 ETSI EN 303 213-5-2 V1.1.1 (2022-04)
1 Scope
The present document specifies technical characteristics and methods of measurements for the following equipment:
1) devices transmitting in the 1 090 MHz band, used as ground-based reference transmitters in Mode S
multilateration equipment in an Advanced Surface Movement Guidance and Control System (A-SMGCS);
2) devices transmitting in the 1 090 MHz band, used for ground vehicle tracking in an Advanced Surface
Movement Guidance and Control System (A-SMGCS).
Antennas for this equipment are considered to be passive without an additional amplifier.
NOTE: The relationship between the present document and essential requirements of article 3.2 of Directive
2014/53/EU [i.1] is given in Annex A.
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference/.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] EUROCAE ED-117A (September 2016): "Minimum operational performance specification for
Mode S Multilateration Systems for Use in Advanced Surface Movement Guidance and Control
Systems (A-SMGCS)".
[2] ETSI EN 300 019-1-3 (V2.4.1) (04-2014): "Environmental Engineering (EE); Environmental
conditions and environmental tests for telecommunications equipment; Part 1-3: Classification of
environmental conditions; Stationary use at weatherprotected locations".
[3] ETSI EN 300 019-1-4 (V2.2.1) (04-2014): "Environmental Engineering (EE); Environmental
conditions and environmental tests for telecommunications equipment; Part 1-4: Classification of
environmental conditions; Stationary use at non-weatherprotected locations".
th
[4] ICAO Annex 10, Volume IV: "Surveillance Radar and Collision Avoidance systems", 5 edition,
July 2014, including amendments up to amendment 90, November 2018.
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
ETSI
8 ETSI EN 303 213-5-2 V1.1.1 (2022-04)
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the
harmonisation of the laws of the Member States relating to the making available on the market of
radio equipment and repealing Directive 1999/5/EC.
[i.2] ETSI EG 203 336 (V1.2.1): "Guide for the selection of technical parameters for the production of
Harmonised Standards covering article 3.1(b) and article 3.2 of Directive 2014/53/EU".
[i.3] Commission Implementing Decision C(2015) 5376 final of 4.8.2015 on a standardisation request
to the European Committee for Electrotechnical Standardisation and to the European
Telecommunications Standards Institute as regards radio equipment in support of Directive
2014/53/EU of the European Parliament and of the Council.
[i.4] ERC Recommendation 74-01 (2019): "Unwanted emissions in spurious domain".
[i.5] EUROCAE ED-102B (December 2020): "MOPS for 1090 MHz Extended Squitter ADS-B and
TIS-B".
[i.6] ICAO, Doc-9871: "Technical Provisions for Mode S Services and Extended Squitter", edition 2,
2012.
[i.7] ITU Radio Regulations (2020).
3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the following terms apply:
conducted measurements: measurements which are made using a wired connection to the EUT
environmental profile: range of environmental conditions under which the EUT is declared by the manufacturer to
comply with the provisions of the present document
equipment under test: system of constituents provided by the manufacturer for qualification under the present
document
ground based multilateration equipment or ground station: aeronautical station equipment intended for use in an
A-SMGCS multilateration component
NOTE: A ground station can include sensor, interrogator and/or transponder components. A ground station can be
fixed or mobile.
inactive state: entire period between transmissions, less 100 μs transition periods preceding and following the
transmission
integral antenna: antenna which is integrated into the EUT without the use of an external connector, and which is
considered to be part of the EUT
interrogator: aeronautical station equipment including at least one transmitter designed to produce aeronautical mobile
service signals at 1 030 MHz
Mode S: particular type of transponder uplink or downlink message defined in ICAO Annex 10, Volume IV [4]
multilateration: surveillance technique which provides position derived from the Secondary Surveillance Radar (SSR)
transponder signals (replies or squitters) primarily using Time Difference Of Arrival (TDOA) techniques
NOTE: Additional information, including identification, can be extracted from the received signals.
observation bandwidth: bandwidth in which the energy of an equipment is considered for the purposes of assessing
transmission timings
ETSI
9 ETSI EN 303 213-5-2 V1.1.1 (2022-04)
Operating Channel (OC): frequency range in which the transmission from the EUT occurs, or in which the EUT is
intended to receive transmissions
operating frequency: centre of the OC
out of band emissions: power transmitted at frequencies outside the OC but within the specified spectral mask
probability of detection: rate of correctly received and decoded squitter messages
radiated measurements: measurements which involve the measurement of a radiated field in the vicinity of the EUT
receiver: EUT which includes the capability to convert RF signals into binary content
resolution bandwidth: frequency span of the final filter that is applied to the input signal controlling the frequency
resolution of the resulting spectrum
NOTE: Smaller resolution bandwidths provide finer frequency resolution and the ability to differentiate signals
that have frequencies that are closer together.
sensor: aeronautical station equipment including at least one receiver designed to receive aeronautical mobile service
signals at 1 030 MHz and/or 1 090 MHz
spurious emissions: power transmitted at frequencies below or above the Out of Band domain
NOTE: Spurious emissions include harmonic emissions, parasitic emissions, intermodulation products and
frequency conversion products, but exclude Out of Band emissions.
transmission: radio emission consisting of one uplink or downlink Mode S message
transmitter: EUT which includes the capability to convert binary content into RF signals
unwanted signal: any signal other than the wanted signal or as described in a specific test case
wanted signal: in-band signal modulated according to the Mode S Specification
3.2 Symbols
For the purposes of the present document, the following symbols apply:
dB deciBel
dBc power in dB relative to carrier
dBm power in dB relative to 1 milliwatt
f measurement frequency
µs microsecond
Ω Ohm
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AC Alternating Current
ADS-B Automatic Dependant Surveillance Broadcast
A-SMGCS Advanced Surface Movement Guidance and Control System
AVOL Aerodrome Visibility Operational Level
CL Code Label
CW Continuous Wave
DC Direct Current
Doc Document
ERC European Radiocommunications Committee
EUROCAE European Organization for Civil Aviation Equipment
EUT Equipment Under Test
IC Interrogator Code
ICAO International Civil Aviation Organization
ETSI
10 ETSI EN 303 213-5-2 V1.1.1 (2022-04)
ITU International Telecommunication Union
ITU-R International Telecommunication Union - Radiocommunication
MOPS Minimum Operational Performance Specification
NA Not Applicable
OC Operating Channel
OOB Out Of Band
PEP Peak Envelope Power
RBW Reference BandWidth
ref
RF Radio Frequency
RMS Root Mean Square
SSR Secondary Surveillance Radar
4 Technical requirements specifications
4.1 Environmental profile
The technical requirements of the present document apply under the environmental profile for operation of the
equipment, which shall be in accordance with its intended use but, as a minimum, shall be that specified in the test
conditions contained in the present document. The equipment shall comply with all the technical requirements of the
present document at all times when operating within the boundary limits of the operational environmental profile
defined by its intended use.
4.2 Conformance requirements
4.2.1 Equipment with and without integral antenna
For the purposes of conducted measurements on an EUT a 50 Ω RF connection point shall be provided for test
purposes.
For EUT with integral antenna the connection point shall correspond to the input of the integral antenna. The
connection point may be a modification made for the purposes of testing and need not be a permanent part of the EUT
when made available for sale.
The unit provided to the test lab may be fitted with a temporary antenna connector with the integral antenna
disconnected.
4.2.2 Transmitter operating frequency and frequency error
4.2.2.1 Definition
The operating frequency is the nominal value of the carrier frequency.
The frequency error is the difference between the actual carrier frequency and its nominal value of 1 090 MHz.
4.2.2.2 Limits
The nominal value of carrier frequency of the transmissions shall be 1 090 MHz.
The absolute value of the frequency error shall not exceed 100 kHz.
4.2.2.3 Conformance
The conformance tests for this requirement shall be as defined in clause 5.3.1.
ETSI
11 ETSI EN 303 213-5-2 V1.1.1 (2022-04)
4.2.3 Spectrum mask
4.2.3.1 Definition
A spectrum mask is a set of limit lines applied to a plot of a transmitter spectrum. The purpose is to constrain emissions
at frequencies in the Out of Band domain which lies immediately outside the intended Operating Channel.
For the purposes of the present document, the Out of Band domain extends to ±78 MHz from the measured operating
frequency (i.e. 1 090 MHz ± frequency error). The frequencies outside the Out of Band domain are defined as the
spurious domain.
The definition of the spectrum mask is chosen as an alternative method to the specification of Out of Band domain
emissions.
4.2.3.2 Limits
The measured spectrum shall be below the limit lines shown in Figure 1.
0 dB
-3 dB
-20 dB
23 MHz 23 MHz
-40 dB
78 MHz 78 MHz
-60 dB
Figure 1: Spectrum mask
ETSI
C arrier frequency
7 MHz
1.3 MHz
1.3 MHz
7 MHz
12 ETSI EN 303 213-5-2 V1.1.1 (2022-04)
NOTE 1: The spectrum mask is consistent with the mask specified in ICAO Annex 10 Volume IV Figure 3.5 [4].
NOTE 2: Figure 1 shows the spectrum centred on the carrier frequency and will therefore shift in its entirety up to
the tolerance specified in clause 4.2.2.2.
4.2.3.3 Conformance
The conformance tests shall be as defined in clause 5.3.3.
4.2.4 Residual Power Output
4.2.4.1 Definition
The residual power output is the power output when not in the active state.
4.2.4.2 Limits
The residual power output shall not exceed the limits shown in Table 1.
Table 1: Residual Power Output Limits
Frequency Range Limit
9 kHz ≤ f ≤ 1 000 MHz -57 dBm
1 000 MHz < f ≤ 1 087 MHz -47 dBm
1 087 MHz < f ≤ 1 093 MHz -70 dBm
1 093 MHz < f ≤ 6 000 MHz -47 dBm
NOTE: These limits are specified in ERC Recommendation 74-01 [i.4], Table 2, and EUROCAE ED-102B [i.5],
clause 2.2.2.2.11.
4.2.4.3 Conformance
The conformance tests for this requirement shall be as defined in clause 5.3.4.
4.2.5 Spurious emissions of transmitter in active mode
4.2.5.1 Definition
Spurious emissions are unwanted emissions in the spurious domain. For active transmitters, the spurious domain is all
frequencies apart from the operating channel and the Out of Band domain.
4.2.5.2 Limits
The power of any unwanted emission in the spurious domain shall not exceed -13 dBm or 60 dB below PEP (whichever
is less stringent).
NOTE: These limits are specified in Appendix 3, Table I of ITU Radio Regulations [i.7] for the
Radiodetermination service category.
4.2.5.3 Conformance
The conformance tests for this requirement shall be as defined in clause 5.3.5.
ETSI
13 ETSI EN 303 213-5-2 V1.1.1 (2022-04)
4.2.6 Transmitter Intermodulation attenuation
4.2.6.1 Definition
The transmit intermodulation level is the power of the intermodulation products when an external signal is injected into
the antenna connector at a mean power level of 30 dB lower than that of the mean power of the wanted signal.
It is specified as the ratio, in dB, of the PEP level to the power level of the third order intermodulation product.
4.2.6.2 Limits
The intermodulation attenuation ratio shall be at least 40 dB in the presence of the defined external signal within a
frequency range from 962 MHz to 1 215 MHz.
4.2.6.3 Conformance
The conformance tests for this requirement shall be as defined in clause 5.3.6.
4.2.7 Duty Cycle
4.2.7.1 Definition
The duty cycle is the ratio expressed as a percentage, of the cumulative duration of transmissions within an observation
interval and the interval itself, as measured in an observation bandwidth. The duty cycle is calculated based on the half
power point of the individual pulses within a message with the maximum number of allowable pulses. This threshold
takes into account maximum allowable pulse widths and expected random variation in transmission timing.
The duty cycle is controlled to limit the impact of each transmitter in a multi transmitter environment.
4.2.7.2 Limits
The duty cycle of the transmitter shall not exceed 0,05 %.
NOTE: This limit is consistent with the maximum average squitter rates as specified in ICAO Annex 10,
clause 3.1.2.8 [4], EUROCAE ED-102B [i.5], clause 2.2.3.3.2.10, ICAO Doc-9871 [i.6], Table C-35. The
squitter rate for transmitters used for this purpose is 6.2 messages per second. Squitters are scheduled
with some randomness so any individual second may vary. The squitter rate of the transmitter could be up
to 11 messages per second.
4.2.7.3 Conformance
The conformance tests for this requirement shall be as defined in clause 5.3.7.
4.2.8 Peak Output Power
4.2.8.1 Definition
The peak output power is the power level measured at the highest point in the time domain of the power envelope of the
transmitted message.
4.2.8.2 Limits
For a reference transmitter, the peak output power shall not exceed 57 dBm (500 W).
NOTE: This limit is consistent with ICAO Annex 10, Volume IV [4], clause 3.1.1.7.11.1 and Table 5-2.
For a ground vehicle tracking transmitter, the peak output power shall not exceed 50 dBm (100 W).
ETSI
14 ETSI EN 303 213-5-2 V1.1.1 (2022-04)
4.2.8.3 Conformance
The conformance tests for this requirement shall be as defined in clause 5.3.2.
5 Testing for compliance with technical requirements
5.1 Environmental conditions for testing
5.1.1 General requirements
Tests defined in the present document shall be carried out at representative points within the boundary limits of the
operational environmental profile defined by its intended use, which, as a minimum, shall be that specified in the test
conditions contained in the present document.
Where technical performance varies subject to environmental conditions, tests shall be carried out under a sufficient
variety of environmental conditions as specified in the present document to give confidence of compliance for the
affected technical requirements.
5.1.2 Test conditions
5.1.2.1 Thermal Balance
Before measurements are made, the equipment shall have reached thermal balance in the test chamber. The thermal
balance shall be checked by temperature measurements. When the equipment temperature is not changing more than
1 K per minute thermal balance is reached.
5.1.2.2 Environmental Test Conditions
5.1.2.2.1 Temperature and humidity
For equipment intended to be operated indoors (partly temperature-controlled locations as defined in clause 4.2 of ETSI
EN 300 019-1-3 [2]), the temperature and humidity conditions for tests shall be a combination of temperature and
humidity as defined in ETSI EN 300 019-1-3 [2], clause 4.2, Figure 2 (Climatogram for class 3.2).
For equipment intended to be operated in an on-site equipment room (temperature-controlled locations as defined in
clause 4.1 of ETSI EN 300 019-1-3 [2]), the temperature and humidity conditions for tests shall be a combination of
temperature and humidity as defined in ETSI EN 300 019-1-3 [2], clause 4.1, Figure 1 (Climatogram for class 3.1).
For equipment intended to be operated outdoors (on-site outdoors locations), the temperature and humidity conditions
for tests shall be a combination of temperature and humidity as defined in ETSI EN 300 019-1-4 [3], clause 4.1,
Figure 1 (Climatogram for class 4.1).
The actual values during the tests shall be recorded in the test report.
5.1.2.2.2 Power supply
The power supply for testing shall be the nominal mains voltage. For the purpose of the present document, the nominal
voltage shall be the declared voltage or any of the declared voltages for which the equipment was designed.
The actual values during the tests shall be recorded in the test report.
ETSI
15 ETSI EN 303 213-5-2 V1.1.1 (2022-04)
5.1.2.3 Environmental range tests
5.1.2.3.1 Temperature range
For equipment intended to be operated in an on-site equipment room (temperature-controlled locations as defined in
clause 4.1 of ETSI EN 300 019-1-3 [2]), measurements shall be made at the lowest and highest temperatures as defined
in ETSI EN 300 019-1-3 [2], clause 4.1, Figure 1 (Climatogram for class 3.1) and Table 1 (class 3.1, normal).
...
