ETSI TR 103 692 V1.1.1 (2021-11)

CYBER; State management for stateful authentication mechanisms

DTR/CYBER-QSC-0016

General Information

• Status: Not Published
• Technical Committee: CYBER QSC - Quantum-Safe Cryptography
• Current Stage: 12 - Completion
• Due Date: 26-Nov-2021
• Completion Date: 08-Nov-2021

Standards Content (Sample)

TECHNICAL REPORT
CYBER;
State management for stateful authentication mechanisms

2 ETSI TR 103 692 V1.1.1 (2021-11)

Reference
DTR/CYBER-QSC-0016
Keywords
digital signature, Quantum Safe Cryptography

ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
No representation or warranty is made that this deliverable is technically accurate or sufficient or conforms to any law
and/or governmental rule and/or regulation and further, no representation or warranty is made of merchantability or fitness
for any particular purpose or against infringement of intellectual property rights.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2021.
All rights reserved.
ETSI
3 ETSI TR 103 692 V1.1.1 (2021-11)

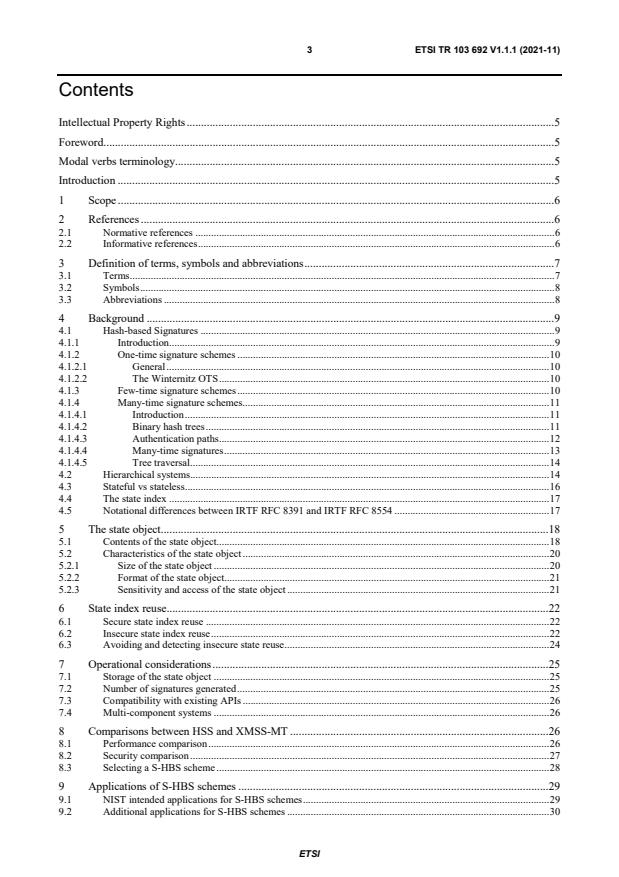

Contents
Intellectual Property Rights . 5
Foreword . 5
Modal verbs terminology . 5
Introduction . 5
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 6
3 Definition of terms, symbols and abbreviations . 7
3.1 Terms . 7
3.2 Symbols . 8
3.3 Abbreviations . 8
4 Background . 9
4.1 Hash-based Signatures . 9
4.1.1 Introduction. 9
4.1.2 One-time signature schemes . 10
4.1.2.1 General . 10
4.1.2.2 The Winternitz OTS . 10
4.1.3 Few-time signature schemes . 10
4.1.4 Many-time signature schemes. 11
4.1.4.1 Introduction . 11
4.1.4.2 Binary hash trees . 11
4.1.4.3 Authentication paths. 12
4.1.4.4 Many-time signatures . 13
4.1.4.5 Tree traversal . 14
4.2 Hierarchical systems. 14
4.3 Stateful vs stateless . 16
4.4 The state index . 17
4.5 Notational differences between IRTF RFC 8391 and IRTF RFC 8554 . 17
5 The state object . 18
5.1 Contents of the state object. 18
5.2 Characteristics of the state object . 20
5.2.1 Size of the state object . 20
5.2.2 Format of the state object . 21
5.2.3 Sensitivity and access of the state object . 21
6 State index reuse . 22
6.1 Secure state index reuse . 22
6.2 Insecure state index reuse . 22
6.3 Avoiding and detecting insecure state reuse . 24
7 Operational considerations . 25
7.1 Storage of the state object . 25
7.2 Number of signatures generated . 25
7.3 Compatibility with existing APIs . 26
7.4 Multi-component systems . 26
8 Comparisons between HSS and XMSS-MT . 26
8.1 Performance comparison . 26
8.2 Security comparison . 27
8.3 Selecting a S-HBS scheme . 28
9 Applications of S-HBS schemes . 29
9.1 NIST intended applications for S-HBS schemes . 29
9.2 Additional applications for S-HBS schemes . 30
ETSI
4 ETSI TR 103 692 V1.1.1 (2021-11)
9.3 Suitable applications. 30
9.3.1 Applications conformable to NIST SP 800-208 . 30
9.3.2 Applications not conformable to NIST SP 800-208 . 31
9.4 Non-suitable applications . 32
History . 34

ETSI
5 ETSI TR 103 692 V1.1.1 (2021-11)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the ®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
This Technical Report (TR) has been produced by ETSI Technical Committee Cyber Security (CYBER).
Modal verbs terminology
In the present document "should", "should not", "may", "need not", "will", "will not", "can" and "cannot" are to be
interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
Introduction
Implementations of Stateful Hash-Based Signature (S-HBS) schemes require exceptional care to ensure they are done
securely. Existing specifications are complex and prioritize the interoperability of implementations at the cost of certain
security and operational considerations. An implementor of a S-HBS scheme, using only the existing specifications, is
likely to experience unforeseen security vulnerabilities and operational problems due to the under-specification of the
state object and its management.
State management is not only about ensuring state is not reused. There are operational considerations of state as well,
such as the capabilities of the physical systems the algorithms are run on, and the inherent suitability of S-HBS
solutions for specific applications.

ETSI
6 ETSI TR 103 692 V1.1.1 (2021-11)
1 Scope
The present document is limited to discussion of the characteristics of the state object, the reuse of the state index, and
of architectural and operational considerations for deploying stateful hash-based signatures. First, it discusses
characteristics of the state object for S-HBS schemes and identifies potential security vulnerabilities and operational
problems associated with its management. Second, it gives guidance on mitigating the issues identified. And third, it
helps a prospective implementor determine if a S-HBS solution is suitable for their given application; examples of
suitable and non-suitable applications are given.
2 References
2.1 Normative references
Normative references are not applicable in the present document.
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] IRTF RFC 8391: "XMSS: eXtended Merkle Signature Scheme", 2018.
[i.2] IRTF RFC 8554: "Leighton-Micali Hash-Based Signatures", 2019.
[i.3] D. A. Cooper, D. C. Apon, Q. H. Dang, M. S. Davidson, Morris J. Dworkin and Carl A. Miller.
"Recommendation for Stateful Hash-Based Signature Schemes", NISTIR 8240, SP 800-208.
NOTE: Available at https://csrc.nist.gov/publications/detail/sp/800-208/final.
[i.4] P. Kampanakis and S. Fluhrer: "LMS vs XMSS", IACR ePrint Archive 2016/085, 2017.
[i.5] L. Lamport: "Constructing digital signatures from a one way function", Technical Report
SRI-CSL-98. SRI International Computer Science Laboratory, 1979.
[i.6] J.-P. Aumasson, D.J. Bernstein, W. Beullens, C. Dobraunig, M. Eichlseder, S. Fluhrer, S.-
L. Gazdag, A. Hülsing, P. Kampanakis, S. Kolbl, T. Lange, M. M. Lauridsen, F. Mendel,
R. Niederhagen, C. Rechberger, J. Rijneveld, P. Schwabe and B. Westerbaan: "SPHINCS+
Submission to the NIST post-quantum project, v.3". October 1, 2020 .
NOTE: Available at https://csrc.nist.gov/Projects/post-quantum-cryptography/round-3-submissions.
[i.7] D. J. Bernstein, J. Buchmann and E. Damen, (eds.): "Post-Quantum Cryptography",
Springer-Verlag Berlin Heidelberg, 2009.
[i.8] J. Buchmann, E. Dahmen, and M. Schneider: "Merkle tree traversal revisited", LNCS vol. 5299,
pages 63-78, 2008.
[i.9] M. Jakobsson, F. T. Leighton, S. Micali, and M. Szydlo: "Fractal Merkle Tree Representation and
Traversal". LNCS vol. 2612, pages 314-326, 2003.
[i.10] A. Genêt, M. J. Kannwischer, H. Pelletier, and A. McLauchlan: "Practical Fault Injection Attacks
on SPHINCS", IACR ePrint Archive 2018/674, 2018.
ETSI
7 ETSI TR 103 692 V1.1.1 (2021-11)
[i.11] D. McGrew, P. Kampanakis, S. Fluhrer, S. Gazdag, D. Butin, and J. Buchmann: "State
Management for Hash-Based Signatures", IACR ePrint Archive 2016/357, 2016.
[i.12] J. Katz: "Analysis of a Proposed Hash-Based Signature Standard". Security Standardisation
Research: Third International Conference, SSR 2016. LNCS, vol. 10074, pp. 261-273. Springer,
2016.
[i.13] S. Fluhrer: "Further Analysis of a Proposed Hash-Based Signature Standard", IACR ePrint
Archive 2017/533, 2017.
[i.14] E. Eaton: "Leighton-Micali Hash-Based Signatures in the Quantum Random-Oracle Model",
IACR ePrint Archive 2017/607, 2017.
[i.15] A. Hülsing, J. Rijneveld, F. Song: "Mitigating Multi-Target Attacks in Hash-based Signatures",
IACR ePrint Archive 2015/1256, 2015.
[i.16] F. Campos, T. Kohlstadt, S. Reith, and M. Stoettinger: "LMS vs XMSS: Comparison of Stateful
Hash-Based Signature Schemes on ARM Cortex-M4", IACR ePrint Archive 2020/470, 2020.
[i.17] NIST: "Submission Requirements and Evaluation Criteria for the Post-Quantum Cryptography
Standardization Process", December 2016.
NOTE: Available at https://csrc.nist.gov/CSRC/media/Projects/Post-Quantum-Cryptography/documents/call-for-
proposals-final-dec-2016.pdf.
[i.18] National Institute of Standards and Technology (2001): "Security Requirements for Cryptographic
Modules" (U.S. Department of Commerce, Washington, DC), Federal Information Processing
Standards Publication (FIPS) 140-2, Change Notice 2 December 03, 2002.
NOTE: Available at https://doi.org/10.6028/NIST.FIPS.140-2.
[i.19] National Institute of Standards and Technology (2019): "Security Requirements for Cryptographic
Modules" (U.S. Department of Commerce, Washington, DC), Federal Information Processing
Standards Publication (FIPS) 140-3.
NOTE: Available at https://doi.org/10.6028/NIST.FIPS.140-3.
[i.20] P. Kampanakis, P. Panburana, M. Curcio, C. Shroff, and M. Alam: "Post-Quantum LMS and
SPHINCS+ Hash-Based Signatures for UEFI Secure Boot", IACR ePrint Archive 2021/041, 2021.
[i.21] A. Hülsing, C. Busold, and J. Buchmann: "Forward Secure Signatures on Smart Cards", IACR
ePrint Archive 2018/924, 2018.
[i.22] M. J. Kannwischer, A. Genêt, D. Butin, J. Krämer, and J. Buchmann: "Differential Power Analysis
of XMSS and SPHINCS", IACR ePrint Archive 2018/673, 2018.
3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the following terms apply:
asymmetric cryptography: cryptographic system that utilizes a pair of keys, a private key known only to one entity,
and a public key which can be openly distributed without loss of security
authentication path: ordered collection of sibling nodes along a leaf-to-root path in a Merkle tree used to compute the
root node of the Merkle tree
binary hash tree: tree structure created by iteratively pairing and hashing leaf nodes
cryptographic hash function: function that maps a bit string of arbitrary length to a fixed length bit string (message
digest or digest for short), and that fulfils some specific security properties
ETSI
8 ETSI TR 103 692 V1.1.1 (2021-11)
height: number of nodes in a leaf-to-root path in a Merkle tree, inclusive. Equivalently, number of levels in a Merkle
tree
hyper-tree: hierarchical structure of binary trees, divided into layers
intermediate signature: signature on a Merkle tree root node within a hyper-tree
layer: index of the vertical position of a Merkle tree in a hyper-tree structure
level: vertical index within a Merkle tree
NOTE: The level of a node is given by the number of nodes along a path from the leaf-level to the given node,
non-inclusive.
Merkle tree: binary hash tree used as a component of a Hash-Based Signature (HBS) scheme
message digest/digest: fixed-length output of a cryptographic hash function over a variable length input
node (root, leaf, internal, child, sibling, parent): octet string, serving as a minimal component of a binary hash tree
octet string: ordered sequence of octets/bytes consisting of 8 bits each
private key: key in an asymmetric cryptographic scheme that is kept secret
public key: key in an asymmetric cryptographic scheme that can be made public without loss of security
public key cryptography: See asymmetric cryptography.
security level: measure of the strength of a cryptographic algorithm
�
NOTE: If 2 operations are required to break the cryptographic algorithm/scheme/method, then the security level
is n. Sometimes also referred to as bit-strength.
stale state: index corresponding to an OTS key pair which cannot, or can no longer, be used to securely sign a message
NOTE: An index can become stale for a variety of reasons, such as having already been used to sign a message,
or as a security mechanism after a system restart.
state index: non-negative integer representing the position of the next unused one-time signature signing key within a
S-HBS scheme instance
state object: collection of data related to a stateful hash-based signature scheme instance that is required to compute or
verify signatures from that instance
3.2 Symbols
For the purposes of the present document, the following symbols apply:
A || B The concatenation of binary strings A followed by B.
�� � A cryptographic hash function.
�
�� ��
� The � node on the � level of a binary hash tree.
�
��
� The � leaf node of a binary hash tree.
�
ℎ The height of a binary hash tree.
� The Winternitz parameter.
ℒ The number of layers in a hyper-tree hierarchy.
ℋ The total height of a hyper-tree hierarchy.
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
API Application Programming Interface
BDS Buchmann-Dahmen-Schneider
ETSI
9 ETSI TR 103 692 V1.1.1 (2021-11)
CA Certificate Authority
CFRG Crypto Forum Research Group
ECDSA Elliptic Curve Digital Signature Algorithm
FIPS Federal Information Processing Standard
FTS Few-time Signature
HBS Hash-Based Signature
HS-HBS Hierarchical Stateful Hash-Based Signature
HSM Hardware Security Module
HSS Hierarchical Signature System
IRTF Internet Research Task Force
LM-OTS Leighton-Micali One-Time Signature
LMS Leighton-Micali Signature
MTS Many-Time Signature
NIST National Institute of Standards and Technology
OTS One-Time Signature
PKI Public Key Infrastructure
PQC Post-Quantum Cryptography
RFC Request For Comments
RSA Rivest-Shamir-Adleman
S-HBS Stateful Hash-Based Signature
SP Special Publication
TLS Transport Layer Security
US United States
VM Virtual Machine
W-OTS Winternitz One-Time Signature
W-OTS+ Winternitz One-Time Signature Plus
XMSS eXtended Merkle Signature Scheme
XMSS-MT Multi-tree eXtended Merkle Signature Scheme
4 Background
4.1 Hash-based Signatures
4.1.1 Introduction
The theoretical security of a cryptographic signature scheme is typically derived from the difficulty of solving an
instance of some underlying mathematical problem, such as the Discrete Logarithm Problem or the Integer
Factorization Problem. Hash-Based Signature (HBS) schemes are atypical in this sense as their theoretical security is
based on the security of an underlying hash function.
Although the security of hash functions can themselves be modelled after mathematical problems, making a distinction
between these two cases is useful. If an HBS implementation uses a hash function which is believed to be resistant to
attacks from quantum-capable adversaries, then the resulting signature scheme will also be (believed to be) quantum-
resistant. Further, if the underlying hash function is eventually broken, or if a different hash function is desired for any
reason, the scheme can be repaired by switching out and replacing the hash function. With signature schemes such as
RSA or ECDSA, a break in the underlying mathematical problem is not generally fixable.
NOTE: Although their theoretical security is based on that of their underlying hash functions, the specific security
requirements of the underlying hash functions are not the same for all HBS schemes. Different HBS
schemes sometimes require different security properties of the hash function they employ. For this reason,
the present document does not explicitly discuss hash function security properties, but instead uses the
term "cryptographic hash function" to imply a hash function with the relevant security properties for the
HBS scheme under consideration.
The issues of state management are particular to a specific class of HBS schemes, namely, stateful hash-based signature
schemes. Such schemes are built from a variety of cryptographic algorithms and mathematical techniques. The
following clauses describe the main categories of HBS schemes, including the components that comprise such schemes
and their related mathematical concepts. Clause 5 and thereafter specifically discuss stateful hash-based signature
schemes, the management of state, and applications for stateful hash-based signature schemes.
ETSI
10 ETSI TR 103 692 V1.1.1 (2021-11)
4.1.2 One-time signature schemes
4.1.2.1 General
A One-Time Signature (OTS) scheme is a cryptographic signature scheme where each instance is secure if at most one
message is signed with the signing key of that instance. Re-using a one-time signing key to sign multiple messages
greatly degrades the security of the scheme instance, allowing forgeries to be feasibly computed. The reduction in
security is because a one-time signature leaks partial information of the private signing materials of the scheme.
EXAMPLE: Signatures from the original hash-based OTS scheme by Lamport [i.5] revealed an expected 50 %
of the private key. Provably, an attacker with 50 % of the private key cannot feasibly forge a
signature. However, if two signatures are computed under the same instance of the scheme, 75 %
of the private key is expected to be revealed, and making forgeries becomes feasible.
In some OTS schemes, a signature directly reveals components of the private key, and in other schemes a signature
reveals sensitive information derived from the private key. In either case, by seeing multiple signatures computed under
the same OTS signing key, an attacker likely has acquired enough sensitive information to feasibly forge signatures.
OTS schemes are used as building blocks for the more general schemes described in clause 4.1.4.
The present document is primarily concerned with the HBS schemes specified in IRTF RFC 8391 [i.1] and
IRTF RFC 8554 [i.2], and the corresponding profiles described in NIST SP 800-208 [i.3]. IRTF RFC 8391 and
IRTF RFC 8554 define the OTS schemes WOTS+ and LM-OTS respectively. As both of these OTS schemes are based
on the Winternitz OTS (W-OTS) scheme [i.7], the following clause gives a brief overview of the W-OTS scheme.
4.1.2.2 The Winternitz OTS
In a digital signature scheme, the public key is required to verify signatures that were generated using the corresponding
private key. The Winternitz one-time signature scheme, and variants thereof, have the property that their public key can
be recomputed from a valid signature by running the signature verification algorithm. At first, this property does not
seem particularly useful as the verifier does not have any way of knowing that the recovered public key is the authentic
public key of the signer, unless the verifier is also supplied with a copy of the signer's public key. In a stand-alone OTS
scheme, it is not generally practical to pre-distribute the public key in this way. However, the W-OTS scheme is used as
a building block for the more general signature schemes discussed throughout clause 4.1.4. In the context of these more
general schemes, this property of W-OTS signatures can be used effectively. The property allows the sender to not
include their OTS public key with the signature, thereby reducing communication overhead. This process is described
further in clause 4.1.4.
In the original W-OTS scheme [i.7], a public key is a collection of �-byte octet strings. IRTF RFC 8391 [i.1] and
IRTF RFC 8554 [i.2] specify OTS schemes that are variants of the original W-OTS design. The WOTS+ scheme
specified in IRTF RFC 8391 has public keys that are also a collection of �-byte octet strings. When used as a
component of the XMSS or XMSS-MT signature schemes (clauses 4.1.4, 4.2 and 4.3) the WOTS+ public keys are
compressed into a single �-byte octet string by using structures known as L-trees. Public keys in the LM-OTS scheme
�-byte octet string by
specified in IRTF RFC 8554 are similar except that they are compressed into a single
concatenating together each public key component and computing a hash value of the resulting concatenation.
Throughout the rest of the present document, OTS public keys are implicitly assumed to be �-bytes, where � is the
output length of the employed hash function, in bytes.
4.1.3 Few-time signature schemes
A Few-Time Signature (FTS) scheme is a cryptographic signature scheme where each instance is secure if some, but
not too many, messages are signed with the signing key of that instance. FTS schemes can be thought of as a slight
generalization of OTS schemes.
The core difference between an OTS scheme and an FTS scheme is that FTS signatures leak a smaller fraction of
private information relative to OTS signatures. In this way, an attacker needs to see a few signatures before they have
enough information to compute a forgery. The number of signatures that can be computed securely in an FTS scheme is
dependent on the parameters selected and the specifics of the signature scheme itself.
FTS schemes are used in stateless HBS schemes (clause 4.3) such as the SPHINCS+ NIST PQC Round 3 Alternate
Candidate [i.6]. Guidance on FTS schemes is outside the scope of the present document.
ETSI
11 ETSI TR 103 692 V1.1.1 (2021-11)
4.1.4 Many-time signature schemes
4.1.4.1 Introduction
A many-time signature (MTS) scheme is a cryptographic signature scheme where each instance is capable of signing
many, but not unlimited messages under the signing key of that instance. MTS schemes are constructed from instances
of one- or few-time schemes by using binary hash tree structures (clause 4.1.4.2). The security of MTS schemes is
largely based on the security of the underlying OTS or FTS schemes and the hash function used to construct the binary
hash tree, as discussed throughout clause 4.1.4.
MTS schemes are sometimes called full HBS schemes; the present document uses the two terms interchangeably.
Clauses 4.1.4.2 to 4.1.4.5 describe the generic components of an MTS scheme.
4.1.4.2 Binary hash trees
Let � be a hash function with �-byte outputs. A binary hash tree is a data structure built from iterative invocations of �
on an ordered collection of �-byte octet strings, called leaf nodes, as described below.
�
The present document assumes a binary hash tree has 2 leaf nodes, where the exponent, ℎ, is the height of the tree.
��
Each leaf node is indexed on the 0 level of the tree. The tree is constructed via an iterative process on the leaf nodes.
There is a single node at the topmost level of the tree, called the root node. Nodes that are neither leaves nor the root are
called internal nodes. Nodes used to compute nodes on the level directly above them are called child nodes, where those
pairs of child nodes are called sibling nodes. A node computed directly from two sibling nodes is called the parent node
of the two child nodes.
Level 1 of the hash tree is constructed by concatenating pairs of sibling leaf nodes and applying � to each of the
resulting 2�-byte octet strings. The outputs of these computations are the nodes of the first level, where the ordering is
���
maintained; there are 2 nodes on the first level. When used as a component of an HBS scheme, additional data can
be included in the hash computations. The process is iterated to exhaustion. The final output of � is the root node.
Nodes in Figure 1 are indexed with a superscript to denote the level of the node, and a subscript to denote the position
of the node on that level, where indexing is done from left to right starting from 0, except for the leaf nodes which are
�
notated differently for readability-the leaf nodes can alternatively be indexed as � = � . Level 0 is also called the leaf
� �
level.
� � � � �
EXAMPLE 1: In Figure 1, � = �(� || � ), � = �( � || � ), � = �(� || � ), and so forth.
� � � � � � � � �
The height of a node is the level the node is indexed on within the tree. Equivalently, it is the number of nodes along a
path from that node to the leaf level, excluding the node being measured from. Therefore, the root node has height ℎ,
0, and internal nodes have heights between 1 and ℎ− 1 inclusively.
leaf nodes have height
NOTE: Because the number of leaf nodes is assumed to be a power of 2, all paths from a given node to the leaf
level will be of the same length.
�
EXAMPLE 2: In Figure 1, the height of node � is 2 because all paths from it to the leaf level contain two nodes.
�
� �
One such path is � , � . Similarly, the height of the root node � is 3.
� � �
ETSI
12 ETSI TR 103 692 V1.1.1 (2021-11)

Figure 1: A height 3 binary hash tree
Assuming a cryptographic hash function is used, the root node is determined by the leaf nodes. If even a single bit is
flipped in one of the leaf nodes, the resulting root will, with very high probability, be computationally independent of
the authentic root. That is, the bit-wise exclusive OR of the two root nodes will be computationally indistinguishable
from a uniformly random string of the same length. This is one of the properties of binary hash trees that makes them so
well-suited for constructing many-time HBS schemes. This property is discussed further in clause 4.1.4.4.
A binary hash tree used in an MTS scheme is called a Merkle tree.
Any tree node is itself the root node of a sub-tree embedded in the full tree structure. For a given node �, the
corresponding sub-tree has the same height as �. If two sub-trees have no nodes in common, they are said to be disjoint.
�
EXAMPLE 3: In Figure 1, the sub-tree corresponding to node � is the height 2 tree constructed from leaf nodes
�
�
� ,� ,� , and � . The sub-tree corresponding to � is the height 1 tree constructed from � and
� � � � � �
� �
� . The sub-trees corresponding to � and � are disjoint.
� � �
A common algorithm for computing a Merkle tree is the TreeHash algorithm. Pseudocode for the TreeHash algorithm
is given below. The pseudocode is presented as Algorithm 2.1 in [i.7], from which it is taken directly, except � is used
here instead of � as the cryptographic hash function, and ℎ for the tree height, for consistency. As stated above, the
output of the TreeHash algorithm is technically the Merkle tree root node. However, to compute the root, each node in
the full tree is calculated. By using a different height input, it is not difficult to see how TreeHash can be used to
compute any desired tree node.
�� ��
� �
Further, Leafcalc � is simply a sub-routine which calculates the � leaf node of the Merkle tree by generating the �
OTS key pair, and Stack.push() and Stack.pop() are the typical push and pop operations for a data stack.
TreeHash
Input: Height ℎ≥2
Output: Root of the Merkle tree
1. for � = 0, … , 2ℎ − 1 do
��
a) Compute the � leaf: ����1 ← Leafcalc(�)
b) While ����1 has the same height as the top node on Stack do
i. Pop the top node from the stack: ����2 ← Stack.pop()
ii. Compute their parent node: ����1 ← �(����2 || ����1)
c) Push the parent node on the stack: Stack.push(����1)
2. Let � be the single node stored on the stack: � ← Stack.pop()
3. Return �
Algorithm 1: TreeHash
4.1.4.3 Authentication paths
An authentication path in a binary hash tree, corresponding to node �, is the ordered collection of the siblings of the
nodes on the path starting from � and ending at the root node.
ETSI
13 ETSI TR 103 692 V1.1.1 (2021-11)
Authentication paths corresponding to internal nodes are interpreted as partial authentication paths. For the remainder
of the present document, unless stated otherwise, the term authentication path is taken to mean an authentication path
corresponding to a leaf node.
� �
EXAMPLE: In Figure 2, the authentication path nodes corresponding to leaf � are � , � , and � , shown in
� �
� �
blue and bolded. The regular path nodes from � to the root node are shown in red and with
�
hatched edges. Observe that the root node does not have any siblings and is thus not included in
any authentication path.
The authentication path of a node is determined by its position in the tree structure. No two nodes share the exact same
authentication path; however, different authentication paths can share some nodes.
If � and � are two distinct nodes in a Merkle tree, then the number of nodes their authentication paths differ by is
� �
� and � . In the case of sibling nodes, the height 1 sub-tree
equal to the height of the smallest sub-tree containing both
� �
whose root is the parent node is the smallest such tree. Therefore, the authentication paths of siblings differ by exactly
one node, namely the respective sibling. If the smallest sub-tree containing � and � is the full Merkle tree itself, then
� �
the two corresponding authentication paths have no nodes in common.
Authentication paths are used as components of signatures in MTS schemes, as they allow for an efficient method to re-
compute the root node, which acts as the public key. This concept is further discussed in clause 4.1.4.4; clause 4.1.4.5
discusses algorithms for computing authentication paths.

Figure 2: Authentication path for �
�
4.1.4.4 Many-time signatures
�
A generic MTS scheme can be constructed by generating 2 W-OTS key pairs and interpreting the public keys as the
leaf nodes of a height ℎ Merkle tree. The tree is generated as described in clause 4.1.4.2. Each W-OTS instance, and
hence each W-OTS key pair, is associated with an index of a leaf node.
The public key of the MTS scheme is the root node of the Merkle tree. To help ensure a distinction between this public
key and the W-OTS public keys, the root node is referred to as the long-term, or global public key. In practice, the
global public key can contain additional data.
A signature from the MTS scheme described above contains a W-OTS signature and the authentication path
corresponding to the index of that W-OTS instance.
Verification of a signature in the generic MTS scheme involves computing the (candidate) W-OTS public key from the
W-OTS signature by running the W-OTS verification algorithm. Next, by interpreting the W-OTS public key as a leaf
node, the verifier uses the nodes from the authentication path to compute the (candidate) root node of the Merkle tree. If
the resulting root node matches that from the (published) global public key, then the MTS signature is accepted as valid.
As per clause 4.1.4.1, binary hash trees are determined by their leaf nodes. Therefore, assuming a cryptographic hash
function is used, if the W-OTS signature is invalid, then an invalid W-OTS public key (candidate leaf node) is
computed by the W-OTS verification algorithm. An invalid leaf node yields a root node that does not match the global
public key, with very high probability. Hence, the full signature is rejected as invalid. This means that a verifier does
not require a copy of the W-OTS public key prior to verifying the many-time signature, they only require the signer's
global public key.
ETSI
14 ETSI TR 103 692 V1.1.1 (2021-11)
4.1.4.5 Tree traversal
Typically, the OTS instances associated with the leaf nodes of a Merkle tree are used to sign messages sequentially in
the natural left-to-right ordering. That is, a leaf node � will be used to sign before � , which is used before � , and
� ��� ���
�
so on, where 0 ≤ � ≤ 2 −1. The general reason to adopt this simple ordering is that more complex orderings require
more complex logic and management. The present document assumes the simple sequential ordering.
As different nodes have different authentication paths, the authentication path required for the next MTS signature will
be different from those included in any previous signature. Implementations have many choices for how to calculate
authentication paths. The present document generically refers to any algorithm by which authentication paths are
calculated as tree traversal algorithms. The present document also uses the terms strategy and algorithm
interchangeably in the context of tree traversal.
The choice of tree traversal algorithm does not, in general, affect interoperability, i.e. it does not affect the format of the
signature or any of the outputs from the signing or verification algorithms as specified in IRTF RFC 8391 [i.1],
IRTF RFC 8554 [i.2], or NIST SP 800-208 [i.3]. The chosen tree traversal algorithm is simply one possible method for
generating the data that is to be used in signing or verification; the actual method of generating that data does not
generally affect interoperability, and so there is little discussion of tree traversal algorithms in the current specifications.
However, different tree traversal algorithms have different properties, and yield different trade-offs (such as time vs
storage). Some of these trade-offs are discussed below.
One possible tree traversal strategy is to recompute each authentication path node when that node is required. This
