Draft ETSI EN 301 908-2 V6.1.1 (2013-02)
Harmonized European Standard
IMT cellular networks;
Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive;
Part 2: CDMA Direct Spread (UTRA FDD) User Equipment (UE)
2 Draft ETSI EN 301 908-2 V6.1.1 (2013-02)
Reference
REN/MSG-TFES-010-02
Keywords
3G, 3GPP, cellular, digital, IMT, mobile, radio,
regulation, UMTS, UTRA, WCDMA
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2013.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 Draft ETSI EN 301 908-2 V6.1.1 (2013-02)
Contents
Intellectual Property Rights . 6
Foreword . 6
Introduction . 6
1 Scope . 7
2 References . 8
2.1 Normative references . 8
2.2 Informative references . 8
3 Definitions, symbols and abbreviations . 9
3.1 Definitions . 9
3.2 Symbols . 10
3.3 Abbreviations . 10
4 Technical requirements specifications . 12
4.1 Environmental profile . 12
4.2 Conformance requirements . 12
4.2.1 Introduction. 12
4.2.2 Transmitter maximum output power. 13
4.2.2.1 Transmitter maximum output power . 13
4.2.2.1.1 Definition. 13
4.2.2.1.2 Limits . 13
4.2.2.1.3 Conformance. . 13
4.2.2.2 Transmitter maximum output power for DC-HSUPA . 13
4.2.2.2.1 Definition for DC-HSUPA . 13
4.2.2.2.2 Limits for DC-HSUPA . 13
4.2.2.2.3 Conformance. . 14
4.2.3 Transmitter spectrum emission mask . 14
4.2.3.1 Transmitter spectrum emission mask . 14
4.2.3.1.1 Definition. 14
4.2.3.1.2 Limits . 14
4.2.3.1.3 Conformance . 15
4.2.3.2 Transmitter spectrum emission mask for DC-HSUPA . 15
4.2.3.2.1 Definition for DC-HSUPA . 15
4.2.3.2.2 Limits for DC-HSUPA . 15
4.2.3.2.3 Conformance . 16
4.2.4 Transmitter spurious emis sions . 16
4.2.4.1 Transmitter spurious emissions . 16
4.2.4.1.1 Definition. 16
4.2.4.1.2 Limits . 16
4.2.4.1.3 Conformance . 18
4.2.4.2 Transmitter spurious emissions for DC-HSUPA . 18
4.2.4.2.1 Definition for DC-HSUPA . 18
4.2.4.2.2 Limits for DC-HSUPA . 18
4.2.4.2.3 Conformance . 20
4.2.5 Transmitter minimum output power . 20
4.2.5.1 Transmitter minimum output power. 20
4.2.5.1.1 Definition. 20
4.2.5.1.2 Limits . 20
4.2.5.1.3 Conformance . 20
4.2.5.2 Transmitter minimum output power for DC-HSUPA . 20
4.2.5.2.1 Definition for DC-HSUPA . 20
4.2.5.2.2 Limits for DC-HSUPA . 20
4.2.5.2.3 Conformance . 20
4.2.6 Receiver Adjacent Channel Selectivity (ACS) . 21
4.2.6.1 Definition . 21
ETSI
4 Draft ETSI EN 301 908-2 V6.1.1 (2013-02)
4.2.6.2 Limits . 21
4.2.6.3 Conformance . 21
4.2.7 Receiver blocking characteristics . 21
4.2.7.1 Definition . 21
4.2.7.2 Limits . 21
4.2.7.3 Conformance . 23
4.2.8 Receiver spurious response . 23
4.2.8.1 Definition . 23
4.2.8.2 Limits . 23
4.2.8.3 Conformance . 24
4.2.9 Receiver intermodulation characteristics . 24
4.2.9.1 Definition . 24
4.2.9.2 Limits . 24
4.2.9.3 Conformance . 25
4.2.10 Receiver spurious emissions . 25
4.2.10.1 Definition . 25
4.2.10.2 Limits . 25
4.2.10.3 Conformance . 27
4.2.11 Out-of-synchronization handling of output power . 27
4.2.11.1 Definition . 27
4.2.11.2 Limits . 27
4.2.11.3 Conformance . 28
4.2.12 Transmitter Adjacent Channel Leakage power Ratio (ACLR) . 28
4.2.12.1 Transmitter adjacent channel leakage power ratio (ACLR) . 28
4.2.12.1.1 Definition. 28
4.2.12.1.2 Limits . 28
4.2.12.1.3 Conformance . 29
4.2.12.2 Adjacent channel leakage power ratio for DC-HSUPA . 29
4.2.12.2.1 Definition for DC-HSUPA . 29
4.2.12.2.2 Limits for DC-HSUPA . 29
4.2.12.2.3 Conformance . 29
5 Testing for compliance with technical requirements . 29
5.1 Environmental conditions for testing . 29
5.2 Interpretation of the measurement results . 30
5.3 Essential radio test suites . 31
5.3.1 Transmitter maximum output power. 31
5.3.1.1 Method of test . 31
5.3.1.1.1 Initial conditions . 31
5.3.1.1.1A Initial conditions for DC-HSUPA . 31
5.3.1.1.2 Procedure . 32
5.3.1.1.2A Procedure for DC-HSUPA . 32
5.3.1.2 Test requirements . 32
5.3.2 Transmitter spectrum emission mask . 32
5.3.2.1 Method of test . 32
5.3.2.1.1 Initial conditions for UEs not supporting HSDPA and/or E-DCH . 32
5.3.2.1.1A Initial conditions for UEs supporting HSDPA and/or E-DCH . 32
5.3.2.1.1B Initial conditions for DC-HSUPA . 33
5.3.2.1.2 Procedure for UEs not supporting HSDPA and/or E-DCH . 33
5.3.2.1.2A Procedure for UEs supporting HSDPA and/or E-DCH . 33
5.3.2.1.2B Procedure for DC-HSUPA . 33
5.3.2.2 Test requirements . 33
5.3.3 Transmitter spurious emis sions . 34
5.3.3.1 Method of test . 34
5.3.3.1.1 Initial conditions . 34
5.3.3.1.1A Initial conditions for DC-HSUPA . 34
5.3.3.1.2 Procedure . 34
5.3.3.1.2A Procedure for DC-HSUPA . 34
5.3.3.2 Test requirements . 34
5.3.4 Transmitter minimum output power . 35
5.3.4.1 Method of test . 35
5.3.4.1.1 Initial conditions . 35
ETSI
5 Draft ETSI EN 301 908-2 V6.1.1 (2013-02)
5.3.4.1.1A Initial conditions for DC-HSUPA . 35
5.3.4.1.2 Procedure . 35
5.3.4.1.2A Procedure for DC-HSUPA . 35
5.3.4.2 Test requirements . 35
5.3.5 Receiver Adjacent Channel Selectivity (ACS) . 35
5.3.5.1 Method of test . 35
5.3.5.1.1 Initial conditions . 35
5.3.5.1.2 Procedure . 36
5.3.5.2 Test requirements . 36
5.3.6 Receiver blocking characteristics . 36
5.3.6.1 Method of test . 36
5.3.6.1.1 Initial requirements . 36
5.3.6.1.2 Procedure . 36
5.3.6.2 Test requirements . 37
5.3.7 Receiver spurious response . 37
5.3.7.1 Method of test . 37
5.3.7.1.1 Initial conditions . 37
5.3.7.1.2 Procedure . 37
5.3.7.2 Test requirements . 37
5.3.8 Receiver Intermodulation characteristics . 37
5.3.8.1 Method of test . 37
5.3.8.1.1 Initial conditions . 37
5.3.8.1.2 Procedure . 38
5.3.8.2 Test requirements . 38
5.3.9 Receiver spurious emissions . 38
5.3.9.1 Method of test . 38
5.3.9.1.1 Initial conditions . 38
5.3.9.1.2 Procedure . 38
5.3.9.2 Test requirements . 38
5.3.10 Out-of-synchronization handling of output power . 38
5.3.10.1 Method of test . 38
5.3.10.1.1 Initial conditions . 38
5.3.10.1.2 Procedure . 39
5.3.10.2 Test requirements . 39
5.3.11 Transmitter adjacent channel leakage power ratio . 39
5.3.11.1 Method of test . 39
5.3.11.1.1 Initial conditions for UEs not supporting HSDPA and/or E-DCH . 39
5.3.11.1.1A Initial conditions for UEs supporting HSDPA and/or E-DCH . 40
5.3.11.1.1B Initial conditions for DC-HSUPA . 40
5.3.11.1.2 Procedure for UEs not supporting HSDPA and/or E-DCH . 40
5.3.11.1.2A Procedure for UEs supporting HSDPA and/or E-DCH . 40
5.3.11.1.2B Procedure for DC-HSUPA . 40
5.3.11.2 Test requirements . 40
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 41
Annex B (normative): Environmental profile . 44
B.1 General . 44
B.1.1 Introduction . 44
B.1.2 Temperature . 44
B.1.3 Voltage . 44
B.1.4 Test environment . 44
Annex C (informative): Void . 46
Annex D (informative): Bibliography . 47
History . 48
ETSI
6 Draft ETSI EN 301 908-2 V6.1.1 (2013-02)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This draft Harmonized European Standard (EN) has been produced by ETSI Technical Committee Mobile Standards
Group (MSG), and is now submitted for the combined Public Enquiry and Vote phase of the ETSI standards EN
Approval Procedure.
The present document has been produced by ETSI in response to a mandate from the European Commission issued
under Directive 98/34/EC [i.1] as amended by Directive 98/48/EC [i.10].
The title and reference to the present document are intended to be included in the publication in the Official Journal of
the European Union of titles and references of Harmonized Standard under the Directive 1999/5/EC [i.2].
See article 5.1 of Directive 1999/5/EC [i.2] for information on presumption of conformity and Harmonized Standards or
parts thereof the references of which have been published in the Official Journal of the European Union.
The requirements relevant to Directive 1999/5/EC [i.2] are summarized in annex A.
The present document is part 2 of a multi-part deliverable. Full details of the entire series can be found in part 1 [10].
National transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The
modular structure is shown in EG 201 399 [i.3].
ETSI
7 Draft ETSI EN 301 908-2 V6.1.1 (2013-02)
1 Scope
The present document applies to the following radio equipment type:
• User Equipment for IMT-2000 CDMA Direct Spread (UTRA FDD).
These radio equipment types are capable of operating in all or any part of the frequency bands given in table 1-1.
Table 1-1: UTRA FDD operating bands
UTRA FDD Band Direction of transmission UTRA FDD operating bands
I Transmit 1 920 MHz to 1 980 MHz
Receive 2 110 MHz to 2 170 MHz
III Transmit 1 710 MHz to 1 785 MHz
Receive 1 805 MHz to 1 880 MHz
VII Transmit 2 500 MHz to 2 570 MHz
Receive 2 620 MHz to 2 690 MHz
VIII Transmit 880 MHz to 915 MHz
Receive 925 MHz to 960 MHz
XV Transmit 1 900 MHz to 1 920 MHz
Receive 2 600 MHz to 2 620 MHz
XVI Transmit 2 010 MHz to 2 025 MHz
Receive 2 585 MHz to 2 600 MHz
XX Transmit 832 MHz to 862 MHz
Receive 791 MHz to 821 MHz
XXII Transmit 3 410 MHz to 3 490 MHz
Receive 3 510 MHz to 3 590 MHz
The present document covers requirements for UTRA FDD User Equipment from 3GPP Releases 99, 4, 5, 6, 7, 8, 9,
and 10. In addition, the present document covers requirements for UTRA FDD User Equipment in the operating bands
specified in TS 102 735 [i.4].
NOTE 1: For Band XX:
- for user equipment designed to be mobile or nomadic, the requirements in the present document
measured at the antenna port also show conformity to the corresponding requirement defined as
TRP (total radiated power), as described in Commision Decision 2010/267/EU [i.7], ECC
Decision (09)03 [i.8] and CEPT Report 30 [i.9];
- for user equipment designed to be fixed or installed, the present document does not address the
requirements described in Commision Decision 2010/267/EU [i.7], ECC Decision (09)03 [i.8] and
CEPT Report 30 [i.9].
The present document is intended to cover the provisions of Directive 1999/5/EC [i.2] (R&TTE Directive) article 3.2,
which states that "radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive [i.2] may apply to equipment within the scope of the present
document.
NOTE 2: A list of such ENs is included on the web site http://www.newapproach.org/.
ETSI
8 Draft ETSI EN 301 908-2 V6.1.1 (2013-02)
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] Void.
[2] ETSI TS 134 121-1 (V10.5.0) (02/2013): "Universal Mobile Telecommunications System
(UMTS); User Equipment (UE) conformance specification; Radio transmission and reception
(FDD); Part 1: Conformance specification (3GPP TS 34.121-1 version 10.5.0 Release 10)".
[3] ETSI TS 134 108 (V11.4.0) (02/2013): "Universal Mobile Telecommunications System (UMTS);
LTE; Common test environments for User Equipment (UE); Conformance testing (3GPP
TS 34.108 version 11.4.0 Release 11)".
[4] ETSI TS 134 109 (V10.1.0) (01/2012): "Universal Mobile Telecommunications System (UMTS);
Terminal logical test interface; Special conformance testing functions (3GPP TS 34.109
version 10.1.0 Release 10)".
[5] ETSI TS 125 101 (V10.8.0) (02/2013): "Universal Mobile Telecommunications System (UMTS);
User Equipment (UE) radio transmission and reception (FDD) (3GPP TS 25.101 version 10.8.0
Release 10)".
[6] IEC 60068-2-1 (2007): "Environmental testing - Part 2-1: Tests. Test A: Cold".
[7] IEC 60068-2-2 (2007): "Environmental testing - Part 2-2: Tests. Test B: Dry heat".
[8] ETSI TS 125 214 (V10.6.0) (03/2013): "Universal Mobile Telecommunications System (UMTS);
Physical layer procedures (FDD) (3GPP TS 25.214 version 10.6.0 Release 10)".
[9] ETSI TS 145 004 (V10.0.0) (10/2012): "Digital cellular telecommunications system (Phase 2+);
Modulation (3GPP TS 45.004 version 10.0.0 Release 10)".
[10] ETSI EN 301 908-1 (V6.2.0) (02/2013): "IMT cellular networks; Harmonized EN covering the
essential requirements of article 3.2 of the R&TTE Directive; Part 1: Introduction and common
requirements".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
[i.2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[i.3] ETSI EG 201 399: "Electromagnetic compatibility and Radio spectrum Matters (ERM); A guide to
the production of Harmonized Standards for application under the R&TTE Directive".
ETSI
9 Draft ETSI EN 301 908-2 V6.1.1 (2013-02)
[i.4] ETSI TS 102 735 (V7.1.0): "Universal Mobile Telecommunications System (UMTS);
Band-specific requirements for UMTS Frequency Division Duplex (FDD) operation in the bands
1 900 MHz to 1 920 MHz paired with 2 600 MHz to 2 620 MHz and 2 010 MHz to 2 025 MHz
paired with 2 585 MHz to 2 600 MHz".
[i.5] Void.
[i.6] ETSI TR 100 028 (all parts) (V1.4.1): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Uncertainties in the measurement of mobile radio equipment characteristics".
[i.7] Commission Decision of 6 May 2010 on harmonised technical conditions of use in the
790-862 MHz frequency band for terrestrial systems capable of providing electronic
communications services in the European Union (2010/267/EU).
[i.8] ECC Decision of 30 October 2009 on harmonised conditions for mobile/fixed communications
networks (MFCN) operating in the band 790 - 862 MHz (ECC/DEC/(09)03).
[i.9] CEPT Report 30 of 30 October 2009 to the European Commission in response to the Mandate on
"The identification of common and minimal (least restrictive) technical conditions for
790 - 862 MHz for the digital dividend in the European Union".
[i.10] Directive 98/48/EC of the European Parliament and of the Council of 20 July 1998 amending
Directive 98/34/EC laying down a procedure for the provision of information in the field of
technical standards and regulations.
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
chip rate: rate of "chips" (modulated symbols after spreading) per second
NOTE: The UTRA FDD chip rate is 3,84 Mchip/s.
data rate: rate of the user information, which is transmitted over the Air Interface
EXAMPLE: Output rate of the voice codec.
environmental profile: range of environmental conditions under which equipment within the scope of the present
document is required to comply with the provisions of the present document
maximum output power: measure of the maximum power the UE can transmit (i.e. the actual power as would be
measured assuming no measurement error) in a bandwidth of at least (1 + α) times the chip rate of the radio access
mode
NOTE: The period of measurement is assumed to be at least one timeslot.
mean power: power (transmitted or received) in a bandwidth of at least (1 + α) times the chip rate of the radio access
mode, when applied to a WCDMA modulated signal
NOTE: The period of measurement is assumed to be at least one timeslot unless otherwise stated.
node B: logical node responsible for radio transmission/reception in one or more cells to/from the User Equipment
nominal maximum output power: nominal power defined by the UE power class
operating band: frequency range that is defined with a specific set of technical requirements, in which UTRA FDD
operates
NOTE: Operating bands for UTRA are designated with Roman numerals, while the corresponding operating
bands for E-UTRA are designated with Arabic numerals.
ETSI
10 Draft ETSI EN 301 908-2 V6.1.1 (2013-02)
power spectral density: function of power versus frequency and when integrated across a given bandwidth, the
function represents the mean power in such a bandwidth
NOTE 1: When the mean power is normalized to (divided by) the chip-rate it represents the mean energy per chip.
Some signals are directly defined in terms of energy per chip, (DPCH_Ec, Ec, OCNS_Ec and
S-CCPCH_Ec) and others defined in terms of PSD (I , I , I and Î ). There also exist quantities that are
o oc or or
a ratio of energy per chip to PSD (DPCH_E /I , E /I , etc.). This is the common practice of relating
c or c or
energy magnitudes in communication systems.
NOTE 2: It can be seen that if both energy magnitudes in the ratio are divided by time, the ratio is converted from
an energy ratio to a power ratio, which is more useful from a measurement point of view. It follows that
an energy per chip of X dBm/3,84 MHz can be expressed as a mean power per chip of X dBm. Similarly,
a signal PSD of Y dBm/3,84 MHz can be expressed as a signal power of Y dBm.
NOTE 3: The units of Power Spectral Density (PSD) are extensively used in the present document.
RRC filtered mean power: mean power as measured through a root raised cosine filter with roll-off factor α and a
bandwidth equal to the chip rate of the radio access mode
NOTE: The RRC filtered mean power of a perfectly modulated WCDMA signal is 0,246 dB lower than the mean
power of the same signal.
3.2 Symbols
For the purposes of the present document, the following symbols apply:
α Roll-off factor of the root raised cosine filter, α = 0,22
DPCH_Ec Average energy per PN chip for DPCH
E Average energy per PN chip
c
F Frequency of unwanted signal
uw
NOTE: This is specified in bracket in terms of an absolute frequency(s) or a frequency offset from the assigned
channel frequency.
I The total received power spectral density, including signal and interference, as measured at the UE
o
antenna connector
I Power spectral density (integrated in a noise bandwidth equal to the chip rate and normalized to
oc
the chip rate) of a band limited white noise source (simulating interference from cells, which are
not defined in a test procedure) as measured at the UE antenna connector
I Total transmit power spectral density (integrated in a bandwidth of (1 + α) times the chip rate and
or
normalized to the chip rate) of the downlink signal at the Node B antenna connector
ˆ
I Received power spectral density (integrated in a bandwidth of (1 + α) times the chip rate and
or
normalized to the chip rate) of the downlink signal as measured at the UE antenna connector
β Gain factor for DPCCH
c
β Gain factor for DPDCH
d
β Gain factor for HS-DPCCH
hs
β Gain factor for E-DPCCH
ec
β Gain factor for E-DPDCH
ed
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AC Access Channel
ACLR Adjacent Channel Leakage power Ratio
ACS Adjacent Channel Selectivity
BER Bit Error Ratio
ETSI
11 Draft ETSI EN 301 908-2 V6.1.1 (2013-02)
BS Base Station
CDMA Code Division Multiple Access
CW Continuous Wave
NOTE: Unmodulated signal.
DC-HSUPA Dual Cell HSUPA
DCH Dedicated Channel
NOTE: Which is mapped into Dedicated Physical Channel.
DL Downlink
DPCCH Dedicated Physical Control CHannel
DPCH Dedicated Physical Channel
DPDCH Dedicated Physical Data CHannel
E-DCH Enhanced Dedicated Channel
E-DPCCH Enhanced DPCCH
E-DPDCH Enhanced DPDCH
EMC ElectroMagnetic Compatibility
ERM Electromagnetic compatibility and Radio spectrum Matters
EUT Equipment Under Test
FDD Frequency Division Duplex
GMSK Gaussian Minimum Shift Keying
GSM Global System for Mobile
HS-DPCCH High Speed DPCCH
HSDPA High Speed Downlink Packet Access
HSUPA High Speed Uplink Packet Access
IMT International Mobile Telecommunications
LTE Long Term Evolution
MPR Maximum Power Reduction
MSG Mobile Standards Group
MSR Multi-Standard Radio
OCNS Orthogonal Channel Noise Simulator
OFDMA Orthogonal Frequency Division Multiple Access
NOTE: A mechanism used to simulate the users or control signals on the other orthogonal channels of a
downlink.
PCH Paging Channel
PN PseudoNoise
PSD Power Spectral Density
Reference sensitivity
RF Radio Frequency
RRC Root Raised Cosine
R&TTE Radio and Telecommunications Terminal Equipment
SS System Simulator
NOTE: See TS 134 121-1 [2].
TDD Time Division Duplex
TDMA Time Division Multiple Access
TFES Task Force for European Standards for IMT
TH Temperature High
TH/VH High extreme Temperature/High extreme Voltage
TH/VL High extreme Temperature/Low extreme Voltage
TL Temperature Low
TL/VH Low extreme Temp
...
Final draft ETSI EN 301 908-2 V6.1.3 (2013-08)
Harmonized European Standard
IMT cellular networks;
Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive;
Part 2: CDMA Direct Spread (UTRA FDD) User Equipment (UE)
2 Final draft ETSI EN 301 908-2 V6.1.3 (2013-08)
Reference
REN/MSG-TFES-010-02
Keywords
3G, 3GPP, cellular, digital, IMT, mobile, radio,
regulation, UMTS, UTRA, WCDMA
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp

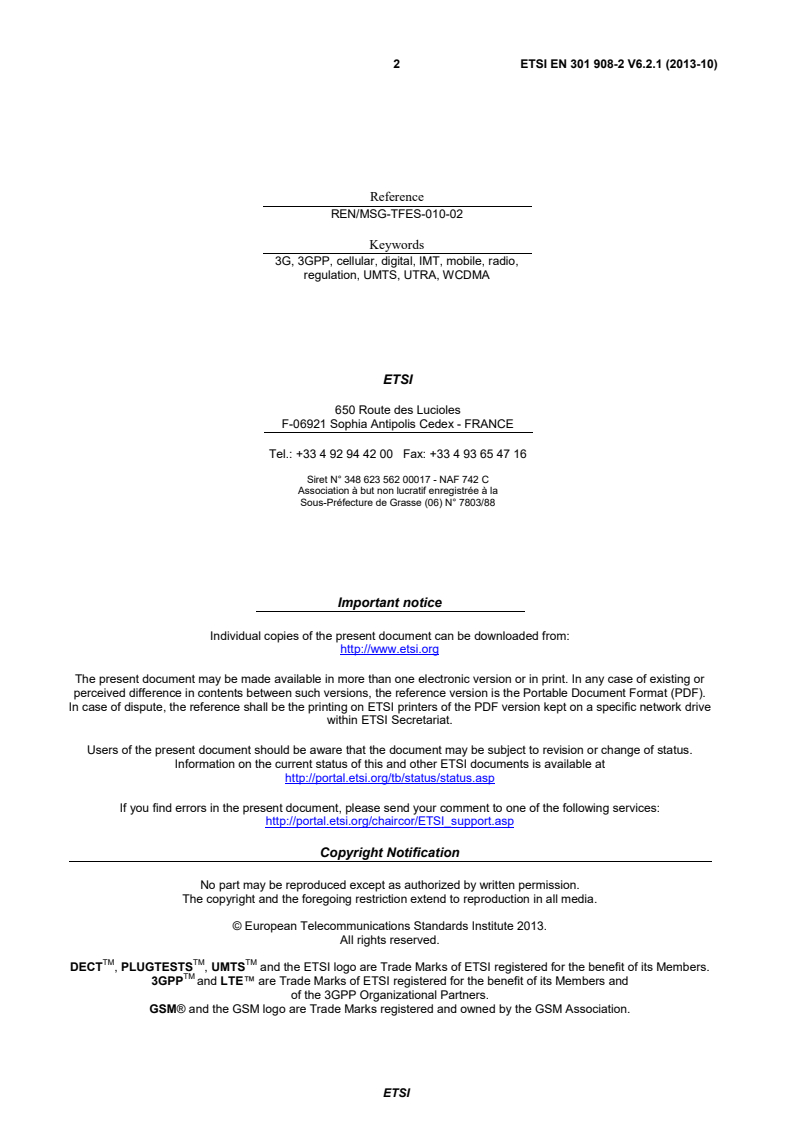

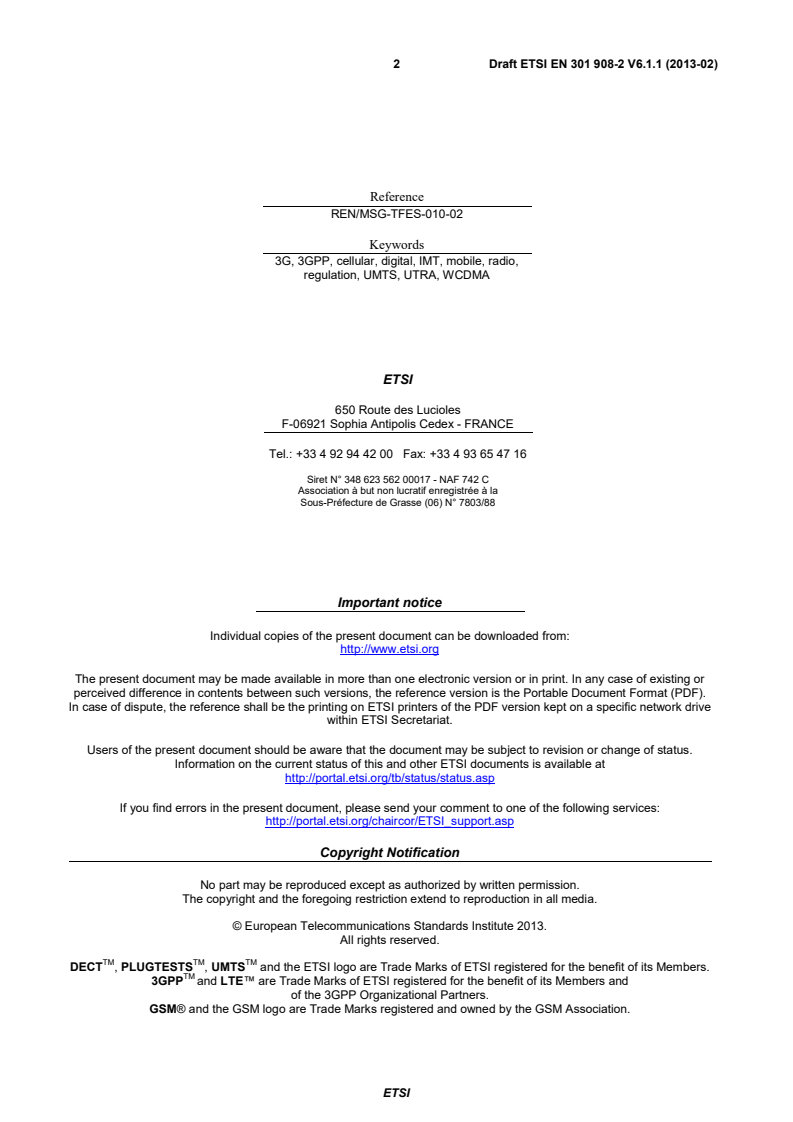

If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2013.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 Final draft ETSI EN 301 908-2 V6.1.3 (2013-08)
Contents
Intellectual Property Rights . 6
Foreword . 6
Introduction . 6
1 Scope . 7
2 References . 8
2.1 Normative references . 8
2.2 Informative references . 8
3 Definitions, symbols and abbreviations . 9
3.1 Definitions . 9
3.2 Symbols . 10
3.3 Abbreviations . 10
4 Technical requirements specifications . 12
4.1 Environmental profile . 12
4.2 Conformance requirements . 12
4.2.1 Introduction. 12
4.2.2 Transmitter maximum output power. 12
4.2.2.1 Transmitter maximum output power . 12
4.2.2.1.1 Definition. 12
4.2.2.1.2 Limits . 13
4.2.2.1.3 Conformance. . 13
4.2.2.2 Transmitter maximum output power for DC-HSUPA . 13
4.2.2.2.1 Definition for DC-HSUPA . 13
4.2.2.2.2 Limits for DC-HSUPA . 13
4.2.2.2.3 Conformance. . 14
4.2.3 Transmitter spectrum emission mask . 14
4.2.3.1 Transmitter spectrum emission mask . 14
4.2.3.1.1 Definition. 14
4.2.3.1.2 Limits . 14
4.2.3.1.3 Conformance . 14
4.2.3.2 Transmitter spectrum emission mask for DC-HSUPA . 15
4.2.3.2.1 Definition for DC-HSUPA . 15
4.2.3.2.2 Limits for DC-HSUPA . 15
4.2.3.2.3 Conformance . 15
4.2.4 Transmitter spurious emis sions . 15
4.2.4.1 Transmitter spurious emissions . 15
4.2.4.1.1 Definition. 15
4.2.4.1.2 Limits . 15
4.2.4.1.3 Conformance . 17
4.2.4.2 Transmitter spurious emissions for DC-HSUPA . 17
4.2.4.2.1 Definition for DC-HSUPA . 17
4.2.4.2.2 Limits for DC-HSUPA . 17
4.2.4.2.3 Conformance . 19
4.2.5 Transmitter minimum output power . 20
4.2.5.1 Transmitter minimum output power. 20
4.2.5.1.1 Definition. 20
4.2.5.1.2 Limits . 20
4.2.5.1.3 Conformance . 20
4.2.5.2 Transmitter minimum output power for DC-HSUPA . 20
4.2.5.2.1 Definition for DC-HSUPA . 20
4.2.5.2.2 Limits for DC-HSUPA . 20
4.2.5.2.3 Conformance . 20
4.2.6 Receiver Adjacent Channel Selectivity (ACS) . 20
4.2.6.1 Definition . 20
ETSI
4 Final draft ETSI EN 301 908-2 V6.1.3 (2013-08)
4.2.6.2 Limits . 21
4.2.6.3 Conformance . 21
4.2.7 Receiver blocking characteristics . 21
4.2.7.1 Definition . 21
4.2.7.2 Limits . 21
4.2.7.3 Conformance . 23
4.2.8 Receiver spurious response . 23
4.2.8.1 Definition . 23
4.2.8.2 Limits . 23
4.2.8.3 Conformance . 24
4.2.9 Receiver intermodulation characteristics . 24
4.2.9.1 Definition . 24
4.2.9.2 Limits . 24
4.2.9.3 Conformance . 25
4.2.10 Receiver spurious emissions . 25
4.2.10.1 Definition . 25
4.2.10.2 Limits . 25
4.2.10.3 Conformance . 27
4.2.11 Out-of-synchronization handling of output power . 27
4.2.11.1 Definition . 27
4.2.11.2 Limits . 27
4.2.11.3 Conformance . 28
4.2.12 Transmitter Adjacent Channel Leakage power Ratio (ACLR) . 28
4.2.12.1 Transmitter adjacent channel leakage power ratio (ACLR) . 28
4.2.12.1.1 Definition. 28
4.2.12.1.2 Limits . 28
4.2.12.1.3 Conformance . 29
4.2.12.2 Adjacent channel leakage power ratio for DC-HSUPA . 29
4.2.12.2.1 Definition for DC-HSUPA . 29
4.2.12.2.2 Limits for DC-HSUPA . 29
4.2.12.2.3 Conformance . 29
5 Testing for compliance with technical requirements . 29
5.1 Environmental conditions for testing . 29
5.2 Interpretation of the measurement results . 30
5.3 Essential radio test suites . 31
5.3.1 Transmitter maximum output power. 31
5.3.1.1 Method of test . 31
5.3.1.1.1 Initial conditions . 31
5.3.1.1.1A Initial conditions for DC-HSUPA . 31
5.3.1.1.2 Procedure . 32
5.3.1.1.2A Procedure for DC-HSUPA . 32
5.3.1.2 Test requirements . 32
5.3.2 Transmitter spectrum emission mask . 32
5.3.2.1 Method of test . 32
5.3.2.1.1 Initial conditions for UEs not supporting HSDPA and/or E-DCH . 32
5.3.2.1.1A Initial conditions for UEs supporting HSDPA and/or E-DCH . 32
5.3.2.1.1B Initial conditions for DC-HSUPA . 33
5.3.2.1.2 Procedure for UEs not supporting HSDPA and/or E-DCH . 33
5.3.2.1.2A Procedure for UEs supporting HSDPA and/or E-DCH . 33
5.3.2.1.2B Procedure for DC-HSUPA . 33
5.3.2.2 Test requirements . 33
5.3.3 Transmitter spurious emis sions . 34
5.3.3.1 Method of test . 34
5.3.3.1.1 Initial conditions . 34
5.3.3.1.1A Initial conditions for DC-HSUPA . 34
5.3.3.1.2 Procedure . 34
5.3.3.1.2A Procedure for DC-HSUPA . 34
5.3.3.2 Test requirements . 34
5.3.4 Transmitter minimum output power . 35
5.3.4.1 Method of test . 35
5.3.4.1.1 Initial conditions . 35
ETSI
5 Final draft ETSI EN 301 908-2 V6.1.3 (2013-08)
5.3.4.1.1A Initial conditions for DC-HSUPA . 35
5.3.4.1.2 Procedure . 35
5.3.4.1.2A Procedure for DC-HSUPA . 35
5.3.4.2 Test requirements . 35
5.3.5 Receiver Adjacent Channel Selectivity (ACS) . 36
5.3.5.1 Method of test . 36
5.3.5.1.1 Initial conditions . 36
5.3.5.1.2 Procedure . 36
5.3.5.2 Test requirements . 36
5.3.6 Receiver blocking characteristics . 36
5.3.6.1 Method of test . 36
5.3.6.1.1 Initial requirements . 36
5.3.6.1.2 Procedure . 37
5.3.6.2 Test requirements . 37
5.3.7 Receiver spurious response . 37
5.3.7.1 Method of test . 37
5.3.7.1.1 Initial conditions . 37
5.3.7.1.2 Procedure . 37
5.3.7.2 Test requirements . 37
5.3.8 Receiver Intermodulation characteristics . 37
5.3.8.1 Method of test . 37
5.3.8.1.1 Initial conditions . 37
5.3.8.1.2 Procedure . 38
5.3.8.2 Test requirements . 38
5.3.9 Receiver spurious emissions . 38
5.3.9.1 Method of test . 38
5.3.9.1.1 Initial conditions . 38
5.3.9.1.2 Procedure . 38
5.3.9.2 Test requirements . 38
5.3.10 Out-of-synchronization handling of output power . 38
5.3.10.1 Method of test . 38
5.3.10.1.1 Initial conditions . 38
5.3.10.1.2 Procedure . 39
5.3.10.2 Test requirements . 39
5.3.11 Transmitter adjacent channel leakage power ratio . 39
5.3.11.1 Method of test . 39
5.3.11.1.1 Initial conditions for UEs not supporting HSDPA and/or E-DCH . 39
5.3.11.1.1A Initial conditions for UEs supporting HSDPA and/or E-DCH . 40
5.3.11.1.1B Initial conditions for DC-HSUPA . 40
5.3.11.1.2 Procedure for UEs not supporting HSDPA and/or E-DCH . 40
5.3.11.1.2A Procedure for UEs supporting HSDPA and/or E-DCH . 40
5.3.11.1.2B Procedure for DC-HSUPA . 40
5.3.11.2 Test requirements . 40
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 41
Annex B (normative): Environmental profile . 44
B.1 General . 44
B.1.1 Introduction . 44
B.1.2 Temperature . 44
B.1.3 Voltage . 44
B.1.4 Test environment . 44
Annex C: Void . 46
Annex D (informative): Bibliography . 47
History . 48
ETSI
6 Final draft ETSI EN 301 908-2 V6.1.3 (2013-08)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This final draft Harmonized European Standard (EN) has been produced by ETSI Technical Committee Mobile
Standards Group (MSG), and is now submitted for the Vote phase of the ETSI standards EN Approval Procedure.
The present document has been produced by ETSI in response to mandates M/284 and M/406 issued from the European
Commission under Directive 98/34/EC [i.1] as amended by Directive 98/48/EC [i.10].
The title and reference to the present document are intended to be included in the publication in the Official Journal of
the European Union of titles and references of Harmonized Standard under the Directive 1999/5/EC [i.2].
See article 5.1 of Directive 1999/5/EC [i.2] for information on presumption of conformity and Harmonized Standards or
parts thereof the references of which have been published in the Official Journal of the European Union.
The requirements relevant to Directive 1999/5/EC [i.2] are summarized in annex A.
The present document is part 2 of a multi-part deliverable. Full details of the entire series can be found in part 1 [10].
National transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The
modular structure is shown in EG 201 399 [i.3].
ETSI
7 Final draft ETSI EN 301 908-2 V6.1.3 (2013-08)
1 Scope
The present document applies to the following radio equipment type:
• User Equipment for IMT-2000 CDMA Direct Spread (UTRA FDD).
These radio equipment types are capable of operating in all or any part of the frequency bands given in table 1-1.
Table 1-1: UTRA FDD operating bands
UTRA FDD Band Direction of transmission UTRA FDD operating bands
I Transmit 1 920 MHz to 1 980 MHz
Receive 2 110 MHz to 2 170 MHz
III Transmit 1 710 MHz to 1 785 MHz
Receive 1 805 MHz to 1 880 MHz
VII Transmit 2 500 MHz to 2 570 MHz
Receive 2 620 MHz to 2 690 MHz
VIII Transmit 880 MHz to 915 MHz
Receive 925 MHz to 960 MHz
XV Transmit 1 900 MHz to 1 920 MHz
Receive 2 600 MHz to 2 620 MHz
XVI Transmit 2 010 MHz to 2 025 MHz
Receive 2 585 MHz to 2 600 MHz
XX Transmit 832 MHz to 862 MHz
Receive 791 MHz to 821 MHz
XXII Transmit 3 410 MHz to 3 490 MHz
Receive 3 510 MHz to 3 590 MHz
The present document covers requirements for UTRA FDD User Equipment from 3GPP Releases 99, 4, 5, 6, 7, 8, 9,
and 10. In addition, the present document covers requirements for UTRA FDD User Equipment in the operating bands
specified in TS 102 735 [i.4].
NOTE 1: For Band XX:
- for user equipment designed to be mobile or nomadic, the requirements in the present document
measured at the antenna port also show conformity to the corresponding requirement defined as
TRP (total radiated power), as described in Commission Decision 2010/267/EU [i.7], ECC
Decision (09)03 [i.8] and CEPT Report 30 [i.9];
- for user equipment designed to be fixed or installed, the present document does not address the
requirements described in Commission Decision 2010/267/EU [i.7], ECC Decision (09)03 [i.8] and
CEPT Report 30 [i.9].
The present document is intended to cover the provisions of Directive 1999/5/EC [i.2] (R&TTE Directive) article 3.2,
which states that "radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive [i.2] may apply to equipment within the scope of the present
document.
NOTE 2: A list of such ENs is included on the web site http://www.newapproach.org/.
ETSI
8 Final draft ETSI EN 301 908-2 V6.1.3 (2013-08)
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] Void.
[2] ETSI TS 134 121-1 (V10.7.0) (06-2013): "Universal Mobile Telecommunications System
(UMTS); User Equipment (UE) conformance specification; Radio transmission and reception
(FDD); Part 1: Conformance specification (3GPP TS 34.121-1 version 10.7.0 Release 10)".
[3] ETSI TS 134 108 (V11.6.0) (06-2013): "Universal Mobile Telecommunications System (UMTS);
LTE; Common test environments for User Equipment (UE); Conformance testing
(3GPP TS 34.108 version 11.6.0 Release 11)".
[4] ETSI TS 134 109 (V10.1.0) (03-2012): "Universal Mobile Telecommunications System (UMTS);
Terminal logical test interface; Special conformance testing functions (3GPP TS 34.109
version 10.1.0 Release 10)".
[5] ETSI TS 125 101 (V10.9.0) (06-2013): "Universal Mobile Telecommunications System (UMTS);
User Equipment (UE) radio transmission and reception (FDD) (3GPP TS 25.101 version 10.9.0
Release 10)".
[6] IEC 60068-2-1 (03-2007): "Environmental testing - Part 2-1: Tests. Test A: Cold".
[7] IEC 60068-2-2 (07-2007): "Environmental testing - Part 2-2: Tests. Test B: Dry heat".
[8] ETSI TS 125 214 (V10.6.0) (03-2012): "Universal Mobile Telecommunications System (UMTS);
Physical layer procedures (FDD) (3GPP TS 25.214 version 10.6.0 Release 10)".
[9] ETSI TS 145 004 (V10.0.0) (10-2012): "Digital cellular telecommunications system (Phase 2+);
Modulation (3GPP TS 45.004 version 10.0.0 Release 10)".
[10] ETSI EN 301 908-1 (V6.2.1) (06-2013): "IMT cellular networks; Harmonized EN covering the
essential requirements of article 3.2 of the R&TTE Directive; Part 1: Introduction and common
requirements".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
[i.2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[i.3] ETSI EG 201 399: "Electromagnetic compatibility and Radio spectrum Matters (ERM); A guide to
the production of Harmonized Standards for application under the R&TTE Directive".
ETSI
9 Final draft ETSI EN 301 908-2 V6.1.3 (2013-08)
[i.4] ETSI TS 102 735 (V7.1.0): "Universal Mobile Telecommunications System (UMTS); Band-
specific requirements for UMTS Frequency Division Duplex (FDD) operation in the bands
1 900 MHz to 1 920 MHz paired with 2 600 MHz to 2 620 MHz and 2 010 MHz to 2 025 MHz
paired with 2 585 MHz to 2 600 MHz".
[i.5] Void.
[i.6] ETSI TR 100 028 (all parts) (V1.4.1): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Uncertainties in the measurement of mobile radio equipment characteristics".
[i.7] Commission Decision 2010/267/EU of 6 May 2010 on harmonised technical conditions of use in
the 790-862 MHz frequency band for terrestrial systems capable of providing electronic
communications services in the European Union.
[i.8] ECC Decision (09)03 of 30 October 2009 on harmonised conditions for mobile/fixed
communications networks (MFCN) operating in the band 790 - 862 MHz.
[i.9] CEPT Report 30 of 30 October 2009 to the European Commission in response to the Mandate on
"The identification of common and minimal (least restrictive) technical conditions for
790 - 862 MHz for the digital dividend in the European Union".
[i.10] Directive 98/48/EC of the European Parliament and of the Council of 20 July 1998 amending
Directive 98/34/EC laying down a procedure for the provision of information in the field of
technical standards and regulations.
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
chip rate: rate of "chips" (modulated symbols after spreading) per second
NOTE: The UTRA FDD chip rate is 3,84 Mchip/s.
data rate: rate of the user information, which is transmitted over the Air Interface
EXAMPLE: Output rate of the voice codec.
environmental profile: range of environmental conditions under which equipment within the scope of the present
document is required to comply with the provisions of the present document
maximum output power: measure of the maximum power the UE can transmit (i.e. the actual power as would be
measured assuming no measurement error) in a bandwidth of at least (1 + α) times the chip rate of the radio access
mode
NOTE: The period of measurement is assumed to be at least one timeslot.
mean power: power (transmitted or received) in a bandwidth of at least (1 + α) times the chip rate of the radio access
mode, when applied to a WCDMA modulated signal
NOTE: The period of measurement is assumed to be at least one timeslot unless otherwise stated.
node B: logical node responsible for radio transmission/reception in one or more cells to/from the User Equipment
nominal maximum output power: nominal power defined by the UE power class
operating band: frequency range that is defined with a specific set of technical requirements, in which UTRA FDD
operates
NOTE: Operating bands for UTRA are designated with Roman numerals, while the corresponding operating
bands for E-UTRA are designated with Arabic numerals.
ETSI
10 Final draft ETSI EN 301 908-2 V6.1.3 (2013-08)
power spectral density: function of power versus frequency and when integrated across a given bandwidth, the
function represents the mean power in such a bandwidth
NOTE 1: When the mean power is normalized to (divided by) the chip-rate it represents the mean energy per chip.
Some signals are directly defined in terms of energy per chip, (DPCH_Ec, Ec, OCNS_Ec and
S-CCPCH_Ec) and others defined in terms of PSD (I , I , I and Î ). There also exist quantities that are
o oc or or
a ratio of energy per chip to PSD (DPCH_E /I , E /I , etc.). This is the common practice of relating
c or c or
energy magnitudes in communication systems.
NOTE 2: It can be seen that if both energy magnitudes in the ratio are divided by time, the ratio is converted from
an energy ratio to a power ratio, which is more useful from a measurement point of view. It follows that
an energy per chip of X dBm/3,84 MHz can be expressed as a mean power per chip of X dBm. Similarly,
a signal PSD of Y dBm/3,84 MHz can be expressed as a signal power of Y dBm.
NOTE 3: The units of Power Spectral Density (PSD) are extensively used in the present document.
RRC filtered mean power: mean power as measured through a root raised cosine filter with roll-off factor α and a
bandwidth equal to the chip rate of the radio access mode
NOTE: The RRC filtered mean power of a perfectly modulated WCDMA signal is 0,246 dB lower than the mean
power of the same signal.
3.2 Symbols
For the purposes of the present document, the following symbols apply:
α Roll-off factor of the root raised cosine filter, α = 0,22
DPCH_Ec Average energy per PN chip for DPCH
E Average energy per PN chip
c
F Frequency of unwanted signal
uw
NOTE: This is specified in bracket in terms of an absolute frequency(s) or a frequency offset from the assigned
channel frequency.
I The total received power spectral density, including signal and interference, as measured at the UE
o
antenna connector
I Power spectral density (integrated in a noise bandwidth equal to the chip rate and normalized to
oc
the chip rate) of a band limited white noise source (simulating interference from cells, which are
not defined in a test procedure) as measured at the UE antenna connector
I Total transmit power spectral density (integrated in a bandwidth of (1 + α) times the chip rate and
or
normalized to the chip rate) of the downlink signal at the Node B antenna connector
ˆ
I Received power spectral density (integrated in a bandwidth of (1 + α) times the chip rate and
or
normalized to the chip rate) of the downlink signal as measured at the UE antenna connector
β Gain factor for DPCCH
c
β Gain factor for DPDCH
d
β Gain factor for HS-DPCCH
hs
β Gain factor for E-DPCCH
ec
β Gain factor for E-DPDCH
ed
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AC Access Channel
ACLR Adjacent Channel Leakage power Ratio
ACS Adjacent Channel Selectivity
BER Bit Error Ratio
ETSI
11 Final draft ETSI EN 301 908-2 V6.1.3 (2013-08)
CDMA Code Division Multiple Access
CW Continuous Wave
NOTE: Unmodulated signal.
DC-HSUPA Dual Cell HSUPA
DCH Dedicated Channel
NOTE: Which is mapped into Dedicated Physical Channel.
DL Downlink
DPCCH Dedicated Physical Control CHannel
DPCH Dedicated Physical Channel
DPDCH Dedicated Physical Data CHannel
E-DCH Enhanced Dedicated Channel
E-DPCCH Enhanced DPCCH
E-DPDCH Enhanced DPDCH
EMC ElectroMagnetic Compatibility
ERM Electromagnetic compatibility and Radio spectrum Matters
EUT Equipment Under Test
FDD Frequency Division Duplex
GMSK Gaussian Minimum Shift Keying
GSM Global System for Mobile
HS-DPCCH High Speed DPCCH
HSDPA High Speed Downlink Packet Access
HSUPA High Speed Uplink Packet Access
IMT International Mobile Telecommunications
LTE Long Term Evolution
MPR Maximum Power Reduction
MSG Mobile Standards Group
OCNS Orthogonal Channel Noise Simulator
NOTE: A mechanism used to simulate the users or control signals on the other orthogonal channels of a
downlink.
PCH Paging Channel
PN PseudoNoise
PSD Power Spectral Density
Reference sensitivity
RF Radio Frequency
RRC Root Raised Cosine
R&TTE Radio and Telecommunications Terminal Equipment
SS System Simulator
NOTE: See TS 134 121-1 [2].
TFES Task Force for European Standards for IMT
TH Temperature High
TH/VH High extreme Temperature/High extreme Voltage
TH/VL High extreme Temperature/Low extreme Voltage
TL Temperature Low
TL/VH Low extreme Temperature/High extreme Voltage
TL/VL Low extreme Temperature/Low extreme Voltage
TPC T
...
ETSI EN 301 908-2 V6.2.1 (2013-10)
Harmonized European Standard
IMT cellular networks;
Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive;
Part 2: CDMA Direct Spread (UTRA FDD) User Equipment (UE)
2 ETSI EN 301 908-2 V6.2.1 (2013-10)
Reference
REN/MSG-TFES-010-02
Keywords
3G, 3GPP, cellular, digital, IMT, mobile, radio,
regulation, UMTS, UTRA, WCDMA
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2013.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI EN 301 908-2 V6.2.1 (2013-10)
Contents
Intellectual Property Rights . 6
Foreword . 6
Introduction . 6
1 Scope . 7
2 References . 8
2.1 Normative references . 8
2.2 Informative references . 8
3 Definitions, symbols and abbreviations . 9
3.1 Definitions . 9
3.2 Symbols . 10
3.3 Abbreviations . 10
4 Technical requirements specifications . 12
4.1 Environmental profile . 12
4.2 Conformance requirements . 12
4.2.1 Introduction. 12
4.2.2 Transmitter maximum output power. 12
4.2.2.1 Transmitter maximum output power . 12
4.2.2.1.1 Definition. 12
4.2.2.1.2 Limits . 13
4.2.2.1.3 Conformance . 13
4.2.2.2 Transmitter maximum output power for DC-HSUPA . 13
4.2.2.2.1 Definition for DC-HSUPA . 13
4.2.2.2.2 Limits for DC-HSUPA . 13
4.2.2.2.3 Conformance . 14
4.2.3 Transmitter spectrum emission mask . 14
4.2.3.1 Transmitter spectrum emission mask . 14
4.2.3.1.1 Definition. 14
4.2.3.1.2 Limits . 14
4.2.3.1.3 Conformance . 14
4.2.3.2 Transmitter spectrum emission mask for DC-HSUPA . 15
4.2.3.2.1 Definition for DC-HSUPA . 15
4.2.3.2.2 Limits for DC-HSUPA . 15
4.2.3.2.3 Conformance . 15
4.2.4 Transmitter spurious emis sions . 15
4.2.4.1 Transmitter spurious emissions . 15
4.2.4.1.1 Definition. 15
4.2.4.1.2 Limits . 15
4.2.4.1.3 Conformance . 17
4.2.4.2 Transmitter spurious emissions for DC-HSUPA . 17
4.2.4.2.1 Definition for DC-HSUPA . 17
4.2.4.2.2 Limits for DC-HSUPA . 17
4.2.4.2.3 Conformance . 19
4.2.5 Transmitter minimum output power . 20
4.2.5.1 Transmitter minimum output power. 20
4.2.5.1.1 Definition. 20
4.2.5.1.2 Limits . 20
4.2.5.1.3 Conformance . 20
4.2.5.2 Transmitter minimum output power for DC-HSUPA . 20
4.2.5.2.1 Definition for DC-HSUPA . 20
4.2.5.2.2 Limits for DC-HSUPA . 20
4.2.5.2.3 Conformance . 20
4.2.6 Receiver Adjacent Channel Selectivity (ACS) . 20
4.2.6.1 Definition . 20
ETSI
4 ETSI EN 301 908-2 V6.2.1 (2013-10)
4.2.6.2 Limits . 21
4.2.6.3 Conformance . 21
4.2.7 Receiver blocking characteristics . 21
4.2.7.1 Definition . 21
4.2.7.2 Limits . 21
4.2.7.3 Conformance . 23
4.2.8 Receiver spurious response . 23
4.2.8.1 Definition . 23
4.2.8.2 Limits . 23
4.2.8.3 Conformance . 24
4.2.9 Receiver intermodulation characteristics . 24
4.2.9.1 Definition . 24
4.2.9.2 Limits . 24
4.2.9.3 Conformance . 25
4.2.10 Receiver spurious emissions . 25
4.2.10.1 Definition . 25
4.2.10.2 Limits . 25
4.2.10.3 Conformance . 27
4.2.11 Out-of-synchronization handling of output power . 27
4.2.11.1 Definition . 27
4.2.11.2 Limits . 27
4.2.11.3 Conformance . 28
4.2.12 Transmitter Adjacent Channel Leakage power Ratio (ACLR) . 28
4.2.12.1 Transmitter adjacent channel leakage power ratio (ACLR) . 28
4.2.12.1.1 Definition. 28
4.2.12.1.2 Limits . 28
4.2.12.1.3 Conformance . 29
4.2.12.2 Adjacent channel leakage power ratio for DC-HSUPA . 29
4.2.12.2.1 Definition for DC-HSUPA . 29
4.2.12.2.2 Limits for DC-HSUPA . 29
4.2.12.2.3 Conformance . 29
5 Testing for compliance with technical requirements . 29
5.1 Environmental conditions for testing . 29
5.2 Interpretation of the measurement results . 30
5.3 Essential radio test suites . 31
5.3.1 Transmitter maximum output power. 31
5.3.1.1 Method of test . 31
5.3.1.1.1 Initial conditions . 31
5.3.1.1.1A Initial conditions for DC-HSUPA . 31
5.3.1.1.2 Procedure . 32
5.3.1.1.2A Procedure for DC-HSUPA . 32
5.3.1.2 Test requirements . 32
5.3.2 Transmitter spectrum emission mask . 32
5.3.2.1 Method of test . 32
5.3.2.1.1 Initial conditions for UEs not supporting HSDPA and/or E-DCH . 32
5.3.2.1.1A Initial conditions for UEs supporting HSDPA and/or E-DCH . 32
5.3.2.1.1B Initial conditions for DC-HSUPA . 33
5.3.2.1.2 Procedure for UEs not supporting HSDPA and/or E-DCH . 33
5.3.2.1.2A Procedure for UEs supporting HSDPA and/or E-DCH . 33
5.3.2.1.2B Procedure for DC-HSUPA . 33
5.3.2.2 Test requirements . 33
5.3.3 Transmitter spurious emis sions . 34
5.3.3.1 Method of test . 34
5.3.3.1.1 Initial conditions . 34
5.3.3.1.1A Initial conditions for DC-HSUPA . 34
5.3.3.1.2 Procedure . 34
5.3.3.1.2A Procedure for DC-HSUPA . 34
5.3.3.2 Test requirements . 34
5.3.4 Transmitter minimum output power . 35
5.3.4.1 Method of test . 35
5.3.4.1.1 Initial conditions . 35
ETSI
5 ETSI EN 301 908-2 V6.2.1 (2013-10)
5.3.4.1.1A Initial conditions for DC-HSUPA . 35
5.3.4.1.2 Procedure . 35
5.3.4.1.2A Procedure for DC-HSUPA . 35
5.3.4.2 Test requirements . 35
5.3.5 Receiver Adjacent Channel Selectivity (ACS) . 36
5.3.5.1 Method of test . 36
5.3.5.1.1 Initial conditions . 36
5.3.5.1.2 Procedure . 36
5.3.5.2 Test requirements . 36
5.3.6 Receiver blocking characteristics . 36
5.3.6.1 Method of test . 36
5.3.6.1.1 Initial requirements . 36
5.3.6.1.2 Procedure . 37
5.3.6.2 Test requirements . 37
5.3.7 Receiver spurious response . 37
5.3.7.1 Method of test . 37
5.3.7.1.1 Initial conditions . 37
5.3.7.1.2 Procedure . 37
5.3.7.2 Test requirements . 37
5.3.8 Receiver Intermodulation characteristics . 37
5.3.8.1 Method of test . 37
5.3.8.1.1 Initial conditions . 37
5.3.8.1.2 Procedure . 38
5.3.8.2 Test requirements . 38
5.3.9 Receiver spurious emissions . 38
5.3.9.1 Method of test . 38
5.3.9.1.1 Initial conditions . 38
5.3.9.1.2 Procedure . 38
5.3.9.2 Test requirements . 38
5.3.10 Out-of-synchronization handling of output power . 38
5.3.10.1 Method of test . 38
5.3.10.1.1 Initial conditions . 38
5.3.10.1.2 Procedure . 39
5.3.10.2 Test requirements . 39
5.3.11 Transmitter adjacent channel leakage power ratio . 39
5.3.11.1 Method of test . 39
5.3.11.1.1 Initial conditions for UEs not supporting HSDPA and/or E-DCH . 39
5.3.11.1.1A Initial conditions for UEs supporting HSDPA and/or E-DCH . 40
5.3.11.1.1B Initial conditions for DC-HSUPA . 40
5.3.11.1.2 Procedure for UEs not supporting HSDPA and/or E-DCH . 40
5.3.11.1.2A Procedure for UEs supporting HSDPA and/or E-DCH . 40
5.3.11.1.2B Procedure for DC-HSUPA . 40
5.3.11.2 Test requirements . 40
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 41
Annex B (normative): Environmental profile . 43
B.1 General . 43
B.1.1 Introduction . 43
B.1.2 Temperature . 43
B.1.3 Voltage . 43
B.1.4 Test environment . 43
Annex C: Void . 45
Annex D (informative): Bibliography . 46
History . 47
ETSI
6 ETSI EN 301 908-2 V6.2.1 (2013-10)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (EN) has been produced by ETSI Technical Committee Mobile Standards Group
(MSG).
The present document has been produced by ETSI in response to mandates M/284 and M/406 issued from the European
Commission under Directive 98/34/EC [i.1] as amended by Directive 98/48/EC [i.10].
The title and reference to the present document are intended to be included in the publication in the Official Journal of
the European Union of titles and references of Harmonized Standard under the Directive 1999/5/EC [i.2].
See article 5.1 of Directive 1999/5/EC [i.2] for information on presumption of conformity and Harmonized Standards or
parts thereof the references of which have been published in the Official Journal of the European Union.
The requirements relevant to Directive 1999/5/EC [i.2] are summarized in annex A.
The present document is part 2 of a multi-part deliverable. Full details of the entire series can be found in part 1 [10].
National transposition dates
Date of adoption of this EN: 7 October 2013
Date of latest announcement of this EN (doa): 31 January 2014
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 July 2014
Date of withdrawal of any conflicting National Standard (dow): 31 July 2015
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The
modular structure is shown in EG 201 399 [i.3].
ETSI
7 ETSI EN 301 908-2 V6.2.1 (2013-10)
1 Scope
The present document applies to the following radio equipment type:
• User Equipment for IMT-2000 CDMA Direct Spread (UTRA FDD).
These radio equipment types are capable of operating in all or any part of the frequency bands given in table 1-1.
Table 1-1: UTRA FDD operating bands
UTRA FDD Band Direction of transmission UTRA FDD operating bands
I Transmit 1 920 MHz to 1 980 MHz
Receive 2 110 MHz to 2 170 MHz
III Transmit 1 710 MHz to 1 785 MHz
Receive 1 805 MHz to 1 880 MHz
VII Transmit 2 500 MHz to 2 570 MHz
Receive 2 620 MHz to 2 690 MHz
VIII Transmit 880 MHz to 915 MHz
Receive 925 MHz to 960 MHz
XV Transmit 1 900 MHz to 1 920 MHz
Receive 2 600 MHz to 2 620 MHz
XVI Transmit 2 010 MHz to 2 025 MHz
Receive 2 585 MHz to 2 600 MHz
XX Transmit 832 MHz to 862 MHz
Receive 791 MHz to 821 MHz
XXII Transmit 3 410 MHz to 3 490 MHz
Receive 3 510 MHz to 3 590 MHz
The present document covers requirements for UTRA FDD User Equipment from 3GPP Releases 99, 4, 5, 6, 7, 8, 9,
and 10. In addition, the present document covers requirements for UTRA FDD User Equipment in the operating bands
specified in TS 102 735 [i.4].
NOTE 1: For Band XX:
- for user equipment designed to be mobile or nomadic, the requirements in the present document
measured at the antenna port also show conformity to the corresponding requirement defined as
TRP (total radiated power), as described in Commission Decision 2010/267/EU [i.7], ECC
Decision (09)03 [i.8] and CEPT Report 30 [i.9];
- for user equipment designed to be fixed or installed, the present document does not address the
requirements described in Commission Decision 2010/267/EU [i.7], ECC Decision (09)03 [i.8] and
CEPT Report 30 [i.9].
The present document is intended to cover the provisions of Directive 1999/5/EC [i.2] (R&TTE Directive) article 3.2,
which states that "radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive [i.2] may apply to equipment within the scope of the present
document.
NOTE 2: A list of such ENs is included on the web site http://www.newapproach.org/.
ETSI
8 ETSI EN 301 908-2 V6.2.1 (2013-10)
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] Void.
[2] ETSI TS 134 121-1 (V10.7.0) (07-2013): "Universal Mobile Telecommunications System
(UMTS); User Equipment (UE) conformance specification; Radio transmission and reception
(FDD); Part 1: Conformance specification (3GPP TS 34.121-1 version 10.7.0 Release 10)".
[3] ETSI TS 134 108 (V11.6.0) (07-2013): "Universal Mobile Telecommunications System (UMTS);
LTE; Common test environments for User Equipment (UE); Conformance testing
(3GPP TS 34.108 version 11.6.0 Release 11)".
[4] ETSI TS 134 109 (V10.1.0) (01-2012): "Universal Mobile Telecommunications System (UMTS);
Terminal logical test interface; Special conformance testing functions (3GPP TS 34.109
version 10.1.0 Release 10)".
[5] ETSI TS 125 101 (V10.9.0) (07-2013): "Universal Mobile Telecommunications System (UMTS);
User Equipment (UE) radio transmission and reception (FDD) (3GPP TS 25.101 version 10.9.0
Release 10)".
[6] IEC 60068-2-1 (03-2007): "Environmental testing - Part 2-1: Tests. Test A: Cold".
[7] IEC 60068-2-2 (07-2007): "Environmental testing - Part 2-2: Tests. Test B: Dry heat".
[8] ETSI TS 125 214 (V10.6.0) (03-2012): "Universal Mobile Telecommunications System (UMTS);
Physical layer procedures (FDD) (3GPP TS 25.214 version 10.6.0 Release 10)".
[9] ETSI TS 145 004 (V10.0.0) (04-2011): "Digital cellular telecommunications system (Phase 2+);
Modulation (3GPP TS 45.004 version 10.0.0 Release 10)".
[10] ETSI EN 301 908-1 (V6.2.1) (04-2013): "IMT cellular networks; Harmonized EN covering the
essential requirements of article 3.2 of the R&TTE Directive; Part 1: Introduction and common
requirements".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
[i.2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[i.3] ETSI EG 201 399: "Electromagnetic compatibility and Radio spectrum Matters (ERM); A guide to
the production of Harmonized Standards for application under the R&TTE Directive".
ETSI
9 ETSI EN 301 908-2 V6.2.1 (2013-10)
[i.4] ETSI TS 102 735 (V7.1.0): "Universal Mobile Telecommunications System (UMTS); Band-
specific requirements for UMTS Frequency Division Duplex (FDD) operation in the bands
1 900 MHz to 1 920 MHz paired with 2 600 MHz to 2 620 MHz and 2 010 MHz to 2 025 MHz
paired with 2 585 MHz to 2 600 MHz".
[i.5] Void.
[i.6] ETSI TR 100 028 (all parts) (V1.4.1): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Uncertainties in the measurement of mobile radio equipment characteristics".
[i.7] Commission Decision 2010/267/EU of 6 May 2010 on harmonised technical conditions of use in
the 790-862 MHz frequency band for terrestrial systems capable of providing electronic
communications services in the European Union.
[i.8] ECC Decision (09)03 of 30 October 2009 on harmonised conditions for mobile/fixed
communications networks (MFCN) operating in the band 790 - 862 MHz.
[i.9] CEPT Report 30 of 30 October 2009 to the European Commission in response to the Mandate on
"The identification of common and minimal (least restrictive) technical conditions for
790 - 862 MHz for the digital dividend in the European Union".
[i.10] Directive 98/48/EC of the European Parliament and of the Council of 20 July 1998 amending
Directive 98/34/EC laying down a procedure for the provision of information in the field of
technical standards and regulations.
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
chip rate: rate of "chips" (modulated symbols after spreading) per second
NOTE: The UTRA FDD chip rate is 3,84 Mchip/s.
data rate: rate of the user information, which is transmitted over the Air Interface
EXAMPLE: Output rate of the voice codec.
environmental profile: range of environmental conditions under which equipment within the scope of the present
document is required to comply with the provisions of the present document
maximum output power: measure of the maximum power the UE can transmit (i.e. the actual power as would be
measured assuming no measurement error) in a bandwidth of at least (1 + α) times the chip rate of the radio access
mode
NOTE: The period of measurement is assumed to be at least one timeslot.
mean power: power (transmitted or received) in a bandwidth of at least (1 + α) times the chip rate of the radio access
mode, when applied to a WCDMA modulated signal
NOTE: The period of measurement is assumed to be at least one timeslot unless otherwise stated.
node B: logical node responsible for radio transmission/reception in one or more cells to/from the User Equipment
nominal maximum output power: nominal power defined by the UE power class
operating band: frequency range that is defined with a specific set of technical requirements, in which UTRA FDD
operates
NOTE: Operating bands for UTRA are designated with Roman numerals, while the corresponding operating
bands for E-UTRA are designated with Arabic numerals.
ETSI
10 ETSI EN 301 908-2 V6.2.1 (2013-10)
power spectral density: function of power versus frequency and when integrated across a given bandwidth, the
function represents the mean power in such a bandwidth
NOTE 1: When the mean power is normalized to (divided by) the chip-rate it represents the mean energy per chip.
Some signals are directly defined in terms of energy per chip, (DPCH_Ec, Ec, OCNS_Ec and
S-CCPCH_Ec) and others defined in terms of PSD (I , I , I and Î ). There also exist quantities that are
o oc or or
a ratio of energy per chip to PSD (DPCH_E /I , E /I , etc.). This is the common practice of relating
c or c or
energy magnitudes in communication systems.
NOTE 2: It can be seen that if both energy magnitudes in the ratio are divided by time, the ratio is converted from
an energy ratio to a power ratio, which is more useful from a measurement point of view. It follows that
an energy per chip of X dBm/3,84 MHz can be expressed as a mean power per chip of X dBm. Similarly,
a signal PSD of Y dBm/3,84 MHz can be expressed as a signal power of Y dBm.
NOTE 3: The units of Power Spectral Density (PSD) are extensively used in the present document.
RRC filtered mean power: mean power as measured through a root raised cosine filter with roll-off factor α and a
bandwidth equal to the chip rate of the radio access mode
NOTE: The RRC filtered mean power of a perfectly modulated WCDMA signal is 0,246 dB lower than the mean
power of the same signal.
3.2 Symbols
For the purposes of the present document, the following symbols apply:
α Roll-off factor of the root raised cosine filter, α = 0,22
DPCH_Ec Average energy per PN chip for DPCH
E Average energy per PN chip
c
F Frequency of unwanted signal
uw
NOTE: This is specified in bracket in terms of an absolute frequency(s) or a frequency offset from the assigned
channel frequency.
I The total received power spectral density, including signal and interference, as measured at the UE
o
antenna connector
I Power spectral density (integrated in a noise bandwidth equal to the chip rate and normalized to
oc
the chip rate) of a band limited white noise source (simulating interference from cells, which are
not defined in a test procedure) as measured at the UE antenna connector
I Total transmit power spectral density (integrated in a bandwidth of (1 + α) times the chip rate and
or
normalized to the chip rate) of the downlink signal at the Node B antenna connector
ˆ
I Received power spectral density (integrated in a bandwidth of (1 + α) times the chip rate and
or
normalized to the chip rate) of the downlink signal as measured at the UE antenna connector
β Gain factor for DPCCH
c
β Gain factor for DPDCH
d
β Gain factor for HS-DPCCH
hs
Gain factor for E-DPCCH
β
ec
β Gain factor for E-DPDCH
ed
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AC Access Channel
ACLR Adjacent Channel Leakage power Ratio
ACS Adjacent Channel Selectivity
BER Bit Error Ratio
ETSI
11 ETSI EN 301 908-2 V6.2.1 (2013-10)
CDMA Code Division Multiple Access
CW Continuous Wave
NOTE: Unmodulated signal.
DC-HSUPA Dual Cell HSUPA
DCH Dedicated Channel
NOTE: Which is mapped into Dedicated Physical Channel.
DL Downlink
DPCCH Dedicated Physical Control CHannel
DPCH Dedicated Physical Channel
DPDCH Dedicated Physical Data CHannel
E-DCH Enhanced Dedicated Channel
E-DPCCH Enhanced DPCCH
E-DPDCH Enhanced DPDCH
EMC ElectroMagnetic Compatibility
ERM Electromagnetic compatibility and Radio spectrum Matters
EUT Equipment Under Test
FDD Frequency Division Duplex
GMSK Gaussian Minimum Shift Keying
GSM Global System for Mobile
HS-DPCCH High Speed DPCCH
HSDPA High Speed Downlink Packet Access
HSUPA High Speed Uplink Packet Access
IMT International Mobile Telecommunications
LTE Long Term Evolution
MPR Maximum Power Reduction
MSG Mobile Standards Group
OCNS Orthogonal Channel Noise Simulator
NOTE: A mechanism used to simulate the users or control signals on the other orthogonal channels of a
downlink.
PCH Paging Channel
PN PseudoNoise
PSD Power Spectral Density
Reference sensitivity
RF Radio Frequency
RRC Root Raised Cosine
R&TTE Radio and Telecommunications Terminal Equipment
SS System Simulator
NOTE: See TS 134 121-1 [2].
TFES Task Force for European Standards for IMT
TH Temperature High
TH/VH High extreme Temperature/High extreme Voltage
TH/VL High extreme Temperature/Low extreme Voltage
TL Temperature Low
TL/VH Low extreme Temperature/High extreme Voltage
TL/VL Low extreme Temperature/Low extreme Voltage
TPC Transmit Power Control
TRP Total Radiated Power
UARFCN UTRA Absolute Radio Frequency Channel Number
UE User Equipment
UL Uplink
UMTS Universal Mobile Telecommunications System
UTRA Universal Terrestrial Radio Acce
...
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.IMT cellular networks - Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive - Part 2: CDMA Direct Spread (UTRA FDD) User Equipment (UE)33.070.99Druge mobilne storitveOther mobile services33.060.99Druga oprema za radijske komunikacijeOther equipment for radiocommunicationsICS:Ta slovenski standard je istoveten z:EN 301 908-2 Version 6.2.1SIST EN 301 908-2 V6.2.1:2014en01-februar-2014SIST EN 301 908-2 V6.2.1:2014SLOVENSKI
STANDARD
ETSI EN 301 908-2 V6.2.1 (2013-10) IMT cellular networks; Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive; Part 2: CDMA Direct Spread (UTRA FDD) User Equipment (UE)
Harmonized European Standard SIST EN 301 908-2 V6.2.1:2014
ETSI ETSI EN 301 908-2 V6.2.1 (2013-10) 2
Reference REN/MSG-TFES-010-02 Keywords 3G, 3GPP, cellular, digital, IMT, mobile, radio, regulation, UMTS, UTRA, WCDMA ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, please send your comment to one of the following services: http://portal.etsi.org/chaircor/ETSI_support.asp Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2013. All rights reserved.
DECTTM, PLUGTESTSTM, UMTSTM and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members. 3GPPTM and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association. SIST EN 301 908-2 V6.2.1:2014
ETSI ETSI EN 301 908-2 V6.2.1 (2013-10) 3 Contents Intellectual Property Rights . 6 Foreword . 6 Introduction . 6 1 Scope . 7 2 References . 8 2.1 Normative references . 8 2.2 Informative references . 8 3 Definitions, symbols and abbreviations . 9 3.1 Definitions . 9 3.2 Symbols . 10 3.3 Abbreviations . 10 4 Technical requirements specifications . 12 4.1 Environmental profile . 12 4.2 Conformance requirements . 12 4.2.1 Introduction. 12 4.2.2 Transmitter maximum output power. 12 4.2.2.1 Transmitter maximum output power . 12 4.2.2.1.1 Definition. 12 4.2.2.1.2 Limits . 13 4.2.2.1.3 Conformance . 13 4.2.2.2 Transmitter maximum output power for DC-HSUPA . 13 4.2.2.2.1 Definition for DC-HSUPA . 13 4.2.2.2.2 Limits for DC-HSUPA . 13 4.2.2.2.3 Conformance . 14 4.2.3 Transmitter spectrum emission mask . 14 4.2.3.1 Transmitter spectrum emission mask . 14 4.2.3.1.1 Definition. 14 4.2.3.1.2 Limits . 14 4.2.3.1.3 Conformance . 14 4.2.3.2 Transmitter spectrum emission mask for DC-HSUPA . 15 4.2.3.2.1 Definition for DC-HSUPA . 15 4.2.3.2.2 Limits for DC-HSUPA . 15 4.2.3.2.3 Conformance . 15 4.2.4 Transmitter spurious emissions . 15 4.2.4.1 Transmitter spurious emissions . 15 4.2.4.1.1 Definition. 15 4.2.4.1.2 Limits . 15 4.2.4.1.3 Conformance . 17 4.2.4.2 Transmitter spurious emissions for DC-HSUPA . 17 4.2.4.2.1 Definition for DC-HSUPA . 17 4.2.4.2.2 Limits for DC-HSUPA . 17 4.2.4.2.3 Conformance . 19 4.2.5 Transmitter minimum output power . 20 4.2.5.1 Transmitter minimum output power. 20 4.2.5.1.1 Definition. 20 4.2.5.1.2 Limits . 20 4.2.5.1.3 Conformance . 20 4.2.5.2 Transmitter minimum output power for DC-HSUPA . 20 4.2.5.2.1 Definition for DC-HSUPA . 20 4.2.5.2.2 Limits for DC-HSUPA . 20 4.2.5.2.3 Conformance . 20 4.2.6 Receiver Adjacent Channel Selectivity (ACS) . 20 4.2.6.1 Definition . 20 SIST EN 301 908-2 V6.2.1:2014
ETSI ETSI EN 301 908-2 V6.2.1 (2013-10) 4 4.2.6.2 Limits . 21 4.2.6.3 Conformance . 21 4.2.7 Receiver blocking characteristics . 21 4.2.7.1 Definition . 21 4.2.7.2 Limits . 21 4.2.7.3 Conformance . 23 4.2.8 Receiver spurious response . 23 4.2.8.1 Definition . 23 4.2.8.2 Limits . 23 4.2.8.3 Conformance . 24 4.2.9 Receiver intermodulation characteristics . 24 4.2.9.1 Definition . 24 4.2.9.2 Limits . 24 4.2.9.3 Conformance . 25 4.2.10 Receiver spurious emissions . 25 4.2.10.1 Definition . 25 4.2.10.2 Limits . 25 4.2.10.3 Conformance . 27 4.2.11 Out-of-synchronization handling of output power . 27 4.2.11.1 Definition . 27 4.2.11.2 Limits . 27 4.2.11.3 Conformance . 28 4.2.12 Transmitter Adjacent Channel Leakage power Ratio (ACLR) . 28 4.2.12.1 Transmitter adjacent channel leakage power ratio (ACLR) . 28 4.2.12.1.1 Definition. 28 4.2.12.1.2 Limits . 28 4.2.12.1.3 Conformance . 29 4.2.12.2 Adjacent channel leakage power ratio for DC-HSUPA . 29 4.2.12.2.1 Definition for DC-HSUPA . 29 4.2.12.2.2 Limits for DC-HSUPA . 29 4.2.12.2.3 Conformance . 29 5 Testing for compliance with technical requirements . 29 5.1 Environmental conditions for testing . 29 5.2 Interpretation of the measurement results . 30 5.3 Essential radio test suites . 31 5.3.1 Transmitter maximum output power. 31 5.3.1.1 Method of test . 31 5.3.1.1.1 Initial conditions . 31 5.3.1.1.1A Initial conditions for DC-HSUPA . 31 5.3.1.1.2 Procedure . 32 5.3.1.1.2A Procedure for DC-HSUPA . 32 5.3.1.2 Test requirements . 32 5.3.2 Transmitter spectrum emission mask . 32 5.3.2.1 Method of test . 32 5.3.2.1.1 Initial conditions for UEs not supporting HSDPA and/or E-DCH . 32 5.3.2.1.1A Initial conditions for UEs supporting HSDPA and/or E-DCH . 32 5.3.2.1.1B Initial conditions for DC-HSUPA . 33 5.3.2.1.2 Procedure for UEs not supporting HSDPA and/or E-DCH . 33 5.3.2.1.2A Procedure for UEs supporting HSDPA and/or E-DCH . 33 5.3.2.1.2B Procedure for DC-HSUPA . 33 5.3.2.2 Test requirements . 33 5.3.3 Transmitter spurious emissions . 34 5.3.3.1 Method of test . 34 5.3.3.1.1 Initial conditions . 34 5.3.3.1.1A Initial conditions for DC-HSUPA . 34 5.3.3.1.2 Procedure . 34 5.3.3.1.2A Procedure for DC-HSUPA . 34 5.3.3.2 Test requirements . 34 5.3.4 Transmitter minimum output power . 35 5.3.4.1 Method of test . 35 5.3.4.1.1 Initial conditions . 35 SIST EN 301 908-2 V6.2.1:2014
ETSI ETSI EN 301 908-2 V6.2.1 (2013-10) 5 5.3.4.1.1A Initial conditions for DC-HSUPA . 35 5.3.4.1.2 Procedure . 35 5.3.4.1.2A Procedure for DC-HSUPA . 35 5.3.4.2 Test requirements . 35 5.3.5 Receiver Adjacent Channel Selectivity (ACS) . 36 5.3.5.1 Method of test . 36 5.3.5.1.1 Initial conditions . 36 5.3.5.1.2 Procedure . 36 5.3.5.2 Test requirements . 36 5.3.6 Receiver blocking characteristics . 36 5.3.6.1 Method of test . 36 5.3.6.1.1 Initial requirements . 36 5.3.6.1.2 Procedure . 37 5.3.6.2 Test requirements . 37 5.3.7 Receiver spurious response . 37 5.3.7.1 Method of test . 37 5.3.7.1.1 Initial conditions . 37 5.3.7.1.2 Procedure . 37 5.3.7.2 Test requirements . 37 5.3.8 Receiver Intermodulation characteristics . 37 5.3.8.1 Method of test . 37 5.3.8.1.1 Initial conditions . 37 5.3.8.1.2 Procedure . 38 5.3.8.2 Test requirements . 38 5.3.9 Receiver spurious emissions . 38 5.3.9.1 Method of test . 38 5.3.9.1.1 Initial conditions . 38 5.3.9.1.2 Procedure . 38 5.3.9.2 Test requirements . 38 5.3.10 Out-of-synchronization handling of output power . 38 5.3.10.1 Method of test . 38 5.3.10.1.1 Initial conditions . 38 5.3.10.1.2 Procedure . 39 5.3.10.2 Test requirements . 39 5.3.11 Transmitter adjacent channel leakage power ratio . 39 5.3.11.1 Method of test . 39 5.3.11.1.1 Initial conditions for UEs not supporting HSDPA and/or E-DCH . 39 5.3.11.1.1A Initial conditions for UEs supporting HSDPA and/or E-DCH . 40 5.3.11.1.1B Initial conditions for DC-HSUPA . 40 5.3.11.1.2 Procedure for UEs not supporting HSDPA and/or E-DCH . 40 5.3.11.1.2A Procedure for UEs supporting HSDPA and/or E-DCH . 40 5.3.11.1.2B Procedure for DC-HSUPA . 40 5.3.11.2 Test requirements . 40 Annex A (normative): HS Requirements and conformance Test specifications Table (HS-RTT) . 41 Annex B (normative): Environmental profile . 43 B.1 General . 43 B.1.1 Introduction . 43 B.1.2 Temperature . 43 B.1.3 Voltage . 43 B.1.4 Test environment . 43 Annex C: Void . 45 Annex D (informative): Bibliography . 46 History . 47
ETSI ETSI EN 301 908-2 V6.2.1 (2013-10) 6 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://ipr.etsi.org). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This Harmonized European Standard (EN) has been produced by ETSI Technical Committee Mobile Standards Group (MSG). The present document has been produced by ETSI in response to mandates M/284 and M/406 issued from the European Commission under Directive 98/34/EC [i.1] as amended by Directive 98/48/EC [i.10]. The title and reference to the present document are intended to be included in the publication in the Official Journal of the European Union of titles and references of Harmonized Standard under the Directive 1999/5/EC [i.2]. See article 5.1 of Directive 1999/5/EC [i.2] for information on presumption of conformity and Harmonized Standards or parts thereof the references of which have been published in the Official Journal of the European Union. The requirements relevant to Directive 1999/5/EC [i.2] are summarized in annex A. The present document is part 2 of a multi-part deliverable. Full details of the entire series can be found in part 1 [10].
National transposition dates Date of adoption of this EN: 7 October 2013 Date of latest announcement of this EN (doa): 31 January 2014 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
31 July 2014 Date of withdrawal of any conflicting National Standard (dow): 31 July 2015
Introduction The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The modular structure is shown in EG 201 399 [i.3]. SIST EN 301 908-2 V6.2.1:2014
ETSI ETSI EN 301 908-2 V6.2.1 (2013-10) 7 1 Scope The present document applies to the following radio equipment type: • User Equipment for IMT-2000 CDMA Direct Spread (UTRA FDD). These radio equipment types are capable of operating in all or any part of the frequency bands given in table 1-1. Table 1-1: UTRA FDD operating bands UTRA FDD Band Direction of transmission UTRA FDD operating bands I Transmit 1 920 MHz to 1 980 MHz Receive 2 110 MHz to 2 170 MHz III Transmit 1 710 MHz to 1 785 MHz Receive 1 805 MHz to 1 880 MHz VII Transmit 2 500 MHz to 2 570 MHz Receive 2 620 MHz to 2 690 MHz VIII Transmit 880 MHz to 915 MHz Receive 925 MHz to 960 MHz XV Transmit 1 900 MHz to 1 920 MHz Receive 2 600 MHz to 2 620 MHz XVI Transmit 2 010 MHz to 2 025 MHz Receive
2 585 MHz to 2 600 MHz XX Transmit 832 MHz to 862 MHz Receive 791 MHz to 821 MHz XXII Transmit 3 410 MHz to 3 490 MHz Receive 3 510 MHz to 3 590 MHz
The present document covers requirements for UTRA FDD User Equipment from 3GPP Releases 99, 4, 5, 6, 7, 8, 9, and 10. In addition, the present document covers requirements for UTRA FDD User Equipment in the operating bands specified in TS 102 735 [i.4]. NOTE 1: For Band XX: - for user equipment designed to be mobile or nomadic, the requirements in the present document measured at the antenna port also show conformity to the corresponding requirement defined as TRP (total radiated power), as described in Commission Decision 2010/267/EU [i.7], ECC Decision (09)03 [i.8] and CEPT Report 30 [i.9]; - for user equipment designed to be fixed or installed, the present document does not address the requirements described in Commission Decision 2010/267/EU [i.7], ECC Decision (09)03 [i.8] and CEPT Report 30 [i.9]. The present document is intended to cover the provisions of Directive 1999/5/EC [i.2] (R&TTE Directive) article 3.2, which states that "radio equipment shall be so constructed that it effectively uses the spectrum allocated to terrestrial/space radio communications and orbital resources so as to avoid harmful interference". In addition to the present document, other ENs that specify technical requirements in respect of essential requirements under other parts of article 3 of the R&TTE Directive [i.2] may apply to equipment within the scope of the present document. NOTE 2: A list of such ENs is included on the web site http://www.newapproach.org/. SIST EN 301 908-2 V6.2.1:2014
ETSI ETSI EN 301 908-2 V6.2.1 (2013-10) 8 2 References References are either specific (identified by date of publication and/or edition number or version number) or non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the reference document (including any amendments) applies. Referenced documents which are not found to be publicly available in the expected location might be found at http://docbox.etsi.org/Reference. NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee their long term validity. 2.1 Normative references The following referenced documents are necessary for the application of the present document. [1] Void. [2] ETSI TS 134 121-1 (V10.7.0) (07-2013): "Universal Mobile Telecommunications System (UMTS); User Equipment (UE) conformance specification; Radio transmission and reception (FDD); Part 1: Conformance specification (3GPP TS 34.121-1 version 10.7.0 Release 10)". [3] ETSI TS 134 108 (V11.6.0) (07-2013): "Universal Mobile Telecommunications System (UMTS); LTE; Common test environments for User Equipment (UE); Conformance testing (3GPP TS 34.108 version 11.6.0 Release 11)". [4] ETSI TS 134 109 (V10.1.0) (01-2012): "Universal Mobile Telecommunications System (UMTS); Terminal logical test interface; Special conformance testing functions (3GPP TS 34.109 version 10.1.0 Release 10)". [5] ETSI TS 125 101 (V10.9.0) (07-2013): "Universal Mobile Telecommunications System (UMTS); User Equipment (UE) radio transmission and reception (FDD) (3GPP TS 25.101 version 10.9.0 Release 10)". [6] IEC 60068-2-1 (03-2007): "Environmental testing - Part 2-1: Tests. Test A: Cold". [7] IEC 60068-2-2 (07-2007): "Environmental testing - Part 2-2: Tests. Test B: Dry heat". [8] ETSI TS 125 214 (V10.6.0) (03-2012): "Universal Mobile Telecommunications System (UMTS); Physical layer procedures (FDD) (3GPP TS 25.214 version 10.6.0 Release 10)". [9] ETSI TS 145 004 (V10.0.0) (04-2011): "Digital cellular telecommunications system (Phase 2+); Modulation (3GPP TS 45.004 version 10.0.0 Release 10)". [10] ETSI EN 301 908-1 (V6.2.1) (04-2013): "IMT cellular networks; Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive; Part 1: Introduction and common requirements". 2.2 Informative references The following referenced documents are not necessary for the application of the present document but they assist the user with regard to a particular subject area. [i.1] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a procedure for the provision of information in the field of technical standards and regulations. [i.2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity (R&TTE Directive). [i.3] ETSI EG 201 399: "Electromagnetic compatibility and Radio spectrum Matters (ERM); A guide to the production of Harmonized Standards for application under the R&TTE Directive". SIST EN 301 908-2 V6.2.1:2014
ETSI ETSI EN 301 908-2 V6.2.1 (2013-10) 9 [i.4] ETSI TS 102 735 (V7.1.0): "Universal Mobile Telecommunications System (UMTS); Band-specific requirements for UMTS Frequency Division Duplex (FDD) operation in the bands 1 900 MHz to 1 920 MHz paired with 2 600 MHz to 2 620 MHz and 2 010 MHz to 2 025 MHz paired with 2 585 MHz to 2 600 MHz". [i.5] Void. [i.6] ETSI TR 100 028 (all parts) (V1.4.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM); Uncertainties in the measurement of mobile radio equipment characteristics". [i.7] Commission Decision 2010/267/EU of 6 May 2010 on harmonised technical conditions of use in the 790-862 MHz frequency band for terrestrial systems capable of providing electronic communications services in the European Union. [i.8] ECC Decision (09)03 of 30 October 2009 on harmonised conditions for mobile/fixed communications networks (MFCN) operating in the band 790 - 862 MHz. [i.9] CEPT Report 30 of 30 October 2009 to the European Commission in response to the Mandate on "The identification of common and minimal (least restrictive) technical conditions for 790 - 862 MHz for the digital dividend in the European Union". [i.10] Directive 98/48/EC of the European Parliament and of the Council of 20 July 1998 amending Directive 98/34/EC laying down a procedure for the provision of information in the field of technical standards and regulations. 3 Definitions, symbols and abbreviations 3.1 Definitions For the purposes of the present document, the following terms and definitions apply: chip rate: rate of "chips" (modulated symbols after spreading) per second NOTE: The UTRA FDD chip rate is 3,84 Mchip/s. data rate: rate of the user information, which is transmitted over the Air Interface EXAMPLE: Output rate of the voice codec. environmental profile: range of environmental conditions under which equipment within the scope of the present document is required to comply with the provisions of the present document maximum output power: measure of the maximum power the UE can transmit (i.e. the actual power as would be measured assuming no measurement error) in a bandwidth of at least (1 + α) times the chip rate of the radio access mode NOTE: The period of measurement is assumed to be at least one timeslot. mean power: power (transmitted or received) in a bandwidth of at least (1 + α) times the chip rate of the radio access mode, when applied to a WCDMA modulated signal NOTE: The period of measurement is assumed to be at least one timeslot unless otherwise stated. node B: logical node responsible for radio transmission/reception in one or more cells to/from the User Equipment nominal maximum output power: nominal power defined by the UE power class operating band: frequency range that is defined with a specific set of technical requirements, in which UTRA FDD operates NOTE: Operating bands for UTRA are designated with Roman numerals, while the corresponding operating bands for E-UTRA are designated with Arabic numerals. SIST EN 301 908-2 V6.2.1:2014
ETSI ETSI EN 301 908-2 V6.2.1 (2013-10) 10 power spectral density: function of power versus frequency and when integrated across a given bandwidth, the function represents the mean power in such a bandwidth NOTE 1: When the mean power is normalized to (divided by) the chip-rate it represents the mean energy per chip. Some signals are directly defined in terms of energy per chip, (DPCH_Ec, Ec, OCNS_Ec and S-CCPCH_Ec) and others defined in terms of PSD (Io, Ioc, Ior and Îor). There also exist quantities that are a ratio of energy per chip to PSD (DPCH_Ec/Ior, Ec/Ior, etc.). This is the common practice of relating energy magnitudes in communication systems. NOTE 2: It can be seen that if both energy magnitudes in the ratio are divided by time, the ratio is converted from an energy ratio to a power ratio, which is more useful from a measurement point of view. It follows that an energy per chip of X dBm/3,84 MHz can be expressed as a mean power per chip of X dBm. Similarly, a signal PSD of Y dBm/3,84 MHz can be expressed as a signal power of Y dBm. NOTE 3: The units of Power Spectral Density (PSD) are extensively used in the present document. RRC filtered mean power: mean power as measured through a root raised cosine filter with roll-off factor α and a bandwidth equal to the chip rate of the radio access mode NOTE: The RRC filtered mean power of a perfectly modulated WCDMA signal is 0,246 dB lower than the mean power of the same signal. 3.2 Symbols For the purposes of the present document, the following symbols apply: α Roll-off factor of the root raised cosine filter, α = 0,22 DPCH_Ec Average energy per PN chip for DPCH Ec Average energy per PN chip Fuw Frequency of unwanted signal NOTE: This is specified in bracket in terms of an absolute frequency(s) or a frequency offset from the assigned channel frequency. oI The total received power spectral density, including signal and interference, as measured at the UE antenna connector ocI Power spectral density (integrated in a noise bandwidth equal to the chip rate and normalized to the chip rate) of a band limited white noise source (simulating interference from cells, which are not defined in a test procedure) as measured at the UE antenna connector orI Total transmit power spectral density (integrated in a bandwidth of (1 + α) times the chip rate and normalized to the chip rate) of the downlink signal at the Node B antenna connector orIˆ Received power spectral density (integrated in a bandwidth of (1 + α) times the chip rate and normalized to the chip rate) of the downlink signal as measured at the UE antenna connector βc Gain factor for DPCCH βd Gain factor for DPDCH βhs Gain factor for HS-DPCCH βec Gain factor for E-DPCCH βed Gain factor for E-DPDCH 3.3 Abbreviations For the purposes of the present document, the following abbreviations apply: AC Access Channel ACLR Adjacent Channel Leakage power Ratio ACS Adjacent Channel Selectivity BER Bit Error Ratio SIST EN 301 908-2 V6.2.1:2014
ETSI ETSI EN 301 908-2 V6.2.1 (2013-10) 11 CDMA Code Division Multiple Access CW Continuous Wave
NOTE: Unmodulated signal. DC-HSUPA Dual Cell HSUPA DCH Dedicated Channel NOTE: Which is mapped into Dedicated Physical Channel. DL Downlink DPCCH Dedicated Physical Control CHannel DPCH Dedicated Physical Channel DPDCH Dedicated Physical Data CHannel E-DCH Enhanced Dedicated Channel E-DPCCH Enhanced DPCCH E-DPDCH Enhanced DPDCH EMC ElectroMagnetic Compatibility ERM Electromagnetic compatibility and Radio spectrum Matters EUT Equipment Under Test FDD Frequency Division Duplex GMSK Gaussian Minimum Shift Keying GSM Global System for Mobile HS-DPCCH High Speed DPCCH HSDPA High Speed Downlink Packet Access HSUPA High Speed Uplink Packet Access IMT International Mobile Telecommunications LTE Long Term Evolution MPR Maximum Power Reduction MSG Mobile Standards Group OCNS Orthogonal Channel Noise Simulator NOTE: A mechanism used to simulate the users or control signals on the other orthogonal channels of a downlink. PCH Paging Channel PN PseudoNoise PSD Power Spectral Density Reference sensitivity RF Radio Frequency RRC Root Raised Cosine R&TTE Radio and Telecommunications Terminal Equipment SS System Simulator NOTE: See TS 134 121-1 [2]. TFES Task Force for European Standards for IMT TH Temperature High TH/VH High extreme Temperature/High extreme Voltage TH/VL High extreme Temperature/Low extreme Voltage TL Temperature Low TL/VH Low extreme Temperature/High extreme Voltage TL/VL Low extreme Temperature/Low extreme Voltage TPC Transmit Power Control TRP Total Radiated Power
UARFCN UTRA Absolute Radio Frequency Channel Number UE User Equipment UL Uplink UMTS Universal Mobile Telecommunications System UTRA Universal Terrestrial Radio Access VH Higher extreme Voltage VL Lower extreme Voltage WCDMA Wideband Code Division Multiple Access SIST EN 301 908-2 V6.2.1:2014
ETSI ETSI EN 301 908-2 V6.2.1 (2013-10) 12 4 Te
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
