ETSI TR 103 773 V1.1.1 (2022-01)

Report to analyse the possibilities to develop reference documents for methods of measurements for radio standards in ETSI

DTR/ERM-RM-281

General Information

• Status: Not Published
• Technical Committee: ERM WGRM - ERM Radio Matters
• Current Stage: 12 - Completion
• Due Date: 07-Jan-2022
• Completion Date: 13-Jan-2022

Standards Content (Sample)

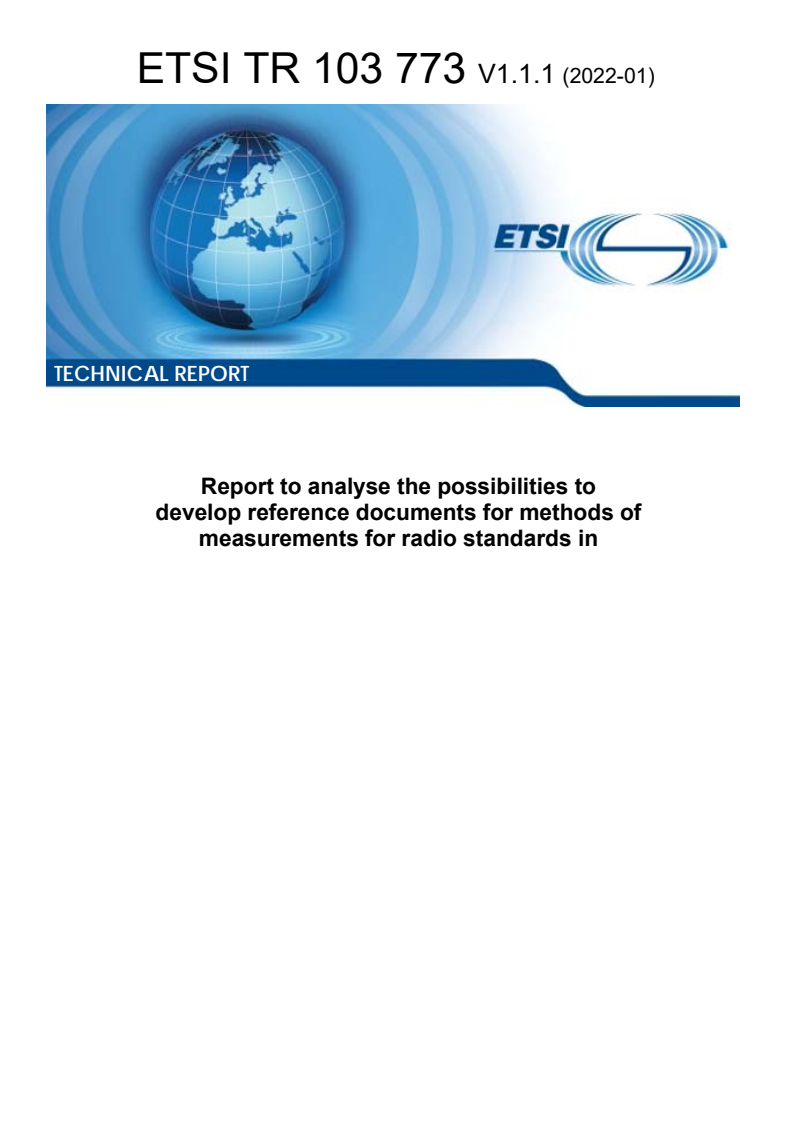

TECHNICAL REPORT
Report to analyse the possibilities to
develop reference documents for methods of
measurements for radio standards in

2 ETSI TR 103 773 V1.1.1 (2022-01)

Reference
DTR/ERM-RM-281
Keywords
harmonised standard, measurement uncertainty,
radio, regulation
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
No representation or warranty is made that this deliverable is technically accurate or sufficient or conforms to any law
and/or governmental rule and/or regulation and further, no representation or warranty is made of merchantability or fitness
for any particular purpose or against infringement of intellectual property rights.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2022.
All rights reserved.
ETSI
3 ETSI TR 103 773 V1.1.1 (2022-01)

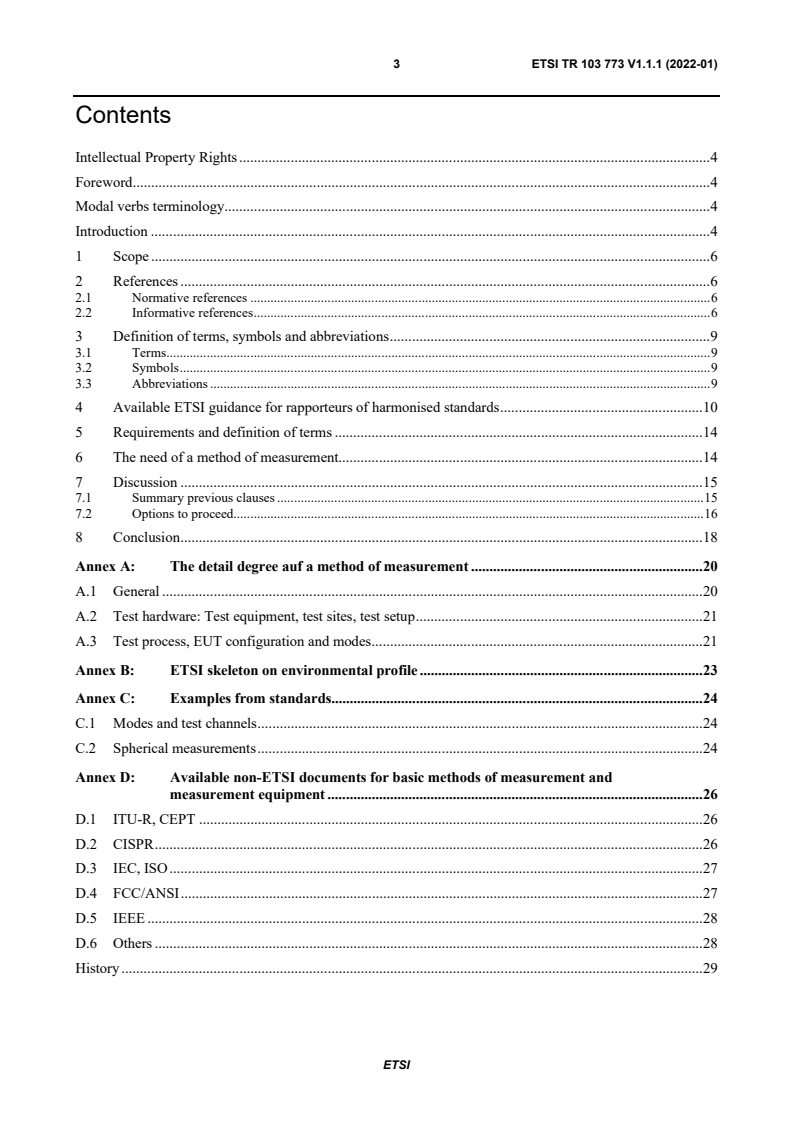

Contents
Intellectual Property Rights . 4
Foreword . 4
Modal verbs terminology . 4
Introduction . 4
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 6
3 Definition of terms, symbols and abbreviations . 9
3.1 Terms . 9
3.2 Symbols . 9
3.3 Abbreviations . 9
4 Available ETSI guidance for rapporteurs of harmonised standards . 10
5 Requirements and definition of terms . 14
6 The need of a method of measurement. 14
7 Discussion . 15
7.1 Summary previous clauses . 15
7.2 Options to proceed. 16
8 Conclusion . 18
Annex A: The detail degree auf a method of measurement . 20
A.1 General . 20
A.2 Test hardware: Test equipment, test sites, test setup . 21
A.3 Test process, EUT configuration and modes . 21
Annex B: ETSI skeleton on environmental profile . 23
Annex C: Examples from standards . 24
C.1 Modes and test channels . 24
C.2 Spherical measurements . 24
Annex D: Available non-ETSI documents for basic methods of measurement and
measurement equipment . 26
D.1 ITU-R, CEPT . 26
D.2 CISPR . 26
D.3 IEC, ISO . 27
D.4 FCC/ANSI . 27
D.5 IEEE . 28
D.6 Others . 28
History . 29

ETSI
4 ETSI TR 103 773 V1.1.1 (2022-01)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the ®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
This Technical Report (TR) has been produced by ETSI Technical Committee Electromagnetic compatibility and Radio
spectrum Matters (ERM).
Modal verbs terminology
In the present document "should", "should not", "may", "need not", "will", "will not", "can" and "cannot" are to be
interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
Introduction
ETSI TR 100 027 [i.1] written in the early days of ETSI, provides a set of methods of measurement for private mobile
radio equipment to be used as draft material in ETSI standards written at a later stage. The original intention was to
keep it up to date but that work was never done. Later on other documents addressing methods of measurements were
developed (ETSI TR 102 273 [i.2] to [i.9], ETSI TS 103 052 [i.11]). Some ERM WGs have in addition developed their
own documents (e.g. ETSI EN 300 220-1 [i.29] in TG28, ETSI EN 303 883 parts 1 [i.30] and 2 [i.31] in TGUWB).
There is not one clear reference measurement procedures available for rapporteurs of radio standards with the risk that
radio standards in ETSI will diverge in different directions.
ETSI
5 ETSI TR 103 773 V1.1.1 (2022-01)
The present document aims to analyse the ways in which a set of reference documents (e.g. a set of technical
specifications) could be written including text for methods of measurement to be used as reference material in future
ETSI standards. The present document analyses if there is a clear benefit of developing and maintaining such reference
documents, for which areas reference documents should be developed at a central place in ETSI (e.g. at WGRM), for
which areas the expert WG should be responsible, and if there would be other options (e.g. refer to existing documents
from other organizations.). Pros and cons of different options are analysed. Such reference documents would provide a
clear guidance on common information and methods in harmonised standards and it would be a huge help for
rapporteurs of new harmonised standards. The aim of the present document is to describe the various possibilities and
find out their different merits.
The present document is structured as follows:
• Clause 1 provides the scope
• Clause 2 provides a list of used normative and informative references
• Clause 3 provides the definition of terms, symbols and abbreviations used in the present document
• Clause 4 provides an overview of available ETSI guidance for rapporteurs of harmonised standards
• Clause 5 provides related information on requirements and definitions
• Clause 6 provides a discussion on the need of a method of measurement
• Clause 7 provides a discussion of the pros and cons of the different options
• Clause 8 provides a conclusion

ETSI
6 ETSI TR 103 773 V1.1.1 (2022-01)
1 Scope
The present document contains an analysis of the possibilities to develop reference documents for methods of
measurements for radio standards in ETSI.
The present document is limited to harmonised standards according to Article 3.2 of Directive 2014/53/EU [i.16].
2 References
2.1 Normative references
Normative references are not applicable in the present document.
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI TR 100 027 (V1.2.1) (12-1999): "ElectroMagnetic Compatibility and Radio Spectrum
Matters (ERM); Methods of measurement for private mobile radio equipment".
[i.2] ETSI TR 102 273-1-1 (V1.2.1) (12-2001): "Electromagnetic compatibility and Radio spectrum
Matters (ERM); Improvement on Radiated Methods of Measurement (using test site) and
evaluation of the corresponding measurement uncertainties Part 1: Uncertainties in the
measurement of mobile radio equipment characteristics; Sub-part 1: Introduction".
[i.3] ETSI TR 102 273-1-2 (V1.2.1) (12-2001): "Electromagnetic compatibility and Radio spectrum
Matters (ERM); Improvement on Radiated Methods of Measurement (using test site) and
evaluation of the corresponding measurement uncertainties; Part 1: Uncertainties in the
measurement of mobile radio equipment characteristics; Sub-part 2: Examples and annexes".
[i.4] ETSI TR 102 273-2 (V1.2.1) (2001-12): "Electromagnetic compatibility and Radio spectrum
Matters (ERM); Improvement on Radiated Methods of Measurement (using test site) and
evaluation of the corresponding measurement uncertainties; Part 2: Anechoic chamber".
[i.5] ETSI TR 102 273-3 (V1.2.1) (12-2001): "Electromagnetic compatibility and Radio spectrum
Matters (ERM); Improvement on Radiated Methods of Measurement (using test site) and
evaluation of the corresponding measurement uncertainties; Part 3: Anechoic chamber with a
ground plane".
[i.6] ETSI TR 102 273-4 (V1.2.1) (12-2001): "Electromagnetic compatibility and Radio spectrum
Matters (ERM); Improvement on Radiated Methods of Measurement (using test site) and
evaluation of the corresponding measurement uncertainties; Part 4: Open area test site".
[i.7] ETSI TR 102 273-5 (V1.2.1) (12-2001): "Electromagnetic compatibility and Radio spectrum
Matters (ERM); Improvement on Radiated Methods of Measurement (using test site) and
evaluation of the corresponding measurement uncertainties; Part 5: Striplines".
[i.8] ETSI TR 102 273-6 (V1.2.1) (12-2001): "Electromagnetic compatibility and Radio spectrum
Matters (ERM); Improvement on Radiated Methods of Measurement (using test site) and
evaluation of the corresponding measurement uncertainties Part 6: Test fixtures".
ETSI
7 ETSI TR 103 773 V1.1.1 (2022-01)
[i.9] ETSI TR 102 273-7 (V1.2.1) (12-2001): "Electromagnetic compatibility and Radio spectrum
Matters (ERM); Improvement on Radiated Methods of Measurement (using test site) and
evaluation of the corresponding measurement uncertainties; Part 7: Artificial human beings".
[i.10] ETSI TS 103 051 (V1.1.1) (08-2011): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Expanded measurement uncertainty for the measurement of radiated electromagnetic
fields".
[i.11] ETSI TS 103 052 (V1.1.1) (03-2011): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Radiated measurement methods and general arrangements for test sites up to 100 GHz".
[i.12] ETSI TR 103 581 (V1.1.1) (11-2019): "Use of measurement detectors in radio measurement
methods".
[i.13] ETSI TS 102 321 (V1.1.1) (05-2004): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Normalized Site Attenuation (NSA) and validation of a fully lined anechoic chamber up to
40 GHz".
[i.14] ETSI TR 102 215 (V1.3.1) (11-2004): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Recommended approach, and possible limits for measurement uncertainty for the
measurement of radiated electromagnetic fields above 1 GHz".
[i.15] Regulation (EU) No 1025/2012 of the European Parliament and of the Council of 25 October 2012
on European standardisation.
[i.16] Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the
harmonisation of the laws of the Member States relating to the making available on the market of
radio equipment and repealing Directive 1999/5/EC Text with EEA relevance.
[i.17] ETSI Directives Version 42r1 from 30 November 2020.
NOTE: Available at https://docbox.etsi.org/Board/ETSI_Directives/42r1_directives_nov_2020.pdf.
[i.18] ETSI EG 203 336 (V1.2.1) (05-2020): "Guide for the selection of technical parameters for the
production of Harmonised Standards covering article 3.1(b) and article 3.2 of Directive
2014/53/EU".
[i.19] IEC 60050: "IEC International Electrotechnical Vocabulary".
NOTE: Available at http://www.electropedia.org/.
[i.20] TErms and Definitions Database Interactive (TEDDI).
NOTE: Available at https://webapp.etsi.org/Teddi/.
[i.21] ETSI TR 103 265 (V1.4.1) (12-2019): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Definition of radio parameters".
[i.22] ETSI skeleton of harmonised standards under directives; version from 7 July 2020.
NOTE: Available at https://portal.etsi.org/Services/editHelp/Standards-development/Drafting/Skeletons.
[i.23] A guidance for users of the CISPR standards.
NOTE: Available at https://assets.iec.ch/further_informations/1298/CISPR%20Guide%202021.pdf?0107T10.
[i.24] ANSI C63.10-2013: "American National Standard for Testing Unlicensed Wireless Devices".
[i.25] ETSI TS 138 521-2 (V16.6.0) (02-2021): "5G; NR; User Equipment (UE) conformance
specification; Radio transmission and reception; Part 2: Range 2 standalone (3GPP TS 38.521-2
version 16.6.0 Release 16)".
[i.26] ETSI Harmonised Standard check list; approved at OCG RED EMCD meeting#74 (16 March
2020).
ETSI
8 ETSI TR 103 773 V1.1.1 (2022-01)
[i.27] ETSI TR 100 028-1 (V1.4.1) (12-2001): "Electromagnetic compatibility and Radio spectrum
Matters (ERM); Uncertainties in the measurement of mobile radio equipment characteristics;
Part 1".
[i.28] ETSI TR 100 028-2 (V1.4.1) (12-2001): "Electromagnetic compatibility and Radio spectrum
Matters (ERM); Uncertainties in the measurement of mobile radio equipment characteristics;
Part 2".
[i.29] ETSI EN 300 220-1 (V3.1.1) (02-2017): "Short Range Devices (SRD) operating in the frequency
range 25 MHz to 1 000 MHz; Part 1: Technical characteristics and methods of measurement".
[i.30] ETSI EN 303 883-1 (V1.2.1) (02-2021): "Short Range Devices (SRD) and Ultra Wide Band
(UWB); Part 1: Measurement techniques for transmitter requirements".
[i.31] ETSI EN 303 883-2 (V1.2.1) (02-2021): "Short Range Devices (SRD) and Ultra Wide Band
(UWB); Part 2: Measurement techniques for receiver requirements".
[i.32] CEPT Recommendation T/R 24-01 (Copenhagen 1987): "Specifications of equipment for use in
the land mobile service".
[i.33] CEPT Recommendation T/R 34-01 (Copenhagen 1987): "Specifications for maritime mobile radio
equipment".
[i.34] ETSI ETR 027 (09-1991): "Radio Equipment and Systems (RES); Methods of measurement for
private mobile radio equipment".
[i.35] ETSI ETR 273-1-1 (1998): "ElectroMagnetic Compatibility and Radio Spectrum Matters (ERM);
Improvement of radiated methods of measurement (using test sites) and evaluation of the
corresponding measurement uncertainties; Part 1: Uncertainties in the measuremement of mobile
radio equipment characteristics; Sub-part 1: Introduction".
[i.36] ETSI ETR 273-1-2 (1998): "ElectroMagnetic Compatibility and Radio Spectrum Matters (ERM);
Improvement of radiated methods of measurement (using test sites) and evaluation of the
corresponding measurement uncertainties; Part 1: Uncertainties in the measuremement of mobile
radio equipment characteristics; Sub-part 2: Examples and annexes".
[i.37] ETSI ETR 273-2 (1998): "ElectroMagnetic Compatibility and Radio Spectrum Matters (ERM);
Improvement of radiated methods of measurement (using test sites) and evaluation of the
corresponding measurement uncertainties; Part 2: Anechoic chamber".
[i.38] ETSI ETR 273-3 (1998): "ElectroMagnetic Compatibility and Radio Spectrum Matters (ERM);
Improvement of radiated methods of measurement (using test sites) and evaluation of the
corresponding measurement uncertainties; Part 3: Anechoic chamber with a ground plane".
[i.39] ETSI ETR 273-4 (1998): "ElectroMagnetic Compatibility and Radio Spectrum Matters (ERM);
Improvement of radiated methods of measurement (using test sites) and evaluation of the
corresponding measurement uncertainties; Part 4: Open area test site".
[i.40] ETSI ETR 273-5 (1998): "ElectroMagnetic Compatibility and Radio Spectrum Matters (ERM);
Improvement of radiated methods of measurement (using test sites) and evaluation of the
corresponding measurement uncertainties; Part 5: Striplines".
[i.41] ETSI ETR 273-6 (1998): "ElectroMagnetic Compatibility and Radio Spectrum Matters (ERM);
Improvement of radiated methods of measurement (using test sites) and evaluation of the
corresponding measurement uncertainties; Part 6: Test fixtures".
[i.42] ETSI ETR 273-7 (1998): "ElectroMagnetic Compatibility and Radio Spectrum Matters (ERM);
Improvement of radiated methods of measurement (using test sites) and evaluation of the
corresponding measurement uncertainties; Part 7: Artificial human beings".
[i.43] ETSI EG 202 373 (V1.1.1) (08-2005): "Electromagnetic compatibility and Radio spectrum
Matters (ERM); Guide to the methods of measurement of Radio Frequency (RF) fields".
ETSI
9 ETSI TR 103 773 V1.1.1 (2022-01)
[i.44] ETSI EN 302 065-4 (V1.1.1) (11-2016): "Short Range Devices (SRD) using Ultra Wide Band
technology (UWB); Harmonised Standard covering the essential requirements of article 3.2 of the
Directive 2014/53/EU; Part 4: Material Sensing devices using UWB technology below 10,6 GHz".
[i.45] ETSI EN 303 447 (V1.1.1) (09-2017): "Short Range Devices (SRD); Inductive loop systems for
robotic mowers in the frequency range 0 Hz to 148,5 kHz; Harmonised Standard covering the
essential requirements of article 3.2 of Directive 2014/53/EU".
[i.46] ETSI TR 137 941 (V16.2.0) (01-2021): "Universal Mobile Telecommunications System (UMTS);
LTE; 5G; Radio Frequency (RF) conformance testing background for radiated Base Station (BS)
requirements (3GPP TR 37.941 version 16.2.0 Release 16)".
[i.47] ETSI TS 138 141-1 (V.16.8.0) (09-2021): "5G; NR; Base Station (BS) conformance testing Part 1:
conducted conformance testing (3GPP TS 38.141-1 version 16.8.0 Release 16)".
[i.48] ETSI TS 138 141-2 (V.16.8.0) (09-2021): "5G; NR; Base Station (BS) conformance testing Part 2:
radiated conformance testing (3GPP TS 38.141-2 version 16.8.0 Release 16)".
[i.49] ETSI ETR 028 (03-1994): "Radio Equipment and Systems (RES); Uncertainties in the
measurement of mobile radio equipment characteristics".
3 Definition of terms, symbols and abbreviations
3.1 Terms
Void.
3.2 Symbols
Void.
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
rd
3GPP 3 Generation Partnership Project
ANSI American national standards institute
CEPT Commission Européenne des Postes et Télécommunications - European Conference of Postal and
Telecommunications Administrations
CISPR Comité International Spécial des Perturbations Radioélectriques - International Special Committee
on Radio Interference
EA European co-operation for Accreditation
EC European Commission
ECC Electronic Communications Committee of CEPT
EMC Electro Magnetic Compatibility
EMI Electro Magnetic Interference
EN European standard
ENAP EN Approval Procedure
ERM EMC and Radio Spectrum Matters
ETR ETSI Technical Report
ETSI European Telecommunications Standards Institute
EU European Union
EUT Equipment Under Test
ETSI
10 ETSI TR 103 773 V1.1.1 (2022-01)
FCC Federal Communications Commission
HS Harmonised Standard
IEC International Electrotechnical Commission
IEEE Institute of Electrical and Electronics Engineers
IMT International Mobile Telecommunications
ITU-R International Telecommunication Union - Radiocommunication
ITU International Telecommunication Union
KDB Knowledge DataBase
LNA Low Noise Amplifier
MSG Mobile Standards Group of ETSI
RAN Radio Access Network
NOTE: Technical specification group of 3GPP.
REC RECommendation
RED Radio Equipment Directive
RES Radio Equipment and Systems
RF Radio frequency
SC SubCommittee
TB Technical Body
TC Technical Committee
TEDDI Terms and Definitions Database Interactive
TEM Transverse ElectroMagnetic
TFES ETSI Task Force TC ERM and TC MSG for the production of Harmonised Standards under the
Radio Equipment Directive for the IMT family
TGUWB ETSI ERM Task Group of for Ultra-WideBand applications
TR Technical Report
TS Technical Specification
WGRM ETSI ERM Working Group on Radio Matters
4 Available ETSI guidance for rapporteurs of
harmonised standards
Before starting with the analysis on how to develop reference documents for methods of measurements for radio
standards in ETSI, the document does first provide an overview of the status quo.
Harmonised standards are developed within the relevant ERM working group under the leadership of the rapporteur of
the standard.
The rapporteurs are guided by the ETSI Drafting Rules, which is provided in the ETSI Directives [i.17].
The ETSI Drafting Rules do first refer to a pre-structured deliverable skeleton [i.22] which is used as a basis for
drafting. The skeleton for harmonised standard is maintained by the ETSI secretariat and provides partly technical
guidance relevant for measurements procedures, e.g.:
• example text for the environmental profile clause(s) of harmonised standards;
• example text on measurement uncertainty.
The ETSI drafting rules do also define the objective of an ETSI deliverable as "to define clear and unambiguous
provisions in order to facilitate international and European trade and communication". To achieve this objective, an
ETSI deliverable should:
• "be as complete as necessary within the limits specified by its scope;
• be consistent, clear and accurate;
• provide a framework for future technological development;
• be comprehensible to qualified persons who have not participated in its preparation; and
ETSI
11 ETSI TR 103 773 V1.1.1 (2022-01)
• respect the rules for the drafting of ETSI deliverables."
The ETSI Drafting Rules [i.17] has in clause 8.1 the following general guidance on conformance tests for harmonised
standards:
• "the HS shall include all technical specifications necessary for demonstrating presumption of conformity of the
products and phenomena within its scope;"
Further general guidance on conformance tests in harmonised standards is provided in clause 7.2 of ETSI
EG 203 336 [i.18]:
• "Where technical parameters are specified, these should be accompanied by a test/assessment method, related
to the required limits and pass/fail criteria. The shared risk approach, which aims to equally share the risks of
allowing equipment failing a limit and rejecting equipment that complies with a limit, is standard practice in
ETSI HSs. Where the TB decides to include measurement uncertainty in an HS it should not be within a
normative part of the HS."
In addition the ETSI harmonised standard checklist [i.26] provides the following guidance:
• "Harmonised standards should report precise, complete, well defined and clear performance criteria,
technical specifications and test methods to provide presumption of conformity. If deemed appropriate, the
harmonised standard can define different precise performance criteria, technical specifications and test
methods for different (sub)categories or (sub)classes of radio equipment."
In addition to the above generic guidance, the common technical content of harmonised standards (e.g. methods of
measurements) has been standardized in several generic documents to support the rapporteurs (see Table 1). Table 1
provides a non-exhaustive list of published ETSI reference documents.
Table 1: Reference documents from ETSI
Document Version, Group, Rapporteur Title Comments
ETSI ETR 027 [i.34] Edition 1 (09-1991), 111 Radio Equipment and Based on CEPT T/R 24-01
pages Systems (RES); Methods of [i.32] and T/R 34-01 [i.33];
ETSI RES 02, Land Mobile measurement for private ETSI ETR 027 [i.34] was
Rapporteur: mobile radio equipment adopted in the early days of
Georges de Brito ETSI with the aim of
highlighting the commonalties
between the methods of
measurement in a variety of
ETSI standards;
No consideration of
measurement uncertainties.
ETSI ETR 028 [i.49] Edition 2 (03-1994) Radio Equipment and

ETSI RES 02, Land Mobile Systems (RES);
Rapporteur: Uncertainties in the
Gerald Chambers measurement of mobile
radio equipment
characteristics
ETSI ETR 273-1-1 [i.35] Edition 1, 1998, 199 pages Improvement of radiated The attached documentation
ERM RP01 on Maritime Radio methods of measurement is the outcome of the project
Rapporteur: (using test sites) and team's investigation into the
Gerald Chambers evaluation of the uncertainties involved in
corresponding radiated measurements.
measurement uncertainties;
Part 1: Uncertainties in the
measurement of mobile
radio equipment
characteristics; Sub-part 1:
Introduction
ETSI ETR 273-1-2 [i.36] Edition 1, 1998, 197 pages Part 1: Uncertainties in the

Edition 1, 1998 measurement of mobile
ERM RP01 on Maritime Radio radio equipment
Rapporteur: characteristics; Sub-part 2:
Gerald Chambers Examples and annexes
ETSI
12 ETSI TR 103 773 V1.1.1 (2022-01)
Document Version, Group, Rapporteur Title Comments
ETSI ETR 273-2 [i.37] Edition 1, 1998 Part 2: Anechoic chamber

ERM RP01 on Maritime Radio
Rapporteur:
Gerald Chambers
ETSI ETR 273-3 [i.38] Edition 1, 1998 Part 3: Anechoic chamber

ERM RP01 on Maritime Radio with a ground plane
Rapporteur:
Gerald Chambers
ETSI ETR 273-4 [i.39] Edition 1, 1998 Part 4: Open area test site

ERM RP01 on Maritime Radio
Rapporteur:
Gerald Chambers
ETSI ETR 273-5 [i.40] Edition 1, 1998 Part 5: Striplines

ERM RP01 on Maritime Radio
Rapporteur:
Gerald Chambers
ETSI ETR 273-6 [i.41] Edition 1, 1998 Part 6: Test fixtures

ERM RP01 on Maritime Radio
Rapporteur:
Gerald Chambers
ETSI ETR 273-7 [i.42] Edition 1, 1998 Part 7: Artificial human

ERM RP01 on Maritime Radio beings
Rapporteur:
Gerald Chambers
ETSI TR 100 027 [i.1] (V1.2.1) (12-1999), 246 pages Methods of measurement Based on ETSI ETR 027 [i.34]
ERM RP02 on Land Mobile for private mobile radio and ETSI ETR 273 series
Radio equipment [i.35] to [i.42]; includes a
Rapporteur: number of enhancements, as
Gerald Chambers a result of work done in the
preparation of ETSI ETR 273
series [i.35] to [i.42] (which
covers radiated
measurements).
ETSI TR 100 028-1 [i.27] (V1.4.1) (12-2001), 241 pages Uncertainties in the Method of calculating the total
ERM RP02 on Land Mobile measurement of mobile measurement uncertainty for
Radio radio equipment procedures in ETSI
Rapporteur: characteristics; Part 1 TR 100 027 [i.1].
Georges de Brito
ETSI TR 100 028-2 [i.28] (V1.4.1) (12-2001), 285 pages Uncertainties in the

ERM RP02 on Land Mobile measurement of mobile
Radio radio equipment
Rapporteur: characteristics; Part 2
Georges de Brito
ETSI TR 102 273-1-1 [i.2] (V1.2.1) (12-2001), 230 pages Improvement on Radiated Focus on measurement
ERM RP02 on Land Mobile Methods of Measurement uncertainties for radiated
Radio (using test site) and measurements.
Rapporteur: evaluation of the
Hugh Shapter corresponding
measurement uncertainties;
Part 1: Uncertainties in the
measurement of mobile
radio equipment
characteristics; Sub-part 1:
Introduction
ETSI TR 102 273-1-2 [i.3] (V1.2.1) (12-2001), 185 pages Sub-part 2: Examples and

ERM RP02 on Land Mobile annexes
Radio
Rapporteur:
Hugh Shapter
ETSI TR 102 273-2 [i.4] (V1.2.1) (12-2001), 107 pages Part 2: Anechoic chamber

ERM RP02 on Land Mobile
Radio
Rapporteur:
Hugh Shapter
ETSI
13 ETSI TR 103 773 V1.1.1 (2022-01)
Document Version, Group, Rapporteur Title Comments
ETSI TR 102 273-3 [i.5] (V1.2.1) (12-2001), 115 pages Part 3: Anechoic chamber

ERM RP02 on Land Mobile with a ground plane
Radio
Rapporteur:
Hugh Shapter
ETSI TR 102 273-4 [i.6] (V1.2.1) (12-2001), 105 pages Part 4: Open area test site

ERM RP02 on Land Mobile
Radio
Rapporteur:
Hugh Shapter
ETSI TR 102 273-5 [i.7] (V1.2.1) (12-2001), 47 pages Part 5: Striplines

ERM RP02 on Land Mobile
Radio
Rapporteur:
Hugh Shapter
ETSI TR 102 273-6 [i.8] (V1.2.1) (12-2001), 89 pages Part 6: Test fixtures

ERM RP02 on Land Mobile
Radio
Rapporteur:
Hugh Shapter
ETSI TR 102 273-7 [i.9] (V1.2.1) (12-2001), 69 pages Part 7: Artificial human

ERM RP02 on Land Mobile
beings
Radio
Rapporteur:
Hugh Shapter
ETSI TS 102 321 [i.13] (V1.1.1) (05-2004) Electromagnetic

ERM TG33: Measurement compatibility and Radio
Methods and their Uncertainty spectrum Matters (ERM);
Rapporteur: Normalized Site Attenuation
Alan Dearlove (NSA) and validation of a
fully lined anechoic
chamber up to 40 GHz
ETSI TR 102 215 [i.14] (V1.3.1) (11-2004) Electromagnetic

ERM TG33: Measurement compatibility and Radio
Methods and their Uncertainty spectrum Matters (ERM);
Rapporteur: Recommended approach,
Brian Copsey and possible limits for
measurement uncertainty
for the measurement of
radiated electromagnetic
fields above 1 GHz
ETSI EG 202 373 [i.43] (V1.1.1) (08-2005) Electromagnetic

ERM TG27: Radio site compatibility and Radio
engineering spectrum Matters (ERM);
Rapporteur: Guide to the methods of
Norman Lightfoot measurement of Radio
Frequency (RF) fields
ETSI TS 103 051 [i.10] (V1.1.1) (08-2011), 75 pages Expanded measurement

ERM TG27: Radio site uncertainty for the
engineering measurement of radiated
Rapporteur: electromagnetic fields
Manfred Dudde
ETSI TS 103 052 [i.11] (V1.1.1) (03-2011), 44 pages Radiated measurement

ERM TG27: Radio site methods and general
engineering arrangements for test sites
Rapporteur: up to 100 GHz
Manfred Dudde
ETSI EN 300 220-1 [i.29] (V3.1.1) (02-2017) Short Range Devices (SRD)

Technical Body: ERM TG28 operating in the frequency
Rapporteur: range 25 MHz to 1 000
Philippe Magneron MHz;
Part 1: Technical
characteristics and methods
of measurement
ETSI
14 ETSI TR 103 773 V1.1.1 (2022-01)
Document Version, Group, Rapporteur Title Comments
ETSI TR 103 265 [i.21] (V1.4.1) (12-2019) Electromagnetic

ERM WGRM compatibility and Radio
Rapporteur:  spectrum Matters (ERM);
Sjoert Fleurke Definition of radio
parameters
ETSI TR 103 581 [i.12] (V1.1.1) (11-2019) Use of measurement

ERM WGRM detectors in radio
Rapporteur: measurement methods
Ralf Kallenborn
ETSI EN 303 883-1 [i.30] (V1.2.1) (02-2021) Measurement methods for

ERM TGUWB transmitters
Rapporteur:
Michael Mahler
ETSI EN 303 883-2 [i.31] (V1.2.1) (02-2021) Measurement methods for

ERM TGUWB receivers
Rapporteur:
Michael Mahler
ETSI TR 137 941 [i.46] (V16.2.0) (02-2021) Radio Frequency (RF)
3GPP RAN 4, conformance testing
ETSI ERM TFES background for radiated
Rapporteur: Base Station (BS)
Michal Szydelko requirements
ETSI TS 138 141-1 [i.47] (V16.8.0) (09-2021) Base Station (BS)
3GPP RAN 4, conformance testing Part 1:
ETSI ERM TFES conducted conformance
Rapporteur: testing
Ye Liu
ETSI TS 138 141-2 [i.48] (V16.8.0) (09-2021) Base Station (BS)
3GPP RAN 4, conformance testing Part 2:
ETSI ERM TFES radiated conformance
Rapporteur: testing
Ye Liu
5 Requirements and definition of terms
Connected to each method of measurement is a requirements, which is ideally defined at a central place. The definition
of terms used in ETSI standards are summarized in ETSI TR 103 265 [i.21] and in the TEDDI database [i.20]. At the
time of writing the present document the definition of terms in published ETSI standards were not aligned between all
ETSI standards.
To improve the situation, a new work is planned to develop preferred and common definition of terms for harmonised
standards. The aim is to align the definition of terms in ETSI standards.
Generally a harmonised standard should not create its own terms if the parameters are already defined at a higher level,
e.g. in the EC Directives, EC Decisions, CEPT/ECC documents, ITU-R documents, Radio Regulations. Another useful
source for definitions is the IEC International Electrotechnical Vocabulary [i.19].
6 The need of a method of measurement
Is a method of measurement needed as a normative part in a harmonised standard to proof the compliance against a
requirement or is method of measurement redundant? Three theoretical cases are possible:
• Case A: A standard says nothing and everything is left to the interpretation of the manufacturer (risk
assessment)
• Case B: A standard provides a common method of measurement which ensures a common quality (state of the
art)
• Case C: A standard provides every detail
ETSI
15 ETSI TR 103 773 V1.1.1 (2022-01)
As a first step the value of a harmonised standard only with requirements but without measurement procedures is
discussed in the following (Case A):
• such a standard would not provide a standardized methods of measurement;
• the manufacturer would need to proof in its technical documentation and risk assessment how the equipment
complies with the requirements without a standardized guidance;
• in absence of a harmonised method of measurement, the quality of the assessment of the manufacturers (with
and without measurements) would very likely be very different; and
• the quality of the assessment would also depend on the quality of the definition of the requirements (e.g. in the
regulation), and in many cases the regulation is not absolutely clear; for this reason one main objective of
standardization is to support/complement the regulation);
• national frequency assignments do usually refer to a harmonised standards, to clarify how a limit should be
measured; without a method of measurement such a reference would be not present.
In addition, the ETSI drafting rules [i.17] and the ETSI EG 203 336 [i.18] do ask for a method of measurement to be
used (see more details in clause 4).
As a consequence a harmonised standard should, if possible, contain guidance on how to perform a measurement to test
compliance towards parameters given in regulation and mutual agreements achieved in ETSI (not being regulation).
However, it is important to note that for some parts of a method of measurement it is more important to provide a
detailed description than for others; test hardware and test setup description may require more details than the
description of the test process (e.g. test frequencies, angular resolution of antenna measurements). Further information
on the detail degree of a method of measurement is provided in Annex A. It should also be noted that standardization is
an iterative process, where shortcomings in a published standard are reported to ETSI which triggers a new work item
to improve the standard.
Also the RED [i.16] foresees a procedure for market surveillance authorities for radio equipment presenting a risk at
national level (Directive 2014/53/EU [i.16] article 40 and 41), which can lead to the withdrawal of the references to the
harmonised standard concerned from the Official Journal of the European Union (Regulation (EU) No 1025/2012 [i.15]
article 11 on "Formal objections to harmonised standards").
The above conclusion that a method of measurement should (if possible) be part of a harmonised standard, is drawn
under the assumption that the method of measurement is feasible. They apply to typical regulatory requirements like
radiated power, unwanted emissions, receiver requirements. But there are (regulatory) requirements where a method of
measurement procedure is not possible or is meaningless:
• Duty cycle limit in regulation for equipment where the duty cycle of the equipment is dependent on the use
(e.g. garage door opener).
• Push-button, Wall contact (ETSI EN 302 065-4-1 [i.44]).
• Dimension of boundary wire of a lawn mower (ETSI EN 303 447 [i.45]).
• Applying requirements over temperature range.
Such requirements do typically apply to the user of the equipment or to the installer of a network and they cannot be
tested when putting the device to the market. One approach could be to outlaw such requirements in the scope clause
but this requires the manufacturer to declare the applicability of this.
7 Discussion
7.1 Summary previous clauses
Guidance for rapporteurs of harmonised standard is available in a huge number of ETSI documents (see clauses 4 and
5). However due to the huge number of documents, the variety of possible methods of measurement is also huge and
there is a diverse use of terms and definitions.
ETSI
16 ETSI TR 103 773 V1.1.1 (2022-01)
The need of a method of measurement was discussed in clause 6 and it was concluded that in most cases it is needed.
But there are cases where a method of measurement is not possible or meaningless.
7.2 Options to proceed
Are the documents from ETSI now sufficient to support the work of rapporteurs or should ETSI start developing and
maintaining reference documents?
Numerous ETSI reference documents are available but they are not maintained at a central place. A clear reference
document would be better which should be maintained by ETSI. There is agreement to as much as possible use
standardized methods of measurement (including test equipmen
...
