ETSI TR 103 062 V1.1.1 (2011-04)

Reconfigurable Radio Systems (RRS) Use Cases and Scenarios for Software Defined Radio (SDR) Reference Architecture for Mobile Device

DTR/RRS-01006

General Information

• Status: Published
• Publication Date: 19-Apr-2011
• Technical Committee: RRS 1 - RRS System Aspects & Cognitive functionalities
• Current Stage: 12 - Completion
• Due Date: 13-Apr-2011
• Completion Date: 20-Apr-2011

Standards Content (Sample)

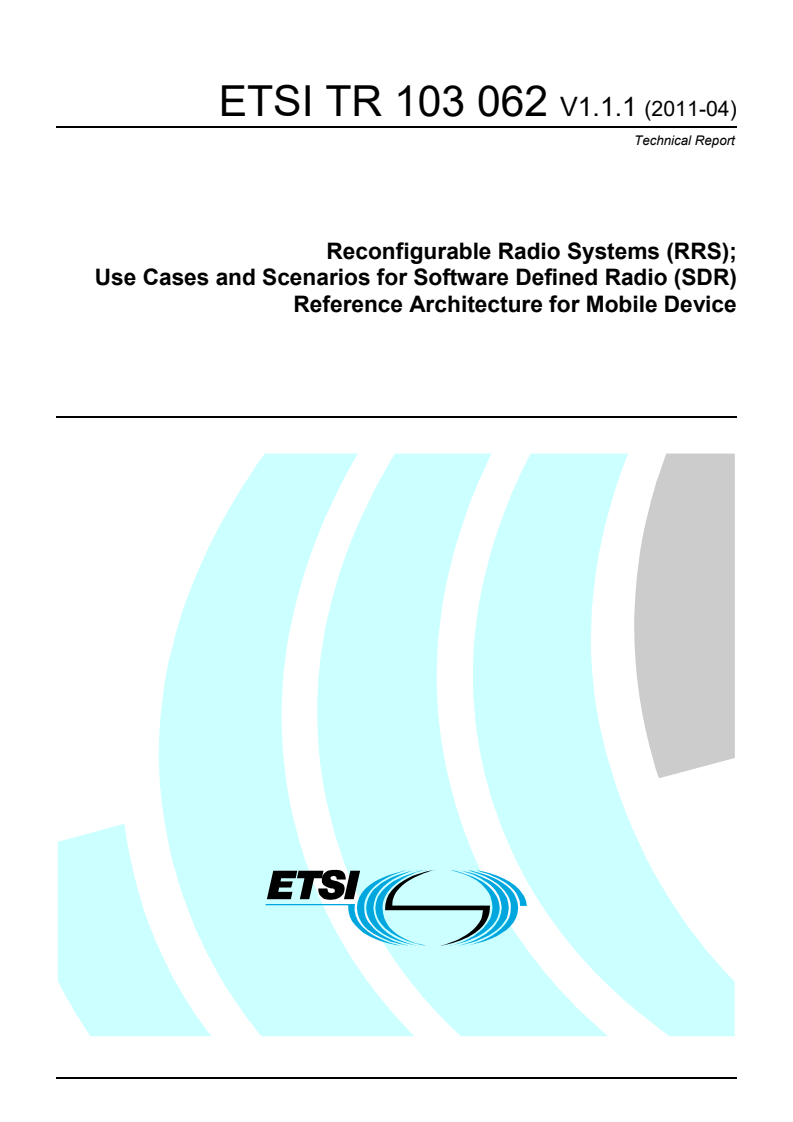

Technical Report
Reconfigurable Radio Systems (RRS);
Use Cases and Scenarios for Software Defined Radio (SDR)
Reference Architecture for Mobile Device

2 ETSI TR 103 062 V1.1.1 (2011-04)

Reference
DTR/RRS-01006
Keywords
CRS, radio, SDR, use case
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2011.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI TR 103 062 V1.1.1 (2011-04)
Contents
Intellectual Property Rights . 4
Foreword . 4
1 Scope . 5
2 References . 5
2.1 Normative references . 5
2.2 Informative references . 5
3 Definitions and abbreviations . 6
3.1 Definitions . 6
3.2 Abbreviations . 6
4 Reconfigurable Radio Systems operating in licensed spectrums . 7
4.1 General description and reference to past work . 7
4.2 Example of a typical Reconfigurable Radio Systems capabilities . 7
5 Use Cases . 9
5.1 Overview . 9
5.2 Use Case "Terminal-Centric Configuration in a Heterogeneous Radio Context" . 9
5.2.1 General Use Case Description . 9
5.2.2 Stakeholders . 10
5.2.3 Scenario Case Description . 10
5.2.4 Information Flow . 11
5.2.5 Potential system requirements . 13
5.3 Use Case "Network driven Terminal Configuration in a Heterogeneous Radio Context" . 13
5.3.1 General Use Case Description . 13
5.3.2 Stakeholders . 13
5.3.3 Scenario Case Description . 14
5.3.4 Information Flow . 14
5.3.5 Potential system requirements . 15
5.4 Use Case "Addition of new features, such as support for novel radio systems, to Mobile Devices" . 16
5.4.1 General Use Case Description . 16
5.4.2 Stakeholders . 16
5.4.3 Scenario Case Description . 16
5.4.4 Information Flow . 17
5.4.5 Potential system requirements . 18
5.5 Use Case "Provision of a new cognitive feature (e.g. cross-technology spectrum measurement)" . 19
5.5.1 General Use Case Description . 19
5.5.2 Stakeholders . 19
5.5.3 Scenario Case Description . 19
5.5.4 Information Flow . 20
5.5.5 Potential system requirements . 20
Annex A (informative): Bibliography . 22
History . 23

ETSI
4 ETSI TR 103 062 V1.1.1 (2011-04)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Technical Report (TR) has been produced by ETSI Technical Committee Reconfigurable Radio Systems (RRS).
ETSI
5 ETSI TR 103 062 V1.1.1 (2011-04)
1 Scope
The present document collects the Use Cases which have been identified for Reconfigurable Radio Systems building on
SDR Mobile Devices following the SDR Architecture specifications in [i.1]. These Use Cases will identify actors and
information flows, and will form the basis of future work, including system requirements, at TC RRS for Software
Defined Radio (SDR) systems and Cognitive Radio (CR) systems.
The architecture of this system or its functional implementation is out of scope of the Use Cases document.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references only, the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
Not applicable.
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI TR 102 680: "Reconfigurable Radio Systems (RRS); SDR Reference Architecture for
Mobile Device".
[i.2] ETSI TS 125 304: "Universal Mobile Telecommunications System (UMTS); User Equipment
(UE) procedures in idle mode and procedures for cell reselection in connected mode
(3GPP TS 25.304 Release 9)".
[i.3] IEEE 802.11: "Draft Standard for Information Technology - Telecommunications and Information
Exchange Between Systems - Local and Metropolitan Area Networks - Specific Requirements;
Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications,
IEEE P802.11-REVma/D89.0, Publication Year: 2010 , Page(s): 1 - 1230".
[i.4] IEEE 802.15.4: "Draft Standard for Information Technology - Telecommunications and
Information Exchange Between Systems - Local and Metropolitan Area Networks - Specific
Requirements - Part 15.4: Wireless Medium Access Control (MAC) and Physical Layer (PHY)
Specifications for Low Rate Wireless Personal Area Networks (WPANs) IEEE
P802.15.4REVi/D04, September, 2010, Publication Year: 2011 , Page(s): 1 - 334".
[i.5] IEEE 802.16m: "Draft Amendment Standard for Local and Metropolitan Area Networks;
Part 16: Air Interface for Broadband Wireless Access Systems - Advanced Air Interface, IEEE
P802.16m/D8, August 2010, Publication Year: 2010 , Page(s): 1 - 1053".
ETSI
6 ETSI TR 103 062 V1.1.1 (2011-04)
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
camping on a cell: having completed the cell selection/reselection process and having chosen a cell
NOTE 1: In the framework of 3GPP, this term is defined in TS 125 304 [i.2] as follows: UE has completed the cell
selection/reselection process and has chosen a cell. The UE monitors system information and (in most
cases) paging information".
NOTE2: In addition to the context defined in 3GPP, the term "Camping" is here also used in the context of any
type of association to any other wireless system, such as WiFi, etc.
context information: cross-technology context information
NOTE 1: The availability and selected inherent operational parameters of heterogeneous Radio Access
Technologies (RATs) is an example.
NOTE 2: The term does not address 3GPP specific context information which is assumed not to be available for the
SDR Reference Architecture inherent decision making.
Mobile Network Operator (MNO): potential user for a specific use case
Network management system: network Management of one or more Reconfigurable Radio Systems
Reconfigurable Radio System (RRS): radio system using reconfigurable radio technology
system use case: use case describing the system functionality level and specifying the function or the service that the
system provides for the user
NOTE: A system use case will describe what the actor achieves interacting with the system. For this reason it is
recommended that a system use case specification begin with a verb (e.g. create voucher, select
payments, exclude payment, cancel voucher). Generally, the actor could be a human user or another
system interacting with the system being defined.
use case: description of a system from a user's perspective
NOTE 1: Use cases treat a system as a black box, and the interactions with the system, including system responses,
are perceived as from outside the system. Use cases typically avoid technical jargon, preferring instead
the language of the end user or domain expert.
NOTE 2: Use cases should not be confused with the features/requirements of the system under consideration. A use
case may be related to one or more features/requirements, a feature/requirement may be related to one or
more use cases.
NOTE 3: A brief use case consists of a few sentences summarizing the use case.
user: it represents the User of the Mobile Network
3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
3GPP 3rd Generation Partnership Project
CE Conformité Européenne (French for "European conformity")
CPC Cognitive Pilot Channel
CR Cognitive Radio
CRS Cognitive Radio System
DoC Declaration of Conformity
ETSI
7 ETSI TR 103 062 V1.1.1 (2011-04)
GSM Global System for Mobile Communications
HSxPA High Speed Packet Access
IF Interface
IMT International Mobile Telecommunications
IMT-A International Mobile Telecommunications-Advanced
LAN Local Area Network
LTE Long Term Evolution
LTE-A Long Term Evolution Advanced
MD Mobile Device
RAT Radio Access Technology
RF Radio Frequency
RRS Reconfigurable Radio Systems
SDR Software Defined Radio
TR Technical Report
UE User Equipment
UMTS Universal Mobile Telecommunications System
WiMAX Worldwide Interoperability for Microwave Access
4 Reconfigurable Radio Systems operating in licensed
spectrums
4.1 General description and reference to past work
TR 102 680 [i.1] details an SDR Architecture for Mobile Device, highlighting in particular a set of 5 requirement
groups:
• General architectural requirements.
• Capability requirements.
• Operational requirements.
• Interface requirements.
• Other requirements.
Based on these requirement groups, an SDR Architecture has been defined as it is presented in detail by [i.1] and briefly
summarized in clause 4.2. The refined understanding of the final architecture proposal and the corresponding inherent
capabilities that were developed during the creation of [i.1] lead to the decision to create the present document for
giving a detailed overview on related use cases and scenarios.
4.2 Example of a typical Reconfigurable Radio Systems
capabilities
The following capabilities of Reconfigurable Radio Systems have been derived in [i.1] for a Mobile Device:
a) Multiradio configuration capability: SDR equipment in mobile device is expected to install, load and
activate a radio application while running a set of radio systems already.
b) Multiradio operation capability: SDR equipment in mobile device is expected to execute a number of radio
systems simultaneously by taking into account temporal coexistence rules designed for their common
operation.
c) Multiradio resource sharing capability: SDR equipment in mobile device is expected to execute a number
of radio systems simultaneously by sharing computation, memory, communications and RF circuitry resources
available on the radio computer platform by using appropriate resource allocation, binding and scheduling
mechanisms.
ETSI
8 ETSI TR 103 062 V1.1.1 (2011-04)
Building on these requirements, the following components are introduced in [i.1], also illustrated by:
1) Configuration Manager: (de)installation and (un)loading of radio applications into radio computer as well as
management of and access to the radio parameters of those radio applications.
2) Radio Connection Manager: (de)activation of radio applications according to user requests and overall
management of user data flows, which can also be switched from one radio application to another.
3) Flow Controller: sending and receiving of user data packets and controlling the flow.
4) Multiradio Controller: scheduling the requests on spectrum resources issued by concurrently executing radio
applications in order to detect in advance the interoperability problems between them.
5) Resource Manager: management of radio computer resources in order to share them among simultaneously
active radio applications, while guaranteeing their real-time requirements.

Figure 1: Functional Architecture of SDR Equipment
Furthermore, [i.1] identifies four candidate interfaces for standardization:
a) Multiradio Interface as the uniform interface for network protocol stacks and other user domain entities to
access services of the radio computer.
b) Unified Radio Application Interface at the boundary between the common radio computer platform and the
specific radio applications.
c) Radio Programming Interface including software development-time concepts and run-time interfaces
between radio software entities and radio computer platform.
d) Interface to the Reconfigurable RF Transceiver to support multiple radio applications, even concurrently.
Among these interfaces, the Multiradio Interface has most potential for standardization. It is expected to enable an
easier integration of radio platforms into handsets that benefits both chipset vendors and device manufacturers;
moreover, it offers significant functionality on top of SDR. Common methods of accessing the SDR services ease the
definition and deployment of cognitive radio, providing capability to implement the functionality independently on both
sides of the interface.
ETSI
9 ETSI TR 103 062 V1.1.1 (2011-04)
The deployment of the Multiradio Interface is expected to proceed in phases with platform capability advancing,
starting from legacy radio access technologies, gradually moving towards a full SDR:
1) Radio applications use pre-defined fixed resources. Radio applications come from a single source, and a list of
concurrently supported radios is provided. Additional CR functionality is introduced by means of parameter
management of individual radio applications.
2) Radio applications have fixed resource requirements. Instead of fixed resources, a worst-case resource
consumption budget is attached t
...
