Draft ETSI EN 301 908-19 V6.1.1 (2013-02)
Harmonized European Standard
IMT cellular networks;
Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive;
Part 19: OFDMA TDD WMAN (Mobile WiMAX)
TDD User Equipment (UE)

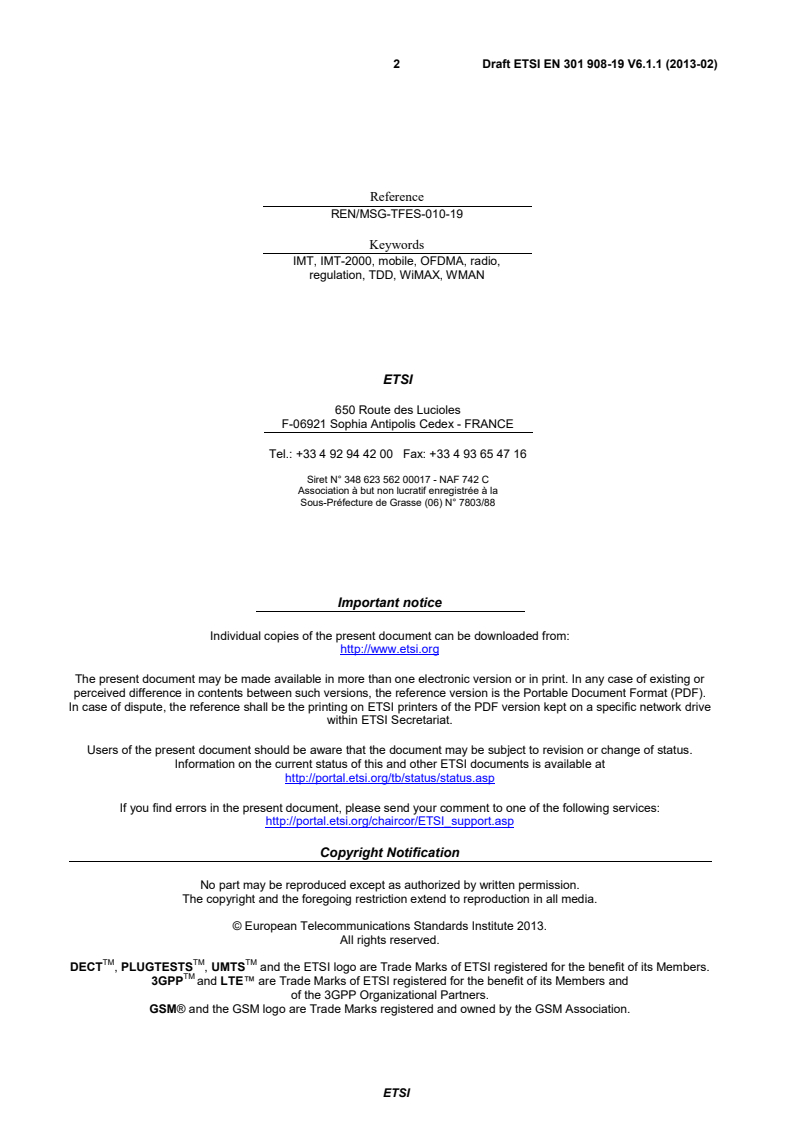

2 Draft ETSI EN 301 908-19 V6.1.1 (2013-02)
Reference
REN/MSG-TFES-010-19
Keywords
IMT, IMT-2000, mobile, OFDMA, radio,
regulation, TDD, WiMAX, WMAN
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2013.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 Draft ETSI EN 301 908-19 V6.1.1 (2013-02)
Contents
Intellectual Property Rights . 6
Foreword . 6
Introduction . 6
1 Scope . 7
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 8
3 Definitions, symbols and abbreviations . 8
3.1 Definitions . 8
3.2 Symbols . 9
3.3 Abbreviations . 9
4 Essential requirements specification . 10
4.1 Environmental profile . 10
4.2 Conformance requirements . 10
4.2.1 Introduction. 10
4.2.2 Transmitter Maximum Output Power . 10
4.2.2.1 Definition . 10
4.2.2.2 Limits . 10
4.2.2.3 Conformance . 10
4.2.3 Transmitter Spectrum Emission Mask . 11
4.2.3.1 Definition . 11
4.2.3.2 Limits . 11
4.2.3.2.1 Requirements for 5 MHz channel bandwidth . 11
4.2.3.2.2 Requirements for 10 MHz channel bandwidth . 11
4.2.3.3 Conformance . 12
4.2.4 Transmitter Spurious Emissions . 12
4.2.4.1 Definition . 12
4.2.4.2 Limits . 12
4.2.4.2.1 Requirements for 5 MHz channel bandwidth . 12
4.2.4.2.2 Requirements for 10 MHz channel bandwidth . 13
4.2.4.2.3 Requirements for UE Coexistence. 13
4.2.4.3 Conformance . 13
4.2.5 Transmitter Minimum Output Power . 13
4.2.5.1 Definition . 13
4.2.5.2 Limits . 13
4.2.5.3 Conformance . 14
4.2.6 Receiver Adjacent Channel Selectivity (ACS) . 14
4.2.6.1 Definition . 14
4.2.6.2 Limits . 14
4.2.6.3 Conformance . 14
4.2.7 Receiver Blocking Characteristics . 14
4.2.7.1 Definition . 14
4.2.7.2 Limits . 15
4.2.7.3 Conformance . 16
4.2.8 Receiver Spurious Response . 16
4.2.8.1 Definition . 16
4.2.8.2 Limits . 16
4.2.8.3 Conformance . 17
4.2.9 Receiver Intermodulation Characteristics . 17
4.2.9.1 Definition . 17
4.2.9.2 Limits . 17
4.2.9.3 Conformance . 18
4.2.10 Receiver Spurious Emissions . 18
ETSI
4 Draft ETSI EN 301 908-19 V6.1.1 (2013-02)
4.2.10.1 Definition . 18
4.2.10.2 Limits . 18
4.2.10.3 Conformance . 18
4.2.11 Transmitter Adjacent Channel Leakage Power Ratio . 19
4.2.11.1 Definition . 19
4.2.11.2 Limits . 19
4.2.11.2.1 Requirements for 5 MHz channel bandwidth . 19
4.2.11.2.2 Requirements for 10 MHz channel bandwidth . 19
4.2.11.3 Conformance . 20
5 Testing for compliance with technical requirements . 20
5.1 Environmental conditions for testing . 20
5.2 Product information . 20
5.3 Interpretation of the measurement results . 20
5.4 Essential radio test suites . 21
5.4.1 Transmitter Maximum and Minimum Output Power . 21
5.4.1.1 Method of measurement . 21
5.4.1.1.1 Initial conditions . 22
5.4.1.1.2 Procedure . 22
5.4.1.2 Test requirements . 22
5.4.2 Transmitter Spectrum Emission Mask . 22
5.4.2.1 Method of measurement . 23
5.4.2.1.1 Initial conditions . 23
5.4.2.1.2 Procedure . 23
5.4.2.2 Test requirements . 24
5.4.3 Transmitter spurious emis sions . 24
5.4.3.1 Method of measurement . 24
5.4.3.1.1 Initial conditions . 24
5.4.3.1.2 Procedure . 25
5.4.3.2 Test requirements . 25
5.4.4 Receiver Adjacent Channel Selectivity (ACS) . 25
5.4.4.1 Method of measurement . 25
5.4.4.1.1 Initial conditions . 26
5.4.4.1.2 Procedure . 26
5.4.4.2 Test requirements . 26
5.4.5 Receiver Blocking Characteristics . 26
5.4.5.1 Method of measurement . 26
5.4.5.1.1 Initial conditions . 27
5.4.5.1.2 Procedure . 27
5.4.5.2 Test requirements . 28
5.4.6 Receiver Spurious Response . 28
5.4.6.1 Method of measurement . 28
5.4.6.1.1 Initial conditions . 28
5.4.6.1.2 Procedure . 28
5.4.6.2 Test requirements . 29
5.4.7 Receiver Intermodulation characteristics . 29
5.4.7.1 Method of measurement . 29
5.4.7.1.1 Initial conditions . 29
5.4.7.1.2 Procedure . 30
5.4.7.2 Test requirements . 30
5.4.8 Receiver Spurious Emissions . 30
5.4.8.1 Method of measurement . 30
5.4.8.1.1 Initial conditions . 31
5.4.8.1.2 Procedure . 31
5.4.8.2 Test requirements . 31
5.4.9 Transmitter Adjacent Channel Leakage Power Ratio . 31
5.4.9.1 Method of measurement . 31
5.4.9.1.1 Initial conditions . 32
5.4.9.1.2 Procedure . 32
5.4.9.2 Test requirements . 33
ETSI
5 Draft ETSI EN 301 908-19 V6.1.1 (2013-02)
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 34
Annex B (normative): Environmental profile . 36
Annex C (informative): Void . 37
Annex D (informative): Bibliography . 38
History . 39
ETSI
6 Draft ETSI EN 301 908-19 V6.1.1 (2013-02)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This draft Harmonized European Standard (EN) has been produced by ETSI Technical Committee Mobile Standards
Group (MSG), and is now submitted for the combined Public Enquiry and Vote phase of the ETSI standards EN
Approval Procedure.
The present document has been produced by ETSI in response to a mandate from the European Commission issued
under Directive 98/34/EC [i.1] as amended by Directive 98/48/EC [i.8].
The title and reference to the present document are intended to be included in the publication in the Official Journal of
the European Union of titles and references of Harmonized Standard under the Directive 1999/5/EC [i.2].
See article 5.1 of Directive 1999/5/EC [i.2] for information on presumption of conformity and Harmonized Standards or
parts thereof the references of which have been published in the Official Journal of the European Union.
The requirements relevant to Directive 1999/5/EC [i.2] are summarized in annex A.
The present document is part 19 of a multi-part deliverable. Full details of the entire series can be found in part 1 [1].
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive. The modular
structure is shown in EG 201 399 [i.3].
ETSI
7 Draft ETSI EN 301 908-19 V6.1.1 (2013-02)
1 Scope
The present document applies to the following radio equipment type:
• User Equipment for IMT-2000 OFDMA TDD WMAN (Mobile WiMAX) operating in TDD mode.
This radio equipment type is capable of operating in all or any part of the frequency bands given in table 1-1.
Table 1-1: OFDMA TDD WMAN User Equipment frequency bands
Mobile WiMAX Band Class IMT-2000 OFDMA TDD WMAN service Channel Bandwidth
Index operating bands
1.B 2 300 MHz to 2 400 MHz 5 MHz and 10 MHz
3.A 2 500 MHz to 2 690 MHz 5 MHz and 10 MHz
5L.A 3 400 MHz to 3 600 MHz 5 MHz
5L.C 3 400 MHz to 3 600 MHz 10 MHz
5H.A 3 600 MHz to 3 800 MHz 5 MHz
5H.C 3 600 MHz to 3 800 MHz 10 MHz
The present document is intended to cover the provisions of Directive 1999/5/EC [i.2] (R&TTE Directive) article 3.2,
which states that "… radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive 1999/5/EC [i.2] may apply to equipment within the scope of the
present document.
NOTE: A list of such ENs is included on the web site http://www.newapproach.org.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 301 908-1 (V6.2.0) (02/2013): "IMT cellular networks; Harmonized EN covering the
essential requirements of article 3.2 of the R&TTE Directive; Part 1: Introduction and common
requirements".
[2] CEPT/ERC/Recommendation 74-01E (Edition of January, 2011) (Siófok 98, Nice 99,
Sesimbra 02, Hradec Kralove 05): "Unwanted emissions in the spurious domain".
ETSI
8 Draft ETSI EN 301 908-19 V6.1.1 (2013-02)
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
[i.2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[i.3] ETSI EG 201 399: "Electromagnetic compatibility and Radio spectrum Matters (ERM); A guide to
the production of Harmonized Standards for application under the R&TTE Directive".
[i.4] ETSI TR 102 215 (V1.3.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Recommended approach, and possible limits for measurement uncertainty for the measurement of
radiated electromagnetic fields above 1 GHz".
[i.5] ETSI EN 300 019-1-0: "Environmental Engineering (EE); Environmental conditions and
environmental tests for telecommunications equipment; Part 1-0: Classification of environmental
conditions; Introduction".
[i.6] ETSI TR 100 028 (all parts) (V1.4.1): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Uncertainties in the measurement of mobile radio equipment characteristics".
[i.7] Recommendation ITU-R SM.329-12 (2012): "Unwanted emissions in the spurious domain".
[i.8] Directive 98/48/EC of the European Parliament and of the Council of 20 July 1998 amending
Directive 98/34/EC laying down a procedure for the provision of information in the field of
technical standards and regulations.
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in the R&TTE Directive 1999/5/EC [i.2] and
the following apply:
burst: period during which radio waves are intentionally transmitted, preceded and succeeded by periods during which
no intentional transmission is made
environmental profile: declared range of environmental conditions under which equipment within the scope of the
present document is required to be compliant
integral antenna: antenna which is declared to be part of the radio equipment by the manufacturer
NOTE: Even when equipment with an integral antenna is concerned, it might still be possible to separate the
antenna from the equipment using a special tool. In such cases the assessment of the radio equipment and
of the antenna against requirements of the present document may be done separately.
maximum output power: mean power level per carrier of the base station measured at the antenna connector in a
specified reference condition
mean power: when applied to a modulated signal, this is the power (transmitted or received) in a bandwidth
nominal maximum output power: maximum nominal mean power level per carrier of the user equipment available at
the antenna connector declared by the manufacturer; for equipment implementing dynamic change of modulation
format, it is intended as the maximum nominal mean power associated to the modulation format delivering the highest
power
receiver thermal noise power: equal to k×T×BW×F
ETSI
9 Draft ETSI EN 301 908-19 V6.1.1 (2013-02)
WiMAX: trademarked name for the OFDMA TDD WMAN IMT technology
3.2 Symbols
For the purposes of the present document, the following symbols apply:
A Base Station Interface A
BS
A Mobile Station Interface A
MS
A Unit Under Test Interface A
UUT
BW Assigned channel bandwidth
dB Decibel
dBc Decibel relative to carrier
dBm Decibel relative to 1 milliwatt
f Frequency of measurement
f Centre frequency of the assigned channel
c
F Receiver noise figure
GHz GigaHertz
k Boltzmann's constant
M Base Station Interface M
BS
MHz MegaHertz
M Mobile Station Interface M
MS
N Maximum number of antennas in a multiple antenna configuration
N Receiver thermal noise power expressed in dBm
th
-6
P Receiver sensitivity level at BER ≤ 10 (or equivalent PER) performance, corresponding to the
SENS
most robust modulation and coding rate supported by the technology
-6
P Receiver sensitivity level at BER 10 for a 5 MHz channelized system, corresponding to the most
SENS5
robust modulation and coding rate supported by the technology
-6
P Receiver sensitivity level at BER 10 for a 10 MHz channelized system, corresponding to the
SENS10
most robust modulation and coding rate supported by the technology
Pnom Declared nominal maximum output Power
T Ambient temperature in Kelvin
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ACLR Adjacent Channel Leakage power Ratio
ACS Adjacent Channel Selectivity
BCI Band Class Index
BER Bit Error Ratio
BS Base Station
CW Continuous Wave
ERM Electromagnetic compatibility and Radio spectrum Matters
EUT Equipment Under Test
IMT International Mobile Telecommunications
MSG Mobile Standards Group
OFDMA Orthogonal Frequency Division Multiple Access
PER Packet Error Ratio
R&TTE Radio equipment and Telecommunications Terminal Equipment
RF Radio Frequency
RMS Root Mean Square
RRC Root Raised Cosine
TDD Time Division Duplexing
TFES Task Force for European Standards for IMT
UE User Equipment
UUT Unit Under Test
WMAN Wireless Metropolitan Area Network
ETSI
10 Draft ETSI EN 301 908-19 V6.1.1 (2013-02)
4 Essential requirements specification
With reference to article 3.2 of 1999/5/EC Directive [i.2] the phenomena in this clause have been identified as relevant
to the essential requirements.
4.1 Environmental profile
The technical requirements of the present document apply under the environmental profile for operation of the
equipment, which shall be declared by the manufacturer. The equipment shall comply with all the technical
requirements of the present document at all times when operating within the boundary limits of the required operational
environmental profile.
4.2 Conformance requirements
This clause describes the conformance requirements for OFDMA TDD WMAN User Equipment.
4.2.1 Introduction
To meet the essential requirement under article 3.2 of Directive 1999/5/EC [i.2] (R&TTE Directive) for IMT-2000 User
Equipment (UE) seven essential parameters in addition to those in EN 301 908-1 [1] have been identified. Table 4.2.1-1
provides a cross reference between these seven essential parameters and the corresponding nine technical requirements
for equipment within the scope of the present document.
Table 4.2.1-1: Cross references
Essential parameter Corresponding technical requirements
Spectrum emissions mask 4.2.3 Transmitter Spectrum emissions mask
4.2.11 Transmitter adjacent channel leakage power ratio
Conducted spurious emissions in active mode 4.2.4 Transmitter spurious emissions
Accuracy of maximum output power 4.2.2 Transmitter maximum output power
Prevention of harmful interference through 4.2.5 Transmitter minimum output power
control of power
Conducted spurious emission in idle mode 4.2.10 Receiver spurious emissions
Impact of interference on receiver performance 4.2.7 Receiver Blocking characteristics
4.2.8 Receiver spurious response
4.2.9 Receiver Intermodulation characteristics
Receiver adjacent channel selectivity 4.2.6 Receiver Adjacent Channel Selectivity (ACS)
Control and Monitoring functions EN 301 908-1 [1], clause 4.2.4 Control and Monitoring
functions
4.2.2 Transmitter Maximum Output Power
4.2.2.1 Definition
The UE maximum output power is measured over total allocated channel bandwidth available at the antenna connector.
4.2.2.2 Limits
The UE maximum output power shall not exceed 26 dBm.
4.2.2.3 Conformance
Conformance tests described in clause 5.4.1 shall be carried out.
ETSI
11 Draft ETSI EN 301 908-19 V6.1.1 (2013-02)
4.2.3 Transmitter Spectrum Emission Mask
4.2.3.1 Definition
Spectrum emission mask defines an out of band emission requirement for the transmitter. These out of band emissions
are unwanted emissions outside the channel bandwidth resulting from the modulation process and non-linearity in the
transmitter but excluding spurious emissions.
4.2.3.2 Limits
A UE transmitting on a single RF carrier configured in accordance with the manufacturer's specification shall not
exceed the allowed level specified in tables 4.2.3.2.1-1 to 4.2.3.2.2-4 for the relevant nominal channel bandwidth of
5 MHz or 10 MHz and the relevant BCI.
Integration bandwidth refers to the frequency range over which the emission power is integrated.
∆f is defined as the frequency offset in MHz from the channel centre frequency.
4.2.3.2.1 Requirements for 5 MHz channel bandwidth
Table 4.2.3.2.1-1: Spectrum Emission Mask for 5 MHz channel bandwidth – BCI 1.B and 3.A
Segment Offset from channel centre Integration Allowed emission level within the
number bandwidth integration bandwidth
frequency (Δf )
(MHz) (kHz) (dBm)
1 2,5 to < 3,5 50 -13,00
2 3,5 to < 7,5 1 000 -13,00
3 7,5 to < 8 500 -16,00
4 8 to < 10,4 1 000 -25,00
5 10,4 to < 12,5 1 000 -25,00
Table 4.2.3.2.1-2: Spectrum Emission Mask for 5 MHz channel bandwidth – BCI 5L.A and 5H.A
Segment Offset from channel centre Integration Allowed emission level within the
number bandwidth integration bandwidth
frequency (Δf )
(kHz) (dBm)
(MHz)
1 2,5 to < 3,5 30 -33,5 - 15(Δf - 2,5)
2 3,5 to < 7,5 1 000 -33,5 - 1(Δf - 3,5)
3 7,5 to < 8,5 1 000 -37,5 - 10(Δf - 7,5)
4 8,5 to < 12,5 1 000 -47,5
4.2.3.2.2 Requirements for 10 MHz channel bandwidth
Table 4.2.3.2.2-1: Spectrum emission mask for 10 MHz channel bandwidth – BCI 1.B and 3.A
Segment Offset from channel centre Integration Allowed emission level within the
number bandwidth integration bandwidth
frequency (Δf )
(kHz) (dBm)
(MHz)
1 5 to < 6 100 -13,00
2 6 to < 10 1 000 -13,00
3 10 to < 11 1 000 -13 - 12(Δf - 10)
4 11 to < 15 1 000 -25,00
5 15 to < 20 1 000 -25,00
6 20 to < 25 1 000 -25,00
ETSI
12 Draft ETSI EN 301 908-19 V6.1.1 (2013-02)
Table 4.2.3.2.2-2: Spectrum Emission Mask for 10 MHz channel bandwidth – BCI 5L.C and 5H.C
Segment Offset from channel centre Integration Allowed emission level within the
number bandwidth integration bandwidth
frequency (Δf )
(kHz) (dBm)
(MHz)
1 5,0 to < 7,0 30
-33,5 - 9(Δf - 5,0)
2 7,0 to < 15,0 1 000 -36,5 - 0,5(Δf - 7,0)
3 15,0 to < 17,0 1 000
-40,5 - 5(Δf - 15,0)
4 17,0 to < 25,0 1 000 -50,5
4.2.3.3 Conformance
Conformance tests described in clause 5.4.2 shall be carried out.
4.2.4 Transmitter Spurious Emissions
4.2.4.1 Definition
Transmitter spurious emissions are emissions which are caused by unwanted transmitter effects such as harmonics
emission, parasitic emission, intermodulation products and frequency conversion products, but exclude out of band
emissions. The spurious emission limits are specified in terms of general requirements in line with
Recommendation ITU-R SM.329-12 [i.7] and frequency range specific requirements to address UE co-existence.
4.2.4.2 Limits
The limits of spurious emissions (or more precisely, according latest ITU-R definitions, unwanted emissions in the
spurious domain), shall conform to CEPT/ERC Recommendation 74-01 [2].
The following requirements in tables 4.2.4.2.1-1 and 4.2.4.2.2-1 are only applicable for frequencies, which are greater
than 250 % of the channel bandwidth (that is 12,5 MHz for the 5 MHz channel bandwidth and 25 MHz for the 10 MHz
channel bandwidth) away from the carrier centre frequency. In the following fc is the centre frequency of transmit signal
and f is the frequency of spurious emission.
4.2.4.2.1 Requirements for 5 MHz channel bandwidth
Table 4.2.4.2.1-1: Spurious Emission requirement for 5 MHz channel bandwidth
Segment Frequency Range Measurement Bandwidth Maximum allowed
level (dBm)
1 9 kHz ≤ f < 150 kHz 1 kHz -36
150 kHz ≤ f < 30 MHz
2 10 kHz -36
3 30 MHz ≤ f < 1 000 MHz 100 kHz -36
4 1 GHz ≤ f < f GHz -30
30 kHz If 12,5 ≤ |fc-f| < 50 MHz
MAX
300 kHz If 50 ≤ |fc-f| < 60 MHz
1 MHz If 60 ≤ |fc-f| MHz
NOTE: The maximum Segment 4 measurement frequency f , is 12,75 GHz for BCI 1.B, 13,45 GHz for BCI
MAX
3.A and 19 GHz for BCI 5L.A, 5L.C, 5H.A and 5H.C.
ETSI
13 Draft ETSI EN 301 908-19 V6.1.1 (2013-02)
4.2.4.2.2 Requirements for 10 MHz channel bandwidth
Table 4.2.4.2.2-1: Spurious Emission requirement for 10 MHz channel bandwidth
Segment Frequency Range Measurement Bandwidth Maximum allowed level
(dBm)
9 kHz ≤ f < 150 kHz
1 1 kHz -36
2 150 kHz ≤ f < 30 MHz 10 kHz -36
3 30 MHz ≤ f < 1 000 MHz 100 kHz -36
4 1 GHz ≤ f < f GHz -30
30 kHz If 25 ≤ |fc-f| < 100 MHz
MAX
300 kHz If 100 ≤ |fc-f| < 120 MHz
1 MHz If 120 ≤ |fc-f| MHz
NOTE: The maximum Segment 4 measurement frequency f , is 12,75 GHz for BCI 1.B , 13,45 GHz for BCI
MAX
3.A and 19 GHz for BCI 5L.A, 5L.C, 5H.A and 5H.C.
4.2.4.2.3 Requirements for UE Coexistence
Table 4.2.4.2.3-1: Spurious Emission requirement for UE coexistence
Applicable BCI Spurious frequency (f) range Measurement Maximum Emission Level
(MHz) bandwidth (MHz) (dBm)
1.B, 5L.A, 5L.C, 5H.A and 1 -50
2 110 ≤ f < 2 170
5H.C
1.B, 5L.A, 5L.C, 5H.A and 1 -50
1 805 ≤ f < 1 880
5H.C
1.B, 5L.A, 5L.C, 5H.A and
2 496 ≤ f < 2 690 1 -50
5H.C
1.B, 5L.A, 5L.C, 5H.A and 925 ≤ f < 960 1 -50
5H.C
1.B, 5L.A, 5L.C, 5H.A and 1 900 ≤ f < 1 920 1 -50
5H.C
1.B, 5L.A, 5L.C, 5H.A and 1 -50
2 010 ≤ f < 2 025
5H.C
1.B, 5L.A, 5L.C, 5H.A and 1 -50
2 570 ≤ f < 2 620
5H.C
1.B, 5L.A, 5L.C, 5H.A and 1 -50
791 ≤ f < 821
5H.C
3.A 2 620 ≤ f < 2 690 1 -40
4.2.4.3 Conformance
Conformance tests described in clause 5.4.3 shall be carried out.
4.2.5 Transmitter Minimum Output Power
4.2.5.1 Definition
The UE minimum output power is measured over total allocated channel bandwidth available at the antenna connector
when the power is set to the minimum value.
4.2.5.2 Limits
The UE minimum output power shall not exceed -19 dBm.
ETSI
14 Draft ETSI EN 301 908-19 V6.1.1 (2013-02)
4.2.5.3 Conformance
Conformance tests described in clause 5.4.1 shall be carried out.
4.2.6 Receiver Adjacent Channel Selectivity (ACS)
4.2.6.1 Definition
Adjacent Channel Selectivity (ACS) is a measure of a receiver's ability to receive a wanted signal at its assigned
channel frequency in the presence of an adjacent channel signal at a given frequency offset from the centre frequency of
the assigned channel. ACS is the interferer power level (in dBm) relative to thermal noise (N ).
th
4.2.6.2 Limits
Table 4.2.6.2-1 specifies the limits and the test parameters for the receiver ACS in the first adjacent channel and
nd
2 adjacent channels for 5 MHz and 10 MHz channel bandwidths. For an assigned channel bandwidth BW, the
interferer channel bandwidth is the same. The wanted and interferer power levels are evaluated over 95 % of the BW
centred on the wanted or adjacent channel as identified in table 4.2.6.2-1. The compliant system shall be able to meet a
-6
Bit Error Ratio (BER) < 10 (or equivalent PER) with the interference level in either the first adjacent or second
adjacent channel applied as specified in the table. Alternatively depending on packet sizes supported, equivalent Packet
Error Ratio (PER) criteria can be used.
Table 4.2.6.2-1: Limits and test parameters for receiver adjacent channel selectivity
st nd
Description In-channel
Interferer on 1 adjacent Interferer on 2 adjacent
channel channel
ACS limits (dB) 33 47
Power (dBm) P + 3 N + 33 N + 47
SENS th th
Centre frequency (MHz) f f ± BW f ± 2 x BW
c c c
NOTE: N is the receiver thermal noise power of the equipment (in dBm) as declared by the manufacturer.
th
4.2.6.3 Conformance
Conformance tests described in clause 5.4.4 shall be carried out.
4.2.7 Receiver Blocking Characteristics
4.2.7.1 Definition
The blocking characteristic is a measure of the receiver's ability to receive a wanted signal at its assigned channel
frequency in the presence of an unwanted interferer on frequencies other than those of the spurious response or the
adjacent channels (first and second), without this unwanted input signal causing a degradation of the performance of the
receiver beyond a specified limit. The blocking performance shall apply at all frequencies except those at which a
spurious response occur.
-6
P , and P are the sensitivity levels at BER ≤ 10 , for 5 MHz, and 10 MHz channels respectively,
SENS5 SENS10
corresponding to the most robust modulation and coding rate supported by the user equipment. The wanted signal with
the most robust modulation and coding supported by the UE shall be used.
ETSI
15 Draft ETSI EN 301 908-19 V6.1.1 (2013-02)
4.2.7.2 Limits
The wanted signal with the most robust modulation and coding supported by the UE shall be used.
-6
BER performance requirement at BER ≤ 10 (or equivalent PER) shall be met when the following signals are coupled to
UE antenna input:
- A wanted signal at the assigned channel frequency relevant to the specific BCI, with mean power 6 dB above
P .
SENS5
- Interfering signal with the parameters in Tables 4.2.7.2-1 relevant to the specific BCI.
Table 4.2.7.2-1: In Band Blocking for 5 MHz channel bandwidth
BCI Centre frequency of Interfering Minimum offset of Type of interfering
interfering signal signal mean interfering signal signal
power centre frequency from
the lower and upper
assigned channel
edge
1.B 2 302,5 MHz to 2 397,5 MHz -49 dBm 12,5 MHz Modulation and coding
equal to those of the
3.A 2 502,5 MHz to 2 687,5 MHz
wanted signal
5L.A 3 402,5 MHz to 3 597,5 MHz
5H.A 3 602,5 MHz to 3 797,5 MHz
-6
BER performance requirement at BER ≤ 10 (or equivalent PER) shall be met when the following signals are coupled to
UE antenna input:
- A wanted signal at the assigned channel frequency relevant to the specific BCI, with mean power 6 dB above
P .
SENS10
- Interfering signal with the parameters in Table 4.2.7.2-2 relevant to the specific BCI.
Table 4.2.7.2-2: In Band Blocking for 10 MHz channel bandwidth
BCI Centre frequency of Interferi
...
ETSI EN 301 908-19 V6.2.1 (2013-06)
Harmonized European Standard
IMT cellular networks;
Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive;
Part 19: OFDMA TDD WMAN (Mobile WiMAX)
TDD User Equipment (UE)
2 ETSI EN 301 908-19 V6.2.1 (2013-06)
Reference
REN/MSG-TFES-010-19
Keywords
IMT, IMT-2000, mobile, OFDMA, radio,
regulation, TDD, WiMAX, WMAN
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2013.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI EN 301 908-19 V6.2.1 (2013-06)
Contents
Intellectual Property Rights . 6
Foreword . 6
Introduction . 6
1 Scope . 7
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 8
3 Definitions, symbols and abbreviations . 8
3.1 Definitions . 8
3.2 Symbols . 9
3.3 Abbreviations . 9
4 Essential requirements specification . 10
4.1 Environmental profile . 10
4.2 Conformance requirements . 10
4.2.1 Introduction. 10
4.2.2 Transmitter Maximum Output Power . 10
4.2.2.1 Definition . 10
4.2.2.2 Limits . 10
4.2.2.3 Conformance . 10
4.2.3 Transmitter Spectrum Emission Mask . 11
4.2.3.1 Definition . 11
4.2.3.2 Limits . 11
4.2.3.2.1 Requirements for 5 MHz channel bandwidth . 11
4.2.3.2.2 Requirements for 10 MHz channel bandwidth . 11
4.2.3.3 Conformance . 12
4.2.4 Transmitter Spurious Emissions . 12
4.2.4.1 Definition . 12
4.2.4.2 Limits . 12
4.2.4.2.1 Requirements for 5 MHz channel bandwidth . 12
4.2.4.2.2 Requirements for 10 MHz channel bandwidth . 13
4.2.4.2.3 Requirements for UE Coexistence. 13
4.2.4.3 Conformance . 13
4.2.5 Transmitter Minimum Output Power . 13
4.2.5.1 Definition . 13
4.2.5.2 Limits . 13
4.2.5.3 Conformance . 13
4.2.6 Receiver Adjacent Channel Selectivity (ACS) . 14
4.2.6.1 Definition . 14
4.2.6.2 Limits . 14
4.2.6.3 Conformance . 14
4.2.7 Receiver Blocking Characteristics . 14
4.2.7.1 Definition . 14
4.2.7.2 Limits . 14
4.2.7.3 Conformance . 16
4.2.8 Receiver Spurious Response . 16
4.2.8.1 Definition . 16
4.2.8.2 Limits . 16
4.2.8.3 Conformance . 17
4.2.9 Receiver Intermodulation Characteristics . 17
4.2.9.1 Definition . 17
4.2.9.2 Limits . 17
4.2.9.3 Conformance . 18
4.2.10 Receiver Spurious Emissions . 18
ETSI
4 ETSI EN 301 908-19 V6.2.1 (2013-06)
4.2.10.1 Definition . 18
4.2.10.2 Limits . 18
4.2.10.3 Conformance . 18
4.2.11 Transmitter Adjacent Channel Leakage Power Ratio . 19
4.2.11.1 Definition . 19
4.2.11.2 Limits . 19
4.2.11.2.1 Requirements for 5 MHz channel bandwidth . 19
4.2.11.2.2 Requirements for 10 MHz channel bandwidth . 19
4.2.11.3 Conformance . 20
5 Testing for compliance with technical requirements . 20
5.1 Environmental conditions for testing . 20
5.2 Product information . 20
5.3 Interpretation of the measurement results . 20
5.4 Essential radio test suites . 21
5.4.1 Transmitter Maximum and Minimum Output Power . 21
5.4.1.1 Method of measurement . 21
5.4.1.1.1 Initial conditions . 22
5.4.1.1.2 Procedure . 22
5.4.1.2 Test requirements . 22
5.4.2 Transmitter Spectrum Emission Mask . 22
5.4.2.1 Method of measurement . 23
5.4.2.1.1 Initial conditions . 23
5.4.2.1.2 Procedure . 23
5.4.2.2 Test requirements . 24
5.4.3 Transmitter spurious emis sions . 24
5.4.3.1 Method of measurement . 24
5.4.3.1.1 Initial conditions . 24
5.4.3.1.2 Procedure . 25
5.4.3.2 Test requirements . 25
5.4.4 Receiver Adjacent Channel Selectivity (ACS) . 25
5.4.4.1 Method of measurement . 25
5.4.4.1.1 Initial conditions . 26
5.4.4.1.2 Procedure . 26
5.4.4.2 Test requirements . 26
5.4.5 Receiver Blocking Characteristics . 26
5.4.5.1 Method of measurement . 26
5.4.5.1.1 Initial conditions . 27
5.4.5.1.2 Procedure . 27
5.4.5.2 Test requirements . 28
5.4.6 Receiver Spurious Response . 28
5.4.6.1 Method of measurement . 28
5.4.6.1.1 Initial conditions . 28
5.4.6.1.2 Procedure . 28
5.4.6.2 Test requirements . 29
5.4.7 Receiver Intermodulation characteristics . 29
5.4.7.1 Method of measurement . 29
5.4.7.1.1 Initial conditions . 29
5.4.7.1.2 Procedure . 30
5.4.7.2 Test requirements . 30
5.4.8 Receiver Spurious Emissions . 30
5.4.8.1 Method of measurement . 30
5.4.8.1.1 Initial conditions . 31
5.4.8.1.2 Procedure . 31
5.4.8.2 Test requirements . 31
5.4.9 Transmitter Adjacent Channel Leakage Power Ratio . 31
5.4.9.1 Method of measurement . 31
5.4.9.1.1 Initial conditions . 32
5.4.9.1.2 Procedure . 32
5.4.9.2 Test requirements . 33
ETSI
5 ETSI EN 301 908-19 V6.2.1 (2013-06)
Annex A (normative): HS Requirements and conformance Test specifications Table (HS-
RTT) . 34
Annex B (normative): Environmental profile . 36
Annex C (informative): Void . 37
Annex D (informative): Bibliography . 38
History . 39
ETSI
6 ETSI EN 301 908-19 V6.2.1 (2013-06)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (EN) has been produced by ETSI Technical Committee Mobile Standards Group
(MSG).
The present document has been produced by ETSI in response to a mandate from the European Commission issued
under Directive 98/34/EC [i.1] as amended by Directive 98/48/EC [i.8].
The title and reference to the present document are intended to be included in the publication in the Official Journal of
the European Union of titles and references of Harmonized Standard under the Directive 1999/5/EC [i.2].
See article 5.1 of Directive 1999/5/EC [i.2] for information on presumption of conformity and Harmonized Standards or
parts thereof the references of which have been published in the Official Journal of the European Union.
The requirements relevant to Directive 1999/5/EC [i.2] are summarized in annex A.
The present document is part 19 of a multi-part deliverable. Full details of the entire series can be found in part 1 [1].
National transposition dates
Date of adoption of this EN: 10 June 2013
Date of latest announcement of this EN (doa): 30 September 2013
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 March 2014
Date of withdrawal of any conflicting National Standard (dow): 31 March 2015
Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The
modular structure is shown in EG 201 399 [i.3].
ETSI
7 ETSI EN 301 908-19 V6.2.1 (2013-06)
1 Scope
The present document applies to the following radio equipment type:
• User Equipment for IMT-2000 OFDMA TDD WMAN (Mobile WiMAX) operating in TDD mode.
This radio equipment type is capable of operating in all or any part of the frequency bands given in table 1-1.
Table 1-1: OFDMA TDD WMAN User Equipment frequency bands
Mobile WiMAX Band Class IMT-2000 OFDMA TDD WMAN service Channel Bandwidth
Index operating bands
1.B 2 300 MHz to 2 400 MHz 5 MHz and 10 MHz
3.A 2 500 MHz to 2 690 MHz 5 MHz and 10 MHz
5L.A 3 400 MHz to 3 600 MHz 5 MHz
5L.C 3 400 MHz to 3 600 MHz 10 MHz
5H.A 3 600 MHz to 3 800 MHz 5 MHz
5H.C 3 600 MHz to 3 800 MHz 10 MHz
The present document is intended to cover the provisions of Directive 1999/5/EC [i.2] (R&TTE Directive) article 3.2,
which states that "… radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the R&TTE Directive 1999/5/EC [i.2] may apply to equipment within the scope of the
present document.
NOTE: A list of such ENs is included on the web site http://www.newapproach.org.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 301 908-1 (V6.2.1) (04-2013): "IMT cellular networks; Harmonized EN covering the
essential requirements of article 3.2 of the R&TTE Directive; Part 1: Introduction and common
requirements".
[2] CEPT/ERC/Recommendation 74-01E (Edition of January, 2011) (Siófok 98, Nice 99,
Sesimbra 02, Hradec Kralove 05): "Unwanted emissions in the spurious domain".
ETSI
8 ETSI EN 301 908-19 V6.2.1 (2013-06)
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
[i.2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[i.3] ETSI EG 201 399: "Electromagnetic compatibility and Radio spectrum Matters (ERM); A guide to
the production of Harmonized Standards for application under the R&TTE Directive".
[i.4] ETSI TR 102 215 (V1.3.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Recommended approach, and possible limits for measurement uncertainty for the measurement of
radiated electromagnetic fields above 1 GHz".
[i.5] ETSI EN 300 019-1-0: "Environmental Engineering (EE); Environmental conditions and
environmental tests for telecommunications equipment; Part 1-0: Classification of environmental
conditions; Introduction".
[i.6] ETSI TR 100 028 (all parts) (V1.4.1): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Uncertainties in the measurement of mobile radio equipment characteristics".
[i.7] Recommendation ITU-R SM.329-12 (2012): "Unwanted emissions in the spurious domain".
[i.8] Directive 98/48/EC of the European Parliament and of the Council of 20 July 1998 amending
Directive 98/34/EC laying down a procedure for the provision of information in the field of
technical standards and regulations.
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in the R&TTE Directive 1999/5/EC [i.2] and
the following apply:
burst: period during which radio waves are intentionally transmitted, preceded and succeeded by periods during which
no intentional transmission is made
environmental profile: declared range of environmental conditions under which equipment within the scope of the
present document is required to be compliant
integral antenna: antenna which is declared to be part of the radio equipment by the manufacturer
NOTE: Even when equipment with an integral antenna is concerned, it might still be possible to separate the
antenna from the equipment using a special tool. In such cases the assessment of the radio equipment and
of the antenna against requirements of the present document may be done separately.
maximum output power: mean power level per carrier of the base station measured at the antenna connector in a
specified reference condition
mean power: when applied to a modulated signal, this is the power (transmitted or received) in a bandwidth
nominal maximum output power: maximum nominal mean power level per carrier of the user equipment available at
the antenna connector declared by the manufacturer; for equipment implementing dynamic change of modulation
format, it is intended as the maximum nominal mean power associated to the modulation format delivering the highest
power
receiver thermal noise power: equal to k×T×BW×F
ETSI
9 ETSI EN 301 908-19 V6.2.1 (2013-06)
WiMAX: trademarked name for the OFDMA TDD WMAN IMT technology
3.2 Symbols
For the purposes of the present document, the following symbols apply:
A Base Station Interface A
BS
A Mobile Station Interface A
MS
A Unit Under Test Interface A
UUT
BW Assigned channel bandwidth
dB Decibel
dBc Decibel relative to carrier
dBm Decibel relative to 1 milliwatt
f Frequency of measurement
f Centre frequency of the assigned channel
c
F Receiver noise figure
GHz GigaHertz
k Boltzmann's constant
M Base Station Interface M
BS
MHz MegaHertz
M Mobile Station Interface M
MS
N Maximum number of antennas in a multiple antenna configuration
N Receiver thermal noise power expressed in dBm
th
-6
P Receiver sensitivity level at BER ≤ 10 (or equivalent PER) performance, corresponding to the
SENS
most robust modulation and coding rate supported by the technology
-6
P Receiver sensitivity level at BER 10 for a 5 MHz channelized system, corresponding to the most
SENS5
robust modulation and coding rate supported by the technology
-6
P Receiver sensitivity level at BER 10 for a 10 MHz channelized system, corresponding to the
SENS10
most robust modulation and coding rate supported by the technology
Pnom Declared nominal maximum output Power
T Ambient temperature in Kelvin
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ACLR Adjacent Channel Leakage power Ratio
ACS Adjacent Channel Selectivity
BCI Band Class Index
BER Bit Error Ratio
BS Base Station
CW Continuous Wave
ERM Electromagnetic compatibility and Radio spectrum Matters
EUT Equipment Under Test
IMT International Mobile Telecommunications
MSG Mobile Standards Group
OFDMA Orthogonal Frequency Division Multiple Access
PER Packet Error Ratio
R&TTE Radio equipment and Telecommunications Terminal Equipment
RF Radio Frequency
RMS Root Mean Square
RRC Root Raised Cosine
TDD Time Division Duplexing
TFES Task Force for European Standards for IMT
UE User Equipment
UUT Unit Under Test
WMAN Wireless Metropolitan Area Network
ETSI
10 ETSI EN 301 908-19 V6.2.1 (2013-06)
4 Essential requirements specification
With reference to article 3.2 of 1999/5/EC Directive [i.2] the phenomena in this clause have been identified as relevant
to the essential requirements.
4.1 Environmental profile
The technical requirements of the present document apply under the environmental profile for operation of the
equipment, which shall be declared by the manufacturer. The equipment shall comply with all the technical
requirements of the present document at all times when operating within the boundary limits of the required operational
environmental profile.
4.2 Conformance requirements
This clause describes the conformance requirements for OFDMA TDD WMAN User Equipment.
4.2.1 Introduction
To meet the essential requirement under article 3.2 of Directive 1999/5/EC [i.2] (R&TTE Directive) for IMT-2000 User
Equipment (UE) seven essential parameters in addition to those in EN 301 908-1 [1] have been identified. Table 4.2.1-1
provides a cross reference between these seven essential parameters and the corresponding nine technical requirements
for equipment within the scope of the present document.
Table 4.2.1-1: Cross references
Essential parameter Corresponding technical requirements
Spectrum emissions mask 4.2.3 Transmitter Spectrum emissions mask
4.2.11 Transmitter adjacent channel leakage power ratio
Conducted spurious emissions in active mode 4.2.4 Transmitter spurious emissions
Accuracy of maximum output power 4.2.2 Transmitter maximum output power
Prevention of harmful interference through 4.2.5 Transmitter minimum output power
control of power
Conducted spurious emission in idle mode 4.2.10 Receiver spurious emissions
Impact of interference on receiver performance 4.2.7 Receiver Blocking characteristics
4.2.8 Receiver spurious response
4.2.9 Receiver Intermodulation characteristics
Receiver adjacent channel selectivity 4.2.6 Receiver Adjacent Channel Selectivity (ACS)
Control and Monitoring functions EN 301 908-1 [1], clause 4.2.4 Control and Monitoring
functions
4.2.2 Transmitter Maximum Output Power
4.2.2.1 Definition
The UE maximum output power is measured over total allocated channel bandwidth available at the antenna connector.
4.2.2.2 Limits
The UE maximum output power shall not exceed 26 dBm.
4.2.2.3 Conformance
Conformance tests described in clause 5.4.1 shall be carried out.
ETSI
11 ETSI EN 301 908-19 V6.2.1 (2013-06)
4.2.3 Transmitter Spectrum Emission Mask
4.2.3.1 Definition
Spectrum emission mask defines an out of band emission requirement for the transmitter. These out of band emissions
are unwanted emissions outside the channel bandwidth resulting from the modulation process and non-linearity in the
transmitter but excluding spurious emissions.
4.2.3.2 Limits
A UE transmitting on a single RF carrier configured in accordance with the manufacturer's specification shall not
exceed the allowed level specified in tables 4.2.3.2.1-1 to 4.2.3.2.2-4 for the relevant nominal channel bandwidth of
5 MHz or 10 MHz and the relevant BCI.
Integration bandwidth refers to the frequency range over which the emission power is integrated.
∆f is defined as the frequency offset in MHz from the channel centre frequency.
4.2.3.2.1 Requirements for 5 MHz channel bandwidth
Table 4.2.3.2.1-1: Spectrum Emission Mask for 5 MHz channel bandwidth – BCI 1.B and 3.A
Segment Offset from channel centre Integration Allowed emission level within the
number bandwidth integration bandwidth
frequency (Δf )
(MHz) (kHz) (dBm)
1 2,5 to < 3,5 50 -13,00
2 3,5 to < 7,5 1 000 -13,00
3 7,5 to < 8 500 -16,00
4 8 to < 10,4 1 000 -25,00
5 10,4 to < 12,5 1 000 -25,00
Table 4.2.3.2.1-2: Spectrum Emission Mask for 5 MHz channel bandwidth – BCI 5L.A and 5H.A
Segment Offset from channel centre Integration Allowed emission level within the
number bandwidth integration bandwidth
frequency (Δf )
(kHz) (dBm)
(MHz)
1 2,5 to < 3,5 30 -33,5 - 15(Δf - 2,5)
2 3,5 to < 7,5 1 000 -33,5 - 1(Δf - 3,5)
3 7,5 to < 8,5 1 000 -37,5 - 10(Δf - 7,5)
4 8,5 to < 12,5 1 000 -47,5
4.2.3.2.2 Requirements for 10 MHz channel bandwidth
Table 4.2.3.2.2-1: Spectrum emission mask for 10 MHz channel bandwidth – BCI 1.B and 3.A
Segment Offset from channel centre Integration Allowed emission level within the
number bandwidth integration bandwidth
frequency (Δf )
(kHz) (dBm)
(MHz)
1 5 to < 6 100 -13,00
2 6 to < 10 1 000 -13,00
3 10 to < 11 1 000 -13 - 12(Δf - 10)
4 11 to < 15 1 000 -25,00
5 15 to < 20 1 000 -25,00
6 20 to < 25 1 000 -25,00
ETSI
12 ETSI EN 301 908-19 V6.2.1 (2013-06)
Table 4.2.3.2.2-2: Spectrum Emission Mask for 10 MHz channel bandwidth – BCI 5L.C and 5H.C
Segment Offset from channel centre Integration Allowed emission level within the
number bandwidth integration bandwidth
frequency (Δf )
(kHz) (dBm)
(MHz)
1 5,0 to < 7,0 30
-33,5 - 9(Δf - 5,0)
2 7,0 to < 15,0 1 000 -36,5 - 0,5(Δf - 7,0)
3 15,0 to < 17,0 1 000
-40,5 - 5(Δf - 15,0)
4 17,0 to < 25,0 1 000 -50,5
4.2.3.3 Conformance
Conformance tests described in clause 5.4.2 shall be carried out.
4.2.4 Transmitter Spurious Emissions
4.2.4.1 Definition
Transmitter spurious emissions are emissions which are caused by unwanted transmitter effects such as harmonics
emission, parasitic emission, intermodulation products and frequency conversion products, but exclude out of band
emissions. The spurious emission limits are specified in terms of general requirements in line with
Recommendation ITU-R SM.329-12 [i.7] and frequency range specific requirements to address UE co-existence.
4.2.4.2 Limits
The limits of spurious emissions (or more precisely, according latest ITU-R definitions, unwanted emissions in the
spurious domain), shall conform to CEPT/ERC Recommendation 74-01 [2].
The following requirements in tables 4.2.4.2.1-1 and 4.2.4.2.2-1 are only applicable for frequencies, which are greater
than 250 % of the channel bandwidth (that is 12,5 MHz for the 5 MHz channel bandwidth and 25 MHz for the 10 MHz
channel bandwidth) away from the carrier centre frequency. In the following fc is the centre frequency of transmit signal
and f is the frequency of spurious emission.
4.2.4.2.1 Requirements for 5 MHz channel bandwidth
Table 4.2.4.2.1-1: Spurious Emission requirement for 5 MHz channel bandwidth
Segment Frequency Range Measurement Bandwidth Maximum allowed
level (dBm)
1 9 kHz ≤ f < 150 kHz 1 kHz -36
≤ f < 30 MHz
2 150 kHz 10 kHz -36
3 30 MHz ≤ f < 1 000 MHz 100 kHz -36
4 1 GHz ≤ f < f GHz -30
30 kHz If 12,5 ≤ |fc-f| < 50 MHz
MAX
300 kHz If 50 ≤ |fc-f| < 60 MHz
1 MHz If 60 ≤ |fc-f| MHz
NOTE: The maximum Segment 4 measurement frequency f , is 12,75 GHz for BCI 1.B, 13,45 GHz for BCI
MAX
3.A and 19 GHz for BCI 5L.A, 5L.C, 5H.A and 5H.C.
ETSI
13 ETSI EN 301 908-19 V6.2.1 (2013-06)
4.2.4.2.2 Requirements for 10 MHz channel bandwidth
Table 4.2.4.2.2-1: Spurious Emission requirement for 10 MHz channel bandwidth
Segment Frequency Range Measurement Bandwidth Maximum allowed level
(dBm)
9 kHz ≤ f < 150 kHz
1 1 kHz -36
2 150 kHz ≤ f < 30 MHz 10 kHz -36
3 30 MHz ≤ f < 1 000 MHz 100 kHz -36
4 1 GHz ≤ f < f GHz -30
30 kHz If 25 ≤ |fc-f| < 100 MHz
MAX
300 kHz If 100 ≤ |fc-f| < 120 MHz
1 MHz If 120 ≤ |fc-f| MHz
NOTE: The maximum Segment 4 measurement frequency f , is 12,75 GHz for BCI 1.B , 13,45 GHz for BCI
MAX
3.A and 19 GHz for BCI 5L.A, 5L.C, 5H.A and 5H.C.
4.2.4.2.3 Requirements for UE Coexistence
Table 4.2.4.2.3-1: Spurious Emission requirement for UE coexistence
Applicable BCI Spurious frequency (f) range Measurement Maximum Emission Level
(MHz) bandwidth (MHz) (dBm)
1.B, 5L.A, 5L.C, 5H.A and 1 -50
2 110 ≤ f < 2 170
5H.C
1.B, 5L.A, 5L.C, 5H.A and 1 -50
1 805 ≤ f < 1 880
5H.C
1.B, 5L.A, 5L.C, 5H.A and
2 496 ≤ f < 2 690 1 -50
5H.C
1.B, 5L.A, 5L.C, 5H.A and 925 ≤ f < 960 1 -50
5H.C
1.B, 5L.A, 5L.C, 5H.A and 1 900 ≤ f < 1 920 1 -50
5H.C
1.B, 5L.A, 5L.C, 5H.A and 1 -50
2 010 ≤ f < 2 025
5H.C
1.B, 5L.A, 5L.C, 5H.A and 1 -50
2 570 ≤ f < 2 620
5H.C
1.B, 5L.A, 5L.C, 5H.A and 1 -50
791 ≤ f < 821
5H.C
3.A 2 620 ≤ f < 2 690 1 -40
4.2.4.3 Conformance
Conformance tests described in clause 5.4.3 shall be carried out.
4.2.5 Transmitter Minimum Output Power
4.2.5.1 Definition
The UE minimum output power is measured over total allocated channel bandwidth available at the antenna connector
when the power is set to the minimum value.
4.2.5.2 Limits
The UE minimum output power shall not exceed -19 dBm.
4.2.5.3 Conformance
Conformance tests described in clause 5.4.1 shall be carried out.
ETSI
14 ETSI EN 301 908-19 V6.2.1 (2013-06)
4.2.6 Receiver Adjacent Channel Selectivity (ACS)
4.2.6.1 Definition
Adjacent Channel Selectivity (ACS) is a measure of a receiver's ability to receive a wanted signal at its assigned
channel frequency in the presence of an adjacent channel signal at a given frequency offset from the centre frequency of
the assigned channel. ACS is the interferer power level (in dBm) relative to thermal noise (N ).
th
4.2.6.2 Limits
Table 4.2.6.2-1 specifies the limits and the test parameters for the receiver ACS in the first adjacent channel and
nd
2 adjacent channels for 5 MHz and 10 MHz channel bandwidths. For an assigned channel bandwidth BW, the
interferer channel bandwidth is the same. The wanted and interferer power levels are evaluated over 95 % of the BW
centred on the wanted or adjacent channel as identified in table 4.2.6.2-1. The compliant system shall be able to meet a
-6
Bit Error Ratio (BER) < 10 (or equivalent PER) with the interference level in either the first adjacent or second
adjacent channel applied as specified in the table. Alternatively depending on packet sizes supported, equivalent Packet
Error Ratio (PER) criteria can be used.
Table 4.2.6.2-1: Limits and test parameters for receiver adjacent channel selectivity
st nd
Description In-channel
Interferer on 1 adjacent Interferer on 2 adjacent
channel channel
ACS limits (dB) 33 47
P + 3 N + 33 N + 47
Power (dBm)
SENS th th
Centre frequency (MHz) f f ± BW f ± 2 x BW
c c c
NOTE: N is the receiver thermal noise power of the equipment (in dBm) as declared by the manufacturer.
th
4.2.6.3 Conformance
Conformance tests described in clause 5.4.4 shall be carried out.
4.2.7 Receiver Blocking Characteristics
4.2.7.1 Definition
The blocking characteristic is a measure of the receiver's ability to receive a wanted signal at its assigned channel
frequency in the presence of an unwanted interferer on frequencies other than those of the spurious response or the
adjacent channels (first and second), without this unwanted input signal causing a degradation of the performance of the
receiver beyond a specified limit. The blocking performance shall apply at all frequencies except those at which a
spurious response occur.
-6
P , and P are the sensitivity levels at BER ≤ 10 , for 5 MHz, and 10 MHz channels respectively,
SENS5 SENS10
corresponding to the most robust modulation and coding rate supported by the user equipment. The wanted signal with
the most robust modulation and coding supported by the UE shall be used.
4.2.7.2 Limits
The wanted signal with the most robust modulation and coding supported by the UE shall be used.
-6
BER performance requirement at BER ≤ 10 (or equivalent PER) shall be met when the following signals are coupled to
UE antenna input:
- A wanted signal at the assigned channel frequency relevant to the specific BCI, with mean power 6 dB above
P .
SENS5
- Interfering signal with the parameters in table 4.2.7.2-1 relevant to the specific BCI.
ETSI
15 ETSI EN 301 908-19 V6.2.1 (2013-06)
Table 4.2.7.2-1: In Band Blocking for 5 MHz channel bandwidth
BCI Centre frequency of Interfering Minimum offset of Type of interfering
interfering signal signal mean interfering signal signal
power centre frequency from
the lower and upper
assigned channel
edge
1.B 2 302,5 MHz to 2 397,5 MHz -49 dBm 12,5 MHz Modulation and coding
3.A 2 502,5 MHz to 2 687,5 MHz equal to those of the
wanted signal
5L.A 3 402,5 MHz to 3 597,5 MHz
5H.A 3 602,5 MHz to 3 797,5 MHz
-6
BER performance requirement at BER ≤ 10 (or equivalent PER) shall be met when the following signals are coupled to
UE antenna input:
- A wanted signal at the assigned channel frequency relevant to the specific BCI, with mean power 6 dB above
P .
SENS10
- Interfering signal with the parameters in table 4.2.7.2-2 relevant to the specific BCI.
Table 4.2.7.2-2: In Band Blocking for 10 MHz channel bandwidth
BCI Centre frequency of Interfering Minimum offset of Type of interfering
interfering signal signal mean interfering signal signal
power centre frequency from
the lower and upper
assigned channel
edge
1.B 2 305 MHz to 2 395 MHz -49
...
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.PRELOQL:L0$;IMT cellular networks - Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive - Part 19: OFDMA TDD WMAN (Mobile WiMAX) TDD User Equipment (UE)33.070.99Druge mobilne storitveOther mobile services33.060.99Druga oprema za radijske komunikacijeOther equipment for radiocommunicationsICS:Ta slovenski standard je istoveten z:EN 301 908-19 Version 6.2.1SIST EN 301 908-19 V6.2.1:2013en01-oktober-2013SIST EN 301 908-19 V6.2.1:2013SLOVENSKI
STANDARD
ETSI EN 301 908-19 V6.2.1 (2013-06) IMT cellular networks; Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive; Part 19: OFDMA TDD WMAN (Mobile WiMAX) TDD User Equipment (UE)
Harmonized European Standard SIST EN 301 908-19 V6.2.1:2013
ETSI ETSI EN 301 908-19 V6.2.1 (2013-06)2
