Standards Content (Sample)

TECHNICAL SPECIFICATION
LTE;
Evolved Universal Terrestrial Radio Access (E-UTRA);
Base Station (BS) and repeater
ElectroMagnetic Compatibility (EMC)
(3GPP TS 36.113 version 15.4.0 Release 15)

3GPP TS 36.113 version 15.4.0 Release 15 1 ETSI TS 136 113 V15.4.0 (2019-10)

Reference
RTS/TSGR-0436113vf40
Keywords
LTE
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2019.
All rights reserved.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its Members.

3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and
of the oneM2M Partners. ®
GSM and the GSM logo are trademarks registered and owned by the GSM Association.
ETSI
3GPP TS 36.113 version 15.4.0 Release 15 2 ETSI TS 136 113 V15.4.0 (2019-10)

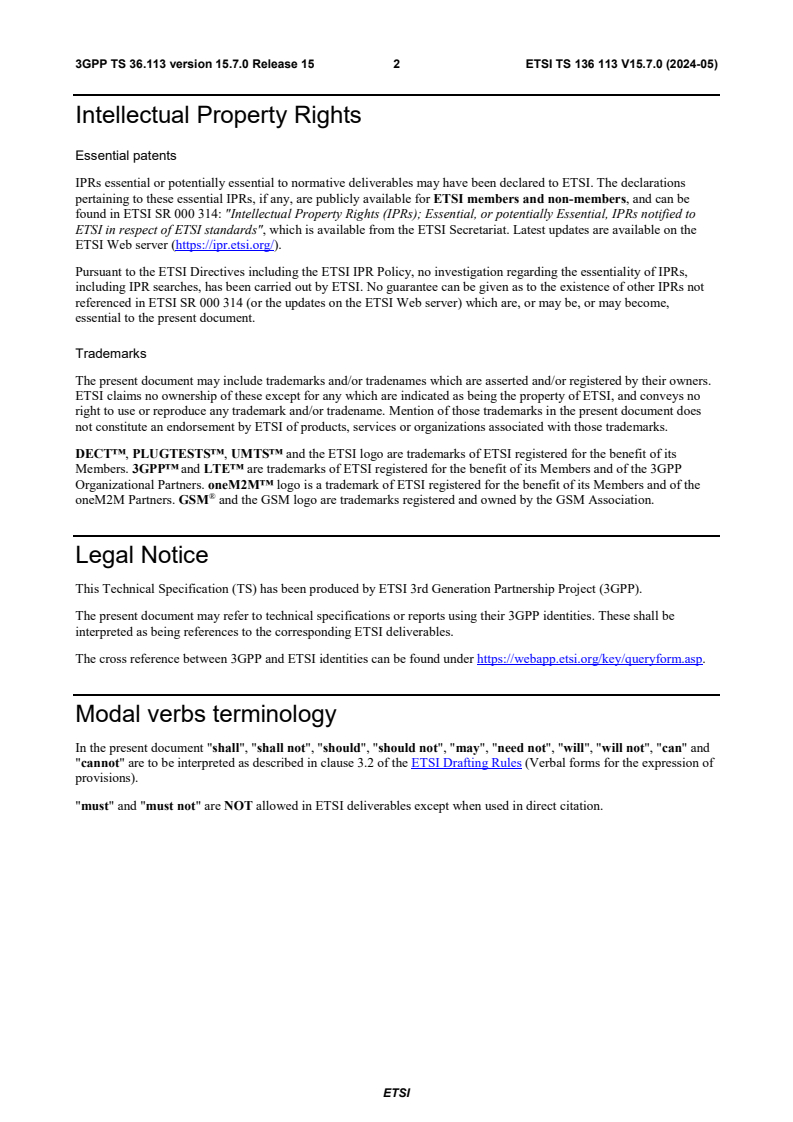

Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (https://ipr.etsi.org/).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
Legal Notice
This Technical Specification (TS) has been produced by ETSI 3rd Generation Partnership Project (3GPP).
The present document may refer to technical specifications or reports using their 3GPP identities. These shall be
interpreted as being references to the corresponding ETSI deliverables.
The cross reference between 3GPP and ETSI identities can be found under http://webapp.etsi.org/key/queryform.asp.
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI
3GPP TS 36.113 version 15.4.0 Release 15 3 ETSI TS 136 113 V15.4.0 (2019-10)
Contents
Intellectual Property Rights . 2
Legal Notice . 2
Modal verbs terminology . 2
Foreword . 5
1 Scope . 6
2 References . 6
3 Definitions, symbols and abbreviations . 7
3.1 Definitions . 7
3.2 Symbols . 10
3.3 Abbreviations . 10
4 Test conditions . 10
4.1 General . 10
4.2 Arrangements for establishing a communication link . 10
4.2.1 Multiple enclosure BS solution . 11
4.3 Narrow band responses on receivers . 11
4.4 Test condition for Repeater . 11
4.4.1 Arrangements for test signals for repeaters . 11
4.5 Exclusion bands . 12
4.5.1 Transmitter exclusion band . 12
4.5.2 Receiver exclusion band . 12
4.6 BS test configurations . 12
5 Performance assessment . 13
5.1 General . 13
5.2 Assessment of throughput in Downlink . 13
5.3 Assessment of throughput in Uplink . 13
5.4 Ancillary equipment . 14
5.5 Repeaters . 14
6 Performance Criteria . 14
6.1 Performance criteria for continuous phenomena for BS . 14
6.2 Performance criteria for transient phenomena for BS . 15
6.3 Performance criteria for continuous phenomena for Ancillary equipment . 17
6.4 Performance criteria for transient phenomena for Ancillary equipment . 17
6.5 Performance criteria for continuous phenomena for repeaters . 17
6.6 Performance criteria for transient phenomena for repeaters . 17
7 Applicability overview . 18
7.1 Emission . 18
7.2 Immunity . 18
7.3 Applicability of requirements in TS 37.113 . 19
8 Emission . 19
8.1 Test configurations . 19
8.2 Radiated emission from Base station, Repeater and ancillary equipment . 20
8.2.1 Radiated emission, Base stations and Repeater . 20
8.2.1.1 Definition . 20
8.2.1.2 Test method . 20
8.2.1.3 Limits . 21
8.2.1.4 Interpretation of the measurement results . 21
8.2.2 Radiated emission, Ancillary equipment . 22
8.2.2.1 Definition . 22
8.2.2.2 Test method . 22
8.2.2.3 Limits . 22
8.3 Conducted emission DC power input/output port . 22
ETSI
3GPP TS 36.113 version 15.4.0 Release 15 4 ETSI TS 136 113 V15.4.0 (2019-10)
8.3.1 Definition . 22
8.3.2 Test method . 23
8.3.3 Limits . 23
8.4 Conducted emissions, AC mains power input/output port . 23
8.4.1 Definition . 23
8.4.2 Test method . 23
8.4.3 Limits . 23
8.5 Harmonic Current emissions (AC mains input port) . 24
8.6 Voltage fluctuations and flicker (AC mains input port) . 24
8.7 Telecommunication ports . 24
8.7.1 Definition . 24
8.7.2 Test method . 24
8.7.3 Limits . 25
9 Immunity . 25
9.1 Test methods and levels for immunity tests . 25
9.2 Test configurations . 25
9.3 RF electromagnetic field (80 MHz - 6000 MHz) . 26
9.3.1 Definition . 26
9.3.2 Test method and level . 26
9.3.3 Performance criteria . 27
9.4 Electrostatic discharge . 27
9.4.1 Definition . 27
9.4.2 Test method and level . 27
9.4.3 Performance criteria . 27
9.5 Fast transients common mode . 27
9.5.1 Definition . 28
9.5.2 Test method and level . 28
9.5.3 Performance criteria . 28
9.6 RF common mode (0,15 MHz - 80 MHz) . 28
9.6.1 Definition . 28
9.6.2 Test method and level . 28
9.6.3 Performance criteria . 29
9.7 Voltage dips and interruptions . 29
9.7.1 Definition . 29
9.7.2 Test method and level . 29
9.7.3 Performance criteria . 29
9.8 Surges, common and differential mode . 30
9.8.1 Definition . 30
9.8.2 Test method and level . 30
9.8.2.1 Test method for telecommunication ports directly connected to outdoor cables . 30
9.8.2.2 Test method for telecommunication ports connected to indoor cables . 30
9.8.2.3 Test method for AC power ports . 31
9.8.3 Performance criteria . 31
Annex A (informative): Change history . 32
History . 34

ETSI
3GPP TS 36.113 version 15.4.0 Release 15 5 ETSI TS 136 113 V15.4.0 (2019-10)
Foreword
rd
This Technical Specification has been produced by the 3 Generation Partnership Project (3GPP).
The contents of the present document are subject to continuing work within the TSG and may change following formal
TSG approval. Should the TSG modify the contents of the present document, it will be re-released by the TSG with an
identifying change of release date and an increase in version number as follows:
Version x.y.z
where:
x the first digit:
1 presented to TSG for information;
2 presented to TSG for approval;
3 or greater indicates TSG approved document under change control.
y the second digit is incremented for all changes of substance, i.e. technical enhancements, corrections,
updates, etc.
z the third digit is incremented when editorial only changes have been incorporated in the document.
ETSI
3GPP TS 36.113 version 15.4.0 Release 15 6 ETSI TS 136 113 V15.4.0 (2019-10)
1 Scope
The present document covers the assessment of E-UTRA, E-UTRA with NB-IoT or NB-IoT base stations, repeaters and
associated ancillary equipment in respect of Electromagnetic Compatibility (EMC).
The present document specifies the applicable test conditions, performance assessment and performance criteria for E-
UTRA, E-UTRA with NB-IoT or NB-IoT base stations, repeaters and associated ancillary equipment in one of the
following categories:
- base sations of E-UTRA, E-UTRA with NB-IoT or NB-IoT meeting the requirements of TS 36.104 [2], with
conformance demonstrated by compliance to TS 36.141 [3].
- repeaters of E-UTRA meeting the requirements of TS 36.106 [4], with conformance demonstrated by
compliance to TS 36.143 [5].
Technical requirements related to the antenna port of E-UTRA, E-UTRA with NB-IoT or NB-IoT base stations or
repeaters are not included in the present document. These are found in the relevant product standards [2-5].
The environment classification used in the present document refers to the residential, commercial and light industrial
environment classification used in IEC 61000-6-1 [6] and IEC 61000-6-3 [7].
The EMC requirements have been selected to ensure an adequate level of compatibility for apparatus at residential,
commercial and light industrial environments. The levels, however, do not cover extreme cases which may occur in any
location but with low probability of occurrence.
2 References
The following documents contain provisions which, through reference in this text, constitute provisions of the present
document.
- References are either specific (identified by date of publication, edition number, version number, etc.) or
non-specific.
- For a specific reference, subsequent revisions do not apply.
- For a non-specific reference, the latest version applies. In the case of a reference to a 3GPP document (including
a GSM document), a non-specific reference implicitly refers to the latest version of that document in the same
Release as the present document.
[1] 3GPP TR 21.905: "Vocabulary for 3GPP Specifications".
[2] 3GPP TR 36.104: "Evolved Universal Terrestrial Radio Access (E-UTRA); Base Station (BS)
radio transmission and reception".
[3] 3GPP TR 36.141: "Evolved Universal Terrestrial Radio Access (E-UTRA); Base Station (BS)
conformance testing ".
[4] 3GPP TR 36.106: "Evolved Universal Terrestrial Radio Access (E-UTRA); Repeater radio
transmission and reception".
[5] 3GPP TR 36.143: "Evolved Universal Terrestrial Radio Access (E-UTRA); Repeater conformance
testing ".
[6] IEC 61000-6-1: 2005; "Electromagnetic compatibility (EMC) - Part 6: Generic standards - Section
1: Immunity for residential, commercial and light-industrial environments".
[7] IEC 61000-6-3:2006/AMD1:2010: "Electromagnetic compatibility (EMC) - Part 6: Generic
standards - Section 3: Emission standard for residential, commercial and light industrial
environments".
[8] IEC 60050(161): "International Electrotechnical Vocabulary - Chapter 161: Electromagnetic
compatibility".
ETSI
3GPP TS 36.113 version 15.4.0 Release 15 7 ETSI TS 136 113 V15.4.0 (2019-10)
[9] 3GPP TR 36.101: "Evolved Universal Terrestrial Radio Access (E-UTRA); User Equipment (UE)
radio transmission and reception".
[10] ITU-R Rec. SM.329: "Unwanted emissions in the spurious domain".
[11] Void
[12] Void
[13] IEC 61000-3-2 (2004): "Electromagnetic compatibility (EMC) - Part 3: Limits - Section 2: Limits
for harmonic current emissions (equipment input current ≤ 16 A)".
[14] IEC 61000-3-12 (2005): "Electromagnetic compatibility (EMC) - Part 3-12: Limits- Limits for
harmonic current produced by equipment connected to public low-voltage system with input
current >16 A and ≤ 75 A.
[15] IEC 61000-3-3 (2002): "Electromagnetic compatibility (EMC) - Part 3: Limits - Section 3:
Limitation of voltage fluctuations and flicker in low-voltage supply systems for equipment with
rated current ≤ 16 A".
[16] IEC 61000-3-11 (2000): "Electromagnetic compatibility (EMC) - Part 3-11: Limits –Limitation of
≤
voltage fluctuations and flicker in low-voltage supply systems for equipment with rated current
75 A and subject to conditional connections".
[17] IEC 61000-4-3: "Electromagnetic compatibility (EMC) - Part 4: Testing and measurement
techniques - Section 3: Radiated, radio-frequency electromagnetic field immunity test".
[18] IEC 61000-4-2: "Electromagnetic compatibility (EMC) - Part 4: Testing and measurement
techniques - Section 2: Electrostatic discharge immunity test".
[19] IEC 61000-4-4: "Electromagnetic compatibility (EMC) - Part 4: Testing and measurement
techniques - Section 4: Electrical fast transient/burst immunity test".
[20] IEC 61000-4-6: "Electromagnetic compatibility (EMC) - Part 4: Testing and measurement
techniques - Section 6: Immunity to contacted disturbances, induced by radio frequency fields".
[21] IEC 61000-4-11: "Electromagnetic compatibility (EMC) - Part 4: Testing and measurement
techniques - Section 11: Voltage dips, short interruptions and voltage variations. Immunity tests".
[22] IEC 61000-4-5: "Electromagnetic compatibility (EMC) - Part 4: Testing and measurement
techniques - Section 5: Surge immunity test".
[23] ITU-R Recommendation SM.1539 (2001): "Variation of the boundary between the out-of-band
and spurious domains required for the application of Recommendations ITU-R SM.1541 and ITU-
R SM.329".
[24] 3GPP TS 37.113: "E-UTRA, UTRA and GSM/EDGE; Multi-Standard Radio (MSR) Base Station
(BS) Electromagnetic Compatibility (EMC)".
[25] CISPR 32: "Electromagnetic compatibility of multimedia equipment - Emission requirements".
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in TR 21.905 [1] and the following apply. A
term defined in the present document takes precedence over the definition of the same term, if any, in TR 21.905 [1].
Ancillary equipment: Equipment (apparatus), used in connection with a receiver, transmitter or transceiver is
considered as an ancillary equipment (apparatus) if:
ETSI
3GPP TS 36.113 version 15.4.0 Release 15 8 ETSI TS 136 113 V15.4.0 (2019-10)
- the equipment is intended for use in conjunction with a receiver, transmitter or transceiver to provide additional
operational and/or control features to the radio equipment, (e.g. to extend control to another position or location);
and
- the equipment cannot be used on a stand-alone basis to provide user functions independently of a receiver,
transmitter or transceiver; and
- the receiver, transmitter or transceiver to which it is connected, is capable of providing some intended operation
such as transmitting and/or receiving without the ancillary equipment (i.e. it is not a sub-unit of the main
equipment essential to the main equipment basic functions).
Base Station equipment: Radio and/or ancillary equipment intended for operation at a fixed location and powered
directly or indirectly (e.g. via an AC/DC converter or power supply) by AC mains network, or an extended local DC
mains network.
Channel bandwidth: The RF bandwidth supporting a single E-UTRA RF carrier with the transmission bandwidth
configured in the uplink or downlink of a cell. The channel bandwidth is measured in MHz and is used as a reference
for transmitter and receiver RF requirements.
Continuous phenomena (continuous disturbance): Electromagnetic disturbance, the effects of which on a particular
device or equipment cannot be resolved into a succession of distinct effects (IEC 60050-161 [8]).
Maximum throughput: The maximum achievable throughput for a reference measurement channel.
Multi-band Base Station: Base Station characterized by the ability of its transmitter and/or receiver to process two or
more carriers in common active RF components simultaneously, where at least one carrier is configured at a different
non-overlapping operating band than the other carrier(s).
NB-IoT In-band operation: NB-IoT is operating in-band when it utilizes the resource block(s) within a normal E-
UTRA carrier
NB-IoT guard band operation: NB-IoT is operating in guard band when it utilizes the unused resource block(s) within
a E-UTRA carrier's guard-band.
NB-IoT standalone operation: NB-IoT is operating standalone when it utilizes its own spectrum, for example the
spectrum currently being used by GERAN systems as a replacement of one or more GSM carriers, as well as scattered
spectrum for potential IoT deployment.
Radio communications equipment : Telecommunications equipment which includes one or more transmitters and/or
receivers and/or parts thereof for use in a fixed, mobile or portable application. It can be operated with ancillary
equipment but if so, is not dependent on it for basic functionality.
Radio equipment: Equipment which contains Radio digital unit and Radio unit.
Radio digital unit: Equipment which contains base band and functionality for controlling Radio unit.
Radio unit: Equipment which contains transmitter and/or receiver.
receiver exclusion band: Band of frequencies over which no tests of radiated immunity of a receiver are made, and is
expressed relative to the BS receive band.
Port: A particular interface, of the specified equipment (apparatus), with the electromagnetic environment. For
example, any connection point on an equipment intended for connection of cables to or from that equipment is
considered as a port (see Figure 3.1.1).
Receiver exclusion band: The receiver exclusion band is the band of frequencies over which no tests of radiated
immunity of a receiver are made. The exclusion band for receivers is expressed relative to the base station receive band.
Repeater: A device that receives, amplifies and transmits the radiated or conducted RF carrier both in the down-link
direction (from the base station to the mobile area) and in the up-link direction (from the mobile to the base station). In
operating bands specified with only down-link or up-link, only the up-link or down-link as specified for the operating
band is repeated.
Signal and control : Port which carries information or control signals, excluding antenna ports.
ETSI
3GPP TS 36.113 version 15.4.0 Release 15 9 ETSI TS 136 113 V15.4.0 (2019-10)
Telecommunication port: Ports which are intended to be connected to telecommunication networks (e.g. public
switched telecommunication networks, integrated services digital networks), local area networks (e.g. Ethernet, Token
Ring) and similar networks.
Throughput: The number of payload bits successfully received per second for a reference measurement channel in a
specified reference condition.
Transient phenomena: Pertaining to or designating a phenomena or a quantity which varies between two consecutive
steady states during a time interval short compared with the time-scale of interest (IEC 60050-161 [8]).
Transmitter exclusion band: Band of frequencies over which no tests of radiated immunity of a transmitter are made
and is expressed relative to the carrier frequencies used (the carrier frequencies of the base stations activated
transmitter(s)).
Enclosure Port
AC power port Antenna port
DC power port Signal/control port
Apparatus
Earth port
Telecommunication port
Figure 3.1.1: Examples of ports

BS Equipment
Radio
Equipment
Figure 3.1.2: BS with single enclosure solution
BS Equipment
Radio Equipment
Radio
digital
Radio unit
unit
Figure 3.1.3: BS with multiple enclosure solution
ETSI
3GPP TS 36.113 version 15.4.0 Release 15 10 ETSI TS 136 113 V15.4.0 (2019-10)
3.2 Symbols
For the purposes of the present document, the following symbols apply:
BW Channel bandwidth
Channel
Δf Maximum offset of the out-of-band boundary from the uplink operating band edge
OOB
F The lowest frequency of the uplink operating band
UL,low
F The highest frequency of the uplink operating band
UL,high
3.3 Abbreviations
For the purposes of the present document, the abbreviations given in TR 21.905 [1] and the following apply. An
abbreviation defined in the present document takes precedence over the definition of the same abbreviation, if any, in
TR 21.905 [1].
AC Alternating Current
AMN Artificial Mains Network
CDN Coupling/Decoupling Network
DC Direct Current
E-UTRA Evolved Universal Terrestrial Radio Access
EMC Electromagnetic Compatibility
EPC Evolved Packet Core
ESD Electrostatic Discharge
EUT Equipment Under Test
FRC Fixed Reference Channel
NB-IoT Narrowband – Internet of Things
RF Radio frequency
rms root mean square
SDL Supplementary Downlink
4 Test conditions
4.1 General
The equipment shall be tested in normal test environment defined in base station conformance testing specification TS
36.141 [3] or in the E-UTRA repeater conformance testing specification TS 36.143 [5]. The test conditions shall be
recorded in the test report.
For an EUT which contains more than one BS, it is sufficient to perform tests relating to each type of port of each
representative type of the BS forming part of the EUT.
For BS capable of multi-band operation, the requirements in the present document apply for each supported operating
band unless otherwise stated. Operating bands shall be activated according to the test configuration in subclause 4.6.
Tests shall be performed relating to each type of port and all bands shall be assessed during the tests.
4.2 Arrangements for establishing a communication link
The wanted RF input signal nominal frequency shall be selected by setting the E-UTRA Absolute Radio Frequency
Channel Number (EARFCN) to an appropriate number.
A communication link shall be set up with a suitable test system capable of evaluating the required performance criteria
(hereafter called "the test system") at the air interface and/or the S1 interface. The test system shall be located outside of
the test environment.
When the EUT is required to be in the transmit/receive mode, the following conditions shall be met:
ETSI
3GPP TS 36.113 version 15.4.0 Release 15 11 ETSI TS 136 113 V15.4.0 (2019-10)
- the EUT shall be commanded to operate at maximum rated transmit power;
- Adequate measures shall be taken to avoid the effect of the unwanted signal on the measuring equipment;
- The wanted input signal level shall be set to a level where the performance is not limited by the receiver noise
floor or strong signal effects e.g.15 dB above the reference sensitivity level as defined in TS 36.141 [3] to
provide a stable communication link.
For immunity tests subclause 4.3 shall apply and the conditions shall be as follows.
4.2.1 Multiple enclosure BS solution
For a BS with multiple enclosures, the BS part with Radio digital unit and the Radio unit may be tested separately.
Communication link shall be set up in the same way as if they are in single BS enclosure. The Radio Digital unit and
the Radio unit shall communicate over an interface enabling establishment of a communication link.
4.3 Narrow band responses on receivers
Responses on receivers or duplex transceivers occurring during the immunity test at discrete frequencies which are
narrow band responses (spurious responses), are identified by the following method:
- if during an immunity test the quantity being monitored goes outside the specified tolerances (clause 6), it is
necessary to establish whether the deviation is due to a narrow band response or to a wide band (EMC)
phenomenon. Therefore, the test shall be repeated with the unwanted signal frequency increased, and then
decreased by 2 x BW MHz, where BW is the channel bandwidth as defined in TS 36.104 [2];
Channel Channel
- if the deviation disappears in either or both of the above 2 x BW MHz offset cases, then the response is
Channel
considered as a narrow band response;
- if the deviation does not disappear, this may be due to the fact that the offset has made the frequency of the
unwanted signal correspond to the frequency of another narrow band response. Under these circumstances the
procedure is repeated with the increase and decrease of the frequency of the unwanted signal set to 2.5 x
BW MHz;
Channel
- if the deviation does not disappear with the increased and/or decreased frequency, the phenomenon is considered
wide band and therefore an EMC problem and the equipment fails the test.
Narrow band responses are disregarded.
For BS capable of multi-band operation, all supported operating bands shall be considered for narrowband responses.
4.4 Test condition for Repeater
The wanted RF input signal nominal frequency shall be selected by setting the Absolute Radio Frequency Channel
Number (ARFCN) to an appropriate number within the operating band of the Repeater.
The Repeater path shall be tested with a suitable test system capable of measuring RF performance criteria (hereafter
called "the test system"). The test system shall be located outside of the test environment.
When the EUT is required to be in the operational mode, the following conditions shall be met:
- the EUT shall be commanded to operate at maximum rated gain;
- Adequate measures shall be taken to avoid the effect of the unwanted signal on the measuring equipment;
For immunity tests conditions subclause 4.3 shall apply.
4.4.1 Arrangements for test signals for repeaters
For immunity tests of repeaters, the wanted RF input signal shall be coupled to one antenna port at a level which will
result, when measured, in the maximum rated RF output power per channel, as declared by the manufacturer. The test
ETSI
3GPP TS 36.113 version 15.4.0 Release 15 12 ETSI TS 136 113 V15.4.0 (2019-10)
shall either be repeated with a wanted signal coupled to the other antenna port, or a single test shall be performed with
the specified input signals being simultaneously coupled to both antenna ports.
4.5 Exclusion bands
4.5.1 Transmitter exclusion band
For the purpose of EMC specifications there shall be a transmitter exclusion band.
- Lower carrier frequency used - 2.5 x BW MHz to upper carrier frequency used + 2.5 x BW MHz,
Channel Channel
where BW is the channel bandwidth as defined in TS 36.104 [2].
Channel
4.5.2 Receiver exclusion band
The receiver exclusion band for base stations is the frequency range over which no tests of radiated immunity of a
receiver are made. The receiver exclusion band is defined as:
F – Δf < f < F + Δf
UL,low OOB UL,high OOB
Where:
Values of FUL,low and FUL,high are defined for each operating band in TS 36.104 [2], subclause 5.5.
For E-UTRA, the value of Δf is 20 MHz.
OOB
For BS capable of multi-band operation, the total receiver exclusion band shall be the combination of the exclusion
bands for each operating band supported by the BS.
NOTE 1: The receiver exclusion bands do not apply for SDL bands.
NOTE 2: The receiver exclusion bands do not apply for Band 47.
4.6 BS test configurations
The present clause defines the BS test configurations that shall be used for demonstrating conformance. A single
E-UTRA carrier shall be used for testing of single-carrier capable BS. For other E-UTRA BS types, the test
configurations in Table 4.6.1 shall be used. The test configurations (ETCx) are defined in TS 36.141 [3], subclause
4.10.
Table 4.6.1: Test configurations for E-UTRA BS
BS test case BS capable of multi- BS capable of multi-
carrier and/or CA carrier and/or CA
operation in operation in both BS capable of multi-
contiguous contiguous and non- band operation
spectrum in single contiguous spectrum
band only in single band
Emission tests ETC1 ETC3 ETC1/3 (Note 1), ETC5
Immunity tests ETC1 ETC3 ETC1/3 (Note 1), ETC5
NOTE 1: ETC1 or ETC3 shall be applied in each supported operating band according to the
nd rd
respective capability in each band, as defined in the 2 and 3 column of the table.

A NB-IoT standalone single carrier shall be used for testing of BS declared to be capable of single carrier operation
only. For other NB-IoT BS types, the test configurations in Table 4.6.1a shall be used. The test configurations (ETCx)
are defined in TS 36.141 [3], subclause 4.10.
ETSI
3GPP TS 36.113 version 15.4.0 Release 15 13 ETSI TS 136 113 V15.4.0 (2019-10)
Table 4.6.1a: Test configurations for NB-IoT BS
BS test case NB-IoT standalone E-UTRA and NB-IoT E-UTRA with NB-IoT E-UTRA with NB-IoT
BS capable of standalone BS operating in-band operating in guard band or
multi-carrier in capable of multi- BS capable of multi- NB-IoT operating in-band
contiguous carrier in contiguous carrier in and in guard band BS
spectrum in single spectrum in single contiguous capable of multi-carrier in
band only band only spectrum in single contiguous spectrum in
band only single band only
Emission tests ETC6 ETC7 ETC8 ETC9
Immunity tests ETC6 ETC7 ETC8 ETC9

5 Performance assessment
5.1 General
Following information shall be recorded in or annexed to the test report:
- the primary functions of the radio equipment to be tested during and after the EMC testing;
- the intended functions of the radio equipment which shall be in accordance with the documentation
accompanying the equipment;
- the method to be used to verify that a communications link is established and maintained;
- the user-control functions and stored data that are required for normal operation and the method to be used to
assess whether these have been lost after EMC stress;
- the ancillary equipment to be combined with the radio equipment for testing (where applicable);
- the information about ancillary equipment intended to be used with the radio equipment;
- information about the common and/or band-specific active RF components and other HW blocks for a
communication link in BS capable of multi-band operation;
- an exhaustive list of ports, classified as either power or signal/control. Power ports shall further be classified as
AC or DC power.
Performance assessment of a BS with multiple enclosures may be done separately for the BS part with the Radio digital
unit and the Radio unit respectively, according to the manufacturer's choice.
A communication link used by more than one operating band shall be assessed on all operating bands. Communication
link(s) and/or radio performance parameters for the operating bands can during the test be assessed simultaneously or
separately for each band, depending on the test environment capability.
5.2 Assessment of throughput in Downlink
The output of the transmitter shall be connected to an equipment which meet the requirements for the throughput
assessment of TS 36.101 [9] for the bearer used in the immunity tests. The level of the signal supplied to the equipment
should be within the range for which the assessment of throughput is not impaired. Power control shall be off during the
immunity testing.
5.3 Assessment of throughput in Uplink
The value of the throughput at the output of the receiver shall be monitored at S1 interface by using suitable test
equipment.
ETSI
---------------
...
