ETSI TS 102 871-3 V1.1.1 (2011-06)

Intelligent Transport Systems (ITS); Testing; Conformance test specifications for GeoNetworking ITS-G5; Part 3: Abstract Test Suite (ATS) and Protocol Implementation eXtra Information for Testing (PIXIT)

DTS/ITS-0030013

General Information

• Status: Published
• Publication Date: 13-Jun-2011
• Technical Committee: ITS WG3 - Transport and Network
• Current Stage: 12 - Completion
• Due Date: 27-Jun-2011
• Completion Date: 14-Jun-2011
• Mandate: M/453

Standards Content (Sample)

Technical Specification
Intelligent Transport Systems (ITS);
Testing;
Conformance test specification for GeoNetworking ITS-G5;
Part 3: Abstract Test Suite (ATS) and Protocol Implementation
eXtra Information for Testing (PIXIT)

�

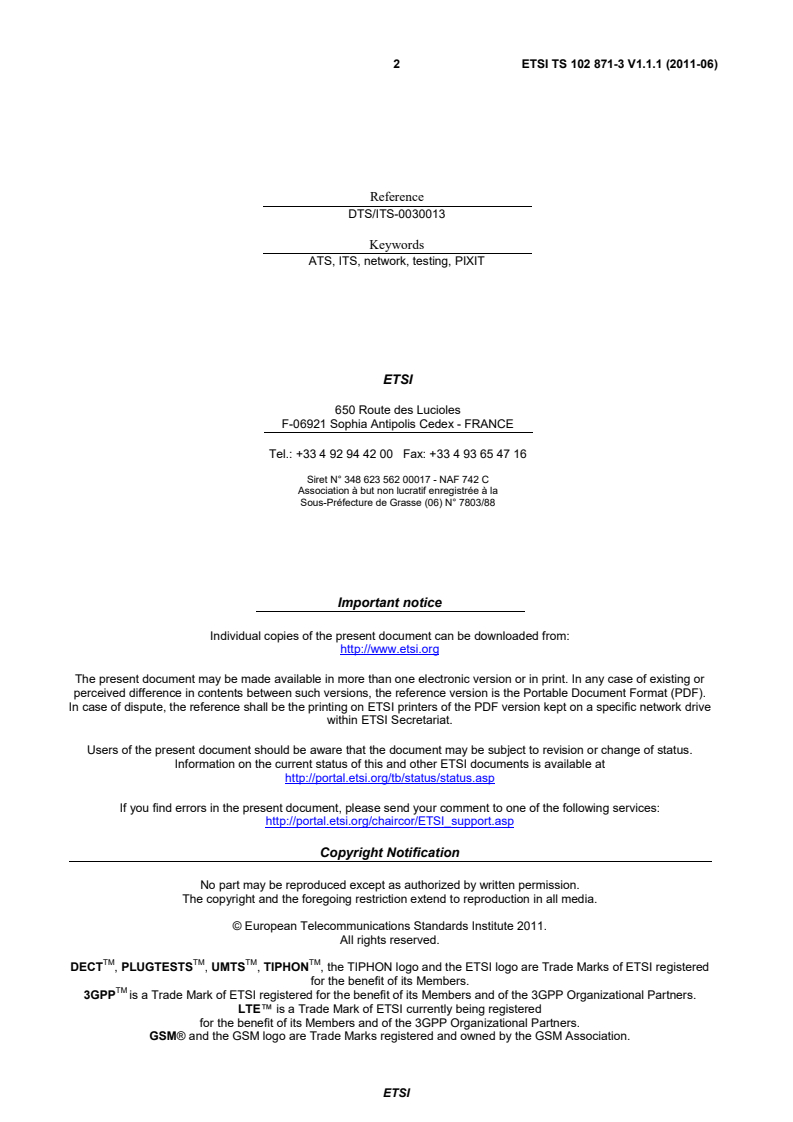

2 ETSI TS 102 871-3 V1.1.1 (2011-06)

Reference
DTS/ITS-0030013
Keywords
ATS, ITS, network, testing, PIXIT
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2011.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI TS 102 871-3 V1.1.1 (2011-06)
Contents
Intellectual Property Rights . 5
Foreword . 5
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 6
3 Definitions and abbreviations . 7
3.1 Definitions . 7
3.2 Abbreviations . 7
4 Abstract Test Method (ATM) . 7
4.1 Abstract protocol tester . 7
4.2 Test Configuration . 8
4.2.1 Test configuration CF01 . 9
4.2.2 Test configuration CF02 . 10
4.2.3 Test configuration CF03 . 11
4.2.4 Test configuration CF04 . 12
4.3 Test architecture . 12
4.4 Ports and ASPs (Abstract Services Primitives) . 13
4.4.1 Primitives of the geoNetworkingPort . 14
4.4.2 Primitives of the utPort . 14
4.4.3 Primitives of the taPort . 14
5 Untestable Test Purposes. 14
6 ATS conventions . 14
6.1 Testing conventions . 15
6.1.1 Testing states . 15
6.1.1.1 Initial state . 15
6.1.1.2 Final state . 15
6.2 Naming conventions . 15
6.2.1 General guidelines . 15
6.2.2 ITS specific TTCN-3 naming conventions . 16
6.2.3 Usage of Log statements . 17
6.2.4 Test Case (TC) identifier . 17
6.3 On line documentation . 18
Annex A (normative): TTCN-3 library modules . 19
A.1 Electronic annex, zip file with TTCN-3 code . 19
A.2 Electronic annex, zip file with HTML documentation . 19
Annex B (normative): Partial PIXIT proforma for Geonetworking . 20
B.1 Identification summary. 20
B.2 ATS summary . . 20
B.3 Test laboratory . 20
B.4 Client identification . 21
B.5 SUT . 21
B.6 Protocol layer information. 21
B.6.1 Protocol identification . 21
B.6.2 IUT information . 22
ETSI
4 ETSI TS 102 871-3 V1.1.1 (2011-06)
Annex C (normative): PCTR Proforma for Geonetworking . 24
C.1 Identification summary. 24
C.1.1 Protocol conformance test report . 24
C.1.2 IUT identification . 24
C.1.3 Testing environment . 24
C.1.4 Limits and reservation . 25
C.1.5 Comments. 25
C.2 IUT Conformance status . 25
C.3 Static conformance summary . 25
C.4 Dynamic conformance summary . 26
C.5 Static conformance review report . 26
C.6 Test campaign report . 27
C.7 Observations . 29
History . 30

ETSI
5 ETSI TS 102 871-3 V1.1.1 (2011-06)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Technical Specification (TS) has been produced by ETSI Technical Committee Intelligent Transport System (ITS).
The present document is part 3 of a multi-part deliverable covering Conformance test specification for Geonetworking
ITS-G5 as identified below:
Part 1: "Test requirements and Protocol Implementation Conformance Statement (PICS) proforma";
Part 2: "Test Suite Structure and Test Purposes (TSS&TP)";
Part 3: "Abstract Test Suite (ATS) and Protocol Implementation eXtra Information for Testing (PIXIT)".
The development of ITS test specifications follows the guidance provided in the EG 202 798 [i.2]. Therefore this ATS
documentation is also based on the guidance provided in EG 202 798 [i.2].
ETSI
6 ETSI TS 102 871-3 V1.1.1 (2011-06)
1 Scope
The present document contains the Abstract Test Suite (ATS) for Geonetworking ITS-G5 as defined in
TS 102 636-4-1 [1] and TS 102 636-4-2 [i.1] in compliance with the relevant requirements and in accordance with the
relevant guidance given in ISO/IEC 9646-7 [5].
The objective of the present document is to provide a basis for conformance tests for Geonetworking ITS-G5 equipment
giving a high probability of inter-operability between different manufacturer's equipment.
The ISO standard for the methodology of conformance testing (ISO/IEC 9646-1 [2] and ISO/IEC 9646-2 [3]) as well as
the ETSI rules for conformance testing (ETS 300 406 [6]) are used as a basis for the test methodology.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ETSI TS 102 636-4-1 (V1.1.1): "Intelligent Transport System (ITS); Vehicular communications;
GeoNetworking; Part 4: Geographical addressing and forwarding for point-to-point and
point-to-multipoint communications; Sub-part 1: Media independent functionalities".
[2] ISO/IEC 9646-1 (1994): "Information technology - Open Systems Interconnection - Conformance
testing methodology and framework - Part 1: General concepts".
[3] ISO/IEC 9646-2 (1994): "Information technology - Open Systems Interconnection - Conformance
testing methodology and framework - Part 2: Abstract Test Suite specification".
[4] ISO/IEC 9646-6 (1994): "Information technology - Open Systems Interconnection - Conformance
testing methodology and framework - Part 6: Protocol profile test specification".
[5] ISO/IEC 9646-7 (1995): "Information technology - Open Systems Interconnection - Conformance
testing methodology and framework - Part 7: Implementation Conformance Statements".
[6] ETSI ETS 300 406 (1995): "Methods for testing and Specification (MTS); Protocol and profile
conformance testing specifications; Standardization methodology".
[7] ETSI ES 201 873-1: "Methods for Testing and Specification (MTS); The Testing and Test Control
Notation version 3; Part 1: TTCN-3 Core Language".
[8] ETSI ES 201 873-7: "Methods for Testing and Specification (MTS); The Testing and Test Control
Notation version 3; Part 7: Using ASN.1 with TTCN-3".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI TS 102 636-4-2: "Intelligent Transport Systems (ITS); Vehicular Communications;
GeoNetworking; Part 4: Geographical addressing and forwarding for point-to-point and
point-to-multipoint communications; Sub-part 2: Media dependent functionalities for ITS-G5A
media".
ETSI
7 ETSI TS 102 871-3 V1.1.1 (2011-06)
[i.2] ETSI EG 202 798: "Intelligent Transport Systems (ITS); Testing; Framework for conformance and
interoperability testing".
[i.3] ETSI TS 102 871-1: "Intelligent Transport Systems (ITS); Testing; Conformance test
specifications for GeoNetworking ITS-G5; Part 1: Test requirements and Protocol Implementation
Conformance Statement (PICS) proforma".
[i.4] ETSI TS 102 871-2: "Intelligent Transport Systems (ITS); Testing; Conformance test
specifications for GeoNetworking ITS-G5; Part 2: Test Suite Structure and Test Purposes
(TSS&TP)".
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
- terms given in TS 102 636-4-1 [1].
- terms given in ISO/IEC 9646-1 [2] and in ISO/IEC 9646-7 [5].
3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ATM Abstract Test Method
ATS Abstract Test Suite
CAN Controller Area Network
ITS Intelligent Transportation Systems
ITS-G5 5 GHz wireless communication
IUT Implementation Under Test
PIXIT Partial Protocol Implementation Extra Information for Testing
SCS System Conformance Statement
SUT System Under Test
TC Test Case
TP Test Purposes
TTCN Tree and Tabular Combined Notation
V2I Vehicle-to-Infrastructure
V2V Vehicle-to-Vehicle
4 Abstract Test Method (ATM)
This clause describes the ATM used to test the Geonetworking ITS-G5.
4.1 Abstract protocol tester
The abstract protocol tester used by the Geonetworking test suite is described in figure 1. The test system will simulate
valid and invalid protocol behaviour, and will analyse the reaction of the IUT.
ETSI
8 ETSI TS 102 871-3 V1.1.1 (2011-06)
Test System SUT
Upper Tester
GeoNet
working
PDUs
IUT
ITS-G5 ITS-G5
Lower tester
Figure 1: Abstract protocol tester - GeoNetworking
4.2 Test Configuration
This test suite uses four test configurations in order to cover the different test scenarios. In these configurations, the
tester simulates one or several ITS station implementing the Geonetworking protocol.
The following notation is used to describe the test configuration:
• represents a simulated ITS station in the communication range of IUT.
• represents a simulated ITS station outside of the communication range of IUT.
• represents a GeoArea.
ETSI
9 ETSI TS 102 871-3 V1.1.1 (2011-06)
4.2.1 Test configuration CF01
NodeA
NodeB
AREA2
IUT
AREA1
Figure 2: Test configuration CF01
ItsNodeA is not in IUT's communication range
ItsNodeB is in IUT's communication range
is in direction of ItsNodeA
is in AREA1
is in AREA2
IUT is in AREA1
ETSI
10 ETSI TS 102 871-3 V1.1.1 (2011-06)
4.2.2 Test configuration CF02
NodeB
NodeD
AREA2
IUT
AREA1
Figure 3: Test configuration CF02
ItsNodeB is in IUT's communication range
is close to the center of Area2
is in Area 1
is in Area 2
ItsNodeD is in IUT's communication range
is in direction of ItsNodeB
is in Area 1
is in Area 2
IUT is in Area 1
ETSI
11 ETSI TS 102 871-3 V1.1.1 (2011-06)
4.2.3 Test configuration CF03
Figure 4: Test configuration CF03
ItsNodeA is not in IUT's communication range
ItsNodeB is in IUT's communication range
is in direction of ItsNodeA
is in Area 1
is in Area 2
ItsNodeC is in IUT's communication range
is not in direction of ItsNodeA
IUT is in Area 1
ETSI
12 ETSI TS 102 871-3 V1.1.1 (2011-06)
4.2.4 Test configuration CF04
Figure 5: Test configuration CF04
ItsNodeA is not in IUT's communication range
is in Area 2
ItsNodeB is in IUT's communication range
is in direction of ItsNodeA
is closer to ItsNodeA than ItsNodeD
is in Area 1
is in Area 2.
is close to the center of Area2
ItsNodeC is in IUT's communication range
is not in direction of ItsNodeA
ItsNodeD is in IUT's communication range
is in direction of ItsNodeA
is in Area 1
is in Area 2
IUT is in Area 1
4.3 Test architecture
This ITS Geonetworking test specification implements the general TTCN-3 test architecture described in
EG 202 798 [i.2], clauses 6.3.2 and 8.3.1.
Figure 6 shows the TTCN-3 test architecture used in for the Geonetworking ATS. In single-component testcases
(configuration CF01), the MTC is of type ItsNt and communicates with SUT over geoNetworkingPort. In
multi-component testcases (configuration CF02, CF03 and CF04), the MTC is of type ItsMtc and is used to synchronise
the different PTCs. The PTCs are implemented using ItsNt components and communicate with SUT over
geoNetworkingPort. Port geoNetworkingPort is used to exchange Geonetworking protocol messages between the
Geonetworking test components and the Geonetworking IUT.
The Upper tester entity in the SUT enables triggering Geonetworking functionalities by simulating primitives from
application or LDM entities. It is required to trigger the Geonetworking layer in the SUT to send Geonetworking
messages, which are resulting from upper layer primitives. Furthermore, receiving Geonetworking messages may result
for the Geonetworking layer in sending primitives to the upper layer.
ETSI
Adpt_Ctlr
control port
UTport
control port
13 ETSI TS 102 871-3 V1.1.1 (2011-06)
ITS TTCN-3 test execution
ItsMtc
(Sync
component)
ItsNt (PTCs)
NT2
geoNetworking
Port
NT
CODECS
ITS Test Adaptor
Upper tester
ITS lower layers stack
External
transport
functions
System adaptor
Platform adaptor
(SA)
(PA)
SUT SUT
Group of TTCN-3 ports
TTCN-3 ports TTCN-3 external functions

Figure 6: test system architecture
In multi-component testcases, each PTC maps the geoNetworkingPort. In this case the geoNetworkingPort is connected
in a one-to-many manner, as described in ES 201 873-1 [7], clause 9.1, Figure 6h.
For each PTC mapping the geoNetworkingPort, the test adapter shall assign a different MAC layer address which will
be used for all send operations of this PTC. In addition the test adapter shall follow the rules below when receiving
GeoNetworking packets:
• If the lower layer headers indicate a broadcasted message, then enqueue the GeoNetworking packet on all
PTCs.
• Otherwise, use the lower layer destination MAC address to determine on which PTC the GeoNetworking
packet shall be enqueued.
4.4 Ports and ASPs (Abstract Services Primitives)
Two ports are used by the Geonetworking ATS:
• The geoNetworkingPort, of type GeoNetworkingPort
• The utPort of type UpperTesterPort
ETSI
14 ETSI TS 102 871-3 V1.1.1 (2011-06)
4.4.1 Primitives of the geoNetworkingPort
Two types of primitives are used in the geoNetworkingPort:
• The geoNetworkingInd primitive used to receive messages of type GeoNetworkingPacket.
• The geoNetworkingReq primitive used to send messages of type GeoNetworkingPacket.
4.4.2 Primitives of the utPort
This port uses two types of primitives:
• The UtInitialize primitive used to initialise IUT
• The UtTrigger primitive used trigger upper layer events in IUT
4.4.3 Primitives of the taPort
This port uses the following primitives to trigger special behaviour in Test Adapter:
• AcStartBeaconing: Test adapter shall start sending beacon messages for a simulated ITS node
• AcStopBeaconing: Test adapter shall stop sending beacon messages for a simulated ITS node
• AcStartPassBeaconing: Test adapter shall transmit received beacon messages to TTCN-3 script
• AcStopPassBeaconing: Test adapter shall not transmit received beacon messages to TTCN-3 script
• AcStartBeaconingMultipleNeighbour: Test adapter shall start sending beacon messages for multiple simulated
ITS nodes
• AcStopBeaconingMultipleNeighbour: Test adapter shall stop sending beacon messages for multiple simulated
ITS nodes
• AcGetLongPosVector used to retrieve IUT's position (extracted from IUT's beacon messages)
5 Untestable Test Purposes
Table 1 gives a list of TP, which are not implemented in the ATS due to the restriction of the chosen ATM.
Table 1: Untestable TP
Test purpose Reason
TP/GEONW/FDV/COH/BV/06 This TP would require knowing exactly when the IUT did its last position acquisition.
This information seem inaccessible to test system as it is strictly internal

6 ATS conventions
The ATS conventions are intended to give a better understanding of the ATS but they also describe the conventions
made for the development of the ATS. These conventions shall be considered during any later maintenance or further
development of the ATS.
The ATS conventions contain two clauses, the testing conventions and the naming conventions. The testing conventions
describe the functional structure of the ATS. The naming conventions describe the structure of the naming of all ATS
elements.
To define the ATS, the guidelines of the document ETS 300 406 [6] was considered.
ETSI
15 ETSI TS 102 871-3 V1.1.1 (2011-06)
6.1 Testing conventions
6.1.1 Testing states
6.1.1.1 Initial state
All test cases start with the function f_prInitialState. This function brings the IUT in an "initialized" state by invoking
the upper tester primitive UtInitialize.
6.1.1.2 Final state
All test cases end with the function f_poDefault. This function brings the IUT back in an "idle" state. As no specific
actions are required for the idle state in the base standard, the function f_ poDefault does not invoke any action.
As necessary, further actions may be included in the f_poDefault function.
6.2 Naming conventions
This test suite follows the naming convention guidelines provided in the EG 202 798 [i.2].
6.2.1 General guidelines
The naming convention is based on the following underlying principles:
• in most cases, identifiers should be prefixed with a short alphabetic string (specified in table 2) indicating the
type of TTCN-3 element it represents;
• suffixes should not be used except in those specific cases identified in table 7;
• prefixes and suffixes should be separated from the body of the identifier with an underscore ("_");
EXAMPLE 1: c_sixteen, t_wait.
• only module names, data type names and module parameters should begin with an upper-case letter. All other
names (i.e. the part of the identifier following the prefix) should begin with a lower-case letter;
• the start of second and subsequent words in an identifier should be indicated by capitalizing the first character.
Underscores should not be used for this purpose.
EXAMPLE 2: f_initialState.
Table 2 specifies the naming guidelines for each element of the TTCN-3 language indicating the recommended prefix,
suffixes (if any) and capitalization.
ETSI
16 ETSI TS 102 871-3 V1.1.1 (2011-06)
Table 2: ETSI TTCN-3 generic naming conventions
Language element Naming convention Prefix Example identifier
Module Use upper-case initial
...
