IEC TR 62055-21:2005

Electricity metering - Payment systems - Part 21: Framework for standardization

sets out a framework for the integration of standards into a system specification for electricity payment metering systems. It addresses the payment metering system application process, generic processes, generic functions, data elements, system entities and interfaces that exist in present payment metering systems.

General Information

• Status: Published
• Publication Date: 10-Aug-2005
• ICS: 17.220.20 - Measurement of electrical and magnetic quantities
• ICS: 91.140.50 - Electricity supply systems
• Technical Committee: TC 13 - Electrical energy measurement and control
• Drafting Committee: WG 15 - TC 13/WG 15
• Current Stage: PPUB - Publication issued
• Start Date: 31-May-2005
• Completion Date: 11-Aug-2005

Overview

IEC TR 62055-21:2005 - "Electricity metering - Payment systems - Part 21: Framework for standardization" provides a structured framework for integrating standards into a system specification for electricity payment metering systems. The technical report defines the application process, generic processes, generic functions, data elements, and system entities and interfaces that exist in current payment metering systems, enabling consistent specification, interoperability and procurement.

Key Topics and Requirements

• Generic entity model and application process reference model for payment metering systems, describing roles and interactions between system components.
• Generic functions (e.g., metering, accounting, receipting, security, time, display, recording, data exchange) and their sub-classifications to support modular system design.
• Generic processes such as supply agreement, meter reading, billing, payment receipting, token vending, and system testing that form the lifecycle of a payment metering application.
• Data elements and records required for transactions, tokens and meter configuration to ensure consistent data exchange and auditing.
• System entities and interfaces including CIS (Customer Information System), POS (Point Of Sale), Token_Carrier, Token_Carrier_to_Meter and POS_to_Token_Carrier interfaces, and the Payment_Meter, specifying interaction points for interoperability.
• Example specification and annex showing how to derive requirements from an existing system and how to map functions, records and interfaces into a cohesive specification.
• Emphasis on security, time synchronization and testability as foundational requirements for reliable payment metering implementations.

Applications and Practical Value

IEC TR 62055-21 is a practical framework used to:

• Develop vendor-neutral system specifications for prepayment and postpaid electricity metering.
• Guide integration between meters, token vending systems, POS terminals and utility back-office systems.
• Support interoperability and procurement by defining common functions, interfaces and data elements.
• Inform testing, certification and compliance activities by enumerating processes and function classes.
• Assist utilities, system integrators and manufacturers in designing scalable, auditable payment metering solutions.

Who Should Use This Standard

• Electricity utilities and metering service providers
• Meter manufacturers and embedded system designers
• POS and token vending solution vendors
• System integrators and software developers for CIS/back-office systems
• Test laboratories, regulators and standards committees

Related Standards

• Part of the IEC 62055 series (payment metering standards). Use this framework in combination with other applicable IEC metering standards and local regulatory requirements when specifying or deploying payment metering systems.

Keywords: IEC TR 62055-21, electricity metering, payment metering systems, payment meter, token carrier, point of sale (POS), Customer Information System (CIS), metering standard, framework for standardization.

Standards Content (Sample)

TECHNICAL IEC
REPORT TR
62055-21
First edition
2005-08
Electricity metering – Payment systems –
Part 21:
Framework for standardization
Reference number
IEC/TR 62055-21:2005(E)
Publication numbering
As from 1 January 1997 all IEC publications are issued with a designation in the
60000 series. For example, IEC 34-1 is now referred to as IEC 60034-1.
Consolidated editions
The IEC is now publishing consolidated versions of its publications. For example,
edition numbers 1.0, 1.1 and 1.2 refer, respectively, to the base publication, the
base publication incorporating amendment 1 and the base publication incorporating
amendments 1 and 2.
Further information on IEC publications
The technical content of IEC publications is kept under constant review by the IEC,
thus ensuring that the content reflects current technology. Information relating to
this publication, including its validity, is available in the IEC Catalogue of
publications (see below) in addition to new editions, amendments and corrigenda.
Information on the subjects under consideration and work in progress undertaken
by the technical committee which has prepared this publication, as well as the list
of publications issued, is also available from the following:
• IEC Web Site (www.iec.ch)
• Catalogue of IEC publications
The on-line catalogue on the IEC web site (www.iec.ch/searchpub) enables you to
search by a variety of criteria including text searches, technical committees
and date of publication. On-line information is also available on recently issued
publications, withdrawn and replaced publications, as well as corrigenda.
• IEC Just Published
This summary of recently issued publications (www.iec.ch/online_news/ justpub)
is also available by email. Please contact the Customer Service Centre (see
below) for further information.
• Customer Service Centre
If you have any questions regarding this publication or need further assistance,
please contact the Customer Service Centre:

Email: [e-mail]
Tel: [phone]
Fax: [phone]
TECHNICAL IEC
REPORT TR
62055-21
First edition
2005-08
Electricity metering – Payment systems –
Part 21:
Framework for standardization
 IEC 2005  Copyright - all rights reserved
No part of this publication may be reproduced or utilized in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: [phone] Telefax: [phone] E-mail: [e-mail] Web: www.iec.ch
PRICE CODE
Commission Electrotechnique Internationale XE

International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
For price, see current catalogue

– 2 – TR 62055-21  IEC:2005(E)

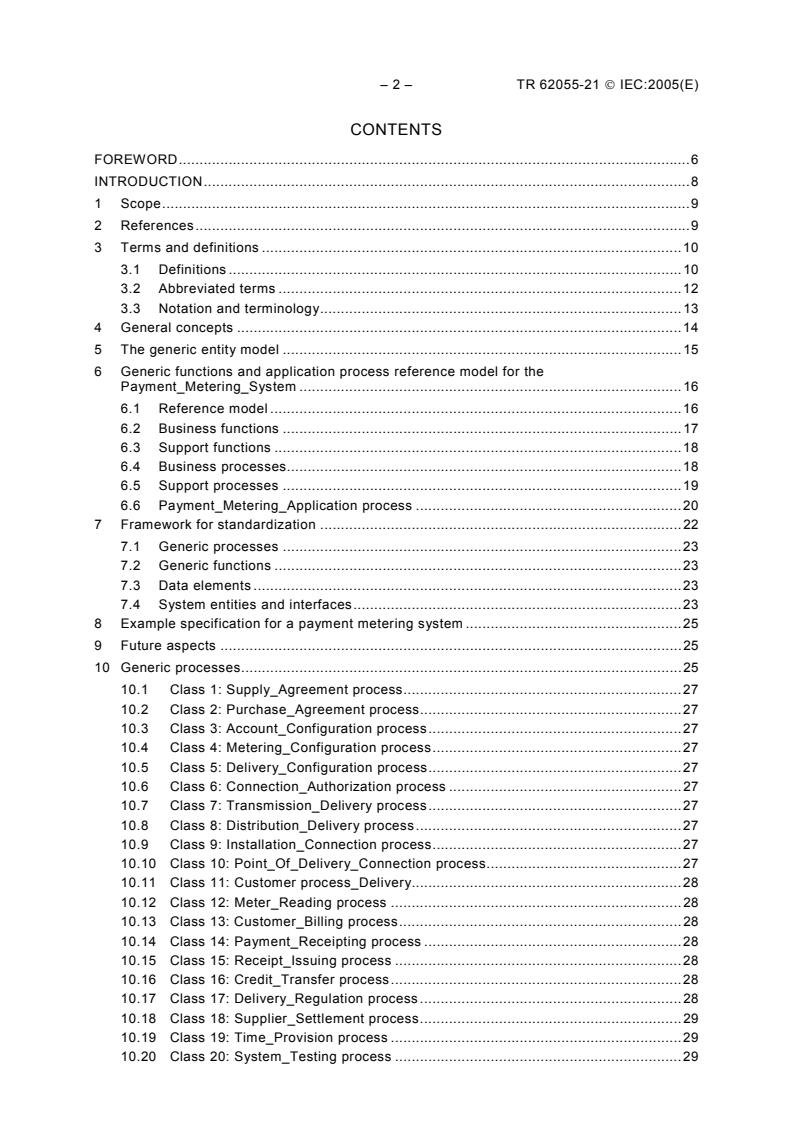

CONTENTS
