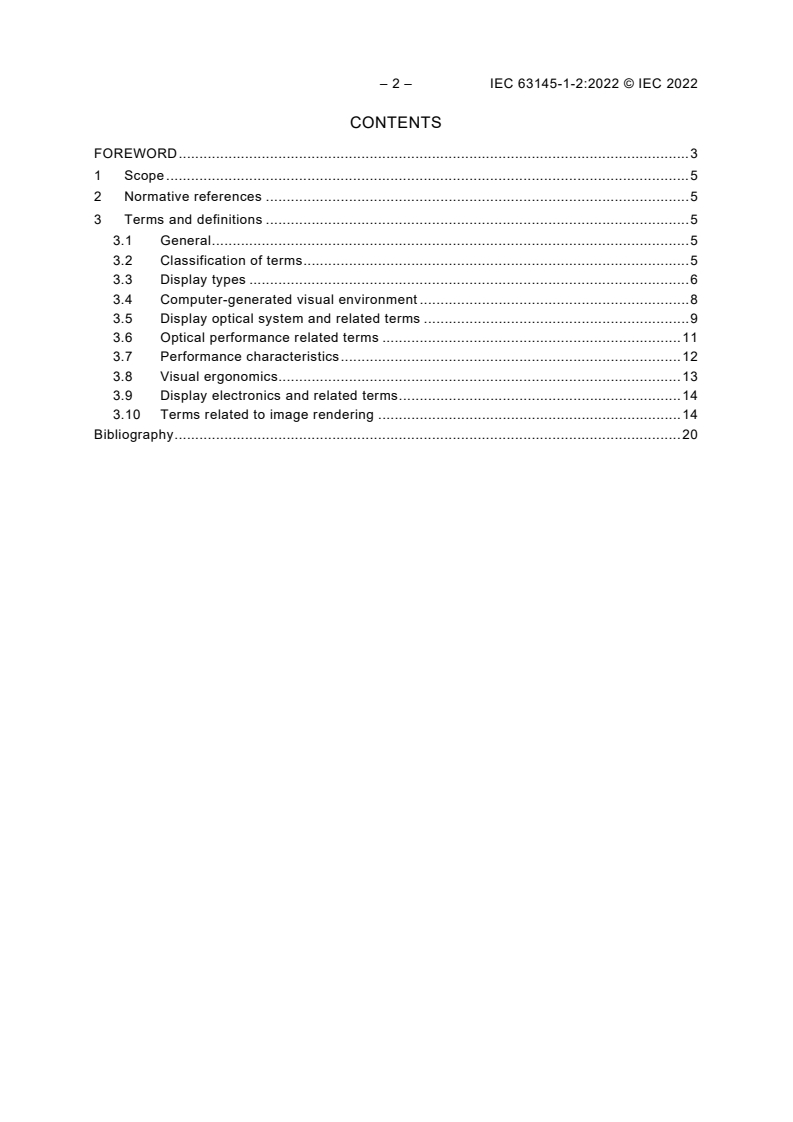

CONTENTS

FOREWORD ........................................................................................................................... 3

1 Scope .............................................................................................................................. 5

2 Normative references ...................................................................................................... 5

3 Terms and definitions ...................................................................................................... 5

3.1 General ................................................................................................................... 5

3.2 Classification of terms ............................................................................................. 5

3.3 Display types .......................................................................................................... 6

3.4 Computer-generated visual environment ................................................................. 8

3.5 Display optical system and related terms ................................................................ 9

3.6 Optical performance related terms ........................................................................ 11

3.7 Performance characteristics .................................................................................. 12

3.8 Visual ergonomics................................................................................................. 13

3.9 Display electronics and related terms .................................................................... 14

3.10 Terms related to image rendering ......................................................................... 14

Bibliography .......................................................................................................................... 20

---------------------- Page: 4 ----------------------
IEC 63145-1-2:2022 © IEC 2022 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
EYEWEAR DISPLAY –
Part 1-2: Generic – Terminology
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

IEC 63145-1-2 has been prepared by IEC technical committee TC 110: Electronic displays. It

is an International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
110/1432/FDIS 110/1443/RVD

Full information on the voting for its approval can be found in the report on voting indicated in

the above table.
The language used for the development of this International Standard is English.

This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in

accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available

at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are

described in greater detail at www.iec.ch/standardsdev/publications.
---------------------- Page: 5 ----------------------
– 4 – IEC 63145-1-2:2022 © IEC 2022

A list of all parts in the IEC 63145 series, published under the general title Eyewear display,

can be found on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under webstore.iec.ch in the data related to the

specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 6 ----------------------
IEC 63145-1-2:2022 © IEC 2022 – 5 –
EYEWEAR DISPLAY –
Part 1-2: Generic – Terminology
1 Scope

This part of IEC 63145 provides terms that are used in the field of eyewear displays for

augmented reality, virtual-reality, mixed reality, and the image or video rendering on these

displays.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
3.1 General
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.2 Classification of terms

Terms for eyewear displays, their optical systems, and image rendering are classified as follows:

• display types (3.3)
• computer-generated visual environment (3.4)
• display optical system and related terms (3.5)
• optical performance related terms (3.6)
• performance characteristics (3.7)
• visual ergonomics (3.8)
• display electronics and related terms (3.9)
• terms related to image rendering (3.10)
---------------------- Page: 7 ----------------------
– 6 – IEC 63145-1-2:2022 © IEC 2022
3.3 Display types
3.3.1
eyewear display
EWD

display that is worn on the user’s eye or worn close to the eye in order to provide dynamically

addressable visual information to the user

Note 1 to entry: Detailed explanations are given in IEC TR 63145-1-1:2018, 4.1 [1]1.

Note 2 to entry: Eyewear displays include spectacle-mounted, head-mounted and contact lens displays.

Note 3 to entry: The head-mounted display is usually referred to as a headwear. In a few cases, HMD is used for

“helmet-mounted display” or “head-mounted device”.

Note 4 to entry: There are several mount types: head mount, helmet mount, headset, goggle, visor and devices

with similar applications, etc. See IEC TR 63145-1-1:2018, Clause 4 [1].
3.3.2
contact lens display

eyewear display that is worn on the user’s cornea in the same way as a contact lens

3.3.3
virtual-image display
device that optically or holographically forms a virtual-image

Note 1 to entry: In ISO 9241-302:2008 [4], 3.4.52, “virtual-image display” is defined as “device that optically or

holographically forms a virtual-image”; however in this definition “a virtual-image” is ambiguous (see 3.5.1

“virtual-image optical system”).
[SOURCE: ISO 9241-302:2008 [4], 3.4.52, modified – a note has been added.]
3.3.4
head-mounted display
HMD

eyewear display that is mounted on the user’s head, using a mechanical support other than a

spectacle frame
3.3.5
see-through

superimposition of an image(s) or a video onto the whole or part of the user’s real-world field

of view

Note 1 to entry: The superposition is achieved by means of a partially transmissive or reflective optical element.

[SOURCE: ISO 9241-302:2008 [4], 3.5.45, modified – “or a video”, “the whole or part of” and

“real-world” have been added to the definition and a note has been added.]
3.3.6
optical see-through display

transmission or projection virtual-image display that the user can see through in at least part of

the user's real-world field of view
___________
Numbers in square brackets refer to the Bibliography.
---------------------- Page: 8 ----------------------
IEC 63145-1-2:2022 © IEC 2022 – 7 –
3.3.7
video see-through display

immersive HMD that provides a display that combines a video camera view of the real-world

with overlaid computer-generated visual information
Note 1 to entry: See 3.4.7 for the meaning of “immersive”.
3.3.8
monocular display device
device in which the virtual-image is visible to a single eye

[SOURCE: ISO 9241-302:2008 [4], 3.5.38, modified – in the definition, the term “virtual” has

been added and “one eye” has been replaced with “a single eye”.]
3.3.9
binocular display device

device in which different displays or parts of the display are presented to the left and right eyes

via different optical axes

Note 1 to entry: In the context of eyewear displays, the term relates to virtual-image creation due to the close

proximity of the source from the eye.

Note 2 to entry: The binocular display device is sometimes called a dual-view display device.

Note 3 to entry: The images displayed can be the same (as in a single-view binocular display device) or slightly

different, e.g., to provide a stereoscopic view

[SOURCE: ISO 9241-302:2008 [4], 3.5.5, modified – the sentence "a slightly different image of

the same target is " is changed to "different displays or parts of the display are”, and the phrase

"via different optical axes" and the notes have been added.]
3.3.10
single-view binocular display device

device in which the same or slightly different virtual-images are presented to the left and right

eyes via different optical systems
3.3.11
bi-ocular display device

device in which the same image is presented to the left and right eyes via optical axes split

from a common one
3.3.12
waveguide display device

device that uses a transparent or semi-transparent substrate to observe the real-world and fully

or partially guide the light by total internal reflection from the image display to the eyes of the

viewer
3.3.13
image display
display device that outputs images or video information to the eyewear system

Note 1 to entry: The term “imager” is sometimes used for “image display”. However, that term is ambiguous as it is

also used to mean “image sensors”, and therefore is to be avoided.
Note 2 to entry: The term “image source” is sometimes used for “image display”.

Note 3 to entry: Image displays include emissive type displays, such as OLED or micro-OLED, micro-LED and non-

emissive types such as LCD, DLP and LCOS.
---------------------- Page: 9 ----------------------
– 8 – IEC 63145-1-2:2022 © IEC 2022
3.4 Computer-generated visual environment
3.4.1
virtual-reality

3D computer-generated environment in which viewers are immersed and giving the sense of

being in another space different from their real-world

Note 1 to entry: Only computer-generated visual environments similar to the real-world are considered here, though

further sensations such as sound, touch, perception of odour or scent or similar can be involved.

Note 2 to entry: See 3.4.7.
3.4.2
augmented reality

direct view of the real-world supplemented or modified by overlaying computer-generated visual

graphics/video and/or other information or sensation

Note 1 to entry: Augmented reality comes with or without spatial registration of the virtual objects onto the real-world

environment [2],[3]. In the case where there is no spatial registration, AR is referred to as ”assisted reality” instead.

3.4.3
augmented virtuality

environment in which images of real objects are inserted into a predominantly virtual computer-

generated environment by means of real sensory inputs for implementing the virtual

environment
3.4.4
mixed reality

continuum that encompasses virtual-reality (VR), augmented reality (AR), and augmented

virtuality (AV)
3.4.5
extended reality

extension of human experiences related to various senses (e.g., existence, cognition) and

interaction between machine and human in real and computer-generated virtual environments

Note 1 to entry: The 'X' in XR is simply a variable that can stand for A of the AR, the V of the VR, and the M of the

MR.
3.4.6
hyper reality

XR with computer-modified vision, audio or other sensations of the real-world that provide

information beyond the capability of the human senses, for example, x-ray vision or ultra-

auditory sensing
3.4.7
immersive, adj.

state produced by a computer-generated image and/or sound that appears to surround the user

in three-dimensions
Note 1 to entry: The state may include audio/hearing, haptics, smell, etc.
---------------------- Page: 10 ----------------------
IEC 63145-1-2:2022 © IEC 2022 – 9 –
3.5 Display optical system and related terms
3.5.1
virtual-image optical system

optical system that collects focus points made by extensions of diverging rays from an object

where the image is magnified

Note 1 to entry: For head-mounted and eyewear displays, an image display is applied instead of a real object.

Note 2 to entry: The word ”virtual” is frequently used when viewing by means of digital media, and in this case the

meaning refers to EWD. See 3.4.1.
3.5.2
field of view
FOV

angular region as observed from the viewer’s eye point, subtended by the visible area of the

displayed virtual-image (in AR, VR, and MR devices) and of the perceived real-world view in

case of an optical see-through display
3.5.3
eye point

location where the centre of an eyewear device or the centre of the exit pupil of the EWD is

positioned

Note 1 to entry: The eye point is generally located within the exit pupil of the eyewear display.

Note 2 to entry: The design eye point is often located at the centre of the device's exit pupil.

Note 3 to entry: In some designs, the apex of the cornea of the user is taken as reference instead of the eye pupil of

the user.
3.5.4
eye relief

distance from the cornea of the eye to the closest optical element of the virtual-image display

Note 1 to entry: Refer to Note 2 and Note 3 in 3.5.3.

Note 2 to entry: In some designs the apex of the cornea of the user is taken as reference.

[SOURCE: ISO 9241-302:2008 [4], 3.5.21, modified – the notes have been added.]
3.5.5
eye rotation

rotation of the eye by a coordinated action of the extra-ocular muscles to view the

virtual-image displayed by the AR, VR or MR device

Note 1 to entry: For measurement purposes, the centre of rotation is considered to be about 13 mm behind the

corneal apex, and about 10 mm behind the pupil.
3.5.6
eye rotation

angular scanning method that simulates the natural rotation of the human eyeball

about its centre when gazing over the visual field

Note 1 to entry: For measurement purposes, the centre of rotation is considered to be about 13 mm behind the

corneal apex, and about 10 mm behind the pupil.
3.5.7
pupil rotation

pivot motion about the eye's pupil for viewing the virtual-image display by the AR,

VR, and MR
---------------------- Page: 11 ----------------------
– 10 – IEC 63145-1-2:2022 © IEC 2022
3.5.8
pupil rotation

angular scanning method where the optical axis of the light measuring device

rotates about its entrance pupil
3.5.9
eye rotation centre

assumed pivot point of the eye rotation lying about 13 mm behind the apex of the cornea, or

about 10 mm behind the pupil
3.5.10
eye pupil rotation centre

centre of the entrance pupil placed at a given location that serves as the pivot point

for eye pupil rotation to achieve the optimum performance when using an eyewear display and

that serves
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
