IEC 61076-2-101:2024

Connectors for electrical and electronic equipment - Product requirements - Part 2-101: Circular connectors - Detail specification for M12 connectors with screw-locking

IEC 61076-2-101:2024 describes M12 screw-locking circular connectors with 2-way up to 17‑way, for data transmission with frequencies up to 100 MHz and signal and power transmission at up to 250 V rated voltage and up to 4 A rated current per contact.
These connectors consist of fixed and free connectors, either rewirable or non-rewirable.
Male connectors have round contacts, Ø 0,6 mm, Ø 0,76 mm, Ø 0,8 mm or Ø 1,0 mm according to number of ways and coding, all contacts with the same size.
The different codings prevent the mating of differently coded male and female connectors.
This fourth edition cancels and replaces the third edition published in 2012. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
a) Technical specifications regarding dimensional information (Clause 5) and characteristics (Clause 6) have been updated, and new subclauses have been added.
b) New style NF (free connectors) has been added.
c) Fixed connectors with glass to metal seals (former styles WM, XM, YM, ZM and WF, XF, TF and ZF) are no longer covered by this document: relevant definitions and requirements have been removed.
d) The P-coding has been eliminated.
e) Annex B (informative) Steel conduit thread, sizes has been deleted and a new Annex B (informative) Orientation of cable outlet in relation to coding has been added.
f) The dimension specification of former styles AM and BM have been moved into a new Annex C (normative).

Connecteurs pour équipements électriques et électroniques - Exigences de produit - Partie 2-101: Connecteurs circulaires - Spécification particulière pour les connecteurs M12 à vis

La IEC 61076-2-101:2024 décrit les connecteurs circulaires à verrouillage par vis M12 de 2 à 17 voies, pour la transmission de données à des fréquences allant jusqu’à 100 MHz et la transmission de signaux et de puissance à une tension assignée allant jusqu’à 250 V et à un courant assigné allant jusqu’à 4 A par contact.
Ces connecteurs se composent d’embases et de fiches, démontables ou non.
Les connecteurs mâles possèdent des contacts ronds, Ø 0,6 mm, Ø 0,76 mm, Ø 0,8 mm ou Ø 1,0 mm, suivant le nombre de voies et le détrompage, tous les contacts ayant la même taille.
Les différents détrompages empêchent l’accouplement de connecteurs mâle et femelle ayant des détrompages différents.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l’édition précédente:
les spécifications techniques concernant les informations dimensionnelles (Article 5) et les caractéristiques (Article 6) ont été mises à jour, et de nouveaux paragraphes ont été ajoutés;
un nouveau modèle NF (fiches) a été ajouté;
les embases avec joint verre-métal (anciens modèles WM, XM, YM et ZM, ainsi que WF, XF, TF et ZF) ne sont plus couvertes par le présent document: les définitions et exigences correspondantes ont été supprimées;
le détrompage P a été supprimé;
l’Annexe B (informative), Filetage des conduits en acier, tailles, a été supprimée et une nouvelle Annexe B (informative), Orientation de la sortie de câble par rapport au détrompage, a été ajoutée;
la spécification des dimensions des anciens modèles AM et BM a été déplacée dans une nouvelle Annexe C (normative).

General Information

• Status: Published
• Publication Date: 26-Nov-2024
• ICS: 31.220.10 - Plug-and-socket devices. Connectors
• Technical Committee: SC 48B - Electrical connectors
• Current Stage: PPUB - Publication issued
• Start Date: 27-Nov-2024
• Completion Date: 22-Nov-2024

Relations

• Revises: IEC 61076-2-101:2012 - Connectors for electronic equipment - Product requirements - Part 2-101: Circular connectors - Detail specification for M12 connectors with screw-locking
• Effective Date: 05-Sep-2023

Overview

The IEC 61076-2-101:2024 standard specifies the product requirements for M12 circular connectors with screw-locking used in electrical and electronic equipment. These connectors support data transmission frequencies up to 100 MHz and handle signal and power transmission at rated voltages up to 250 V and currents up to 4 A per contact. Designed for secure and reliable mechanical locking, this fourth edition updates dimensional, electrical, and mechanical specifications, introducing new connector styles and removing outdated codings.

This comprehensive international standard by the International Electrotechnical Commission (IEC) replaces the 2012 third edition, reflecting advancements and ensuring consistency in M12 connector design and performance worldwide.

Key Topics

• Product Scope & Types: Covers M12 connectors ranging from 2-way to 17-way contacts, including rewirable and non-rewirable fixed and free connectors.
• Connector Design:
  • Male connectors feature round contacts of various sizes (Ø 0.6 mm, 0.76 mm, 0.8 mm, and 1.0 mm), consistent per coding to prevent mismating.
  • Screw-locking mechanism guarantees secure mating under vibration and mechanical stress.
• Performance Ratings:
  • Voltage rating: up to 250 V
  • Current rating: up to 4 A per contact
  • Frequency support: up to 100 MHz for data signals.
• Technical Revisions in Edition 4.0:
  • Updated dimensional and electrical characteristic clauses.
  • Introduction of new NF style free connectors.
  • Removal of fixed connectors with glass-to-metal seals from scope.
  • Elimination of P-coding to streamline compatibility.
  • Adjusted annexes concerning cable outlet orientation and dimension specifications.
• Safety & Testing:
  • Classified climatic categories ensure operation in various environmental conditions.
  • Comprehensive test schedules covering insulation, current carrying, mechanical durability, vibration, shock, and shielding properties.

Applications

The M12 connectors defined by IEC 61076-2-101:2024 are widely used in:

• Industrial Automation: Efficient and reliable transmission of sensor, actuator, and control signals in factory automation systems.
• Data Communication: Supporting Ethernet and other communication protocols with frequencies up to 100 MHz.
• Power Transmission: Safe delivery of low-voltage power in compact and robust circular connectors.
• Transportation & Robotics: High-reliability connections in harsh conditions requiring vibration resistance and secure locking.
• Instrumentation & Measurement: Accurate, interference-free signal transmission in test and measurement devices.

Their versatile coding and locking ensure that connectors are reliably mated only with matching device connectors, preventing connection errors in complex systems.

Related Standards

For a comprehensive connector and interface ecosystem, IEC 61076-2-101:2024 relates closely to:

• IEC 61076-1: General requirements and basic tests for connectors used in electrical and electronic equipment.
• IEC 61076-2-x Series: Detailed specifications for other types of circular connectors with various locking mechanisms.
• IEC 60529: Degrees of protection provided by enclosures (IP Code), referenced for the ingress protection levels of connectors.
• ISO/IEC 11801: Generic cabling for customer premises, relevant when integrating M12 connectors into network data systems.
• IEEE 802.3: Ethernet standards where M12 circular connectors are applied for industrial ethernet connections.

---

By adhering to IEC 61076-2-101:2024, manufacturers and system integrators ensure their M12 connectors meet global requirements for safety, performance, and interchangeability, facilitating reliable operation across diverse electrical and electronic applications. This standard supports product innovation and quality assurance in connector technology essential for modern industrial and communication infrastructures.

Standards Content (Sample)

IEC 61076-2-101 ®
Edition 4.0 2024-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Connectors for electrical and electronic equipment – Product requirements –
Part 2-101: Circular connectors – Detail specification for M12 connectors with
screw-locking
Connecteurs pour équipements électriques et électroniques – Exigences de
produit –
Partie 2-101: Connecteurs circulaires – Spécification particulière pour les
connecteurs M12 à vis
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.

IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.

Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need

further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC -  IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications, symboles
en utilisant différents critères (numéro de référence, texte, graphiques et le glossaire. Avec un abonnement, vous aurez
comité d’études, …). Elle donne aussi des informations sur les toujours accès à un contenu à jour adapté à vos besoins.
projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au monde,
Restez informé sur les nouvelles publications IEC. Just
avec plus de 22 500 articles terminologiques en anglais et en
Published détaille les nouvelles publications parues.
français, ainsi que les termes équivalents dans 25 langues
Disponible en ligne et une fois par mois par email.
additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
[e-mail].

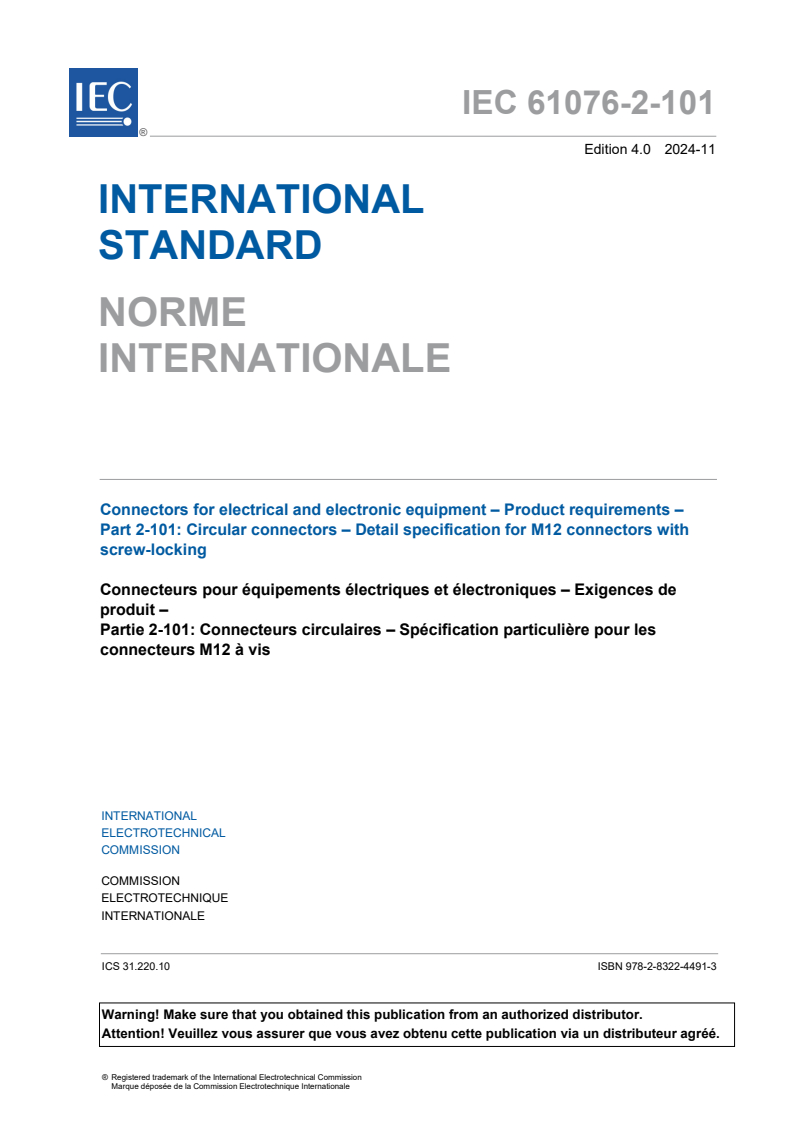

IEC 61076-2-101 ®
Edition 4.0 2024-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Connectors for electrical and electronic equipment – Product requirements –

Part 2-101: Circular connectors – Detail specification for M12 connectors with

screw-locking
Connecteurs pour équipements électriques et électroniques – Exigences de

produit –
Partie 2-101: Connecteurs circulaires – Spécification particulière pour les

connecteurs M12 à vis
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.220.10  ISBN 978-2-8322-4491-3

– 2 – IEC 61076-2-101:2024 © IEC 2024

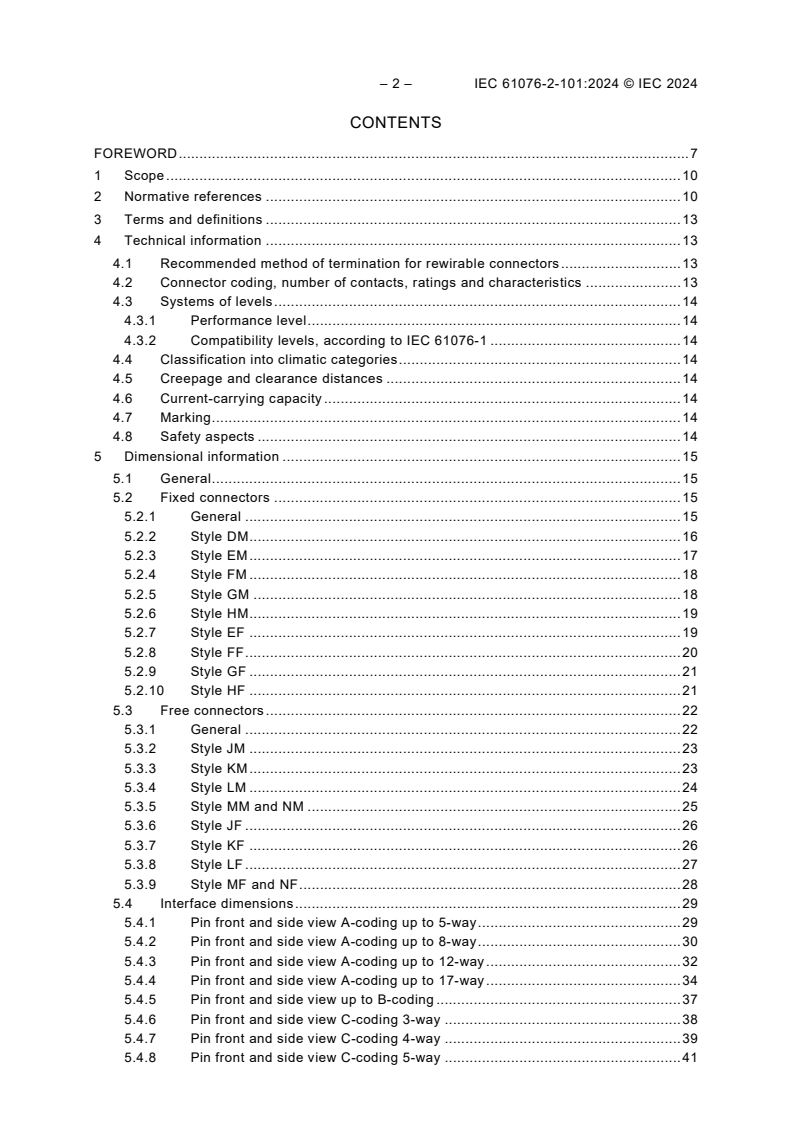

CONTENTS
FOREWORD . 7
1 Scope . 10
2 Normative references . 10
3 Terms and definitions . 13
4 Technical information . 13
4.1 Recommended method of termination for rewirable connectors . 13
4.2 Connector coding, number of contacts, ratings and characteristics . 13
4.3 Systems of levels . 14
4.3.1 Performance level . 14
4.3.2 Compatibility levels, according to IEC 61076-1 . 14
4.4 Classification into climatic categories . 14
4.5 Creepage and clearance distances . 14
4.6 Current-carrying capacity . 14
4.7 Marking . 14
4.8 Safety aspects . 14
5 Dimensional information . 15
5.1 General . 15
5.2 Fixed connectors . 15
5.2.1 General . 15
5.2.2 Style DM . 16
5.2.3 Style EM . 17
5.2.4 Style FM . 18
5.2.5 Style GM . 18
5.2.6 Style HM . 19
5.2.7 Style EF . 19
5.2.8 Style FF . 20
5.2.9 Style GF . 21
5.2.10 Style HF . 21
5.3 Free connectors . 22
5.3.1 General . 22
5.3.2 Style JM . 23
5.3.3 Style KM . 23
5.3.4 Style LM . 24
5.3.5 Style MM and NM . 25
5.3.6 Style JF . 26
5.3.7 Style KF . 26
5.3.8 Style LF . 27
5.3.9 Style MF and NF . 28
5.4 Interface dimensions . 29
5.4.1 Pin front and side view A-coding up to 5-way . 29
5.4.2 Pin front and side view A-coding up to 8-way . 30
5.4.3 Pin front and side view A-coding up to 12-way . 32
5.4.4 Pin front and side view A-coding up to 17-way . 34
5.4.5 Pin front and side view up to B-coding . 37
5.4.6 Pin front and side view C-coding 3-way . 38
5.4.7 Pin front and side view C-coding 4-way . 39
5.4.8 Pin front and side view C-coding 5-way . 41

5.4.9 Pin front and side view C-coding 6-way . 42
5.4.10 Pin front and side view D-coding . 44
5.5 Engagement (mating) information . 46
5.6 Gauges – Sizing gauges and retention force gauges . 49
6 Characteristics . 50
6.1 General . 50
6.2 Pin assignment and other definitions . 50
6.3 Classification into climatic categories . 50
6.4 Electrical characteristics . 51
6.4.1 Rated insulation voltage – Rated impulse voltage – Pollution degree . 51
6.4.2 Voltage proof . 51
6.4.3 Current-carrying capacity . 52
6.4.4 Contact resistance . 53
6.4.5 Insulation resistance . 53
6.5 Mechanical characteristics . 53
6.5.1 Mechanical operation . 53
6.5.2 Insertion and withdrawal forces . 54
6.5.3 Contact retention in insert . 54
6.5.4 Polarizing and coding method . 54
6.6 Other characteristics . 54
6.6.1 Vibration (sinusoidal) . 54
6.6.2 Shock . 55
6.6.3 Degree of protection provided by enclosures (IP code) . 55
6.6.4 Shielding properties . 55
6.7 Environmental aspects – Marking of insulation material (plastics) . 55
7 Test schedule . 55
7.1 General . 55
7.1.1 Overview . 55
7.1.2 Climatic category . 55
7.1.3 Creepage and clearance distances . 55
7.1.4 Arrangement for contact resistance measurement . 56
7.1.5 Arrangement for dynamic stress tests . 56
7.1.6 Wiring of specimens . 58
7.2 Test schedules . 58
7.2.1 Basic (minimum) test schedule . 58
7.2.2 Full test schedule . 58
Annex A (informative) Diameter of the female connector body . 67
Annex B (informative) Orientation of cable outlet in relation to coding . 68
Annex C (normative) Dimensions of connector insert . 69
C.1 General . 69
C.2 Connector insert, male contacts, without locking thread . 69
C.3 Connector insert, male contacts, with M12 locking thread . 69
Bibliography . 71

Figure 1 – Fixed connector, male contacts, square flange front mounting . 16
Figure 2 – Fixed connector, male contacts, with wire / cable, single hole mounting
thread M16 × 1,5 . 17

– 4 – IEC 61076-2-101:2024 © IEC 2024
Figure 3 – Fixed connector, male contacts, with wire / cable, single hole mounting
thread M20 × 1,5 . 18
Figure 4 – Fixed connector, male contacts, with wire / cable, single hole mounting

thread M16 × 1,5, mounting orientation . 18
Figure 5 – Fixed connector, male contacts, with wire / cable, single hole mounting
thread M20 × 1,5, mounting orientation . 19
Figure 6 – Fixed connector, female contacts, with wire / cable, single hole mounting
thread M16 × 1,5 . 20
Figure 7 – Fixed connector, female contacts, with wire / cable, single hole mounting

thread M20 × 1,5 . 20
Figure 8 – Fixed connector, female contacts, with wire / cable, single hole mounting
thread M16 × 1,5, mounting orientation . 21
Figure 9 – Fixed connector, female contacts, with wire / cable, single hole mounting
thread M20 × 1,5, mounting orientation . 22
Figure 10 – Rewirable connector, male contacts, straight version, with locking nut . 23
Figure 11 – Rewirable connector, male contacts, right angled version, with locking nut . 24
Figure 12 – Non-rewirable connector, male contacts, straight version, with locking nut . 24
Figure 13 – Non-rewirable connector, male contacts, right angled version, with
locking nut . 25
Figure 14 – Rewirable connector, female contacts, straight version, with locking nut . 26
Figure 15 – Rewirable connector, female contacts, right angled version, with
locking nut . 27
Figure 16 – Non-rewirable connector, female contacts, straight version, with
locking nut . 27
Figure 17 – Non-rewirable connector, female contacts, right angled version, with

locking nut . 28
Figure 18 – Pin front and side view A-coding, up to 5-way . 29
Figure 19 – Contact position A-coding up to 5-way, front view . 30
Figure 20 – Pin front and side view A-coding, up to 8-way . 31
Figure 21 – Contact position A-coding up to 8-way, front view . 32
Figure 22 – Pin front and side view A-coding, up to 12-way . 33
Figure 23 – Contact position A-coding up to 12-way, front view. 34
Figure 24 – Pin front and side view A-coding, up to 17-way . 35
Figure 25 – Contact position A-coding up to 17-way, front view. 36
Figure 26 – Pin front and side view B-coding, up to 5-way . 37
Figure 27 – Contact position B-coding up to 5-way, front view . 38
Figure 28 – Pin front and side view C-coding, 3-way . 38
Figure 29 – Contact position C-coding 3-way, front view . 39
Figure 30 – Pin front and side view C-coding, 4-way . 40
Figure 31 – Contact position C-coding 4-way, front view . 41
Figure 32 – Pin front and side view C-coding, 5-way . 41
Figure 33 – Contact position C-coding 5-way, front view . 42
Figure 34 – Pin front and side view C-coding, 6-way . 43
Figure 35 – Contact position C-coding 6-way, front view . 44
Figure 36 – Pin front and side view D-coding . 44
Figure 37 – Contact position D-coding, front view . 45

Figure 38 – Engagement (mating) information . 46
Figure 39 – Gauge dimensions . 49
Figure 40 – Contact resistance arrangement . 56
Figure 41 – Dynamic stress test arrangement . 57
Figure A.1 – Diameter of the female connector body . 67
Figure B.1 – Orientation of cable outlet in relation to the coding – Free male
connectors according to Table 12 . 68
Figure C.1 – Connector insert, male contacts, without locking thread . 69
Figure C.2 – Connector insert, male contacts . 70

Table 1 – Ratings of connectors . 13
Table 2 – Styles of fixed connectors . 15
Table 3 – Dimensions of style DM, Figure 1 . 17
Table 4 – Dimensions of style EM, Figure 2 . 17
Table 5 – Dimensions of style FM, Figure 3 . 18
Table 6 – Dimensions of style GM, Figure 4 . 19
Table 7 – Dimensions of style HM, Figure 5 . 19
Table 8 – Dimensions of style EF, Figure 6 . 20
Table 9 – Dimensions of style FF, Figure 7 . 21
Table 10 – Dimensions of style GF, Figure 8 . 21
Table 11 – Dimensions of style HF, Figure 9 . 22
Table 12 – Styles of free connectors . 22
Table 13 – Dimensions of style JM, Figure 10 . 23
Table 14 – Dimensions of style KM, Figure 11 . 24
Table 15 – Dimensions of style LM, Figure 12 . 25
Table 16 – Dimensions of style MM and NM, Figure 13 . 25
Table 17 – Dimensions of style JF, Figure 14 . 26
Table 18 – Dimensions of style KF, Figure 15 . 27
Table 19 – Dimensions of style LF, Figure 16 . 28
Table 20 – Dimensions of style MF and NF, Figure 17 . 28
Table 21 – Dimensions for Figure 18. 29
Table 22 – Dimensions for Figure 20. 31
Table 23 – Dimensions for Figure 22. 33
Table 24 – Dimensions for Figure 24. 35
Table 25 – Dimensions for Figure 26. 37
Table 26 – Dimensions for Figure 28. 39
Table 27 – Dimensions for Figure 30. 40
Table 28 – Dimensions for Figure 32. 42
Table 29 – Dimensions for Figure 34. 43
Table 30 – Dimensions for Figure 36. 45
Table 31 – Connectors dimensions in mated and locked position . 47
Table 32 – Gauges . 50
Table 33 – Climatic category . 50

– 6 – IEC 61076-2-101:2024 © IEC 2024
Table 34 – Rated insulation voltage – Rated impulse voltage – Pollution degree . 51
Table 35 – Voltage proof . 52
Table 36 – Current-carrying capacity . 53
Table 37 – Number of mechanical operations . 54
Table 38 – Insertion and withdrawal forces . 54
Table 39 – Number of test specimens . 58
Table 40 – Test group P . 59
Table 41 – Test group AP . 60
Table 42 – Test group BP . 62
Table 43 – Test group CP . 63
Table 44 – Test group DP . 64
Table 45 – Test group EP . 65
Table 46 – Test group FP . 65
Table 47 – Test group NP . 66
Table A.1 – Diameter of the female connector body, dimension x . 67
Table C.1 – Dimensions of connector insert, Figure C.1 . 69
Table C.2 – Dimensions of connector insert, Figure C.2 . 70

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CONNECTORS FOR ELECTRICAL AND ELECTRONIC EQUIPMENT –
PRODUCT REQUIREMENTS –
Part 2-101: Circular connectors –
Detail specification for M12 connectors with screw-locking

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 61076-2-101 has been prepared by subcommittee 48B: Electrical connectors, of IEC
technical committee 48: Electrical connectors and mechanical structures for electrical and
electronic equipment. It is an International Standard.
This fourth edition cancels and replaces the third edition published in 2012. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) Technical specifications regarding dimensional information (Clause 5) and characteristics
(Clause 6) have been updated, and new subclauses have been added.
b) New style NF (free connectors) has been added.

– 8 – IEC 61076-2-101:2024 © IEC 2024
c) Fixed connectors with glass to metal seals (former styles WM, XM, YM, ZM and WF, XF, TF
and ZF) are no longer covered by this document: relevant definitions and requirements have
been removed.
d) The P-coding has been eliminated.
e) Annex B (informative) Steel conduit thread, sizes has been deleted and a new Annex B
(informative) Orientation of cable outlet in relation to coding has been added.
f) The dimension specification of former styles AM and BM have been moved into a new Annex
C (normative).
The text of this International Standard is based on the following documents:
Draft Report on voting
48B/3111/FDIS 48B/3129/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts of IEC 61076 series, under the general title Connectors for electrical and
electronic equipment – Product requirements, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
IEC SC 48B – Electrical connectors IEC 61076-2-101 Ed 4
Specification available from:
IEC General secretariat or from the addresses shown on the inside
cover.
DETAIL SPECIFICATION in accordance with IEC 61076-1
Outline drawing Product description
Circular connectors M12
2- to 17-way
Male and female contacts
Male and female connectors
Rewirable – Non-rewirable
Free cable connectors
Straight and right angle connectors
Fixed connectors
Flange mounting
Single hole mounting
Connector insert
– 10 – IEC 61076-2-101:2024 © IEC 2024
CONNECTORS FOR ELECTRICAL AND ELECTRONIC EQUIPMENT –
PRODUCT REQUIREMENTS –
Part 2-101: Circular connectors –
Detail specification for M12 connectors with screw-locking

1 Scope
This part of IEC 61076 describes M12 screw-locking circular connectors with 2-way up to
17-way, for data transmission with frequencies up to 100 MHz and signal and power
transmission at up to 250 V rated voltage and up to 4 A rated current per contact.
These connectors consist of fixed and free connectors, either rewirable or non-rewirable.
Male connectors have round contacts, Ø 0,6 mm, Ø 0,76 mm, Ø 0,8 mm or Ø 1,0 mm according
to number of ways and coding, all contacts with the same size.
The different codings prevent the mating of differently coded male and female connectors.
NOTE 1 M12 is the dimension of the thread of the screw-locking mechanism of these circular connectors.
NOTE 2 These connectors are typically used for connecting industrial automation devices for process measurement
and control.
NOTE 3 Several other IEC standards are available covering additional styles of circular connectors with M12 × 1
screw-locking, see Bibliography.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60050-581, International Electrotechnical Vocabulary – Part 581: Electromechanical
components for electronic equipment
IEC 60068-1, Environmental testing – Part 1: General and guidance
IEC 60352 (all parts), Solderless connections
IEC 60512-1, Connectors for electronic equipment – Tests and measurements – Part 1: General
IEC 60512-1-1, Connectors for electronic equipment – Tests and measurements – Part 1-1:
General examination – Test 1a: Visual examination
IEC 60512-1-2, Connectors for electronic equipment – Tests and measurements – Part 1-2:
General examination – Test 1b: Examination of dimension and mass
IEC 60512-1-100, Connectors for electronic equipment – Tests and measurements –
Part 1-100: General – Applicable publications

IEC 60512-2-1, Connectors for electronic equipment – Tests and measurements – Part 2-1:
Electrical continuity and contact resistance tests – Test 2a: Contact resistance – Millivolt level
method
IEC 60512-2-2, Connectors for electronic equipment – Tests and measurements – Part 2-2:
Electrical continuity and contact resistance tests – Test 2b: Contact resistance – Specified test
current method
IEC 60512-2-5, Connectors for electronic equipment – Tests and measurements – Part 2-5:
Electrical continuity and contact resistance tests – Test 2e: Contact disturbance
IEC 60512-3-1, Connectors for electronic equipment – Tests and measurements – Part 3-1:
Insulation tests – Test 3a: Insulation resistance
IEC 60512-4-1, Connectors for electronic equipment – Tests and measurements – Part 4-1:
Voltage stress tests – Test 4a: Voltage proof
IEC 60512-5-1, Connectors for electronic equipment – Tests and measurements – Part 5-1:
Current-carrying capacity tests – Test 5a: Temperature rise
IEC 60512-6-3, Connectors for electronic equipment – Tests and measurements – Part 6-3:
Dynamic stress tests – Test 6c: Shock
IEC 60512-6-4, Connectors for electronic equipment – Tests and measurements – Part 6-4:
Dynamic stress tests – Test 6d: Vibration (sinusoidal)
IEC 60512-9-1, Connectors for electronic equipment – Tests and measurements – Part 9-1:
Endurance tests – Test 9a: Mechanical operation
IEC 60512-9-2, Connectors for electronic equipment – Tests and measurements – Part 9-2:
Endurance tests – Test 9b: Electrical load and temperature
IEC 60512-11-1, Connectors for electrical and electronic equipment – Tests and measurements
– Part 11: Climatic tests – Section 1: Test 11a – Climatic sequence
IEC 60512-11-3, Connectors for electronic equipment – Tests and measurements – Part 11-3:
Climatic tests – Test 11c: Damp heat, steady state
IEC 60512-11-4, Connectors for electronic equipment – Tests and measurements – Part 11-4:
Climatic tests – Test 11d: Rapid change of temperature
IEC 60512-11-7, Connectors for electronic equipment – Tests and measurements – Part 11-7:
Climatic tests – Test 11g: Flowing mixed gas corrosion test
IEC 60512-11-9, Connectors for electronic equipment – Tests and measurements – Part 11-9:
Climatic tests – Test 11i: Dry heat
IEC 60512-11-10, Connectors for electronic equipment – Tests and measurements –
Part 11-10: Climatic tests – Test 11j: Cold
IEC 60512-11-12, Connectors for electronic equipment – Tests and measurements –
Part 11-12: Climatic tests – Test 11m: Damp heat, cyclic
IEC 60512-13-2, Connectors for electronic equipment – Tests and measurements – Part 13-2:
Mechanical operation tests – Test 13b: Insertion and withdrawal forces
IEC 60512-13-5, Connectors for electronic equipment – Tests and measurements – Part 13-5:
Mechanical operation tests – Test 13e: Polarizing and keying method

– 12 – IEC 61076-2-101:2024 © IEC 2024
IEC 60512-14-7, Electromechanical components for electronic equipment – Basic testing
procedures and measuring methods – Part 14: Sealing tests – Section 7: Test 14g: Impacting
water
IEC 60512-16-5, Connectors for electronic equipment – Tests and measurements – Part 16-5:
Mechanical tests on contacts and terminations – Test 16e: Gauge retention force (resilient
contacts)
IEC 60512-19-3, Electromechanical components for electronic equipment – Basic testing
procedures and measuring methods – Part 19: Chemical resistance tests – Section 3: Test 19c
– Fluid resistance
IEC 60512-23-3, Connectors for electrical and electronic equipment – Tests and measurements
– Part 23-3: Screening and filtering tests – Test 23c: Shielding effectiveness of connectors and
accessories – Line injection method
IEC 60512-29-100, Connectors for electronic equipment – Tests and measurements –
Part 29-100: Signal integrity tests up to 500 MHz on M12 style connectors – Tests 29a to 29g
IEC 60529:1989, Degrees of protection provided by enclosures (IP Code)
IEC 60529:1989/AMD1:1999
IEC 60529:1989/AMD2:2013
IEC 60664-1:2020, Insulation coordination for equipment within low-voltage systems – Part 1:
Principles, requirements and tests
IEC 60998-2-1, Connecting devices for low-voltage circuits for household and similar purposes
– Part 2-1: Particular requirements for connecting devices as separate entities with screw-type
clamping units
IEC 60999-1, Connecting devices – Electrical copper conductors – Safety requirements for
screw-type and screwless-type clamping units – Part 1: General requirements and particular
2 2
requirements for clamping units for conductors from 0,2 mm up to 35 mm (included)
IEC 61076-1:2006, Connectors for electronic equipment – Product requirements – Part 1:
Generic specification
IEC 61076-1:2006/AMD1:2019
IEC 61076-2-010:2021, Connectors for electrical and electronic equipment – Product
requirements – Part 2-010: Circular connectors – Detail specification for connectors with outer
or inner push-pull locking mechanism, based on mating interfaces according to
IEC 61076-2-101, IEC 61076-2-109, IEC 61076-2-111 and IEC 61076-2-113
IEC 61076-2-012:2020, Connectors for electrical and electronic equipment – Product
Requirements – Part 2-012: Circular connectors – Detail specification for connectors with inner
p
...
