Wireless power transfer (WPT) - Glossary of terms

IEC 63006:2019 specifies terminology and definitions related to wireless power transfer (WPT) technologies below 30 MHz to promote global harmonization of wireless power transfer terminology.
This document does not address terminology of wireless power transfer outside the scope of IEC TC 100 (Audio, video and multimedia systems and equipment), such as human exposure or safety.

Transfert d'énergie sans fil (WPT) - Glossaire des termes

L'IEC 63006:2019 spécifie la terminologie et les définitions relatives aux technologies de transfert d'énergie sans fil (WPT - Wireless Power Transfer) au-dessous de 30 MHz, afin de promouvoir l'harmonisation globale de la terminologie du transfert d'énergie sans fil.
La présente norme ne traite pas de la terminologie du transfert d'énergie sans fil en dehors du domaine d'application du TC 100 de l'IEC (Systèmes et équipements audio, vidéo et services de données), notamment en ce qui concerne l'exposition humaine ou la sécurité.

General Information

Status
Published
Publication Date
13-Oct-2019
Drafting Committee
Current Stage
PPUB - Publication issued
Start Date
01-Nov-2019
Completion Date
14-Oct-2019
Ref Project

Buy Standard

Standard
IEC 63006:2019 - Wireless power transfer (WPT) - Glossary of terms
English and French language
29 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)


IEC 63006 ®
Edition 1.0 2019-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Wireless power transfer (WPT) – Glossary of terms

Transfert d'énergie sans fil (WPT) – Glossaire des termes

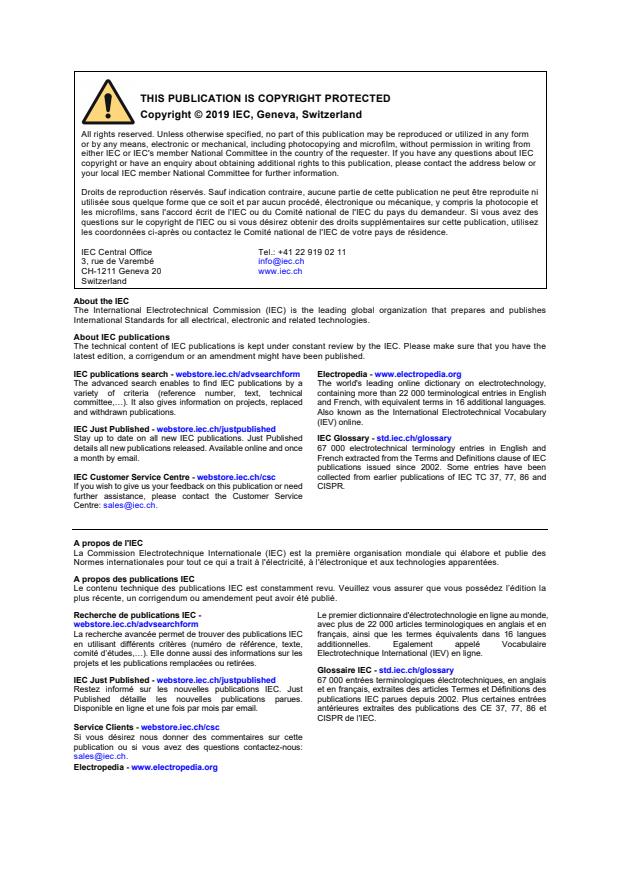

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and once 67 000 electrotechnical terminology entries in English and
a month by email. French extracted from the Terms and Definitions clause of IEC
publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or need CISPR.

further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Le premier dictionnaire d'électrotechnologie en ligne au monde,
webstore.iec.ch/advsearchform avec plus de 22 000 articles terminologiques en anglais et en
La recherche avancée permet de trouver des publications IEC français, ainsi que les termes équivalents dans 16 langues
en utilisant différents critères (numéro de référence, texte, additionnelles. Egalement appelé Vocabulaire
comité d’études,…). Elle donne aussi des informations sur les Electrotechnique International (IEV) en ligne.

projets et les publications remplacées ou retirées.
Glossaire IEC - std.iec.ch/glossary
IEC Just Published - webstore.iec.ch/justpublished 67 000 entrées terminologiques électrotechniques, en anglais
Restez informé sur les nouvelles publications IEC. Just et en français, extraites des articles Termes et Définitions des
Published détaille les nouvelles publications parues. publications IEC parues depuis 2002. Plus certaines entrées
Disponible en ligne et une fois par mois par email. antérieures extraites des publications des CE 37, 77, 86 et
CISPR de l'IEC.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
Electropedia - www.electropedia.org

IEC 63006 ®
Edition 1.0 2019-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Wireless power transfer (WPT) – Glossary of terms

Transfert d'énergie sans fil (WPT) – Glossaire des termes

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.240.99 ISBN 978-2-8322-7462-0

– 2 – IEC 63006:2019 © IEC 2019

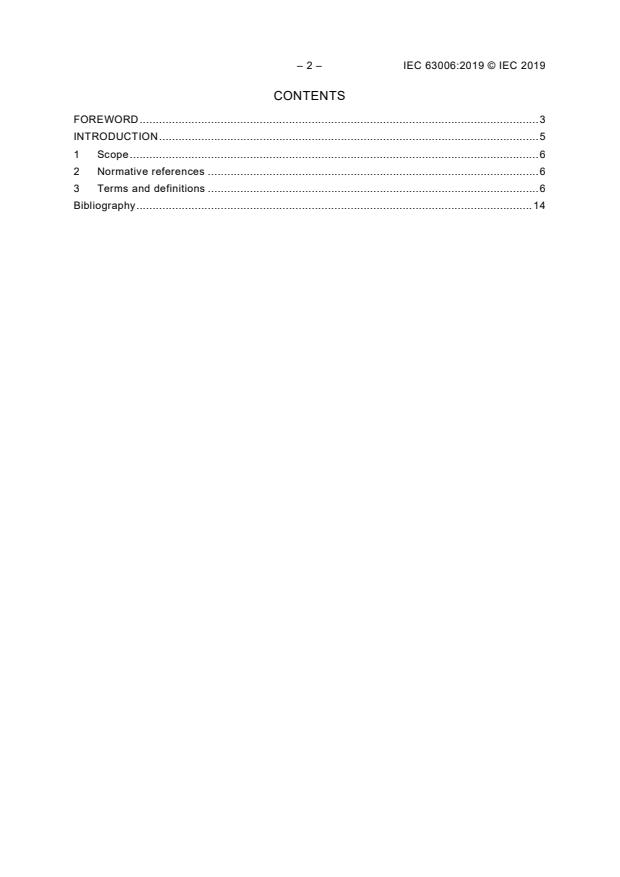

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
Bibliography . 14

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
WIRELESS POWER TRANSFER (WPT) –
GLOSSARY OF TERMS
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 63006 has been prepared by technical area 15: Wireless Power
Transfer (WPT), of IEC technical committee 100: Audio, video and multimedia systems and
equipment.
The text of this International Standard is based on the following documents:
FDIS Report on voting
100/3259/FDIS 100/3312/RVD
Full information on the voting for the approval of this International Standard can be found in the
report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – IEC 63006:2019 © IEC 2019
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
INTRODUCTION
IEC TC 100 published a technical report, IEC TR 62869, Activities and considerations related
to wireless power transfer (WPT) for audio, video and multimedia systems and equipment, at
which point it was determined that the international community is lacking globally harmonized
usage of terminology related to wireless power transfer technology.
This document provides common terminology to be used in wireless power transfer technology
technical reports and standards.

– 6 – IEC 63006:2019 © IEC 2019
WIRELESS POWER TRANSFER (WPT) –
GLOSSARY OF TERMS
1 Scope
This document specifies terminology and definitions related to wireless power transfer (WPT)
technologies below 30 MHz to promote global harmonization of wireless power transfer
terminology.
This document does not address terminology of wireless power transfer outside the scope of
IEC TC 100 (Audio, video and multimedia systems and equipment), such as human exposure
or safety.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
accessory receiver
back cover
receiver that physically mates to the exterior of a device for the purpose of powering or charging
that device, but is physically separable
Note 1 to entry: The device does not otherwise have the ability to be powered or charged wirelessly without the use
of the accessory receiver.
[SOURCE: ANSI/CTA-2042.1-B]
3.2
alignment aid
method of positioning a receiver relative to a transmitter that provides the user with feedback
to properly align the active area of the receiver to the active area of the transmitter
[SOURCE: ANSI/CTA-2042.1-B]
3.3
authentication
tamper-resistant process of a receiver verifying the identity of a transmitter, and/or a transmitter
verifying the identity of a receiver
[SOURCE: ANSI/CTA-2042.1-B]
3.4
battery management system
BMS
system of circuits (which may be integrated with a battery into a battery pack) to monitor key
operational parameters of a battery during charging and discharging
Note 1 to entry: Examples of such key parameters are voltages, currents, internal temperature of the battery,
ambient temperature.
Note 2 to entry: The monitoring circuits may provide inputs to protection devices, which would generate alarms or
disconnect the battery from the load or charger should any of the parameters become out of limits.
Note 3 to entry: This note applies to the French language only.
[SOURCE: ANSI/CTA-2042.1-B]
3.5
capacitive coupling
electric field coupling
coupling between electric circuit elements, by which a voltage between the terminals of one of
them gives rise to an electric charge in another element
[SOURCE: IEC 60050-131:2002, 131-12-31]
3.6
charging region
active area
charge area
area from where power is made available to receivers
Note 1 to entry: A charging pad is one example of a charging region.
[SOURCE: ANSI/CTA-2042.1-B]
3.7
conductive wireless power system
wireless power system that provides a conductive surface to which receivers are connected
through direct electrical contacts
Note 1 to entry: Such systems allow wire-free power delivery.
[SOURCE: ANSI/CTA-2042.1-B]
3.8
control
...
