IEC 61784-5-12:2024

Industrial networks - Profiles - Part 5-12: Installation of fieldbuses - Installation profiles for CPF 12

IEC 61784-5-12:2024 specifies the installation profile for CPF 12 (EtherCAT™).
The installation profile is specified in Annex A. This annex is read in conjunction with IEC 61918:2018, IEC 61918:2018/AMD1:2022 and IEC 61918:2018/AMD2:2024.
EtherCAT™ is a trade name of Beckhoff, Verl. This information is given for the convenience of users of this document and does not constitute an endorsement by IEC of the trademark holder or any of its products. Compliance to this profile does not require use of the trade name. Use of the trade name requires permission of the trade name holder.

Réseaux industriels - Profils - Partie 5-12: Installation des bus de terrain - Profils d’installation pour CPF 12

L’IEC 61784-5-12:2024 définit les profils d’installation pour la CPF 12 (EtherCAT™).
Le profil d’installation est spécifié à l’Annexe A. Cette annexe est à lire conjointement avec l’IEC 61918:2018, l’IEC 61918:2018/AMD1:2022 et l’IEC 61918:2018/AMD2:2024.
EtherCAT™ est une appellation commerciale de Beckhoff, Verl. Cette information est donnée à l’intention des utilisateurs du présent document et ne signifie nullement que l’IEC approuve l’emploi du produit ainsi désigné. La conformité à ce profil n’exige pas l’utilisation de l’appellation commerciale. L’utilisation de l’appellation commerciale exige l’autorisation du détenteur de celle-ci.

General Information

• Status: Published
• Publication Date: 20-Mar-2024
• ICS: 25.040.40 - Industrial process measurement and control
• ICS: 35.100.40 - Transport layer
• Technical Committee: SC 65C - Industrial networks
• Drafting Committee: JWG 10 - TC 65/SC 65C/JWG 10
• Current Stage: PPUB - Publication issued
• Start Date: 21-Mar-2024
• Completion Date: 29-Mar-2024

Relations

• Revises: IEC 61784-5-12:2018 - Industrial communication networks - Profiles - Part 5-12: Installation of fieldbuses - Installation profiles for CPF 12
• Effective Date: 12-Apr-2024

Overview

IEC 61784-5-12:2024 defines the installation profile for CPF 12 (EtherCAT™) within the IEC 61784-5 series for industrial communication networks. Published as Edition 3.0 (March 2024), this standard specifies how to apply the general installation requirements of IEC 61918:2018 (including AMD1:2022 and AMD2:2024) specifically for EtherCAT-based fieldbus installations. The detailed CPF 12 profile is provided as Annex A (normative) and is intended to be read together with IEC 61918.

Note: EtherCAT™ is a Beckhoff trade name; IEC provides this information for convenience and does not endorse the trademark holder. Compliance with the profile does not require use of the trade name.

Key topics and technical requirements

The standard focuses on practical installation and verification requirements for CPF 12 networks. Primary technical topics covered in Annex A include:

• Installation planning

  • Planning requirements and network capability considerations
  • Selection and use of cabling components (balanced copper and optical fibre)
  • Documentation and verification of cabling plans

• Installation implementation

  • Cable, connector and terminator installation practices
  • Device installation, coding and labelling
  • Earthing, bonding and shield cabling requirements

• Verification and acceptance testing

  • Installation verification procedures
  • Installation acceptance test criteria and documentation

• Administration, maintenance and troubleshooting

  • As‑implemented documentation
  • Maintenance and fault‑finding guidance

Supporting material in the annex includes tables for network characteristics (balanced cabling and optical fibre), cable and connector information, and guidance distinguishing fixed, flexible and special cables. Recent technical changes include the addition of four-pair twisted cables and consolidation of references to CPF 12.

Practical applications and users

IEC 61784-5-12 is intended for organizations deploying EtherCAT fieldbus systems in industrial automation and control environments. Typical users include:

• Network planners and system architects - to select cabling, connectors and network topologies consistent with CPF 12
• Installers and commissioning teams - to implement cabling, terminators, earthing and device mounting per the profile
• Verification and validation personnel - to perform installation acceptance tests and document compliance
• Maintenance and administration staff - to maintain as‑implemented records, troubleshoot and manage changes

The standard helps ensure interoperability, predictable performance and reliable installation of EtherCAT-based industrial networks.

Related standards

• IEC 61918:2018 (and AMD1:2022, AMD2:2024) - primary installation requirements to be read in conjunction with IEC 61784-5-12
• IEC 61784-5 series - other CPF installation profiles
• IEC 61158 - background on fieldbuses and profile relationships

Keywords: IEC 61784-5-12, EtherCAT, CPF 12, installation profile, fieldbus installation, industrial networks, IEC 61918, cabling, termination, verification.

Standards Content (Sample)

IEC 61784-5-12 ®
Edition 3.0 2024-03
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Industrial communication networks – Profiles –
Part 5-12: Installation of fieldbuses – Installation profiles for CPF 12

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.

IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.

Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need

further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 61784-5-12 ®
Edition 3.0 2024-03
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Industrial communication networks – Profiles –
Part 5-12: Installation of fieldbuses – Installation profiles for CPF 12
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 25.040.40; 35.100.40 ISBN 978-2-8322-8595-4

– 2 – IEC 61784-5-12:2024 RLV © IEC 2024

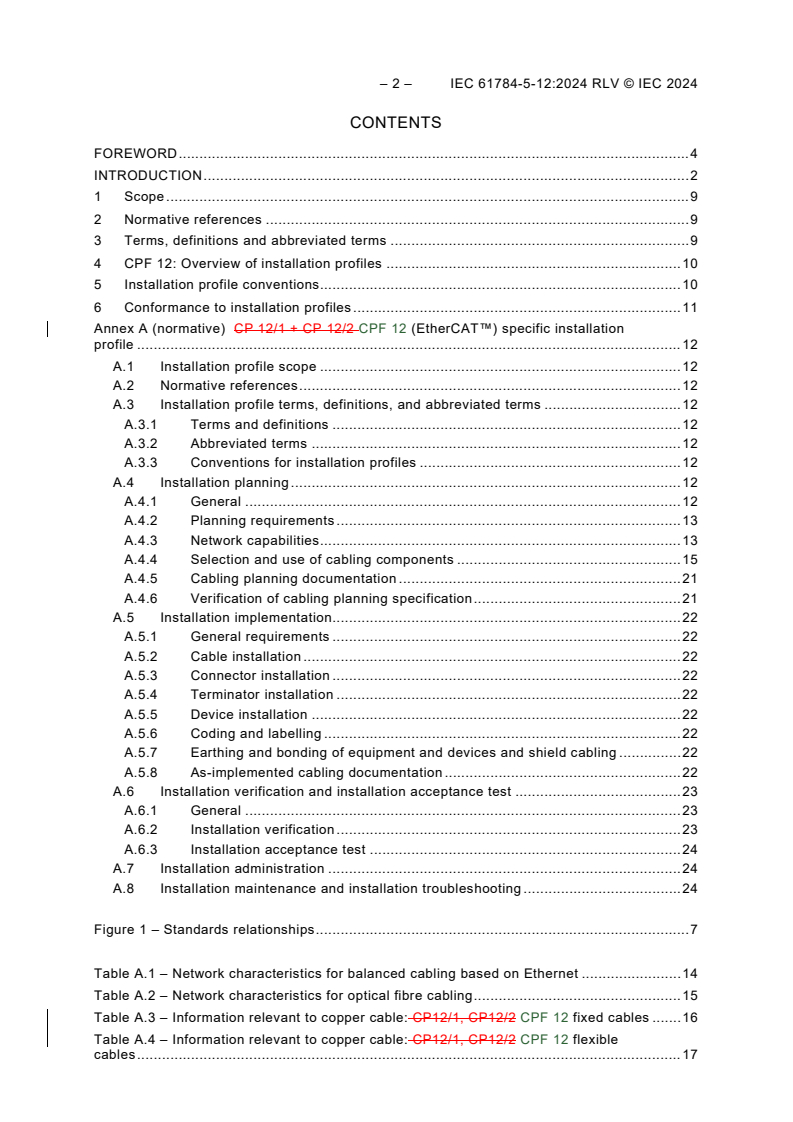

CONTENTS
FOREWORD . 4
INTRODUCTION . 2
1 Scope . 9
2 Normative references . 9
3 Terms, definitions and abbreviated terms . 9
4 CPF 12: Overview of installation profiles . 10
5 Installation profile conventions. 10
6 Conformance to installation profiles . 11
Annex A (normative) CP 12/1 + CP 12/2 CPF 12 (EtherCAT™) specific installation
profile . 12
A.1 Installation profile scope . 12
A.2 Normative references . 12
A.3 Installation profile terms, definitions, and abbreviated terms . 12
A.3.1 Terms and definitions . 12
A.3.2 Abbreviated terms . 12
A.3.3 Conventions for installation profiles . 12
A.4 Installation planning . 12
A.4.1 General . 12
A.4.2 Planning requirements . 13
A.4.3 Network capabilities . 13
A.4.4 Selection and use of cabling components . 15
A.4.5 Cabling planning documentation . 21
A.4.6 Verification of cabling planning specification . 21
A.5 Installation implementation. 22
A.5.1 General requirements . 22
A.5.2 Cable installation . 22
A.5.3 Connector installation . 22
A.5.4 Terminator installation . 22
A.5.5 Device installation . 22
A.5.6 Coding and labelling . 22
A.5.7 Earthing and bonding of equipment and devices and shield cabling . 22
A.5.8 As-implemented cabling documentation . 22
A.6 Installation verification and installation acceptance test . 23
A.6.1 General . 23
A.6.2 Installation verification . 23
A.6.3 Installation acceptance test . 24
A.7 Installation administration . 24
A.8 Installation maintenance and installation troubleshooting . 24

Figure 1 – Standards relationships . 7

Table A.1 – Network characteristics for balanced cabling based on Ethernet . 14
Table A.2 – Network characteristics for optical fibre cabling . 15
Table A.3 – Information relevant to copper cable: CP12/1, CP12/2 CPF 12 fixed cables . 16
Table A.4 – Information relevant to copper cable: CP12/1, CP12/2 CPF 12 flexible
cables . 17

Table A.5 – Information relevant to copper cable: CP12/1, CP12/2 CPF 12 special
cables . 18
Table A.6 – Information relevant to optical fibre cables: CPF 12 . 19
Table A.7 – Connectors for balanced cabling CPs based on Ethernet . 19
Table A.8 – Optical fibre connecting hardware . 20
Table A.9 – Relationship between FOC and fibre types (CP 12/1 and CP 12/2 CPF 12) . 20

– 4 – IEC 61784-5-12:2024 RLV © IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
INDUSTRIAL COMMUNICATION NETWORKS –
PROFILES –
Part 5-12: Installation of fieldbuses –
Installation profiles for CPF 12

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch or
www.iso.org/patents. IEC shall not be held responsible for identifying any or all such patent rights.
This redline version of the official IEC Standard allows the user to identify the changes
made to the previous edition IEC 61784-5-12:2018. A vertical bar appears in the margin
wherever a change has been made. Additions are in green text, deletions are in
strikethrough red text.
IEC 61784-5-12 has been prepared by subcommittee 65C: Industrial networks, of IEC technical
committee 65: Industrial-process measurement, control and automation. It is an International
Standard.
This document is to be used in conjunction with IEC 61918:2018, IEC 61918:2018/AMD1:2022
and IEC 61918/AMD2:2024.
This third edition cancels and replaces the second edition published in 2018. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) addition of four pair twisted cables;
b) the references to CP 12/1 and CP 12/2 are replaced by a CPF 12 reference.
The text of this International Standard is based on the following documents:
Draft Report on voting
65C1283/FDIS 65C/1297/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts of the IEC 61784-5 series, published under the general title Industrial networks
– Profiles – Installation of fieldbuses, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.

– 6 – IEC 61784-5-12:2024 RLV © IEC 2024
INTRODUCTION
This document is one of a series produced to facilitate the use of communication networks in
industrial control systems.
IEC 61918:2018, IEC 61918:2018/AMD1:2022 and IEC 61918/AMD2:2024 provide the common
requirements for the installation of communication networks in industrial control systems. This
installation profile document provides the installation profiles of the communication profiles (CP)
of a specific communication profile family (CPF) by stating which requirements of IEC 61918
fully apply and, where necessary, by supplementing, modifying, or replacing the other
requirements (see Figure 1).
For general background on fieldbuses, their profiles, and relationship between the installation
profiles specified in this document, see IEC 61158-1.
Each CP installation profile is specified in a separate annex of this document. Each annex is
structured exactly as the reference standard IEC 61918 for the benefit of the persons
representing the roles in the fieldbus installation process as defined in IEC 61918 (planner,
installer, verification personnel, validation personnel, maintenance personnel, administration
personnel). By reading the installation profile in conjunction with IEC 61918, these persons
immediately know which requirements are common for the installation of all CPs and which are
modified or replaced. The conventions used to draft this document are defined in Clause 5.
The provision of the installation profiles in one standard for each CPF (for example
IEC 61784-5-12 for CPF 12) allows readers to work with standards of a convenient size.

Figure 1 – Standards relationships

– 8 – IEC 61784-5-12:2024 RLV © IEC 2024
Attention is drawn to the fact that the document IEC 61918 specifies all the installation
requirements that apply to large part of the industrial communication networks and that these
requirements automatically apply to each single network with the exception of those
requirements that in the relevant document of the IEC 61784-5 series are explicitly defined as
modified or replaced.
All the additions to the latest edition of the IEC 61918 apply to the networks of CPF 12.

INDUSTRIAL COMMUNICATION NETWORKS –
PROFILES –
Part 5-12: Installation of fieldbuses –
Installation profiles for CPF 12

1 Scope
This part of IEC 61784-5 specifies the installation profile for CPF 12 (EtherCAT™ ).
The installation profile is specified in Annex A. This annex is read in conjunction with
IEC 61918:2018, IEC 61918:2018/AMD1:2022 and IEC 61918:2018/AMD2:2024.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61918:2018 , Industrial communication networks – Installation of communication networks
in industrial premises
IEC 61918:2018/AMD1:2022
IEC 61918:2018/AMD2:2024
The normative references of IEC 61918:2018, Clause 2, apply.
NOTE For profile specific normative references, see Clause A.2.
3 Terms, definitions and abbreviated terms
For the purposes of this document, the terms, definitions, and abbreviated terms given in
IEC 61918:2018, Clause 3, IEC 61918:2018/AMD1:2022, Clause 3, and Clause A.3 of this
document apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
NOTE For profile specific terms, definitions and abbreviated terms see Clauses A.3.
___________
EtherCAT™ is a trade name of Beckhoff, Verl. This information is given for the convenience of users of this
document and does not constitute an endorsement by IEC of the trademark holder or any of its products.
Compliance to this profile does not require use of the trade name. Use of the trade name requires permission of
the trade name holder.
The normative references of IEC 61918:2018, Clause 2, IEC 61918:2018/AMD1:2022, Clause 2 and
IEC 61918:2018/AMD2:2024, Clause 2, apply.

– 10 – IEC 61784-5-12:2024 RLV © IEC 2024
4 CPF 12: Overview of installation profiles
CPF 12 consists of two communication profiles, as specified in IEC 61784-2: —.
The installation requirements for CP 12/1 (simple EtherCAT™ I/O devices) and CP 12/2
(EtherCAT™ devices with mailbox capabilities) are identical and are specified in Annex A.
5 Installation profile conventions
The numbering of the clauses and subclauses in the annexes of this document corresponds to
the numbering of IEC 61918 main clauses and subclauses.
The annex clauses and subclauses of this document supplement, modify, or replace the
respective clauses and subclauses in IEC 61918.
Where there is no corresponding subclause of IEC 61918:2018 in the normative annexes in this
document, the subclause of IEC 61918 applies without modification.
The annex heading letter represents the installation profile assigned in Clause 4. The annex
(sub)clause numbering following the annex letter shall represent the corresponding (sub)clause
numbering of IEC 61918.
EXAMPLE "Subclause A.4.4" in IEC 61784-5-12 means that CP 12/1 and CP 12/2 specifies the Subclause 4.4 of
IEC 61918.
All main clauses of IEC 61918 are cited and apply in full unless otherwise stated in each
normative installation profile annex.
If all subclauses of a (sub)clause are omitted, then the corresponding IEC 61918 (sub)clause
applies.
If in a (sub)clause it is written "Not applicable.", then the corresponding IEC 61918 (sub)clause
does not apply.
If in a (sub)clause it is written "Addition:", then the corresponding IEC 61918 (sub)clause
applies with the additions written in the profile.
If in a (sub)clause it is written "Replacement:", then the text provided in the profile replaces the
text of the corresponding IEC 61918 (sub)clause.
NOTE A replacement can also comprise additions.
If in a (sub)clause it is written "Modification:", then the corresponding IEC 61918 (sub)clause
applies with the modifications written in the profile.
If all (sub)clauses of a (sub)clause are omitted but in this (sub)clause it is written
"(Sub)clause x has addition:" (or "replacement:") or "(Sub)clause x is not applicable.", then
(sub)clause x becomes valid as declared and all the other corresponding
IEC 61918 (sub)clauses apply.
6 Conformance to installation profiles
Each installation profile within this document includes part of the IEC 61918:2018,
IEC 61918:2018/AMD1:2022 and IEC 61918:2018/AMD2:2024. It may also include defined
additional specifications.
A statement of compliance to an installation profile of this document shall be stated as either
Compliance with IEC 61784-5-12:— 2024 for CP 12/m CPF 12 or
Compliance with IEC 61784-5-12 (Ed.2.03.0) for CP 12/m CPF 12 .
where the name within the angle brackets < > is optional and the angle brackets are shall not
to be included. The m n within CP 12/m shall be replaced by the profile number 1 or 2.
NOTE The name may can be the name of the profile, for example EtherCAT™.
If the name is a trade name, then the permission of the trade name holder shall be required.
Product standards shall not include any conformity assessment aspects (including quality
management provisions) neither normative nor informative, other than provisions for product
testing (evaluation and examination).

___________
In accordance with ISO/IEC Directives.
The date should not be used when the edition number is used.

– 12 – IEC 61784-5-12:2024 RLV © IEC 2024
Annex A
(normative)
CP 12/1 + CP 12/2 CPF 12 (EtherCAT™) specific installation profile
A.1 Installation profile scope
Addition:
This annex specifies the installation profile for Communication Profiles CP 12/1 and CP12/2
CPF 12 (EtherCAT™). The CP12/1 and CP12/2 are CPF 12 is specified in IEC 61784-2.
A.2 Normative references
Addition:
IEC 61076-2-104, Connectors for electronic equipment – Product requirements – Circular
connectors – Detail specification for circular connectors with M8 screw-locking or snap-locking
IEC 61076-2-114 , Connectors for electronic equipment – Circular connectors – Detail
specification for data and power connectors with M8 screw-locking
A.3 Installation profile terms, definitions, and abbreviated terms
A.3.1 Terms and definitions
A.3.2 Abbreviated terms
A.3.3 Conventions for installation profiles
Not applicable.
A.4 Installation planning
A.4.1 General
A.4.1.1 Objective
A.4.1.2 Cabling in industrial premises
A.4.1.3 The planning process
A.4.1.4 Specific requirements for CPs
Not applicable.
A.4.1.5 Specific requirements for generic cabling in accordance with
ISO/IEC 11801-3
___________
Under preparation. Stage at the time of publication: IEC/CDV 61076-2-114:2017.

A.4.2 Planning requirements
A.4.2.1 Safety
A.4.2.1.1 General
A.4.2.1.2 Electrical safety
A.4.2.1.3 Functional safety
A.4.2.1.4 Intrinsic safety
Not applicable.
A.4.2.1.5 Safety of optical fibre communication systems
A.4.2.2 Security
A.4.2.3 Environmental considerations and EMC
A.4.2.3.1 Description methodology
A.4.2.3.2 Use of the described environment to produce a bill of material
A.4.2.4 Specific requirements for generic cabling in accordance with
ISO/IEC 11801-3
A.4.3 Network capabilities
A.4.3.1 Network topology
A.4.3.1.1 Common description
A.4.3.1.2 Basic physical topologies for passive networks
Not applicable.
A.4.3.1.3 Basic physical topologies for active networks
Addition:
Ring topologies shall be used when cable redundancy is required.
A.4.3.1.4 Combination of basic topologies
Replacement:
The combination of basic topologies is allowed according to A.4.3.1.5.
A.4.3.1.5 Specific requirements for CPs
Addition:
Slave devices with more than two ports shall be used to combine basic active topologies.
A.4.3.1.6 Specific requirements for generic cabling in accordance with
ISO/IEC 11801-3
– 14 – IEC 61784-5-12:2024 RLV © IEC 2024
A.4.3.2 Network characteristics
A.4.3.2.1 General
A.4.3.2.2 Network characteristics for balanced cabling not based on Ethernet
Not applicable.
A.4.3.2.3 Network characteristics for balanced cabling based on Ethernet
Replacement:
Table A.1 provides values based on the template given in IEC 61918:2018, Table 2.
Table A.1 – Network characteristics for balanced cabling based on Ethernet
Characteristic CP 12/1, CP12/2 CPF 12
(EtherCAT) CPF 12 (four pair)
(two pair)
Supported data rates (Mbit/s) 100 100-5 000
b
100 100
Supported channel length (m)
a b
6 6
Number of connections in the channel (max.)
a
100 (AWG22) 100 (AWG23)
Patch cord length (m)
b
D E
Channel class per ISO/IEC 11801-3 (min.)
A
c
5 6
Cable category per ISO/IEC 11801-3 (min.)
A
Connecting HW category per ISO/IEC 11801-3 (min.) 5 6
A
Cable types No specific requirement; No specific requirement;
up to manufacturer's up to manufacturer's
differentiation differentiation
a
See A.4.4.3.2.
b
For the purpose of this table, the channel definitions of ISO/IEC 11801-3 are applicable.
c
For additional information, see IEC 61156 series.

A.4.3.2.4 Network characteristics for optical fibre cabling
Replacement:
Table A.2 provides values based on the template given in IEC 61918:2018, Table 3.

Table A.2 – Network characteristics for optical fibre cabling
CP 12/1 and CP12/2 CPF 12 (EtherCAT)
Optical fibre type Description
Single mode silica Bandwidth (MHz) or equivalent at λ (nm) 300 at 1 310
Minimum length (m) 0
a
14 000
Maximum length (m)
Maximum channel 6
insertion loss/optical power budget (dB)
See IEEE 802.3:2015, Clause 58
10 km specified
Connecting hardware See A.4.4.2.5
Multimode silica Modal bandwidth (MHz × km) at λ (nm) 600 at 1 310
Minimum length (m) 0
a
2 000
Maximum length (m)
Maximum channel 4,5
insertion loss/optical power budget (dB)
Connecting hardware See A.4.4.2.5
POF Modal bandwidth 35 at 650
(MHz × 100 m) at λ (nm)
Minimum length (m) 0,055
a
Maximum length (m)
Maximum channel 4,2
insertion loss/optical power budget (dB)
Connecting hardware See A.4.4.2.5
Hard clad silica Modal bandwidth (MHz × km) at λ (nm) 70 at 650
Minimum length (m) 0
a
Maximum length (m)
Maximum channel insertion loss/optical power 4
budget (dB)
Connecting hardware See A.4.4.2.5
a
This value is reduced by connections, splices and bends in accordance with IEC 61918:2018, Formula (1) in
4.4.3.4.1.
A.4.3.2.5 Specific network characteristics
A.4.3.2.6 Specific requirements for generic cabling in accordance with
ISO/IEC 11801-3
A.4.4 Selection and use of cabling components
A.4.4.1 Cable selection
A.4.4.1.1 Common description
A.4.4.1.2 Copper cables
A.4.4.1.2.1 Balanced cables for Ethernet-based CPs
Replacement:
Table A.3, Table A.4 and Table A.5 provide values for different cable types based on the
template given in IEC 61918:2018, Table 4.

– 16 – IEC 61784-5-12:2024 RLV © IEC 2024
Table A.3 – Information relevant to copper cable: CP12/1, CP12/2 CPF 12 fixed cables
Characteristic CP 12/1, CP12/2 (EtherCAT) CPF 12
Type A cable CPF 12 Type A cable
Type A cable (four pair)
(two pair)
Nominal impedance of cable 100 Ω ± 15 Ω (IEC 61156-5) 100 Ω ± 15 Ω (IEC 61156-5)
(tolerance)
Balanced or unbalanced Balanced Balanced
DCR of conductors ≤ 57,5 Ω/km ≤ 85 Ω/km
DCR of shield - -
Number of conductors 4 8
Shielding S/FTP, S/FTQ, S/STP S/FTP, S/STP
Colour code for conductor WH, BU / YE, OG WH|OG, OG / , WH|GR, GR /
WH|BU, BU / , WH|BR, BR
Jacket colour requirements - -
Jacket material - -
Resistance to harsh environment Application dependent Application dependent
(e.g. UV, oil resist, LS0H)
Transfer Impedance
< 50 mΩ/m at 10 MHz
Installation Type Stationary, no movement after Stationary, no movement after
installation installation
Outer cable diameter 5,5 mm – 8 mm max. 10 mm
Wire cross section AWG 22/1 AWG 23/1
Wire diameter 1,5 mm ± 0,1 mm 1,0 mm to 1,6 mm
a
≤ 20 ns/100 m ≤ 20 ns/100 m
Delay scew
a
Relevant only for networks with time-based synchronization.

Table A.4 – Information relevant to copper cable: CP12/1, CP12/2 CPF 12 flexible cables
Characteristic CP 12/1, CP12/2 (EtherCAT) CPF 12
Type B cable CPF 12 Type B cable
Type B cable (four pair)
(two pair)
Nominal impedance of cable (tolerance) 100 Ω ± 15 Ω (IEC 61156-5) 100 Ω ± 15 Ω (IEC 61156-5)
Balanced or unbalanced Balanced Balanced
DCR of conductors ≤ 57,5 Ω/km ≤ 85 Ω/km
DCR of shield - -
Number of conductors 4 8
Shielding S/FTP, S/FTQ, S/STP S/FTP, S/STP
Colour code for conductor WH, BU / YE, OG WH|OG, OG / , WH|GR, GR /
WH|BU, BU / , WH|BR, BR
Jacket colour requirements - -
Jacket material - -
Resistance to harsh environment (e.g. UV, Application dependent Application dependent
oil resist, LS0H)
Transfer Impedance < 50 mΩ/m at 10 MHz
Installation type Flexible, occasional movement Flexible, occasional movement
or vibration or vibration
Outer cable diameter 5,5 mm – 8 mm Max. 10 mm
Wire cross section AWG 22/7 AWG 23/7
Wire diameter 1,5 mm ± 0,1 mm 1,0 mm to 1,6 mm
a
≤ 20 ns/100 m ≤ 20 ns/100 m
Delay screw
a
Relevant only for networks with time-based synchronization.

– 18 – IEC 61784-5-12:2024 RLV © IEC 2024
Table A.5 – Information relevant to copper cable: CP12/1, CP12/2 CPF 12 special cables
Characteristic CP 12/1, CP12/2 (EtherCAT) CPF 12
Type C cable CPF 12 Type C cable
Type C cable (four pair)
(two pair)
Nominal impedance of cable (tolerance) 100 Ω ± 15 Ω (IEC 61156-5) 100 Ω ± 15 Ω (IEC 61156-5)
Balanced or unbalanced Balanced Balanced
DCR of conductors ≤ 57,5 Ω/km ≤ 95 Ω/km
DCR of shield - -
Number of conductors 4 8
Shielding S/FTP, S/FTQ, S/STP S/FTP, S/STP
Colour code for conductor WH, BU / YE, OG WH|OG, OG / , WH|GR, GR /
WH|BU, BU / , WH|BR, BR
Jacket colour requirements - -
Jacket material - -
Resistance to harsh environment (e.g. UV, Application dependent Application dependent
oil resist, LS0H)
Transfer Impedance < 50 mΩ/m at 10 MHz
Installation type Special applications (e.g. Special applications (e.g.
permanent movement as in drag permanent movement as in drag
chains) chains)
Outer cable diameter Application dependent Application dependent
Wire cross section AWG 22/x (x: e.g. 7 / 19) AWG 24/x (x: e.g. 7 / 19)
Wire diameter 1,5 mm ± 0,1 mm Application Application dependent
dependent
a
≤ 20 ns/100 m ≤ 20 ns/100 m
Delay screw
a
Relevant only for networks with time-based synchronization.

A.4.4.1.2.2 Copper cables for non-Ethernet-based CPs
Not applicable.
A.4.4.1.3 Cables for wireless installation
A.4.4.1.4 Optical fibre cables
Replacement:
Table A.6 provides values based on the template given in IEC 61918:2018, Table 6.

Table A.6 – Information relevant to optical fibre cables: CPF 12
Characteristic 9.10/125 µm 50/125 µm 62,5/125 µm 980/1 000 µm 200/230 µm
single mode multimode multimode step index step index hard
silica silica silica POF clad silica
Standard IEC 60793-2 IEC 60793-2 IEC 60793-2 IEC 60793-2 IEC 60793-2
Attenuation per km (650 nm) – – – ≤ 160 dB ≤ 10 dB
Attenuation per km (820 nm) – – – – –
Attenuation per km ≤ 0,5 dB ≤ 1,5 dB ≤ 1,5 dB – –
(1 310 nm)
Number of optical fibres 2 2 2 2 2
Jacket colour requirements – – – – –
Jacket material – – – – –
Resistance to harsh Application Application Application Application Application
environment (e.g. UV, oil dependent dependent dependent dependent dependent
resist, LS0H)
Connector type SC-RJ, SC-RJ, SC-RJ, SC-RJ, SC-RJ,
(duplex or simplex) SC Duplex SC Duplex SC Duplex SC Duplex SC Duplex

A.4.4.1.5 Special purpose balanced and optical fibre cables
A.4.4.1.6 Specific requirements for CPs
Not applicable.
A.4.4.1.7 Specific requirements for generic cabling in accordance with
ISO/IEC 11801-3
A.4.4.2 Connecting hardware selection
A.4.4.2.1 Common description
A.4.4.2.2 Connecting hardware for balanced cabling CPs based on Ethernet
Replacement:
Table A.7 provides values based on the template given in IEC 61918:2018, Table 7.
Table A.7 – Connectors for balanced cabling CPs based on Ethernet
a
IEC 61076 IEC 61076 IEC 61076 IEC 61076 IEC 61076
IEC 61076-3-
IEC 60603-7 series
b b c
-2-101 -2-109 -2-104
106 -3-117 -2-114
shielded un- Var. 1 Var. 6 M12-8 M12-4 M12-8 M8-4 with M8-4 with
shielded with with with A-coding P-coding
X-coding D-coding X-coding
Var. 14
CP 12/1, IEC 60603- No No No Yes Yes Yes Yes Yes
CP 12/2 7-3
CPF 12
a
For IEC 60603-7 series, the connector selection is based on the desired channel performance.
b
Housings to protect connectors.
c
Only applicable in conjunction with EtherCAT™ P.

A.4.4.2.3 Connecting hardware for copper cabling CPs not based on Ethernet
Not applicable.
– 20 – IEC 61784-5-12:2024 RLV © IEC 2024
A.4.4.2.4 Connecting hardware for wireless installation
A.4.4.2.5 Connecting hardware for optical fibre cabling
Replacement:
Table A.8 provides values based on the template given in IEC 61918:2018, Table 9.
Table A.8 – Optical fibre connecting hardware
IEC 61754-2 IEC 61754-4 IEC 61754-24 IEC 61754-20 IEC 61754-22 Others
BFOC/2,5 SC SC-RJ LC F-SMA
CP 12/1,
No Yes Yes No No No
CP 12/2
(EtherCAT)
CPF 12
NOTE IEC 61754 series defines the optical fibre connector mechanical interfaces; performance specifications
for optical fibre connectors terminated to specific fibre types are standardised in the IEC 61753 series.

Addition:
Table A.9 provides values based on the template given in IEC 61918:2018, Table 10.
Table A.9 – Relationship between FOC and fibre types (CP 12/1 and CP 12/2 CPF 12)
Fibre type
9.10/125 µm 50/125 µm 62,5/125 µm 980/1 000 µm 200/230 µm Others
FOC
single mode multimode multimode step index step index hard
silica silica silica POF clad silica
BFOC/2,5 – – – – – –
SC Yes Yes Yes Yes Yes –
SC-RJ Yes Yes Yes Yes Yes –
LC – – – – – –
F-SMA – – – – – –
A.4.4.2.6 Specific requirements for CPs
Not applicable.
A.4.4.2.7 Specific requirements for generic cabling in accordance with
ISO/IEC 11801-3
A.4.4.3 Connections within a channel/permanent link
A.4.4.4 Terminators
Not applicable.
A.4.4.5 Device location and connection
A.4.4.5.1 Common description
A.4.4.5.2 Specific requirements for CPs
Not applicable.
A.4.4.5.3 Specific requirements for wireless installation
A.4.4.5.4 Specific requirements for generic cabling in accordance with
ISO/IEC 11801-3
A.4.4.6 Coding and labelling
A.4.4.7 Earthing and bonding of equipment and devices and shielded cabling
Addition:
The shield shall be earthed and all shield earthing methods described in IEC 61918 apply.
A.4.4.8 Storage and transportation of cables
A.4.4.9 Routing of cables
A.4.4.10 Separation of circuits
Addition:
This subclause applies in principle. This means that CP12/1 and CP12/2 networks work properly
while ensuring the distances of Table 1617 provided in IEC 61918:2018.
A.4.4.11 Mechanical protection of cabling components
A.4.4.11.1 Common description
A.4.4.11.2 Specific requirements for CPs
Not applicable.
A.4.4.11.3 Specific requirements for generic cabling in accordance with
ISO/IEC 11801-3
A.4.4.12 Installation in special areas
A.4.4.12.1 Common description
A.4.4.12.2 Specific requirements for CPs
Not applicable.
A.4.4.12.3 Specific requirements for generic cabling in accordance with
ISO/IEC 11801-3
A.4.5 Cabling planning documentation
A.4.6 Verification of cabling planning specification

– 22 – IEC 61784-5-12:2024 RLV © IEC 2024
A.5 Installation implementation
A.5.1 General requirements
A.5.2 Cable installation
A.5.2.1 General requirements for all cabling types
A.5.2.2 Installation and routing
A.5.2.3 Specific requirements for CPs
Not applicable.
A.5.2.4 Specific requirements for wireless installation
A.5.2.5 Specific requirements for generic cabling in accordance with
ISO/IEC 11801-3
A.5.3 Connector installation
A.5.3.1 Common description
A.5.3.2 Shielded connectors
A.5.3.3 Unshielded connectors
A.5.3.4 Specific requirements for CPs
Not applicable.
A.5.3.5 Specific requirements for wireless installation
A.5.3.6 Specific requirements for generic cabling in accordance with
ISO/IEC 11801-3
A.5.4 Terminator installation
Not applicable.
A.5.5 Device installation
A.5.5.1 Common description
A.5.5.2 Specific requirements for CPs
Not applicable.
A.5.6 Coding and labelling
A.5.6.1 Common description
A.5.6.2 Specific requirements for CPs
Not applicable.
A.5.7 Earthing and bonding of equipment and devices and shield cabling
Subclause 5.7.5 is not applicable.
A.5.8 As-implemented cabling documentation

A.6 Installation verification and installation acceptance test
A.6.1 General
A.6.2 Installation verification
A.6.2.1 General
A.6.2.2 Verification according to cabling planning documentation
A.6.2.3 Verification of earthing and bonding
A.6.2.3.1 General
A.6.2.3.2 Specific requirements for earthing and bonding
Not applicable.
A.6.2.4 Verification of shield earthing
A.6.2.5 Verification of cabling system
A.6.2.6 Cable selection verification
A.6.2.6.1 Common description
A.6.2.6.2 Specific requirements for CPs
Not applicable.
A.6.2.6.3 Specific requirements for wireless installation
A.6.2.7 Connector verification
A.6.2.7.1 Common description
A.6.2.7.2 Specific requirements for CPs
Not applicable.
A.6.2.7.3 Specific requirements for wireless installation
A.6.2.8 Connection verification
A.6.2.8.1 Common description
A.6.2.8.2 Number of connections and connectors
A.6.2.8.3 Wire mapping
A.6.2.9 Terminator verification
Not applicable.
A.6.2.10 Coding and labelling verification
A.6.2.10.1 Common description
A.6.2.10.2 Specific coding and labelling verification requirements
Not applicable.
A.6.2.11 Verification report
– 24 – IEC 61784-5-12:2024 RLV © IEC 2024
A.6.3 Installation acceptance test
A.6.3.1 General
A.6.3.2 Acceptance test of Ethernet-based cabling
A.6.3.2.1 Validation of balanced cabling for CPs based on Ethernet
A.6.3.2.1.1 Common description
A.6.3.2.1.2 Transmission performance test parameters
A.6.3.2.1.3 Specific requirements for CPs based on Ethernet
Not applicable.
A.6.3.2.2 Validation of optical fibre cabling for CPs based on Ethernet
A.6.3.2.2.1 Common description
A.6.3.2.2.2 Specific requirements for optical fibre cabling CPs
Not applicable.
A.6.3.2.3 Specific requirements for generic cabling in accordance with
ISO/IEC 11801-3
A.6.3.3 Acceptance test of non-Ethernet-based cabling
Not applicable.
A.6.3.4 Specific requirements for wireless installation
A.6.3.5 Acceptance test report
A.7 Installation administration
Subclause 7.8 is not applicable
A.8 Installation maintenance and installation troubleshooting
Subclause 8.4 is not applicable

___________
IEC 61784-5-12 ®
Edition 3.0 2024-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Industrial networks – Profiles –
Part 5-12: Installation of fieldbuses – Installation profiles for CPF 12
Réseaux industriels – Profils –
Partie 5-12: Installation des bus de terrain – Profils d’installation pour CPF 12
– 2 – IEC 61784-5-12:2024 © IEC 2024
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms, definitions and abbreviated terms . 7
4 CPF 12: Overview of installation profiles . 8
5 Installation profile conventions. 8
6 Conformance to installation profiles . 9
Annex A (normative) CPF 12 (EtherCAT™) specific installation profile . 10
A.1 Installation profile scope . 10
A.2 Normative references . 10
A.3 Installation profile terms, definitions, and abbreviated terms . 10
A.3.1 Terms and definitions . 10
A.3.2 Abbreviated terms . 10
A.3.3 Conventions for installation profiles . 10
A.4 Installation planning . 10
A.4.1 General . 10
A.4.2 Planning requirements . 10
A.4.3 Network capabilities .
...

IEC 61784-5-12 ®
Edition 3.0 2024-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Industrial networks – Profiles –
Part 5-12: Installation of fieldbuses – Installation profiles for CPF 12
Réseaux industriels – Profils –
Partie 5-12: Installation des bus de terrain – Profils d’installation pour CPF 12
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.

IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.

Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need

further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC -  IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications, symboles
en utilisant différents critères (numéro de référence, texte, graphiques et le glossaire. Avec un abonnement, vous aurez
comité d’études, …). Elle donne aussi des informations sur les toujours accès à un contenu à jour adapté à vos besoins.
projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au monde,
Restez informé sur les nouvelles publications IEC. Just
avec plus de 22 500 articles terminologiques en anglais et en
Published détaille les nouvelles publications parues.
français, ainsi que les termes équivalents dans 25 langues
Disponible en ligne et une fois par mois par email.
additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC 61784-5-12 ®
Edition 3.0 2024-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Industrial networks – Profiles –
Part 5-12: Installation of fieldbuses – Installation profiles for CPF 12
Réseaux industriels – Profils –
Partie 5-12: Installation des bus de terrain – Profils d’installation pour CPF 12
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 25.040.40, 35.100.40 ISBN 978-2-8322-8391-2
– 2 – IEC 61784-5-12:2024 © IEC 2024
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms, definitions and abbreviated terms . 7
4 CPF 12: Overview of installation profiles . 8
5 Installation profile conventions. 8
6 Conformance to installation profiles . 9
Annex A (normative) CPF 12 (EtherCAT™) specific installation profile . 10
A.1 Installation profile scope . 10
A.2 Normative references . 10
A.3 Installation profile terms, definitions, and abbreviated terms . 10
A.3.1 Terms and definitions . 10
A.3.2 Abbreviated terms . 10
A.3.3 Conventions for installation profiles . 10
A.4 Installation planning . 10
A.4.1 General . 10
A.4.2 Planning requirements . 10
A.4.3 Network capabilities . 11
A.4.4 Selection and use of cabling components . 13
A.4.5 Cabling planning documentation . 18
A.4.6 Verification of cabling planning specification . 18
A.5 Installation implementation. 19
A.5.1 General requirements . 19
A.5.2 Cable installation . 19
A.5.3 Connector installation . 19
A.5.4 Terminator installation . 19
A.5.5 Device installation . 19
A.5.6 Coding and labelling . 19
A.5.7 Earthing and bonding of equipment and devices and shield cabling . 19
A.5.8 As-implemented cabling documentation . 19
A.6 Installation verification and installation acceptance test . 20
A.6.1 General . 20
A.6.2 Installation verification . 20
A.6.3 Installation acceptance test . 21
A.7 Installation administration . 21
A.8 Installation maintenance and installation troubleshooting . 21

Figure 1 – Standards relationships . 6

Table A.1 – Network characteristics for balanced cabling based on Ethernet . 12
Table A.2 – Network characteristics for optical fibre cabling . 13
Table A.3 – Information relevant to copper cable: CPF 12 fixed cables . 14
Table A.4 – Information relevant to copper cable: CPF 12 flexible cables. 14
Table A.5 – Information relevant to copper cable: CPF 12 special cables . 15

Table A.6 – Information relevant to optical fibre cables: CPF 12 . 16
Table A.7 – Connectors for balanced cabling CPs based on Ethernet . 16
Table A.8 – Optical fibre connecting hardware . 17
Table A.9 – Relationship between FOC and fibre types (CPF 12) . 17

– 4 – IEC 61784-5-12:2024 © IEC 2024
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
INDUSTRIAL NETWORKS –
PROFILES –
Part 5-12: Installation of fieldbuses –
Installation profiles for CPF 12

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch or
www.iso.org/patents. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 61784-5-12 has been prepared by subcommittee 65C: Industrial networks, of IEC technical
committee 65: Industrial-process measurement, control and automation. It is an International
Standard.
This document is to be used in conjunction with IEC 61918:2018, IEC 61918:2018/AMD1:2022
and IEC 61918/AMD2:2024.
This third edition cancels and replaces the second edition published in 2018. This edition
constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous
edition:
a) addition of four pair twisted cables;
b) the references to CP 12/1 and CP 12/2 are replaced by a CPF 12 reference.
The text of this International Standard is based on the following documents:
Draft Report on voting
65C1283/FDIS 65C/1297/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts of the IEC 61784-5 series, published under the general title Industrial networks
– Profiles – Installation of fieldbuses, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.

– 6 – IEC 61784-5-12:2024 © IEC 2024
INTRODUCTION
This document is one of a series produced to facilitate the use of communication networks in
industrial control systems.
IEC 61918:2018, IEC 61918:2018/AMD1:2022 and IEC 61918/AMD2:2024 provide the common
requirements for the installation of communication networks in industrial control systems. This
installation profile document provides the installation profiles of the communication profiles (CP)
of a specific communication profile family (CPF) by stating which requirements of IEC 61918
fully apply and, where necessary, by supplementing, modifying, or replacing the other
requirements (see Figure 1).
For general background on fieldbuses, their profiles, and relationship between the installation
profiles specified in this document, see IEC 61158-1.
Each CP installation profile is specified in a separate annex of this document. Each annex is
structured exactly as the reference standard IEC 61918 for the benefit of the persons
representing the roles in the fieldbus installation process as defined in IEC 61918 (planner,
installer, verification personnel, validation personnel, maintenance personnel, administration
personnel). By reading the installation profile in conjunction with IEC 61918, these persons
immediately know which requirements are common for the installation of all CPs and which are
modified or replaced. The conventions used to draft this document are defined in Clause 5.
The provision of the installation profiles in one standard for each CPF (for example
IEC 61784-5-12 for CPF 12) allows readers to work with standards of a convenient size.

Figure 1 – Standards relationships

INDUSTRIAL NETWORKS –
PROFILES –
Part 5-12: Installation of fieldbuses –
Installation profiles for CPF 12

1 Scope
This part of IEC 61784-5 specifies the installation profile for CPF 12 (EtherCAT™ ).
The installation profile is specified in Annex A. This annex is read in conjunction with
IEC 61918:2018, IEC 61918:2018/AMD1:2022 and IEC 61918:2018/AMD2:2024.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61918:2018 , Industrial communication networks – Installation of communication networks
in industrial premises
IEC 61918:2018/AMD1:2022
IEC 61918:2018/AMD2:2024
NOTE For profile specific normative references, see Clause A.2.
3 Terms, definitions and abbreviated terms
For the purposes of this document, the terms, definitions, and abbreviated terms given in
IEC 61918:2018, Clause 3, IEC 61918:2018/AMD1:2022, Clause 3, and Clause A.3 of this
document apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
___________
EtherCAT™ is a trade name of Beckhoff, Verl. This information is given for the convenience of users of this
document and does not constitute an endorsement by IEC of the trademark holder or any of its products.
Compliance to this profile does not require use of the trade name. Use of the trade name requires permission of
the trade name holder.
The normative references of IEC 61918:2018, Clause 2, IEC 61918:2018/AMD1:2022, Clause 2 and
IEC 61918:2018/AMD2:2024, Clause 2, apply.

– 8 – IEC 61784-5-12:2024 © IEC 2024
4 CPF 12: Overview of installation profiles
CPF 12 consists of two communication profiles, as specified in IEC 61784-2: —.
The installation requirements for CP 12/1 (simple EtherCAT™ I/O devices) and CP 12/2
(EtherCAT™ devices with mailbox capabilities) are identical and are specified in Annex A.
5 Installation profile conventions
The numbering of the clauses and subclauses in the annexes of this document corresponds to
the numbering of IEC 61918 main clauses and subclauses.
The annex clauses and subclauses of this document supplement, modify, or replace the
respective clauses and subclauses in IEC 61918.
Where there is no corresponding subclause of IEC 61918:2018 in the normative annexes in this
document, the subclause of IEC 61918 applies without modification.
The annex heading letter represents the installation profile assigned in Clause 4. The annex
(sub)clause numbering following the annex letter shall represent the corresponding (sub)clause
numbering of IEC 61918.
EXAMPLE "Subclause A.4.4" in IEC 61784-5-12 means that CP 12/1 and CP 12/2 specifies the Subclause 4.4 of
IEC 61918.
All main clauses of IEC 61918 are cited and apply in full unless otherwise stated in each
normative installation profile annex.
If all subclauses of a (sub)clause are omitted, then the corresponding IEC 61918 (sub)clause
applies.
If in a (sub)clause it is written "Not applicable.", then the corresponding IEC 61918 (sub)clause
does not apply.
If in a (sub)clause it is written "Addition:", then the corresponding IEC 61918 (sub)clause
applies with the additions written in the profile.
If in a (sub)clause it is written "Replacement:", then the text provided in the profile replaces the
text of the corresponding IEC 61918 (sub)clause.
NOTE A replacement can also comprise additions.
If in a (sub)clause it is written "Modification:", then the corresponding IEC 61918 (sub)clause
applies with the modifications written in the profile.
If all (sub)clauses of a (sub)clause are omitted but in this (sub)clause it is written
"(Sub)clause x has addition:" (or "replacement:") or "(Sub)clause x is not applicable.", then
(sub)clause x becomes valid as declared and all the other corresponding
IEC 61918 (sub)clauses apply.
6 Conformance to installation profiles
Each installation profile within this document includes part of the IEC 61918:2018,
IEC 61918:2018/AMD1:2022 and IEC 61918:2018/AMD2:2024. It may also include defined
additional specifications.
A statement of compliance to an installation profile of this document shall be stated as either
Compliance with IEC 61784-5-12:2024 for CPF 12 or
Compliance with IEC 61784-5-12 (Ed.3.0) for CPF 12 .
where the name within the angle brackets < > is optional and the angle brackets shall not be
included.
NOTE The name can be the name of the profile, for example EtherCAT™.
If the name is a trade name, then the permission of the trade name holder shall be required.
Product standards shall not include any conformity assessment aspects (including quality
management provisions) neither normative nor informative, other than provisions for product
testing (evaluation and examination).

– 10 – IEC 61784-5-12:2024 © IEC 2024
Annex A
(normative)
CPF 12 (EtherCAT™) specific installation profile
A.1 Installation profile scope
Addition:
This annex specifies the installation profile CPF 12 (EtherCAT™). CPF 12 is specified in
IEC 61784-2.
A.2 Normative references
A.3 Installation profile terms, definitions, and abbreviated terms
A.3.1 Terms and definitions
A.3.2 Abbreviated terms
A.3.3 Conventions for installation profiles
Not applicable.
A.4 Installation planning
A.4.1 General
A.4.1.1 Objective
A.4.1.2 Cabling in industrial premises
A.4.1.3 The planning process
A.4.1.4 Specific requirements for CPs
Not applicable.
A.4.1.5 Specific requirements for generic cabling in accordance with
ISO/IEC 11801-3
A.4.2 Planning requirements
A.4.2.1 Safety
A.4.2.1.1 General
A.4.2.1.2 Electrical safety
A.4.2.1.3 Functional safety
A.4.2.1.4 Intrinsic safety
Not applicable.
A.4.2.1.5 Safety of optical fibre communication systems
A.4.2.2 Security
A.4.2.3 Environmental considerations and EMC
A.4.2.3.1 Description methodology
A.4.2.3.2 Use of the described environment to produce a bill of material
A.4.2.4 Specific requirements for generic cabling in accordance with
ISO/IEC 11801-3
A.4.3 Network capabilities
A.4.3.1 Network topology
A.4.3.1.1 Common description
A.4.3.1.2 Basic physical topologies for passive networks
Not applicable.
A.4.3.1.3 Basic physical topologies for active networks
Addition:
Ring topologies shall be used when cable redundancy is required.
A.4.3.1.4 Combination of basic topologies
Replacement:
The combination of basic topologies is allowed according to A.4.3.1.5.
A.4.3.1.5 Specific requirements for CPs
Addition:
Slave devices with more than two ports shall be used to combine basic active topologies.
A.4.3.1.6 Specific requirements for generic cabling in accordance with
ISO/IEC 11801-3
A.4.3.2 Network characteristics
A.4.3.2.1 General
A.4.3.2.2 Network characteristics for balanced cabling not based on Ethernet
Not applicable.
A.4.3.2.3 Network characteristics for balanced cabling based on Ethernet
Replacement:
Table A.1 provides values based on the template given in IEC 61918:2018, Table 2.

– 12 – IEC 61784-5-12:2024 © IEC 2024
Table A.1 – Network characteristics for balanced cabling based on Ethernet
Characteristic CPF 12 CPF 12
(two pair) (four pair)
Supported data rates (Mbit/s) 100 100-5 000
b
100 100
Supported channel length (m)
a b
6 6
Number of connections in the channel (max.)
a
100 (AWG22) 100 (AWG23)
Patch cord length (m)
b
D E
Channel class per ISO/IEC 11801-3 (min.)
A
c
5 6
Cable category per ISO/IEC 11801-3 (min.)
A
Connecting HW category per ISO/IEC 11801-3 (min.) 5 6
A
Cable types No specific requirement; No specific requirement;
up to manufacturer's up to manufacturer's
differentiation differentiation
a
See A.4.4.3.2.
b
For the purpose of this table, the channel definitions of ISO/IEC 11801-3 are applicable.
c
For additional information, see IEC 61156 series.

A.4.3.2.4 Network characteristics for optical fibre cabling
Replacement:
Table A.2 provides values based on the template given in IEC 61918:2018, Table 3.

Table A.2 – Network characteristics for optical fibre cabling
CPF 12 (EtherCAT)
Optical fibre type Description
Single mode silica Bandwidth (MHz) or equivalent at λ (nm) 300 at 1 310
Minimum length (m) 0
a
14 000
Maximum length (m)
Maximum channel 6
insertion loss/optical power budget (dB)
See IEEE 802.3:2015, Clause 58
10 km specified
Connecting hardware See A.4.4.2.5
Multimode silica Modal bandwidth (MHz × km) at λ (nm) 600 at 1 310
Minimum length (m) 0
a
2 000
Maximum length (m)
Maximum channel 4,5
insertion loss/optical power budget (dB)
Connecting hardware See A.4.4.2.5
POF Modal bandwidth 35 at 650
(MHz × 100 m) at λ (nm)
Minimum length (m) 0,055
a
Maximum length (m)
Maximum channel 4,2
insertion loss/optical power budget (dB)
Connecting hardware See A.4.4.2.5
Hard clad silica Modal bandwidth (MHz × km) at λ (nm) 70 at 650
Minimum length (m) 0
a
Maximum length (m)
Maximum channel insertion loss/optical power 4
budget (dB)
Connecting hardware See A.4.4.2.5
a
This value is reduced by connections, splices and bends in accordance with IEC 61918:2018, Formula (1) in
4.4.3.4.1.
A.4.3.2.5 Specific network characteristics
A.4.3.2.6 Specific requirements for generic cabling in accordance with
ISO/IEC 11801-3
A.4.4 Selection and use of cabling components
A.4.4.1 Cable selection
A.4.4.1.1 Common description
A.4.4.1.2 Copper cables
A.4.4.1.2.1 Balanced cables for Ethernet-based CPs
Replacement:
Table A.3, Table A.4 and Table A.5 provide values for different cable types based on the
template given in IEC 61918:2018, Table 4.

– 14 – IEC 61784-5-12:2024 © IEC 2024
Table A.3 – Information relevant to copper cable: CPF 12 fixed cables
Characteristic CPF 12 CPF 12
Type A cable Type A cable
(two pair) (four pair)
Nominal impedance of cable (tolerance) 100 Ω ± 15 Ω (IEC 61156-5) 100 Ω ± 15 Ω (IEC 61156-5)
Balanced or unbalanced Balanced Balanced
DCR of conductors ≤ 57,5 Ω/km ≤ 85 Ω/km
DCR of shield - -
Number of conductors 4 8
Shielding S/FTP, S/FTQ, S/STP S/FTP, S/STP
Colour code for conductor WH, BU / YE, OG WH|OG, OG / , WH|GR, GR /
WH|BU, BU / , WH|BR, BR
Jacket colour requirements - -
Jacket material - -
Resistance to harsh environment (e.g. UV, Application dependent Application dependent
oil resist, LS0H)
Installation type Stationary, no movement after Stationary, no movement after
installation installation
Outer cable diameter 5,5 mm – 8 mm max. 10 mm
Wire cross section AWG 22/1 AWG 23/1
Wire diameter 1,5 mm ± 0,1 mm 1,0 mm to 1,6 mm
a
≤ 20 ns/100 m ≤ 20 ns/100 m
Delay skew
a
Relevant only for networks with time-based synchronization.

Table A.4 – Information relevant to copper cable: CPF 12 flexible cables
CPF 12 CPF 12
Characteristic
Type B cable Type B cable
(two pair) (four pair)
Nominal impedance of cable (tolerance) 100 Ω ± 15 Ω (IEC 61156-5) 100 Ω ± 15 Ω (IEC 61156-5)
Balanced or unbalanced Balanced Balanced
DCR of conductors ≤ 57,5 Ω/km ≤ 85 Ω/km
DCR of shield - -
Number of conductors 4 8
Shielding S/FTP, S/FTQ, S/STP S/FTP, S/STP
Colour code for conductor WH, BU / YE, OG WH|OG, OG / , WH|GR, GR /
WH|BU, BU / , WH|BR, BR
Jacket colour requirements - -
Jacket material - -
Resistance to harsh environment (e.g. UV, Application dependent Application dependent
oil resist, LS0H)
Installation type Flexible, occasional movement Flexible, occasional movement
or vibration or vibration
Outer cable diameter 5,5 mm – 8 mm Max. 10 mm
Wire cross section AWG 22/7 AWG 23/7
Wire diameter 1,5 mm ± 0,1 mm 1,0 mm to 1,6 mm
a
≤ 20 ns/100 m ≤ 20 ns/100 m
Delay screw
a
Relevant only for networks with time-based synchronization.

Table A.5 – Information relevant to copper cable: CPF 12 special cables
Characteristic CPF 12 CPF 12
Type C cable Type C cable
(two pair) (four pair)
Nominal impedance of cable (tolerance) 100 Ω ± 15 Ω (IEC 61156-5) 100 Ω ± 15 Ω (IEC 61156-5)
Balanced or unbalanced Balanced Balanced
DCR of conductors ≤ 57,5 Ω/km ≤ 95 Ω/km
DCR of shield - -
Number of conductors 4 8
Shielding S/FTP, S/FTQ, S/STP S/FTP, S/STP
Colour code for conductor WH, BU / YE, OG WH|OG, OG / , WH|GR, GR /
WH|BU, BU / , WH|BR, BR
Jacket colour requirements - -
Jacket material - -
Resistance to harsh environment (e.g. UV, Application dependent Application dependent
oil resist, LS0H)
Installation type Special applications (e.g. Special applications (e.g.
permanent movement as in drag permanent movement as in drag
chains) chains)
Outer cable diameter Application dependent Application dependent
Wire cross section AWG 22/x (x: e.g. 7 / 19) AWG 24/x (x: e.g. 7 / 19)
Wire diameter Application dependent Application dependent
a
≤ 20 ns/100 m ≤ 20 ns/100 m
Delay screw
a
Relevant only for networks with time-based synchronization.

A.4.4.1.2.2 Copper cables for non-Ethernet-based CPs
Not applicable.
A.4.4.1.3 Cables for wireless installation
A.4.4.1.4 Optical fibre cables
Replacement:
Table A.6 provides values based on the template given in IEC 61918:2018, Table 6.

– 16 – IEC 61784-5-12:2024 © IEC 2024
Table A.6 – Information relevant to optical fibre cables: CPF 12
Characteristic 9.10/125 µm 50/125 µm 62,5/125 µm 980/1 000 µm 200/230 µm
single mode multimode multimode step index step index hard
silica silica silica POF clad silica
Standard IEC 60793-2 IEC 60793-2 IEC 60793-2 IEC 60793-2 IEC 60793-2
Attenuation per km (650 nm) – – – ≤ 160 dB ≤ 10 dB
Attenuation per km (820 nm) – – – – –
Attenuation per km ≤ 0,5 dB ≤ 1,5 dB ≤ 1,5 dB – –
(1 310 nm)
Number of optical fibres 2 2 2 2 2
Jacket colour requirements – – – – –
Jacket material – – – – –
Resistance to harsh Application Application Application Application Application
environment (e.g. UV, oil dependent dependent dependent dependent dependent
resist, LS0H)
Connector type SC-RJ, SC-RJ, SC-RJ, SC-RJ, SC-RJ,
(duplex or simplex) SC Duplex SC Duplex SC Duplex SC Duplex SC Duplex

A.4.4.1.5 Special purpose balanced and optical fibre cables
A.4.4.1.6 Specific requirements for CPs
Not applicable.
A.4.4.1.7 Specific requirements for generic cabling in accordance with
ISO/IEC 11801-3
A.4.4.2 Connecting hardware selection
A.4.4.2.1 Common description
A.4.4.2.2 Connecting hardware for balanced cabling CPs based on Ethernet
Replacement:
Table A.7 provides values based on the template given in IEC 61918:2018, Table 7.
Table A.7 – Connectors for balanced cabling CPs based on Ethernet
a
IEC 61076 IEC 61076 IEC 61076 IEC 61076 IEC 61076
IEC 61076-3-
IEC 60603-7 series
b b c
-2-101 -2-109 -2-104
106 -3-117 -2-114
shielded un- Var. 1 Var. 6 Var. 14 M12-4 M12-8 M8-4 with M8-4 with
shielded with with A-coding P-coding
D-coding X-coding
CPF 12 IEC 60603- No No No Yes Yes Yes Yes Yes
7-3
a
For IEC 60603-7 series, the connector selection is based on the desired channel performance.
b
Housings to protect connectors.
c
Only applicable in conjunction with EtherCAT™ P.

A.4.4.2.3 Connecting hardware for copper cabling CPs not based on Ethernet
Not applicable.
A.4.4.2.4 Connecting hardware for wireless installation
A.4.4.2.5 Connecting hardware for optical fibre cabling
Replacement:
Table A.8 provides values based on the template given in IEC 61918:2018, Table 9.
Table A.8 – Optical fibre connecting hardware
IEC 61754-2 IEC 61754-4 IEC 61754-24 IEC 61754-20 IEC 61754-22 Others
BFOC/2,5 SC SC-RJ LC F-SMA
CPF 12 No Yes Yes No No No
NOTE IEC 61754 series defines the optical fibre connector mechanical interfaces; performance specifications
for optical fibre connectors terminated to specific fibre types are standardised in the IEC 61753 series.

Addition:
Table A.9 provides values based on the template given in IEC 61918:2018, Table 10.
Table A.9 – Relationship between FOC and fibre types (CPF 12)
Fibre type
9.10/125 µm 50/125 µm 62,5/125 µm 980/1 000 µm 200/230 µm Others
FOC
single mode multimode multimode step index step index hard
silica silica silica POF clad silica
BFOC/2,5 – – – – – –
SC Yes Yes Yes Yes Yes –
SC-RJ Yes Yes Yes Yes Yes –
LC – – – – – –
F-SMA – – – – – –
A.4.4.2.6 Specific requirements for CPs
Not applicable.
A.4.4.2.7 Specific requirements for generic cabling in accordance with
ISO/IEC 11801-3
A.4.4.3 Connections within a channel/permanent link
A.4.4.4 Terminators
Not applicable.
A.4.4.5 Device location and connection
A.4.4.5.1 Common description
A.4.4.5.2 Specific requirements for CPs
Not applicable.
– 18 – IEC 61784-5-12:2024 © IEC 2024
A.4.4.5.3 Specific requirements for wireless installation
A.4.4.5.4 Specific requirements for generic cabling in accordance with
ISO/IEC 11801-3
A.4.4.6 Coding and labelling
A.4.4.7 Earthing and bonding of equipment and devices and shielded cabling
Addition:
The shield shall be earthed and all shield earthing methods described in IEC 61918 apply.
A.4.4.8 Storage and transportation of cables
A.4.4.9 Routing of cables
A.4.4.10 Separation of circuits
Addition:
This subclause applies in principle. This means that CP12/1 and CP12/2 networks work properly
while ensuring the distances of Table 17 provided in IEC 61918:2018.
A.4.4.11 Mechanical protection of cabling components
A.4.4.11.1 Common description
A.4.4.11.2 Specific requirements for CPs
Not applicable.
A.4.4.11.3 Specific requirements for generic cabling in accordance with
ISO/IEC 11801-3
A.4.4.12 Installation in special areas
A.4.4.12.1 Common description
A.4.4.12.2 Specific requirements for CPs
Not applicable.
A.4.4.12.3 Specific requirements for generic cabling in accordance with
ISO/IEC 11801-3
A.4.5 Cabling planning documentation
A.4.6 Verification of cabling planning specification

A.5 Installation implementation
A.5.1 General requirements
A.5.2 Cable installation
A.5.2.1 General requirements for all cabling types
A.5.2.2 Installation and routing
A.5.2.3 Specific requirements for CPs
Not applicable.
A.5.2.4 Specific requirements for wireless installation
A.5.2.5 Specific requirements for generic cabling in accordance with
ISO/IEC 11801-3
A.5.3 Connector installation
A.5.3.1 Common description
A.5.3.2 Shielded connectors
A.5.3.3 Unshielded connectors
A.5.3.4 Specific requirements for CPs
Not applicable.
A.5.3.5 Specific requirements for wireless installation
A.5.3.6 Specific requirements for generic cabling in accordance with
ISO/IEC 11801-3
A.5.4 Terminator installation
Not applicable.
A.5.5 Device installation
A.5.5.1 Common description
A.5.5.2 Specific requirements for CPs
Not applicable.
A.5.6 Coding and labelling
A.5.6.1 Common description
A.5.6.2 Specific requirements for CPs
Not applicable.
A.5.7 Earthing and bonding of equipment and devices and shield cabling
Subclause 5.7.5 is not applicable.
A.5.8 As-implemented cabling documentation

– 20 – IEC 61784-5-12:2024 © IEC 2024
A.6 Installation verification and installation acceptance test
A.6.1 General
A.6.2 Installation verification
A.6.2.1 General
A.6.2.2 Verification according to cabling planning documentation
A.6.2.3 Verification of earthing and bonding
A.6.2.3.1 General
A.6.2.3.2 Specific requirements for earthing and bonding
Not applicable.
A.6.2.4 Verification of shield earthing
A.6.2.5 Verification of cabling system
A.6.2.6 Cable selection verification
A.6.2.6.1 Common description
A.6.2.6.2 Specific requirements for CPs
Not applicable.
A.6.2.6.3 Specific requirements for wireless installation
A.6.2.7 Connector verification
A.6.2.7.1 Common description
A.6.2.7.2 Specific requirements for CPs
Not applicable.
A.6.2.7.3 Specific requirements for wireless installation
A.6.2.8 Connection verification
A.6.2.8.1 Common description
A.6.2.8.2 Number of connections and connectors
A.6.2.8.3 Wire mapping
A.6.2.9 Terminator verification
Not applicable.
A.6.2.10 Coding and labelling verification
A.6.2.10.1 Common description
A.6.2.10.2 Specific coding and labelling verification requirements
Not applicable.
A.6.2.11 Verification report
A.6.3 Installation acceptance test
A.6.3.1 General
A.6.3.2 Acceptance test of Ethernet-based cabling
A.6.3.2.1 Validation of balanced cabling for CPs based on Ethernet
A.6.3.2.1.1 Common description
A.6.3.2.1.2 Transmission performance test parameters
A.6.3.2.1.3 Specific requirements for CPs based on Ethernet
Not applicable.
A.6.3.2.2 Validation of optical fibre cabling for CPs based on Ethernet
A.6.3.2.2.1 Common description
A.6.3.2.2.2 Specific requirements for optical fibre cabling CPs
Not applicable.
A.6.3.2.3 Specific requirements for generic cabling in accordance with
ISO/IEC 11801-3
A.6.3.3 Acceptance test of non-Ethernet-based cabling
Not applicable.
A.6.3.4 Specific requirements for wireless installation
A.6.3.5 Acceptance test report
A.7 Installation administration
Subclause 7.8 is not applicable
A.8 Installation maintenance and installation troubleshooting
Subclause 8.4 is not applicable

___________
