IEC 60794-4-10:2014
(Main)Optical fibre cables - Part 4-10: Family specification - Optical ground wires (OPGW) along electrical power lines
Optical fibre cables - Part 4-10: Family specification - Optical ground wires (OPGW) along electrical power lines
IEC 60794-4-10:2014 which is a family specification, covers cable construction, test methods and optical, mechanical, environmental and electrical performance requirements for OPGW (optical ground wire) which is used for the protection of electrical power lines against atmospheric discharges or short-circuits and, at the same time, as a high bandwidth transport media for communications-and-control optical signals. The corresponding environmental declaration may be built according to IEC TR 62839-1. This second edition cancels and replaces the first edition published in 2006 and constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
- galloping test (9.7) has been added to the type tests list;
- update of definitions clause;
- maximum installation tension (MIT) defined and used in the sheave test description;
- definition of characterization of OPGW's mechanical behaviour in order to provide information useful for electrical power transmission lines designers;
- improved definition of lightning test parameters and conditions to improve reproducibility among different laboratories. Keywords: OPGW (optical ground wire), protection of electrical power lines, atmospheric discharges
Câbles à fibres optiques - Partie 4-10: Spécification de famille - Câbles de garde à fibres optiques le long des lignes électriques de puissance
IEC 60794-4-10: 2014 qui est une spécification de famille, couvre la construction des câbles, les méthodes d'essai et les exigences de performances optiques, mécaniques, d'environnement et électriques pour des câbles de garde à fibres optiques (OPGW), utilisés pour la protection des lignes électriques de puissance contre les décharges atmosphériques ou les courts-circuits, mais aussi comme support de transport à très large bande pour les signaux optiques de communication et de contrôle. La déclaration environnementale correspondante peut être établie conformément à l'IEC TR 62839-1. Un câble de garde à fibres optiques peut remplacer un câble de protection et de mise à la terre traditionnel contenant des fibres optiques destinées au contrôle et/ou aux communications. Habituellement, les fibres sont intégrées de manière lâche dans des tubes de protection. Pour satisfaire aux exigences mécaniques et électriques, une armure constituée d'une ou plusieurs couches avec de l'aluminium, un alliage d'aluminium, de l'acier plaqué aluminium, de l'acier galvanisé ou un mélange de ceux-ci est toronnée de manière hélicoïdale. Si la construction contient un tube d'aluminium ou un jonc rainuré en aluminium, cette section est considérée comme une partie conductrice. Cette deuxième édition annule et remplace la première édition parue en 2006 dont elle constitue une révision technique. La présente édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) l'essai de galop (9.7) a été ajouté à la liste des essais de type;
b) l'article sur les définitions a été mis à jour; la tension d'installation maximale (MIT) définie et utilisée dans la description de l'essai de passage sur poulies;
c) définition de la caractérisation du comportement mécanique des câbles de garde à fibres optiques pour fournir des informations utiles aux concepteurs de lignes de transmission de puissance électrique;
d) amélioration de la définition des paramètres et des conditions des essais de choc de foudre pour améliorer la reproductibilité entre différents laboratoires.
Mots clés : câbles de garde à fibres optiques (OPGW), protection des lignes électriques de puissance, décharges atmosphériques
Electromagnetic compatibility (EMC) - Part 5: Installation and mitigation guidelines - Section 4: Immunity to HEMP - Specifications of protective devices against HEMP radiated disturbance - Basic EMC publication
General Information
Relations
Standards Content (Sample)
IEC 60794-4-10 ®
Edition 2.0 2014-10
INTERNATIONAL
STANDARD
colour
inside
Optical fibre cables –
Part 4-10: Family specification – Optical ground wires (OPGW) along electrical
power lines
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 14
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.
IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 55 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,
77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
IEC 60794-4-10 ®
Edition 2.0 2014-10
INTERNATIONAL
STANDARD
colour
inside
Optical fibre cables –
Part 4-10: Family specification – Optical ground wires (OPGW) along electrical
power lines
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
R
ICS 33.180.10 ISBN 978-2-8322-1909-6
– 2 – IEC 60794-4-10:2014 © IEC 2014

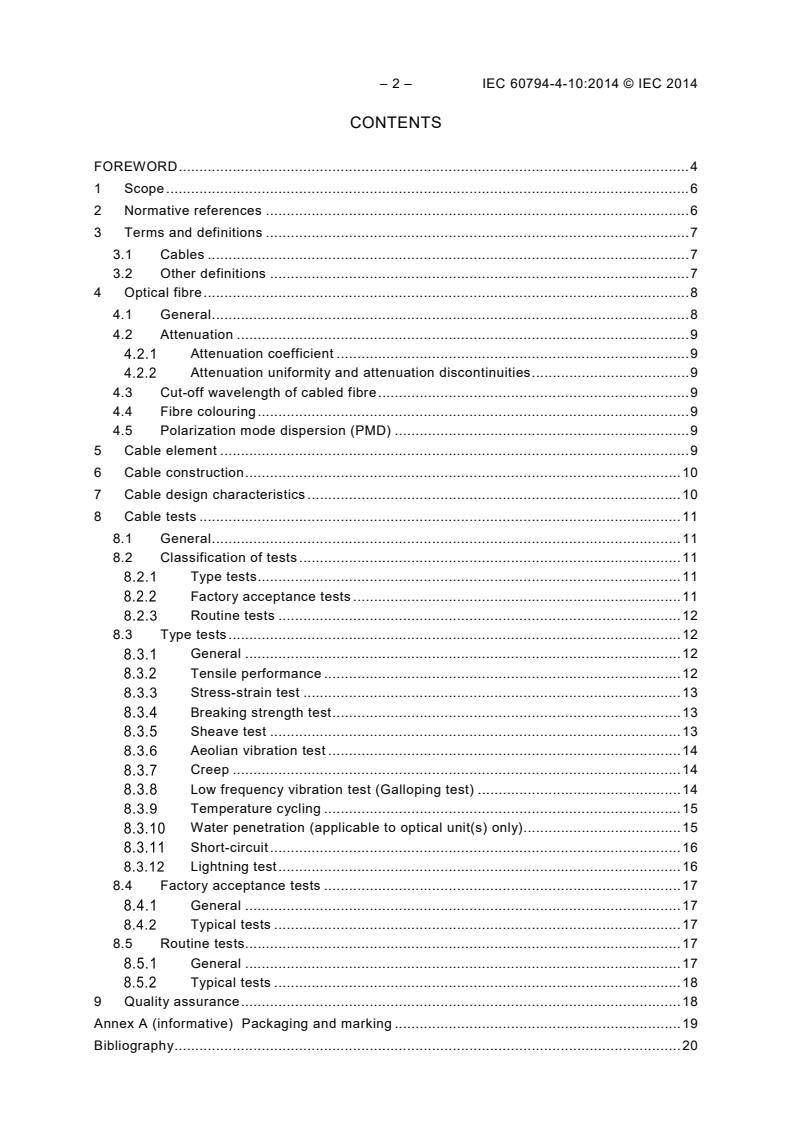

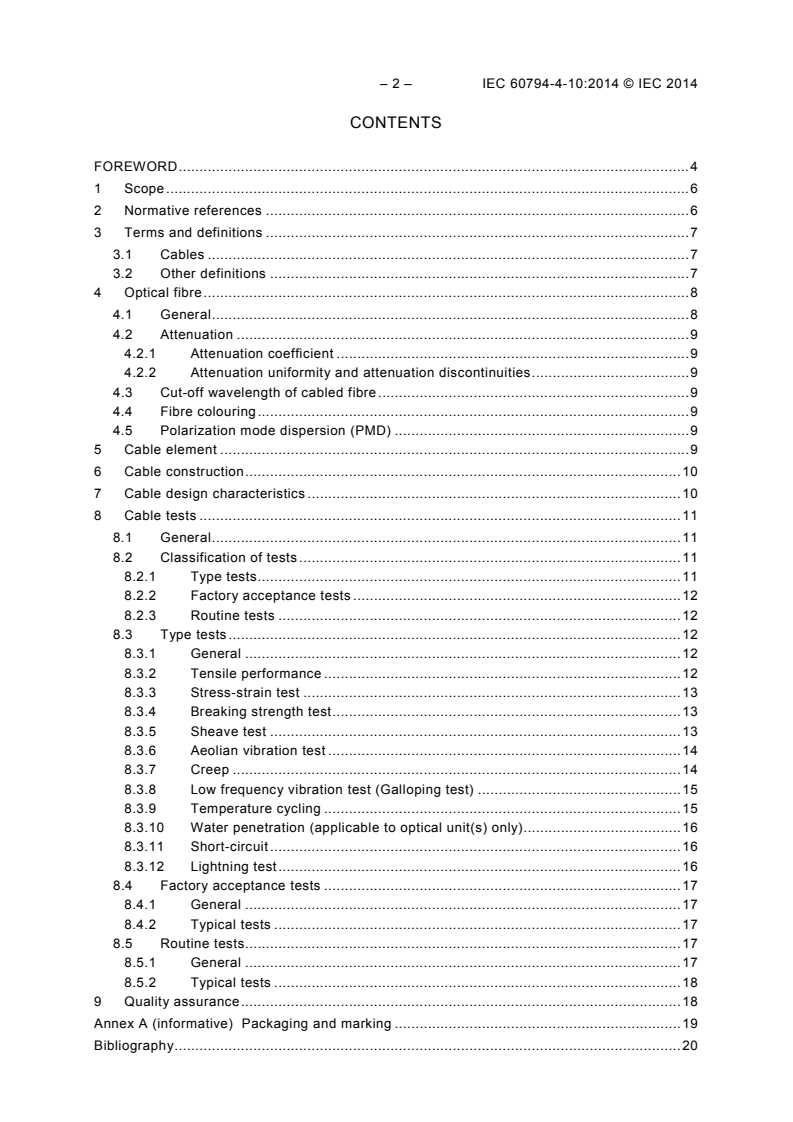

CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
3.1 Cables . 7
3.2 Other definitions . 7
4 Optical fibre . 8
4.1 General . 8
4.2 Attenuation . 9
4.2.1 Attenuation coefficient . 9
4.2.2 Attenuation uniformity and attenuation discontinuities . 9
4.3 Cut-off wavelength of cabled fibre . 9
4.4 Fibre colouring . 9
4.5 Polarization mode dispersion (PMD) . 9
5 Cable element . 9
6 Cable construction . 10
7 Cable design characteristics . 10
8 Cable tests . 11
8.1 General . 11
8.2 Classification of tests . 11
8.2.1 Type tests . 11
8.2.2 Factory acceptance tests . 12
8.2.3 Routine tests . 12
8.3 Type tests . 12
8.3.1 General . 12
8.3.2 Tensile performance . 12
8.3.3 Stress-strain test . 13
8.3.4 Breaking strength test . 13
8.3.5 Sheave test . 13
8.3.6 Aeolian vibration test . 14
8.3.7 Creep . 14
8.3.8 Low frequency vibration test (Galloping test) . 15
8.3.9 Temperature cycling . 15
8.3.10 Water penetration (applicable to optical unit(s) only). 16
8.3.11 Short-circuit . 16
8.3.12 Lightning test . 16
Factory acceptance tests . 17
8.4
8.4.1 General . 17
8.4.2 Typical tests . 17
8.5 Routine tests. 17
8.5.1 General . 17
8.5.2 Typical tests . 18
Quality assurance . 18
Annex A (informative) Packaging and marking . 19
Bibliography . 20
Table 1 – Cable design characteristics . 10
Table 2 – Lightning test conditions and parameters to be informed in the test report . 17
– 4 – IEC 60794-4-10:2014 © IEC 2014
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
OPTICAL FIBRE CABLES –
Part 4-10: Family specification –
Optical ground wires (OPGW) along electrical power lines
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60794-4-10 has been prepared by subcommittee 86A: Fibres and
Cables, of IEC technical committee 86. Fibre optics
This second edition cancels and replaces the first edition published in 2006 and constitutes a
technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) galloping test (9.7) has been added to the type tests list;
b) update of definitions clause; maximum installation tension (MIT) defined and used in the
sheave test description;
c) definition of characterization of OPGW’s mechanical behaviour in order to provide
information useful for electrical power transmission lines designers;
d) improved definition of lightning test parameters and conditions to improve reproducibility
among different laboratories.
The text of this standard is based on the following documents:
CDV Report on voting
86A/1594/CDV 86A/1627/RVC
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 60794 series, published under the general title Optical fibre
cables, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued
...
