IEC 62439-1:2010/AMD1:2012

Amendment 1 - Industrial communication networks - High availability automation networks - Part 1: General concepts and calculation methods

Amendement 1 - Réseaux de communication industriels - Réseaux de haute disponibilité pour l'automatisation - Partie 1: Concepts généraux et méthodes de calcul

General Information

• Status: Published
• Publication Date: 13-Jun-2012
• ICS: 25.040.40 - Industrial process measurement and control
• ICS: 35.100.05 - Multilayer applications
• Technical Committee: SC 65C - Industrial networks
• Drafting Committee: WG 15 - TC 65/SC 65C/WG 15
• Current Stage: PPUB - Publication issued
• Start Date: 14-Jun-2012
• Completion Date: 15-Jun-2012

Relations

• Amends: IEC 62439-1:2010 - Industrial communication networks - High availability automation networks - Part 1: General concepts and calculation methods
• Effective Date: 05-Sep-2023

Standards Content (Sample)

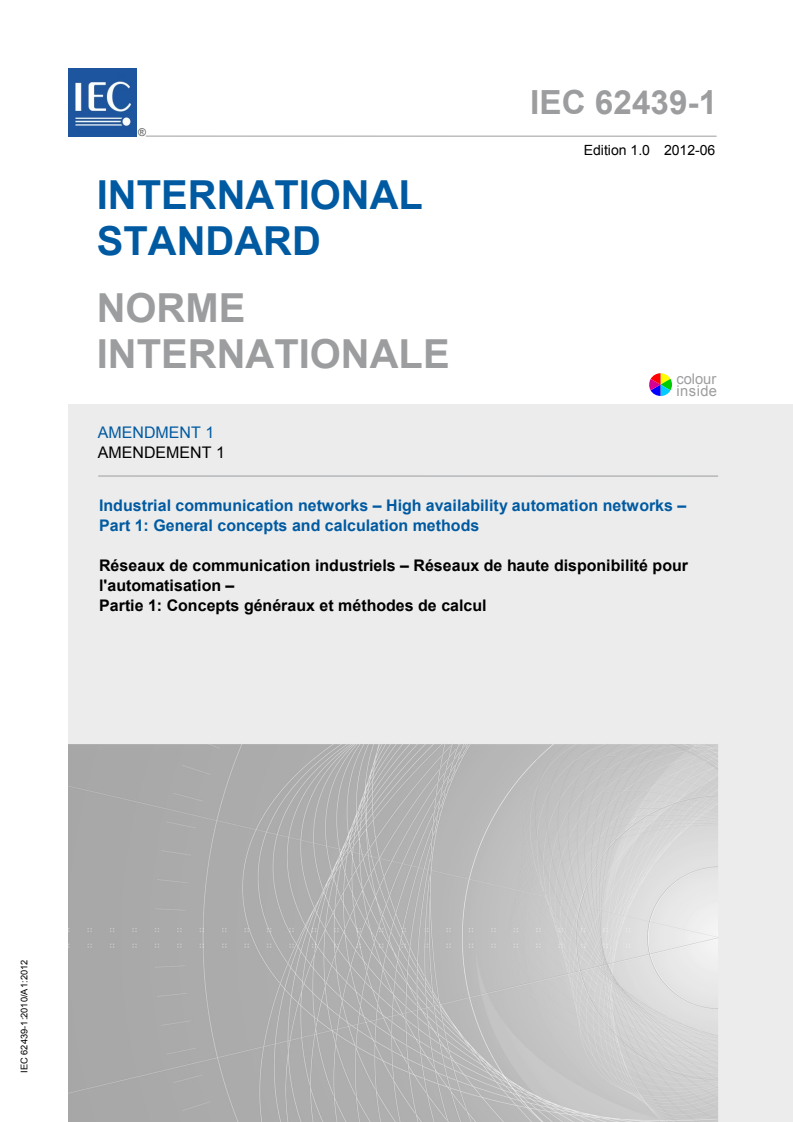

IEC 62439-1 ®
Edition 1.0 2012-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
AMENDMENT 1
AMENDEMENT 1
Industrial communication networks – High availability automation networks –
Part 1: General concepts and calculation methods

Réseaux de communication industriels – Réseaux de haute disponibilité pour
l'automatisation –
Partie 1: Concepts généraux et méthodes de calcul

IEC 62439-1:2010/A1:2012
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les
microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: [e-mail].

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: [e-mail].

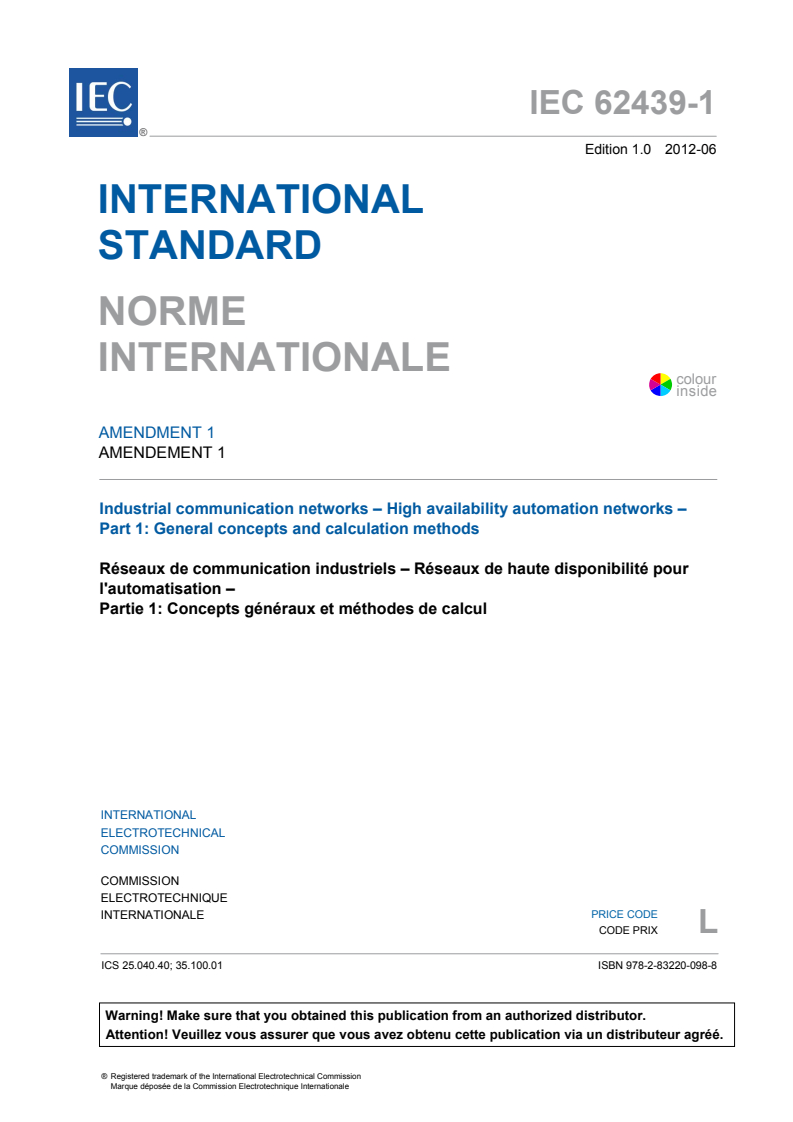

IEC 62439-1 ®
Edition 1.0 2012-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
AMENDMENT 1
AMENDEMENT 1
Industrial communication networks – High availability automation networks –

Part 1: General concepts and calculation methods

Réseaux de communication industriels – Réseaux de haute disponibilité pour

l'automatisation –
Partie 1: Concepts généraux et méthodes de calcul

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX L
ICS 25.040.40; 35.100.01 ISBN 978-2-83220-098-8

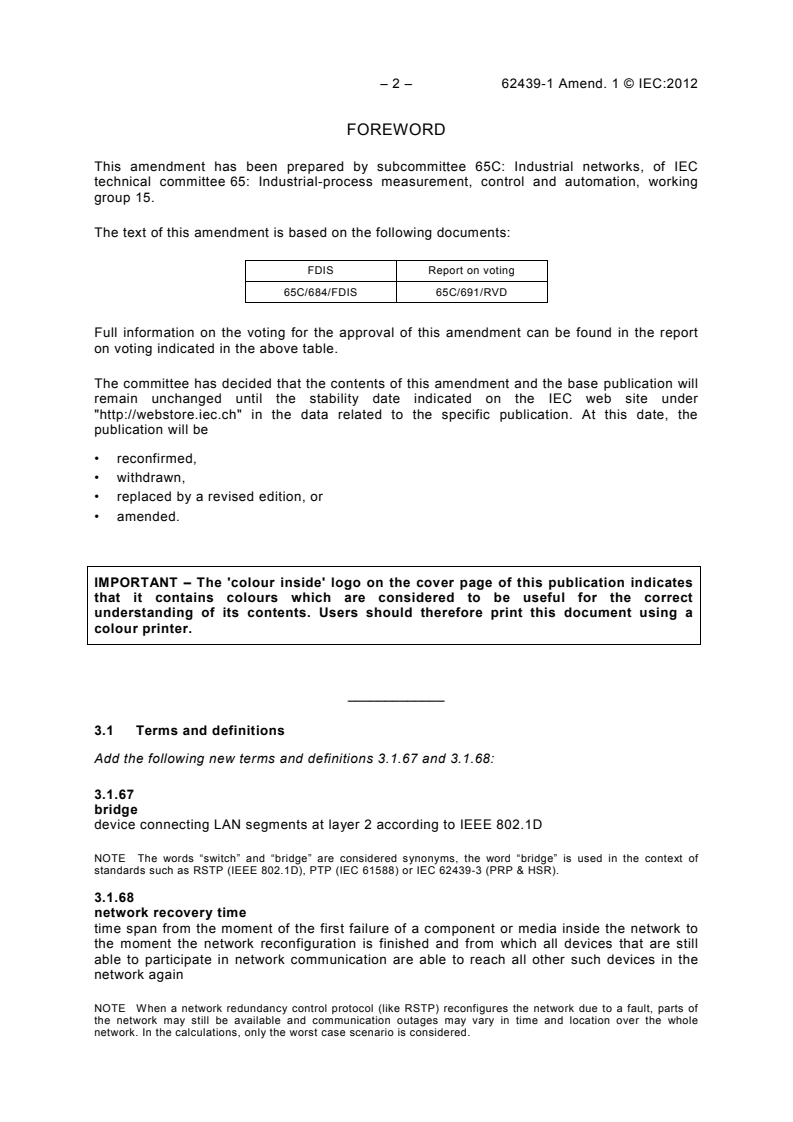

– 2 – 62439-1 Amend. 1 © IEC:2012
FOREWORD
This amendment has been prepared by subcommittee 65C: Industrial networks, of IEC
technical committee 65: Industrial-process measurement, control and automation, working
group 15.
The text of this amendment is based on the following documents:
FDIS Report on voting
65C/684/FDIS 65C/691/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
_____________
3.1 Terms and definitions
Add the following new terms and definitions 3.1.67 and 3.1.68:
3.1.67
bridge
device connecting LAN segments at layer 2 according to IEEE 802.1D
NOTE The words “switch” and “bridge” are considered synonyms, the word “bridge” is used in the context of
standards such as RSTP (IEEE 802.1D), PTP (IEC 61588) or IEC 62439-3 (PRP & HSR).
3.1.68
network recovery time
time span from the moment of the first failure of a component or media inside the network to
the moment the network reconfiguration is finished and from which all devices that are still
able to participate in network communication are able to reach all other such devices in the
network again
NOTE When a network redundancy control protocol (like RSTP) reconfigures the network due to a fault, parts of
the network may still be available and communication outages may vary in time and location over the whole
network. In the calculations, only the worst case scenario is considered.

62439-1 Amend. 1 © IEC:2012 – 3 –
3.2 Abbreviations and acronyms
Add, in alphabetical order, in the list of abbreviations the following new abbreviation:
RRP Ring-based Redundancy Protocol, see IEC 62439-7
3.4 Reserved network addresses
Add at the end of the list given in the second paragraph, the following new item:
• RRP (see IEC 62439-7) uses 00-E0-91-02-05-99.
Add at the end of the list given in the third paragraph, the following new item:
• RRP (see IEC 62439-7) uses 0x88FE.
4.1 Conformance to redundancy protocols
Add at the end of the existing list, the following new item:
• compliance to IEC 62439-7 (RRP).
5.1.1 Resilience in case of failure
Add, at the end of the fourth paragraph ("… are met"), the following new sentence:
A network provides a deterministic recovery if it is possible to calculate a finite worst case
recovery time of a given topology when a single failure occurs.
5.1.4 Comparison and indicators
Add, in the existing Table 2, the following new line between the existing lines "BRP" and
"PRP":
RRP IEC 62439-7 Yes In the end Double Single ring 8 ms in 100BASEX,
nodes (switching 4 ms in 1000BASEX
end nodes)
8 RSTP for High Availability Networks: configuration rules, calculation and
measurement method for deterministic recovery time in a ring topology
Replace, in the existing title of this clause, the words "for deterministic recovery time in a ring
topology" by "for predictible recovery time".
Add, between the existing title of this clause and the existing title of 8.1, the following new
note:
NOTE In the context of this Clause, the word “bridge” is used in place of “switch”, respectively “bridging” instead
of “switching”.
Add, at the end of this clause, the following new Subclause 8.5:
8.5 RSTP topology limits and maximum recovery time
NOTE In the next edition of IEC 62439-1, this new Subclause 8.5 will be renumbered as 8.2.
8.5.1 RSTP protocol parameters
This subclause explains the RSTP protocol parameters that impact network recovery times
and shows how a specific topology and protocol configuration influence them. First, RSTP-

– 4 – 62439-1 Amend. 1 © IEC:2012
specific terms are defined. Then, basic guidelines on network design are given and finally a
method to determine an approximation of an upper bond worst case network reconfiguration
time for meshed RSTP networks is given.
This subclause particularly deals with RSTP networks that are composed of more than a
single ring. For a single Ethernet ring running RSTP, the network reconfiguration time can be
determined as 8.2 shows. However, the subsequent statements concerning RSTP parameters
are also applicable in a ring network.
8.5.2 RSTP-specific terms and definitions
NOTE These terms are inherited from IEEE 802.1D.
8.5.2.1 Transmission Hold Count (TxHoldCount)
Each port of an RSTP bridge includes a counter TxHoldCount. This counter starts at zero and
is incremented for each BPDU the port sends. A timer decrements every second the counter.
If TxHoldCount reaches the maximum value, no further BPDU are transmitted over that port
until the counter has been decremented again, regardless of the importance of the BPDU to
network reconfiguration. The default maximum value of TxHoldCount is 6 and the maximum
configurable number is 10.
8.5.2.2 Bridge Max Age
Each RSTP bridge includes a parameter Bridge Max Age that should be configured to the
same value in each bridge. Bridge Max Age defines the maximum total number of “physical
hops” or links between the root bridge and any bridge participating in the same RSTP network.
Its default value is 20 and it can be configured to from 6 to a maximum of 40. In special cases,
Bridge Max Age is configured differently in some bridges.
Because Bridge Max Age defines the maximum extension of an RSTP network, it is
sometimes referred to as “network diameter”. But “Bridge Max Age” and the actually usable
network diameter are not synonymous, see 8.5.2.4.
8.5.2.3 Message Age
Each BPDU includes a parameter Message Age. Upon reception of a BPDU, a bridge
increments Message Age and afterwards compares it to its “Bridge Max Age”. If Message Age
is larger than Bridge Max Age, the bridge discards the BPDU and ignores the information it
carries.
The root bridge starts by sending BPDUs with Message Age = 0. The first bridge after the root
bridge (and subsequent bridges until Message Age reaches Bridge Max Age) receives the
BPDU, increment “Message Age” by 1, compares it to the “Bridge Max Age” and transmit
BPDUs with the updated information.
8.5.2.4 Network diameter and radius
The “diameter” in an RSTP network is the number of bridges on the longest active path in a
network tree between the two bridges that are the farthest away from each other. The
diameter does not necessarily correspond to the RSTP parameter Bridge Max Age (see
Figure 23).
The ”radius” in a RSTP network is the number of bridges from (and including) the active root
bridge to the bridge that is the farthest away from this active root in the topology. This is the
length (in hops) of the longuest path over which the RSTP protocol information needs to be
forwarded (see Figure 23). The maximum supported radius by RSTP can be defined as:
max. radius = Bridge Max Age + 1.

62439-1 Amend. 1 © IEC:2012 – 5 –
The radius is important to determine worst case topologies. In a worst case fault situation
(without an engineered network and consciously placed root bridges), upon failure of a root
bridge, the farthest away leaf might be the backup root bridge, which might become the next
root. In this case, the diameter of the network can become the radius and it becomes the
actual path that the RSTP information to the individual bridges has to travel. (See Figure 23)
NOTE RSTP BPDUs are only transmitted on the link between two directly connected bridges. Each bridge
consumes and produces these BPDUs, but the RSTP information which they carry travels distinct paths through the
network (in a stable network state without reconfiguration).
8.5.3 Example of a small RSTP tree

IEC  953/12
Figure 23 – Diameter and Bridge Max Age
NOTE 1 The RSTP parameter Bridge Max Age has been assigned the value 4 for the sake of this example
although 802.1D does not allow a value lower than 6.
In the example of Figure 23, at first, the network without a failure is in a stable condition with
Bridge Max Age = 4 and because the actual radius is 4 (the RSTP configuration could support
a maximum radius of 5). The diameter is 7, from one leaf in one branch to the other leaf in the
other branch, via the root bridge. Because the root bridge is the root element of a balanced
tree, Bridge Max Age = 4 is sufficient for all bridges to receive RSTP BPDUs from the same
RSTP root.
A root bridge failure and an unfavorable backup root election changes that. After a root bridge
failure, the redundant link that was formerly blocked is activated. The diameter is now 6. At
the same time, the radius is also increased to 6. Because one of the leaves of the original
branches has now become the root bridge, the Bridge Max Age of 4 is not sufficient for the
RSTP root information to reach all bridges of the network, because the RSTP information now
has to travel the whole diameter, which is now equivalent to the radius. Thus, the last bridge

– 6 – 62439-1 Amend. 1 © IEC:2012
is segmented, as indicated in Figure 23. This bridge discards the BPDU, because the
Message Age has exceeded the configured Bridge Max Age.
To engineer stable and high performance networks, it is necessary to observe and understand
the difference between the network diameter and the radius, respectively the Bridge Max Age
parameter. The Bridge Max Age parameter is kept as high as necessary not to segment any
device in a worst case fault scenario and as low as possible to minimize the network recovery
time as shown in the following subclauses. The network radius determines the necessary
Bridge Max Age value for each considered topology. The Bridge Max Age can be kept low by
positionning both root bridge and backup root bridge at a central position in the network, e.g.
on the main ring of a hierarchical multi-ring topology.
NOTE 2 Another method, which is not covered in this document, is to configure different Bridge Max Age values
on root and backup root bridge, according to their respective positions in the network.
8.5.4 Assumption on TxHoldCount
Calculation or approximation of an upper bond reconfiguration time is made under the
assumption that the Transmit Hold Count (TxHoldCount) is never reached and no BPDU
necessary for fast reconfiguration of the network is lost.
This however can occur in practice, especially during network reconfiguration. As soon as the
TxHoldCount of one bridge port becomes “saturated”, all bridges connected to the saturated
port won’t receive any BPDUs any more until the TxHoldCount has been decremented. If the
dropped BPDUs are vital for network reconfiguration, the network reconfiguration time can be
extended by several seconds. This assumption is of high practical relevance and is
considered as the biggest threat to the network reconfiguration time of RSTP networks.
8.5.5 Worst case topology and radius determination
Because the worst case radius and the lowest possible Bridge Max Age parameter are
correlated, determining the worst case radius is important in determining the upper bond
worst case reconfiguration time.
In an arbitrarily meshed network, the reconfigured links of the network in steady state after
reconfiguration can be predicted prior to the failure, but as the protocol is based on reception
and sending BPDUs in each individual bridge, race conditions can occur during
reconfiguration. Therefore the maximum reconfiguration time can only be given as a worst
case bound based on the maximum reaction time of each bridge and the maximum number of
hops allowed by the protocol.
In addition, some media such as 1000Tx present large link failure detection times. Indeed,
auto-negotiation disabled on fiber Gigabit links may jeopardize RSTP failover time in case of
link failure.
NOTE Malicious failures such as a bridge unable to forward payload frames but still exchanging BPDUs with its
neighbors cannot be considered in the calculations.
When designing a network that operates with RSTP, the network radius from the root-bridge
location and from the backup root location to the farthest away leaf bridge has to be
calculated.
This radius calculation also considers a worst case failure, because failures in the topology
can increase the radius. As an example, Figure 24 shows the root bridge and the backup root
bridge located on the main ring. The worst case radius for this specific topology is reached by
two simultaneous failures positioned as Figure 24 shows, which is 7 for the indicated root.

62439-1 Amend. 1 © IEC:2012 – 7 –

IEC  954/12
Figure 24 – Worst path determination
Once the worst case radius value for a worst case failure scenario in the network topology
has been determined, Bridge Max Age should be configured to exactly this number - 1. This
minimizes the upper bond reconfiguration time of the network, since a lower Bridge Max Age
limits the time that BPDUs circulate in the network.
8.5.6 Method to determine the worst case radius in case of a ring-ring architecture
In a ring of rings topology, the main ring is made of “N” bridges + 2 × “M” bridges that connect
“M” sub-rings redundantly, each made of “R” bridges (excluding the bridge to connect on the
main ring).
Figure 25 shows an example of a main ring (N = 3) with two sub-rings (M = 2) connected
redundantly via a total of four bridges (two per sub-ring) to the main ring, with R = 4.

IEC  955/12
Figure 25 – Example ring-ring topology

– 8 – 62439-1 Amend. 1 © IEC:2012
Root bridge and backup root bridge remain on the main ring (this is ensured by configuring
the RSTP priority of root and backup root on the main ring with a better priority value than any
other bridge in the sub-rings).
Only one failure at the main ring and one failure at the sub-ring are considered. Sustaining
one failure in the main ring and simultaneously a second failure in a sub-ring is a corner case.
Then the worst case radius (i.e. the Bridge Max Age that needs to be configured which is
equivalent to the worst case radius - 1) is:
worst case radius = N + 2 × M + R
Bridge Max Age = (worst case radius – 1) = N + 2 × M + R -1
where
“R” is the number of bridges in the sub-ring with the highest number of devices;
“N” is the number of bridges in the main ring (excluding the bridges that connect the sub-
rings);
“M” is the number of bridges in the main ring that connect the main ring to the sub-rings.
In the diagram above, considering that N=3, M=2, R=4, the worst case radius = 11.
Thus, the RSTP protocol parameter “Bridge Max Age” should be configured to a value of 10 to
optimize network recovery times.
8.5.7 Worst case radius of an optimized multilayer architecture
With a large number of bridges, the network topology should be optimized in order not to
reach the Bridge Max Age limit and to keep worst case reconfiguration times low.

62439-1 Amend. 1 © IEC:2012 – 9 –
A simple solution is to consider a multilayer topology, consisting of “L” layers, as shown in
Figure 26:
IEC  957/12
Figure 26 – Example multilayer topology
The upper layer is made of 2 main bridges which are set to be the root/backup root bridges.
(Priority value of these bridges is expected to be set consequently to the highest and second
to highest priority).
The maximum size of layer 3 is defined by sub-rings made of “R” bridges. The parameter “R”
excludes the bridges that connect the individual layer 3 subring to layer 2, which is taken into
the calculation through the parameter “L”.
Only one failure per layer is considered.
Then the worst case radius is equal to:
worst case radius = (2 × L) + R
In the above diagram, L=3, R=4, and therefore, worst case radius = 10. This results in a
Bridge Max Age parameter of 9.
The interesting point is that this result is not dependant on the number of branch-offs per
layers, and this topology is possibly able to support a large number of nodes with a low Bridge
Max Age parameter. The limitation is the maximum number of ports of the bridges used at
each layer: A large number of physical ports is detrimental to RSTP performance on bridges.
8.5.8 Approximated upper bond reconfiguration time for RSTP networks
The RSTP root bridge failure is the worst case scenario aftecting reconfiguration time. The
upper bond reconfiguration time is the time needed for recovery after a root bridge failure.
The recovery time for link failures or non-root bridge failures will not exceed the root bridge

– 10 – 62439-1 Amend. 1 © IEC:2012
failure recovery time. Since it is the worst case scenario, the recovery time subsequently is
estimated for a root bridge failure.
When considering the network reconfiguration time of a meshed RSTP network, three distinct
phases can be identified:
– Aging phase: The phase in which the fault in the network is detected and in which multiple
root information (old and new root priority vectors) are still present in the network. The old
root information can still circulate around in the network until the Message Age in the
BPDUs reaches the Bridge Max Age value. Only after the old root priority vector from the
failed root bridge has been completely eliminated from the network, can the backup root
priority vector prevail. The aging phase is therefore the time from the fault to the moment,
when the old root BPDU priority vector is eliminated and, in a worst case situation, any
other, inferior new temporary root vector reaches the backup root bridge and triggers the
converging phase.
– Converging phase: The phase in which the backup root broadcasts its new root vector to
the network and is no longer disturbed by old root vector information. The converging
phase immediately starts after the aging phase and ends when the bridge farthest away
from the new backup root has received the new root information.
– Flushing phase: After the reconfiguration of the active topology, several bridges could
flush their filtering databases to make certain that the new communication paths are
learned properly. RSTP uses Topology Change (TC) BPDUs to initiate flushing. With a
worst case assumption, this phase begins immediately after the converging phase and
ends after the Topology Change notification from the bridge farthest away from the root
has reached the root bridge.
NOTE When a root bridge fails, usually more than one bridge claims root. But as the backup root has the best
remaining priority, its priority vector quickly (one single priority propagation through the topology) prevails against
the other temporary root bridges. But in a worst case scenario, the better priority vector from the old root may still
“circulate” around much longer. This is, therefore, the limiting element that defines the length of the aging phase.
The total upper bond reconfiguration time Trec of a meshed RSTP network can therefore be
approximated as:
Trec = TL + Tage + Tconv + Tflush
where:
Tage = 2 × Bridge Max Age × TPA;
Tconv = worst case radius × TPA;
Tflush = worst case radius × TTC;
TL is the maximum time required by a bridge to detect a link failure (depends on the link
type);
TPA is the maximum time required by a pair of bridges to perform RSTP Proposal
Agreement handshaking; equal to the sum of the BPDU processing times in both
bridges of the pair. TPA values may differ from vendor to vendor and from product to
product;
TTC is the time an Ethernet bridge needs to process an RSTP topology change.
Typical values for “fast RSTP” implementation:
TPA = 5 ms when the vendor claims a 5 ms/hop recovery time
TL = 4-6 ms for 100BASE-TX and 100BASE-FX links
= 20 ms for 1000BASE-X links
= 700 ms for 1000BASE-T links (defined by the ISO/IEC 8802-3)

62439-1 Amend. 1 © IEC:2012 – 11 –
This approximation shows that it is beneficial for the total recovery time to set the Bridge Max
Age parameter as high as necessary to support the given topology (with respect to possible
failures), but as low as possible to minimize its impact on the network recovery time.
This approximation of recovery time covers the worst case scenario, the root bridge failure.
When comparing the likeliness of a root bridge failure to the likeliness of a non-root or link
failure, a root bridge failure is far more unlikely (when similar failure probabilities for all
participating devices and media are assumed) because for each root bridge there is a large
number of media connections and non-root bridges that may fail before.
Therefore, the typical recovery time will be faster than the worst case recovery time that can
be approximated by this clause, but this cannot be counted on.
NOTE There may be an additional effect when a bridge with multiple ports connected to the RSTP network is
becoming a part of the acti
...
