IEC 60700-3:2022

Thyristor valves for high voltage direct current (HVDC) power transmission - Part 3: Essential ratings (limiting values) and characteristics

IEC 60700-3:2022 specifies the service conditions, the definitions of essential ratings and characteristics of thyristor valves utilized in line commutated converters with three-phase bridge connections to realize the conversion from AC to DC and vice versa for high voltage direct current (HVDC) power transmission applications. It is applicable for air insulated, liquid cooled and indoor thyristor valves.

Valves à thyristors pour le transport d’énergie en courant continu à haute tension (CCHT) - Partie 3: Valeurs assignées (valeurs limites) et caractéristiques essentielles

L’IEC 60700-3:2022 spécifie les conditions d’emploi, les définitions des valeurs assignées et des caractéristiques essentielles des valves à thyristors utilisées dans les convertisseurs commutés par le réseau avec des montages en pont triphasés pour réaliser la conversion du courant alternatif en courant continu et inversement pour des applications de transport d’énergie en courant continu à haute tension (CCHT). Elle s’applique aux valves à thyristors isolées par air, refroidies par un liquide et en intérieur.

General Information

• Status: Published
• Publication Date: 28-Nov-2022
• ICS: 29.200 - Rectifiers. Convertors. Stabilized power supply
• Technical Committee: SC 22F - Power electronics for electrical transmission and distribution systems
• Drafting Committee: WG 35 - TC 22/SC 22F/WG 35
• Current Stage: PPUB - Publication issued
• Start Date: 02-Jan-2023
• Completion Date: 29-Nov-2022

Standards Content (Sample)

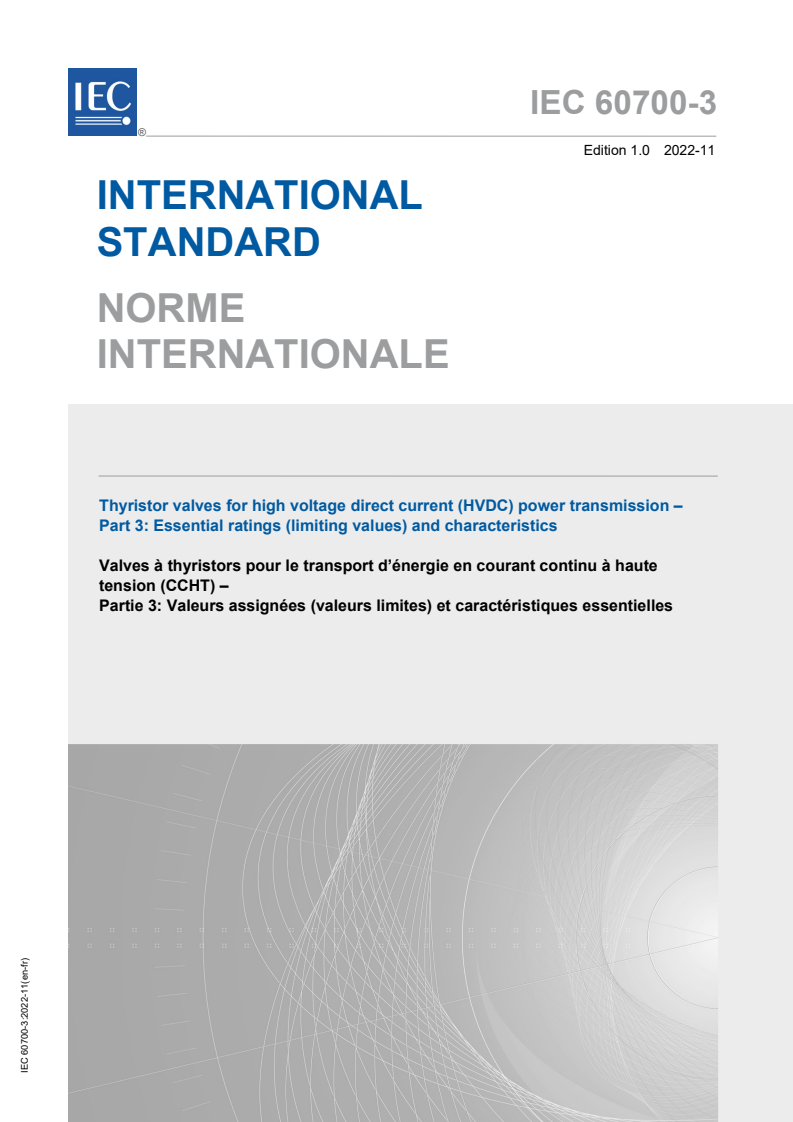

IEC 60700-3
®

Edition 1.0 2022-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE


Thyristor valves for high voltage direct current (HVDC) power transmission –
Part 3: Essential ratings (limiting values) and characteristics

Valves à thyristors pour le transport d’énergie en courant continu à haute
tension (CCHT) –
Partie 3: Valeurs assignées (valeurs limites) et caractéristiques essentielles

IEC 60700-3:2022-11(en-fr)

---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2022 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.


Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland

About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 19 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: [e-mail].


A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 300 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
19 langues additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
[e-mail].

---------------------- Page: 2 ----------------------

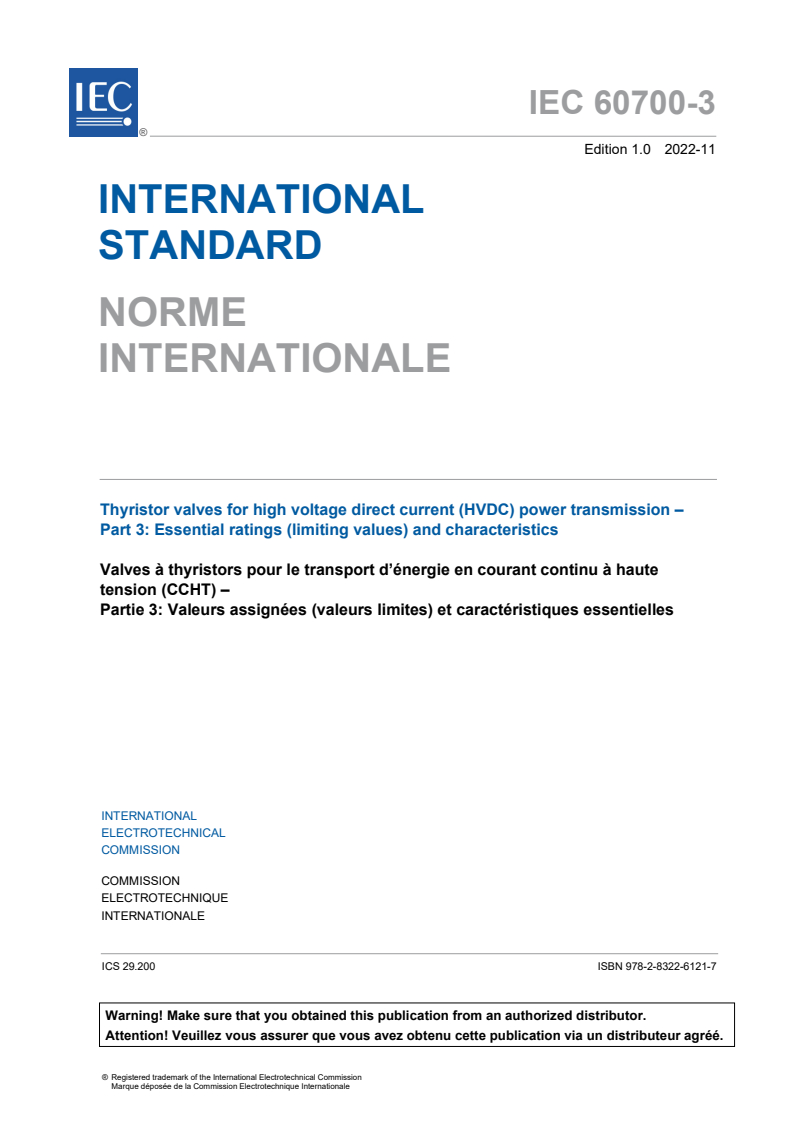

IEC 60700-3

®


Edition 1.0 2022-11




INTERNATIONAL



STANDARD




NORME


INTERNATIONALE











Thyristor valves for high voltage direct current (HVDC) power transmission –

Part 3: Essential ratings (limiting values) and characteristics



Valves à thyristors pour le transport d’énergie en courant continu à haute

tension (CCHT) –

Partie 3: Valeurs assignées (valeurs limites) et caractéristiques essentielles















INTERNATIONAL

ELECTROTECHNICAL

COMMISSION


COMMISSION

ELECTROTECHNIQUE


INTERNATIONALE




ICS 29.200 ISBN 978-2-8322-6121-7




Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale

---------------------- Page: 3 ----------------------

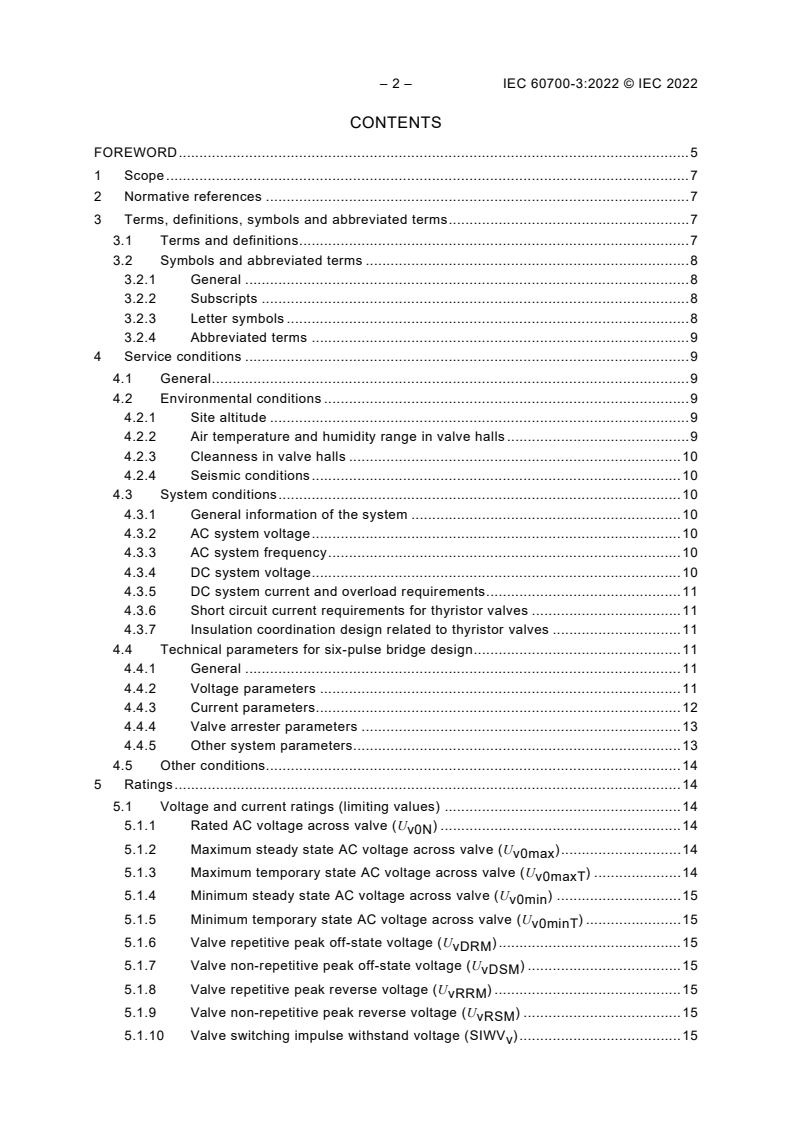

– 2 – IEC 60700-3:2022 © IEC 2022
CONTENTS
FOREWORD . 5
1 Scope . 7
2 Normative references . 7
3 Terms, definitions, symbols and abbreviated terms . 7
3.1 Terms and definitions . 7
3.2 Symbols and abbreviated terms . 8
3.2.1 General . 8
3.2.2 Subscripts . 8
3.2.3 Letter symbols . 8
3.2.4 Abbreviated terms . 9
4 Service conditions . 9
4.1 General . 9
4.2 Environmental conditions . 9
4.2.1 Site altitude . 9
4.2.2 Air temperature and humidity range in valve halls . 9
4.2.3 Cleanness in valve halls . 10
4.2.4 Seismic conditions . 10
4.3 System conditions . 10
4.3.1 General information of the system . 10
4.3.2 AC system voltage . 10
4.3.3 AC system frequency . 10
4.3.4 DC system voltage . 10
4.3.5 DC system current and overload requirements . 11
4.3.6 Short circuit current requirements for thyristor valves . 11
4.3.7 Insulation coordination design related to thyristor valves . 11
4.4 Technical parameters for six-pulse bridge design . 11
4.4.1 General . 11
4.4.2 Voltage parameters . 11
4.4.3 Current parameters. 12
4.4.4 Valve arrester parameters . 13
4.4.5 Other system parameters. 13
4.5 Other conditions. 14
5 Ratings . 14
5.1 Voltage and current ratings (limiting values) . 14
5.1.1 Rated AC voltage across valve (U ) . 14
v0N
5.1.2 Maximum steady state AC voltage across valve (U ) . 14
v0max
5.1.3 Maximum temporary state AC voltage across valve (U ) . 14
v0maxT
5.1.4 Minimum steady state AC voltage across valve (U ) . 15
v0min
5.1.5 Minimum temporary state AC voltage across valve (U ) . 15
v0minT
5.1.6 Valve repetitive peak off-state voltage (U ) . 15
vDRM
5.1.7 Valve non-repetitive peak off-state voltage (U ) . 15
vDSM
5.1.8 Valve repetitive peak reverse voltage (U ) . 15
vRRM
5.1.9 Valve non-repetitive peak reverse voltage (U ) . 15
vRSM
5.1.10 Valve switching impulse withstand voltage (SIWV ) . 15
v

---------------------- Page: 4 ----------------------
IEC 60700-3:2022 © IEC 2022 – 3 –
5.1.11 Valve lightning impulse withstand voltage (LIWV ) . 16
v
5.1.12 Valve steep front impulse withstand voltage (STIWV ) . 16
v
5.1.13 Valve switching impulse protective firing voltage (SIPL ) . 16
PF
5.1.14 Valve RMS current (I ) . 16
v(RMS)
5.1.15 Valve average current (I ) . 16
v(av)
5.1.16 Valve one-loop fault current with re-applied forward voltage (I ) . 16
SCα
5.1.17 Valve multiple-loop fault current without re-applied forward voltage
(I ) . 17
SCβ
5.2 Delay and extinction angle ratings (limiting values) . 17
5.2.1 Rated firing delay angle (α ) . 17
N
5.2.2 Minimum allowable firing delay angle (α ) . 17
min
5.2.3 Maximum allowable firing delay angle (α ) . 17
max
5.2.4 Minimum temporary state firing delay angle (α ) . 17
minT
5.2.5 Rated extinction angle (γ ) . 17
N
5.2.6 Minimum allowable extinction angle (γ ). 17
min
5.2.7 Maximum allowable extinction angle (γ ) . 17
max
5.2.8 Minimum temporary state extinction angle (γ ) . 17
minT
5.3 Insulation and test voltage levels (limiting values) . 18
5.3.1 Maximum DC voltage between valve terminals (U ) . 18
d(v)max
5.3.2 Maximum DC voltage across multiple valve unit (U ) . 18
d(m)max
5.3.3 Maximum DC voltage across valve support (U ) . 18
d(vs)max
5.3.4 Maximum AC voltage between valve terminals (U ) . 18
ac(v)max
5.3.5 Maximum AC voltage across multiple valve unit (U ) . 19
ac(m)max
5.3.6 Maximum AC voltage across valve support (U ) . 19
ac(vs)max
5.3.7 Maximum switching impulse voltage between valve terminals
(U ). 19
s(v)max
5.3.8 Maximum switching impulse voltage across multiple valve unit
(U ) . 19
s(m)max
5.3.9 Maximum switching impulse voltage across valve support (U ) . 20
s(vs)max
5.3.10 Maximum lightning impulse voltage between valve terminals (U ) . 20
l(v)max
5.3.11 Maximum lightning impulse voltage across multiple valve unit
(U ) . 20
l(m)max
5.3.12 Maximum lightning impulse voltage across valve support (U ) . 20
l(vs)max
5.3.13 Maximum steep front impulse voltage between valve terminals
(U ) . 20
st(v)max
5.3.14 Maximum steep front impulse voltage across multiple valve unit
(U ) . 21
st(m)max
5.3.15 Maximum steep front impulse voltage across valve support
(U ) . 21
st(vs)max
6 Characteristics . 21
6.1 General . 21
6.2 Losses characteristics . 21
6.2.1 General . 21
6.2.2 Maximum load loss per valve at rated condition (P ) . 21
vmax

---------------------- Page: 5 ----------------------
– 4 – IEC 60700-3:2022 © IEC 2022
6.2.3 Maximum no-load loss per valve (P ) . 22
v0max
6.2.4 Maximum heat emission to valve hall (P ) . 22
Emax
6.3 Protection characteristics . 22
6.3.1 Valve lightning impulse protective firing voltage (LIPL ) . 22
PF
6.3.2 Valve steep front impulse protective firing voltage (STIPL ) . 22
PF
6.3.3 Thyristor protective firing level (V ) . 22
PF
6.3.4 Thyristor forward recovery protection level (V ) . 22
RP
6.3.5 Thyristor forward du/dt protection level (du/dt ) . 22
PF
6.3.6 Valve protective firing trip level (N ) . 23
tripPF
6.3.7 Valve loss of redundancy trip level (N ) . 23
trip
6.4 Temperature characteristics . 23
6.4.1 Maximum cooling medium temperature at valve inlet (T ) . 23
(in)max
6.4.2 Maximum cooling medium temperature at valve outlet (T ) . 23
(out)max
6.4.3 Thyristor junction temperature at rated condition (T ) . 23
jN
6.4.4 Maximum thyristor junction temperature (T ) . 23
jmax
6.4.5 Storage temperature (T ) . 23
stg
6.5 Reliability characteristics . 23
6.5.1 General . 23
6.5.2 Expected annual failure rate of thyristor level (λ ) . 24
E
6.6 Other characteristics . 24
6.6.1 Valve on-state voltage (U ) . 24
v(on)
6.6.2 Maximum steady state operating time at α = 90° (t ) . 24
90max
6.6.3 Maximum temporary state operating time at α = 90° (t ) . 24
90maxT
6.6.4 Maximum steady state commutation overshoot factor (k ) . 24
c
6.6.5 Maximum temporary state commutation overshoot factor (k ) . 24
cT
Annex A (informative) Input parameters for thyristor valve design . 29
Annex B (informative) Technical data sheet of thyristor valves . 31
Bibliography . 34

Figure 1 – Typical arrester arrangement for converter units with two 12-pulse bridges
in series . 25
Figure 2 – Operating voltage of valve and valve arrester in rectified mode . 26
Figure 3 – Thyristor valve voltage waveforms in different operation modes . 26
Figure 4 – One loop valve short circuit current and voltage waveforms . 27
Figure 5 – Multiple loop valve short circuit current and voltage waveforms . 27
Figure 6 – Continuous operating voltages at various locations for a 12-pulse bridge in
rectifier mode . 28

Table A.1 – Main input parameters required for thyristor valve design . 29
Table B.1 – Technical data sheet of thyristor valves . 31

---------------------- Page: 6 ----------------------
IEC 60700-3:2022 © IEC 2022 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________

THYRISTOR VALVES FOR HIGH VOLTAGE DIRECT CURRENT (HVDC)
POWER TRANSMISSION –

Part 3: Essential ratings (limiting values) and characteristics

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 60700-3 has been prepared by subcommittee 22F: Power electronics for electrical
transmission and distribution systems, of IEC technical committee 22: Power electronic systems
and equipment. It is an International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
22F/667/CDV 22F/686/RVC

Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.

---------------------- Page: 7 ----------------------
– 6 – IEC 60700-3:2022 © IEC 2022
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts in the IEC 60700 series, published under the general title Thyristor valves for
high voltage direct current (HVDC) power transmission, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

---------------------- Page: 8 ----------------------
IEC 60700-3:2022 © IEC 2022 – 7 –
THYRISTOR VALVES FOR HIGH VOLTAGE DIRECT CURRENT (HVDC)
POWER TRANSMISSION –

Part 3: Essential ratings (limiting values) and characteristics



1 Scope
This part of IEC 60700 specifies the service conditions, the definitions of essential ratings and
characteristics of thyristor valves utilized in line commutated converters with three-phase bridge
connections to realize the conversion from AC to DC and vice versa for high voltage direct
current (HVDC) power transmission applications. It is applicable for air insulated, liquid cooled
and indoor thyristor valves.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60060-1, High-voltage test techniques – Part 1: General definitions and test requirements
IEC 60071-1, Insulation co-ordination – Part 1: Definitions, principles and rules
IEC 60700-1:2015, Thyristor valves for high voltage direct current (HVDC) power
transmission – Part 1: Electrical testing
1
IEC 60700-1:2015/AMD1:2021
IEC 60700-2:2016, Thyristor valves for high voltage direct current (HVDC) power
transmission – Part 2: Terminology
IEC 61803:2020, Determination of power losses in high-voltage direct current (HVDC) converter
stations with line-commutated converters
3 Terms, definitions, symbols and abbreviated terms
3.1 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
___________
1
 There exists a consolidated edition 1.1 (2021) that comprises IEC 60700-1:2015 and its Amendment 1:2021.

---------------------- Page: 9 ----------------------
– 8 – IEC 60700-3:2022 © IEC 2022
3.2 Symbols and abbreviated terms
3.2.1 General
Clause 3.2 covers only the most frequently used symbols and abbreviated terms related to this
document. The documents listed in Clause 2 contain additional symbols and abbreviated terms.
3.2.2 Subscripts
0 (zero) at no load
i ideal
N nominal or rated value
d direct current or voltage
ac alternating current or voltage
r resistive or overvoltage
x inductive
u undervoltage
j thyristor junction
v valve or valve side of converter transformer
m multiple valve (unit)
vs valve support
s switching impulse or stray
l lightning impulse
st steep front impulse
PF protective firing
RP recovery protection
T temporary
S short term
SC short circuit
max maximum
min minimum
RMS root mean square
av average
ar arrester
DRM off-state repetitive maximum value
DSM off-state non-repetitive maximum value
RRM reverse repetitive maximum value
RSM reverse non-repetitive maximum value
3.2.3 Letter symbols
α (trigger/firing) delay angle
γ extinction angle
μ (commutation) overlap angle
X commutation circuit reactance, including leakage reactance of converter
t
transformer and other reactance in the commutation circuit which influence
commutation process

---------------------- Page: 10 ----------------------
IEC 60700-3:2022 © IEC 2022 – 9 –
P on-load losses of converter transformer and DC smoothing reactor when a six-pulse
cu
bridge is operating at rated load
equivalent resistance of the voltage drop of the thyristor valve
R
th
f rated AC system frequency
N
t valve conduction interval
p
t valve hold-off interval
G
k uneven voltage distribution factor, defined as the maximum deviation of the peak
df
voltages of thyristor levels in a valve under the specified type of impulses,
representing the degree of uneven voltage distribution due to tolerances of the
voltage divider components, stray capacitances and differences in recovery charge
of thyristors
3.2.4 Abbreviated terms
MVU multiple valve (unit)
SIPL switching impulse protective level
LIPL lightning impulse protective level
STIPL steep front impulse protective level
4 Service conditions
4.1 General
Thyristor valves shall be able to operate continuously and reliably under the specified service
conditions throughout their entire service life except for maintenance periods. Such conditions,
as the main input parameters for valve design, are essential to define the ratings and
characteristics of the thyristor valves, and should be specified by the purchaser or by the system
designer or the suppli
...
