IEC 62899-202-6:2020

Printed electronics - Part 202-6: Materials - Conductive ink - Measurement method for resistance changes under high temperature and humidity - Printed conductive layer on a flexible substrate

IEC 62899-202-6:2020(E) provides a method of in-situ measurement for the resistance change of a conductive layer formed by printing methods on a flexible substrate under specified temperature and humidity conditions.

General Information

• Status: Published
• Publication Date: 03-Dec-2020
• ICS: 31.180 - Printed circuits and boards
• ICS: 87.080 - Inks. Printing inks
• Technical Committee: TC 119 - Printed Electronics
• Drafting Committee: WG 2 - TC 119/WG 2
• Current Stage: PPUB - Publication issued
• Start Date: 27-Dec-2020
• Completion Date: 04-Dec-2020

Overview

IEC 62899-202-6:2020 is an international standard in the Printed Electronics series that defines an in‑situ measurement method for resistance changes of a printed conductive layer on a flexible substrate when exposed to high temperature and humidity. It specifies sample shapes, environmental test conditions, measurement jigs (two‑wire and four‑wire), and data reporting requirements to evaluate environmental stability of conductive inks and printed conductive films.

Key Topics and Requirements

• Scope and purpose
  • Method to measure resistance change of conductive layers made by printing methods on flexible substrates under controlled temperature and humidity.
• Test samples
  • Recommended rectangular samples with a long:short ratio ≥ 20 (example size: 200 mm × 10 mm). Dimensional tolerance ±5%.
• Environmental test conditions
  • Standard humidity/temperature condition: 85 °C ±2 °C and 85 % RH ±5 % (unless otherwise specified).
  • High temperature testing generally at 120 °C ±2 °C, but limited to 15 °C below the substrate glass transition temperature (Tg) if Tg < 120 °C.
  • Thermal cycling defined (e.g., −20 °C ↔ 80 °C cycles) with specified dwell and ramp times; humidity typically held at ~50 % RH.
• Test method and apparatus
  • In‑chamber, in‑situ resistance monitoring using two‑wire or four‑wire connections; fixtures may include rigid plates and screws or metal grips to ensure stable contact.
  • Guidance on measurement intervals and applied currents is provided (see referenced tables in the standard).
• Data analysis and reporting
  • Procedures for recording resistance change over time, reporting electrical properties, and presenting test results for reliability assessment.

Applications and Users

• Intended for stakeholders in printed electronics, including:
  • Conductive ink and material manufacturers validating environmental stability.
  • Flexible device designers and OEMs (e.g., wearables, flexible displays, touch panels, smart packaging) requiring reliable printed interconnects or electrodes.
  • Test laboratories and quality assurance teams performing environmental reliability testing.
• Practical uses:
  • Compare formulation performance (e.g., silver/copper nanowire inks, metal meshes) under accelerated ageing.
  • Define storage/handling recommendations and acceptance criteria for printed conductive films.
  • Support material selection and lifetime predictions for flexible electronic products.

Related Standards

• IEC 62899-201 - Printed electronics: Materials - Substrates
• IEC 62899-202 - Printed electronics: Materials - Conductive ink
• IEC 62899-202-5 - Mechanical bending test for printed conductive layers

Keywords: IEC 62899-202-6:2020, printed electronics, conductive ink, resistance measurement, high temperature humidity, flexible substrate, environmental test, in-situ measurement.

Standards Content (Sample)

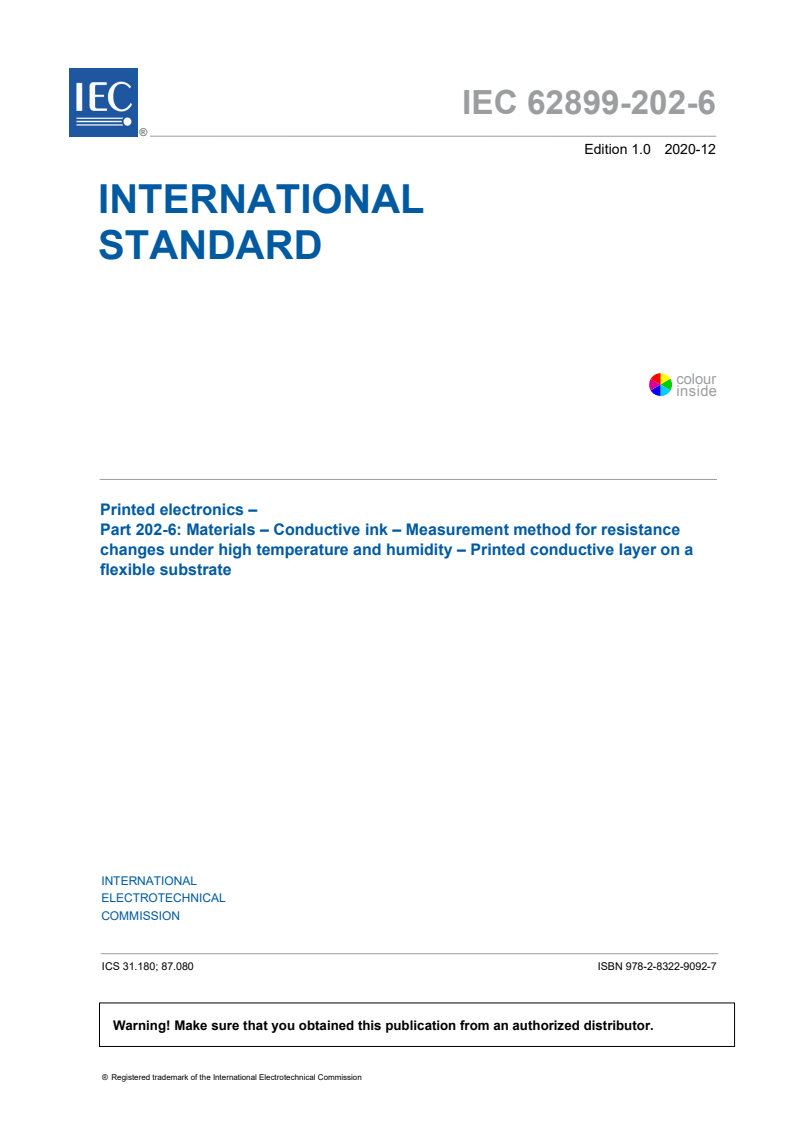

IEC 62899-202-6 ®
Edition 1.0 2020-12
INTERNATIONAL
STANDARD
colour
inside
Printed electronics –
Part 202-6: Materials – Conductive ink – Measurement method for resistance
changes under high temperature and humidity – Printed conductive layer on a
flexible substrate
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.

need further assistance, please contact the Customer Service

Centre: [e-mail].
IEC 62899-202-6 ®
Edition 1.0 2020-12
INTERNATIONAL
STANDARD
colour
inside
Printed electronics –
Part 202-6: Materials – Conductive ink – Measurement method for resistance

changes under high temperature and humidity – Printed conductive layer on a

flexible substrate
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 31.180; 87.080 ISBN 978-2-8322-9092-7

– 2 – IEC 62899-202-6:2020 © IEC 2020

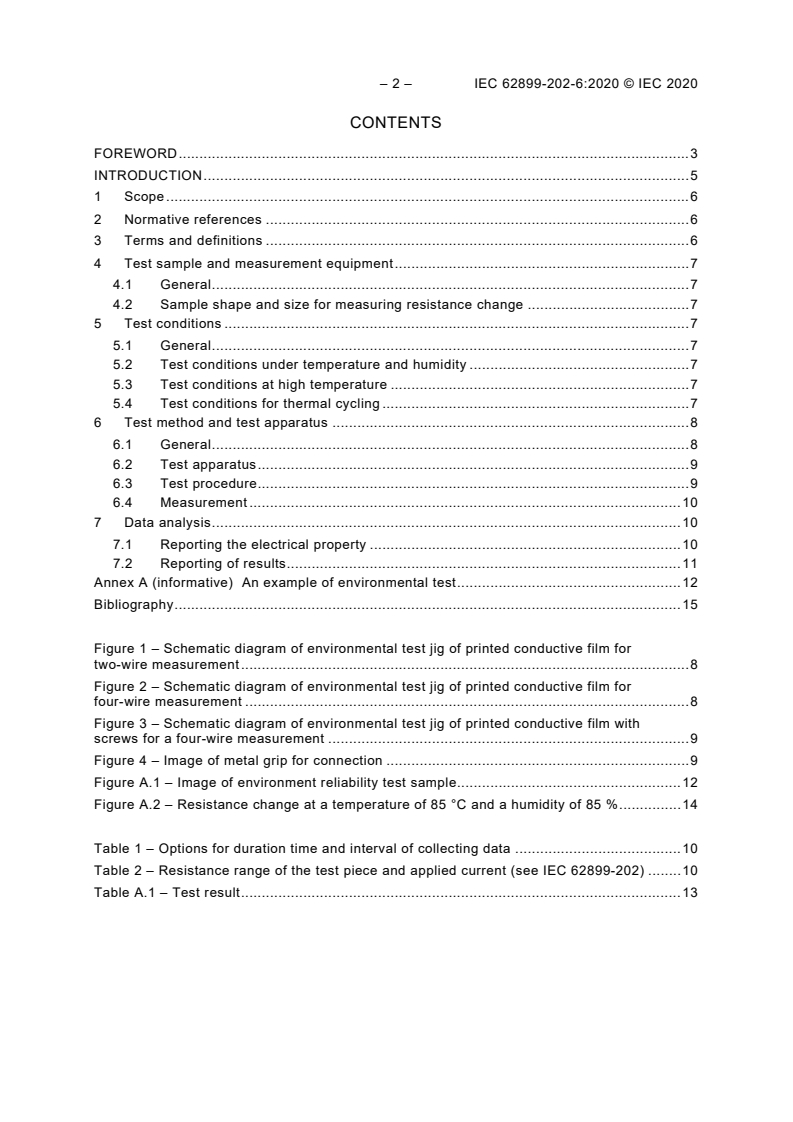

CONTENTS
