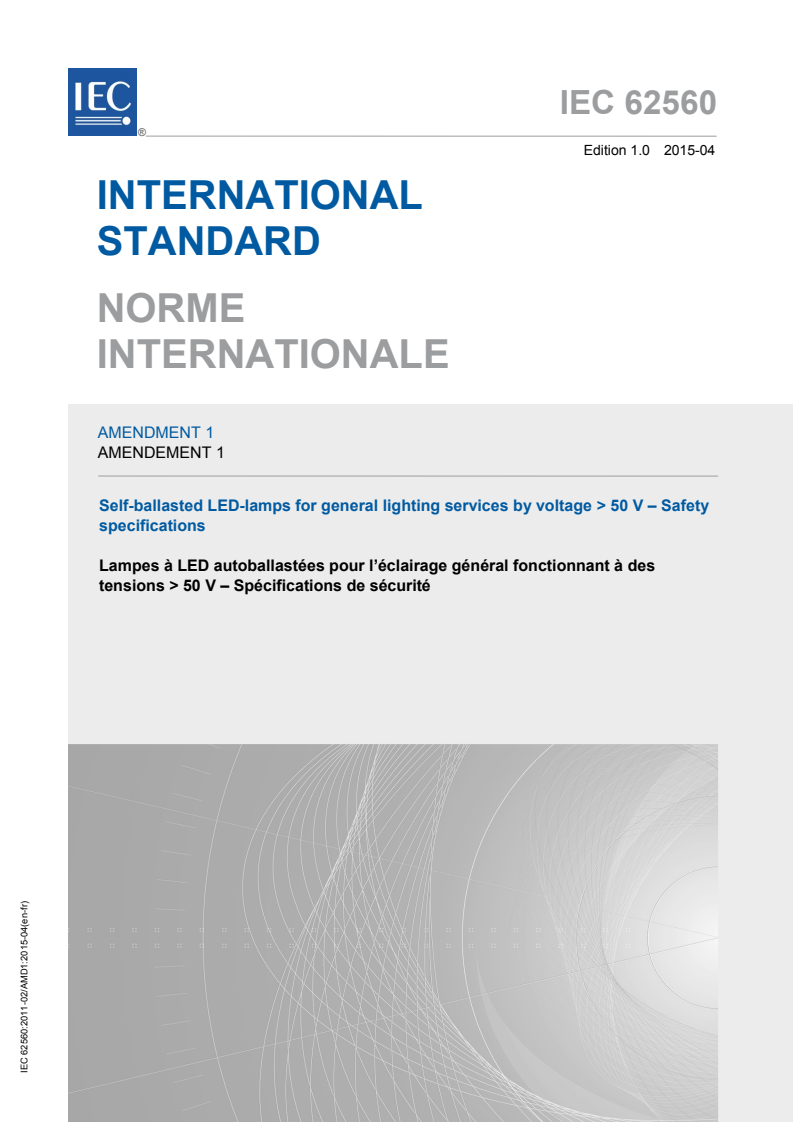

IEC 62560
®

Edition 1.0 2015-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 1
AM ENDEMENT 1

Self-ballasted LED-lamps for general lighting services by voltage > 50 V – Safety
specifications

Lampes à LED autoballastées pour l’éclairage général fonctionnant à des
tensions > 50 V – Spécifications de sécurité

IEC 62560:2011-02/AMD1:2015-04(en-fr)

---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2015 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.


Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch

About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.


A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.


Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 60 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.

---------------------- Page: 2 ----------------------

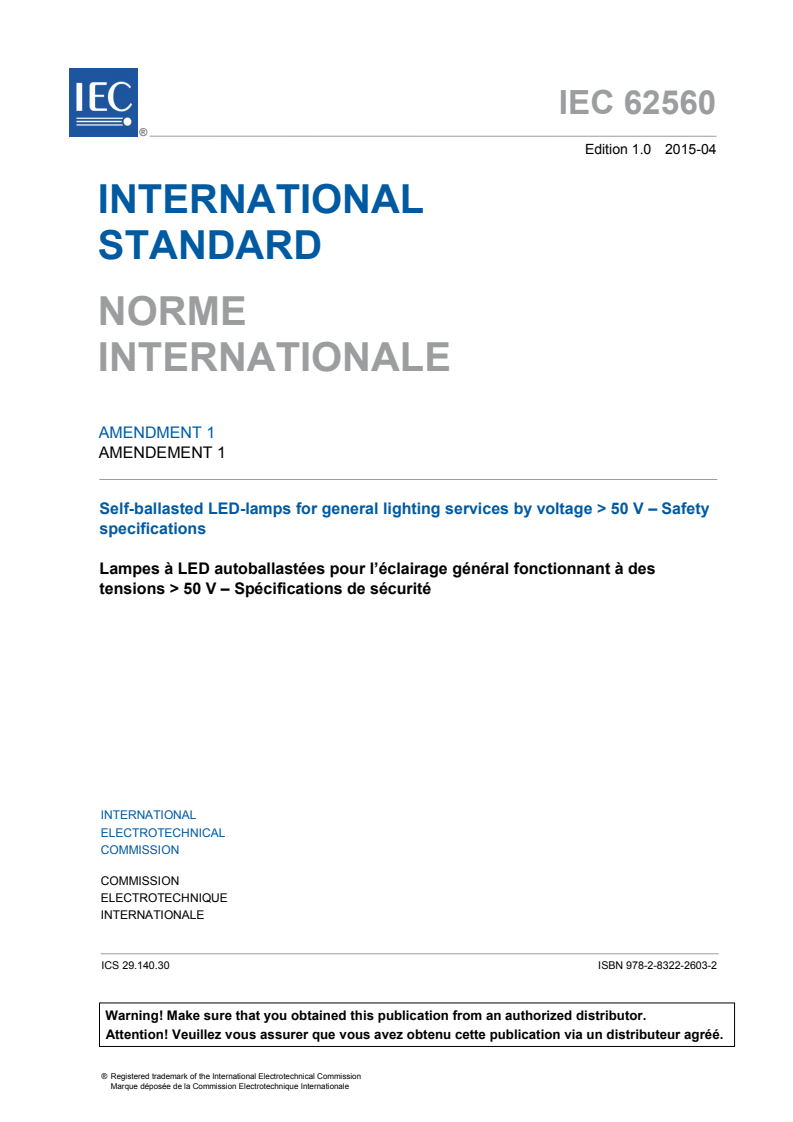

IEC 62560

®


Edition 1.0 2015-04




INTERNATIONAL



STANDARD




NORME



INTERNATIONALE




A MENDMENT 1

AM ENDEMENT 1





Self-ballasted LED-lamps for general lighting services by voltage > 50 V – Safety

specifications




Lampes à LED autoballastées pour l’éclairage général fonctionnant à des

tensions > 50 V – Spécifications de sécurité

















INTERNATIONAL

ELECTROTECHNICAL

COMMISSION


COMMISSION

ELECTROTECHNIQUE


INTERNATIONALE




ICS 29.140.30 ISBN 978-2-8322-2603-2



Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale

---------------------- Page: 3 ----------------------

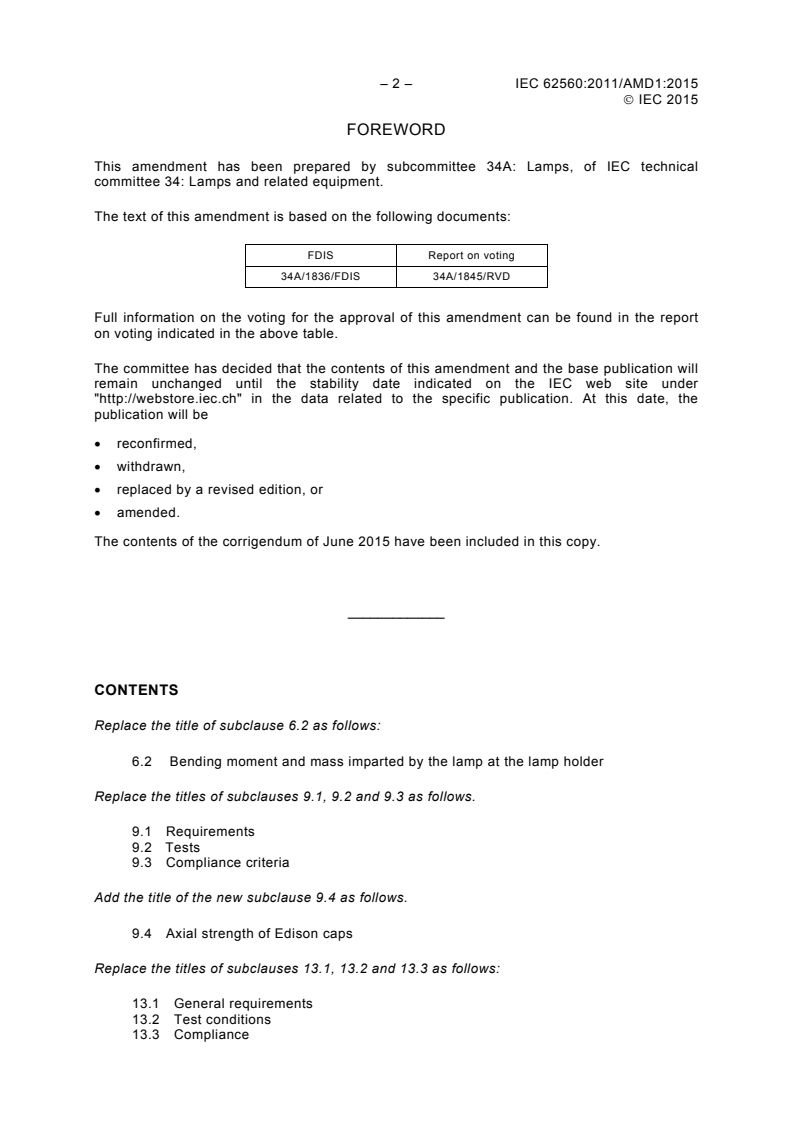

– 2 – IEC 62560:2011/AMD1:2015
 IEC 2015
FOREWORD
This amendment has been prepared by subcommittee 34A: Lamps, of IEC technical
committee 34: Lamps and related equipment.
The text of this amendment is based on the following documents:
FDIS Report on voting
34A/1836/FDIS 34A/1845/RVD

Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
The contents of the corrigendum of June 2015 have been included in this copy.

_____________

CONTENTS
Replace the title of subclause 6.2 as follows:
6.2 Bending moment and mass imparted by the lamp at the lamp holder
Replace the titles of subclauses 9.1, 9.2 and 9.3 as follows.
9.1 Requirements
9.2 Tests
9.3 Compliance criteria
Add the title of the new subclause 9.4 as follows.
9.4 Axial strength of Edison caps
Replace the titles of subclauses 13.1, 13.2 and 13.3 as follows:
13.1 General requirements
13.2 Test conditions
13.3 Compliance

---------------------- Page: 4 ----------------------
IEC 62560:2011/AMD1:2015 – 3 –
 IEC 2015
Delete the titles of the existing subclauses 13.4 to 13.6.
Add the titles of new Clauses 15 to 18 along with their corresponding subclauses as follows:
15 Abnormal operation
16 Test conditions for dimmable lamps
17 Photobiological safety
17.1 UV radiation
17.2 Blue light hazard
17.3 Infrared radiation
18 Ingress protection
18.1 Requirements
18.2 Tests
19 Information for luminaire design
Replace the title of Annex A as follows:
Annex A (informative) Information for luminaire design
Delete the title of Annex B.
Replace, in the list of figures, the titles for Figures 3 and 4 as follows.
Figure 3 – Holder for torque test on lamps with screw caps (from IEC 60432-1, Figure C.2)
Figure 4 – Holder for torque test on lamps with bayonet caps (from IEC 60432-1, Figure C.1)
Add, in the list of figures, the titles for new Figures 6, 7 and 8 as follows:
Figure 6 – Lamp not suitable for use under moisture
Figure 7 – Test equipment for applying an axial force
Figure 8 – Test circuit for testing a non-dimmable lamp at a dimmer or electronic switch
Add, in the list of tables, the title for new Table 4 as follows:
Table 4 – Values for axial force
1 Scope
Add, below the existing note, a new note 2 as follows and renumber the existing note to
NOTE 1:
NOTE 2 This standard includes photobiological safety.

2 Normative references
Update the reference to IEC 61347-1:2007 as follows:
IEC 61347-1:—, Lamp controlgear – Part 1: General and safety requirements
Add, to the existing list, the following new reference:
IEC TR 62778: 2014, Application of IEC 62471 for the assessment of blue light hazard to light
sources and luminaires

---------------------- Page: 5 ----------------------
– 4 – IEC 62560:2011/AMD1:2015
 IEC 2015
Delete, from the existing list, the following references:
IEC/TR 62471-2, Photobiological safety of lamps and lamp systems – Part 2: Guidance on
manufacturing requirements relating to non-laser optical radiation safety
IEC 60432-1, Incandescent lamps – Safety specifications – Part 1: Tungsten filament lamps
for domestic and similar general lighting purposes

3 Terms and definitions
Add, after definition 3.9, the following new definition 3.10:
3.10
ultraviolet hazard efficacy of luminous radiation
K
,
S v
quotient of an ultraviolet hazard quantity to the corresponding photometric quantity
NOTE 1 Ultraviolet hazard efficacy of luminous radiation is expressed in mW/klm.
NOTE 2 The ultraviolet hazard efficacy of luminous radiation is obtained by weighting the spectral power
distribution of the lamp with the UV hazard function S (λ). Information about the relevant UV hazard function is
UV
given in IEC 62471. It only relates to possible hazards regarding UV exposure of human beings. It does not deal
with the possible influence of optical radiation on materials, such as mechanical damage or discoloration.
Subclause 5.2
Delete, item a) and its text.
Replace the text of item e) with the following new text and new Figure 6:
e) Lamps with bulbs not suitable for water contact shall be marked with the symbol according
to Figure 6. The marking shall be provided on the packaging or accompanying information.
The height of the graphical symbol shall be at least 5 mm. The symbol is not needed if a
written cautionary notice is provided such as ‘Use in Dry Locations only’.
[SOURCE: IEC 60417-6179-1 (2014-10)]
Figure 6 – Lamp not suitable for use under moisture
6.2 Bending moment, axial pull and mass
Replace the title and text of this subclause including Table 2 as follows:
6.2 Bending moment and mass imparted by the lamp at the lamp holder
The value of the bending moment and mass, imparted by the lamp at the lampholder shall not
exceed the value given in Table 2 or, where not given, the value in the system information on
cap sheets specified in IEC 60061-1.
The bending moment shall be determined by measuring the weight of the lamp (e. g. by
means of a balance) at the tip of the bulb of the horizontally held lamp and multiplying this
force by the distance between the tip of the bulb and the pivot line. The pivot line shall lie at

---------------------- Page: 6 ----------------------
IEC 62560:2011/AMD1:2015 – 5 –
 IEC 2015
the bottom end of the cylindrical part (for Edison and bayonet caps) or at the end of the
contact pins (for pin caps). It shall be supported by an upright held thin metal sheet or a
similar means.
Table 2 – Bending moments and masses
Cap Bending moment Mass
Nm kg
B15d 1 u.c.
B22d 2 1
E11 0,5 u.c.
E12 0,5 u.c.
E14 1 u.c.
E17 1 u.c.
E26 2 1
E27 2 1
E39 1 (u.c.) u.c.
E40 1 (u.c.) u.c.
GU10 0,1 u.c.
GZ10 0,1 u.c.
GX53 0,3 u.c.
u.c.: under consideration
NOTE 1 For lamps with caps different to those in Table 2, the effect of the bending moment should be regarded
and limited. A measurement method for these lamps with these caps is under consideration.
NOTE 2 It should be taken care that the luminaire surface where the lampholder is fixed to can withstand the
bending moment. For the calculation of this bending moment, the length of the lampholder needs to be taken into
account when measuring the overall length. This should be made sure for the elevated temperature during
operation in order to check the possible softening of the surface material.
NOTE 3 Requirements for lamps with additional mechanical fixation e.g. rim mounted lamps, is under
consideration.

8.3 Electric strength
Replace the existing text of this subclause by the following:
Immediately after the insulation resistance test, the same parts as specified above shall
withstand a voltage test for 1 min with an a.c. voltage or a d.c. voltage equal to the peak
voltage of the prescribed a.c. voltage as follows.
NOTE The use of either a.c. or d.c. voltage is advised by the manufacturer.
During the test, the supply contacts of the cap are short-circuited. Accessible parts of
insulating material of the lamp are covered with metal foil. Initially, no more than half the
voltage prescribed in IEC 60598-1, Table 10.2, reference d) for double and reinforced
insulation is applied between the contacts and the metal foil. It is then gradually raised to the
full value. Care shall be taken that the metal foil is so placed that no flashover occurs at the
edges of the insulation.
No flashover or breakdown shall occur during the test. Measurements shall be carried out in
the humidity cabinet.

---------------------- Page: 7 ----------------------
– 6 – IEC 62560:2011/AMD1:2015
 IEC 2015
9 Mechanical strength
Replace the entire text of this clause including existing subclauses 9.1 to 9.3 along with
Figures 3 and 4 and Table 3 with the following new subclauses 9.1 to 9.4, new Figures 3, 4
and 7 and new Tables 3 and 4:
9.1 Requirements
Lamps shall be able to withstand the relevant mechanical strength tests as given in 9.2.
9.2 Tests
9.2.1 Torsion resistance of unused lamps
In order to test the connection of the cap to the lamp shell the torsion resistance of unused
lamps is tested as follows.

---------------------- Page: 8 ----------------------
IEC 62560:2011/AMD1:2015 – 7 –
 IEC 2015
K S
Detail of thread
r
r
P
IEC

Surface finish of screw thread R = 0,4 µm minimum (see note).
a
NOTE A smoother surface might result in mechanical overloading of the cap, see also C.1.2 of IEC 60432-1.
Dimensions in millimetres
Dimension E12 E14 E17 E26 and E26d E27 Tolerance
C 15,27 20,0 20,0 32,0 32,0 Min.
0,0

K 9,0 11,5 10,0 11,0 13,5
−0,3
+0,1

O 9,5 12,0 14,0 23,0 23,0
−0,1
S 4,0 7,0 8,0 12,0 12,0 Min.
+0,1

11,89 13,89 16,64 26,492 26,45
d 0,0
+0,1

d 10,62 12,29 15,27 24,816 24,26
0,0
1
P 2,540 2,822 2,822 3,629 3,629 –
r 0,792 0,822 0,897 1,191 1,025 –
NOTE The drawing illustrates the essential dimensions of the holder which need only be checked if doubt arises
from the application of the test.
Figure 3 – Holder for torque test on lamps with screw caps
(from IEC 60432-1, Figure C.2)

O
C
d
1
d

---------------------- Page: 9 ----------------------
– 8 – IEC 62560:2011/AMD1:2015
 IEC 2015
K
These slots to be
D
symmetrical on
X
centre line
R
H
X
B
G
Section X-X

IEC
B15 B22 Tolerance
Dimension
mm mm mm
A 15,27 22,27 +0,03
B 19,0 19,0 Min.
C 21,0 28,0 Min.
D  9,5  9,5 Min.
E  3,0  3,0
+0,17
G 18,3 24,6
±0,3
H  9,0  12,15 Min.
K 12,7 12,7
±0,3
R  1,5  1,5 Approximate
NOTE The drawing illustrates the essential dimensions of the holder
which need only be checked if doubt arises from the application of
the test.
Figure 4 – Holder for torque test on lamps with bayonet caps
(from IEC 60432-1, Figure C.1)

C
A
E

---------------------- Page: 10 ----------------------
IEC 62560:2011/AMD1:2015 – 9 –
 IEC 2015
Table 3 – Torque test values for unused lamps
Cap Torsion moment
Nm
B15d 1,15
B22d 3
E11 0,8
E12 0,8
E14 1,15
E17 1,5
E26 3
E26d 3
E27 3
E39 5
E40 5
GU10 u.c.
GZ10 u.c.
GX53 3
u.c.: under consideration

Before each use, the test holder for screw caps shall be checked to ensure that it is clean and
completely free of lubricants and grease.
The cap of the test lamp shall be placed in the appropriate holder shown in Figures 3 and 4.
Either the cap or the part of the lamp which is used for inserting or removing the lamp may be
mechanically clamped.
Torque shall be applied steadily to the appropriate lamp component, so that no jerk occurs.
The application of the torque may follow either of the following schemes.
a) The required torque shall be applied, according to the limits given in Table 3.
b) Higher torque values than the relevant limit shall be applied so that the value of torque for
failure is obtained. In this case, the equipment is to be provided with suitable means for
measuring torque over a wide range of failure levels.
Compliance:
The cap shall remain firmly attached to the bulb or that part of the lamp which is used for
inserting or removing the lamp when subjected to the torque levels listed in Table 3 above.
Some lamps are made with parts designed to be moved after insertion (for example a light
sensor or decorative ring). Movement of these parts does not constitute non-compliance.
In the case of un-cemented caps, relative movement between cap and bulb is permitted
provided it does not exceed 10°.
9.2.2 Torsion resistance of lamps after a defined time of usage
The torsion resistance of used lamps is under consideration.
9.2.3 Externally applied axial pull and bending moment
The lamp construction shall withstand externally applied axial pull and bending moment.

---------------------- Page: 11 ----------------------
– 10 – IEC 62560:2011/AMD1:2015
 IEC 2015
The bending shall be applied by holding in a uniform manner that part of the material closest
to the cap. The pivot point lies at the cap reference plane (mating plane with the lamp holder).
The pulling force and bending moment shall not be applied suddenly but shall be increased
gradually from zero to the specified value.
Values are under consideration.
9.3 Compliance criteria
After the mechanical strength test of 9.2, the sample shall comply with the requirements of
Clause 8.
9.4 Axial strength of Edison caps
The lamps shall be screwed into gauge of Table 4. After full insertion an axial force of Table 4
is applied to the central contact. See Figure 7.
In case axial strength of the cap does not decrease when the unmounted cap was assembled
to the finished lamp, test results on the unmounted cap can be applied.
NOTE The gauges are used to hold the lamp. Calibration is not required.
Compliance:
After this test the insulation around the central contact shall remain intact. The application of
the torque test in 9.2.1 shall not lead to impressing the bottom part of the cap into the shell.
Table 4 – Values for axial force
Cap Gauge sheet no. Axial Additional information
from IEC 60061-3 force
N
E11 7006-6-1 u.c.
E12 7006-27H-1 u.c. The portion for contact making check is not needed; Full
threaded gauge with T1 height; C and H dimension are
irrelevant
E14 7006-27F-1 80
E26 7006-27B-1 120
E26d 7006-27B-1 120
E27 7006-27B-1 120
E39 7006-24B-1 u.c.
E40 7006-27-7 u.c.
u.c.: under consideration

---------------------- Page: 12 ----------------------
IEC 62560:2011/AMD1:2015 – 11 –
 IEC 2015
Axial force
Gauge
Support
Lamp under test

IEC
Figure 7 – Test equipment for applying an axial force
13 Fault conditions
Replace the entire text of this clause including existing subclauses 13.1 to 13.6 with the
following new subclauses 13.1 to 13.3:
13.1 General requirements
The lamps shall not impair safety when operated under fault conditions which may occur
during the intended use.
13.2 Test conditions
The following fault conditions is applied in turn, as well as any other associated fault
conditions that may arise from it as logical consequences. Only one component at a time is
subjected to a fault condition.
Opening or bridging component in the circuit where the diagram or construction indicates that
such a fault condition may impair safety.
Examination of the lamp and its circuit diagram will generally show the fault conditions which
should be applied. These are applied in sequence in the order that is most convenient.
Components or devices in which a short-circuit does not occur shall not be bridged. Similarly,
components or devices in which an open circuit cannot occur shall not be interrupted.
Manufacturers or responsible vendors shall produce evidence that the components behave in
a way that does not impair safety, for instance, by showing compliance with the relevant
specification.
Compliance is checked by operating the sample free burning, vertical cap up position at room
temperature and at the most critical test voltage between 90 % and 110 % of the rated
voltage.
In case a rated voltage range is declared, the test has to be carried out at the most critical
test voltage between 90 % and 110 % of the mean voltage of that declared range or at the
most critical test voltage within the declared voltage range, whatever range is greater.
In case of alternative rated voltages the test shall be performed separately for each rated
voltages.

---------------------- Page: 13 ----------------------
– 12 – IEC 62560:2011/AMD1:2015
 IEC 2015
Example 1:
Declared voltage range: 220 V to 240 V: Test voltage within 207 V to 253 V.
(90 % to 110 % of 230 V is wider than declared range)
Example 2:
Declared voltage range: 170 V to 280 V: Test voltage within 170 V to 280 V.
(Declared range is wider than 90 % to 110 % of 225 V.)
13.3 Compliance
Compliance is checked by operating the sample free burning at room temperature and at the
most critical test voltage until stable conditions have been reached, then introducing the fault
condition.
The sample is then tested for a further 8 h. During this test it shall not catch fire, or produce
flammable gases and live parts shall not become accessible.
To check if accessible parts have become live, a test in accordance with Clause 7 is made.
The insulation resistance (see 8.1) is checked with a d.c. voltage of approximately 1 000 V.
Add, after Clause 14 the following new Clauses 15 to 19 including new Figure 8:
15 Abnormal operation
Self-ballasted lamps shall not create hazard under abnormal operating conditions.
Self-ballasted lamps shall be constructed so that as a result of abnormal or careless
operation, the risk of fire and mechanical damage impairing safety of protection against
electric shock is obviated.
Applying non-dimmable self-ballasted lamps on a dimmer or an electronic switch is to be
tested as a possible case of abnormal operation.
Test procedure:
Test non-dimmable lamp in test circuit shown in Figure 8.
Determine R1 and S1 setting at which the maximum I . occurs.
r.m.s
Test at this situation, and if the lamp passively fails within 60 min, repeat the test at 10 %
lower I . The lower I . shall be set in the decreasing potentiometer resistance direction.
r.m.s r.m.s
Repeat this procedure until stable operation is achieved for minimum 60 min.

---------------------- Page: 14 ----------------------
IEC 62560:2011/AMD1:2015 – 13 –
 IEC 2015
7
8
11
4
1 5
9 12
2 3
6
10

IEC
Key
1 mains 7 capacitor C2 = 68 nF to 150 nF
2 potentiometer R1 = 470 kΩ 8 induction L1 = 3 mH
9 basic load, incandescent lamp P = 60 W
3 resistor R = 3,3 kΩ
4 Triac BTA16/700 10 switch S1
5 Diac DB3 11 I Ammeter
r.m.s.
6 capacitor C1 = 100 nF 12 device under test (DUT) (lamp)
NOTE The most onerous situation for possible safety implication occurs at the maximum I that does not
.
r.m.s
cause an immediate (passive) failure.
Figure 8 – Test circuit for testing a non-dimmable lamp at a dimmer or electronic switch
Operate the lamp for 8 h at the above most onerous dimming level (potentiometer
adjustment).
Compliance
Compliance is checked by operating the sample free burning, vertical cap up position or in the
burning position indicated on the packaging at room temperature and at the rated voltage.
In case a voltage range is declared, the test has to be carried out at the mean voltage of that
declared range.
In case of alternative rated voltages, the test shall be performed separately for each rated
voltage.
During this test the lamp shall not catch fire, or produce flammable gases and live parts shall
not become accessible with the standard test finger.
16 Test conditions for dimmable lamps
Test shall be carried out at maximum power setting for Clause 10 and Clause 17.
Test conditions for Clause 13 are under consideration.
17 Photobiological safety
17.1 UV radiation
The ultraviolet hazard efficacy of luminous radiation of an LED lamp shall not exceed
2 mW/klm.

---------------------- Page: 15 ----------------------
– 14 – IEC 62560:2011/AMD1:2015
 IEC 2015
Compliance is checked by measurement of the spectral power distribution and subsequent
calculation of the ultraviolet hazard efficacy of luminous radiation. LED lamps not relying on
the conversion of UV radiation are not expected to exceed the maximum allowed ultraviolet
hazard efficacy of luminous radiation. They do not require measurement.
17.2 Blue light hazard
The blue light hazard shall be assessed according to IEC TR 62778, which shall be regarded
as normative when testing LED lamps to this standard. LED lamps shall be classified as risk
group 0 unlimited or risk group 1 unlimited.
NOTE Clause C.2 of IEC TR 62778 gives a method to classify lamps where full spectral data is not available.
17.3 Infrared radiation
LED lamps are not expected to reach a level of infrared radiation where marking or other
safety measurements are required.
18 Ingress protection
18.1 Requirements
Lamps shall be suitable for water contact unless marked with Figure 6.
18.2 Tests
Suitability for water contact is tested as follows.
The lamp is subjected to an IPX4 test according to IEC 60598-1. During this test, lampholders
sealing to the diameter of the lamp ends and providing protection to the contact area of IPX4
shall be fitted.
The compliance provisions of 9.2 of IEC 60598-1 apply.
NOTE For more information about ingress protection (IP), see IEC 60598-1, Annex J.
A lamp constructed so that it is sealed (e.g. lamp designs having one piece homogeneous
glass or plastic bulb penetrating the lampholder sealing) to exclude water need not be
subjected to this test.
19 Information for luminaire design
For information for luminaire design, Annex A applies.

Annex A – Overview of systems composed of LED modules and control gear
Replace the existing Annex A with the following new annex:

---------------------- Page: 16 ----------------------
IEC 62560:2011/AMD1:2015 – 15 –
 IEC 2015

Annex A
(informative)

Information for luminaire design

Lamps marked with the symbol according to Figure 6 should be protected from direct water
contact, e.g. by drips, splashing etc., by the luminaire if rated at IPX1 or higher.
NOTE The X in the IP number indicates a missing numeral but both of the appropriate numerals are marked on
the luminaire.
Any IPX1 or better protection of the lamp contact area can only be achieved in luminaires
having lampholder with proper IP rating also for the sealing to the diameter of the lamp end
and providing protection to the lamp end components containing the contact area.

Annex B – Lamps with operating position limitations (see 5.2)
Delete Annex B.
Bibliography
Add the following references to the existing list:
IEC 60432-1, Incandescent lamps – Safety specifications – Part 1: Tungsten filament lamps
for domestic and similar general lighting purposes
IEC 62471, Photobiological safety of lamps and lamp systems

_____________

---------------------- Page: 17 ----------------------
– 16 – IEC 62560:2011/AMD1:2015
 IEC 2015
AVANT-PROPOS
Le présent amendement a été établi par le sous-comité 34A: Lampes, du comité d'études 34
de l'IEC: Lampes et équipements associés.
Le texte du présent amendement est issu des documents suivants:
FDIS Rapport de vote
34A/1836/FDIS 34A/1845/RVD

Le rapport de vote indiqué dans le tableau ci-dessus donne toute information sur le vote ayant
abouti à l’approbation de cet amendement.
Le comité a décidé que le contenu de cette publication ne sera pas modifié avant la date de
stabilité indiquée sur le site web de l'IEC sous "http://webstore.iec.ch" dans les données
relatives à la publicati
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
