Safety of machinery - Safety-related sensors used for the protection of persons

IEC TS 62998-1:2019 gives requirements for the development and integration of safety related sensors (SRS) and safety related sensor systems (SRSS) used for protection of persons with special attention to systematic capabilities.
This generic standard only applies if
– protection of persons is to be performed by using sensors, and
– standards for functional safety of electrical control systems address sensor(s) as subsystem or subsystem element, and
– product specific sensor standards (e.g. IEC 61496 (all parts), IEC 60947-5-2) do not contain all necessary provisions, or product specific sensor standards are not developed.
The approach of examination of systematic capabilities by using different safety related sensor standards is described in Annex A.
The requirements and methods within this document are limited to the purpose of protection of persons
– by detection of potentially hazardous objects,
– by detection of a body, parts of a body and objects associated to parts of a body entering a hazardous area, or
– by classification respective discrimination of these against other objects.
Special attention is given to the sensing function and dependability of the detection capability. Environmental influences and tests for indoor and outdoor use are defined which influence the sensing function and dependability of the detection capability.
IEC TS 62998-1:2019 can be relevant to applications other than those for the protection of persons in industries, for example, for the protection of persons in public like agriculture or metro stations.
IEC TS 62998-1:2019 does not consider and address proven in use (e.g. processes or elements) as done in IEC 61508-2.

General Information

Status
Published
Publication Date
01-May-2019
Current Stage
PPUB - Publication issued
Completion Date
02-May-2019
Ref Project

Buy Standard

Technical specification
IEC TS 62998-1:2019 - Safety of machinery - Safety-related sensors used for the protection of persons
English language
91 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

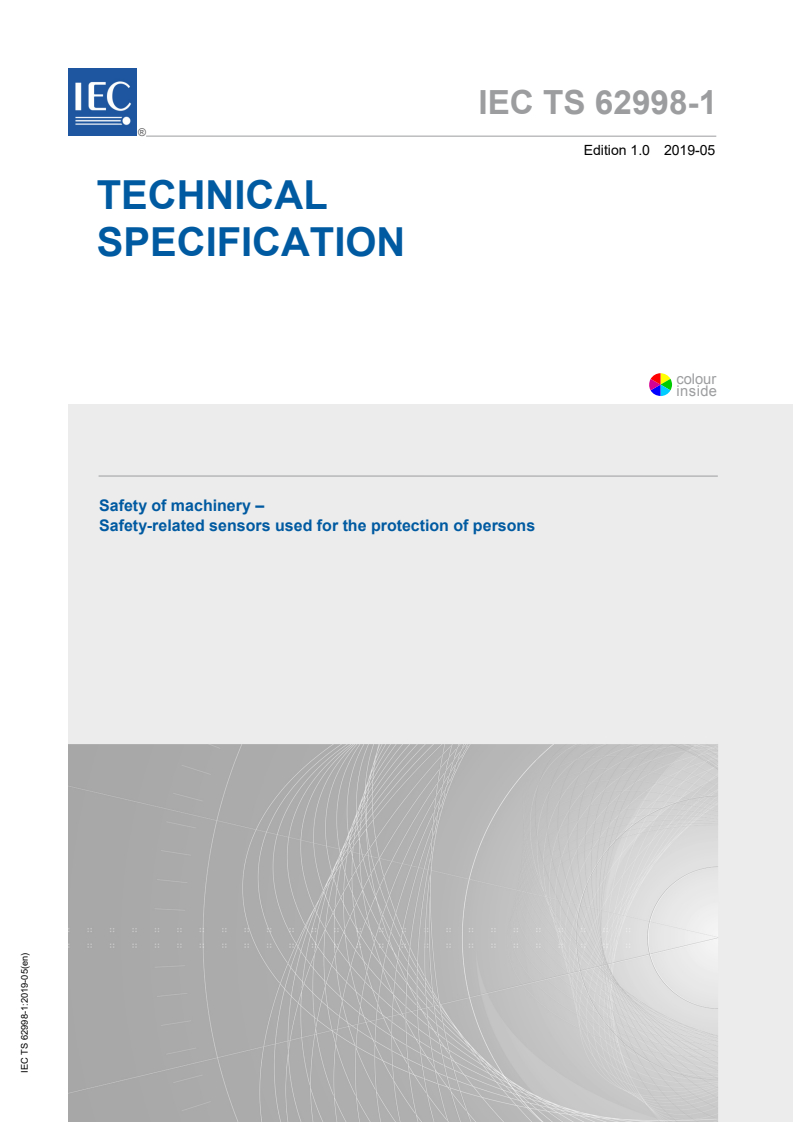

IEC TS 62998-1
Edition 1.0 2019-05
TECHNICAL
SPECIFICATION
colour
inside
Safety of machinery –
Safety-related sensors used for the protection of persons
IEC TS 62998-1:2019-05(en)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2019 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
---------------------- Page: 2 ----------------------

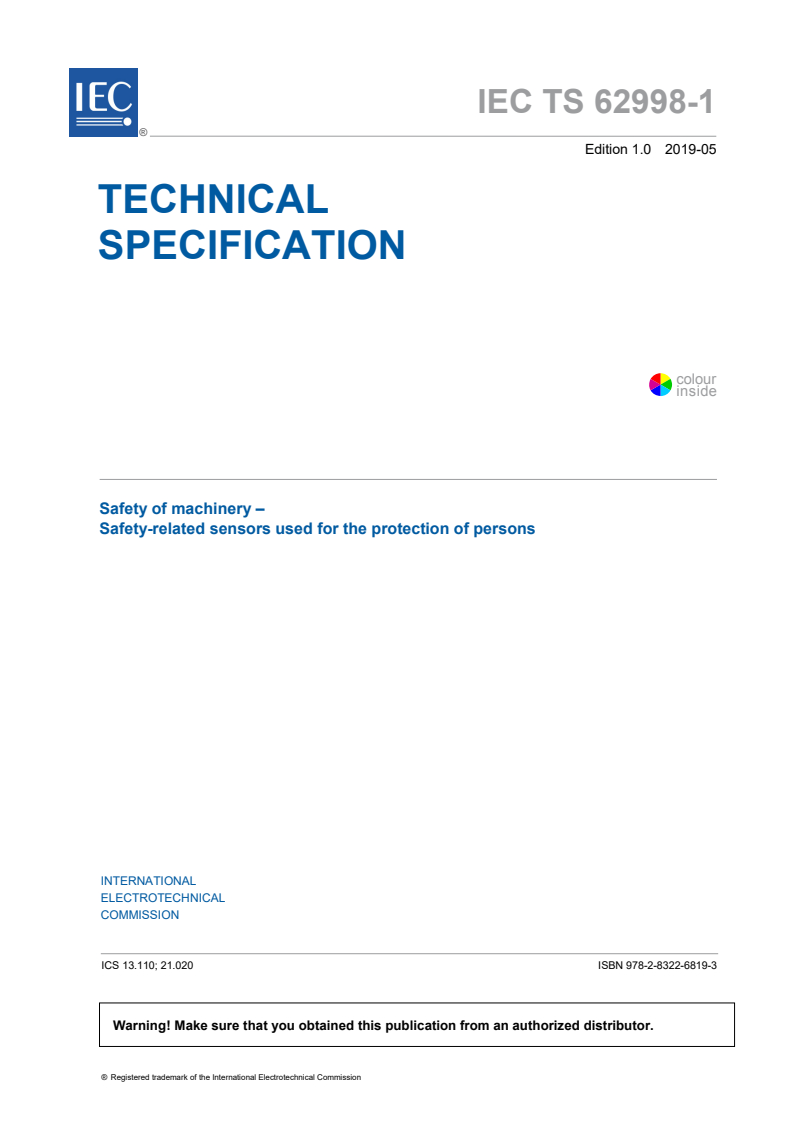

IEC TS 62998-1
Edition 1.0 2019-05
TECHNICAL
SPECIFICATION
colour
inside
Safety of machinery –
Safety-related sensors used for the protection of persons
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 13.110; 21.020 ISBN 978-2-8322-6819-3

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------

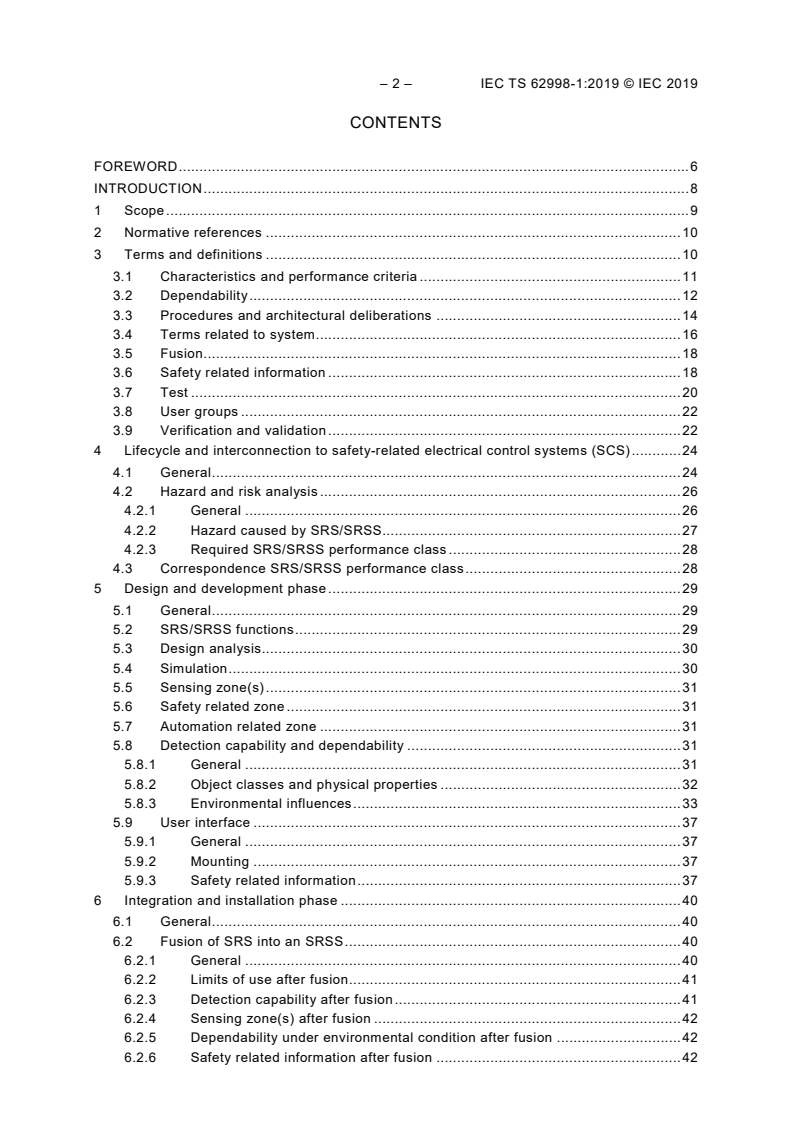

– 2 – IEC TS 62998-1:2019 © IEC 2019
