IEC 60335-2-4:2021

Household and similar electrical appliances - Safety - Part 2-4: Particular requirements for spin extractors

IEC 60335-2-4:2021 deals with the safety of stand-alone electric spin extractors and spin extractors incorporated in washing machines that have separate containers for washing and spin extraction for household and similar purposes that have a capacity not exceeding 10 kg of dry cloth and a drum peripheral speed not exceeding 50 m/s, their rated voltages being not more than 250 V for single-phase appliances and 480 V for other appliances. Appliances not intended for normal household use but which nevertheless may be a source of danger to the public, such as spin extractors intended to be used by laymen in shops, in light industry and on farms, and spin extractors for communal use in blocks of flats or in launderettes, are within the scope of this standard. As far as is practicable, this standard deals with the common hazards presented by appliances which are encountered by all persons in and around the home.
Attention is drawn to the fact that:
- for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements can be necessary;
- in many countries, additional requirements are specified by the national health authorities, the national authorities responsible for the protection of labour, the national water supply authorities and similar authorities.
This standard does not apply to:
- appliances intended exclusively for industrial purposes;
- appliances intended to be used in locations where special conditions prevail, such as the presence of a corrosive or explosive atmosphere (dust, vapour or gas).
This seventh edition cancels and replaces the sixth edition published in 2008, Amendment 1:2012 and Amendment 2:2017. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous edition:
- aligns the text with IEC 60335-1, Ed 5, and its Amendments 1 and 2;
- replacement of the term definition of accessible part to include test probe 18;
- addition of test probe 18 for accessibility of live parts.
This part 2 is to be used in conjunction with the fifth edition of IEC 60335-1:2010 and its amendments.

Appareils électrodomestiques et analogues - Sécurité - Partie 2-4: Exigences particulières pour les essoreuses centrifuges

L'IEC 60335-2-4:2021 traite de la sécurité:
- des essoreuses centrifuges électriques indépendantes, et
- des essoreuses centrifuges incorporées à des machines à laver le linge qui comportent des tambours distincts pour le lavage et l'essorage
pour usages domestiques et analogues dont la capacité ne dépasse pas 10 kg de linge sec, dont la vitesse périphérique du tambour ne dépasse pas 50 m/s et dont la tension assignée n'est pas supérieure à 250 V pour les appareils monophasés et à 480 V pour les autres appareils.
Les appareils non destinés à un usage domestique normal, mais qui peuvent néanmoins constituer une source de danger pour le public, tels que les essoreuses centrifuges destinées à être utilisées par des usagers non avertis dans des magasins, chez des artisans et dans des fermes, ainsi que les essoreuses centrifuges destinées à un usage collectif dans des immeubles d'habitation ou dans des laveries automatiques, relèvent du domaine d'application de la présente norme. Dans la mesure du possible, la présente norme traite des dangers ordinaires présentés par les appareils, encourus par tous les individus situés à l'intérieur et autour de l'habitation. Cependant, cette norme ne tient pas compte en général:
- des personnes (y compris des enfants) dont les capacités physiques, sensorielles ou mentales; ou le manque d'expérience et de connaissance
les empêchent d'utiliser l'appareil en toute sécurité sans surveillance ou instruction;
- de l'utilisation de l'appareil comme jouet par des enfants.
L'attention est attirée sur le fait que
- pour les appareils destinés à être utilisés dans des véhicules ou à bord de navires ou d'avions, des exigences supplémentaires peuvent être nécessaires;
- dans de nombreux pays, des exigences supplémentaires sont spécifiées par les autorités sanitaires nationales, les organismes nationaux en charge de la protection des travailleurs, les agences nationales de l'eau et des organismes analogues.
La présente norme ne s'applique pas
- aux appareils prévus exclusivement pour des usages industriels;
- aux appareils destinés à être utilisés dans des locaux qui présentent des conditions particulières, telles que la présence d'une atmosphère corrosive ou explosive (poussière, vapeur ou gaz).
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
- alignement du texte sur l'IEC 60335-1, Ed 5 et ses Amendements 1 et 2;
- remplacement de la définition du terme "partie accessible" pour inclure le calibre d'essai 18;
- ajout du calibre d'essai 18 pour l'accès aux parties actives.
La présente partie 2 doit être utilisée conjointement avec l'IEC 60335-1:2010 et ses amendements.

General Information

• Status: Published
• Publication Date: 09-Mar-2021
• ICS: 13.120 - Domestic safety
• ICS: 97.060 - Laundry appliances
• Technical Committee: TC 61 - Safety of household and similar electrical appliances
• Drafting Committee: MT 37 - TC 61/MT 37
• Current Stage: DELPUB - Deleted Publication
• Start Date: 06-Dec-2023
• Completion Date: 02-Dec-2022

Relations

• Revises: IEC 60335-2-4:2008/AMD1:2012 - Amendment 1 - Household and similar electrical appliances - Safety - Part 2-4: Particular requirements for spin extractors
• Effective Date: 05-Sep-2023
• Revises: IEC 60335-2-4:2008/AMD2:2017 - Amendment 2 - Household and similar electrical appliances - Safety - Part 2-4: Particular requirements for spin extractors
• Effective Date: 05-Sep-2023
• Revised: IEC 60335-2-4:2023 - Household and similar electrical appliances - Safety - Part 2-4: Particular requirements for spin extractors
• Effective Date: 05-Sep-2023
• Revises: IEC 60335-2-4:2008 - Household and similar electrical appliances - Safety - Part 2-4: Particular requirements for spin extractors
• Effective Date: 05-Sep-2023

Overview

IEC 60335-2-4:2021 - "Household and similar electrical appliances – Safety – Part 2-4: Particular requirements for spin extractors" is the seventh edition (2021) of the IEC product‑family safety standard for stand‑alone spin extractors and spin extractors built into washing machines with separate wash and spin containers. The standard covers appliances for household and similar use (including launderettes, farms and light industry when used by laymen) with a capacity up to 10 kg dry cloth, a drum peripheral speed up to 50 m/s, and rated supply voltages not exceeding 250 V (single‑phase) or 480 V (other appliances).

This edition is a technical revision that aligns with IEC 60335‑1 (Edition 5) and introduces test probe 18 in the definition of “accessible part” and for testing accessibility of live parts.

Key topics and technical requirements

IEC 60335‑2‑4 supplements IEC 60335‑1 and focuses on hazards and tests specific to spin extractors. Major topics include:

• Scope and exclusions: Covers household and similar spin extractors; excludes exclusively industrial appliances and equipment for corrosive/explosive atmospheres. Additional national or application‑specific rules may apply (e.g., vehicles, ships, aircraft).
• Electrical safety: Requirements and tests for leakage current, electric strength, transient overvoltages, insulation, and rated supply conditions.
• Mechanical safety: Stability, mechanical strength, drum containment, braking mechanisms and endurance tests to address rotating parts and mechanical hazards.
• Protection against access to live parts: Accessibility tests including the newly added test probe 18 for assessing reachability of live components.
• Thermal / fire / moisture: Heating limits, resistance to heat and fire, moisture resistance and related endurance testing.
• Marking, instructions and classification: Mandatory labelling, user instructions, and classification of IP ratings and appliance types.
• Testing and conformity: General conditions for tests, internal wiring, components, earthing and terminal requirements and software evaluation annex.

Practical applications - who uses this standard

IEC 60335‑2‑4 is used by:

• Appliance manufacturers and product designers - to design compliant spin extractors and validate safety features.
• Test laboratories and certification bodies - to verify conformity, perform required electrical and mechanical tests.
• Regulatory authorities and procurement teams - to reference safety requirements for market approval and purchasing specifications.
• Safety engineers and quality assurance teams - to implement risk mitigation, labelling and instructions.

Related standards

• IEC 60335‑1 (Fifth edition) - mandatory companion standard that provides general safety requirements for household appliances; IEC 60335‑2‑4 is to be used in conjunction with Part 1.
• Other parts of the IEC 60335 series - applicable when appliances include additional functions covered by other Part 2 standards.

Keywords: IEC 60335-2-4, spin extractors safety standard, household appliance safety, test probe 18, IEC 60335-1, appliance testing, conformity, spin extractor design.

Standards Content (Sample)

IEC 60335-2-4 ®
Edition 7.0 2021-03
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Household and similar electrical appliances – Safety –
Part 2-4: Particular requirements for spin extractors

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc

If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 60335-2-4 ®
Edition 7.0 2021-03
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Household and similar electrical appliances – Safety –

Part 2-4: Particular requirements for spin extractors

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 13.120: 97.060 ISBN 978-2-8322-9566-3

– 2 – IEC 60335-2-4:2021 RLV © IEC 2021

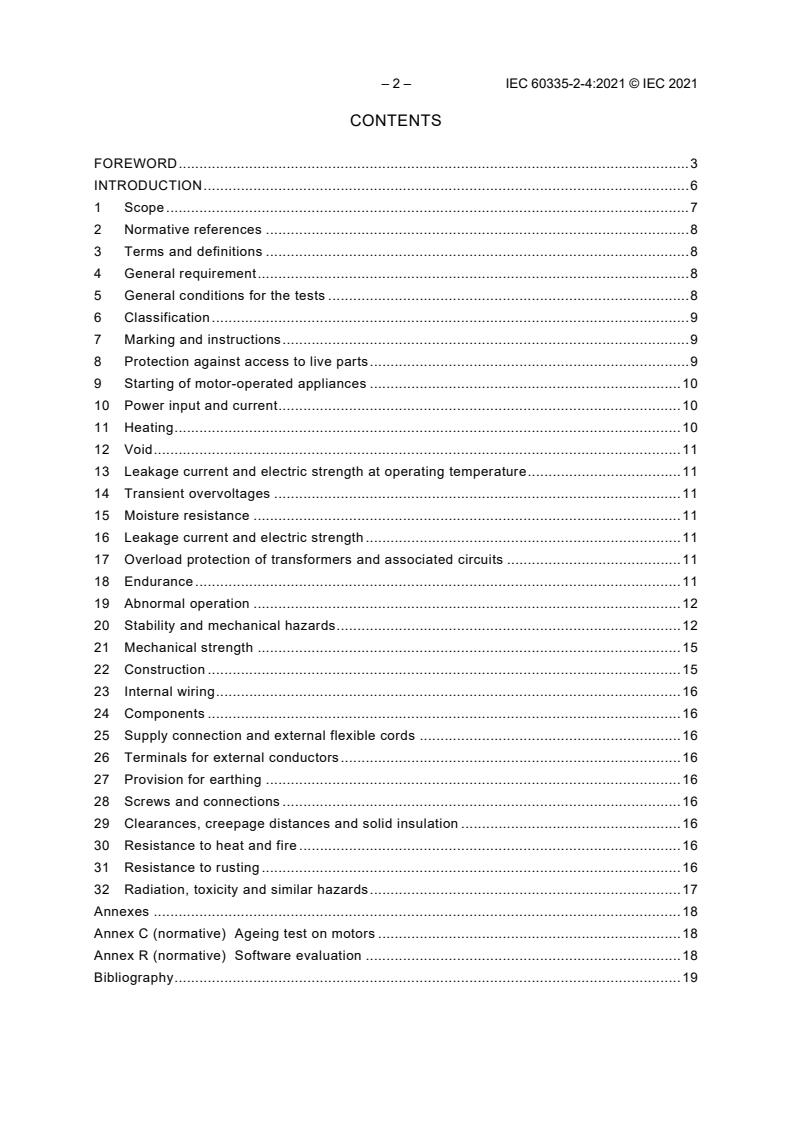

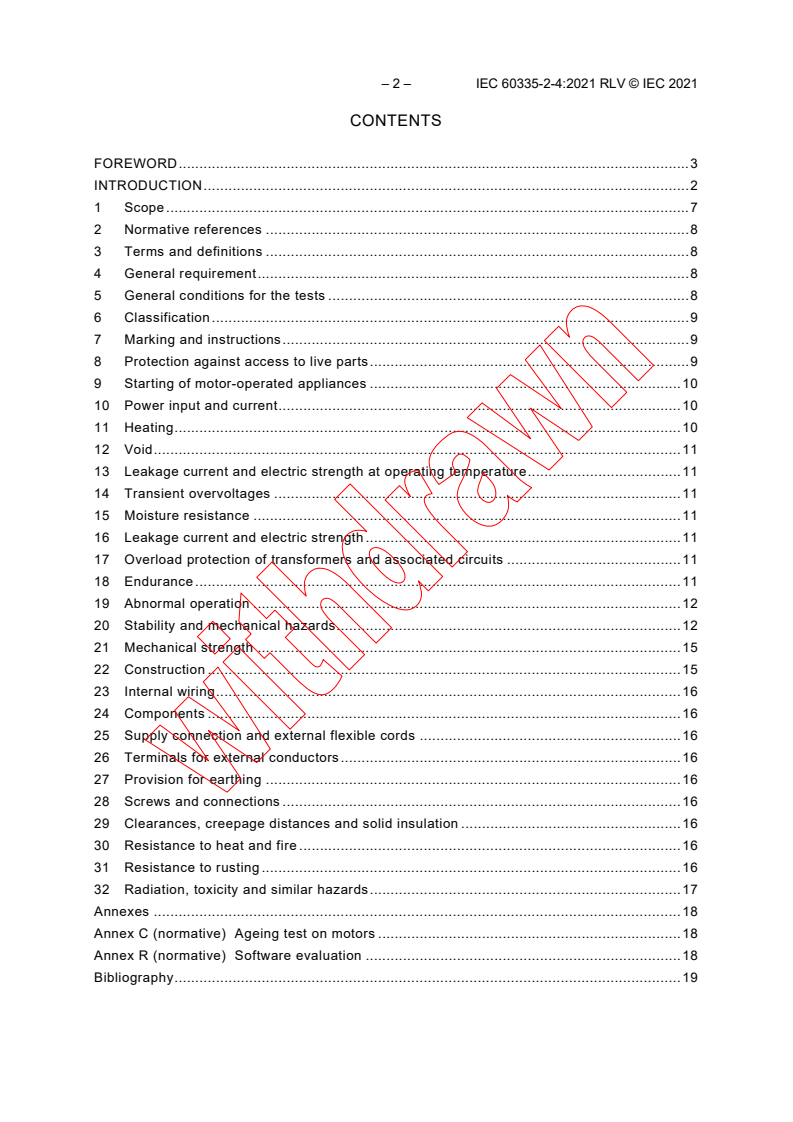

CONTENTS

FOREWORD . 3

INTRODUCTION . 2

1 Scope . 7

2 Normative references . 8

3 Terms and definitions . 8

4 General requirement . 8

5 General conditions for the tests . 8
6 Classification . 9
7 Marking and instructions . 9
8 Protection against access to live parts . 9
9 Starting of motor-operated appliances . 10
10 Power input and current . 10
11 Heating . 10
12 Void . 11
13 Leakage current and electric strength at operating temperature . 11
14 Transient overvoltages . 11
15 Moisture resistance . 11
16 Leakage current and electric strength . 11
17 Overload protection of transformers and associated circuits . 11
18 Endurance . 11
19 Abnormal operation . 12
20 Stability and mechanical hazards . 12
21 Mechanical strength . 15
22 Construction . 15
23 Internal wiring . 16
24 Components . 16
25 Supply connection and external flexible cords . 16
26 Terminals for external conductors . 16
27 Provision for earthing . 16

28 Screws and connections . 16
29 Clearances, creepage distances and solid insulation . 16
30 Resistance to heat and fire . 16
31 Resistance to rusting . 16
32 Radiation, toxicity and similar hazards . 17
Annexes . 18
Annex C (normative) Ageing test on motors . 18
Annex R (normative) Software evaluation . 18
Bibliography . 19

INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES – SAFETY –

Part 2-4: Particular requirements for spin extractors

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
This redline version of the official IEC Standard allows the user to identify the changes made to

the previous edition IEC 60335-2-4:2008+AMD1:2012+AMD2:2017 CSV. A vertical bar appears in
the margin wherever a change has been made. Additions are in green text, deletions are in
strikethrough red text.
– 4 – IEC 60335-2-4:2021 RLV © IEC 2021

International Standard IEC 60335-2-4 has been prepared by IEC technical committee 61: Safety

of household and similar electrical appliances.

This seventh edition cancels and replaces the sixth edition published in 2008,

Amendment 1:2012 and Amendment 2:2017. This edition constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous

edition:
– aligns the text with IEC 60335-1, Ed 5, and its Amendments 1 and 2;

– replacement of the term definition of accessible part to include test probe 18;

– addition of test probe 18 for accessibility of live parts.
The text of this International Standard is based on the following documents:
FDIS Report on voting
61/6128/FDIS 61/6179/RVD
Full information on the voting for the approval of this International Standard can be found in the
report on voting indicated in the above table.
The language used for the development of this International Standard is English.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of the IEC 60335 series, under the general title: Household and similar
electrical appliances – Safety, can be found on the IEC website.
This part 2 is to be used in conjunction with the fifth edition of IEC 60335-1:2010 and its
amendments.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.
This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to convert
that publication into the IEC standard: Particular requirements for spin extractors.
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies as
far as is reasonable. When this standard states “addition”, “modification” or “replacement”, the
relevant text in Part 1 is to be adapted accordingly.

NOTE 2 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
− requirements: in roman type;
− test specifications: in italic type;
notes: in small roman type.
−
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be

• reconfirmed,
• withdrawn,
• replaced by a revised edition, or

• amended.
NOTE 4 The attention of National Committees is drawn to the fact that equipment manufacturers and testing

organizations may need a transitional period following publication of a new, amended or revised IEC publication in

which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation nationally
not earlier than 12 months or later than 36 months from the date of publication.
The following differences exist in the countries indicated below.
– 3.1.9: Different sizes of test fabric material are used (USA).
– 6.2: IPX0 appliances are allowed (USA).
– 15.2: The test is different (USA).
– 18: The test for braking mechanisms is carried out for 6 000 cycles (USA).
– 19.7: This subclause is applicable (USA).
– 20.101: The test is not carried out (USA).
– 20.103: The requirement is different (USA).
– 20.104: The requirement is different (USA).
– 21.101: There are constructional requirements for metal lids and the tests are different for thermoplastic lids
(USA)
– 21.102: There are constructional requirements for metal lids and the tests are different for thermoplastic lids
(USA).
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates that it
contains colours which are considered to be useful for the correct understanding of its
contents. Users should therefore print this document using a colour printer.

– 6 – IEC 60335-2-4:2021 RLV © IEC 2021

INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its

provisions is entrusted to appropriately qualified and experienced persons.

This standard recognizes the internationally accepted level of protection against hazards such

as electrical, mechanical, thermal, fire and radiation of appliances when operated as in normal

use taking into account the manufacturer's instructions. It also covers abnormal situations that

can be expected in practice and takes into account the way in which electromagnetic

phenomena can affect the safe operation of appliances.

This standard takes into account the requirements of IEC 60364 as far as possible so that there
is compatibility with the wiring rules when the appliance is connected to the supply mains.
However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
When a part 2 standard does not include additional requirements to cover hazards dealt with in
Part 1, Part 1 applies.
NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is
not necessary to specify particular requirements for the appliance in question over and above the general
requirements.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into
consideration when developing the general and particular requirements for the IEC 60335 series of standards. For
example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as
ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features which impair the level of safety covered by these requirements.
An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of the
requirements and, if found to be substantially equivalent, may be considered to comply with the

standard.
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES – SAFETY –

Part 2-4: Particular requirements for spin extractors

1 Scope
This clause of Part 1 is replaced by the following.

This part of IEC 60335 deals with the safety of
– stand-alone electric spin extractors, and
– spin extractors incorporated in washing machines that have separate containers for washing
and spin extraction
for household and similar purposes that have a capacity not exceeding 10 kg of dry cloth and a
drum peripheral speed not exceeding 50 m/s, their rated voltages being not more than 250 V
for single-phase appliances and 480 V for other appliances.
Appliances not intended for normal household use but which nevertheless may be a source of
danger to the public, such as spin extractors intended to be used by laymen in shops, in light
industry and on farms, and spin extractors for communal use in blocks of flats or in launderettes,
are within the scope of this standard.
As far as is practicable, this standard deals with the common hazards presented by appliances
which are encountered by all persons in and around the home. However, in general, it does not
take into account
– persons (including children) whose
• physical, sensory or mental capabilities; or
• lack of experience and knowledge
prevents them from using the appliance safely without supervision or instruction;
– children playing with the appliance.
NOTE 101 Attention is drawn to the fact that
– for appliances intended to be used in vehicles or on board ships or aircraft, additional

requirements may can be necessary;
– in many countries, additional requirements are specified by the national health authorities,
the national authorities responsible for the protection of labour, the national water supply
authorities and similar authorities.
NOTE 102 This standard does not apply to
– appliances intended exclusively for industrial purposes;
– appliances intended to be used in locations where special conditions prevail, such as the
presence of a corrosive or explosive atmosphere (dust, vapour or gas).

– 8 – IEC 60335-2-4:2021 RLV © IEC 2021

2 Normative references
This clause of Part 1 is applicable except as follows.

Addition:
IEC 60730-2-12:20052015, Automatic electrical controls for household and similar use – Part

2-12: Particular requirements for electrically operated door locks

3 Terms and definitions
This clause of Part 1 is applicable except as follows.
3.1 Definitions relating to physical characteristics
3.1.9 Replacement:
normal operation
operation of the appliance under the following conditions
The drum is filled with textile material having a mass in the dry condition equal to the maximum
mass specified in the instructions. The textile material consists of pre-washed double hemmed
cotton sheets having dimensions of approximately 700 mm × 700 mm and a specific mass
2 2
between 140 g/m and 175 g/m in the dry condition. It is saturated with water before being
evenly distributed in the drum.
3.6 Definitions relating to parts of an appliance
3.6.3 Replacement:
accessible part
part or surface that can be touched by means of test probe B and test probe 18 of
IEC 61032:1997, and if the part or surface is metal, any conductive part connected to it
Note 1 to entry: Accessible non-metallic parts with conductive coatings are considered to be accessible metal
parts.
4 General requirement
This clause of Part 1 is applicable.

5 General conditions for the tests
This clause of Part 1 is applicable except as follows.
5.2 Addition:
The tests of 21.101, 21.102 and 22.101 shall be carried out on the same appliance as that used
for the test of Clause 18.
5.3 Addition:
The tests of 21.101 and 21.102 are carried out before the test of Clause 18. The test of 22.101
is carried out after the test of Clause 18.

6 Classification
This clause of Part 1 is applicable except as follows.

6.1 Modification:
Appliances shall be class I, class II or class III.

6.2 Addition:
Appliances shall be at least IPX4.
7 Marking and instructions
This clause of Part 1 is applicable except as follows.
7.10 Addition:
If the off position is only indicated by letters, the word "off" shall be used.
7.12 Addition:
The instructions shall specify the maximum mass of dry cloth in kilograms, to be used in the
appliance.
7.12.1 Addition:
If the label specified in 7.101 is supplied with the appliance, the installation instructions shall
state that it has to be permanently fixed to the wall close to the appliance.
For appliances intended for communal use in blocks of flats, and having an interlock system
that has to be energized in order to release the lid, the installation instructions shall state that
a device for switching off the appliance automatically is not to be installed in the supply circuit.
7.101 Appliances intended for communal use in blocks of flats, and having an interlock system
that has to be energized in order to release the lid, shall be supplied with a label that states the
substance of the following, unless the instruction is marked on the appliance:

This spin extractor has to be connected to the supply mains before the lid can be opened. Do
not force it open.
8 Protection against access to live parts
This clause of Part 1 is applicable except as follows.

– 10 – IEC 60335-2-4:2021 RLV © IEC 2021

8.1.1 Addition:
Test probe 18 of IEC 61032:1997 is applied with a force not exceeding 1 N, the appliance being

in every possible position, except that appliances normally used on the floor and having a mass

exceeding 40 kg are not tilted. Through openings, the test probe is applied to any depth that

the probe will permit and is rotated or angled before, during and after insertion to any position.

If the opening does not allow the entry of the probe, the force on the probe in the straight

position is increased to 10 N. If the probe then enters the opening, the test is repeated with the

probe in the angled position. The appliance shall be fully assembled as in normal use without

removing any parts that are intended to be removed for user maintenance.

8.1.5 Addition:
Test probe 18 as specified in 8.1.1 is not used.
8.2 Addition:
Compliance is also checked by applying test probe 18 of IEC 61032:1997 in accordance with
the conditions specified in 8.1.1. The test probe is applied to built-in appliances and fixed
appliances only after installation.
9 Starting of motor-operated appliances
This clause of Part 1 is not applicable.
10 Power input and current
This clause of Part 1 is applicable.
11 Heating
This clause of Part 1 is applicable except as follows.
11.7 Replacement:
Appliances are operated for five periods of water extraction, the periods being separated by a
rest period. Each rest period, which includes the braking time, has a duration of 1 min for each
kilogram of dry textile material or 4 min, whichever is longer. During the rest period, the textile

material is re-saturated with water.
For appliances incorporating a programmer or timer, the water extraction period is the maximum
allowed by the control.
For other appliances, the water extraction period has a duration of
– 15 min for continuous-flow rinsing appliances;
– 5 min for other appliances.
If a longer period is indicated in the instructions, this period applies instead.

12 Void
13 Leakage current and electric strength at operating temperature

This clause of Part 1 is applicable.

14 Transient overvoltages
This clause of Part 1 is applicable.

15 Moisture resistance
This clause of Part 1 is applicable except as follows.
15.2 Addition:
The inlet to the discharge pump or to the gravity drain is blocked. The drum is filled as specified
for normal operation, the mass of water being twice the mass of the dry textile material. Any
water remaining after the saturation process is poured into the appliance, which is supplied at
rated voltage and operated for 1 min or the maximum period allowed by the programmer or
timer, whichever is shorter.
In addition, continuous-flow rinsing appliances having a vertical axis are completely filled with
saturated textile material and 10 l of water is poured in over a period of 20 s. The appliance is
then operated while supplied at rated voltage.
For all appliances, 0,5 l of the solution is poured rapidly over the top of the appliance in the
most unfavourable way so that the spillage solution also flows over the surface of the appliance
that incorporates controls and other places where it may penetrate the appliance enclosure, the
controls being placed in the most unfavourable position. The controls are then operated through
their working range, this operation being repeated after 5 min.
16 Leakage current and electric strength
This clause of Part 1 is applicable.

17 Overload protection of transformers and associated circuits
This clause of Part 1 is applicable.
18 Endurance
This clause of Part 1 is replaced by the following.
Appliances having lids that can be opened while the drum is rotating shall be constructed so
that braking mechanisms and lid interlocks withstand the stresses to which they may be
exposed in normal use.
Compliance is checked by the following test.

– 12 – IEC 60335-2-4:2021 RLV © IEC 2021

The appliance is supplied at 1,06 times rated voltage and operated under normal operation

until the motor has reached its maximum speed.

The lid is then fully opened. The test is repeated after the drum has been at rest for a period

long enough to ensure that the appliance does not attain an excessive temperature.

The test is carried out
– for braking mechanisms:
• 3 500 times for separate spin extractors;

• 1 000 times for spin extractors incorporated in washing machines;
– for lid interlocks, 6 000 times.
The textile material is re-saturated with water at least every 250 times.
After the test, the appliance shall be fit for further use and compliance with this standard shall
not be impaired.
NOTE 101 Forced cooling may can be used to prevent excessive temperatures and to shorten the test.
19 Abnormal operation
This clause of Part 1 is applicable except as follows.
19.7 Not applicable.
19.9 Not applicable.
20 Stability and mechanical hazards
This clause of Part 1 is applicable except as follows.
20.1 Addition:
The drum is empty, or filled as specified for normal operation, whichever is more unfavourable.
20.101 Appliances shall not be adversely affected by an unbalanced load.

Compliance is checked by the following test.
The appliance is placed on a horizontal support and a load having a mass of 0,2 kg or 10 % of
the maximum mass of textile material specified in the instructions, whichever is higher, is fixed
to the inside wall of the drum half-way along its length.
The appliance is supplied at rated voltage and operated for 5 min or the maximum period
allowed by a programmer or timer, whichever is shorter.
The test is carried out four times, the load being moved each time through an angle of 90°
around the wall of the drum.
If compliance relies on the operation of an electronic circuit, the test is repeated with the fault
conditions in a) to g) of 19.11.2 applied one at a time to the electronic circuit.

The appliance shall not overturn and the drum shall not hit other parts except the enclosure.

After the test, the appliance shall be fit for further use.

20.102 The lid or door shall be interlocked so that the appliance can only be operated when

the lid or door is in the closed position.

Compliance is checked by inspection, by manual test and by the following test.

Test probe B of IEC 61032:1997 is applied in order to try and release any interlock that is

needed to comply with the requirement. The interlock shall not release.
20.103 For appliances having a drum with a rotational kinetic energy exceeding 1 500 J, or
– for appliances having a single lid, a maximum peripheral speed exceeding 20 m/s,
– for appliances incorporating two lids, a maximum peripheral speed exceeding 25 m/s,
it shall not be possible to open the lid while the drum is in motion.
Compliance is checked by inspection, by measurement of the maximum peripheral speed, by
calculation of the rotational kinetic energy and by the following test.
The appliance is supplied at rated voltage and operated empty. The force determined during
the test of 22.101 with the lid interlocked is applied to the lid in an attempt to open it.
If compliance relies on the operation of an electronic circuit, the test is repeated under the
following conditions applied separately:
– the fault conditions in a) to g) of 19.11.2 applied one at a time to the electronic circuit;
– the electromagnetic phenomena tests of 19.11.4.1 to 19.11.4.6 applied to the appliance.
In an appliance containing lids or doors that are controlled by one or more interlocks, one of
the interlocks may be released provided that the following conditions are fulfilled:
– the lid or door does not move automatically to an open position when the interlock is
released; and
– the appliance will not restart after the cycle in which the interlock was released.
It shall not be possible to open the lid while the drum is in motion.

If the drum is not cylindrical, the peripheral speed is the mean peripheral speed.
NOTE The rotational kinetic energy is calculated from the following formula:
mv
E =
where
E is the rotational kinetic energy, in J;
m is the mass of the cloth specified in the instructions for use, in kg;
v is the maximum peripheral speed of the drum, in m/s.
If the electronic circuit is programmable, the software shall contain measures to control the
fault/error conditions specified in Table R.1 and is evaluated in accordance with the relevant
requirements of Annex R.
20.104 For appliances having a drum with a rotational kinetic energy not exceeding 1 500 J
and
– 14 – IEC 60335-2-4:2021 RLV © IEC 2021

– for appliances having a single lid, a maximum peripheral speed not exceeding 20 m/s,

– for appliances incorporating two lids, a maximum peripheral speed not exceeding 25 m/s,

moving parts shall not be accessible while the motor is energized or when the drum speed

exceeds 60 r/min.
The braking system shall not be affected by the penetration of water.

Compliance is checked by measurement of the maximum peripheral speed, by calculation of

the rotational kinetic energy and by the following test, which is carried out after repeating the

spillage test of 15.2.
NOTE The rotational kinetic energy is calculated in accordance with the formula in 20.103.
The appliance is supplied at rated voltage and operated empty. For appliances having a single
lid and for appliances incorporating two lids where the second lid does not open independently
of the first lid, the lid or first lid as appropriate is gradually opened and
– with an opening of 4 mm to 10 mm, it shall not be possible to touch parts rotating at a speed
exceeding 60 r/min with the test probe 12 of IEC 61032:1997;
– with an opening greater than 10 mm, but not more than 12 mm, it shall not be possible to
touch parts rotating at a speed exceeding 60 r/min with a test rod 3 mm in diameter and
120 mm long. In addition, the test probe B of IEC 61032:1997 is applied and shall not come
within a distance of 20 mm from the rotating parts;
– with an opening greater than 12 mm, the motor shall be disconnected from the supply and
within 7 s, the drum speed shall not exceed 60 r/min.
For appliances incorporating two lids where the second lid opens independently of the first lid,
the first lid is gradually opened and with an opening greater than 50 mm, the motor shall be
disconnected from the supply and within 2 s the drum speed shall not exceed 20 m/s.
The second lid is gradually opened and
– with an opening of 4 mm to 10 mm, it shall not be possible to touch parts rotating at a speed
exceeding 60 r/min with the test probe 12 of IEC 61032:1997;
– with an opening greater than 10 mm, but not more than 12 mm, it shall not be possible to
touch parts rotating at a speed exceeding 60 r/min with a test rod 3 mm in diameter and
120 mm long. In addition, the test probe B of IEC 61032:1997 is applied and shall not come
within a distance of 20 mm from the rotating parts;
– with an opening greater than 12 mm and within 7 s, the drum speed shall not exceed

60 r/min.
If compliance relies on the operation of an electronic circuit, the test is repeated under the
following conditions applied separately:
– the fault conditions in a) to g) of 19.11.2 applied one at a time to the electronic circuit;
– the electromagnetic phenomena tests of 19.11.4.2 and 19.11.4.5 applied in turn to the
appliance.
In an appliance containing lids or doors that are controlled by one or more interlocks, one of
the interlocks may be released provided that the following conditions are fulfilled:
– the lid or door does not move automatically to an open position when the interlock is
released; and
– the appliance will not restart after the cycle in which the interlock was released.

If the electronic circuit is programmable, the software shall contain measures to control the

fault/error conditions specified in Table R.1 and is evaluated in accordance with the relevant

requirements of Annex R.
20.105 Protective devices fitted in the upper part of spin extractors having a vertical axis

shall be positioned or protected so that the device is not likely to be damaged by textile material

that may escape from the drum in normal use.

Compliance is checked by inspection.

21 Mechanical strength
This clause of Part 1 is applicable except as follows.
21.101 Lids of appliances shall have adequate mechanical strength.
Compliance is checked by the following test.
A rubber hemisphere having a diameter of 70 mm and a hardness between 40 IRHD and
50 IRHD is fixed to a cylinder having a mass of 20 kg and dropped from a height of 100 mm
onto the centre of the lid.
The test is carried out three times, after which the lid shall not be damaged to the extent that it
is possible to touch moving parts become accessible with test probe B and test probe 18.
21.102 Lids and their hinges shall have adequate resistance to distortion.
Compliance is checked by the following test.
A force of 50 N is applied to the open lid in the most unfavourable direction and position.
The test is carried out three times, after which the hinges shall not have worked loose and the
appliance shall not be damaged or deformed to such an extent that compliance with the
appropriate requirements of 20.102 to 20.104 is impaired.
22 Construction
This clause of Part 1 is applicable except as follows.

22.101 Interlocks shall be constructed so that lids or doors are unlikely to be forced open in
normal use.
Compliance is checked by the following test.
The lid or door is opened manually as in normal use, the force applied being measured. The lid
or door is closed and interlocked. An attempt is then made to open the lid or door in the same
way.
It shall not be possible to force open the lid or door with a force less than 10 times the value
originally measured, with a minimum of 50 N.
NOTE The test is not carried out if the interlock is not required for compliance with Clause 20.

– 16 – IEC 60335-2-4:2021 RLV © IEC 2021

23 Internal wiring
This clause of Part 1 is applicable.

24 Components
This clause of Part 1 is applicable except as follows.

24.1.4 Modification:
The number of cycles of operation for timers is increased to 10 000.
Addition:
For lid interlocks, the number of cycles of operation declared for Subclauses 6.10 and 6.11 of
IEC 60730-2-12:2015 shall not be less than 6 000.
25 Supply connection and external flexible cords
This clause of Part 1 is applicable.
26 Terminals for external conductors
This clause of Part 1 is applicable.
27 Provision for earthing
This clause of Part 1 is applicable.
28 Screws and connections
This clause of Part 1 is applicable.
29 Clearances, creepage distances and solid insulation

This clause of Part 1 is applicable.
30 Resistance to heat and fire
This clause of Part 1 is applicable except as follows.
30.2.3 Not applicable.
31 Resistance to rusting
This clause of Part 1 is applicable.

32 Radiation, toxicity and similar hazards

This clause of Part 1 is applicable.

– 18 – IEC 60335-2-4:2021 RLV © IEC 2021

Annexes
The annexes of Part 1 are applicable except as follows.

Annex C
(normative)
Ageing test on motors
Modification:
The value of p in Table C.1 is 2 000.

Annex R
(normative)
Software evaluation
R.2.2.5 Modification:
For programmable electronic circuits with functions requiring software incorporating measures
to control the fault/error conditions specified in Table R.1 or Table R.2, detection of a fault/error
shall occur before compliance with Clause 19, 20.103 and 20.104 is impaired.
R.2.2.9 Modification:
The software and safety-related hardware under its control shall be initialized and shall
terminate before compliance with Clause 19, 20.103 and 20.104 is impaired.
