Luminaire performance - Part 1: General requirements

IEC 62722-1:2022 is available as IEC 62722-1:2022 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.
IEC 62722-1:2022 covers specific performance and environmental requirements for luminaires, incorporating electric light sources for operation from supply voltages up to 1 000 V. Unless otherwise detailed, performance data covered under the scope of this document are for the luminaires in a condition representative of new manufacture, with any specified initial aging procedures completed. This second edition cancels and replaces the first edition published in 2014. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
- The reference to and use of the measurement methods for non-active power consumption in accordance with IEC 63103 have been added.
- The pictograms of Annex C have been updated to represent modern light sources.

Performance des luminaires - Partie 1: Exigences générales

IEC 62722-1:2022 est disponible sous forme de IEC 62722-1:2022 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.
L'IEC 62722-1:2022 couvre les exigences de performance et d'environnement spécifiques aux luminaires, qui incorporent des sources lumineuses électriques destinées à fonctionner sous des tensions d'alimentation jusqu'à 1 000 V. Sauf disposition contraire, les données de performance couvertes par le domaine d'application du présent document s'appliquent aux luminaires qui sont dans un état représentatif d'un produit neuf, où toutes les procédures de vieillissement initial spécifiées ont été réalisées. Cette deuxième édition annule et remplace la première édition parue en 2014. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition antérieure.
- Des références à l'IEC 63103 ont été ajoutées afin d'appliquer les méthodes de mesurage de la consommation de puissance en mode non actif.
- Les pictogrammes de l'Annexe C ont été mis à jour pour représenter les sources lumineuses modernes.

General Information

Status
Published
Publication Date
13-Jun-2022
Technical Committee
Current Stage
PPUB - Publication issued
Completion Date
14-Jun-2022
Ref Project

Buy Standard

Standard
IEC 62722-1:2022 - Luminaire performance - Part 1: General requirements
English and French language
38 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 62722-1
Edition 2.0 2022-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Luminaire performance –
Part 1: General requirements
Performance des luminaires –
Partie 1: Exigences générales
IEC 62722-1:2022-06(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2022 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch

The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the

variety of criteria (reference number, text, technical publications previews. With a subscription you will always

committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.

and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 19 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - IEC Products & Services Portal - products.iec.ch

webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez

La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un

en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour

comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 300 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
19 langues additionnelles. Egalement appelé Vocabulaire
Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC 62722-1
Edition 2.0 2022-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Luminaire performance –
Part 1: General requirements
Performance des luminaires –
Partie 1: Exigences générales
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.40 ISBN 978-2-8322-3807-3

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

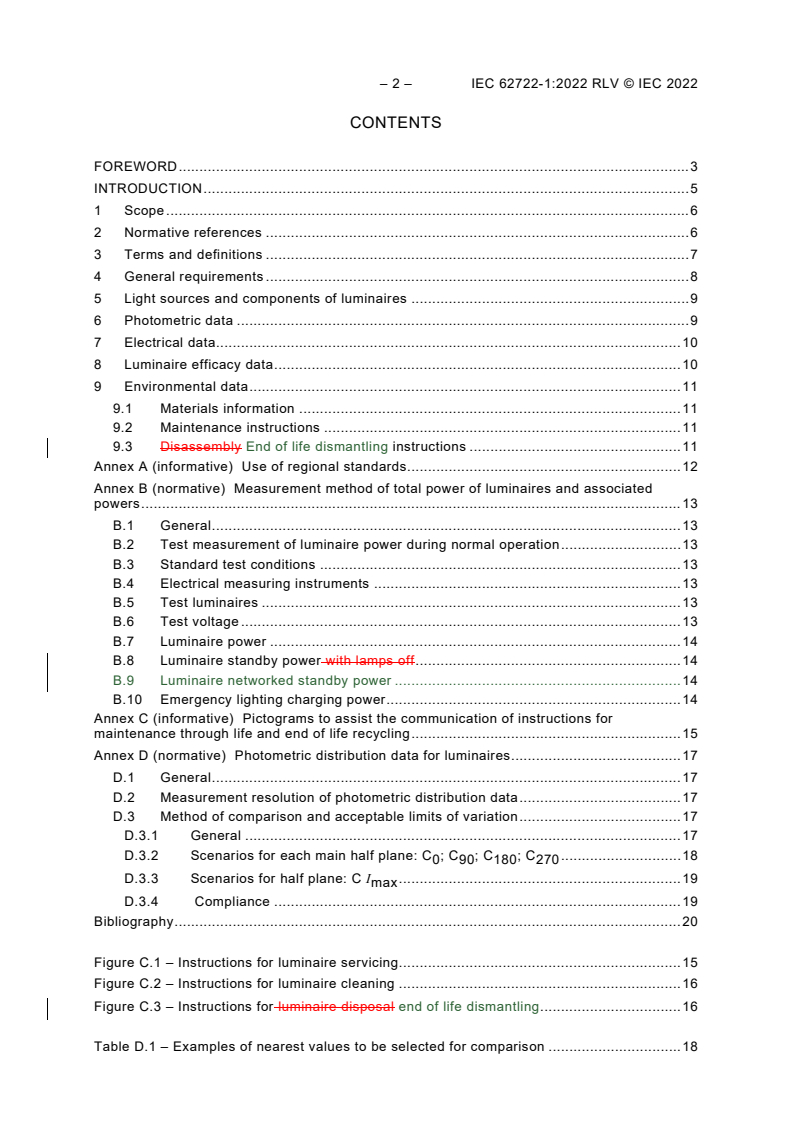

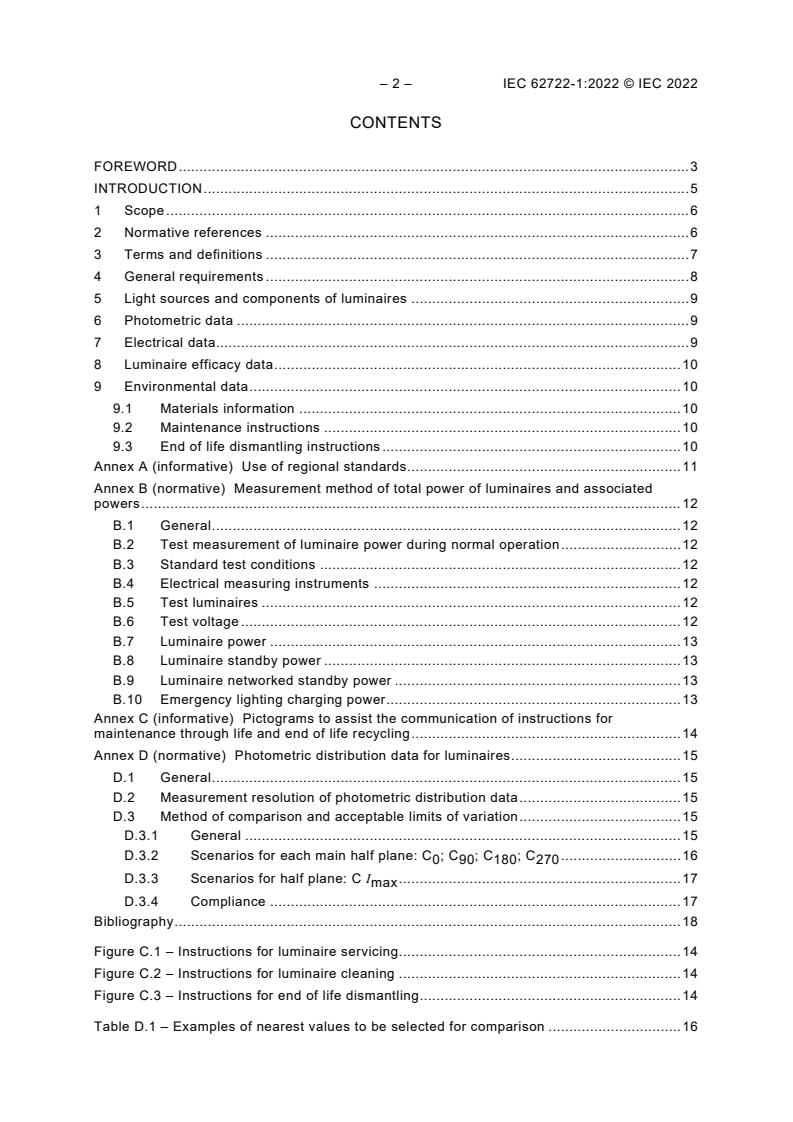

– 2 – IEC 62722-1:2022 © IEC 2022
CONTENTS

FOREWORD ........................................................................................................................... 3

INTRODUCTION ..................................................................................................................... 5

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms and definitions ...................................................................................................... 7

4 General requirements ...................................................................................................... 8

5 Light sources and components of luminaires ................................................................... 9

6 Photometric data ............................................................................................................. 9

7 Electrical data.................................................................................................................. 9

8 Luminaire efficacy data .................................................................................................. 10

9 Environmental data ........................................................................................................ 10

9.1 Materials information ............................................................................................ 10

9.2 Maintenance instructions ...................................................................................... 10

9.3 End of life dismantling instructions ........................................................................ 10

Annex A (informative) Use of regional standards.................................................................. 11

Annex B (normative) Measurement method of total power of luminaires and associated

powers .................................................................................................................................. 12

B.1 General ................................................................................................................. 12

B.2 Test measurement of luminaire power during normal operation ............................. 12

B.3 Standard test conditions ....................................................................................... 12

B.4 Electrical measuring instruments .......................................................................... 12

B.5 Test luminaires ..................................................................................................... 12

B.6 Test voltage .......................................................................................................... 12

B.7 Luminaire power ................................................................................................... 13

B.8 Luminaire standby power ...................................................................................... 13

B.9 Luminaire networked standby power ..................................................................... 13

B.10 Emergency lighting charging power ....................................................................... 13

Annex C (informative) Pictograms to assist the communication of instructions for

maintenance through life and end of life recycling ................................................................. 14

Annex D (normative) Photometric distribution data for luminaires ......................................... 15

D.1 General ................................................................................................................. 15

D.2 Measurement resolution of photometric distribution data ....................................... 15

D.3 Method of comparison and acceptable limits of variation ....................................... 15

D.3.1 General ......................................................................................................... 15

D.3.2 Scenarios for each main half plane: C ; C ; C ; C ............................. 16

0 90 180 270

D.3.3 Scenarios for half plane: C I .................................................................... 17

max

D.3.4 Compliance ................................................................................................... 17

Bibliography .......................................................................................................................... 18

Figure C.1 – Instructions for luminaire servicing .................................................................... 14

Figure C.2 – Instructions for luminaire cleaning .................................................................... 14

Figure C.3 – Instructions for end of life dismantling ............................................................... 14

Table D.1 – Examples of nearest values to be selected for comparison ................................ 16

---------------------- Page: 4 ----------------------
IEC 62722-1:2022 © IEC 2022 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LUMINAIRE PERFORMANCE –
Part 1: General requirements
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

IEC 62722-1 has been prepared by subcommittee 34D: Luminaires, of IEC technical committee

34: Lighting. It is an International Standard.

This second edition cancels and replaces the first edition published in 2014. This edition

constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous

edition:

a) The reference to and use of the measurement methods for non-active power consumption

in accordance with IEC 63103 have been added.

b) The pictograms of Annex C have been updated to represent modern light sources.

---------------------- Page: 5 ----------------------
– 4 – IEC 62722-1:2022 © IEC 2022
The text of this International Standard is based on the following documents:
Draft Report on voting
34D/1658/FDIS 34D/1660/RVD

Full information on the voting for its approval can be found in the report on voting indicated in

the above table.
The language used for the development of this International Standard is English.

This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in

accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available

at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are

described in greater detail at www.iec.ch/standardsdev/publications.

A list of all parts in the IEC 62722 series, published under the general title Luminaire

performance can be found on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under webstore.iec.ch in the data related to the

specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 6 ----------------------
IEC 62722-1:2022 © IEC 2022 – 5 –
INTRODUCTION

This part of IEC 62722 is a performance standard for luminaires (general requirements) and

acknowledges the need for defining performance data to be provided, the presentation of this

data, the basis of its measurement, and the associated tolerances that can be reasonably

expected. Information to support responsible environmental use is also included. Future Parts 2

of the IEC 62722 series can be introduced where additional performance requirements for

specific types of light sources are required. The structure of these performance standards also

allows for the possibility of Part 3 of the IEC 62722 series to be introduced in the future should

standardization of performance criteria linked to specific luminaire applications be determined

as necessary (e.g. floodlighting, street lighting).
---------------------- Page: 7 ----------------------
– 6 – IEC 62722-1:2022 © IEC 2022
LUMINAIRE PERFORMANCE –
Part 1: General requirements
1 Scope

This part of IEC 62722 covers specific performance and environmental requirements for

luminaires, incorporating electric light sources for operation from supply voltages up to 1 000 V.

Unless otherwise detailed, performance data covered under the scope of this document are for

the luminaires in a condition representative of new manufacture, with any specified initial aging

procedures completed.

This document covers requirements for luminaires to support energy efficient use and

responsible environmental management to the end of life. The object of this document is to

provide a set of requirements which are considered to be generally applicable to most types of

luminaires. Where additional performance requirements for specific types of light source are

relevant, these are specified in the IEC 62722-2 series. The IEC 62722-2 series can also cover

a wider scope of performance aspects appropriate to the particular light source technology.

Semi-luminaires are not covered under the scope of this document.

For some types of luminaires (e.g. decorative or household) the provision of performance data

under the scope of this document is not appropriate.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies.

For undated references, the latest edition of the referenced document (including any

amendments) applies.

IEC 60050-845, International Electrotechnical Vocabulary (IEV) – Part 845: Lighting (available

at http://www.electropedia.org)
IEC 60598-1, Luminaires – Part 1: General requirements and tests
IEC 60598-2 (all parts), Luminaires – Part 2: Particular requirements
IEC 62722-2 (all parts), Luminaire performance – Part 2: Particular requirements
IEC 63103:2020, Lighting equipment – Non-active mode power measurement
IEC TS 63105, Lighting systems and related equipment – Vocabulary

CIE 034:1977, Road lighting lantern and installation data: Photometrics, classification and

performance
CIE 043:1979, Photometry of floodlights
CIE 121:1996, The photometry and goniophotometry of luminaires
---------------------- Page: 8 ----------------------
IEC 62722-1:2022 © IEC 2022 – 7 –
3 Terms and definitions

For the purposes of this document the terms and definitions given in IEC 60598-1,

IEC 60050-845 and IEC TS 63105 and the following apply.

ISO and IEC maintain terminology databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
input power

electrical power from the mains supply consumed by the luminaire including the operation of all

electrical components necessary for its intended functioning
3.2
standby mode

mode when the equipment is connected to a supply voltage with the illumination

function off, while capable of being activated by an external trigger not being a trigger from a

network
Note 1 to entry: Examples of external triggers are sensing or timing.

[SOURCE: IEC 63103:2020, 3.10, modified – The domain was changed to cover luminaires.]

3.3
networked standby mode

mode when the equipment is connected to a supply voltage with the illumination

function off, while capable of being activated by an external trigger being a trigger from a

network

[SOURCE: IEC 63103:2020, 3.11, modified – The domain was changed to cover luminaires.]

3.4
standby power
average power consumption in the standby mode
3.5
networked standby power
average power consumption in the networked standby mode
3.6
emergency lighting charging power

electrical power from the mains supply consumed by the charging circuit of emergency

luminaires to keep the battery charged

Note 1 to entry: In IEC 63103:2020 the mode reproducing the condition where the emergency lighting charging

power is consumed is named "charging maintenance mode" (as defined in 3.13 of that document).

Note 2 to entry: Emergency lighting charging power is only valid for self-contained emergency luminaires.

3.7
luminaire efficacy

ratio of the luminaires total luminous flux versus its input power at rated supply voltage,

excluding any emergency lighting charging power
---------------------- Page: 9 ----------------------
– 8 – IEC 62722-1:2022 © IEC 2022
3.8
LOR
light output ratio

ratio of the total luminous flux of the luminaire, measured under specified

practical conditions with its own light sources and equipment, to the sum of the individual

luminous fluxes of the same light sources when operated outside the luminaire with the same

equipment, under specified conditions
3.9
rated value

quantitative value for a characteristic of a luminaire for specific operating conditions specified

in this document, or in applicable standards, or assigned by the manufacturer or responsible

vendor
3.10
test voltage
voltage at which tests are carried out
3.11
BLF
ballast lumen factor

ratio of the luminous flux of the light source when the ballast under test is operated at its rated

voltage, to the luminous flux of the same lamp operated with the appropriate reference ballast

supplied at its rated voltage and frequency
4 General requirements

4.1 Luminaires shall be tested complete with the light source and controlgear specified by

the manufacturer. Except where otherwise specified, the luminaire, light source and controlgear

shall be tested as new, and installed as for normal use, in accordance with the manufacturer’s

installation instructions.

4.2 Luminaires shall meet the requirements of the relevant parts of the IEC 60598-2 series

that are appropriate to their design.

4.3 Luminaires shall meet all the requirements of this document and where applicable also

the additional requirements of the IEC 62722-2 series appropriate to the type of light source

used by the luminaire. Where detailed in the IEC 62722-2 series, alternative methods of

measurement or limits to those given in this document may be specified.

4.4 Where it is specified in this document that data is to be provided, this data may be

supplied by the manufacturer in printed or electronic formats, via the manufacturer’s catalogues,

website, or similar, unless otherwise specified in this document.

4.5 Luminaires for tungsten filament lamps can be photometrically rated, electrically rated

and efficacy-rated with lamps of any wattage not exceeding the marked maximum, and any

technology (e.g. halogen, self-ballasted compact fluorescent or self-ballasted LED), if these

lamps are covered by an available IEC safety standard and are shown to comply with that

standard. For these luminaires, the number of lamps, their technology and their wattage shall

be given in the luminaire manufacturer's catalogue, website or similar.

The use of an international lamp coding system (ILCOS) code according to IEC 61231 is

recommended. Further details can be necessary to identify the type of lamp.

The requirements of this document shall be met by the provision of information and data

provided by the luminaire manufacturer (or responsible vendor). Compliance is considered to

be met by the provision of the requested information. Any verification of data is conducted by

the measurement requirements of this document.
---------------------- Page: 10 ----------------------
IEC 62722-1:2022 © IEC 2022 – 9 –

4.6 The luminaire manufacturer shall be prepared to provide information for the specific light

source used for the test.
5 Light sources and components of luminaires

Any light sources and components delivered with the luminaire shall comply with the

requirements of the IEC performance standards that are appropriate to them.
6 Photometric data

Photometric data shall be available for the luminaire and any optical attachments or accessories

that the luminaire has been specified for use with. The following photometric data shall be

provided.
a) Light output ratio (LOR) or the total luminous flux of the luminaire

NOTE 1 The relevant part of the IEC 62722-2 series can specify which of these are to be provided.

b) Luminous intensity distribution

Photometric data shall be provided for luminaires in accordance with an established

international or regional format as appropriate for the type of luminaire, and with luminous

intensity distribution data according to the luminaire's intended application. Data shall be

available in electronic file format to facilitate its use by lighting design software.

NOTE 2 Information regarding acceptable regional standards for photometric data formats is given in Annex A.

When the LOR is provided it shall be measured in accordance with CIE 121 and the LOR of the

luminaire shall not be more than 10 % (relative) below the rated value.

When a total luminous flux is provided it shall be measured in accordance with CIE 121 and

shall not be more than 10 % below the rated value.

The distribution of luminous intensity, measured in accordance with CIE 121, shall be in

accordance with that declared by the manufacturer. The method of comparison for the

distribution shape, and limits for acceptance are given in Annex D.

The allowed photometric variations detailed shall take account of manufacturing tolerances.

When measurements are made, additional allowance for laboratory measurement uncertainty

shall also be considered.

All photometric data shall be declared for the luminaire operating at its rated supply voltage.

For the photometric performance and measurement of emergency luminaires when operating

in emergency mode, see also IEC 60598-2-22 and CIE 121-SP1.
7 Electrical data

Electrical supply data shall be provided for the luminaire and shall include the following:

a) rated supply voltage;
b) rated input power;
c) rated standby power if applicable;
d) rated networked standby power if applicable;
e) rated emergency lighting charging power if applicable.
---------------------- Page: 11 ----------------------
– 10 – IEC 62722-1:2022 © IEC 2022
Power values shall be reported in W with the minimum following resolution:
• ≥ 10 W: whole number;
• > 1 W and < 10 W: first decimal digit;
• ≤ 1 W: two decimal digits.

When measured at its rated supply voltage, under conditions specified in Annex B, the electrical

values shall not exceed the rated values declared by the manufacturer by more than 10 %.

8 Luminaire efficacy data

Where luminaire efficacy data is provided this shall be with reference to rated light source

performance data published by the light source manufacturer. The luminaire manufacturer shall

be prepared to provide information of the specific light source data that has been used.

Luminaire efficacy data shall be based on the rated photometric and electrical characteristics

of the luminaire. For production light source and luminaire combinations, variations in

accordance with parameters stated in IEC standards for light sources, controlgear, and

luminaire standards can occur.

NOTE Luminaire efficacy data can be derived from LOR × (rated light source lumens × BLF)/Input power in watts

at rated supply voltage.
9 Environmental data
9.1 Materials information

The manufacturer is responsible for checking that materials used for the construction of the

luminaire and its components are not in breach of local regulations restricting the use of specific

substances considered to be hazardous to the user or environment.

NOTE Local regulations are those in force for the region of manufacture, sale and use of the luminaire.

9.2 Maintenance instructions

To assist good performance through life, the manufacturer shall provide details of the

recommended maintenance operations that should be carried out.

NOTE In some countries, specific requirements according to local regulations can apply.

9.3 End of life dismantling instructions

To assist end of life recycling, the manufacturer shall provide instructions to assist the

disassembly of the luminaire and segregation of material types.

NOTE 1 In some countries, specific requirements according to local regulations can apply.

NOTE 2 Symbols to assist the communication of instructions for maintenance through life and end of life recycling

are given in Annex C.
---------------------- Page: 12 ----------------------
IEC 62722-1:2022 © IEC 2022 – 11 –
Annex A
(informative)
Use of regional standards
In some regions the use of local standards, as alternativ
...
