IEC 61753-041-2:2014

Fibre optic interconnecting devices and passive components - Performance standard - Part 041-2: Non-connectorized single-mode OTDR reflecting device for category C - Controlled environment

IEC 61753-041-2:2014 contains the minimum initial performance, test and measurement requirements and severities which a fibre optic non-connectorized OTDR reflecting device for monitoring point to point (PTP) or point to multipoint (PTMP) passive optical networks (PON) using an optical time-domain reflectometer (OTDR) should satisfy in order to be categorized as meeting the requirements of category C (controlled environments), as defined in Annex A of IEC 61753-1:2007. Keywords: fibre optic non-connectorized OTDR reflecting device, point to point (PTP), point to multipoint (PTMP), passive optical networks (PON), category C (controlled environments), optical time-domain reflectometer

Dispositifs d’interconnexion et composants passifs à fibres optiques - Norme de performance - Partie 041-2: Dispositif de réflexion pour OTDR unimodal non connectorisé pour la catégorie C - Environnement contrôlé

IEC 61753-041-2:2014 contient les exigences et les sévérités initiales minimales de performance, d'essai et de mesure auxquelles il convient que les dispositifs de réflexion pour OTDR non connectorisés pour le contrôle des réseaux optiques passifs (PON) point à point (PTP) ou point à multipoint (PTMP) utilisant un réflectomètre optique dans le domaine temporel (OTDR) satisfassent, afin d'être considérés comme satisfaisant aux exigences de la catégorie C (environnements contrôlés), comme défini dans l'Annexe A de l'IEC 61753-1:2007.
Mots clés: dispositifs réflexion pour OTDR non connectorisés, point à point (PTP), point à multipoint (PTMP), réseaux optiques passifs (PON), catégorie C (environnements contrôlés), réflectomètre optique dans le domaine temporel (OTDR)

General Information

• Status: Published
• Publication Date: 07-May-2014
• ICS: 33.180.20 - Fibre optic interconnecting devices
• Technical Committee: SC 86B - Fibre optic interconnecting devices and passive components
• Drafting Committee: WG 7 - TC 86/SC 86B/WG 7
• Current Stage: PPUB - Publication issued
• Start Date: 08-May-2014
• Completion Date: 15-Jun-2014

Overview

IEC 61753-041-2:2014 specifies minimum initial performance, test and measurement requirements for non-connectorized single-mode OTDR reflecting devices used to monitor point-to-point (PTP) and point-to-multipoint (PTMP) passive optical networks (PON) with an optical time-domain reflectometer (OTDR). It defines the criteria for categorization as Category C (controlled environment) per IEC 61753‑1:2007, covering functional definition, test methods and required severities to demonstrate compliance.

Key topics and technical requirements

• Scope and purpose: Requirements for non-connectorized OTDR reflecting devices intended for single-mode PON monitoring (PTP / PTMP).
• Device definition: An OTDR reflecting device is a wavelength-selective reflector with two ports that transmits signal wavelengths between ports while reflecting OTDR wavelengths back to the launch port.
• Device types:
  • Type A - low attenuation (examples include FBG, collimator-based thin-film filters, direct coupled TFF).
  • Type B - higher attenuation (examples include some NWBD and WDM-based implementations).
• Wavelength ranges:
  • Signal wavelength ranges: 1260–1360 nm, 1480–1500 nm, 1550–1560 nm.
  • OTDR wavelength ranges: 1620–1630 nm, 1645–1655 nm.
• Performance metrics: Includes insertion loss (Type A ≤ 0.5 dB; Type B ≤ 1.0 dB as referenced), dimensional compliance to manufacturer drawings, and sample-size rules (defined in Annex A).
• Test methods: All tests follow the IEC 61300 series (basic test and measurement procedures). Normative references list environmental and mechanical tests such as vibration, shock, cold, dry heat, damp heat, change of temperature, fiber/cable retention, high optical power, polarization and wavelength dependence assessments.
• Documentation: Fully documented test reports and evidence are required to demonstrate compliance.

Practical applications and users

• Applications: Remote fibre health monitoring, OTDR-based fault localization, live PON monitoring without disrupting customer services, integration into PTP or PTMP PON architectures using WDM, FBGs, thin-film filters or branching devices.
• Who uses this standard:
  • Fibre optic component manufacturers designing OTDR reflecting devices.
  • Network equipment vendors integrating passive OTDR monitoring elements.
  • Test laboratories and certification bodies performing compliance testing.
  • Network operators and system integrators specifying controlled‑environment PON monitoring components.

Related standards

• IEC 61753‑1:2007 (general guidance for performance categories)
• IEC 61300 series (basic test and measurement procedures)
• IEC 60793‑2‑50 (single-mode fibre product specs)
• IEC 62074‑1 (fibre optic WDM devices)

This standard is essential for ensuring reliable, repeatable OTDR monitoring in controlled-environment PON deployments and for specifying components that meet industry-recognized performance and test requirements.

Standards Content (Sample)

IEC 61753-041-2 ®
Edition 1.0 2014-05
INTERNATIONAL
STANDARD
colour
inside
Fibre optic interconnecting devices and passive components – Performance
standard –
Part 041-2: Non-connectorized single-mode OTDR reflecting device for
category C – Controlled environment

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 14
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 55 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 61753-041-2 ®
Edition 1.0 2014-05
INTERNATIONAL
STANDARD
colour
inside
Fibre optic interconnecting devices and passive components – Performance

standard –
Part 041-2: Non-connectorized single-mode OTDR reflecting device for

category C – Controlled environment

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
R
ICS 33.180.20 ISBN 978-2-8322-1578-4

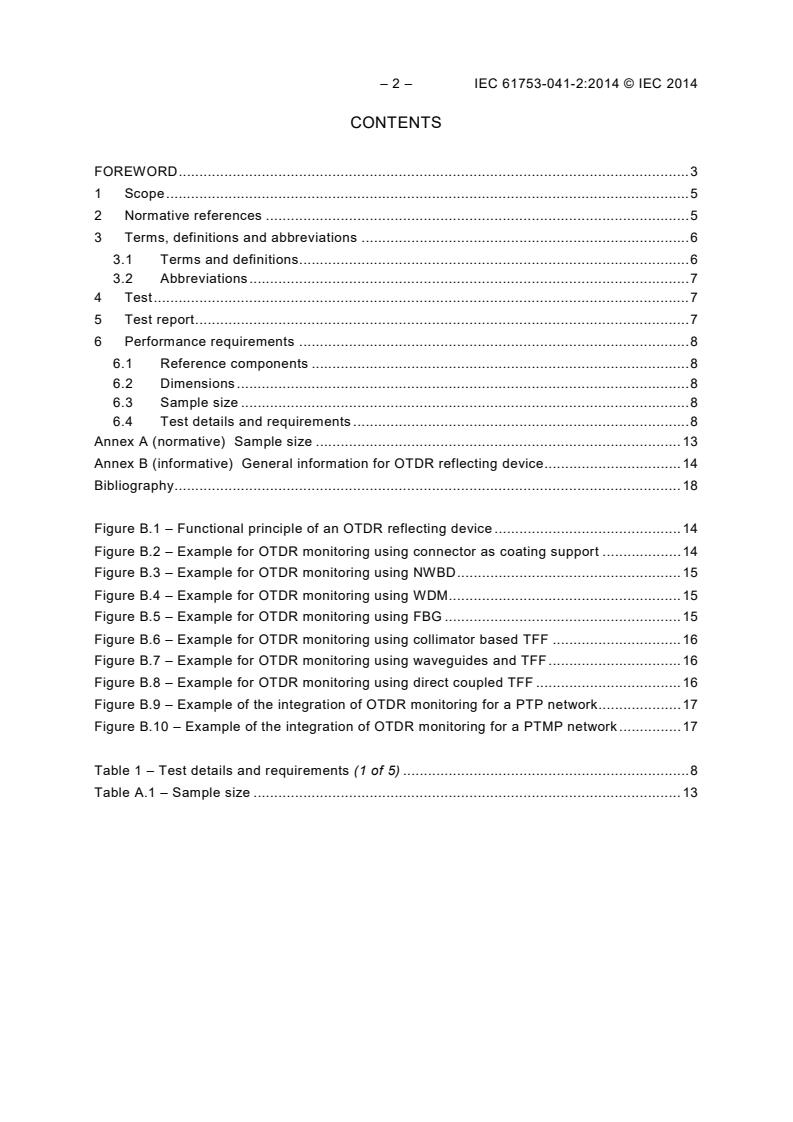

– 2 – IEC 61753-041-2:2014 © IEC 2014
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms, definitions and abbreviations . 6
3.1 Terms and definitions. 6
3.2 Abbreviations . 6
4 Test . 7
5 Test report . 7
6 Performance requirements . 7
6.1 Reference components . 7
6.2 Dimensions . 8
6.3 Sample size . 8
6.4 Test details and requirements . 8
Annex A (normative) Sample size . 13
Annex B (informative) General information for OTDR reflecting device . 14
Bibliography . 18

Figure B.1 – Functional principle of an OTDR reflecting device . 14
Figure B.2 – Example for OTDR monitoring using connector as coating support . 14
Figure B.3 – Example for OTDR monitoring using NWBD . 15
Figure B.4 – Example for OTDR monitoring using WDM . 15
Figure B.5 – Example for OTDR monitoring using FBG . 15
Figure B.6 – Example for OTDR monitoring using collimator based TFF . 16
Figure B.7 – Example for OTDR monitoring using waveguides and TFF . 16
Figure B.8 – Example for OTDR monitoring using direct coupled TFF . 16
Figure B.9 – Example of the integration of OTDR monitoring for a PTP network . 17
Figure B.10 – Example of the integration of OTDR monitoring for a PTMP network . 17

Table 1 – Test details and requirements (1 of 5) . 8
Table A.1 – Sample size . 13

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC INTERCONNECTING
DEVICES AND PASSIVE COMPONENTS –
PERFORMANCE STANDARD –
Part 041-2: Non-connectorized single-mode OTDR
reflecting device for category C –
Controlled environment
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61753-041-2 has been prepared by subcommittee 86B: Fibre optic
interconnecting devices and passive components of IEC technical committee 86: Fibre optics.
The text of this standard is based on the following documents:
FDIS Report on voting
86B/3750/FDIS 86B/3778/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.

– 4 – IEC 61753-041-2:2014 © IEC 2014
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of IEC 61753 series, under the general title Fibre optic interconnecting
devices and passive components performance standards, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
FIBRE OPTIC INTERCONNECTING
DEVICES AND PASSIVE COMPONENTS –
PERFORMANCE STANDARD –
Part 041-2: Non-connectorized single-mode OTDR
reflecting device for category C –
Controlled environment
1 Scope
This part of IEC 61753 contains the minimum initial performance, test and measurement
requirements and severities which a fibre optic non-connectorized OTDR reflecting device for
monitoring point to point (PTP) or point to multipoint (PTMP) passive optical networks (PON)
using an optical time-domain reflectometer (OTDR) should satisfy in order to be categorized
as meeting the requirements of category C (controlled environments), as defined in Annex A
of IEC 61753-1:2007.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60793-2-50, Optical fibres – Part 2-50: Product specifications – Sectional specification for
class B single-mode fibres
IEC 61300 (all parts), Fibre optic interconnecting devices and passive components – Basic
test and measurement procedures
IEC 61300-1, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 1: General and guidance
IEC 61300-2-1, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-1: Tests – Vibration (sinusoidal)
IEC 61300-2-4, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-4: Tests – Fibre/cable retention
IEC 61300-2-9, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-9: Tests – Shock
IEC 61300-2-14, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-14: Tests – High optical power
IEC 61300-2-17, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-17: Tests – Cold
IEC 61300-2-18, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-18: Tests – Dry heat – High temperature endurance

– 6 – IEC 61753-041-2:2014 © IEC 2014
IEC 61300-2-19, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-19: Tests – Damp heat (steady state)
IEC 61300-2-22, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-22: Tests – Change of temperature
IEC 61300-2-42, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-42: Tests – Static side load for connectors
IEC 61300-2-44, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-44: Tests – Flexing of the strain relief of fibre optic
devices
IEC 61300-3-2, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 3-2: Examination and measurements – Polarization
dependent loss in a single-mode fibre optic device
IEC 61300-3-7, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 3-7: Examination and measurements – Wavelength
dependence of attenuation and return loss of single mode components
IEC 61753-1:2007, Fibre optic interconnecting devices and passive components performance
standard – Part 1: General and guidance for performance
IEC 62074-1, Fibre optic WDM devices – Part 1: Generic specification
3 Terms, definitions and abbreviations
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions, as well as those given
in IEC 62074-1, apply.
3.1.1
OTDR reflecting device
wavelength-selective reflecting device having two ports that light from the signal wavelength
ranges transmits from the first port to the second port and OTDR light from the OTDR
wavelength range launched into one port is (partly) reflected back to that launch port
Note 1 to entry: Annex B of this standard provides information concerning the function of the OTDR reflecting
device.
3.1.2
Type A of OTDR reflecting device
OTDR reflecting device with low attenuation
Note 1 to entry: Examples are shown in Figures B.2, B.5, B.6, B.7 and B.8 of Annex B.
3.1.3
Type B of OTDR reflecting device
OTDR reflecting device with higher attenuation
Note 1 to entry: Examples are shown in Figures B.3 and B.4 of Annex B.
3.2 Abbreviations
Abbreviations in order of appearance:
OTDR: Optical time-domain reflectometer

PTP: Point to point
PTMP: Point to multipoint
PON: Passive optical network
GPON: Gigabit-capable passive optical network
PMD: Physical media dependent
CSMA: Carrier sense multiple access
CD: Collision detection
CO: Central office
NWBD: Non-wavelength-selective branching device
HRD: High reflection device
WDM: Wavelength division multiplexer
FBG: Fibre bragg grating
TFF: Thin film filter
4 Test
Unless otherwise specified, all test methods are in accordance with the IEC 61300 series.
Each test defines the number of samples to be evaluated. The samples used for each test are
intended to be previously unstressed new
...

IEC 61753-041-2 ®
Edition 1.0 2014-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Fibre optic interconnecting devices and passive components – Performance
standard –
Part 041-2: Non-connectorized single-mode OTDR reflecting device for category
C – Controlled environment
Dispositifs d’interconnexion et composants passifs à fibres optiques – Norme
de performance –
Partie 041-2: Dispositif de réflexion pour OTDR unimodal non connectorisé pour
la catégorie C – Environnement contrôlé
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
65 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC 61753-041-2 ®
Edition 1.0 2014-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Fibre optic interconnecting devices and passive components – Performance

standard –
Part 041-2: Non-connectorized single-mode OTDR reflecting device for category

C – Controlled environment
Dispositifs d’interconnexion et composants passifs à fibres optiques – Norme

de performance –
Partie 041-2: Dispositif de réflexion pour OTDR unimodal non connectorisé pour

la catégorie C – Environnement contrôlé

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.180.20 ISBN 978-2-8322-5007-5

– 2 – IEC 61753-041-2:2014 © IEC 2014
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms, definitions and abbreviations . 6
3.1 Terms and definitions. 6
3.2 Abbreviations . 7
4 Test . 7
5 Test report . 7
6 Performance requirements . 8
6.1 Reference components . 8
6.2 Dimensions . 8
6.3 Sample size . 8
6.4 Test details and requirements . 8
Annex A (normative) Sample size . 13
Annex B (informative) General information for OTDR reflecting device . 14
Bibliography . 18

Figure B.1 – Functional principle of an OTDR reflecting device . 14
Figure B.2 – Example for OTDR monitoring using connector as coating support . 14
Figure B.3 – Example for OTDR monitoring using NWBD . 15
Figure B.4 – Example for OTDR monitoring using WDM . 15
Figure B.5 – Example for OTDR monitoring using FBG . 15
Figure B.6 – Example for OTDR monitoring using collimator based TFF . 16
Figure B.7 – Example for OTDR monitoring using waveguides and TFF . 16
Figure B.8 – Example for OTDR monitoring using direct coupled TFF . 16
Figure B.9 – Example of the integration of OTDR monitoring for a PTP network . 17
Figure B.10 – Example of the integration of OTDR monitoring for a PTMP network . 17

Table 1 – Test details and requirements (1 of 5) . 8
Table A.1 – Sample size . 13

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC INTERCONNECTING
DEVICES AND PASSIVE COMPONENTS –
PERFORMANCE STANDARD –
Part 041-2: Non-connectorized single-mode OTDR
reflecting device for category C –
Controlled environment
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61753-041-2 has been prepared by subcommittee 86B: Fibre optic
interconnecting devices and passive components of IEC technical committee 86: Fibre optics.
This bilingual version (2017-11) corresponds to the monolingual English version, published in
2014-05.
The text of this standard is based on the following documents:
FDIS Report on voting
86B/3750/FDIS 86B/3778/RVD
– 4 – IEC 61753-041-2:2014 © IEC 2014

Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The French version of this standard has not been voted upon.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of IEC 61753 series, under the general title Fibre optic interconnecting
devices and passive components performance standards, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
FIBRE OPTIC INTERCONNECTING
DEVICES AND PASSIVE COMPONENTS –
PERFORMANCE STANDARD –
Part 041-2: Non-connectorized single-mode OTDR
reflecting device for category C –
Controlled environment
1 Scope
This part of IEC 61753 contains the minimum initial performance, test and measurement
requirements and severities which a fibre optic non-connectorized OTDR reflecting device for
monitoring point to point (PTP) or point to multipoint (PTMP) passive optical networks (PON)
using an optical time-domain reflectometer (OTDR) should satisfy in order to be categorized
as meeting the requirements of category C (controlled environments), as defined in Annex A
of IEC 61753-1:2007.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60793-2-50, Optical fibres – Part 2-50: Product specifications – Sectional specification for
class B single-mode fibres
IEC 61300 (all parts), Fibre optic interconnecting devices and passive components – Basic
test and measurement procedures
IEC 61300-1, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 1: General and guidance
IEC 61300-2-1, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-1: Tests – Vibration (sinusoidal)
IEC 61300-2-4, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-4: Tests – Fibre/cable retention
IEC 61300-2-9, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 2-9: Tests – Shock
IEC 61300-2-14, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-14: Tests – High optical power
IEC 61300-2-17, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-17: Tests – Cold
IEC 61300-2-18, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-18: Tests – Dry heat – High temperature endurance

– 6 – IEC 61753-041-2:2014 © IEC 2014
IEC 61300-2-19, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-19: Tests – Damp heat (steady state)
IEC 61300-2-22, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-22: Tests – Change of temperature
IEC 61300-2-42, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-42: Tests – Static side load for connectors
IEC 61300-2-44, Fibre optic interconnecting devices and passive components – Basic test
and measurement procedures – Part 2-44: Tests – Flexing of the strain relief of fibre optic
devices
IEC 61300-3-2, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 3-2: Examination and measurements – Polarization
dependent loss in a single-mode fibre optic device
IEC 61300-3-7, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures – Part 3-7: Examination and measurements – Wavelength
dependence of attenuation and return loss of single mode components
IEC 61753-1:2007, Fibre optic interconnecting devices and passive components performance
standard – Part 1: General and guidance for performance
IEC 62074-1, Fibre optic WDM devices – Part 1: Generic specification
3 Terms, definitions and abbreviations
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions, as well as those given
in IEC 62074-1, apply.
3.1.1
OTDR reflecting device
wavelength-selective reflecting device having two ports that light from the signal wavelength
ranges transmits from the first port to the second port and OTDR light from the OTDR
wavelength range launched into one port is (partly) reflected back to that launch port
Note 1 to entry: Annex B of this standard provides information concerning the function of the OTDR reflecting
device.
3.1.2
Type A of OTDR reflecting device
OTDR reflecting device with low attenuation
Note 1 to entry: Examples are shown in Figures B.2, B.5, B.6, B.7 and B.8 of Annex B.
3.1.3
Type B of OTDR reflecting device
OTDR reflecting device with higher attenuation
Note 1 to entry: Examples are shown in Figures B.3 and B.4 of Annex B.

3.2 Abbreviations
Abbreviations in order of appearance:
OTDR: Optical time-domain reflectometer
PTP: Point to point
PTMP: Point to multipoint
PON: Passive optical network
GPON: Gigabit-capable passive optical network
PMD: Physical media dependent
CSMA: Carrier sense multiple access
CD: Collision detection
CO: Central office
NWBD: Non-wavelength-selective branching device
HRD: High reflection device
WDM: Wavelength division multiplexer
FBG: Fibre bragg grating
TFF: Thin film filter
4 Test
Unless otherwise specified, all test methods are in accordance with the IEC 61300 series.
Each test defines the number of samples to be evaluated. The samples used for each test are
intended to be previously unstressed new samples but may also be selected from previously
used samples if desired. The samples shall be terminated onto single-mode fibres as per
IEC 60793-2-50 category B 1.1, B 1.3 or B 6 in either coated fibres (primary and secondary)
or reinforced cable format. All measurements shall be carried out at atmosphere conditions
defined in IEC 61300-1, unless otherwise stated.
All tests shall be carried out over the operating wavelength range listed below:
1) Signal wavelength ranges:
1 260 nm to 1 360 nm;
1 480 nm to 1 500 nm;
1 550 nm to 1 560 nm.
2) OTDR wavelength ranges:
1 620 nm to 1 630 nm;
1 645 nm to 1 655 nm;
unless otherwise specified.
NOTE 1 310 nm, 1 490 nm and 1 550 nm are the nominal or centre wavelengths, stated for the ranges 1 260 nm
to 1 360 nm, 1 480 nm to 1 500 nm and 1 550 nm to 1 560 nm as defined in ITU-T Recommendations G.983.3 and
G.984.2 and IEEE 802.3ah-2004.
5 Test report
Fully documented test reports and supporting evidence shall be prepared and be available for
inspection as evidence that the tests have been carried out and complied with.

– 8 – IEC 61753-041-2:2014 © IEC 2014
6 Performance requirements
6.1 Reference components
The testing for these components does not require the use of reference components.
6.2 Dimensions
Dimensions shall comply with those given in appropriate manufacturer’s drawings.
6.3 Sample size
Sample sizes for the tests are defined in Annex A.
6.4 Test details and requirements
Table 1 – Test details and requirements (1 of 5)
No. Test Requirement Details
1 Attenuation Type A: ≤ 0,5 dB Launch patch ≥ 2 m
(insertion loss) cord length:
Type B: ≤ 1,0 dB
IEC 61300-3-7
Polarization Unpolarized
Attenuation (insertion loss) shall be
state of light
met over the operating wavelength
source:
range
Launch The wavelength of the
conditions: source shall be longer than
cut-off wavelength of the
fibre.
Measurement Test results shall be
uncertainty: obtained under measure-
ment uncertainty of
± 0,1 dB
2 Wavelength Launch patch
≥ 20 dB between signal wavelength ≥ 2 m
Isolation cord length:
ranges and OTDR wavelength range
IEC 61300-3-7
Polarization Unpolarized
state of light
source:
Launch The wavelength of the
conditions: source shall be longer than
cut-off wavelength of the
fibre
Measurement Test results shall be
uncertainty: obtained under
measurement uncertainty
of ± 1 dB
3 Return loss Source type: Laser diode (LD)
Grade S1: ≥ 26 dB for signal
wavelength range(s) for both input and
IEC 61300-3-7
Measurement Test results shall be
output ports and ≤ 10 dB for OTDR
uncertainty: obtained under
wavelength range for input port only.
measurement uncertainty of
± 0,05 dB for RL < 0,5 dB,
Grade S2: ≥ 26 dB for operating signal
range(s) for both input and output of ± 0,2 dB for RL < 1,5 dB,
ports and ≤ 1,5 dB for OTDR of ± 0,5 dB for RL < 5 dB,
wavelength range for input port only.
of ± 1 dB for RL ≥ 5 dB.
Grade T1: ≥ 35 dB for signal
Other All ports not under test
wavelength range(s) for both input and
requirements: shall be terminated to avoid
output ports and ≤ 5 dB for OTDR unwanted reflections
wavelength range for input port only. contributing to the
measurement
Grade T2: ≥ 35 dB for signal
wavelength range(s) for both input and
output ports and ≤ 0,5 dB for OTDR
wavelength range for input port only

Table 1 (2 of 5)
No. Test Requirement Details
4 Polarization Launch patch
≤ 0,2 dB ≥ 2 m
dependent loss cord length:
Polarization dependent loss shall be
(PDL)
met over the operating wavelength Source type: Laser diode (LD)
IEC 61300-3-2 range
Test
1 310 nm ± 20 nm
wavelengths:
1 550 nm ± 20 nm
Measurement Test results shall be
uncertainty: obtained under
measurement uncertainty
of ± 0,05 dB
5 High optical power ≥ 300mW (sum of power at the Source type Laser diode (LD)
wavelength ranges at the same time)
IEC 61300-2-14
Max. power to 300 mW (+ ~25 dBm)
During and on completion of the test be applied at
the insertion loss limits of test No. 1 wavelength
shall be met ranges
1 550 nm to
After the test the wavelength isolation
1 560 nm and
limits of test No. 2 shall be met
1 620 nm to
1 630 nm
During and on completion of the test
(1 645 nm to
the return loss limits of test No. 3 shall
1 655 nm):
be met
Max. power to
10 mW (+ 10 dBm)
be applied at
wavelength
ranges
1 480 nm to
1 500 nm and
1 260 nm to
1 360 nm:
Measurement Test results shall be
uncertainty: obtained under insertion
loss measurement
uncertainty of ± 0,1 dB.
Test results shall be
obtained under return loss
measurement uncertainty of
± 0,05 dB for RL < 0,5 dB,
of ± 0,2 dB for RL < 1,5 dB,
of ± 0,5 dB for RL < 5 dB,
of ± 1 dB for RL ≥ 5dB
6 Cold After the test the insertion loss limits Temperature:
–10 °C ± 2 °C
of test No. 1 shall be met.
IEC 61300-2-17
Duration of the 96 h
In addition the change of insertion
exposure:
loss during the test shall be within ±
Maximum 1 h
0,3 dB from the initial value.
sampling
After the test the wavelength isolation
interval during
limits of test No. 2 shall be met.
the test:
During and on completion of the test
Measurements Insertion loss shall be
the return loss limits of test No. 3 shall
required: measured before, during
be met
and after the test.
Return loss shall be
measured before, during
and after the test
– 10 – IEC 61753-041-2:2014 © IEC 2014
Table 1 (3 of 5)
No. Test Requirement Details
7 Dry heat – High After the test the insertion loss Temperature: + 60 °C ± 2 °C
temperature endurance limits of test No. 1 shall be met
Duration of the 96 h
IEC 61300-2-18 In addition the change of
exposure:
insertion loss during the test
shall be within ± 0,3 dB from the
Maximum 1 h
initial value
sampling
interval during
After the test the wavelength
the test:
isolation limits of test No. 2 shall
be met
Measurements Insertion loss shall be
required: measured before, during
During and on completion of the
and after the test.
test the return loss limits of test
No. 3 shall be met
Return loss shall be
measured before, during
and after the test
8 Change of temperature After the test the insertion loss High
+ 60 °C ± 2 °C
limits of test No. 1 shall be met temperature:
IEC 61300-2-22
In addition the change of Low
–10 °C ± 2 °C
insertion loss during the test
temperature:
shall be within ± 0,3 dB from the
Number of 5
initial value
cycles:
After the test the wavelength
Rate of 1 °C/min
isolation limits of test No. 2 shall
temperature
be met
change:
During and on completion of the
Duration at 1 h
test the return loss limits of test
extreme
No. 3 shall be met
temperatures:
Maximum 10 min
sampling
interval during
the test:
Measurements Insertion loss shall be
required: measured before, during
and after the test.
Return loss shall be
measured before, during
and after the test
9 Damp heat After the test the insertion loss Temperature:
+ 40 °C ± 2 °C
(steady state) limits of test No. 1 shall be met.
Humidity: 93 % RH + 2 % RH, – 3 %
IEC 61300-2-19 In addition the change of
RH
insertion loss during the test
Duration of the 96 h
shall be within ± 0,3 dB from the
exposure:
initial value.
After the test the wavelength
Maximum 1 h
isolation limits of test No. 2 shall
sampling
be met.
interval during
the test:
During and on completion of the
test the return loss limits of test
Measurements Insertion loss shall be
No. 3 shall be met.
required: measured before, during
and after the test.
Return loss shall be
measured before, during
and after the test
Table 1 (4 of 5)
No. Test Requirement Details
10 Vibration After the test the insertion loss Frequency 10 Hz – 55 Hz
limits of test No. 1 shall be met. range:
IEC 61300-2-1
After the test the wavelength Constant 0,75 mm
isolation limits of test No. 2 shall
vibration
be met.
amplitude:
After the test the return loss
Number of 15
limits of test No. 3 shall be met
cycles
(10 Hz – 55 Hz
-10 Hz):
Frequency 1 octave/min
change:
Number of 3 orthogonal
axes:
Measurements Insertion loss shall be
required: measured before and after
the test.
Return loss shall be
measured before and after
the test
11 Shock After the test the insertion loss Acceleration 5 000 m/s
limits of test No. 1 shall be met. force:
IEC 61300-2-9
After the test the wavelength
Number of 3 main axes, perpendicular
isolation limits of test No. 2 shall
axes: to each other
be met.
Duration 1 ms
After the test the return loss
shock:
limits of test No. 3 shall be met
Pulse: Half sine
Number of 2 per axis
shocks:
Measurements Insertion loss shall be
required: measured before and after
the test.
Return loss shall be
measured before and after
the test
12 Fibre/cable retention After the test the insertion loss Magnitude of
10 N ± 1 N for reinforced
limits of test No. 1 shall be met. the load:
cable.
IEC 61300-2-4
After the test the wavelength
5,0 N ± 0,5 N for secondary
isolation limits of test No. 2 shall
coated fibre.
be met.
2,0 N ± 0,2 N for primary
After the test the return loss
coated fibre.
limits of test No. 3 shall be met
Load 0,3 m from the end of
application device.
point:
Load rate: 5 N/s for reinforced cable.
0,5 N/s for coated fibre.
Duration of the 120 s at 10 N
load:
60 s at 5 N and 2 N
Measurements Insertion loss shall be
required: measured before and after
the test.
Return loss shall be
measured before and after
the test
– 12 – IEC 61753-041-2:2014 © IEC 2014
Table 1 (5 of 5)
No. Test Requirement Details
13 Flexing of the strain After the test the insertion loss Magnitude of
2,0 N ± 0,2 N for reinforced
limits of test No. 1 shall be met. the load: cable
Relief of fibre optic
devices After the test the wavelength
Load 0,2 m from end of device
isolation limits of test No. 2 shall
application
IEC 61300-2-44
be met.
point:
After the test the return loss
Angle of
± 90°
limits of test No. 3 shall be met
direction:
Number of 30 cycles
cycles:
Measurements Insertion loss shall be
required: measured before and after
the test.
Return loss shall be
measured before and after
the test
14 Static side load for After the test the insertion loss Magnitude of 1,0 N ± 0,1 N for reinforced
connectors limits of test No. 1 shall be met. the load: cable
IEC 61300-2-42 After the test the wavelength
0,2 N ± 0,02 N for
isolation limits of test No. 2 shall
secondary coated fibres.
be met.
Load 0,3 m from the end of
After the test the return loss
application device.
limits of test No. 3 shall be met
point:
Duration of the 1 h at 1 N
load:
5 min at 0,2 N
Measurements Insertion loss shall be
required: measured before and after
the test.
Return loss shall be
measured before and after
the test
Annex A
(normative)
Sample size
All samples shall be subjected to tests 1 – 5. All other tests shall be carried out in any of the
following order. Consecutive testing on the same optical sample is allowed, but in case of
failure during the consecutive testing, a new sample shall be prepared and the failed test shall
be redone.
Table A.1 – Sample size
Test number Test Sample size
1 Attenuation (insertion loss) 12
2 Wavelength isolation 12
3 Return loss 12
4 Polarization dependent loss 12
5 High optical power 12
6 Cold 4
7 Dry heat – High temperature endurance 4
8 Damp heat (steady state) 4
9 Change of temperature 4
10 Vibration 4
11 Shock 4
12 Fibre / cable retention 4
13 Flexing of the strain relief of fibre optic devices 4
14 Static side load for connectors 4

– 14 – IEC 61753-041-2:2014 © IEC 2014
Annex B
(informative)
General information for OTDR reflecting device

OTDRs outside the PON’s working wavelength range are used for physical monitoring of the
network lines. Reflector devices with high reflectance may help to monitor the network lines.
Reflector devices are components with one input and one output port. Figure B.1 shows the
functional principle of such a device.
IEC  1567/14
* Transmission wavelengths shall be operable in both directions.
Figure B.1 – Functional principle of an OTDR reflecting device
The OTDR reflecting devices are used inside the optical network for reflecting the OTDR
signals back to the central office (CO) without disturbances to the traffic signals. The reflector
can be based on different technical solutions:
– Patch cord or pigtail with one optical connector with wavelength selective coating at the
front surface (Figure B.2). The connector is shown as it provides support for the
wavelength selective coating.
Wavelength
selecting
coating
1 490 nm and 1 550 nm and 1 625 nm
From / to
From / to
central office customer
1 310 nm and 1 625 nm
Connector
Fibre
IEC  1568/14
Figure B.2 – Example for OTDR monitoring using connector as coating support
– Unsymmetrical wavelength independent branching device, e.g. with coupling ratio of 10 %,
with wavelength selective reflection coating or reflection device at the low power port
(Figure B.3).
1 490 nm and 1 550 nm and 1 625 nm 1 490 nm and 1 550 nm and 1 625 nm
From / to
From / to
(90 %)
NWBD
central office
customer
(10 %)
1 310 nm and 1 625 nm
1 310 nm
Fibres
1 490 nm and
1 625 nm
1 550 nm and
1 625 nm
IEC  1569/14
Figure B.3 – Example for OTDR monitoring using NWBD
– Wavelength division multiplexer according to IEC 61753-089-2 with reflection coating or
reflection device at the 1 625 nm (1 650 nm) port (Figure B.4).
1 490 nm and 1 550 nm and 1 625 nm 1 490 nm and 1 550 nm
From / to
From / to
WDM
central office
customer
1 310 nm and 1 625 nm
1 310 nm
Fibres
1 625 nm
1 625 nm
IEC  1570/14
Figure B.4 – Example for OTDR monitoring using WDM
– Fibre Bragg grating (FBG) designed for the OTDR wavelength (Figure B.5).
1 490 nm and 1 550 nm
1 490 nm and 1 550 nm and 1 625 nm
From / to
From / to
central office
customer
1 310 nm and 1 625 nm 1 310 nm
Fibre with FBG
IEC  1571/14
Figure B.5 – Example for OTDR monitoring using FBG
HRD
HRD
– 16 – IEC 61753-041-2:2014 © IEC 2014
– Thin film filter based device using classic design based on collimators (Figure B.6).
TFF
1 490 nm and 1 550 nm and 1 625 nm
1 490 nm and 1 550 nm
From / to
From / to
central office
customer
1 310 nm and 1 625 nm
1 310 nm
Fibre
Collimators Fibre
IEC  1572/14
Figure B.6 – Example for OTDR monitoring using collimator based TFF
– Thin film filter based device using optical waveguides (Figure B.7)
TFF
1 490 nm and 1 550 nm and 1 625 nm 1 490 nm and 1 550 nm
From / to
From / to
central office
customer
1 310 nm and 1 625 nm
1 310 nm
Fibre Planar waveguides
Fibre
IEC  1573/14
Figure B.7 – Example for OTDR monitoring using waveguides and TFF
– Direct coupled thin film filter based device (Figure B.8).
TFF
1 490 nm and 1 550 nm
1 490 nm and 1 550 nm and 1 625 nm
From / to
From / to
central office customer
1 310 nm and 1 625 nm
1 310 nm
Fibre
Fibres Fibre
IEC  1574/14
Figure B.8 – Example for OTDR monitoring using direct coupled TFF
All solutions are suitable for monitoring PTP optical networks (Figure B.9) and as well as for
monitoring PTMP optical networks (Figure B.10). Additionally all solutions are suitable for
monitoring optical networks with one and with two fibres.

IEC  1575/14
Figure B.9 – Example of the integration of OTDR monitoring for a PTP network
IEC  1576/14
Figure B.10 – Example of the integration of OTDR monitoring for a PTMP network

– 18 – IEC 61753-041-2:2014 © IEC 2014
Bibliography
IEC 61753-089-2, Fibre optic interconnecting devices and passive components – Performance
standard – Part 089-2: Non-connectorized single-mode bidirectional OTDR monitoring
WWDM devices for category C – Controlled environment
ITU-T Recommendation G.671 – Transmission characteristics of optical components and
subsystems
ITU-T Recommendation L.41 – Maintenance wavelength on fibres carrying signals
ITU-T Recommendation L.66 – Optical fibre cable maintenance criteria for in-service fibre
testing in access networks
ITU-T Recommendation G.983.3 – A broadband optical access system with increased service
capability by wavelength allocation
ITU-T Recommendation G.984.2 – Gigabit-capable Passive Optical Networks (GPON),
Physical Media Dependent (PMD) layer specification
IEEE 802.3ah.-2004 – IEEE Standard for Information technology – Telecommunications and
information exchange between systems – Local and metropolitan area networks – Specific
requirements – Part 3: Carrier Sense Multiple Access with Collision Detection (CSMA/CD)
Access Method and Physical Layer Specifications
Amendment: Media Access Control Parameters, Physical Layers, and Management
Parameters for Subscriber Access Networks

_____________
– 20 – IEC 61753-041-2:2014 © IEC 2014
SOMMAIRE
AVANT-PROPOS . 21
1 Domaine d'application . 23
2 Références normatives . 23
3 Termes, définitions et abréviations . 24
3.1 Termes et définitions . 24
3.2 Abréviations . 25
4 Essai . 25
5 Rapport d’essai . 25
6 Exigences de performance . 26
6.1 Composants de référence . 26
6.2 Dimensions . 26
6.3 Taille d’échantillon . 26
6.4 Détails et exigences des essais . 27
Annexe A (normative) Taille d’échantillon . 32
Annexe B (informative) Informations générales relatives aux dispositifs de réflexion
pour OTDR . 33
Bibliographie . 37

Figure B.1 – Principe de fonctionnement d’un dispositif de réflexion pour OTDR. 33
Figure B.2 – Exemple de contrôle d’OTDR à l’aide d’un connecteur comme support de
revêtement . 33
Figure B.3 – Exemple de contrôle d’OTDR à l’aide d’un NWBD . 34
Figure B.4 – Exemple de contrôle d’OTDR à l’aide d’un MRL . 34
Figure B.5 – Exemple de contrôle d’OTDR à l’aide d’un FBG . 34
Figure B.6 – Exemple de contrôle d’OTDR à l’aide d’un TFF reposant sur des
collimateurs . 35
Figure B.7 – Exemple de contrôle d’OTDR à l’aide des guides d’ondes et d'un TFF . 35
Figure B.8 – Exemple de contrôle d’OTDR à l’aide d’un TFF à couplage direct . 35
Figure B.9 – Exemple d’intégration du contrôle d’OTDR pour réseau PTP . 36
Figure B.10 – Exemple d’intégration du contrôle d’OTDR pour réseau PTMP . 36

Tableau 1 – Détails et exigences des essais (1 sur 5) . 27
Tableau A.1 – Taille d’échantillon . 32

COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
____________
DISPOSITIFS D’INTERCONNEXION ET COMPOSANTS PASSIFS À FIBRES
OPTIQUES –
NORME DE PERFORMANCE –
Partie 041-2: Dispositif de réflexion pour OTDR unimodal non
connectorisé pour la catégorie C –
Environnement contrôlé
AVANT-PROPOS
1) La Commission Electrotechnique Internationale (IEC) est une organisation mondiale de normalisation
composée de l'ensemble des comités électrotechniques nationaux (Comités nationaux de l’IEC). L’IEC a pour
objet de favoriser la coopération internationale pour toutes les questions de normalisation dans les domaines
de l'électricité et de l'électronique. A cet effet, l’IEC – entre autres activités – publie des Normes
internationales, des Spécifications techniques, des Rapports techniques, des Spécifications accessibles au
public (PAS) et des Guides (ci-après dénommés "Publication(s) de l’IEC"). Leur élaboration est confiée à des
comités d'études, aux travaux desquels tout Comité national intéressé par le sujet traité peut participer. Les
organisations internationales, gouvernementales et non gouvernementales, en liaison avec l’IEC, participent
également aux travaux. L’IEC collabore étroitement avec l'Organisation Internationale de Normalisation (ISO),
selon des conditions fixées par accord entre les deux organisations.
2) Les décisions ou accords officiels de l’IEC concernant les questions techniques représentent, dans la mesure
du possible, un accord international sur les sujets étudiés, étant donné que les Comités nationaux de l’IEC
intéressés sont représentés dans chaque comité d’études.
3) Les Publications de l’IEC se présentent sous la forme de recommandations internationales et sont agréées
comme telles par les Comités nationaux de l’IEC. Tous les efforts raisonnables sont entrepris afin que l’IEC
s'assure de l'exactitude du contenu technique de se
...
