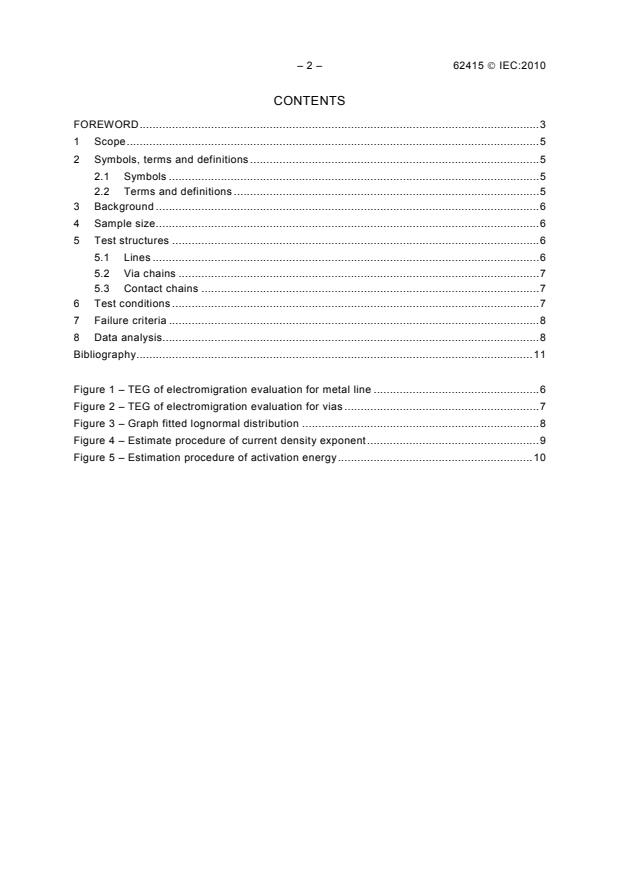

– 2 – 62415 © IEC:2010
CONTENTS
FOREWORD.3
1 Scope.5
2 Symbols, terms and definitions .5
2.1 Symbols .5
2.2 Terms and definitions .5
3 Background .6
4 Sample size.6
5 Test structures .6
5.1 Lines .6
5.2 Via chains .7
5.3 Contact chains .7
6 Test conditions .7
7 Failure criteria .8
8 Data analysis.8
Bibliography.11

Figure 1 – TEG of electromigration evaluation for metal line .6
Figure 2 – TEG of electromigration evaluation for vias .7
Figure 3 – Graph fitted lognormal distribution .8
Figure 4 – Estimate procedure of current density exponent.9
Figure 5 – Estimation procedure of activation energy.10

62415 © IEC:2010 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SEMICONDUCTOR DEVICES –
CONSTANT CURRENT ELECTROMIGRATION TEST

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62415 has been prepared by IEC technical committee 47:
Semiconductor devices.
The text of this standard is based on the following documents:
FDIS Report on voting
47/2044/FDIS 47/2054/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – 62415 © IEC:2010
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
62415 © IEC:2010 – 5 –
SEMICONDUCTOR DEVICES –
CONSTANT CURRENT ELECTROMIGRATION TEST

1 Scope
This standard describes a method for conventional constant current electromigration testing of
metal lines, via string and contacts.
2 Symbols, terms and definitions
For the purposes of this document, the following symbols, terms and definitions apply:
2.1 Symbols
2.1.1
J
via_use
the maximum current density permitted to flow in a via of a real product
2.1.2
J
line_use
the maximum current density permitted to flow in a line of a real product
2.1.3
J
via_test
the current density in a via of a test structure during electromigration test
2.1.4
J
line_test
the current density in a line of a test structure during electromigration test
2.1.5
t(x %)
time to failure of x % of the population
NOTE The method for calculation of t (50 %) is described in Clause 8.
2.2 Terms and definitions
2.2.1
TEG
test element group. This is the test structure used for the test
2.2.2
Blech length
the line length below which electromigration time to failure increases sharply [1]
NOTE The drift of metal atoms causes stress build-up in the metal lines, which caused a back flow of atoms.
For short lines the stress gradient is higher than for long lines with the same current density. The forward flow
increases more rapidly with current density than the backflow, and consequently the Blech length is inversely
proportional to the current density. The Blech length can be determined by using a chain with different line lengths
between the vias.
___________
Figures in square brackets refer to the Bibliography.

– 6 – 62415 © IEC:2010
3 Background
The background of electromigration testing as described in this procedure is based on the
assumption that the entire electromigration failure time distribution stays intact when
accelerated. Acceleration can be described by an activation energy and a current acceleration
factor, as originally proposed by Black [2].
4 Sample size
15 samples or more are recommended for each test (each test structure, temperature and
current density). In some cases, to get a better statistical confidence of the results or to
analyze a bimodal distribution, a higher number of samples might be necessary.
5 Test structures
5.1 Lines
Electromigration characterization shall be carried out on fully back-end processed samples.
The metal line test structure in a 4-terminal (Kelvin) configuration shall be used (see Figure
1a).The line length is recommended to be at least 800 μm. The use of monitors for opens,
inter-l
...
