IEC 60884-3-2:2026

Plugs and socket-outlets for household and similar purposes - Part 3-2: Particular requirements for accessories incorporating electronic components to perform additional functions

IEC 60884-3-2:2026 applies to plugs and fixed or portable socket-outlets for AC only, incorporating electronic components to perform additional functions, with or without earthing contact, with a rated voltage greater than 50 V but not exceeding 440 V and a rated current not exceeding 32 A, intended for household and similar purposes, for use either indoors or outdoors.
This document covers safety and Electromagnetic Compatibility (EMC) requirements for plugs and socket-outlets incorporating electronic components to perform additional functions.

General Information

• Status: Published
• Publication Date: 10-Jun-2026
• ICS: 29.120.30 - Plugs, socket-outlets, couplers
• Technical Committee: SC 23B - Plugs, socket-outlets and switches
• Drafting Committee: WG 23 - TC 23/SC 23B/WG 23
• Current Stage: PPUB - Publication issued
• Start Date: 11-Jun-2026
• Completion Date: 03-Jul-2026

Standards Content (Sample)

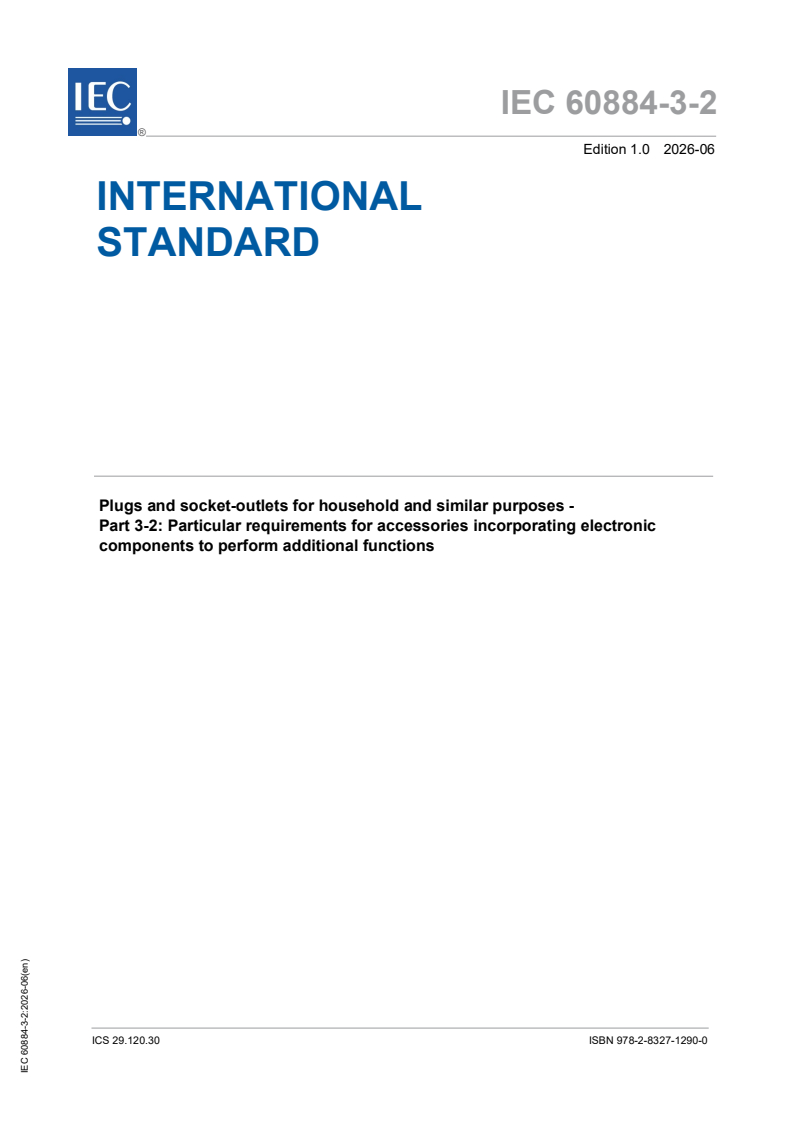

IEC 60884-3-2 ®
Edition 1.0 2026-06
INTERNATIONAL
STANDARD
Plugs and socket-outlets for household and similar purposes -
Part 3-2: Particular requirements for accessories incorporating electronic
components to perform additional functions
ICS 29.120.30  ISBN 978-2-8327-1290-0

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either
IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC copyright
or have an enquiry about obtaining additional rights to this publication, please contact the address below or your local
IEC member National Committee for further information.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Discover our powerful search engine and read freely all the
The advanced search enables to find IEC publications by a
publications previews, graphical symbols and the glossary.
variety of criteria (reference number, text, technical With a subscription you will always have access to up to date
committee, …). It also gives information on projects, content tailored to your needs.
replaced and withdrawn publications.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published containing more than 22 500 terminological entries in English
details all new publications released. Available online and and French, with equivalent terms in 25 additional languages.
once a month by email. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer
Service Centre: [e-mail].

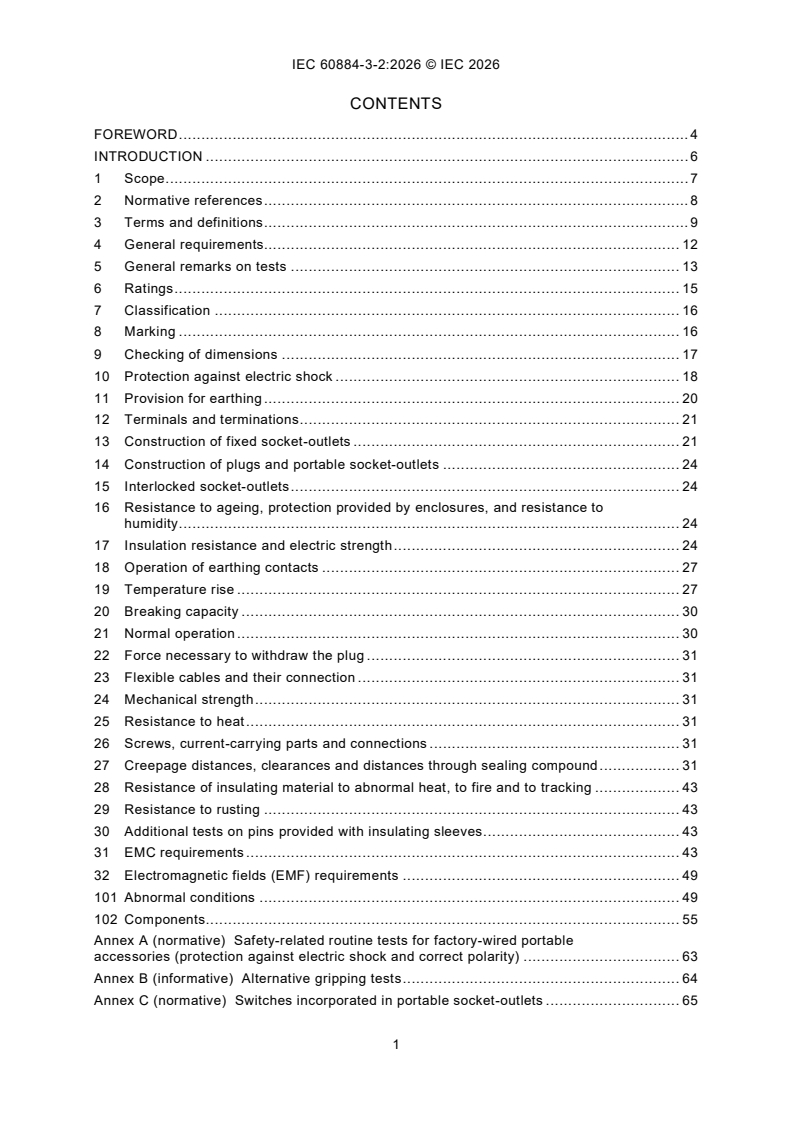

CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 8
3 Terms and definitions . 9
4 General requirements. 12
5 General remarks on tests . 13
6 Ratings . 15
7 Classification . 16
8 Marking . 16
9 Checking of dimensions . 17
10 Protection against electric shock . 18
11 Provision for earthing . 20
12 Terminals and terminations . 21
13 Construction of fixed socket-outlets . 21
14 Construction of plugs and portable socket-outlets . 24
15 Interlocked socket-outlets . 24
16 Resistance to ageing, protection provided by enclosures, and resistance to
humidity . 24
17 Insulation resistance and electric strength . 24
18 Operation of earthing contacts . 27
19 Temperature rise . 27
20 Breaking capacity . 30
21 Normal operation . 30
22 Force necessary to withdraw the plug . 31
23 Flexible cables and their connection . 31
24 Mechanical strength . 31
25 Resistance to heat . 31
26 Screws, current-carrying parts and connections . 31
27 Creepage distances, clearances and distances through sealing compound . 31
28 Resistance of insulating material to abnormal heat, to fire and to tracking . 43
29 Resistance to rusting . 43
30 Additional tests on pins provided with insulating sleeves . 43
31 EMC requirements . 43
32 Electromagnetic fields (EMF) requirements . 49
101 Abnormal conditions . 49
102 Components . 55
Annex A (normative) Safety-related routine tests for factory-wired portable
accessories (protection against electric shock and correct polarity) . 63
Annex B (informative) Alternative gripping tests . 64
Annex C (normative) Switches incorporated in portable socket-outlets . 65
Annex D (normative) Requirements for plugs and fixed or portable socket-outlets
intended to be used with AWG Cables . 66
Annex E (informative) Tests to be applied during the production of crimped
connections in accessories . 67
Annex F (normative) Additional requirements for accessories provided with insulation-
piercing terminals . 68
Annex G (informative) Additional tests and requirements for accessories intended to
be used in ambient temperatures below −5 °C down to and including −45 °C . 69
Annex H (informative) Additional tests and requirements for accessories intended to
be used in ambient temperatures above +40 °C up to and including +70 °C . 70
Annex I (normative) Additional requirements and tests for plugs and socket-outlets for
high-load (HL) application . 71
Annex AA (normative) Specific requirements for accessories incorporating electronic
components for additional functions that control the output of the accessory (ECF) . 72
Annex BB (normative) Specific requirements for accessories incorporating electronic
components for additional functions being powered by the accessory which do not
control the output (EPF) . 86
Annex CC (normative) Specific requirements for accessories incorporating electronic
components for additional functions that operate as a protection means (EPM). 90
Bibliography . 96

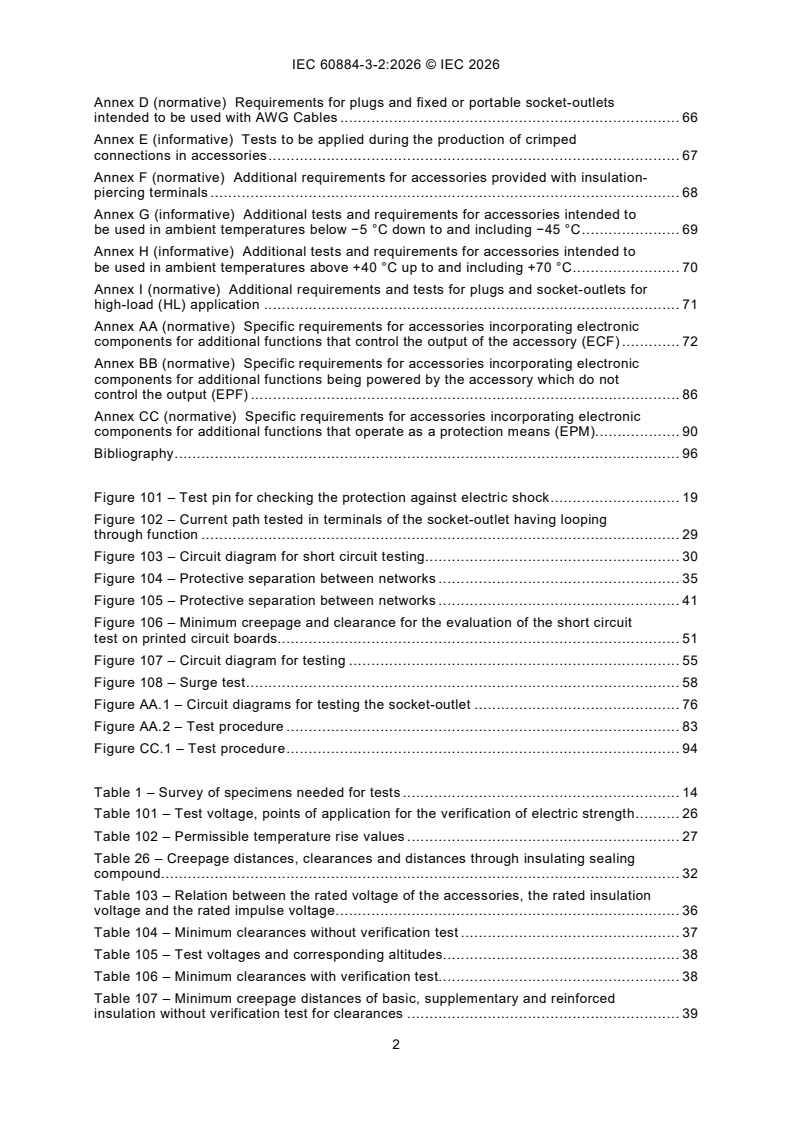

Figure 101 – Test pin for checking the protection against electric shock . 19
Figure 102 – Current path tested in terminals of the socket-outlet having looping
through function . 29
Figure 103 – Circuit diagram for short circuit testing. 30
Figure 104 – Protective separation between networks . 35
Figure 105 – Protective separation between networks . 41
Figure 106 – Minimum creepage and clearance for the evaluation of the short circuit
test on printed circuit boards. 51
Figure 107 – Circuit diagram for testing . 55
Figure 108 – Surge test . 58
Figure AA.1 – Circuit diagrams for testing the socket-outlet . 76
Figure AA.2 – Test procedure . 83
Figure CC.1 – Test procedure . 94

Table 1 – Survey of specimens needed for tests . 14
Table 101 – Test voltage, points of application for the verification of electric strength . 26
Table 102 – Permissible temperature rise values . 27
Table 26 – Creepage distances, clearances and distances through insulating sealing
compound . 32
Table 103 – Relation between the rated voltage of the accessories, the rated insulation
voltage and the rated impulse voltage . 36
Table 104 – Minimum clearances without verification test . 37
Table 105 – Test voltages and corresponding altitudes. 38
Table 106 – Minimum clearances with verification test. 38
Table 107 – Minimum creepage distances of basic, supplementary and reinforced
insulation without verification test for clearances . 39
Table 108 – Minimum creepage distances of basic, supplementary and reinforced
insulation with verification test for clearances . 39
Table 109 – Type of insulation . 42
Table 110 – Immunity tests (overview) . 45
Table 111 – Voltage dip and short-interruption test values . 45
Table 112 – Surge immunity test voltages . 46
Table 113 – Fast transient test values . 46
a
Table 114 – Values for radiated electromagnetic field test of IEC 61000-4-3 . 48
Table 115 – Capacitors . 56
Table 101 – Test voltage, points of application for the verification of electric strength . 73
Table AA.1 – Values for I and I t depending on the type of distribution system . 77
peak
Table AA.2 – Calculated circuit parameters . 77
Table 26 – Creepage distances, clearances and distances through insulating sealing
compound . 78
Table AA.3 – Cross-sectional areas of copper conductors and maximum test currents . 82
Table CC.1 – Cross-sectional areas of copper conductors and maximum test currents . 93

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
Plugs and socket-outlets for household and similar purposes -
Part 3-2: Particular requirements for accessories incorporating
electronic components to perform additional functions

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 60884-3-2 has been prepared by subcommittee 23B: Plugs, socket-outlets and switches,
of IEC technical committee 23: Electrical accessories. It is an International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
23B/1606/FDIS 23B/1609/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
This document shall be used in conjunction with IEC 60884-1:2022.
This document supplements or modifies the corresponding clauses in IEC 60884-1, so as to
convert that publication into the IEC International Standard: Particular requirements for
accessories incorporating electronic components to perform additional functions.
Where this document states "addition", "modification" or "replacement", the relevant
requirement, test specifications or explanatory matter in IEC 60884-1 shall be adapted
accordingly.
Subclauses, figures, tables or notes which are additional to those in IEC 60884-1 are numbered
starting from 101. Additional annexes are lettered starting from AA.
A list of all parts in the IEC 60884 series, published under the general title Plugs and socket-
outlets for household and similar purposes, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
– reconfirmed,
– withdrawn, or
– revised.
INTRODUCTION
Standard plugs and socket-outlets are now available with various additional features such as
Wi-Fi extenders, remote switching, energy saving, etc. For the purposes of this document, these
features are called additional functions.
This part of the IEC 60884 series provides particular requirements for plugs and socket-outlets
which incorporate electronic components for the purpose of providing additional functions.
The additional functions are categorised into 3 groups:
– additional functions that control the output of the accessory (these products are often called
“smart sockets”, “smart socket-outlets” or “smart plugs”);
– additional functions being powered by the accessory which do not control the output;
– additional functions that have protective means (e.g. overvoltage protection) other than
Residual Current Devices.
The requirements that are common to all three categories are given in the main part of this
document. Specific requirements are given in Annex AA to Annex CC.
This part does not address additional functions that have already been covered by other parts
of the IEC 60884 series, for example, socket-outlets incorporating USB power supply which are
covered by IEC 60884-3-1.
It is recognised that provision of a dimming function in fixed and portable socket-outlets poses
a considerable safety risk to the loads that can be connected to a socket-outlet. Therefore,
provision should not be made for dimming function in fixed and portable socket-outlets.

1 Scope
IEC 60884-1:2022, Clause 1 is applicable except as follows:
Replace the first paragraph by the following:
This part of IEC 60884 applies to plugs and fixed or portable socket-outlets for AC only,
incorporating electronic components to perform additional functions, with or without earthing
contact, with a rated voltage greater than 50 V but not exceeding 440 V and a rated current not
exceeding 32 A, intended for household and similar purposes, for use either indoors or
outdoors.
This document covers safety and Electromagnetic Compatibility (EMC) requirements for plugs
and socket-outlets incorporating electronic components to perform additional functions.
Addition after the third paragraph:
The rated current is limited to 16 A maximum for accessories incorporating electronic
components which control the output.
Replace the fourth paragraph by the following:
This document covers only those requirements for mounting boxes which are necessary for the
tests on the socket-outlet incorporating electronic components to perform additional functions.
Replace the dash text after NOTE 2 by the following dashes:
– accessories incorporating USB power supply which are covered by IEC 60884-3-1;
– mechanically switched socket-outlets without any electronic function which are covered by
IEC 60884-2-3;
– accessories including RCD’s which are covered by IEC 62640 and IEC 61540;
– portable socket-outlets incorporating electronic switches validated according to
IEC 61058-1-2;
– switched socket-outlets with interlock for fixed electrical installations, which are covered by
IEC 60884-2-6.
Replace the eighth paragraph by the following:
This document applies to plugs and socket-outlets incorporating electronic components for use
at ambient temperature not normally exceeding +25 °C but occasionally reaching +35 °C with
a lower limit of the ambient air temperature of −5 °C.
Add the following paragraph after the eighth paragraph:
Functional safety aspects are not covered by this document.
Add the following paragraphs after the last paragraph:
This document gives additional tests and requirements for accessories incorporating electronic
components for additional functions that control the output of the accessory, see Annex AA
(Normative).
This document gives additional tests and requirements for accessories incorporating electronic
components for additional functions being powered by the accessory which do not control the
output, see Annex BB (Normative).
This document gives additional tests and requirements for accessories incorporating electronic
components for additional functions that operate as a protection means, see Annex CC
(Normative).
This document is not intended to cover standalone devices within the scope of the IEC 60730
series.
2 Normative references
IEC 60884-1:2022, Clause 2 is applicable except as follows:
Addition:
IEC 60068-2-78, Environmental testing - Part 2-78: Tests - Test Cab: Damp heat, steady state
IEC 60127 (all parts), Miniature fuses
IEC 60384-14:2023, Fixed capacitors for use in electronic equipment - Part 14: Sectional
specification - Fixed capacitors for electromagnetic interference suppression and connection to
the supply mains
IEC 60664-1:2020, Insulation coordination for equipment within low-voltage supply systems -
Part 1: Principles, requirements and tests
IEC 60664-3:2016, Insulation coordination for equipment within low-voltage systems - Part 3:
Use of coating, potting or moulding for protection against pollution
IEC 60670 (all parts), Boxes and enclosures for electrical accessories for household and similar
fixed electrical installations
IEC 60884-1:2022, Plugs and socket-outlets for household and similar purposes - Part 1:
General requirements
IEC 60898-1, Electrical accessories - Circuit-breakers for overcurrent protection for household
and similar installations - Part 1: Circuit-breakers for a.c. operation
IEC 60990, Methods of measurement of touch current and protective conductor current
IEC 60934, Circuit breakers for equipment (CBE)
IEC 60998 (all parts), Connecting devices for low-voltage circuits for household and similar
purposes
IEC 60999 (all parts), Connecting devices - Electrical copper conductors - Safety requirements
for screw-type and screwless-type clamping units
IEC 61000-3-2, Electromagnetic compatibility (EMC) - Part 3-2: Limits - Limits for harmonic
current emissions (equipment input current ≤16 A per phase)
IEC 61000-4-2:2025, Electromagnetic compatibility (EMC) - Part 4-2: Testing and measurement
techniques - Electrostatic discharge immunity test
IEC 61000-4-3, Electromagnetic compatibility (EMC) - Part 4-3: Testing and measurement
techniques - Radiated, radio-frequency, electromagnetic field immunity test
IEC 61000-4-4, Electromagnetic compatibility (EMC) - Part 4-4: Testing and measurement
techniques - Electrical fast transient/burst immunity test
IEC 61000-4-5, Electromagnetic compatibility (EMC) - Part 4-5: Testing and measurement
techniques - Surge immunity test
IEC 61000-4-6, Electromagnetic compatibility (EMC) - Part 4-6: Testing and measurement
techniques - Immunity to conducted disturbances, induced by radio-frequency fields
IEC 61000-4-8, Electromagnetic compatibility (EMC) - Part 4-8: Testing and measurement
techniques - Power frequency magnetic field immunity test
IEC 61000-4-11, Electromagnetic compatibility (EMC) - Part 4-11: Testing and measurement
techniques - Voltage dips, short interruptions and voltage variations immunity tests for
equipment with input current up to 16 A per phase
IEC 61051-2, Varistors for use in electronic equipment - Part 2: Sectional specification for surge
suppression varistors
IEC 61558-2-6, Safety of transformers, reactors, power supply units and combinations thereof -
Part 2-6: Particular requirements and tests for safety isolating transformers and power supply
units incorporating safety isolating transformers for general applications
IEC 61558-2-16, Safety of transformers, reactors, power supply units and combinations
thereof - Part 2-16: Particular requirements and tests for switch mode power supply units and
transformers for switch mode power supply units for general applications
IEC 61643-331:2020, Components for low-voltage surge protection - Part 331: Performance
requirements and test methods for metal oxide varistors (MOV)
IEC 62479, Assessment of the compliance of low-power electronic and electrical equipment
with the basic restrictions related to human exposure to electromagnetic fields (10 MHz to
300 GHz)
CISPR 32:2015, Electromagnetic compatibility of multimedia equipment - Emission
requirements
CISPR 32:2015/AMD1: 2019
3 Terms and definitions
IEC 60884-1:2022, Clause 3 is applicable except as follows:
Replacement:
NOTE 3 The term "accessory" is used as a general term covering plugs and socket-outlets incorporating electronic
components to perform additional functions; the term "portable accessory" covers plugs and portable socket-outlets
incorporating electronic components to perform additional functions.
Additional terms and definitions:
3.101
electronic control function
ECF
electronic components for additional functions that control the output of the accessory
3.102
electronic powered function
EPF
electronic components for additional functions being powered by the accessory which do not
control the output
Note 1 to entry: A WIFI repeater is an example of an EPF.
3.103
electronic protective means
EPM
electronic components for additional functions that operate as a protection means
3.104
extra low voltage
ELV
nominal voltage in the electrical installation of buildings according to the voltage band I
specified in IEC 61140:2016
Note 1 to entry: Voltage band I according to IEC 61140 is a voltage below or equal to 50 V AC or 120 V DC.
[SOURCE: IEC 63044-3:2017, 3.1.7, modified – The publication IEC 61140 has been dated.]
3.105
safety extra low voltage network
SELV network
electrical network in which the nominal voltage cannot exceed ELV
– under normal conditions;
– under single fault conditions, including earth fault in other networks.
Note 1 to entry: SELV has simple separation from SELV systems, and earth and protective separation from all other
networks.
Note 2 to entry: Under normal conditions and single-fault conditions in a dry location inside a building, a SELV
network with a voltage not higher than 25 V AC or 60 V DC is safe to touch.
[SOURCE: IEC 63044-3:2017 and IEC 63044-3:2017/AMD1:2021, 3.1.10, modified – In Note 1
to entry, replacement of "from PELV and other SELV systems" with "from SELV systems".]
3.106
hazardous live part
live part with a voltage higher than 25 V AC or 60 V DC ripple free in dry conditions or 12 V AC
or 30 V DC in wet conditions
Note 1 to entry: Ripple free is conventionally an RMS ripple voltage not more than 10 % of the DC component.
3.107
protective impedance
impedance connected between hazardous live parts and accessible conductive parts, of such
value that the current, in normal use and under likely fault conditions in the accessory with
incorporated electronic components, is limited to a safe value, and which is so constructed that
the reliability is maintained throughout the life of the accessory
[SOURCE: IEC 60050-442:1998, 442-04-24, modified – Replacement of "accessible" with
"exposed", "electronic switch" with "accessory with incorporated electronic components" and
"electronic switch" with "accessory".]
3.108
rated power
electric power assigned by the manufacturer to the accessory
Note 1 to entry: The rated power is expressed in Watts.
3.109
home and building electronic system/ building automation and control system
HBES/BACS
system consisting of control devices, processing equipment, network interfaces and gateways,
where the functions are distributed and linked through a common communication process,
managing multiple applications in the home and building premises
Note 1 to entry: Examples of applications are heating, alarming, shading and lighting.
Note 2 to entry: The term “managing” includes one or more activities such as measuring, monitoring and controlling.
Note 3 to entry: Other terms that are used in the market to refer to HBES/BACS include the following: “home control
network”, “home control system”, ”smart home”, “building system” and “building automation system”.
Note 4 to entry: The principles of HBES/BACS can also be used for single application systems if no specific
standards are available.
Note 5 to entry: A common communication process is a process using a common data-model (such as KNX, LON,
Bacnet, Dotdot, etc…), independent of the physical layer.
Note 6 to entry: An application can comprise of individual products or systems.
Note 7 to entry: The controlled device is not part of HBES/BACS except for the interface to the HBES/BACS
network.
[SOURCE: IEC 63044-1:2017 and IEC 63044-1:2017/AMD1:2021, 3.1.3, modified – Addition of
a new entry " home and building electronic system/ building automation and control system".]
3.110
looping through function
function of the line terminal or both the line and the neutral terminals to power other devices in
the circuit of the installation
3.111
operation
transfer of the moving contacts from one operating position to another or from one operating
state to another
3.112
simple separation
separation between networks or between a network and earth by means of basic insulation
[SOURCE: IEC 63044-3:2017, 3.1.12, modified – Replacement of "circuit" with "network".]
3.113
protective separation
separation of one electric network from another by means of
– double insulation, or
– basic insulation and protective screening (shielding), or
– reinforced insulation
[SOURCE: IEC 63044-3:2017, 3.1.13]
3.114
basic insulation
insulation of hazardous-live-parts which provides basic protection
Note 1 to entry: This concept does not apply to insulation used exclusively for functional purposes.
[SOURCE: IEC 63044-3:2017, 3.1.14, modified – The note has been added.]
3.115
supplementary insulation
independent insulation applied in addition to basic insulation for fault protection
[SOURCE: IEC 63044-3:2017, 3.1.16]
3.116
double insulation
insulation comprising both basic insulation and supplementary insulation
[SOURCE: IEC 63044-3:2017, 3.1.15]
3.117
reinforced insulation
insulation of hazardous-live-parts which provides a degree of protection against electric shock
equivalent to double insulation
Note 1 to entry: Reinforced insulation may comprise several layers which cannot be tested individually as basic
insulation or supplementary insulation.
[SOURCE: IEC 63044-3:2017, 3.1.18, modified – The note has been added.]
3.118
surge protective device
SPD
device that is intended to protect the electrical apparatus from transient overvoltages and to
divert surge currents
Note 1 to entry: A surge protective device contains at least one non-linear component
[SOURCE: IEC 60050-614:2016, 614-03-48 modified – Addition of the acronym "SPD".]
3.119
reference test voltage
U
REF
RMS value of voltage used for testing which depends on the mode of protection of the SPD, the
nominal system voltage, the system configuration and the voltage regulation within the system
3.120
maximum continuous operating voltage
U
C
maximum RMS voltage, which may be continuously applied to the SPD's mode of protection
Note 1 to entry: The U value covered by this document can exceed 1 000 V.
c
4 General requirements
IEC 60884-1:2022, Clause 4 is applicable.
5 General remarks on tests
IEC 60884-1:2022, Clause 5 is applicable except as follows:
5.1 General
Addition after the second paragraph:
Voltage and current measuring instruments used shall indicate true RMS values and shall not
be affected by factors such as waveform.
If the electronic circuitry is so enclosed that the short-circuiting or disconnecting of components
is impossible or difficult, the manufacturer shall provide one additional test specimen with leads
connected for measurements, short-circuiting, etc.
The term “live part” used in IEC 60884-1 is considered as “hazardous live part”, with the
exception of non-hazardous live parts of SELV networks.
In this document the term instructions is understood to mean manufacturer's instructions.
NOTE Instructions can be on paper or in electronic format.
5.2 Products arrangement during test
Add the following after the third paragraph:
Unless otherwise stated, accessories having provisions for integration of additional functions
shall be tested with all functions mounted and configured as for normal use according to the
instructions.
5.4 Additional samples
Replace the third paragraph by the following:
The number of specimens needed for the tests, identified by e.g. ABC for a set of 3 specimens,
are given in Table 1.
Replace Table 1 by the following:
Table 1 – Survey of specimens needed for tests
Number of specimens
Fixed Portable
Clauses and subclauses
Socket- socket- Plugs
outlets outlets
6 Ratings A A A
7 Classification A A A
8 Marking A A A
9 Checking of dimensions ABC ABC ABC
a
10 ABC ABC ABC
Protection against electric shock
b
11 ABC ABC ABC
Provision for earthing
c, d
12 Terminals ABC ABC
ABC
e, f
13 Construction of fixed socket-outlets ABC - -
e, f e, f
14 Construction of plugs and portable socket outlets - ABC ABC
15 Interlocked socket outlets ABC ABC -
h g
16 ABC ABC
Resistance to ageing, to harmful ingress of water and to humidity ABC
i j j
17 ABC
Insulation resistance and electric strength ABC ABC
18 Operation of earthing contacts ABC ABC ABC
19 Temperature rise ABC ABC ABC
20 Breaking capacity ABC ABC ABC
t, u t, u t, u
21 Normal operation
ABC ABC ABC
22 Force necessary to withdraw the plug ABC ABC -
k k
23 Flexible cables and their connection - ABC ABC
l, n l m
24 Mechanical strength
ABC ABC ABC
o
25 ABC ABC ABC
Resistance to heat
26 Screws, current-carrying parts and connections ABC ABC ABC
Creepage distances, clearances and distances through sealing
y y y
27 ABC ABC
ABC
compound
29 Resistance to rusting ABC ABC ABC
28.1 Resistance to abnormal heat and to fire DEF DEF DEF
p
28.2 DEF DEF DEF
Resistance to tracking
q
30 Additional tests on pins provided with insulating sleeves - -
GHI
31 EMC requirements G G J
r, v r, v r, v
101 Abnormal conditions HIJ HIJ KLM
s s s
102 Components
HIJ HIJ KLM
Specific requirements for accessories incorporating electronic
x x x
AA components for additional functions that control the output of the
ABC ABC ABC
t, u
accessory (ECF)
Specific requirements for accessories incorporating electronic
w w w
BB components for additional functions being powered by the accessory
ABC ABC ABC
which do not control the output (EPF)
Specific requirements for accessories incorporating electronic
x x x
CC components for additional functions that operate as a protection
ABC ABC ABC
means (EPM)
TOTAL 10 10 13
a
One extra set of specimens for the test of 10.6.
b
One extra set of specimens for the test of 11.101.
c
One extra set of specimens for each type of conductor for 12.2.6.
d
One extra set of specimens can be required for the test of 12.3.10. Five extra screwless-type terminals are
used for the test of 12.3.11 and one extra set of specimens is used for the test of 12.3.12.
e
One extra set of membranes for each of the tests of 13.22 and 13.23.
f
One extra set of specimens can be needed to verify that the mechanical strength of the pin does not depend
on the plastic material.
g
One extra set of specimens for 16.1.
h
Two extra sets of specimens may be used for IP test IP > 20 according to 16.2.2 and 16.2.3. The specimens
shall be preliminarily submitted to the ageing test of 16.1.
i
One extra set of specimens for the tests of 17.2.2 b) or 17.2.3 b), and respectively for the test of 17.3, Table
101 b) or 17.3, Table 101 l).
j
One extra set of specimens of socket-outlets fitted with pilot lamps can be used for the tests of Clause 17.
k
One extra set of specimens for 23.2 and 23.4 for non-rewireable accessories for each type of cable and cross-
sectional area.
l
One extra set of specimens for 24.9 for shuttered socket-outlets.
m
One extra set of specimens for 24.11 for plugs.
n
One extra set of specimens for 24.13.2 and 24.13.3.
o
One extra set of aged specimens can be used for the tests of 25.3 and 25.4.
p
One extra set of specimens can be used.
q
One extra set of specimens for 30.2 and 30.3 for plugs with pins with insulating sleeves.
r
It can be necessary to provide 6 additional sets of 3 specimens for the test of 101.4.
s
For electronic control devices with a cut-out, one extra set of specimens can be used for the tests of 102.5.2.2
or 102.5.2.3.
t
One extra set of specimens for the test of 21.101.2 in Annex AA.
u
One extra set of specimens for the test of 21.101.3 in Annex AA.
v
One extra specimens for the test of 101.5.
w
Additional samples can be needed for the test 101.2.2.
x
Extra sets of specimens for the test of 101.2.3.
y
Additional specimens of circuit boards for the test of 27.102.4.

6 Ratings
IEC 60884-1:2022, Clause 6 is applicable except as follows:
Addition at the end:
The rated voltage of the accessory shall be selected by the manufacturer according to the
nominal voltage of the fixed electrical installation where the accessory is intended to be installed
or used.
The rated current of the accessory shall be the lowest value of the following:
– the rated current of the plug and socket-outlet system;
– the rated current of the incorporated overcurrent protection, if any.
NOTE Examples of incorporated overcurrent protection are cut-outs, fuses, etc.
The preferred rated supply frequencies are 50 Hz and 60 Hz.
Compliance is checked by inspection of the marking.
7 Classification
IEC 60884-1:2022, Clause 7 is applicable except as follows:
Additional subclauses:
7.101 Classification according to the type of additional function
7.101.1 Accessories incorporating electronic components for additional functions that control
the output of the accessory (ECF)
7.101.2 Accessories incorporating electronic components for additional functions being
powered by the accessory which do not control the output (EPF)
7.101.3 Accessories incorporating electronic components for additional functions that operate
as a protection means (EPM)
NOTE Accessories can contain one or more types of additional functions.
7.102 Classification according to the connection to the network port based on SELV
7.102.1 connected to a network which is installed wholly within the same equipotential earthing
system;
7.102.2 connected to a network which is not installed wholly within the same equipotential
earthing system
8 Marking
IEC 60884-1:2022, Clause 8 is applicable except as follows:
8.1 General
Add a new dash after the second dash:
– rated power in watts, if applicable;
Addition after NOTE 2 of the following:
The rating of power in watts shall be marked when the rated current value is lower than the
value of the plug and socket-outlet system as given in the standard sheet.
The rated power is calculated using the nominal voltage of the fixed electrical installation in
volts, the rated current in amperes and a power factor cos ϕ = 1.
In addition, accessories shall be marked with:
– rated frequency in Hertz for fixed accessories, unless the accessory is designed for both
50 Hz and 60 Hz;
– rating and type of any fuse incorporated in the accessory, if intended to be replaceable.
Addit
...
