IEC 61196-1-303:2018

Coaxial communication cables - Part 1-303: Mechanical test methods - Test for silver and tin plating thickness

IEC 61196-1-303:2018(E) defines the requirements for measuring the plating thickness for silver and tin conductors for coaxial cables used in analogue and digital communication systems.
This test method uses a procedure for determining the plating thickness of silver and tin coatings on conductors by galvanic removal (coulometric method).

General Information

• Status: Published
• Publication Date: 08-Jan-2018
• ICS: 29.100.10 - Magnetic components
• ICS: 29.180 - Transformers. Reactors
• ICS: 33.120.10 - Coaxial cables. Waveguides
• Technical Committee: SC 46A - Coaxial cables
• Drafting Committee: WG 3 - TC 46/SC 46A/WG 3
• Current Stage: PPUB - Publication issued
• Start Date: 09-Jan-2018
• Completion Date: 02-Feb-2018

Overview

IEC 61196-1-303:2018 specifies a standardized test method for measuring silver and tin plating thickness on conductors used in coaxial communication cables (analogue and digital systems). The method uses galvanic removal (coulometric method) with an electronic thickness tester that measures the time/current required to remove the coating and converts that reading to an average plating thickness. The standard is part of the IEC 61196 series for coaxial communication cables.

Key Topics and Requirements

• Scope: Measurement of silver and tin coating thickness on cable conductors using a coulometric (galvanic removal) technique.
• Test equipment: Use an electronic thickness tester; allow a 15-minute warm-up and perform calibration per manufacturer instructions. Ensure the selector is set to “Silver” or “Tin” and correct units (µm or inch).
• Test solutions:
  • Silver: potassium thiocyanate solution (180 g/1 000 ml distilled water) - if manufacturer solution unavailable.
  • Tin: 37% hydrochloric acid (100 ml) - if manufacturer solution unavailable.
  • Maintain solution temperature at 20 °C to 25 °C and follow safety/health procedures.
• Test samples: Cut straight conductor lengths (~200 mm), mark and bend to submerge without touching the beaker. Sample length depends on conductor diameter (e.g., 0.050–0.140 mm → 100 ±5 mm; 0.141–0.290 mm → 50 ±5 mm; 0.291–0.700 mm → 25 ±2 mm; >0.700 mm → 12 ±2 mm).
• Procedure: Insert conductor, lower to the mark, start measurement. If plating is not fully removed, repeat or add counts per guidance. After test, measure the length of removed plating and compute thickness.
• Calculation: Thickness T (µm) = (C · CF) / (l · d), where C = counter reading, CF = correction factor, l = removed length (mm), d = conductor diameter (mm).
• Accuracy & reporting: Average plating thickness measurable to ±5% with conventional apparatus. Test report must include the measured silver/tin plating thickness. Final compliance is checked against the relevant detailed specification.

Applications and Users

• Cable manufacturers and quality laboratories performing plating thickness verification on coaxial cable conductors.
• R&D and production engineers verifying electroplating quality for RF and communications cables.
• Test labs performing conformity assessments, failure analysis, and incoming material inspection.
• Useful for procurement/specification writers who need objective, repeatable plating-thickness test data for supplier specifications.

Related Standards

• IEC 61196-1:2005 (generic specification, definitions and requirements)
• Other parts of the IEC 61196 series covering coaxial cable mechanical, electrical and environmental tests.

Keywords: IEC 61196-1-303, coaxial communication cables, plating thickness measurement, silver plating, tin plating, coulometric method, galvanic removal, electronic thickness tester.

Standards Content (Sample)

IEC 61196-1-303 ®
Edition 1.0 2018-01
INTERNATIONAL
STANDARD
colour
inside
Coaxial communication cables –
Part 1-303: Mechanical test methods – Test for silver and tin plating thickness

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 61196-1-303 ®
Edition 1.0 2018-01
INTERNATIONAL
STANDARD
colour
inside
Coaxial communication cables –

Part 1-303: Mechanical test methods – Test for silver and tin plating thickness

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.120.10 ISBN 978-2-8322-5238-3

– 2 – IEC 61196-1-303:2018 © IEC 2018

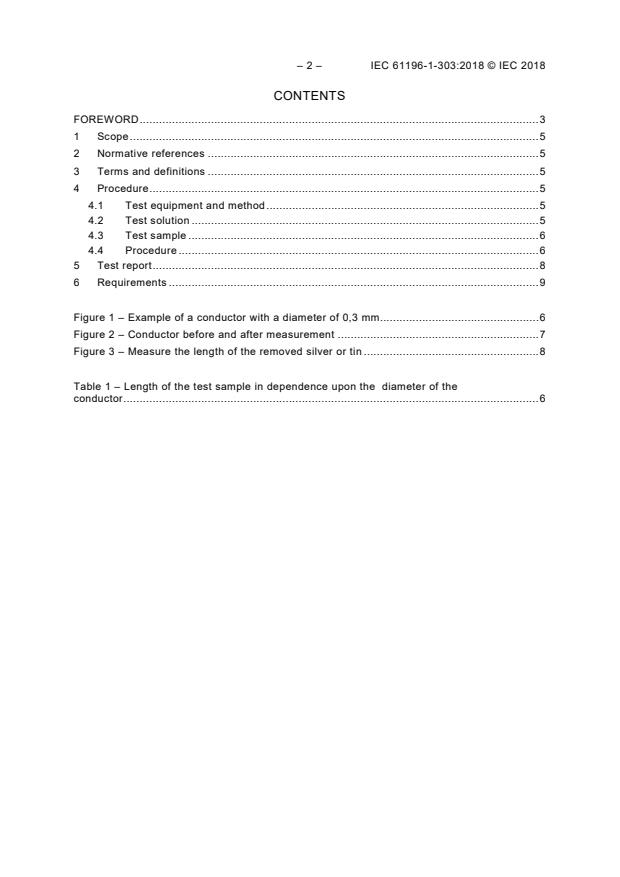

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Procedure . 5
4.1 Test equipment and method . 5
4.2 Test solution . 5
4.3 Test sample . 6
4.4 Procedure . 6
5 Test report . 8
6 Requirements . 9

Figure 1 – Example of a conductor with a diameter of 0,3 mm. 6
Figure 2 – Conductor before and after measurement . 7
Figure 3 – Measure the length of the removed silver or tin . 8

Table 1 – Length of the test sample in dependence upon the diameter of the
conductor . 6

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
COAXIAL COMMUNICATION CABLES –

Part 1-303: Mechanical test methods –
Test for silver and tin plating thickness

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements
...
