Flexible insulating sleeving - Part 3: Specifications for individual types of sleeving - Sheet 283: Heat-shrinkable, polyolefin sleeving for bus-bar insulation

IEC 60684-3-283:2019 is available as IEC 60684-3-283:2019 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.
IEC 60684-3-283:2019 gives the requirements for two types of heat-shrinkable, polyolefin sleeving for bus-bar insulation, with a nominal shrink ratio of 2,5:1. This sleeving has been found suitable up to temperatures of 100 °C.
Type A: Medium wall - internal diameter up to 170,0 mm typically
Type B: Thick wall - internal diameter up to 165,0 mm typically
These sleevings are normally supplied in colour, red or brown. Since these types of sleeving cover a significantly large range of sizes and wall thicknesses, Annex A (Tables A.1 and A.2) provides guidance to the range of sizes available. The actual size and wall thickness will be agreed between the user and supplier depending on the electric strength of the installed tubing offered and the requirements of the user. Materials which conform to this specification meet established levels of performance. However, the selection of a material by a user for a specific application will be based on the actual requirements necessary for adequate performance in that application and not based on this specification alone. This second edition cancels and replaces the first edition published in 2010 and Amendment 1:2013. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
- change of moulded plaque thickness for resistance to tracking and weathering tests to (6 ± 0,5) mm.
Keywords: Heat-shrinkable, polyolefin sleeving for bus-bar insulation

Gaines isolantes souples - Partie 3: Spécifications pour types particuliers de gaines - Feuille 283: Gaines thermorétractables en polyoléfine pour isolation de barres omnibus

IEC 60684-3-283:2019 est disponible sous forme de IEC 60684-3-283:2019 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.
IEC 60684-3-283:2019 donne les exigences relatives à deux types de gaines thermorétractables, en polyoléfine, pour isolation des barres omnibus dont le rapport de rétreint nominal est 2,5:1. Ces gaines se sont avérées appropriées pour une utilisation à des températures allant jusqu’à 100 °C.
Type A: Paroi moyenne - diamètre intérieur généralement jusqu’à 170,0 mm
Type B: Paroi épaisse - diamètre intérieur généralement jusqu’à 165,0 mm
Ces gaines sont normalement disponibles en rouge ou en brun. Comme ces types de gaines couvrent une plage très étendue de tailles et d’épaisseurs de paroi, l'Annexe A (Tableaux A.1 et A.2) fournit un guide des tailles disponibles dans cette plage. La taille réelle et l'épaisseur de la paroi font l’objet d’un accord entre l’utilisateur et le fournisseur en fonction de la rigidité diélectrique du tube installé et des exigences de l’utilisateur. Les matériaux conformes à la présente spécification satisfont à des niveaux de performances établis. Cependant, le choix d’un matériau par un utilisateur, pour une application spécifique, est fondé sur les exigences réelles nécessaires pour obtenir des performances adéquates pour l'application concernée, et n'est pas fondé sur cette seule spécification. Cette deuxième édition annule et remplace la première édition parue en 2010 et l'Amendement 1:2013. Cette édition constitue une révision technique. Cette édition inclut la modification technique majeure suivante par rapport à l'édition précédente:
- modification de l'épaisseur des plaques moulées pour les essais de résistance aux courants de cheminement et les essais de résistance aux intempéries qui devient (6 ± 0,5) mm.
Mots-clés : Gaines thermorétractables en polyoléfine pour isolation de barre omnibus

General Information

Status
Published
Publication Date
19-Aug-2019
Current Stage
PPUB - Publication issued
Completion Date
20-Aug-2019
Ref Project

Buy Standard

Standard
IEC 60684-3-283:2019 - Flexible insulating sleeving - Part 3: Specifications for individual types of sleeving - Sheet 283: Heat-shrinkable, polyolefin sleeving for bus-bar insulation
English and French language
25 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 60684-3-283
Edition 2.0 2019-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Flexible insulating sleeving –
Part 3: Specifications for individual types of sleeving –
Sheet 283: Heat-shrinkable, polyolefin sleeving for bus-bar insulation
Gaines isolantes souples –
Partie 3: Spécifications pour types particuliers de gaines –
Feuille 283: Gaines thermorétractables en polyoléfine pour isolation de barres
omnibus
IEC 60684-3-283:2019-08(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2019 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni

utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et

les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and once 67 000 electrotechnical terminology entries in English and

a month by email. French extracted from the Terms and Definitions clause of IEC
publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or need CISPR.
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Le premier dictionnaire d'électrotechnologie en ligne au monde,

webstore.iec.ch/advsearchform avec plus de 22 000 articles terminologiques en anglais et en

La recherche avancée permet de trouver des publications IEC français, ainsi que les termes équivalents dans 16 langues

en utilisant différents critères (numéro de référence, texte, additionnelles. Egalement appelé Vocabulaire

comité d’études,…). Elle donne aussi des informations sur les Electrotechnique International (IEV) en ligne.

projets et les publications remplacées ou retirées.
Glossaire IEC - std.iec.ch/glossary

IEC Just Published - webstore.iec.ch/justpublished 67 000 entrées terminologiques électrotechniques, en anglais

Restez informé sur les nouvelles publications IEC. Just et en français, extraites des articles Termes et Définitions des

Published détaille les nouvelles publications parues. publications IEC parues depuis 2002. Plus certaines entrées

Disponible en ligne et une fois par mois par email. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
Electropedia - www.electropedia.org
---------------------- Page: 2 ----------------------
IEC 60684-3-283
Edition 2.0 2019-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Flexible insulating sleeving –
Part 3: Specifications for individual types of sleeving –
Sheet 283: Heat-shrinkable, polyolefin sleeving for bus-bar insulation
Gaines isolantes souples –
Partie 3: Spécifications pour types particuliers de gaines –
Feuille 283: Gaines thermorétractables en polyoléfine pour isolation de barres
omnibus
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.035.20 ISBN 978-2-8322-7215-2

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

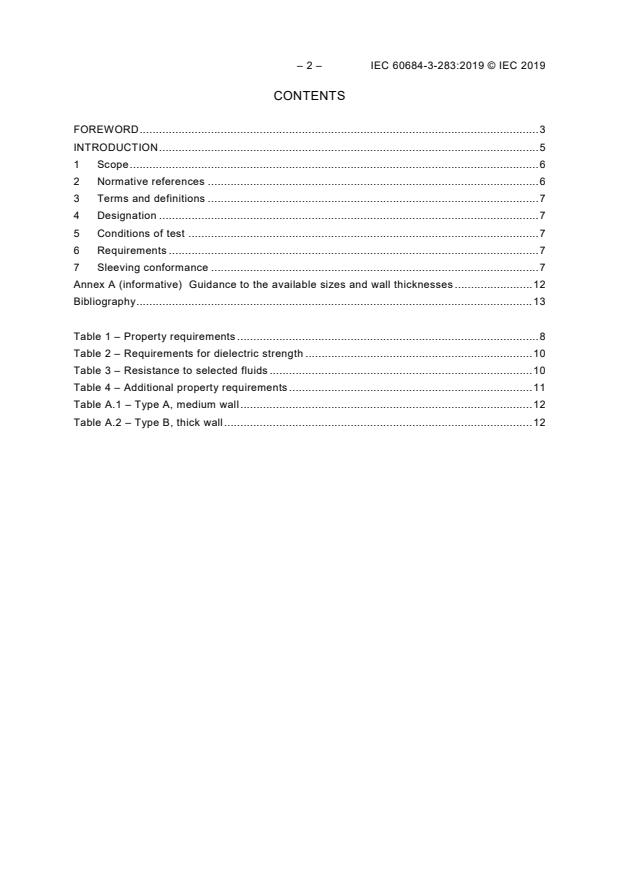

– 2 – IEC 60684-3-283:2019 © IEC 2019
CONTENTS

FOREWORD ........................................................................................................................... 3

INTRODUCTION ..................................................................................................................... 5

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms and definitions ...................................................................................................... 7

4 Designation ..................................................................................................................... 7

5 Conditions of test ............................................................................................................ 7

6 Requirements .................................................................................................................. 7

7 Sleeving conformance ..................................................................................................... 7

Annex A (informative) Guidance to the available sizes and wall thicknesses ........................ 12

Bibliography .......................................................................................................................... 13

Table 1 – Property requirements ............................................................................................. 8

Table 2 – Requirements for dielectric strength ...................................................................... 10

Table 3 – Resistance to selected fluids ................................................................................. 10

Table 4 – Additional property requirements ........................................................................... 11

Table A.1 – Type A, medium wall .......................................................................................... 12

Table A.2 – Type B, thick wall ............................................................................................... 12

---------------------- Page: 4 ----------------------
IEC 60684-3-283:2019 © IEC 2019 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FLEXIBLE INSULATING SLEEVING –
Part 3: Specifications for individual types of sleeving –
Sheet 283: Heat-shrinkable, polyolefin sleeving for bus-bar insulation
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60684-3-283 has been prepared by IEC technical committee 15:

Solid electrical insulating materials.
This second edition cancels and replaces the first edition published in 2010 and
Amendment 1:2013. This edition constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous

edition:

a) change of moulded plaque thickness for resistance to tracking and weathering tests to

(6 ± 0,5) mm.
---------------------- Page: 5 ----------------------
– 4 – IEC 60684-3-283:2019 © IEC 2019
The text of this International Standard is based on the following documents:
FDIS Report on voting
15/892/FDIS 15/901/RVD

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts in the IEC 60684 series, published under the general title Flexible insulating

sleeving, can be found on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 6 ----------------------
IEC 60684-3-283:2019 © IEC 2019 – 5 –
INTRODUCTION

This document is one of a series of standards which deals with flexible insulating sleeving for

electrical purposes.
The series consists of three parts:
Part 1: Definitions and general requirements (IEC 60684-1)
Part 2: Methods of test (IEC 60684-2)
Part 3: Specifications for individual types of sleeving (IEC 60684-3)
This document comprises one of the sheets of Part 3 as follows:
Sheet 283: Heat-shrinkable, polyolefin sleeving for bus-bar insulation.
---------------------- Page: 7 ----------------------
– 6 – IEC 60684-3-283:2019 © IEC 2019
FLEXIBLE INSULATING SLEEVING –
Part 3: Specifications for individual types of sleeving –
Sheet 283: Heat-shrinkable, polyolefin sleeving for bus-bar insulation
1 Scope

This part of IEC 60684 gives the requirements for two types of heat-shrinkable, polyolefin

sleeving for bus-bar insulation, with a nominal shrink ratio of 2,5:1.
This sleeving has been found suitable up to temperatures of 100 °C.
• Type A: Medium wall – internal diameter up to 170,0 mm typically
• Type B: Thick wall – internal diameter up to 165,0 mm typically
These sleevings are normally supplied in colour, red or brown.

Since these types of sleeving cover a significantly large range of sizes and wall thicknesses,

Annex A (Tables A.1 and A.2) provides guidance to the range of sizes available. The actual

size and wall thickness will be agreed between the user and supplier depending on the

electric strength of the installed tubing offered and the requirements of the user.

Materials which conform to this specification meet established levels of performance.

However, the selection of a material by a user for a specific application will be based on the

actual requirements necessary for adequate performance in that application and not based on

this specification alone.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.

IEC 60296:2012, Fluids for electrotechnical applications – Unused mineral insulating oils for

transformers and switchgear

IEC 60684-1:2003, Flexible insulating sleeving – Part 1: Definitions and general requirements

IEC 60684-2:2011, Flexible insulating sleeving – Part 2: Methods of test
IEC 60757:1983, Code for designation of colours
ISO 846:2019, Plastics – Evaluation of the action of microorganisms

ISO 4892-3:2016, Plastics – Methods of exposure to laboratory light sources – Part 3:

Fluorescent UV lamps
---------------------- Page: 8 ----------------------
IEC 60684-3-283:2019 © IEC 2019 – 7 –
3 Terms and definitions
No terms and definitions are listed in this document.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
4 Designation
The sleeving shall be identified by the following designation:
Description IEC IEC part IEC sheet Type Size Colour Table 4
publication number number code
(expanded and
number
recovered
internal diameter
in millimetres)
↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓
Sleeving IEC 60684 - 3 -283 A - 75,0/30,0 -Red X

NOTE 1 The addition of “X” at the end of the designation indicates that the properties contained in Table 4

have been agreed upon between the user and the supplier.

Any colour abbreviation shall comply with IEC 60757, where applicable. Non-standard colours

shall be written out in full.
NOTE 2 This is for package labelling only in accordance with IEC 60684-1.
5 Conditions of test

Unless otherwise specified, the sleeving shall be shrunk in a forced air circulation oven for

(10 ± 1) min at 200 °C ± 3 K prior to testing.
6 Requirements

In addition to the general requirements given in IEC 60684-1, the sleeving shall comply with

the requirements of Tables 1, 2, 3, and 4 where applicable.
7 Sleeving conformance

Conformance to the requirements of this specification shall normally be based on the results

from typical sizes:
• Type A: Recovered ID 25 mm to 30 mm
• Type B: Recovered ID 25 mm to 40 mm
---------------------- Page: 9 ----------------------
– 8 – IEC 60684-3-283:2019 © IEC 2019
Table 1 – Property requirements
Property IEC 60684-2: Units Max. Requirements Remarks
2011 or
clause or min.
subclause
Dimensions 3 To be agreed
Internal diameter 3.1.2 mm between the
Wall thickness 3.3.2 mm purchaser
Concentricity 3.3.3 % and the supplier
– expanded Min. 60
– recovered Min. 85
Heat shock 6 Heat at 150 °C ± 5 K
Tensile strength 19.2 and 19.3 MPa Min. 5
Use a jaw separation
Elongation at break 19.2 and 19.3 % Min. 200
rate of 100 mm/min.
For internal diameters
< 6,5 mm, use
sleeving samples for
testing. On 6,5 mm
and larger diameter
sleeving, use dumb-
bell samples cut from
the sleeving
Longitudinal 9 % Max. –10
change +5
Bending at low 14 – – No cracking
Test at –40 °C
temperature shall be visible.
For strips, the mandrel
shall be between 20
times and 22 times the
wall thickness. Full
section sleeving is
tested unfilled and the
mandrel shall be
between 20 times and
22 times the outer
diameter.
Dimensional 16 – – The dimensions shall See Clause 1
stability on storage remain as agreed
Tensile strength 19.2 and 19.3 MPa Min. 8 Use a jaw separation
rate of 100 mm/min.
Elongation at break 19.2 and 19.3 % Min. 400
For internal diameters
< 6,5 mm, use
sleeving samples for
testing. On 6,5 mm
and larger diameter
sleeving, use dumb-
bell samples cut from
the sleeving
Secant modulus 19.5 MPa Max. 160
at 2 % elongation
Breakdown voltage 21.2 kV/mm Min. See Table 2
Volume resistivity 23 Min. 10
Ω∙m
at room 23.5.2
temperature
---------------------- Page: 10 ----------------------
IEC 60684-3-283:2019 © IEC 2019 – 9 –
Property IEC 60684-2: Units Max. Requirements Remarks
2011 or
clause or min.
subclause
Flame propagation 26 s Max. 60 Burning includes
Method C mm Max. 100 flaming and glowing
Corrosion resistance 32 % Min. No chemical
Heat at 150 °C ± 3 K
interaction
Elongation 19.2 and 19.3 Use a jaw separation
rate of 100 mm/min.
For internal diameters
< 6,5 mm, use
sleeving samples for
testing. On 6,5 mm
and larger diameter
sleeving, use dumb-
bell samples cut from
the sleeving
Resistance to 36 Use the fluids and test
selected fluids temperatures specified
in Table 3
Tensile strength 19.2 and 19.3 MPa Min. 5
Immersion (24 ± 1) h
Elongation at break 19.2 and 19.3 % Min. 200
Use a jaw separation
rate of 100 mm/min.
For internal diameters
< 6,5 mm, use
sleeving samples for
testing. On 6,5 mm
and larger diameter
sleeving, use dumb-
bell samples cut from
the sleeving
Heat ageing 39 Heat at 150 °C ± 3 K
Tensile strength 19.2 and 19.3 MPa Min. 5 Use a jaw separation
rate of 100 mm/min.
Elongation at break 19.2 and 19.3 % Min. 200
For internal diameters
< 6,5 mm, use
sleeving samples for
testing. On 6,5 mm
and larger diameter
sleeving, use dumb-
bell samples cut from
the sleeving
Long term ageing 50 The ageing
temperature shall be
Elongation at break 19.2 and 19.3 % Min. 150
100 °C ± 3 K
Use a jaw separation
rate of 100 mm/min.
For internal diameters
< 6,5 mm, use
sleeving samples for
testing. On 6,5 mm
and larger diameter
sleeving, use dumb-
bell samples cut from
the sleeving
---------------------- Page: 11 ----------------------
– 10 – IEC 60684-3-283:2019 © IEC 2019
Table 2 – Requirements for dielectric strength
Expanded wall thickness Dielectric strength
mm Min.
Expanded ID
Dielectric strength kV/mm
All dimensions Types A+B
All sizes 12
Care should be taken on selection of sizes based on these values. Refer to the
manufacturer for actual values on installed conditions.

Measure the expanded wall thickness and calculate the electric strength by dividing the

breakdown voltage by this value.
The sleeving shall be tested in the expanded condition.
The rate of application of the voltage shall be 500 V/s.
Table 3 – Resistance to selected fluids
Test Fluids Type Standard or symbol Immersion
fluid
temperature
No.
°C ± 2 K
1 Insulating oil Mineral based IEC 60296 23
2 Cleaning fluid Solvent Isopropyl alcohol 23
3 - Water De-ionized 85

Other fluids and/or temperatures may be specified for customers with specific needs. These

additional fluids and/or temperatures shall be applicable when incorporated into agreements

between the supplier and the customer.
---------------------- Page: 12 ----------------------
IEC 60684-3-283:2019 © IEC 2019 – 11 –
Table 4 – Additional property requirements
Property IEC 60684-2: Units Max. or Requirement Remarks
2011 clause or min.
subclause
Fungus The test method shall be
resistance ISO 846 Method B
Tensile strength 19.2 and 19.3 MPa Min. 7 56 days exposure
Elongation % Min. 350 Use a jaw separation rate of
100 mm/min. For internal
diameters < 6,5 mm, use
sleeving samples for testing.
On 6,5 mm and larger
diameter sleeving, use dumb-
bell samples cut from the
sleeving
Resistance to ISO 4892-3 Test method to ISO 4892-3
weathering Method C
Samples for test 19.2 and
After 3 000 h
19.3 should be taken from
Test to
recovered sleeving which is
19.2 and 19.3 MPa Min. 8 flattened. Use a jaw
separation rate of
19.2 and 19.3 % Min. 200
100 mm/min
25 Min. 2,5 kV
Samples for Test 25 should
be taken from specially
for 20 min
prepared test sheets
(6 ± 0,5) mm thick. All
samples should be cut to the
appropriate size to fit the
sample holders.
Intermediate tests may also
be done at 1 000 h intervals
as an intermediate check on
performance.
Resistance to 25 – Min. Class 2A Specimens shall be prepared
tracking from cross-linked moulded
2,5 kV
plaques of thickness
for 1 h
(6 ± 0,5) mm
Specimens shall not be
abraded but cleaned with an
appropriate solvent. The
method of cleaning shall be
recorded.
---------------------- Page: 13 ----------------------
– 12 – IEC 60684-3-283:2019 © IEC 2019
Annex A
(informative)
Guidance to the available sizes and wall thicknesses
Table A.1 – Type A, medium wall
Internal diameter Wall
Expanded Recovered Recovered wall thickness
Min. Max.
mm mm ± 20 %
15,0 6,0 2,0
30,0 12,0 2,3
50,0 20,0 2,5
70,0 25,0 3,0
75,0 30,0 2,5
90,0 30,0 3,0
100,0 40,0 2,5
120,0 50,0 3,0
170,0 60,0 3,0
Table A.2 – Type B, thick wall
Internal diameter Wall
Expanded Recovered Recovered wall thickness
Min. Max.
mm mm ± 20 %
25,0 10,0 4,0
40,0 16,0 4,0
65,0 25,0 4,0
100,0 40,0 4,0
165,0 60,0 4,0
---------------------- Page: 14 ----------------------
IEC 60684-3-283:2019 © IEC 2019 – 13 –
Bibliography

IEC 60684-3 (all sheets), Flexible insulating sleeving – Part 3: Specifications for individual

types of sleeving
___________
