IEC TR 62630:2010

Guidance for evaluating exposure from multiple electromagnetic sources

IEC/TR 62630:2010(E) describes exposure evaluation concepts and techniques for the overall exposure level in spatial regions and occupants caused by the simultaneous exposure to multiple narrowband electromagnetic (EM) sources. Throughout this Technical Report, it is assumed that the exposure evaluation occurs under static conditions, i.e., the source position and transmit-mode characteristics (e.g. emitted power, modulation scheme, etc.) of the device(s) under test do not vary significantly over the time required to carry out the evaluation using the chosen evaluation technique (e.g., field measurements). IEC/TR 62630:2010 provides guidance to IEC TC 106 project teams on how to evaluate the combined exposures from multiple electromagnetic (EM) sources in the frequency range 100 kHz to 300 GHz when specific absorption rate (SAR) and equivalent power density (S) are the relevant exposure metrics, as defined by the main international guidelines recommending limits on human exposure to EM fields.

General Information

• Status: Published
• Publication Date: 09-Mar-2010
• ICS: 17.220.20 - Measurement of electrical and magnetic quantities
• ICS: 33.050.10 - Telephone equipment
• Technical Committee: TC 106 - Methods for the assessment of electric, magnetic and electromagnetic fields associated with human exposure
• Drafting Committee: WG 4 - TC 106/WG 4
• Current Stage: PPUB - Publication issued
• Start Date: 10-Mar-2010
• Completion Date: 30-Jun-2010

Overview

IEC TR 62630:2010 - Guidance for evaluating exposure from multiple electromagnetic sources provides practical, consensus-based guidance for assessing combined human exposure to multiple narrowband electromagnetic (EM) sources in the 100 kHz to 300 GHz frequency range. The report focuses on energy-based exposure metrics - specific absorption rate (SAR) and equivalent power density (S) - and addresses how to estimate overall exposure when several intentional transmitters operate simultaneously under static conditions (source positions and transmit characteristics do not vary significantly during measurement).

Key topics and technical scope

• Frequency and signal scope: Narrowband sources (fractional bandwidth ≤ 10% of centre frequency) in 100 kHz–300 GHz. Wideband/UWB systems are noted but not the primary focus.
• Exposure metrics: Guidance specifically targets SAR (internal/tissue heating) and equivalent power density (external fields).
• Summation techniques: Explains approaches for combining fields from multiple sources, including:
  • Summation of internal fields for SAR and of external fields for power density.
  • Methods for uncorrelated vs correlated sources (e.g., independent transmitters vs beam-steering/adaptive arrays).
  • Vector-sum (accurate) versus conservative scalar-sum approaches and implications when using scalar sensors.
• Device and source classification: Differentiates user-centric vs node-centric devices, single-channel vs band-wide transmitters, and provides practical source classes.
• Measurement considerations: Guidance on selecting appropriate evaluation techniques (field measurements, analytical estimates) and on interpreting results under the assumption of static test conditions.
• Informative annexes: Frequency allocations for common services, analytical support, and worked examples illustrating combined-exposure evaluations.

Practical applications

• Evaluating combined RF exposure around:
  • Multi-band wireless handsets (multiple antennas on the same device)
  • Shared/base-station sites and multi-sector cellular masts
  • Smart antenna arrays and beam-forming systems
• Informing product design and site deployment decisions to manage aggregate exposure
• Supporting test-plan development and exposure assessments used by safety, compliance, and engineering teams

Who should use this technical report

• IEC TC 106 project teams developing exposure standards
• RF and compliance engineers performing exposure assessments (SAR and power-density)
• Health & safety and regulatory specialists assessing aggregate exposure from multiple transmitters
• Test laboratories and certification bodies seeking guidance on summation approaches

Related standards and guidance

• References IEC 62209-1 (human exposure from handheld and body‑mounted wireless devices) and aligns with the main international exposure guidelines that set SAR and power-density limits. IEC TR 62630 does not itself define compliance test methods or regulatory limits - those are covered in product compliance standards and national regulations.

Keywords: IEC TR 62630:2010, electromagnetic exposure, combined exposure, SAR, power density, multiple sources, narrowband, RF safety, IEC TC 106.

Standards Content (Sample)

IEC/TR 62630 ®
Edition 1.0 2010-03
TECHNICAL
REPORT
colour
inside
Guidance for evaluating exposure from multiple electromagnetic sources

IEC/TR 62630:2010(E)

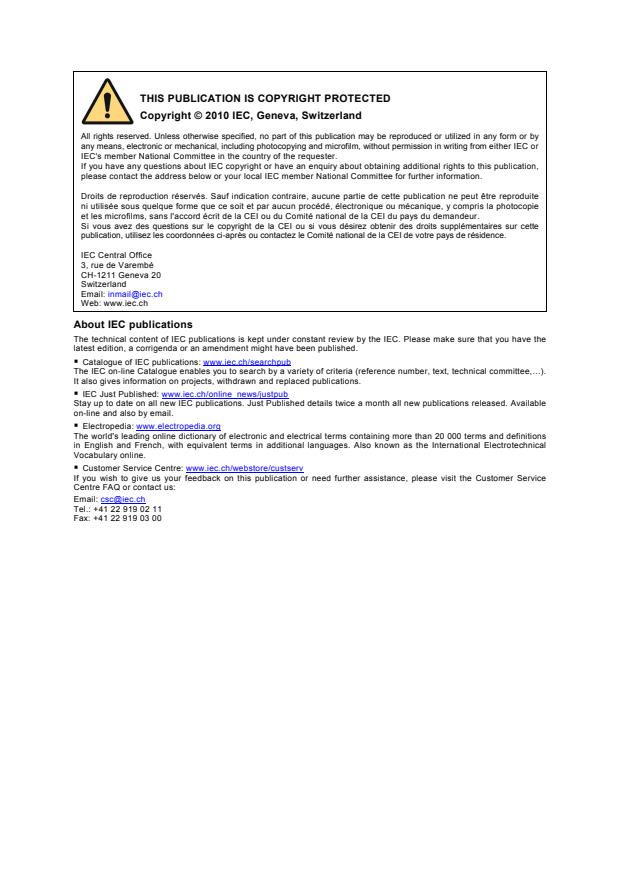

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]
IEC/TR 62630 ®
Edition 1.0 2010-03
TECHNICAL
REPORT
colour
inside
Guidance for evaluating exposure from multiple electromagnetic sources

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
X
ICS 17.220.20; 33.050.10 ISBN 978-2-88910-776-6

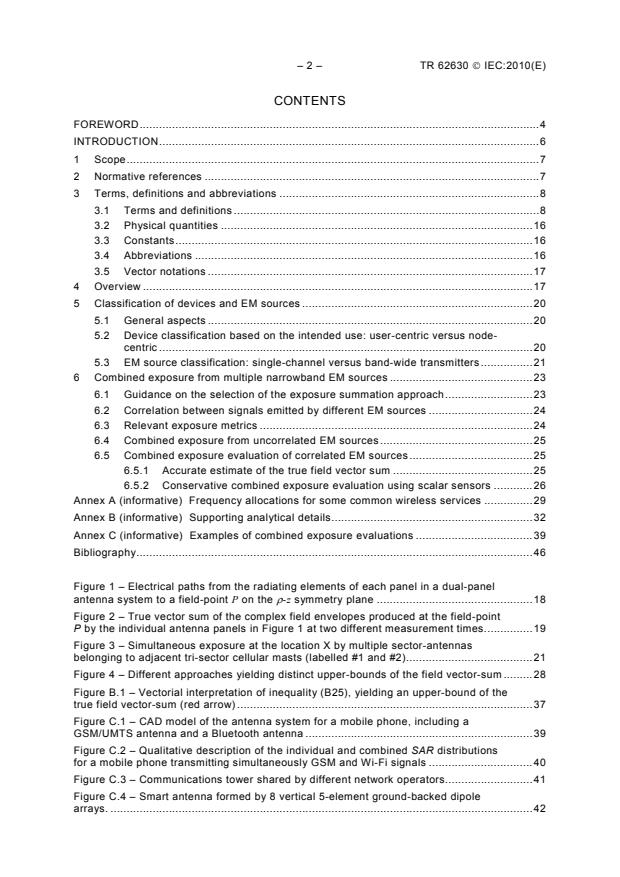

– 2 – TR 62630 © IEC:2010(E)
