IEC 60286-2:2015

Packaging of components for automatic handling - Part 2: Tape packaging of components with unidirectional leads on continuous tapes

IEC 60286-2:2015 applies to the tape packaging of components with two or more unidirectional leads for use in electronic equipment. In general, the tape is applied to the component leads. It covers requirements for taping techniques used with equipment for automatic handling, pre-forming of leads, insertion and other operations and includes only those dimensions which are essential to the taping of components intended for the above-mentioned purposes. This edition includes the following significant changes with respect to the previous edition:
- A complete revision of the structure and reworked layout.
- A two page overview containing a clear overview of all symbols and references.
- Addition of annexes of known radial tape formats.
- Improved figures.

Emballage de composants pour opérations automatisées - Partie 2: Emballage des composants à sorties unilatérales en bandes continues

L'IEC 60286-2:2015 s'applique à l'emballage des composants à deux sorties unilatérales ou plus utilisés dans les équipements électroniques. En général, la bande est appliquée aux sorties des composants. Elle spécifie les exigences relatives aux techniques de mise sur bande applicables pour l'utilisation des équipements de manutention, de préformage des sorties, d'insertion et d'autres opérations automatiques. Elle fournit uniquement les dimensions essentielles pour la mise sur bande de composants destinés aux opérations mentionnées ci-dessus. Cette édition inclut les modifications majeures suivantes par rapport à l'édition précédente:
- Révision complète de la structure et modification de la présentation.
- Vue d'ensemble de deux pages contenant un aperçu clair de tous les symboles et références.
- Ajout d'annexes en formats de bandes radiales connus.
- Amélioration des figures.

General Information

• Status: Published
• Publication Date: 21-Apr-2015
• ICS: 31.020 - Electronic components in general
• ICS: 31.240 - Mechanical structures for electronic equipment
• Technical Committee: TC 40 - Capacitors and resistors for electronic equipment
• Drafting Committee: MT 60286-2 - TC 40/MT 60286-2
• Current Stage: DELPUB - Deleted Publication
• Start Date: 15-Nov-2022
• Completion Date: 31-Mar-2020

Relations

• Revises: IEC 60286-2:2008 - Packaging of components for automatic handling - Part 2: Packaging of components with unidirectional leads on continuous tapes
• Effective Date: 05-Sep-2023
• Revised: IEC 60286-2:2022 - Packaging of components for automatic handling - Part 2: Tape packaging of components with unidirectional leads on continuous tapes
• Effective Date: 05-Sep-2023

Overview

IEC 60286-2:2015 is an internationally recognized standard established by the International Electrotechnical Commission (IEC). It specifies the tape packaging requirements for electronic components with unidirectional leads designed for automatic handling. The standard is essential for manufacturers and users of electronic components who require precise, standardized packaging methods that facilitate automated insertion and assembly processes.

The 2015 edition of IEC 60286-2 introduces a complete revision of its structure, including a clearer layout and detailed overviews of all relevant symbols and references. It also adds annexes documenting known radial tape formats alongside improved illustrative figures, enhancing usability and comprehension for industry professionals.

Key Topics

• Scope and Application: Covers two or more unidirectional lead components used in electronic equipment with tape applied to leads for automatic processing.
• Taping Techniques: Specifies the mechanical and dimensional requirements for taping components to support pre-forming of leads, insertion, and other automated operations.
• Tape and Carrier Dimensions: Defines critical tape widths, sprocket hole positions, pitch between components and sprocket holes, lead terminal sizes, and tape thicknesses essential for compatibility with automatic handling machines.
• Component Positioning: Details precise positioning parameters relative to the tape such as distances from abscissa and ordinate planes, heights of component bodies, and terminal tip locations.
• Tape Material and Strength: Describes material properties, tape adherence, extraction force, and breakage resistance to maintain component integrity during handling.
• Packing and Reeling: Covers reel dimensions, tape leader/trailer design, reeling methods, packaging protection, and marking requirements to facilitate transportation, storage, and traceability.
• Quality Control: Highlights limits on missing components, permissible dimensional deviations, and splicing protocols for ensuring packaging reliability.

Applications

IEC 60286-2:2015 serves as a critical standard for various stakeholders involved in the electronics manufacturing supply chain:

• Component Manufacturers: Ensures that packaging meets automated assembly line requirements, reducing handling errors and increasing efficiency.
• Electronic Assemblers: Enables the use of automated placement equipment by providing standardized packaging that improves feed reliability and reduces downtime.
• Quality Assurance Teams: Provides benchmarks for evaluating packaging conformity, helping to maintain product quality and minimize defects.
• Equipment Designers: Assists in designing compatible feeders and handling systems tailored to standardized tape packaging dimensions and formats.
• Logistics and Inventory Management: Supports consistent packaging for improved storage efficiency, easier handling, and better inventory control.

Related Standards

IEC 60286-2:2015 is part of the broader IEC 60286 series, which addresses packaging of components for automatic handling in multiple formats. Related standards include:

• IEC 60286-1: Packaging of components on continuous tapes with sprocket holes – General requirements.
• IEC 60286-3: Packaging of components on tapes without sprocket holes for automatic handling.
• IEC 60286-4: Packaging of components for bulk automatic handling.
• IEC 60286-5: Packaging of components for automatic handling - Matrix tray packaging.

These linked standards collectively ensure comprehensive guidelines covering various component packaging types, facilitating interoperability and efficiency across global electronics manufacturing.

---

By implementing IEC 60286-2:2015, the electronics industry benefits from streamlined automated handling, enhanced component protection, and harmonized packaging methods that support international trade and quality consistency. This standard is a cornerstone in semiconductor and electronic component packaging, vital for modern automated production environments.

Standards Content (Sample)

IEC 60286-2 ®
Edition 4.0 2015-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Packaging of components for automatic handling –
Part 2: Tape packaging of components with unidirectional leads on continuous
tapes
Emballage de composants pour opérations automatisées –
Partie 2: Emballage des composants à sorties unilatérales en bandes continues

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 60 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC 60286-2 ®
Edition 4.0 2015-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Packaging of components for automatic handling –

Part 2: Tape packaging of components with unidirectional leads on continuous

tapes
Emballage de composants pour opérations automatisées –

Partie 2: Emballage des composants à sorties unilatérales en bandes continues

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.020; 31.240 ISBN 978-2-8322-2595-0

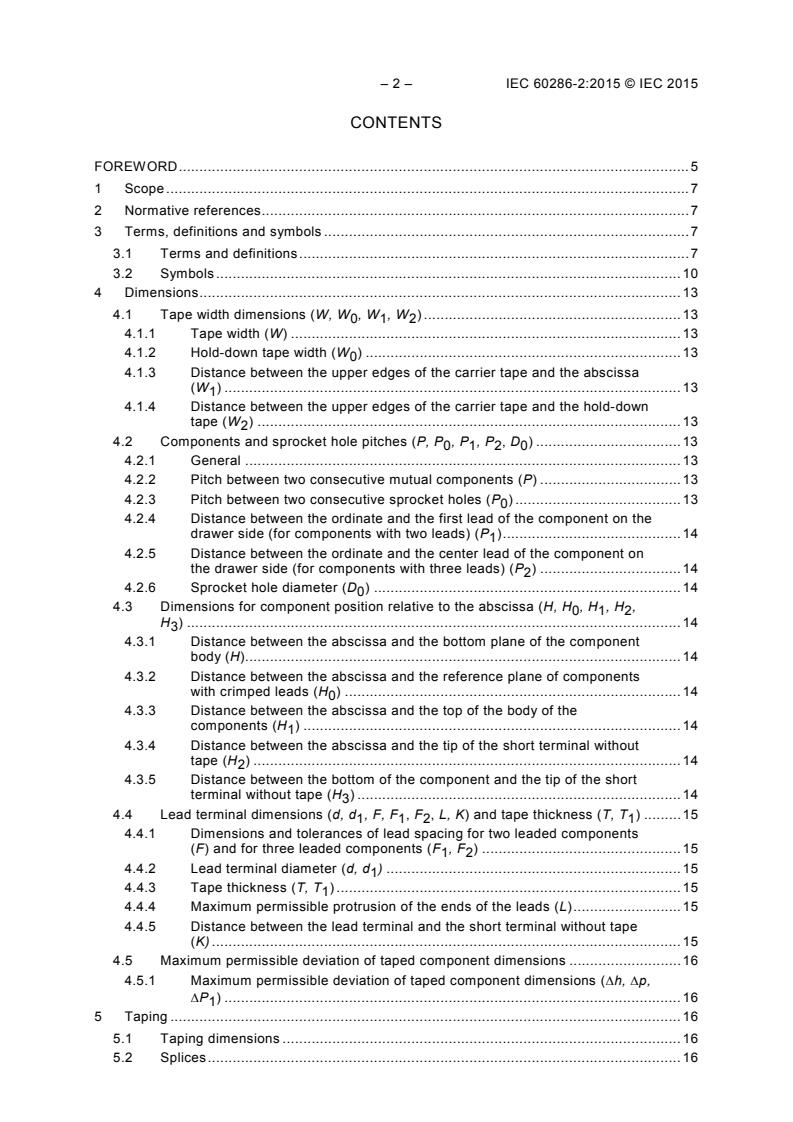

– 2 – IEC 60286-2:2015 © IEC 2015
CONTENTS
FOREWORD . 5
1 Scope . 7
2 Normative references . 7
3 Terms, definitions and symbols . 7
3.1 Terms and definitions . 7
3.2 Symbols . 10
4 Dimensions . 13
4.1 Tape width dimensions (W, W , W , W ) . 13
0 1 2
4.1.1 Tape width (W) . 13
4.1.2 Hold-down tape width (W ) . 13
4.1.3 Distance between the upper edges of the carrier tape and the abscissa
(W ) . 13
4.1.4 Distance between the upper edges of the carrier tape and the hold-down

tape (W ) . 13
4.2 Components and sprocket hole pitches (P, P , P , P , D ) . 13
0 1 2 0
4.2.1 General . 13
4.2.2 Pitch between two consecutive mutual components (P) . 13
4.2.3 Pitch between two consecutive sprocket holes (P ) . 13
4.2.4 Distance between the ordinate and the first lead of the component on the
drawer side (for components with two leads) (P ) . 14
4.2.5 Distance between the ordinate and the center lead of the component on
the drawer side (for components with three leads) (P ) . 14
4.2.6 Sprocket hole diameter (D ) . 14
4.3 Dimensions for component position relative to the abscissa (H, H , H , H ,
0 1 2
H ) . 14
4.3.1 Distance between the abscissa and the bottom plane of the component
body (H). 14
4.3.2 Distance between the abscissa and the reference plane of components
with crimped leads (H ) . 14
4.3.3 Distance between the abscissa and the top of the body of the
components (H ) . 14
4.3.4 Distance between the abscissa and the tip of the short terminal without
tape (H ) . 14
4.3.5 Distance between the bottom of the component and the tip of the short
terminal without tape (H ) . 14
4.4 Lead terminal dimensions (d, d , F, F , F , L, K) and tape thickness (T, T ) . 15
1 1 2 1
4.4.1 Dimensions and tolerances of lead spacing for two leaded components
(F) and for three leaded components (F , F ) . 15
1 2
4.4.2 Lead terminal diameter (d, d ) . 15
4.4.3 Tape thickness (T, T ) . 15
4.4.4 Maximum permissible protrusion of the ends of the leads (L) . 15
4.4.5 Distance between the lead terminal and the short terminal without tape
(K) . 15
4.5 Maximum permissible deviation of taped component dimensions . 16
4.5.1 Maximum permissible deviation of taped component dimensions (∆h, ∆p,
∆P ) . 16
5 Taping . 16
5.1 Taping dimensions . 16
5.2 Splices . 16

5.3 Tape leader and trailer . 17
6 Tape . 17
6.1 Polarization direction on tape . 17
6.2 Kinks or bends on tape . 17
6.3 Adhesion to tape and extraction force . 17
6.4 Tape breaking force . 18
6.5 Tape material . 18
6.6 Hold-down tape . 18
6.7 Missing components . 18
7 Packing . 19
7.1 General . 19
7.2 Reel dimensions. 19
7.2.1 Component tape reeling . 20
7.2.2 Components protection . 20
7.2.3 Reel filling . 21
7.3 Maximum dimensions of the fan-fold container . 21
7.4 Recycling . 21
7.5 Marking . 21
Annex A (informative) Dimensions for two leads . 22
A.1 Dimensions for two formed leads, sprocket hole between parts . 22
A.2 Dimensions for two formed leads, sprocket hole between leads . 24
A.3 Dimensions for two straight leads, sprocket hole between parts . 26
A.4 Dimensions for two straight leads, sprocket hole between leads . 28
Annex B (informative) Dimensions for three leads . 30
B.1 Dimensions for three formed leads, sprocket hole between parts . 30
B.2 Dimensions for three formed leads, sprocket hole between leads . 32
Bibliography . 34

Figure 1 – Short terminal without tape . 8
Figure 2 – Crimp . 8
Figure 3 – Abscissa, ordinate, seating plane and reference plane . 9
Figure 4 – Symbol references of tape and taped components dimensions . 11
Figure 5 – Symbol references of reel dimensions . 12
Figure 6 – Symbol references of fan-fold container dimensions . 12
Figure 7 – Position of short terminal without tape . 16
Figure 8 – Leader and trailer of tape . 17
Figure 9 – Pull strength from taping . 18
Figure 10 – Missing components . 19
Figure 11 – Reeling . 20
Figure A.1 – Symbol references for two formed leads, sprocket hole between parts . 22
Figure A.2 – Symbol references for two formed leads, sprocket hole between leads . 24
Figure A.3 – Symbol references for two straight leads, sprocket hole between parts . 26
Figure A.4 – Symbol references for two straight leads, sprocket hole between leads . 28
Figure B.1 – Symbol references for three formed leads, sprocket hole between parts . 30
Figure B.2 – Symbol references for three formed leads, sprocket hole between leads . 32

– 4 – IEC 60286-2:2015 © IEC 2015
Table 1 – List of symbols for tape and taped components . 10
Table 2 – List of symbols used for packing taped components . 12
Table 3 – Reel dimensions . 20
Table 4 – Maximum outer dimensions for a fan-fold arrangement . 21
Table A.1 – Dimensions for two formed leads, sprocket hole between parts . 23
Table A.2 – Dimensions for two formed leads, sprocket hole between leads . 25
Table A.3 – Dimensions for two straight leads, sprocket hole between parts . 27
Table A.4 – Dimensions for two straight leads, sprocket hole between leads . 29
Table B.1 – Dimensions for three formed leads, sprocket hole between parts . 31
Table B.2 – Dimensions for three formed leads, sprocket hole between leads . 33

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PACKAGING OF COMPONENTS FOR AUTOMATIC HANDLING –

Part 2: Tape packaging of components with
unidirectional leads on continuous tapes

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60286-2 has been prepared by IEC technical committee 40:
Capacitors and resistors for electronic equipment.
This fourth edition cancels and replaces the third edition, published in 2008, and constitutes a
technical revision.
This edition includes the following significant changes with respect to the previous edition:
– A complete revision of the structure and reworked layout.
– A two page overview containing a clear overview of all symbols and references.
– Addition of annexes of known radial tape formats.
– Improved figures.
– 6 – IEC 60286-2:2015 © IEC 2015
The text of this standard is based on the following documents:
FDIS Report on voting
40/2343/FDIS 40/2374/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 60286 series, published under the general title Packaging of
components for automatic handling, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
PACKAGING OF COMPONENTS FOR AUTOMATIC HANDLING –

Part 2: Tape packaging of components with
unidirectional leads on continuous tapes

1 Scope
This part of IEC 60286 applies to the tape packaging of components with two or more
unidirectional leads for use in electronic equipment. In general, the tape is applied to the
component leads.
It covers requirements for taping techniques used with equipment for automatic handling, pre-
forming of leads, insertion and other operations and includes only those dimensions which are
essential to the taping of components intended for the above-mentioned purposes.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
IEC 60097:1991, Grid systems for printed circuits
IEC 60301, Preferred diameters of wire terminations of capacitors and resistors
3 Terms, definitions and symbols
For the purpose of this document, the following terms, definitions and symbols apply.
3.1 Terms and definitions
3.1.1
package
product made of any material of any nature to be used in containment, protection, structured
alignment for automatic assembly, handling and delivery
3.1.2
short terminal without tape
terminal which is not held between carrier tape and cover tape
Note 1 to entry: See Figure 1.

– 8 – IEC 60286-2:2015 © IEC 2015
Short terminal
without tape
IEC
Figure 1 – Short terminal without tape
3.1.3
crimp
cinch
purposely formed angular deformation, starting at the reference plane, in such a way that the
component bottom side does not touch the top surface of the printed circuit board after
insertion and therefore acts as a ‘stand-off’
Note 1 to entry: The formed crimp is available in different forms, see Figure 2.
Note 2 to entry: A crimp acts as a ‘stand-off’ tool.
crimp
Reference plane (see 3.1.8)
IEC
Figure 2 – Crimp
3.1.4
ordinate
straight line, perpendicular to the abscissa through the centre of the closest sprocket hole that
follows the component to be checked
See Figure 3.
3.1.5
abscissa
straight line, through the centres of the sprocket holes in the direction of unreeling
See Figure 3.
3.1.6
seating plane
bottom of the component body, including any projections
which support the component on the printed board
See Figure 3.
Note 1 to entry: The line goes parallel to the reference abscissa through the bottom point nearest to the tape.
Note 2 to entry: A method for determining the seating plane is given in IEC 60717.
Note 3 to entry: For definition of the reference plane, see 3.1.8, for definition of crimped leads, see 3.1.3.
3.1.7
seating plane
plane that changes depending on the profile
of the crimp, the diameter of the leads and the hole size in the printed board
See Figure 3.
Note 1 to entry: In these components, instead of a seating plane, a reference plane is defined, for components
with crimped leads only.
Note 2 to entry: A method for determining the seating plane is given in IEC 60717.
Note 3 to entry: For definition of the reference plane, see 3.1.8, for definition of crimped leads, see 3.1.3.
3.1.8
reference plane
line parallel to the abscissa through the lowest centre of the radius of curvature of the bending
of the crimp
Note 1 to entry: See Figure 3.
To be checked component
Upper edges of the carrier tape
Seating plane (see 3.1.6 and 3.1.7)
Reference plane (see 3.1.8)
Hold-down tape
Abscissa (see 3.1.5)
Carrier tape
Sprocket holes
IEC
Figure 3 – Abscissa, ordinate, seating plane and reference plane
Ordinate (see 3.1.4)
– 10 – IEC 60286-2:2015 © IEC 2015
3.2 Symbols
The symbols used for tape and taped components are listed in Table 1 and Table 2. The use of
these symbols is exemplified in Figure 4, Figure 5 and Figure 6.
Table 1 – List of symbols for tape and taped components
Symbols Definition of symbols Figure 4, Subclause
sketch
d Lead terminal diameter E 4.4.2
d Diameter of short terminal without tape F 4.4.2
D Sprocket hole diameter E 4.2.6
F Lead spacing D 4.4.1
F Lead spacing between left lead and centre lead of the components with D 4.4.1
three leads
Lead spacing between right lead and centre lead of the components with D 4.4.1
F
three leads
H Distance between the abscissa and the bottom plane of the component A, B, C, D 4.3.1
body
H Distance between the abscissa and the reference plane of components D 4.3.2
with crimped leads (for crimped leads only)
H Distance between the abscissa and the top of the body of the A, B, C, D 4.3.3
components
H Distance between the abscissa and tip of short terminal without tape E 4.3.4
H Distance between the bottom of components and tip of short terminal E 4.3.5
without tape
∆h Maximum lateral deviation of the component body vertical to the tape H 4.5.1
plane
K Distance between the lead terminal and the short terminal without tape F 4.4.5
L Protrusion beyond the lower side of the carrier tape E 4.4.4
P Pitch of the mutual components A, B, C 4.2.2
P Pitch of the sprocket holes A, B, C, D 4.2.3
P Distance between ordinate and first lead terminal of the drawer side A, B, C, D 4.2.4
P Distance between the ordinate and the centre lead of the component on D 4.2.5
the drawer side
∆p Maximum deviation of the component body in the tape plane G 4.5.1
Maximum deviation of the component lead in the seating plane C 4.5.1
∆P
T Thickness of the carrier tape and the hold-down tape I 4.4.3
T Total thickness of the carrier tape, the hold-down tape and diameter of I 4.4.3
the lead
W Carrier tape width D 4.1.1
W Hold-down tape width D 4.1.2
W Distance between the upper edges of the carrier tape and the abscissa D 4.1.3
(centre of the sprocket hole)
W Distance between the upper edges of the carrier tape and the hold-down D 4.1.4
tape
P P
P
. . . .
∆P
P ∆P 1
1 1
P
1 •
P P
P 0 1
P
Sketch C
Sketch A Sketch B
Reference plane
• •  • • •
Direction of unreeling
P
F
F
F
P
P
Sketch D
d
d
K K
Single line Double line
D
d
Sketch F
Sketch E
∆p ∆h ∆h
∆p
•
•
Δ Δ
Δ – Δ
(cross-section)
Sketch G
Sketch H Sketch I
IEC
Figure 4 – Symbol references of tape and taped components dimensions
H
H
H2
H
H
H
3 H
L
H
H
W
W
W
H
W
H
T
T
– 12 – IEC 60286-2:2015 © IEC 2015
Table 2 – List of symbols used for packing taped components
Symbols Definition of symbols Figure reference Subclause
A Reel diameter Figure 5 7.2
C Arbour hole diameter Figure 5 7.2
N Hub diameter Figure 5 7.2
W Width between flanges, measured at hub Figure 5 7.2
Total reel width, measured at hub Figure 5 7.2
W
X Width of fan-fold container Figure 6 7.3
Y Length of fan-fold container Figure 6 7.3
Z Height of fan-fold container Figure 6 7.3

Optional reel shape: circular, square or polygonal
W
3 Δ
N
• • . .
• •
C
W
Δ – Δ
Δ
(cross-section)
IEC
Figure 5 – Symbol references of reel dimensions
Y
X
IEC
Figure 6 – Symbol references of fan-fold container dimensions
Z
A
4 Dimensions
For references, see Figure 4 and Table 1.
4.1 Tape width dimensions (W, W , W , W )
0 1 2
The following clauses describe the dimensions related to tape width.
4.1.1 Tape width (W)
See Figure 4, sketch D
+1,0
– Carrier tape width W W = 18 mm
-0,5
)
4.1.2 Hold-down tape width (W
See Figure 4, sketch D
This dimension is governed by the retention of the components in the tape. The hold-down tape
shall not protrude beyond the carrier tape.
– Hold-down tape width W (see Annex A and Annex B)
4.1.3 Distance between the upper edges of the carrier tape and the abscissa (W )
See Figure 4, sketch D
+0,75
– Position of sprocket hole W W = 9,0 mm
-0,5
1 1
4.1.4 Distance between the upper edges of the carrier tape and the hold-down tape
)
(W
See Figure 4, sketch D
– Distance W W = 3,0 mm max.
2 2
4.2 Components and sprocket hole pitches (P, P , P , P , D )
0 1 2 0
4.2.1 General
The following subclauses describe the dimensions common to the taped component in relation
to its location in the tape and the mutual distance between components.
The grid is defined as lead spacing e = 2,5 mm shall be used (see IEC 60097).
NOTE 1 Components with a lead spacing of F = 3 × e may be delivered with the sprocket holes arranged between
the leads of the component (see Figure 4, sketch B).
NOTE 2 Components with a lead spacing of F = 8 × e to 11 × e may be delivered with one or two sprocket holes
arranged between the leads of the component (see Figure 4, sketch B and C).
4.2.2 Pitch between two consecutive mutual components (P)
See Figure 4, sketch A, B, and C
– Pitch P (see Annex A and Annex B)
4.2.3 Pitch between two consecutive sprocket holes (P )
See Figure 4, sketch A, B, C and D
– Pitch P (see Annex A and Annex B)
– 14 – IEC 60286-2:2015 © IEC 2015
4.2.4 Distance between the ordinate and the first lead of the component on the drawer
side (for components with two leads) (P )
See Figure 4, sketch A, B, C and D
– Pitch P (see Annex A)
4.2.5 Distance between the ordinate and the center lead of the component on the
drawer side (for components with three leads) (P )
See Figure 4, sketch D
– Pitch P (see Annex B)
4.2.6 Sprocket hole diameter (D )
See Figure 4, sketch E. The maximum tolerance over any 20 sprocket hole pitches is ±1 mm.
– Sprocket hole diameter D D = (4,0 ± 0,2) mm
0 0
4.3 Dimensions for component position relative to the abscissa (H, H , H , H , H )
0 1 2 3
The following subclauses describe the dimensions of the position of the components related to
the abscissa.
4.3.1 Distance between the abscissa and the bottom plane of the component body (H)
See Figure 4, sketch A, B, C and D
+2,0
– Distance H H = 18,0 mm
4.3.2 Distance between the abscissa and the reference plane of components with
crimped leads (H )
See Figure 4, sketch D
– Distance H (for crimped leads only) H = (16,0 ± 0,5) mm
0 0
4.3.3 Distance between the abscissa and the top of the body of the components (H )
See Figure 4, sketch A, B, C and D
– Distance H (see Annex A and Annex B)

4.3.4 Distance between the abscissa and the tip of the short terminal without tape (H )
See Figure 4, sketch E
+2,0
– Distance H H = 17,0 mm
2 2
4.3.5 Distance between the bottom of the component and the tip of the short terminal
without tape (H )
See Figure 4, sketch E
– Distance H H = [terminal length] mm ± 0,5 mm

3 3
Total dimension of H is the length of the terminal that protrudes through the printed circuit
board including the length of the terminal that sticks out from the bottom of the printed circuit
board after inserting components to it. Sufficient lead terminal should stick out underneath the
PCB surface for the purpose of clinching. Tolerance shall only be specified for soldering
purposes.
4.4 Lead terminal dimensions (d, d , F, F , F , L, K) and tape thickness (T, T )
1 1 2 1
The following subclauses describe the dimensions and tolerances that belong to the lead
terminals of the packaged components.
4.4.1 Dimensions and tolerances of lead spacing for two leaded components (F) and
for three leaded components (F , F )
1 2
See Figure 4, sketch D and Annex A and Annex B.
+0,5
Tolerance of lead pitch F  mm
–0,2
+0,4
Tolerance of lead pitch F and F  mm
–0,1
1 2
Components shall be taped and handled so that lead spacing can easily be maintained within
tolerances after separation or removal from the tape.
4.4.2 Lead terminal diameter (d, d )
See Figure 4, sketch E and F
Diameter d and d of lead terminal select in accordance with IEC 60301.
Market trend for automatic insertion, where lead spacing is F = 5 mm, the recommended lead
diameters are 0,6 mm maximum, and where lead spacing is F = 7,5 mm, the recommended
lead diameters are 0,8 mm maximum.
NOTE When the lead type is not a circle, a circle going through the corners of the non-circular cross-section is
considered to be the equivalent circular cross-section.
4.4.3 Tape thickness (T, T )
See Figure 4, sketch I.
Unless otherwise specified by agreement between the manufacturer and the customer, the
thickness of the tape shall be as follows:
Total thickness T of the combined carrier and hold-down tape T = 0,9 mm max.
Total thickness T of the combined carrier and hold-down tape
including the leads T = T + d
4.4.4 Maximum permissible protrusion of the ends of the leads (L)
See Figure 4, sketch E
Protrusion L beyond the lower side of the carrier tape L = 0,5 mm max.
NOTE Market trend tends towards smaller values.
4.4.5 Distance between the lead terminal and the short terminal without tape (K)
See Figure 4, sketch F.
Tolerance of distance K for a single line ±0,3 mm
+0,3
Dimension and tolerance of distance K for a double line K = 2,5 mm
-0,3
– 16 – IEC 60286-2:2015 © IEC 2015
The recommended positions and shape for the short terminal without tape are shown in
Figure 7. For easier guidance through the hole in the PCB it is recommended to form the lead
tip of the short terminal in a V-shape.
≥ 1,0 mm
≥ 1,0 mm
+0,3
+0,3
2,5 mm
-0,3
2,5 mm
-0,3
K K
Tip of the lead cut by V-shape
IEC
Figure 7 – Position of short terminal without tape
4.5 Maximum permissible deviation of taped component dimensions
The following subclause describes the maximum permissible deviations.
4.5.1 Maximum permissible deviation of taped component dimensions (∆h, ∆p, ∆P )
See Figure 4, sketch A, B, C, G and H.
From the nominal position: Maximum lateral deviation ∆h l∆hl = 2 mm max.
of the component body vertical to the tape plane
Maximum deviation of the component body in the tape plane ∆p l∆pl = 1,3 mm max.
Maximum deviation of the component leads in the seating plane (valid from the upper edge of
the tape for all values of P to the seating plane or reference plane respectively)
∆P l∆P l = 0,7 mm max.
1 1
The following instructions apply:
a) for new design e = 2,5 mm shall be used (see IEC 60097);
b) when taping components with sprocket holes between its leads, care shall be taken that the
leads do not interfere with the sprocket holes;
c) for cases where inter-changeability cannot be guaranteed (see NOTE 1 and NOTE 2 in 4.2.1).
5 Taping
5.1 Taping dimensions
Taping dimensions shall be in accordance with Annex A. When the lead terminal is formed, the
type and dimensions of the forming shall be by agreement between the manufacturer and
customer.
5.2 Splices
Splices shall be at least as strong as the original tape and shall not hamper the transport and
the cutting of the tape. When splicing is applied, the misalignment of the holes on each side of

the splice shall not be more than ±0,3 mm in any direction. Splices shall not interfere with
sprocket feed holes nor shall the overall thickness exceed 1,5 mm. When used, staples shall
not interfere with the transport and cutting operations.
NOTE This includes deformation of lead ends due to shearing operations.
5.3 Tape leader and trailer
When a leader and/or trailer tape is required for tape handling, the leader and/or trailer shall
have a minimum length equivalent to the distance of at least three sprocket holes (see
Figure 8).
1 pitch
2 pitches
3 pitches
IEC
Figure 8 – Leader and trailer of tape
6 Tape
6.1 Polarization direction on tape
All polarized components shall be oriented in one direction. The cathode lead and, for
transistors (except for TO-92 packages), the emitter lead shall be the last one to leave the
package, unless otherwise specified in the detail specification. For TO-92 packages the flat
side shall be on the upper side of the tape.
6.2 Kinks or bends on tape
The wire terminations of the taped components shall be free from kinks or bends between the
seating or reference plane and the carrier tape.
6.3 Adhesion to tape and extraction force
The components shall be held sufficiently in the tape, so that their position remains, during
storage and transportation, within the permitted tolerances.
The extraction force for components in the tape plane, vertical to the direction of unreeling
shall be minimum 5 N (see Figure 9).

– 18 – IEC 60286-2:2015 © IEC 2015
Pull strength
Component body
Lead terminal
Carrier tape
Cover tape
Fixer (an example)
IEC
Figure 9 – Pull strength from taping
6.4 Tape breaking force
The minimum breaking force of the tape shall be 15 N.
6.5 Tape material
The tapes shall be suitable to withstand storage of the taped components. The tape material
shall not migrate along the leads or give off vapours which may affect solderability or affect the
mechanical or electrical characteristics of component and leads by chemical action (e.g.
corrosion).
In addition, the hold-down tape shall not become detached so that the components do not
remain in position after storage. Any degradation of the carrier tape occurring during storage
shall not cause the tape to break or prevent the demounting of components during normal use.
Tapes in adjacent layers shall not stick together in the packing, e.g. because of exposed
adhesive.
The sprocket holes shall be free from burrs and traces of adhesive from the hold-down tape.
6.6 Hold-down tape
For tapes in fan-fold arrangement the hold-down tape shall preferably not become separated
from the carrier tape in the region of the fold. If this cannot be avoided, the value of the
maximum tape thickness shall not be exceeded.
6.7 Missing components
For automatic insertion, the number of empty places in the tape per reel or fan-fold
arrangement shall not exceed:
– three (3) missing components, when the component pitch is equivalent to one sprocket hole
pitch (see Figure 10);
– one (1) missing component, when the component pitch is equivalent to two sprocket hole
pitches or more (see Figure 10).
Empty places, for example programmed empty places at the bend or fan-fold packing, or for
other reasons, shall be by agreement between the supplier and the customer.

Component pitch P = 1*P Component pitch P = 2*P
P P
Correct
1*P
1*P 0
2*P
2*P 0
3*P 3*P
0 0
Component pitch P = 2*P
Component pitch P = 1*P
0 0
P
P
Not correct
1*P
1*P
2*P
2*P
3*P
3*P
4*P
4*P
IEC
Figure 10 – Missing components
7 Packing
7.1 General
For lead spacing dimension F, see 4.4.1.
The tapes of components may either be wound on reels or folded (for example in a fan-fold
arrangement).
When winding the tape on the reel, the carrier tape shall be closest to the centre of the reel.
7.2 Reel dimensions
For a list of symbols, see Table 2. References to the preferred reel dimensions are shown in
Figure 5 and Table 3.
– 20 – IEC 60286-2:2015 © IEC 2015
Table 3 – Reel dimensions
Dimensions in millimetres
Total reel width, Width between Reel diameter Hub diameter Arbour hole
measured at hub flanges, measured diameter
at hub
W maximum W A maximum N C
4 3
65 370 80 min.
a
400 14 to 38
90 500
125 max.
a
The distance W between the flanges shall be governed by the overall dimensions of the taped component
and shall allow proper reeling and unreeling.

7.2.1 Component tape reeling
Reeling of the tape with taped components shall be performed according Figure 11.
NOTE The upper side could be a hold-down tape.
Reel
Upper side
(hold down tape)
Tape
Lower side
(Carrier tape)
IEC
Figure 11 – Reeling
7.2.2 Components protection
In order to prevent component damage and lead distortion, protection between layers of
components and over the last layer may be necessary.
In this case protection materials shall not cause deterioration of the components or of lead
solderability.
Direction of unreeling
7.2.3 Reel filling
The total number of components on the reel shall be such that the components and the final
