IEC 62922:2016
(Main)Organic light emitting diode (OLED) panels for general lighting - Performance requirements
Organic light emitting diode (OLED) panels for general lighting - Performance requirements
IEC 62922:2016 specifies the performance requirements of OLED tiles and panels for use on DC supplies up to 120 V or AC supplies up to 50 V at 50 Hz or 60 Hz for indoor and similar general lighting purposes.
Panneaux à diodes électroluminescentes organiques (OLED) destinés à l'éclairage général - Exigences de performance
L'IEC 62922:2016 spécifie les exigences de performance des dalles et des panneaux OLED destinés à être utilisés avec des alimentations en courant continu jusqu'à 120 V ou avec des alimentations en courant alternatif jusqu'à 50 V à 50 Hz ou 60 Hz, pour l'éclairage général intérieur ou similaire.
General Information
Relations
Buy Standard
Standards Content (Sample)
IEC 62922
®
Edition 1.1 2021-08
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Organic light emitting diode (OLED) panels for general lighting – Performance
requirements
Panneaux à diodes électroluminescentes organiques (OLED) destinés à
l'éclairage général – Exigences de performance
IEC 62922:2016-11+AMD1:2021-08 CSV(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2021 IEC, Geneva, Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - IEC online collection - oc.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 000 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
16 langues additionnelles. Egalement appelé Vocabulaire
Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------

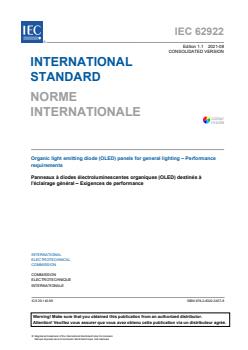

IEC 62922
®
Edition 1.1 2021-08
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Organic light emitting diode (OLED) panels for general lighting – Performance
requirements
Panneaux à diodes électroluminescentes organiques (OLED) destinés à
l'éclairage général – Exigences de performance
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.99 ISBN 978-2-8322-5457-8
Warning! Make sure that you obtained this publication from an authorized distributor.
Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.
® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------
IEC 62922
®
Edition 1.1 2021-08
CONSOLIDATED VERSION
REDLINE VERSION
VERSION REDLINE
colour
inside
Organic light emitting diode (OLED) panels for general lighting – Performance
requirements
Panneaux à diodes électroluminescentes organiques (OLED) destinés à
l'éclairage général – Exigences de performance
IEC 62922:2016-11+AMD1:2021-08 CSV(en-fr)
---------------------- Page: 4 ----------------------
– 2 – IEC 62922:2016+AMD1:2021 CSV
© IEC 2016

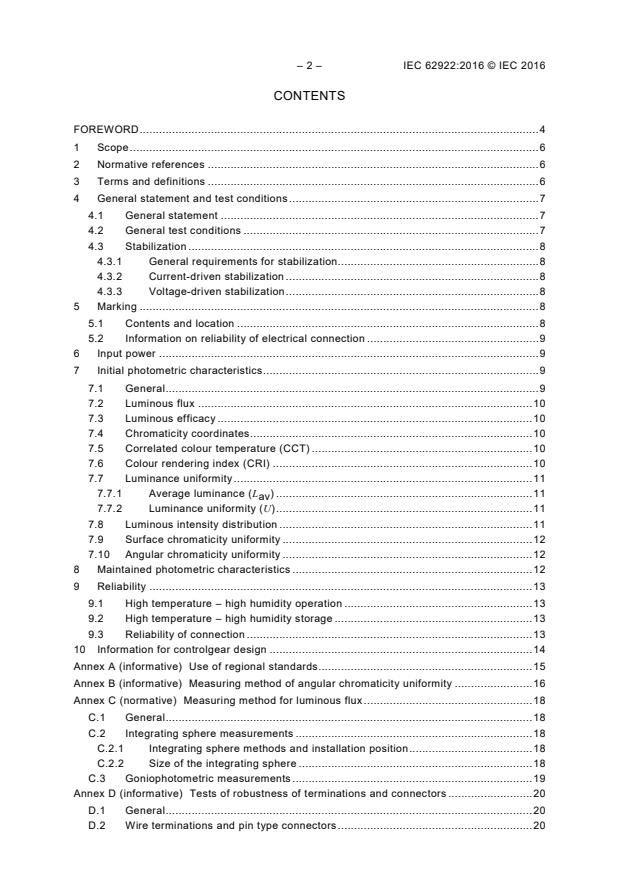

CONTENTS
FOREWORD . 5
1 Scope . 7
2 Normative references. 7
3 Terms and definitions . 7
4 General statement and test conditions . 8
4.1 General statement . 8
4.2 General test conditions . 9
4.3 Stabilization . 9
4.3.1 General requirements for stabilization . 9
4.3.2 Current-driven stabilization . 9
4.3.3 Voltage-driven stabilization . 10
5 Marking . 10
5.1 Contents and location . 10
5.2 Information on reliability of electrical connection . 10
6 Input power . 11
7 Initial photometric characteristics . 11
7.1 General . 11
7.2 Luminous flux . 11
7.3 Luminous efficacy . 11
7.4 Chromaticity coordinates . 11
7.5 Correlated colour temperature (CCT) . 12
7.6 Colour rendering index (CRI) . 12
7.7 Luminance uniformity . 12
7.7.1 Average luminance (L ) . 12
av
7.7.2 Luminance uniformity (U) . 12
7.8 Luminous intensity distribution . 13
7.9 Surface chromaticity uniformity . 13
7.10 Angular chromaticity uniformity . 13
8 Maintained photometric characteristics . 14
8.1 Luminous flux maintenance . 14
8.2 Maintained operating voltage . 14
8.3 Maintained chromaticity coordinates . 15
9 Reliability . 15
9.1 High temperature – high humidity operation . 15
9.2 High temperature – high humidity storage . 15
9.3 Reliability of connection . 16
10 Information for controlgear design . 16
Annex A (informative) Use of regional standards . 17
Annex B (informative) Measuring method of angular chromaticity uniformity . 18
Annex C (normative) Measuring method for luminous flux . 20
C.1 General . 20
C.2 Integrating sphere measurements . 20
C.2.1 Integrating sphere methods and installation position . 20
C.2.2 Size of the integrating sphere . 20
---------------------- Page: 5 ----------------------
IEC 62922:2016+AMD1:2021 CSV – 3 –
© IEC 2016
C.3 Goniophotometric measurements . 21
Annex D (informative) Tests of robustness of terminations and connectors . 22
D.1 General . 22
D.2 Wire terminations and pin type connectors . 22
D.2.1 General . 22
D.2.2 Tensile test . 22
D.2.3 Bending test . 22
D.2.4 Torsion test . 22
D.3 Flexible flat terminations . 22
D.3.1 General . 22
D.3.2 Peel test A . 23
D.3.3 Peel test B . 23
D.4 Soldering . 23
Annex E (informative) Information for controlgear design . 24
E.1 General . 24
E.2 Operation . 24
E.3 Characteristics of the driver output current . 24
E.4 Characteristics of the driver output voltage . 25
E.5 Dimming . 25
E.6 Short-circuit protection . 25
Annex F (informative) Information for luminaire design . 26
Annex G (normative) Measuring method for average luminance . 27
G.1 General . 27
G.2 Setting . 27
G.3 Imaging luminance measuring device (ILMD) method . 27
G.4 Spot luminance meter method . 27
Annex H (informative) Information on lifetime estimation . 28
H.1 General . 28
H.2 Extrapolation through the deterioration curve fitting . 28
H.3 Lifetime estimation using accelerated testing . 29
H.4 Life estimation using the acceleration factor . 30
H.5 Extrapolation of lifetime using current acceleration data . 30
H.6 Extrapolation of lifetime using current and temperature acceleration data . 31
Bibliography . 34
Figure C.1 – 4π geometry (left), 2π geometry sphere (centre) and 2π geometry
hemisphere (right) . 20
Figure D.1 – Schematic diagram of peel test A . 23
Figure E.1 – Voltage and luminance behaviour at constant current operation . 24
Figure H.1 – Typical degradation curve of acceleration test . 29
Figure H.2 – Dependence of L on the driving current . 31
70
Figure H.3 – Arrhenius plot and power function . 33
Figure H.4 – Current dependence of t and L . 33
0 70
Table 1 – Contents and location of marking . 10
Table B.1 – Chromaticity coordinates for all viewing angles between 0° and 80°
in 5° steps . 18
---------------------- Page: 6 ----------------------
– 4 – IEC 62922:2016+AMD1:2021 CSV
© IEC 2016
Table B.2 – Colour difference between all chromaticity coordinate pairs . 19
---------------------- Page: 7 ----------------------
IEC 62922:2016+AMD1:2021 CSV – 5 –
© IEC 2016
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ORGANIC LIGHT EMITTING DIODE (OLED) PANELS
FOR GENERAL LIGHTING – PERFORMANCE REQUIREMENTS
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This consolidated version of the official IEC Standard and its amendment has been
prepared for user convenience.
IEC 62922 edition 1.1 contains the first edition (2016-11) [documents 34A/1942/FDIS and
34A/1956/RVD] and its amendment 1 (2021-08) [documents 34A/2241/FDIS and
34A/2252/RVD].
In this Redline version, a vertical line in the margin shows where the technical content
is modified by amendment 1. Additions are in green text, deletions are in strikethrough
red text. A separate Final version with all changes accepted is available in this
publication.
---------------------- Page: 8 ----------------------
– 6 – IEC 62922:2016+AMD1:2021 CSV
© IEC 2016
International Standard IEC 62922 has been prepared by subcommittee 34A: Lamps, of IEC
technical committee 34: Lamps and related equipment.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
In this standard, the following print types are used:
– requirements: roman type,
– test specifications: italic type,
– notes: smaller roman type.
The committee has decided that the contents of the base publication and its amendment will
remain unchanged until the stability date indicated on the IEC web site under webstore.iec.ch
in the data related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
---------------------- Page: 9 ----------------------
IEC 62922:2016+AMD1:2021 CSV – 7 –
© IEC 2016
ORGANIC LIGHT EMITTING DIODE (OLED) PANELS
FOR GENERAL LIGHTING – PERFORMANCE REQUIREMENTS
1 Scope
This document specifies the performance requirements of OLED tiles and panels for use on
DC supplies up to 120 V or AC supplies up to 50 V at 50 Hz or 60 Hz for indoor and similar
general lighting purposes.
NOTE In this current edition, life (life time and maintained values) is not addressed. This is intended to be
covered in a future amendment.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60050-845, International Electrotechnical Vocabulary. Lighting (available at
http://www.electropedia.org)
IEC 62868, Organic light emitting diode (OLED) panels for general lighting – Safety
requirements
IEC TR 62732, Three-digit code for designation of colour rendering and correlated colour
temperature
IEC TS 62972, General lighting – Organic light emitting diode (OLED) products and related
equipment – Terms and definitions
ISO 11664-5/CIE S 014-5/E:20092016, Colorimetry – Part 5: CIE 1976 L*u*v* Colour space
and u', v' uniform chromaticity scale diagram
CIE 013.3:1995, Method of measuring and specifying colour rendering properties of light
sources
CIE TN 001:2014, Chromaticity difference specification for light source
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60050-845,
IEC TS 62972 and IEC 62868 as well as the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
test voltage
input voltage at which tests are carried out
---------------------- Page: 10 ----------------------
– 8 – IEC 62922:2016+AMD1:2021 CSV
© IEC 2016
3.2
test current
input current at which tests are carried out
3.3
test power
input power at which tests are carried out
3.4
initial value
photometric and electrical characteristics at the end of the ageing and stabilization time
3.5
average luminance
L
av
luminance averaged over the light output surface of an OLED panel in a direction
3.6
median useful life
L
x
length of operating time during which a total of 50 % of a
population of operating OLED tiles or panels of the same type have flux degraded to the
luminous flux maintenance factor x
Note 1 to entry: The median useful life includes operating OLED tiles and panels only.
Note 2 to entry: By convention, the expression "life of OLED tiles" or "life of OLED panels" without any modifiers
is understood to be the median useful life.
3.7
maintained operating voltage
operating voltage measured at an operational time, the OLED
tiles or panels operating under specified conditions
Note 1 to entry: Specified conditions are described either in this document or the manufacturer’s document.
3.8
maintained chromaticity coordinate
chromaticity coordinate measured at an operational time, the
OLED tiles or panels operating under specified conditions
Note 1 to entry: Specified conditions are described either in this document, or the manufacturer’s document.
Note 2 to entry: Details are given in 8.2.2.
4 General statement and test conditions
4.1 General statement
The requirements of this document apply in addition to the requirements of IEC 62868.
The requirement applies for 95 % of the population (with a failure margin below 5 %, it is
considered that the product passed the test).
It is understood that reference to an OLED panel also includes reference to OLED tiles in the
requirements and tests of this document.
---------------------- Page: 11 ----------------------
IEC 62922:2016+AMD1:2021 CSV – 9 –
© IEC 2016
4.2 General test conditions
Unless otherwise specified, all measurements shall be made in a draught free room at a
temperature of 25 °C with a tolerance of ±5 °C, a relative humidity of 65 % maximum and
steady state operation of the OLED panel. The temperature shall be maintained within ±2 °C
during the test. The temperature shall be measured in the integrating sphere or at the point
within 1,5 m from the OLED panel.
The tests shall be conducted at the rated current or voltage unless otherwise specified in this
document.
The test shall be made with the OLED panel in the horizontal mounting position with the
surface emitting the largest fraction of luminous flux directed upwards, unless specified
otherwise by the manufacturer. The mounting position shall be recorded in the documentation.
If all surfaces are intended to emit the same luminous flux, the orientation is at the discretion
of the test laboratory. The operating position shall be maintained during the entire test.
In the case of constant current operation: The test current, unless otherwise specified, shall
be stable within ±0,5 % during the performance test of an OLED panel. The total harmonic
content of the input shall not exceed 3 %.
In the case of constant voltage operation: The test voltage, unless otherwise specified, shall
be stable within ±0,05 % or 5 mV whichever is greater during the performance test of an
OLED panel. The total harmonic content of the input shall not exceed 3 %. The tolerance of
±0,05 % is applicable for DC supplies only. The tolerance for AC supplies is under
consideration. The test voltage shall be measured at the terminals of the OLED panel.
The OLED panel shall be mounted in such a way that thermal contact between the
measurement equipment, sample holder and OLED panel is minimal. During stabilization and
measurement, an OLED panel shall only be in contact with the measurement equipment near
its edges and contact ledges. All other parts of the panel, especially the light output surface
and the opposing surface (the back of the OLED panel) shall be open to air, unless otherwise
specified by the manufacturer.
NOTE The harmonic content is understood as the r. m. s. summation of the individual harmonic components using
the fundamental as 100 %.
4.3 Stabilization
4.3.1 General requirements for stabilization
Stabilization is conducted in a draught free room at a temperature of 25 °C ± 5 °C. The
temperature shall be maintained within ±2 °C during stabilization. The temperature shall be
measured in the integrating sphere or the point within 1,5 m from the OLED panel.
If stabilization conditions, according to 4.3.2 or 4.3.3, are not achieved within 60 min, the
measurement may be started and the observed fluctuations shall be reported.
4.3.2 Current-driven stabilization
This method of stabilization is used for OLED panels intended to be operated primarily in
constant current mode and OLED panels for which the selection of the operating mode is left
to the customer.
The OLED panel shall be powered with a constant input current stable within ±0,5 %.
During the stabilization period, measurements of the voltage are made at least at 1 min
intervals. The OLED panel under test may be regarded as stable and sui
...
IEC 62922
®
Edition 1.0 2016-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Organic light emitting diode (OLED) panels for general lighting – Performance
requirements
Panneaux à diodes électroluminescentes organiques (OLED) destinés à
l’éclairage général – Exigences de performance
IEC 62922:2016-11(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2016 IEC, Geneva, Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.
IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and
CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 15
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
65 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et
CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
---------------------- Page: 2 ----------------------
IEC 62922
®
Edition 1.0 2016-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Organic light emitting diode (OLED) panels for general lighting – Performance
requirements
Panneaux à diodes électroluminescentes organiques (OLED) destinés à
l’éclairage général – Exigences de performance
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.99 ISBN 978-2-8322-3754-0
Warning! Make sure that you obtained this publication from an authorized distributor.
Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.
® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------
– 2 – IEC 62922:2016 © IEC 2016
CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 General statement and test conditions . 7
4.1 General statement . 7
4.2 General test conditions . 7
4.3 Stabilization . 8
4.3.1 General requirements for stabilization. 8
4.3.2 Current-driven stabilization . 8
4.3.3 Voltage-driven stabilization . 8
5 Marking . 8
5.1 Contents and location . 8
5.2 Information on reliability of electrical connection . 9
6 Input power . 9
7 Initial photometric characteristics . 9
7.1 General . 9
7.2 Luminous flux . 10
7.3 Luminous efficacy . 10
7.4 Chromaticity coordinates . 10
7.5 Correlated colour temperature (CCT) . 10
7.6 Colour rendering index (CRI) . 10
7.7 Luminance uniformity . 11
7.7.1 Average luminance (L ) . 11
av
7.7.2 Luminance uniformity (U) . 11
7.8 Luminous intensity distribution . 11
7.9 Surface chromaticity uniformity . 12
7.10 Angular chromaticity uniformity . 12
8 Maintained photometric characteristics . 12
9 Reliability . 13
9.1 High temperature – high humidity operation . 13
9.2 High temperature – high humidity storage . 13
9.3 Reliability of connection . 13
10 Information for controlgear design . 14
Annex A (informative) Use of regional standards. 15
Annex B (informative) Measuring method of angular chromaticity uniformity . 16
Annex C (normative) Measuring method for luminous flux . 18
C.1 General . 18
C.2 Integrating sphere measurements . 18
C.2.1 Integrating sphere methods and installation position . 18
C.2.2 Size of the integrating sphere . 18
C.3 Goniophotometric measurements . 19
Annex D (informative) Tests of robustness of terminations and connectors . 20
D.1 General . 20
D.2 Wire terminations and pin type connectors . 20
---------------------- Page: 4 ----------------------
IEC 62922:2016 © IEC 2016 – 3 –
D.2.1 General . 20
D.2.2 Tensile test . 20
D.2.3 Bending test . 20
D.2.4 Torsion test . 20
D.3 Flexible flat terminations . 20
D.3.1 General . 20
D.3.2 Peel test A . 21
D.3.3 Peel test B . 21
D.4 Soldering . 21
Annex E (informative) Information for controlgear design . 22
E.1 General . 22
E.2 Operation . 22
E.3 Characteristics of the driver output current . 22
E.4 Characteristics of the driver output voltage . 23
E.5 Dimming . 23
E.6 Short-circuit protection . 23
Annex F (informative) Information for luminaire design . 24
Bibliography . 25
Figure C.1 – 4π geometry (left), 2π geometry sphere (centre) and 2π geometry
hemisphere (right). 18
Figure D.1 – Schematic diagram of peel test A. 21
Figure E.1 – Voltage and luminance behaviour at constant current operation . 22
Table 1 – Contents and location of marking . 9
Table B.1 – Chromaticity coordinates for all viewing angles between 0° and 80° in 5°
steps. 16
Table B.2 – Colour difference between all chromaticity coordinate pairs . 17
---------------------- Page: 5 ----------------------
– 4 – IEC 62922:2016 © IEC 2016
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ORGANIC LIGHT EMITTING DIODE (OLED) PANELS
FOR GENERAL LIGHTING – PERFORMANCE REQUIREMENTS
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62922 has been prepared by subcommittee 34A: Lamps, of IEC
technical committee 34: Lamps and related equipment.
The text of this standard is based on the following documents:
FDIS Report on voting
34A/1942/FDIS 34A/1956/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
In this standard, the following print types are used:
– requirements: roman type,
---------------------- Page: 6 ----------------------
IEC 62922:2016 © IEC 2016 – 5 –
– test specifications: italic type,
– notes: smaller roman type.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
---------------------- Page: 7 ----------------------
– 6 – IEC 62922:2016 © IEC 2016
ORGANIC LIGHT EMITTING DIODE (OLED) PANELS
FOR GENERAL LIGHTING – PERFORMANCE REQUIREMENTS
1 Scope
This document specifies the performance requirements of OLED tiles and panels for use on
DC supplies up to 120 V or AC supplies up to 50 V at 50 Hz or 60 Hz for indoor and similar
general lighting purposes.
NOTE In this current edition, life (life time and maintained values) is not addressed. This is intended to be
covered in a future amendment.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 60050-845, International Electrotechnical Vocabulary. Lighting (available at
http://www.electropedia.org)
IEC 62868, Organic light emitting diode (OLED) panels for general lighting – Safety
requirements
IEC TR 62732, Three-digit code for designation of colour rendering and correlated colour
temperature
IEC TS 62972, General lighting – Organic light emitting diode (OLED) products and related
equipment – Terms and definitions
ISO 11664-5/CIE S 014-5/E:2009, Colorimetry – Part 5: CIE 1976 L*u*v* Colour space and u',
v' uniform chromaticity scale diagram
CIE 013.3:1995, Method of measuring and specifying colour rendering properties of light
sources
CIE TN 001:2014, Chromaticity difference specification for light source
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60050-845,
IEC TS 62972 and IEC 62868 as well as the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
test voltage
input voltage at which tests are carried out
---------------------- Page: 8 ----------------------
IEC 62922:2016 © IEC 2016 – 7 –
3.2
test current
input current at which tests are carried out
3.3
test power
input power at which tests are carried out
3.4
initial value
photometric and electrical characteristics at the end of the ageing and stabilization time
3.5
average luminance
L
av
luminance averaged over the light output surface of an OLED panel in a direction
4 General statement and test conditions
4.1 General statement
The requirements of this document apply in addition to the requirements of IEC 62868.
The requirement applies for 95 % of the population (with a failure margin below 5 %, it is
considered that the product passed the test).
It is understood that reference to an OLED panel also includes reference to OLED tiles in the
requirements and tests of this document.
4.2 General test conditions
Unless otherwise specified, all measurements shall be made in a draught free room at a
temperature of 25 °C with a tolerance of ±5 °C, a relative humidity of 65 % maximum and
steady state operation of the OLED panel. The temperature shall be maintained within ±2 °C
during the test. The temperature shall be measured in the integrating sphere or at the point
within 1,5 m from the OLED panel.
The tests shall be conducted at the rated current or voltage unless otherwise specified in this
document.
The test shall be made with the OLED panel in the horizontal mounting position with the
surface emitting the largest fraction of luminous flux directed upwards, unless specified
otherwise by the manufacturer. The mounting position shall be recorded in the documentation.
If all surfaces are intended to emit the same luminous flux, the orientation is at the discretion
of the test laboratory. The operating position shall be maintained during the entire test.
In the case of constant current operation: The test current, unless otherwise specified, shall
be stable within ±0,5 % during the performance test of an OLED panel. The total harmonic
content of the input shall not exceed 3 %.
In the case of constant voltage operation: The test voltage, unless otherwise specified, shall
be stable within ±0,05 % or 5 mV whichever is greater during the performance test of an
OLED panel. The total harmonic content of the input shall not exceed 3 %. The tolerance of
±0,05 % is applicable for DC supplies only. The tolerance for AC supplies is under
consideration. The test voltage shall be measured at the terminals of the OLED panel.
---------------------- Page: 9 ----------------------
– 8 – IEC 62922:2016 © IEC 2016
The OLED panel shall be mounted in such a way that thermal contact between the
measurement equipment, sample holder and OLED panel is minimal. During stabilization and
measurement, an OLED panel shall only be in contact with the measurement equipment near
its edges and contact ledges. All other parts of the panel, especially the light output surface
and the opposing surface (the back of the OLED panel) shall be open to air, unless otherwise
specified by the manufacturer.
NOTE The harmonic content is understood as the r. m. s. summation of the individual harmonic components using
the fundamental as 100 %.
4.3 Stabilization
4.3.1 General requirements for stabilization
Stabilization is conducted in a draught free room at a temperature of 25 °C ± 5 °C. The
temperature shall be maintained within ±2 °C during stabilization. The temperature shall be
measured in the integrating sphere or the point within 1,5 m from the OLED panel.
If stabilization conditions, according to 4.3.2 or 4.3.3, are not achieved within 60 min, the
measurement may be started and the observed fluctuations shall be reported.
4.3.2 Current-driven stabilization
This method of stabilization is used for OLED panels intended to be operated primarily in
constant current mode and OLED panels for which the selection of the operating mode is left
to the customer.
The OLED panel shall be powered with a constant input current stable within ±0,5 %.
During the stabilization period, measurements of the voltage are made at least at 1 min
intervals. The OLED panel under test may be regarded as stable and suitable for test
purposes if the difference of maximum and minimum readout voltage observed over the last
5 min is less than 0,5 %.
4.3.3 Voltage-driven stabilization
This method of stabilization is used for OLED panels intended to be operated primarily in
constant voltage mode.
The OLED panel shall be powered with a constant input voltage stable within ±0,05 %.
During the stabilization period, measurements of the current are made at least at 1 min
intervals. The OLED panel under test may be regarded as stable and suitable for test
purposes if the difference of maximum and minimum readout current observed over the last
5 min is less than 1 %.
5 Marking
5.1 Contents and location
OLED panels shall be marked according to Table 1.
---------------------- Page: 10 ----------------------
IEC 62922:2016 © IEC 2016 – 9 –
Table 1 – Contents and location of marking
Parameters Location
Rated luminous flux (lm) Mandatory on packaging or product information
2
Average luminance (cd/m ) Mandatory on packaging or product information
Photometric code (according to IEC TR 62732) Mandatory on packaging or product information
Rated chromaticity coordinates (in u’v’ coordinates) and Mandatory on packaging or product information
chromaticity coordinate range (expressed by Δu’v’, a u’v’ circle
or a u’v’ quadrangle)
Correlated colour temperature (K) Mandatory on packaging or product information
Rated colour rendering index Mandatory on packaging or product information
Operating temperature range (°C) Mandatory on packaging or product information
Rated luminous efficacy (lm/W) Mandatory on packaging or product information
Luminance uniformity (%) Mandatory on packaging or product information
a
Luminous intensity distribution Mandatory on packaging or product information
Surface chromaticity uniformity and location of measurement Mandatory on packaging or product information
spots (if applicable)
Angular chromaticity uniformity Mandatory on packaging or product information
Rated location and dimensions of the light output surface Mandatory on packaging or product information
NOTE The operating temperature range specifies maximum and minimum temperatures of the OLED panel at
which the OLED panel will function as intended. The operating temperatures are measured according to Annex F.
a
This requirement is fulfilled if the data file is made available electronically.
5.2 Information on reliability of electrical connection
Information shall be provided in the datasheet on how the electrical connection of an OLED
panel is made, unless the connection method is obvious. This information shall include, as
applicable, information on:
– requirements for connectors (e.g. wire size, material, connector specification);
– method for attaching connectors (e.g. solder time and temperature);
– reliability of connection (e.g. maximum pull force and appropriate test setup);
– additional safeguards required (e.g. external strain relief).
6 Input power
The general test conditions and stabilization according to 4.2 and 4.3 shall apply. The input
power of the OLED panel is measured.
The measured input power shall not exceed the rated power by more than 10 %.
7 Initial photometric characteristics
7.1 General
The initial values of photometric characteristics shall be measured after stabilization of the
OLED panel.
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
