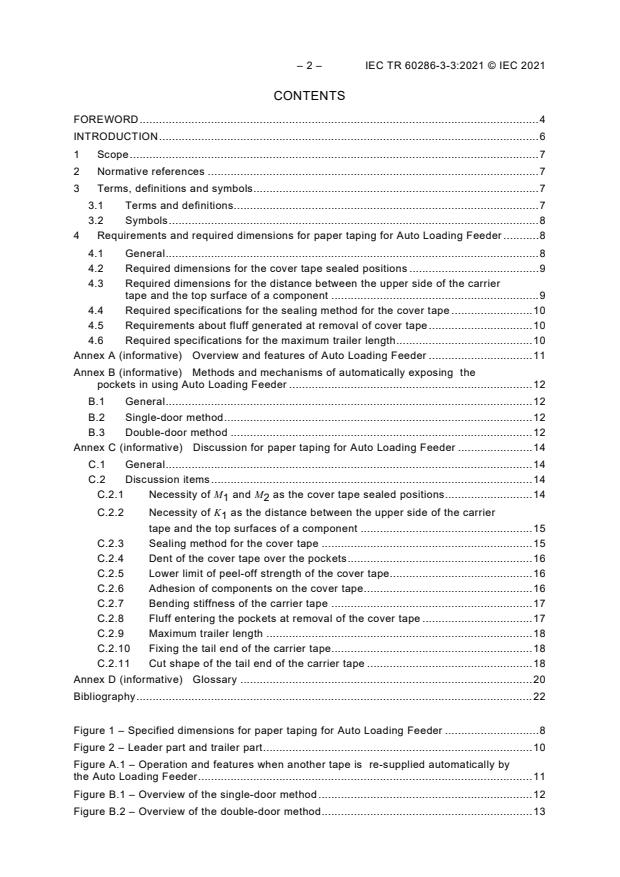

CONTENTS

FOREWORD ........................................................................................................................... 4

INTRODUCTION ..................................................................................................................... 6

1 Scope .............................................................................................................................. 7

2 Normative references ...................................................................................................... 7

3 Terms, definitions and symbols........................................................................................ 7

3.1 Terms and definitions .............................................................................................. 7

3.2 Symbols .................................................................................................................. 8

4 Requirements and required dimensions for paper taping for Auto Loading Feeder ........... 8

4.1 General ................................................................................................................... 8

4.2 Required dimensions for the cover tape sealed positions ........................................ 9

4.3 Required dimensions for the distance between the upper side of the carrier

tape and the top surface of a component ................................................................ 9

4.4 Required specifications for the sealing method for the cover tape ......................... 10

4.5 Requirements about fluff generated at removal of cover tape ................................ 10

4.6 Required specifications for the maximum trailer length .......................................... 10

Annex A (informative) Overview and features of Auto Loading Feeder ................................ 11

Annex B (informative) Methods and mechanisms of automatically exposing the

pockets in using Auto Loading Feeder ........................................................................... 12

B.1 General ................................................................................................................. 12

B.2 Single-door method ............................................................................................... 12

B.3 Double-door method ............................................................................................. 12

Annex C (informative) Discussion for paper taping for Auto Loading Feeder ....................... 14

C.1 General ................................................................................................................. 14

C.2 Discussion items ................................................................................................... 14

C.2.1 Necessity of M and M as the cover tape sealed positions ........................... 14

1 2
C.2.2 Necessity of K as the distance between the upper side of the carrier

tape and the top surfaces of a component ..................................................... 15

C.2.3 Sealing method for the cover tape ................................................................. 15

C.2.4 Dent of the cover tape over the pockets ......................................................... 16

C.2.5 Lower limit of peel-off strength of the cover tape............................................ 16

C.2.6 Adhesion of components on the cover tape .................................................... 16

C.2.7 Bending stiffness of the carrier tape .............................................................. 17

C.2.8 Fluff entering the pockets at removal of the cover tape .................................. 17

C.2.9 Maximum trailer length .................................................................................. 18

C.2.10 Fixing the tail end of the carrier tape.............................................................. 18

C.2.11 Cut shape of the tail end of the carrier tape ................................................... 18

Annex D (informative) Glossary .......................................................................................... 20

Bibliography .......................................................................................................................... 22

Figure 1 – Specified dimensions for paper taping for Auto Loading Feeder ............................. 8

Figure 2 – Leader part and trailer part ................................................................................... 10

Figure A.1 – Operation and features when another tape is re-supplied automatically by

the Auto Loading Feeder ....................................................................................................... 11

Figure B.1 – Overview of the single-door method .................................................................. 12

Figure B.2 – Overview of the double-door method ................................................................. 13

---------------------- Page: 4 ----------------------
IEC TR 60286-3-3:2021 © IEC 2021 – 3 –

Figure C.1 – Example dent of the cover tape over the pocket (embossed tape) ..................... 16

Figure C.2 – Example of fluff entering the pocket possible in using Auto Loading

Feeder .................................................................................................................................. 17

Figure C.3 – Examples of cut shapes available/unavailable for Auto Loading Feeder

and a tape deformed at its top end ........................................................................................ 19

Table 1 – Symbols used in figures and tables ......................................................................... 8

Table 2 – The cover tape sealed positions required for paper taping

for Auto Loading Feeder ......................................................................................................... 9

Table 3 – Distance between the upper side of the carrier tape and top surface of a

component required for paper taping for Auto Loading Feeder ................................................ 9

Table D.1 – Glossary of mounter and feeder related terms ................................................... 20

---------------------- Page: 5 ----------------------
– 4 – IEC TR 60286-3-3:2021 © IEC 2021
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PACKAGING OF COMPONENTS FOR AUTOMATIC HANDLING –
Part 3-3: Packaging of surface mount components
on continuous paper tapes for Auto Loading Feeder
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

IEC TR 60286-3-3 has been prepared by IEC technical committee 40: Capacitors and resistors

for electronic equipment. It is a Technical Report.
The text of this Technical Report is based on the following documents:
Draft Report on voting
40/2843/DTR 40/2865/RVDTR

Full information on the voting for its approval can be found in the report on voting indicated in

the above table.
The language used for the development of this Technical Report is English.

This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in

accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available

---------------------- Page: 6 ----------------------
IEC TR 60286-3-3:2021 © IEC 2021 – 5 –

at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are

described in greater detail at www.iec.ch/standardsdev/publications.

A list of all parts in the IEC 60286 series, published under the general title Packaging of

components for automatic handling, can be found on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under webstore.iec.ch in the data related to the

specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The "colour inside" logo on the cover page of this document indicates

that it contains colours which are considered to be useful for the correct understanding

of its contents. Users should therefore print this document using a colour printer.

---------------------- Page: 7 ----------------------
– 6 – IEC TR 60286-3-3:2021 © IEC 2021
INTRODUCTION

This Technical Report was developed by the technical committee 40 working group 36 on

components packaging, in which the members, such as mounter manufacturers, component

manufacturers and packaging material manufacturers, had proposed, considered and discussed

the possible standardization of the application of Auto Loading Feeder to enable automatically

exchange SMD continuous tapes, using paper carrier tape during mounter operation, aiming to

support IEC 60286-3, Edition 6, issued in 2019.

This document includes data expressed in the form of provisions, such as requirements or

recommendations. These data, however, do not claim to be provisions and are just suggested

as the results of the discussion.

The International Electrotechnical Commission (IEC) draws attention to the fact that it is claimed

that compliance with this document may involve the use of a trademark concerning Auto Loading

Feeder given in 3.1.1.
• Trademark ... AUTO LOADING FEEDER™
• Trademark registration number ... No.5983611 (Japan)

IEC takes no position concerning the evidence, validity and scope of this trademark right.

The holder of this trademark right has assured the IEC that he/she is willing to negotiate

licences under reasonable and non-discriminatory terms and conditions with applicants

throughout the world. In this respect, the statement of the holder of this trademark right is

registered with IEC. Information may be obtained from:
• Name of holder of trademark right ... Yamaha Motor Co., Ltd.
Address ... 2500 Shingai, Iwata, Shizuoka, Japan
• Name of holder of trademark right ... FUJI CORPORATION
Address ... 19 Chausuyama., Yamamachi, Chiryu, Aichi, Japan
• Name of holder of trademark right ... Panasonic Corporation
Address ... 2-7, Matsuba-cho, Kadoma, Osaka, Japan

Attention is drawn to the possibility that some of the elements of this document may be the

subject of trademark rights other than those identified above. IEC shall not be held responsible

for identifying any or all such trademark rights.
---------------------- Page: 8 ----------------------
IEC TR 60286-3-3:2021 © IEC 2021 – 7 –
PACKAGING OF COMPONENTS FOR AUTOMATIC HANDLING –
Part 3-3: Packaging of surface mount components
on continuous paper tapes for Auto Loading Feeder
1 Scope

This part of IEC 60286 describes the possible requirements for paper taping for the Auto

Loading Feeder mechanism to mount electronic components without leads or with stump type

leads used for electric circuits. This document is applicable to the punched carrier tape with the

bottom cover tape (nominal tape width: 8 mm only) among the tapes of Type 1a, and the pressed

carrier tape (nominal tape width: 8 mm) of Type 1b in IEC 60286-3.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies.

For undated references, the latest edition of the referenced document (including any

amendments) applies.

IEC 60286-3:2019, Packaging of components for automatic handling – Part 3: Packaging of

surface mount components on continuous tapes
3 Terms, definitions and symbols
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
NOTE Annex D features a Glossary of mounter and feeder related terms.
3.1.1
Auto Loading Feeder
AUTO LOADING FEEDER™

tape feeder that can keep supplying components by automatically carrying a tape of re-supplied

SMD at the filling-in position into the components supply position, just after the components in

the tape of previously supplied SMD are fed up during the assembly production

Note 1 to entry: Auto Loading Feeder has the mechanism that the cover tape of a SMD tape is automatically cut or

peeled off to expose the pockets during the operation to supply components.
3.1.2
seal
bonding of a part of the top cover tape and a part of the carrier tape

Note 1 to entry: The top cover tapes are classified as heat welding type and adhesive type by the way to bond itself

on the carrier tape.
---------------------- Page: 9 ----------------------
– 8 – IEC TR 60286-3-3:2021 © IEC 2021
3.2 Symbols
The symbols used in this document are shown in Table 1 and Figure 1.
Table 1 – Symbols used in figures and tables
Figures and tables
Symbol Description
using the symbol

M Distance between the reference point of the sprocket holes (centre) and Figure 1 and Table 2

the inner side of the seal on the upper end side, which is near the
sprocket holes, of the carrier tape.

M Distance between the reference point of the sprocket holes (centre) and Figure 1 and Table 2

the inner side of the seal on the lower end side, which is far from the
sprocket holes, of the carrier tape.

K Distance between the upper side of the carrier tape and the top surface Figure 1 and Table 2

of a component.

NOTE These symbols are the same as the ones for Type 1a and Type1b in IEC 60286-3.

Figure 1 – Specified dimensions for paper taping for Auto Loading Feeder
4 Requirements and required dimensions for paper taping for Auto Loading
Feeder
4.1 General

The requirements and required dimensions for paper taping are classified as follows:

a) Required dimensions for the cover tape sealed positions (see 4.2);

b) Required dimensions for the distance between the upper side of the carrier tape and the top

surface of a component (see 4.3);
c) Required specifications for the sealing method of the cover tape (see 4.4);
d) Requirements about fluff generated at removal of the cover tape (see 4.5);
e) Required specifications for the maximum trailer length (see 4.6).

The overview and features of Auto Loading Feeder are shown in Annex A. The methods and

mechanisms of automatically exposing the pockets in using Auto Loading Feeder are shown in

Annex B. The history of discussion on the proposed requirements and dimensions for paper

taping for Auto Loading Feeder are shown in Annex C.
---------------------- Page: 10 ----------------------
IEC TR 60286-3-3:2021 © IEC 2021 – 9 –
4.2 Required dimensions for the cover tape sealed positions

The required dimensions for the cover tape sealed positions for Auto Loading Feeder are shown

in Table 2.
Table 2 – The cover tape sealed positions required for paper taping
for Auto Loading Feeder
Dimensions in millimetres
Required dimensions (design values)
Target nominal component
dimensions
M M
1 2
0402M 2,9 or less 4,1 or more
0603M 2,9 or less 4,1 or more
1005M 2,6 or less 4,4 or more
b b
1608M
2,4 or less 4,6 or more
b b
2012M 2,2 or less 4,8 or more
3216M 1,7 or less 5,3 or more
NOTE 1 The symbols are shown in Table 1 and Figure 1.
NOTE 2 SMD tape with sealed pockets is not applicable to Auto Loading Feeder.
NOTE 3 Sealing tape should be attached symmetric to the centre of the pocket.

Components with intermediate size between each nominal dimension follow the larger nominal dimension.

Considering the maximum lateral deviation of components in the pockets specified in IEC 60286-3, if possible,

the target design values should be set out by about 0,2 mm smaller for M and about 0,2 mm larger for M .

1 2

4.3 Required dimensions for the distance between the upper side of the carrier tape

and the top surface of a component

The required dimensions for the distance between the upper side of the carrier tape and the top

surface of a component for Auto Loading Feeder are shown in Table 3.
Table 3 – Distance between the upper side of the carrier tape and top
surface of a component required for paper taping for Auto Loading Feeder
Dimensions in millimetres
Required dimensions (design values)
Target
nominal component dimensions
0402M
(0,03 or more)
0603M
(0,03 or more)
1005M 0,03 or more
1608M 0,03 or more
2012M 0,03 or more
3216M 0,03 or more
NOTE The symbols are shown in Table 1 and Figure 1.
Components with intermediate size between each nominal dimension follow the
larger nominal dimension.

Since components can be inverted in the pockets and there are some restrictions

in the assembly manufacturing, the dimensions are shown as reference values in
brackets. If the tapes do not meet these dimensions, persons involved should
discuss in advance whether Auto Loading Feeder can be used.
---------------------- Page: 11 ----------------------
– 10 – IEC TR 60286-3-3:2021 © IEC 2021
4.4 Required specifications for the sealing method for the cover tape
The cover tape sealed by heat welding is only used for Auto Loading Feeder.
4.5 Requirements about fluff generated at removal of cover tape

Fluff of the carrier tape that is generated at removal of the cover tape should not enter pockets,

so that the tape can be used for Auto Loading Feeder.
4.6 Required specifications for the maximum trailer length
Trailer length should be 300 mm or less, see Figure 2.
Figure 2 – Leader part and trailer part
---------------------- Page: 12 ----------------------
IEC TR 60286-3-3:2021 © IEC 2021 – 11 –
Annex A
(informative)
Overview and features of Auto Loading Feeder

A characteristic example for operation of an Auto Loading Feeder is shown in Figure A.1. Just

after the components in a SMD tape get used up in the mounting process, another tape for re-

supply set at the filling-in position is automatically carried to the components supply position

and the pockets are automatically exposed. This results in re-supplying the components

automatically. That is to say, this mechanism enables to keep supplying components without

the conventional splicing work using a connection tape, which requires man-hours and specific

skills. In addition, it largely reduces work hours during the work at offline setup, because

inserting the top end of the tape in the re-supply position enables to supply the tape

automatically in the same way as during supplying components in the mounting process. Auto

Loading Feeder enables to boost up operating rate of mounters, save man-power and resources

in the components mounting field of electrical and electronic manufactures, and is expected to

get more popularization as the next generation supply system.

NOTE The splicing work is to connect the cut-off end of the trailer part of an in-use SMD tape and the cut-off tip of

the leader part of a SMD tape for re-supply, by using a connection tape.
a) Supplying components during the assembly production
b) Supplying tape at offline setup
Figure A.1 – Operation and features when another tape is
re-supplied automatically by the Auto Loading Feeder
---------------------- Page: 13 ----------------------
– 12 – IEC TR 60286-3-3:2021 © IEC 2021
Annex B
(informative)
Methods and mechanisms of automatically exposing
the pockets in using Auto Loading Feeder
B.1 General

The methods and mechanisms of automatically exposing pockets in using Auto Loading Feeder

are classified with some explanation as follows, but they are not specified as requirements. If

any of the following methods is applied to Auto Loading Feeder, attention is drawn to the

industrial property rights:

a) Single-door method with which only one sealed side of the cover tape is peeled off to expose

pockets (see Clause B.2);

b) Double-door method with which the cover tape is cut in its centre to expose pockets (see

Clause B.3).
B.2 Single-door method

The overview of the single-door method with which only one sealed side of the cover tape is

peeled off to expose the pockets is shown in Figure B.1.
Figure B.1 – Overview of the single-door method
B.3 Double-door method

The overview of the double-door method with which the cover tape is cut in its centre to expose

the pockets is shown in Figure B.2.
---------------------- Page: 14 ----------------------
IEC TR 60286-3-3:2021 © IEC 2021 – 13 –
Figure B.2 – Overview of the double-door method
---------------------- Page: 15 ----------------------
– 14 – IEC TR 60286-3-3:2021 © IEC 2021
Annex C
(informative)
Discussion for paper taping for Auto Loading Feeder
C.1 General

The details of discussion among the Project Group on the major requirements and required

dimensions and specifications for paper taping for Auto Loading Feeder, which were proposed

by the mounter manufacturers, are classified as follows:
a) Necessity of M and M as the cover tape sealed positions (see C.2.1);
1 2

b) Necessity of K as the distance between the upper side of carrier tape and the top surface

of a component (see C.2.2);
c) Sealing method for the cover tape (see C.2.3);
d) Dent of the cover tape over the pockets (see C.2.4);
e) Lower limit of the cover tape peel-off strength (see C.2.5);
f) Adhesion of components on the cover tape (see C.2.6);
g) Specified bending stiffness of the carrier tape (see C.2.7);
h) Fluff sneaking to the pockets at removal of the cover tape (see C.2.8);
i) Specified maximum trailer length (see C.2.9);
j) Fixing the tail end of the carrier tape (see C.2.10);
k) Cut shape of the tail end of the carrier tape (see C.2.11).
C.2 Discussion items
C.2.1 Necessity of M and M as the cover tape sealed positions
1 2

Necessity of M and M as the cover tape sealed positions was discussed as follows:

1 2
a) Background and discussed items for the requirements

Since M and M are important dimensions for the basic operation of Auto Loading Feeder,

1 2

which automatically exposes components, and it is impossible to realize to supply

components stably without the control of these potential dimensions, the mounter
manufacturers proposed M and M as the control values for every nominal component
1 2
dimensions (0402M, 0603M, 1005M, 1608M, 2012M, and 3216M). According to this
proposal, the components manufacturers and the packaging material manufacturers
discussed if they can deal with the values, reviewing them.
b) Resolved policy

It was decided that dimensions of the sealed positions required for Auto Loading Feeder are

described as the design values for every nominal component dimensions. Additionally, the

notes are added for additional recommended conditions and unsupported conditions.

c) Justification for the policy

IEC 60286-3 describes the cover tape peel-off strength and break strength provided that the

cover tape is generally removed by peel-off, but it does not specify any requirement or

statement on the sealed positions. The mounter manufacturers explained the Auto Loading

Feeder mechanism to the component manufacturers, so that the component manufacturers

understand it is most important to control th
...
