Connectors for electrical and electronic equipment - Product requirements - Part 3-123: Rectangular connectors - Detail specification for hybrid connectors for industrial environments, for power supply and fibre optic data transmission, with push-pull locking

IEC 61076-3-123:2019. covers hybrid rectangular connectors with a 3 poles 16 A electric portion for power supply and a duplex fibre optic connector type LC portion for data transmission.
These connectors consist of fixed and free connectors, either rewirable or non-rewirable (for both portions) and use the rectangular push-pull housing described in IEC 61076-3-117 with IP65/IP67 degree of protection, for harsh applications.
The mating dimensions of such housings allow fulfilling the performance class Category I according to IEC 61753-1-3 in regards to the fibre optic portion of the connector with the exception of the operating temperature range which is –25 °C/+70 °C.
The electric portion may have different rated insulation voltages. Male connectors have 3 electric round contacts Ø1,6 mm, with 16 A rated current.
The fibre optic portion provides data transmission by using the common mating configurations for all variants of the type LC duplex fibre optic connectors as defined in IEC 61754-20, for dedicated fibre types and fibre termination technology covered therein.
The different codings provided by this document prevent the mating of accordingly coded male or female connectors to any other similarly sized interfaces covered by other standards and the cross-mating between the different codings provided by this document.
Key words: Rectangular Connectors, Hybrid Connectors, Power Supply and Fiber Optic Data Transmission.

Connecteurs pour équipements électriques et électroniques - Exigences de produit - Partie 3-123: Connecteurs rectangulaires - Spécification particulière relative aux connecteurs hybrides dans des environnements industriels pour l’alimentation et la transmission de données fibronique, avec verrouillage de type pousser-tirer

IEC 61076-3-123:2019 couvre les connecteurs rectangulaires hybrides composés d’une partie électrique 3 pôles, 16 A pour l’alimentation et d’une partie connecteur fibronique duplex de type LC pour la transmission de données. Ces connecteurs sont constitués de fiches et d’embases, démontables ou non démontables (pour les deux parties), et utilisent le boîtier rectangulaire de type «pousser-tirer» décrit dans l’IEC 61076-3-117, offrant le degré de protection IP65/IP67, pour les applications en environnements difficiles. Les dimensions d’accouplement de tels boîtiers permettent de satisfaire à la classe de performances de catégorie I selon l’IEC 61753-1-3 en ce qui concerne la partie fibronique du connecteur, à l’exception de la plage de températures de fonctionnement, qui s’étend de -25 °C à +70 °C.
La partie électrique peut avoir des tensions d’isolement assignées différentes. Les connecteurs mâles possèdent trois contacts électriques cylindriques de 1,6 mm de diamètre, avec un courant assigné de 16 A.
La partie fibronique réalise la transmission de données en utilisant les configurations d’accouplement communes pour toutes les variantes de connecteurs fibroniques duplex de type LC, comme cela est défini dans l’IEC 61754-20, pour les types de fibres dédiés et la technologie de terminaison de fibre couverts ici.
Les différents détrompages prévus par le présent document empêchent l’accouplement de connecteurs mâles et femelles dotés de tels détrompeurs avec une quelconque autre interface de taille semblable couverte par d’autres normes, ainsi que l’accouplement croisé entre les différents détrompages prévus par le présent document.
Mots clés: Connecteurs rectangulaires, connecteurs hybrides, alimentation et la transmission de données fibronique

General Information

Status
Published
Publication Date
12-Sep-2019
Technical Committee
Current Stage
PPUB - Publication issued
Completion Date
13-Sep-2019
Ref Project

Buy Standard

Standard
IEC 61076-3-123:2019 - Connectors for electrical and electronic equipment - Product requirements - Part 3-123: Rectangular connectors - Detail specification for hybrid connectors for industrial environments, for power supply and fibre optic data transmission, with push-pull locking
English and French language
89 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

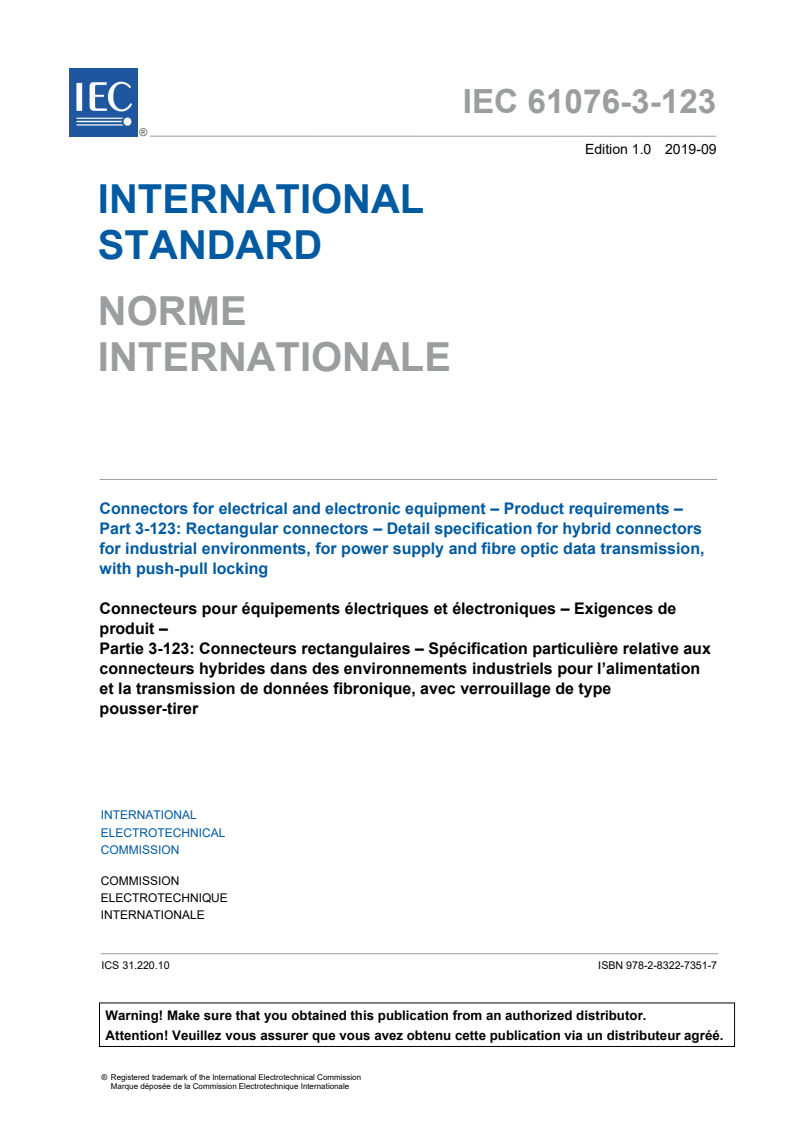

IEC 61076-3-123
Edition 1.0 2019-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Connectors for electrical and electronic equipment – Product requirements –
Part 3-123: Rectangular connectors – Detail specification for hybrid connectors
for industrial environments, for power supply and fibre optic data transmission,
with push-pull locking
Connecteurs pour équipements électriques et électroniques – Exigences de
produit –

Partie 3-123: Connecteurs rectangulaires – Spécification particulière relative aux

connecteurs hybrides dans des environnements industriels pour l’alimentation
et la transmission de données fibronique, avec verrouillage de type
pousser-tirer
IEC 61076-3-123:2019-09(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2019 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni

utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et

les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and once 67 000 electrotechnical terminology entries in English and

a month by email. French extracted from the Terms and Definitions clause of IEC
publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or need CISPR.
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Le premier dictionnaire d'électrotechnologie en ligne au monde,

webstore.iec.ch/advsearchform avec plus de 22 000 articles terminologiques en anglais et en

La recherche avancée permet de trouver des publications IEC français, ainsi que les termes équivalents dans 16 langues

en utilisant différents critères (numéro de référence, texte, additionnelles. Egalement appelé Vocabulaire

comité d’études,…). Elle donne aussi des informations sur les Electrotechnique International (IEV) en ligne.

projets et les publications remplacées ou retirées.
Glossaire IEC - std.iec.ch/glossary

IEC Just Published - webstore.iec.ch/justpublished 67 000 entrées terminologiques électrotechniques, en anglais

Restez informé sur les nouvelles publications IEC. Just et en français, extraites des articles Termes et Définitions des

Published détaille les nouvelles publications parues. publications IEC parues depuis 2002. Plus certaines entrées

Disponible en ligne et une fois par mois par email. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
Electropedia - www.electropedia.org
---------------------- Page: 2 ----------------------

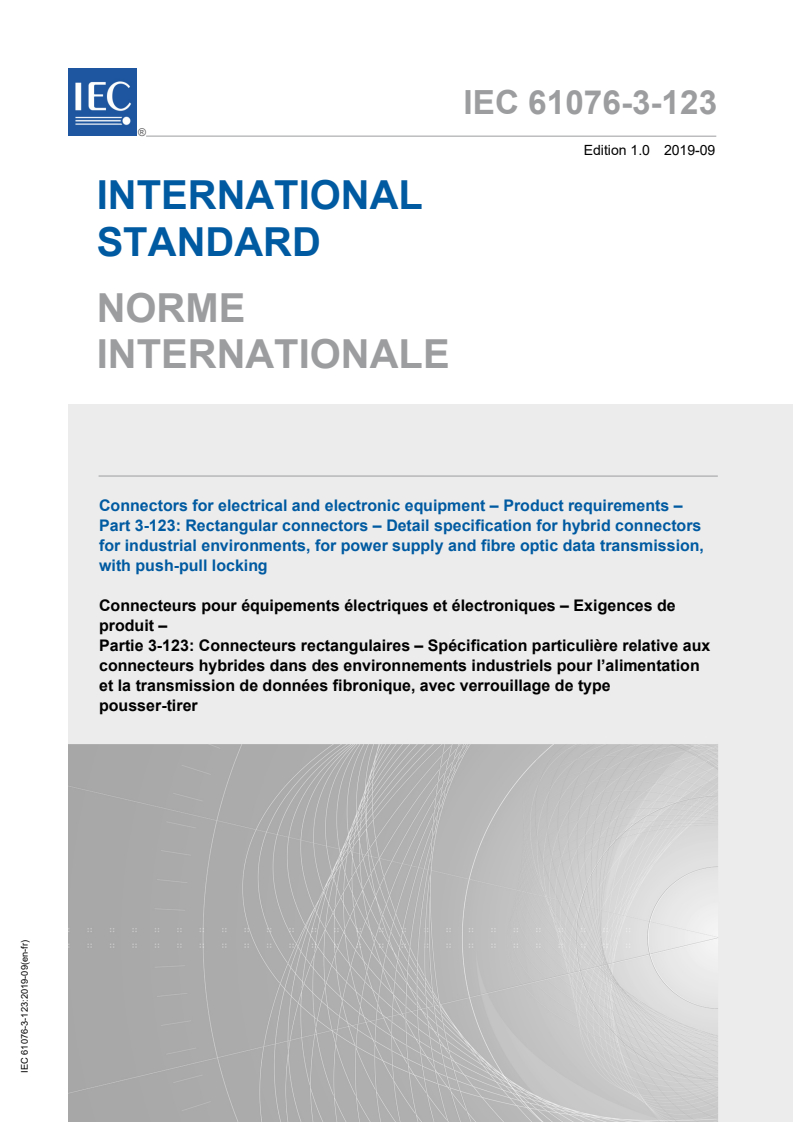

IEC 61076-3-123
Edition 1.0 2019-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Connectors for electrical and electronic equipment – Product requirements –
Part 3-123: Rectangular connectors – Detail specification for hybrid connectors
for industrial environments, for power supply and fibre optic data transmission,
with push-pull locking
Connecteurs pour équipements électriques et électroniques – Exigences de
produit –

Partie 3-123: Connecteurs rectangulaires – Spécification particulière relative aux

connecteurs hybrides dans des environnements industriels pour l’alimentation
et la transmission de données fibronique, avec verrouillage de type
pousser-tirer
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 31.220.10 ISBN 978-2-8322-7351-7

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------
– 2 – IEC 61076-3-123:2019 © IEC 2019

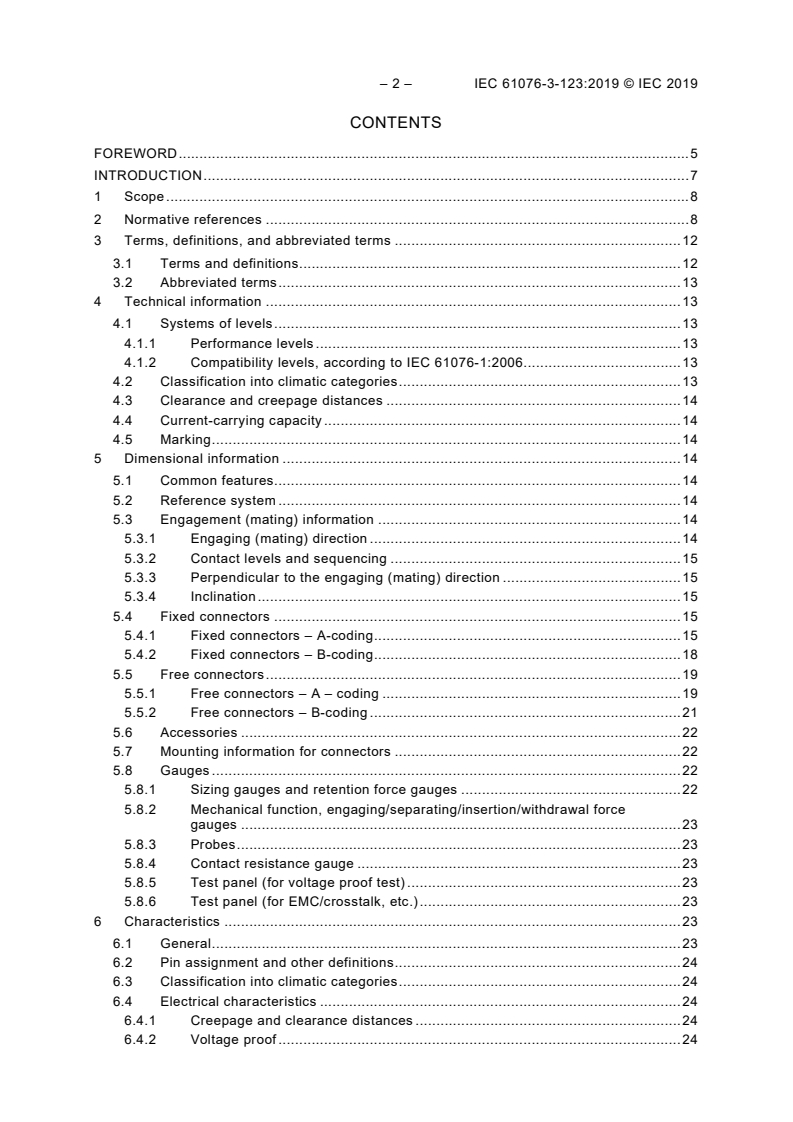

CONTENTS
