IEC TR 62210:2003

Power system control and associated communications - Data and communication security

Applies to computerised supervision, control, metering, and protection systems in electrical utilities. Deals with security aspects related to communication protocols used within and between such systems, the access to, and use of the systems. Discusses realistic threats to the system and its operation, the vulnerability and the consequences of intrusion, actions and countermeasures to improve the current situation.

General Information

• Status: Withdrawn
• Publication Date: 08-May-2003
• Withdrawal Date: 27-Feb-2017
• ICS: 33.200 - Telecontrol. Telemetering
• Technical Committee: TC 57 - Power systems management and associated information exchange
• Drafting Committee: WG 15 - TC 57/WG 15
• Current Stage: WPUB - Publication withdrawn
• Start Date: 10-Mar-2017
• Completion Date: 02-Mar-2017

Standards Content (Sample)

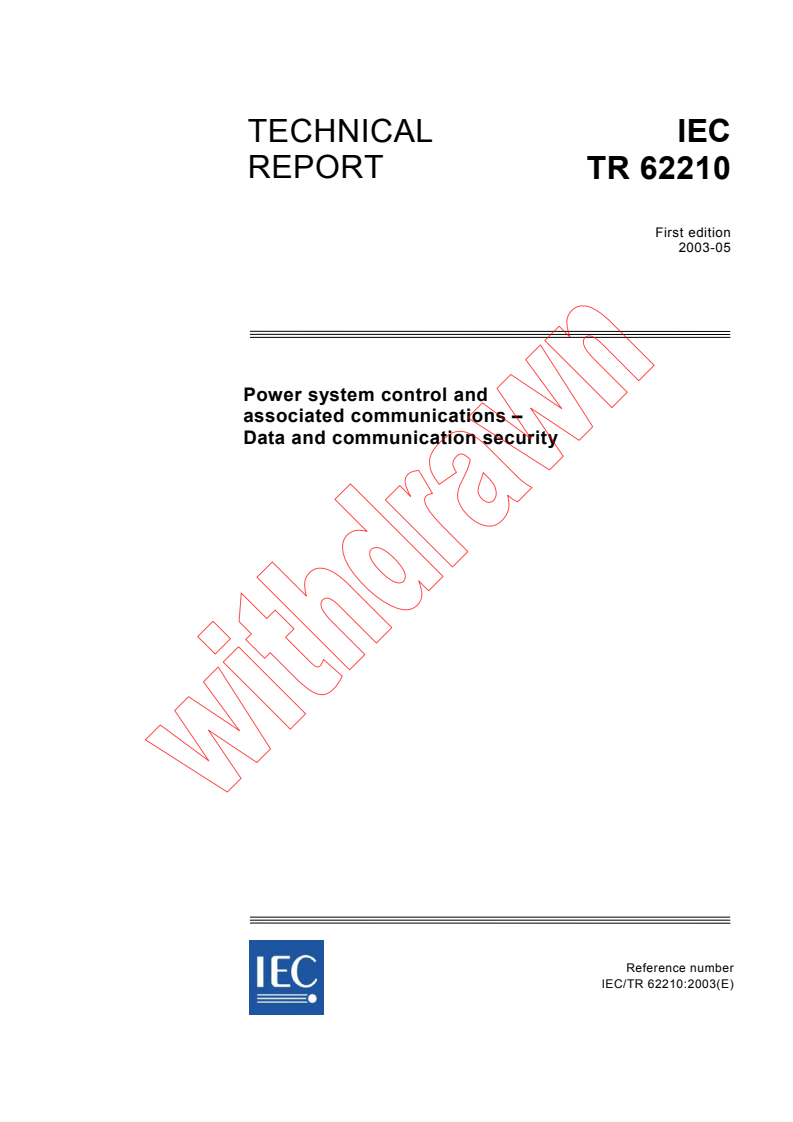

TECHNICAL IEC
REPORT
TR 62210
First edition
2003-05
Power system control and
associated communications –
Data and communication security
Reference number
IEC/TR 62210:2003(E)
Publication numbering
As from 1 January 1997 all IEC publications are issued with a designation in the
60000 series. For example, IEC 34-1 is now referred to as IEC 60034-1.
Consolidated editions
The IEC is now publishing consolidated versions of its publications. For example,
edition numbers 1.0, 1.1 and 1.2 refer, respectively, to the base publication, the
base publication incorporating amendment 1 and the base publication incorporating
amendments 1 and 2.
Further information on IEC publications
The technical content of IEC publications is kept under constant review by the IEC,
thus ensuring that the content reflects current technology. Information relating to
this publication, including its validity, is available in the IEC Catalogue of
publications (see below) in addition to new editions, amendments and corrigenda.
Information on the subjects under consideration and work in progress undertaken
by the technical committee which has prepared this publication, as well as the list
of publications issued, is also available from the following:
• IEC Web Site (www.iec.ch)
• Catalogue of IEC publications
The on-line catalogue on the IEC web site (http://www.iec.ch/searchpub/cur_fut.htm)
enables you to search by a variety of criteria including text searches, technical
committees and date of publication. On-line information is also available on
recently issued publications, withdrawn and replaced publications, as well as
corrigenda.
• IEC Just Published
This summary of recently issued publications (http://www.iec.ch/online_news/
justpub/jp_entry.htm) is also available by email. Please contact the Customer
Service Centre (see below) for further information.
• Customer Service Centre
If you have any questions regarding this publication or need further assistance,
please contact the Customer Service Centre:
Email: [e-mail]
Tel: [phone]
Fax: [phone]

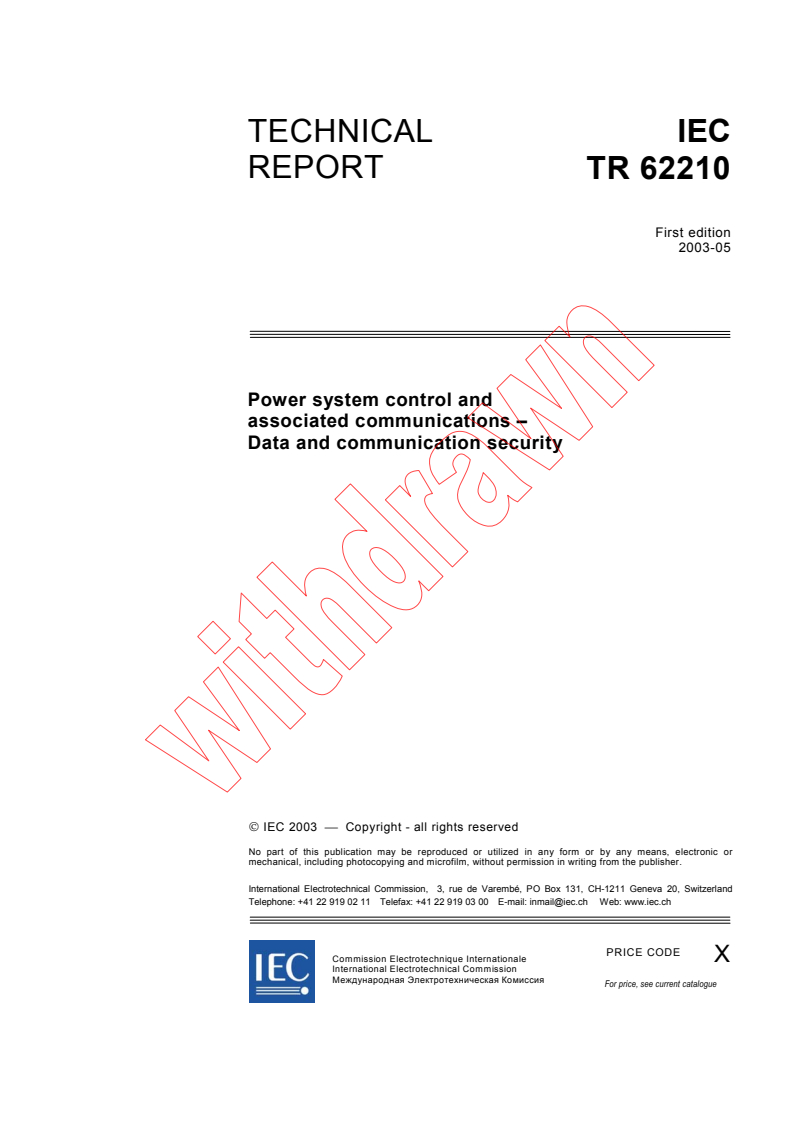

TECHNICAL IEC
REPORT
TR 62210
First edition
2003-05
Power system control and
associated communications –
Data and communication security
 IEC 2003  Copyright - all rights reserved
No part of this publication may be reproduced or utilized in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: [phone] Telefax: [phone] E-mail: [e-mail]  Web: www.iec.ch
PRICE CODE
Commission Electrotechnique Internationale
X
International Electrotechnical Commission
Международная Электротехническая Комиссия
For price, see current catalogue

– 2 – TR 62210  IEC:2003(E)
CONTENTS
FOREWORD . 4
1 Scope and object . 5
2 Overview . 5
3 Reference documents . 6
4 Terms, definitions and abbreviations. 6
4.1 Terms and definitions . 6
4.2 Abbreviations.10
5 Introduction to security.11
5.1 How to use this report.11
6 The security analysis process .12
6.1 Network topologies .14
6.2 User consequence based analysis.16
6.2.1 Stakeholders.16
6.3 Consequences to be considered .18
6.3.1 Financial.18
6.3.2 Asset destruction/degradation.19
6.3.3 Inability to restore service .20
6.4 Consequences and security threats .20
7 Focus of security work within this report .22
7.1 Justification of application level security focus .22
7.2 Security analysis technique .23
7.2.1 Security objectives.23
7.2.2 General threats.24
7.2.3 Specific threats to be considered in PP.24
8 Vulnerabilities .27
8.1 Threats to topologies .27
8.2 Current IEC Technical Committee 57 protocols.29
8.2.1 TASE.1 .29
8.2.2 TASE.2 .30
8.2.3 IEC 60870-5 .30
8.2.4 IEC 61334.30
8.2.5 IEC 61850.31
9 Recommendations for future IEC Technical Committee 57 security work .32
Annex A (informative) What is a protection profile? .35
Annex B (informative) Protection profile for TASE.2 .37
Annex C (Informative) Example of consequence diagrams .43
Figure 1 – Normal corporate security process .12
Figure 2 – Business information flow.14
Figure 3 – General communication topology.16
Figure 4 – Consequence diagram: inability to restore service .21

TR 62210  IEC:2003(E) – 3 –
Figure 5 – WAN/LAN topology.27
Figure 6 – Levels of vulnerability.28
Table 1 – Matrix to determine business process importance.17
Table 2 – Asset to business process relationships .20
Table 3 – Communication model security matrix.22

– 4 – TR 62210  IEC:2003(E)
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
POWER SYSTEM CONTROL AND ASSOCIATED COMMUNICATIONS –
Data and communication security
FOREWORD
1) The IEC (International Electrotechnical Commission) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of the IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, the IEC publishes International Standards. Their preparation is
entrusted to technical committees; any IEC National Committee interested in the subject dealt with may
participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. The IEC collaborates closely with the International
Organization for Standardization (ISO) in accordance with conditions determined by agreement between the
two organizations.
2) The formal decisions or agreements of the IEC on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested National Committees.
3) The documents produced have the form of recommendations for international use and are published in the form
of standards, technical specifications, technical reports or guides and they are accepted by the National
Committees in that sense.
4) In order to promote international unification, IEC National Committees undertake to apply IEC International
Standards transparently to the maximum extent possible in their national and regional standards. Any
divergence between the IEC Standard and the corresponding national or regional standard shall be clearly
indicated in the latter.
5) The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with one of its standards.
6) Attention is drawn to the possibility that some of the elements of this technical report may be the subject of
patent rights. The IEC shall not be held responsible for identifying any or all such patent rights.
The main task of IEC technical committees is to prepare International Standards. However,
a technical committee may propose the publication of a technical report when it has collected
data of a different kind from that which is normally published as an International Standard,
for example “state of the art”.
IEC 62210, which is a technical report, has been prepared by IEC technical committee 57:
Power system control and associated communications.
The text of this technical report is based on the following documents:
Enquiry draft Report on voting
57/613/DTR 57/630/RVC
Full information on the voting for the approval of this technical report can be found in the
report on voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this publication will remain unchanged until 2006.
At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
A bilingual version of this technical report may be issued at a later date.

TR 62210  IEC:2003(E) – 5 –
POWER SYSTEM CONTROL AND ASSOCIATED COMMUNICATIONS –
Data and communication security
1 Scope and object
This Technical Report applies to computerised supervision, control, metering, and protection
systems in electrical utilities. It deals with security aspects related to communication protocols
used within and between such systems, the access to, and use of the systems.
NOTE This report does not include recommendations or criteria development associated with physical security
issues.
Realistic threats to the system and its operation are discussed. The vulnerability and the
consequences of intrusion are exemplified. Actions and countermeasures to improve
the current situation are discussed but solutions are to be considered issues for future
work items.
2 Overview
Safety, security, and reliability have always been important issues in the design and operation
of systems in electrical utilities. Supervision, protection, and control system have been
designed with the highest possible level of safety, security, and reliability. The communication
protocols have been developed with a residual error rate approaching zero. All these
measures have been taken to minimise the risk of danger for personnel and equipment and to
promote an efficient operation of the power network.
Physical threats on vulnerable objects have been handled in the classical ways by locked
buildings, fences and guards but the quite possible terrorist threat of tripping a critical breaker
by a faked SCADA command on a tapped communication link has been neglected. There is
no function in the currently used protocols that ensure that the control command comes from
an authorised source.
The deregulated electricity market has imposed new threats: knowledge of the assets of a
competitor and the operation of his system can be beneficial and acquisition of such
information is a possible reality.
The communication protocols and systems need protection from advertent and inadvertent
intruders, the more the protocols are open and standardised and the more the communication
system is integrated in the corporate and world-wide communication network.
This Technical Report discusses the security process of the electrical utility. The security
process involves the corporate security policy, the communication network security, and the
(end-to-end) application security.
The security of the total system depends on secure network devices, i.e. the security of any
device that can communicate. A secure network device has to be capable of performing ‘safe’
communication and of authenticating the access level of the user. Intrusive attacks have to be
efficiently detected, recorded and prosecuted as part of an active audit system.
The threats are analysed based on possible consequences to a system, i.e. what is the worst
that could happen if an illicit intruder has ambition and resources? The vulnerability of a utility
and its assets are analysed together with the threats.

– 6 – TR 6
...
