IEC 61347-2-3:2011
(Main)Lamp control gear - Part 2-3: Particular requirements for a.c. and/or d.c. supplied electronic control gear for fluorescent lamps
Lamp control gear - Part 2-3: Particular requirements for a.c. and/or d.c. supplied electronic control gear for fluorescent lamps
IEC 61347-2-3:2011 specifies particular safety requirements for electronic control gear for use on a.c. and d.c. supplies up to 1 000 V at 50 Hz or 60 Hz with operating frequencies deviating from the supply frequency, associated with fluorescent lamps as specified in IEC 60081 and IEC 60901, and other fluorescent lamps for high-frequency operation. This second edition cancels and replaces the first edition published in 2000, its Amendment 1 (2004) and its Amendment 2 (2006), IEC 61347-2-4 published in 2000, IEC 61347-2-5 published in 2000 and IEC 61347-2-6 published in 2000. This second edition constitutes a technical revision. The significant revisions with respect to the first edition are:
- rectifying test conditions when dimming;
- construction requirements;
- measurement circuits and limits for HF leakage currents;
- modification of the structure to become a standard exclusively for a.c. and d.c. central supplied electronic control gear for general lighting and Annex J cover centrally- supplied emergency control gear.
This publication is to be read in conjunction with IEC 61347-1:2007. The contents of the corrigendum of September 2011 have been included in this copy.
Appareillages de lampes - Partie 2-3: Exigences particulières pour les appareillages électroniques alimentés en courant alternatif et/ou en courant continu pour lampes fluorescentes
La CEI 61347-2-3:2011 spécifie les exigences particulières de sécurité applicables aux appareillages électroniques pour utilisation en courant alternatif et en courant continu jusqu'à 1 000 V à 50 Hz ou 60 Hz, avec des fréquences de fonctionnement différentes de la fréquence du réseau d'alimentation, associés aux lampes fluorescentes spécifiées dans la CEI 60081 et la CEI 60901, et à d'autres lampes fluorescentes fonctionnant à haute fréquence. Cette deuxième édition annule et remplace la première édition parue en 2000, son Amendement 1 (2004) et son Amendement 2 (2006), ainsi que la CEI 60925 parue en 1989, son Amendement 1 (1996) et son Amendement 2 (2001), la CEI 61347-2-4 parue en 2000, la CEI 61347-2-5 parue en 2000 et la CEI 61347-2-6 parue en 2000. Elle constitue une révision technique. Les révisions significatives par rapport à la première édition sont les suivantes:
- rectification des conditions d'essai lors de variations;
- exigences de construction;
- circuits de mesure et limites pour les courants de fuite HF;
- modification de la structure de la norme, pour qu'elle traite exclusivement des appareillages électroniques à alimentation centrale en courant alternatif et en courant continu pour l'éclairage général, et pour que l'Annexe J traite des appareillages de secours à alimentation centrale.
Cette publication doit être lue conjointement avec la .> Le contenu du corrigendum de septembre 2011 a été pris en considération dans cet exemplaire.
General Information
Relations
Standards Content (Sample)
IEC 61347-2-3 ®
Edition 2.0 2011-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Lamp control gear –
Part 2-3: Particular requirements for a.c. and/or d.c. supplied electronic control
gear for fluorescent lamps
Appareillages de lampes –
Partie 2-3: Exigences particulières pour les appareillages électroniques
alimentés en courant alternatif et/ou en courant continu pour lampes
fluorescentes
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.
IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 61347-2-3 ®
Edition 2.0 2011-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Lamp control gear –
Part 2-3: Particular requirements for a.c. and/or d.c. supplied electronic control
gear for fluorescent lamps
Appareillages de lampes –
Partie 2-3: Exigences particulières pour les appareillages électroniques
alimentés en courant alternatif et/ou en courant continu pour lampes
fluorescentes
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX X
ICS 29.140.99 ISBN 978-2-88912-498-5

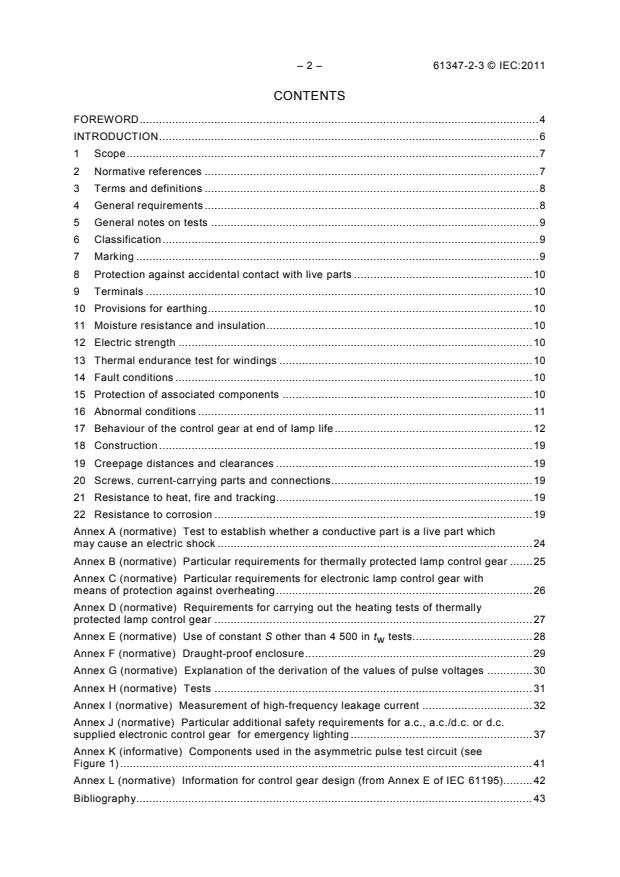

– 2 – 61347-2-3 © IEC:2011
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 8
4 General requirements . 8
5 General notes on tests . 9
6 Classification . 9
7 Marking . 9
8 Protection against accidental contact with live parts . 10
9 Terminals . 10
10 Provisions for earthing . 10
11 Moisture resistance and insulation . 10
12 Electric strength . 10
13 Thermal endurance test for windings . 10
14 Fault conditions . 10
15 Protection of associated components . 10
16 Abnormal conditions . 11
17 Behaviour of the control gear at end of lamp life . 12
18 Construction . 19
19 Creepage distances and clearances . 19
20 Screws, current-carrying parts and connections . 19
21 Resistance to heat, fire and tracking . 19
22 Resistance to corrosion . 19
Annex A (normative) Test to establish whether a conductive part is a live part which
may cause an electric shock . 24
Annex B (normative) Particular requirements for thermally protected lamp control gear . 25
Annex C (normative) Particular requirements for electronic lamp control gear with
means of protection against overheating . 26
Annex D (normative) Requirements for carrying out the heating tests of thermally
protected lamp control gear . 27
Annex E (normative) Use of constant S other than 4 500 in t tests . 28
w
Annex F (normative) Draught-proof enclosure . 29
Annex G (normative) Explanation of the derivation of the values of pulse voltages . 30
Annex H (normative) Tests . 31
Annex I (normative) Measurement of high-frequency leakage current . 32
Annex J (normative) Particular additional safety requirements for a.c., a.c./d.c. or d.c.
supplied electronic control gear for emergency lighting . 37
Annex K (informative) Components used in the asymmetric pulse test circuit (see
Figure 1) . 41
Annex L (normative) Information for control gear design (from Annex E of IEC 61195). 42
Bibliography . 43
61347-2-3 © IEC:2011 – 3 –
Figure 1 – Asymmetric pulse test circuit . 14
Figure 2 – Asymmetric power detection circuit . 16
Figure 3 – Open filament test circuits . 19
Figure 4 – Circuit for testing rectifying effect . 20
Figure 5 – Nomographs for the capacitive leakage current limits of HF-operated
fluorescent lamps . 23
Figure I.1 – Leakage current test arrangement for various fluorescent lamps . 36
Table 1 – Relation between r.m.s. working voltage and maximum peak voltage . 11
Table J.1 – Pulse voltages . 40
Table K.1 – Material specification . 41
Table K.2 – Transformer specification . 41
– 4 – 61347-2-3 © IEC:2011
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LAMP CONTROL GEAR –
Part 2-3: Particular requirements for a.c. and/or d.c.
supplied electronic control gear for fluorescent lamps
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61347-2-3 has been prepared by subcommittee 34C: Auxiliaries
for lamps, of IEC technical committee 34: Lamps and related equipment.
This standard shall be used in conjunction with IEC 61347-1 (2007) and its Amendment 1
(2010).
This second edition cancels and replaces the first edition published in 2000, its Amendment 1
(2004) and its Amendment 2 (2006) ), IEC 61347-2-4 published in 2000, IEC 61347-2-5
published in 2000 and IEC 61347-2-6 published in 2000. This second edition constitutes a
technical revision.
61347-2-3 © IEC:2011 – 5 –
The significant revisions with respect to the first edition are:
– rectifying test conditions when dimming;
– construction requirements;
– measurement circuits and limits for HF leakage currents;
– modification of the structure to become a standard exclusively for a.c. and d.c. central
supplied electronic control gear for general lighting and Annex J cover centrally-
supplied emergency control gear.
The text of this standard is based on the following documents:
FDIS Report on voting
34C/955/FDIS 34C/968/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This part 2 supplements or modifies the corresponding clauses in IEC 61347-1 so as to
convert that publication into the IEC standard: Particular requirements for a.c. and/or d.c.
supplied electronic control gear for fluorescent lamps.
NOTE In this standard, the following print types are used:
– Requirements proper: in roman type.
– Test specifications: in italic type.
– Explanatory matter: in smaller roman type.
A list of all parts of the IEC 61347 series, published under the general title: Lamp control
gear, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
The contents of the corrigendum of September 2011 have been included in this copy.
– 6 – 61347-2-3 © IEC:2011
INTRODUCTION
This second edition of IEC 61347-2-3, published in conjunction with IEC 61347-1, represents
an review of the first edition of IEC 61347-2-3. The formatting into separately published parts
provides for ease of future amendments and revisions. Additional requirements will be added
as and when a need for them is recognized.
This standard, and the parts which make up IEC 61347-2, in referring to any of the clauses of
IEC 61347-1, specify the extent to which such a clause is applicable and the order in which
the tests are to be performed; they also include additional requirements, as necessary. All
parts which make up IEC 61347-2 are intended to be self-contained and, therefore, do not
include references to each other. However, for the case of emergency lighting lamp control
gear, some cross-referencing has been necessary.
Where the requirements of any of the clauses of IEC 61347-1 are referred to in this standard
by the phrase ”The requirements of clause n of IEC 61347-1 apply”, this phrase is interpreted
as meaning that all requirements of the clause in question of part 1 apply, except any which
are clearly inapplicable to the specific type of lamp control gear covered by this particular part
of IEC 61347-2.
61347-2-3 © IEC:2011 – 7 –
LAMP CONTROL GEAR –
Part 2-3: Particular requirements for a.c. and/or d.c.
supplied electronic control gear for fluorescent lamps
1 Scope
This part of IEC 61347 specifies particular safety requirements for electronic control gear for
use on a.c. and d.c. supplies up to 1 000 V at 50 Hz or 60 Hz with operating frequencies
deviating from the supply frequency, associated with fluorescent lamps as specified in
IEC 60081 and IEC 60901, and other fluorescent lamps for high-frequency operation.
Performance requirements are the subject of IEC 60929.
Particular requirements for electronic control gear with means protection against overheating
are given in Annex C.
For emergency lighting operation, particular requirements for control gear operated from a
central supply are given in Annex J. Performance requirements appropriate to the safe
operation of emergency lighting are also contained in Annex J.
Requirements for emergency lighting control gear operating from non-centralised power
supplies are given in IEC 61347-2-7.
NOTE Performance requirements detailed by Annex J are those considered to be safety-related with respect to
reliable emergency operation.
2 Normative references
For the purposes of this document, the normative references given in Clause 2 of
IEC 61347-1 which are mentioned in this standard apply, together with the following normative
references.
IEC 60929: 2011, AC and/or DC-supplied electronic control gear for tubular fluorescent lamps
– Performance requirements
IEC 61347-1:2007, Lamp control gear – Part 1: General and safety requirements
Amendment 1(2010)
IEC 61347-2-7,___ Lamp control gear – Part 2-7: Particular requirements for battery supplied
electronic control gear for emergency lighting (self-contained)
IEC 61547, Equipment for general lighting purposes – EMC immunity requirements
___________
To be published
– 8 – 61347-2-3 © IEC:2011
3 Terms and definitions
For the purposes of this document, the terms and definitions of Clause 3 of IEC 61347-1
apply, together with the following.
3.1
a.c. supplied electronic control gear
mains-supplied a.c. to a.c. invertor including stabilizing elements for starting and operating
one or more fluorescent lamps, generally at high frequency
3.2
maximum value of lamp power (of a controllable control gear)
lamp power (light output) which complies with 8.1 of IEC 60929, unless otherwise declared by
the manufacturer or responsible vendor
3.3
maximum allowed peak voltage
highest permitted peak voltage across any insulation under open-circuit condition and any
normal and abnormal operating conditions
The maximum peak voltage is related to the declared r.m.s. working voltage; see Table 1.
3.4
minimum value of lamp power (of a controllable control gear)
lowest percentage of the lamp power defined in 3.2 declared by the manufacturer or
responsible vendor
3.5
a.c./d.c. supplied electronic control gear for maintained emergency lighting
mains/battery-supplied a.c./d.c. to a.c. invertor including stabilizing elements for starting and
operating one or more fluorescent lamps, generally at high frequency for emergency lighting
3.6
cathode dummy resistor
cathode substitution resistor as specified on the relevant lamp data sheet of IEC 60081 or
IEC 60901 or as declared by the relevant lamp manufacturer or by the responsible vendor
3.7
d.c. supplied electronic control gear
d.c. supplied electronic control gear or invertor includes stabilisation elements for starting and
operating one or more tubular fluorescent lamps, generally at high frequency
4 General requirements
The requirements of Clause 4 of IEC 61347-1 apply, together with the following additional
requirement:
AC/d.c. electronic control gear for emergency lighting shall comply with the requirements of
Annex J.
61347-2-3 © IEC:2011 – 9 –
5 General notes on tests
The requirements of Clause 5 of 61347-1 apply together with the following additional
requirement:
The following number of specimens shall be submitted for testing:
– one unit for the tests of Clause 6 to 12 and 15 to 22;
– one unit for the test of Clause 14 (additional units or components, where necessary, may
be required in consultation with the manufacturer).
Tests to meet the safety requirements for a.c./d.c. supplied electronic control gear for
emergency lighting are made under the conditions specified in Annex J.
6 Classification
The requirements of Clause 6 of IEC 61347-1 apply.
7 Marking
Control gear which forms an integral part of the luminaire need not be marked.
7.1 Mandatory markings
In accordance with the requirements of 7.2 of IEC 61347-1, control gear, other than integral
control gear, shall be clearly and durably marked with the following mandatory markings:
− items a), b), c), d), e), k) and l) of 7.1 of IEC 61347-1, together with
− the symbol for earthing, as applicable;
− for controllable control gear, the control terminals shall be identified;
− a declaration of the maximum working voltage (r.m.s.) according to 12.2 between
• output terminals;
• any output terminal and earth.
Marking for each of these two values shall be in steps of 10 V when the working voltage is
equal to, or less than, 500 V, and in steps of 50 V when the working voltage is higher than
500 V. The marking of maximum working voltage is referenced in two situations, the maximum
between output terminals and the maximum between any output terminal and earth. It is
acceptable for only the higher of these two voltages to be marked.
Marking shall be U-OUT=.V.
7.2 Information to be provided, if applicable
In addition to the above mandatory markings, the following information, if applicable, shall be
given either on the control gear, or be made available in the manufacturer’s catalogue or
similar:
– items h), i), and j) given in 7.1 of IEC 61347-1;
– information regarding voltage polarity reversal protection for d.c. supplied control gear
only.
– 10 – 61347-2-3 © IEC:2011
8 Protection against accidental contact with live parts
The requirements of Clause 10 of IEC 61347-1 apply.
9 Terminals
The requirements of Clause 8 of IEC 61347-1 apply.
10 Provisions for earthing
The requirements of Clause 9 of IEC 61347-1 apply.
11 Moisture resistance and insulation
The requirements of Clause 11 of IEC 61347-1 apply together with the following additional
requirements:
The leakage current that may occur from contact with fluorescent lamps operated at high
frequency from a.c. supplied electronic control gear shall not exceed the values in Figure 5
when measured in accordance with Annex I. The values are in r.m.s. values.
The limits of leakage current values for frequencies between the values shown in Figure 5
should be obtained by calculation according to the formula in the figure (under consideration).
NOTE Limits of leakage current values for frequencies above 50 kHz are under consideration.
Compliance with these requirements is checked in accordance with Annex I.
12 Electric strength
The requirements of Clause 12 of IEC 61347-1 apply.
13 Thermal endurance test for windings
The requirements of Clause 13 of IEC 61347-1 do not apply.
14 Fault conditions
The requirements of Clause 14 of IEC 61347-1 apply.
An additional fault condition to be applied to d.c. supplied control gear is the supply voltage
polarity shall be reversed.
15 Protection of associated components
15.1 Maximum peak voltage under normal operation conditions
Under conditions of normal operation, verified with dummy cathode resistors inserted and
conditions of abnormal operation, as specified in Clause 16, the voltage at the output
terminals shall at no time exceed the maximum permitted peak value specified in Table 1.
61347-2-3 © IEC:2011 – 11 –
Table 1 – Relation between r.m.s. working voltage and maximum peak voltage
Voltage at output terminals
RMS working voltage Maximum permitted peak voltage
V V
250 2 200
500 2 900
750 3 100
1 000 3 200
NOTE Linear interpolation between the given voltage steps is allowed.
15.2 Maximum working voltage under normal and abnormal operating conditions
Under normal operating conditions and abnormal operating conditions as specified in
Clause 16, except for the rectifying effect, and from 5 s after the switch on or beginning of the
starting process, the voltage at the output terminals shall not exceed the maximum working
voltage for which the control gear is declared.
15.3 Maximum working voltage and rectifying effect
In the case of a rectifying effect, i.e. abnormal operating condition according to 16.1 d), the
r.m.s. voltage at the output terminal shall not exceed the maximum permitted value for which
the control gear is designed for a period longer than 30 s after switch-on, or beginning of the
starting process.
For control gear which makes more than one attempt to start a failed lamp, the combined
duration of voltages above the maximum working voltage for which the ballast is declared
shall not exceed 30 s.
Circuit for testing the rectifying effect and the information regarding the recovery time t of
rr
the diode are given Figure 4 (4a, 4b and 4c).
15.4 Output voltage and abnormal conditions
For the tests of 15.1 and 15.2, the output voltages measured shall be those between any
output terminal and earth. Additionally, voltages that appear between output terminals shall
be measured in cases where the voltage is present across insulation barriers within
associated components.
15.5 Isolation of input terminals of controllable electronic control gear
For controllable electronic control gear, the control input shall be isolated from the mains
circuit by insulation at least equal to basic insulation.
NOTE This requirement does not apply to those control gear where control signals are injected via the supply
terminals or where the control signals are completely isolated from the ballast by being transmitted remotely from
infra-red or radio wave transmitters.
If SELV is to be used, then double or reinforced insulation is required.
16 Abnormal conditions
16.1 Abnormal conditions for a.c. and d.c. control gears
The control gear shall not impair safety when operated under abnormal conditions at any
voltage between 90 % and 110 % of the rated supply voltage.
– 12 – 61347-2-3 © IEC:2011
Compliance is checked by the following test.
Each of the following conditions shall be applied with the control gear operating according to
the manufacturer's instructions (including a heat sink, if specified) for 1 h:
a) the lamp or one of the lamps is not inserted;
b) the lamp does not start because one of the cathodes is broken;
c) the lamp does not start although the cathode circuits are intact (de-activated lamp);
d) the lamp operates, but one of the cathodes is de-activated or broken (rectifying effect);
e) short circuit of the starter switch, if any.
For the test simulating operation with a de-activated lamp, a resistor is connected in place of
each lamp cathode. The resistor value is derived from the value of the nominal running
current of the lamp prescribed in the relevant lamp data sheet of IEC 60081 and IEC 60901
and substituted in the following equation:
11,0
R = Ω
2,1 × I
n
where
I is the rated lamp current of the lamp.
n
For lamps not covered by IEC 60081 and IEC 60901, the values declared by the lamp
manufacturer shall be used.
When testing electronic ballasts for the rectifying effect, the circuit shown in Figure 1 is used.
The anode of the rectifier is connected to the midpoints of appropriate equivalent resistors;
the cathode of the rectifier is connected to the short circuited lamp electrode. The direction of
the rectifying effect is chosen so as to give the most unfavourable conditions. If necessary,
the lamp is started using a suitable device.
During and at the end of the tests specified under items a) to e), the control gear shall show
no defect impairing safety nor shall any smoke be produced.
16.2 Additional abnormal conditions for d.c. supplied electronic control gear
If the d.c. supplied electronic control gear declared by the manufacturer as a protected control
gear against the reversal polarity of the supply voltage, then the following test is applied:
The d.c. supplied electronic control gear shall be connected for 1 h with the reversal supply
voltage at the maximum value of the rated voltage with the maximum lamp power declared by
the manufacturer.
During and at the end of the test the electronic control gear shall operate the lamp(s) normally
without any defects.
17 Behaviour of the control gear at end of lamp life
17.1 End of lamp life effects
At the end of lamp life, the control gear shall behave in such a way that no overheating of
lamp cap(s) occurs at any voltage between 90 % and 110 % of the rated supply voltage.
61347-2-3 © IEC:2011 – 13 –
For the test simulating end of lamp life effects, three tests are described:
a) asymmetric pulse test (described in 17.2);
b) asymmetric power dissipation test (described in 17.3);
c) open filament test (described in 17.4).
Any of the three tests may be used to qualify electronic control gear. The control gear
manufacturer shall determine which of the three tests will be used to test a given control gear
based on the design of that particular control gear circuit. The chosen test method shall be
indicated in the control gear manufacturer’s literature.
NOTE 1 Checking control gear against their capability to cope with the partial rectifying effect is recommended by
IEC 61195, Annex E, and IEC 61199, Annex H.
NOTE 2 In Japan, only the requirements of 17.1 b) are applied for electronic control gear.
Lamps used in the ballast test circuits shall be new lamps seasoned for 100 h.
17.2 Asymmetric pulse test
The ballast shall have adequate protection to prevent lamp cap overheating at the end of the
lamp life cycle. Compliance is checked by the following test.
The following values of maximum cathode power P apply:
max
– for 13 mm (T4) lamps, P = 5,0 W;
max
– for 16 mm (T5) lamps, P = 7,5 W.
max
(Other diameters are under study.)
Test procedure:
Refer to the schematic diagram in Figure 1.
If only one connection per electrode is available at the control gear and/or lamp, T1 shall be
removed and then the control gear shall be connected to J2 and the lamp to J4. The control
gear manufacturer should be asked which of the output terminals has to be connected to J4
and, in case two output terminals per electrode exist, whether they can be short-circuited or
be bridged with a resistor.
(1) Close switches S1 and S4, and set switch S2 to position A.
(2) Turn on the control gear under test and allow lamp(s) to warm up for 5 min.
(3) Close S3, open S1, and wait for 15 s. Open S4 and wait for 15 s.
(4) Measure the sum of the average power dissipated in the power resistors, R1A to R1C
and R2A and R2B, and the Zener diodes, D5 to D8.
NOTE The power should be measured as the average value of the product of the voltage between
terminals J5 and J6 times the current flowing from J8 to J7. The voltage should be measured with a
differential voltage probe, and the current should be measured with a d.c. current probe. A digital
oscilloscope can be used for the multiplication and averaging functions. If the control gear operates in a
cycling mode, the averaging interval should be set to cover an integer number of cycles. (Each cycle is
typically greater than 1 s.) The sampling rate and number of samples included in the calculations should be
sufficient to avoid aliasing errors.
The power dissipation shall be below P .
max
If the power dissipation is greater than P , the control gear has failed and the test is
max
discontinued.
(5) Close S1 and S4.
(6) Set S2 to position B.
– 14 – 61347-2-3 © IEC:2011
(7) Repeat steps (2), (3) and (4).
The control gear shall pass both position “A” and position “B” tests.
(8) For multi-lamp control gear, repeat steps (1) to (7) for each lamp position.
A multi-lamp control gear shall pass the tests for each lamp position.
(9) For control gear that operate multiple lamp types (e.g. 26 W, 32 W, 42 W), each lamp
type specified shall be tested. Repeat steps (1) to (8) for each lamp type.
Ballast
PN3636-FC2
J1
J3
1:1
5 4
Lamp
T1
7 1
J2 J4
S1
S2
B A
D1
MUR1100E
D2
MUR1100E
S4
R2A
R6
R4
500 Ω 30 W
365 kΩ 44,2 kΩ
1 %
1 % 1 %
R1A
R2B
R5
5 kΩ 25 W
500 Ω 30 W U1 8 LM555
1 % 41,2 kΩ
1 % 4 S3
Vcc Reset
1 %
D3
J5 +
ST
D4
Q1
D5 W6 Discharge
R3 1N4148 1N4148
NB
200 V 3 6
R1B
Output Threshold
5 kΩ 25 W 30 Ω 2
_ D6 J9 +
Trigger
J6
1 %
200 V
9V Battery
GND Control
_
D7
J10
R1C 200 V C1
5 kΩ 25 W 0,1 μF C2 C3
D8
1 %
0,1 μF 0,1 μF 5 %
200 V
_
+
J7 J8
IEC 940/11
Figure 1 – Asymmetric pulse test circuit
NOTE FET Q1 should be on for 3 ms and off for 3 ms when S4 is closed, and on for 27 ms and off for 3 ms when
S4 is open.
A list of material and transformer specifications is given in Annex K. Any other transformer
components with the same functionality are permitted.
61347-2-3 © IEC:2011 – 15 –
17.3 Asymmetric power test
The control gear shall have adequate protection to prevent lamp cap overheating at the end of
the lamp life cycle. Compliance is checked by the following test.
The following values of maximum cathode power P apply:
max
– for 13 mm (T4) lamps, P = 5,0 W;
max
– for 16 mm (T5) lamps, P = 7,5 W.
max
(Other diameters are under study.)
Test procedure:
Refer to the schematic diagram in Figure 2.
(1) Set switch S1 to position A.
(2) Set resistance of resistor R1 to 0 (zero) Ω.
(3) Start lamp(s) by turning on power to control gear under test and allow lamp(s) to warm
up for 5 min.
(4) Increase the resistance of R1 rapidly, (within 15 s) until the power dissipated by resistor
R1 equals the test wattage value of 10 W for a T4 lamp or 15 W for a T5 lamp. If the
control gear limits the power in R1 to a value less than the test wattage, set R1 at the
value which produces the maximum wattage. If the control gear switches off before
reaching the test wattage, continue with (5). If the control gear does not switch off and
limits the power in R1 to a value less than the test wattage, set R1 at the value which
produces the maximum wattage.
(5) If the test wattage value was reached in step (4), wait for an additional 15 s. If the test
wattage value was not reached in step (4), wait for an additional 30 s. Measure the
power in R1.
The power dissipation in resistor R1 shall be below or equal to P .
max
If the power dissipation in resistor R1 is greater than P , The control gear has failed
max
and the test is discontinued.
(6) Turn off power to control gear. Set switch S1 to position B.
(7) Repeat test procedure steps (3) to (5) above.
The control gear shall pass both position “A” and position “B” tests.
(8) For multi-lamp control gear, repeat test procedure steps (1) to (7) for each lamp
position.
A multi-lamp control gear shall pass the tests for each lamp position.
(9) For control gear that operate multiple lamp types (e.g. 26 W, 32 W, 42 W) each lamp
type specified shall be tested. Repeat steps (1) to (8) for each lamp type.
– 16 – 61347-2-3 © IEC:2011
D
C
R1
W
R3
D1
Lamp 1
B
S1
G
A
D2
R2
E F
IEC 647/04
NOTE 1 R2 = R3 = x Ω (this resistance is ½ resistance of hot cathode – refer to lamp data sheet).
NOTE 2 C, D, E and F represent cathode connections for the ballast.
NOTE 3 For instant start control gear, connection G is connected to one and the combined D and F are connected
to the other terminal.
Figure 2 – Asymmetric power detection circuit
17.4 Open filament test
17.4.1 Selection
The control gear shall have adequate protection to prevent lamp cap overheating at the end of
the lamp life cycle under open filament conditions. Compliance is checked by either test
procedure A or B as determined by the value of I below.
max
During the test, the following values of maximum lamp current I apply:
max
– for 13 mm (T4) lamps, I = 1 mA;
max
– for 16 mm (T5) lamps, I = 1,5 mA.
max
(Other diameters are under study.)
If these current values are exceeded, test procedure B shall be applied; otherwise, test
procedure A shall be applied.
17.4.2 Measurements to be carried out prior to test procedure A
Determine the r.m.s. currents, I (1), I (1), I (2), I (2), at the control gear output terminals,
LL LH LL LH
by using a current probe and mark the terminals respectively, where:
• I (1) is the lower of the r.m.s. currents through lead-in wire of electrode 1.
LL
• I (1) is the higher of the r.m.s. currents through lead-in wire of electrode 1.
LH
• I (2) is the lower of the r.m.s. currents through lead-in wire of electrode 2.
LL
• I (2) is the higher of the r.m.s. currents through lead-in wire of electrode 2.
LH
Connect the circuit according to Figure 3a.
61347-2-3 © IEC:2011 – 17 –
17.4.3 Test procedure A
Refer to schematic diagram in Figure 3a.
(1) Set S to position 1.
(2) Turn on the ballast under test and allow lamp(s) to warm up for 5 min.
(3) Set S to position 2 and wait for 30 s.
(4) Measure the r.m.s. current value of I with the current probe near to the lamp end. If
lamp
I is pulsing, the r.m.s. value shall be computed over one complete pulse cycle
lamp
including the off time.
The lamp discharge current I shall not be greater than I .
lamp max
If the lamp discharge current is greater than I , the control gear has failed and the
max
test is discontinued.
Refer to Figure 3b.
(5) Set S to position 1.
(6) Turn on the control gear under test and allow lamp(s) to warm up for 5 min.
(7) Set S to position 2 and wait for 30 s.
(8) Measure the r.m.s. current value of I with the current probe near to the lamp end.
lamp
If I is pulsing, the r.m.s. value shall be computed over one complete pulse cycle
lamp
including the off time.
The lamp discharge current I shall not be greater than I .
lamp max
(9) For multi-lamp control gear, repeat test procedure steps (1) to (8) for each lamp
position.
A multi-lamp control gear shall pass the tests for each lamp position to pass the end-of-
lamp-life test.
(10) For control gear that operate multiple lamp types (e.g. 26 W, 32 W, 42 W), each lamp
type specified shall be tested. Repeat steps (1) to (9) for each lamp type.
17.4.4 Test procedure B
Connect the lamp as shown in Figures 3a and 3b with the measurement arrangement
according to Figure 3c. If the control gear has an isolation transformer, connect the 1 MΩ
resistor to the corresponding terminal defined in 17.4.2.
(1) Set S to position 1.
(2) Turn on the control gear under test and allow lamp(s) to warm up for 5 min.
(3) Set S to position 2 wait for 30 s.
Measure the r.m.s. voltage value with the differential probe placed as indicated in
Figure 5c. If the voltage is pulsing, the r.m.s. value shall be computed over one
complete pulse cycle including the off time.
(4) The voltage shall not be greater than 25 % of the rated lamp voltage. If the voltage is
greater than 25 %, discontinue the test.
Refer to Figure 3b.
(5) Repeat test procedure steps (1) to (4) above.
(6) For multi-lamp control gear, repeat test procedure steps (1) to (5) for each lamp
position.
A multi-lamp control gear shall pass the test for each lamp position to pass the end-of-
lamp life test.
(7) For control gear which operate multiple lamp types (e.g. 26 W, 32 W, 42 W), each lamp
type specified shall be tested.
Repeat steps (1) to (6) for each lamp type. A multiple lamp control gear shall pass the
test for each lamp type.
– 18 – 61347-2-3 © IEC:2011
ICP
I (1)
LL
Lp
I (1)
LH
U 1
N DUT
S
I (2)
LL
I (2)
LH
R2
R1
D
IEC 648/04
Figure 3a – Open filament test circuit; electrode (1) check
ICP
I (1)
LL
Lp
I (1)
LH
DUT
U
N
S
I (2)
LL
I (2)
LH
R2
R1
D
IEC 649/04
Figure 3b – Open filament test circuit; electrode (2) check
NOTE Use terminal I (2) of Figure 3a or I (1) of Figure 3b.
LH LH
Figure 3c – Detection of lamp current
Key to Figures 3a, 3b and 3c
Lp lamp
R1 = 10 kΩ
Lp1 straight lamp; copper foil width 4 cm R2 = 22 Ω, 7 W
Lp2 bended lamp (single capped and circular); copper R3 = 1 MΩ
foil width: twice 2 cm; both foils connected together
U supply D fast diodes
N
F copper foil, width 4 cm and 2 cm × 2 cm DUT device (control gear) under test
ICP I current probe Dp differential probe < 10 pF
lamp
L lamp length
61347-2-3 © IEC:2011 – 19 –
Figure 3 – Open filament
...
IEC 61347-2-3 ®
Edition 2.1 2016-07
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Lamp control gear –
Part 2-3: Particular requirements for a.c. and/or d.c. supplied electronic control
gear for fluorescent lamps
Appareillages de lampes –
Partie 2-3: Exigences particulières pour les appareillages électroniques
alimentés en courant alternatif et/ou en courant continu pour lampes
fluorescentes
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.
IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and
CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 15
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
La recherche avancée permet de trouver des publications IEC
65 000 entrées terminologiques électrotechniques, en anglais
en utilisant différents critères (numéro de référence, texte,
et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les
publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées.
antérieures extraites des publications des CE 37, 77, 86 et
CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished
Restez informé sur les nouvelles publications IEC. Just Service Clients - webstore.iec.ch/csc
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 61347-2-3 ®
Edition 2.1 2016-07
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Lamp control gear –
Part 2-3: Particular requirements for a.c. and/or d.c. supplied electronic control
gear for fluorescent lamps
Appareillages de lampes –
Partie 2-3: Exigences particulières pour les appareillages électroniques
alimentés en courant alternatif et/ou en courant continu pour lampes
fluorescentes
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.99 ISBN 978-2-8322-3539-3
IEC 61347-2-3 ®
Edition 2.1 2016-07
CONSOLIDATED VERSION
REDLINE VERSION
VERSION REDLINE
colour
inside
Lamp control gear –
Part 2-3: Particular requirements for a.c. and/or d.c. supplied electronic control
gear for fluorescent lamps
Appareillages de lampes –
Partie 2-3: Exigences particulières pour les appareillages électroniques
alimentés en courant alternatif et/ou en courant continu pour lampes
fluorescentes
– 2 – IEC 61347-2-3:2011+AMD1:2016 CSV
© IEC 2016
CONTENTS
FOREWORD. 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 7
4 General requirements . 8
5 General notes on tests . 8
6 Classification . 9
7 Marking . 9
8 Protection against accidental contact with live parts . 9
9 Terminals . 9
10 Provisions for earthing . 10
11 Moisture resistance and insulation . 10
12 Electric strength . 10
13 Thermal endurance test for windings . 10
14 Fault conditions . 10
15 Protection of associated components . 10
16 Abnormal conditions . 12
17 Behaviour of the control gear at end of lamp life . 13
18 Construction . 19
19 Creepage distances and clearances . 19
20 Screws, current-carrying parts and connections. 19
21 Resistance to heat, fire and tracking . 19
22 Resistance to corrosion . 19
Annex A (normative) Test to establish whether a conductive part is a live part which
may cause an electric shock . 24
Annex B (normative) Particular requirements for thermally protected lamp control gear . 25
Annex C (normative) Particular requirements for electronic lamp control gear with
means of protection against overheating . 26
Annex D (normative) Requirements for carrying out the heating tests of thermally
protected lamp control gear . 27
Annex E (normative) Use of constant S other than 4 500 in t tests . 28
w
Annex F (normative) Draught-proof enclosure . 29
Annex G (normative) Explanation of the derivation of the values of pulse voltages . 30
Annex H (normative) Tests . 31
Annex I (normative) Measurement of high-frequency leakage current . 32
Annex J (normative) Particular additional safety requirements for a.c., a.c./d.c. or d.c.
supplied electronic control gear for emergency lighting . 37
Annex K (informative) Components used in the asymmetric pulse test circuit (see
Figure 1) . 41
Annex L (normative) Information for control gear design (from Annex E of IEC 61195) . 42
Bibliography . 43
© IEC 2016
Figure 1 – Asymmetric pulse test circuit . 14
Figure 2 – Asymmetric power detection circuit . 16
Figure 3 – Open filament test circuits . 18
Figure 4 – Circuit for testing rectifying effect. 20
Figure 5 – Nomographs for the capacitive leakage current limits of HF-operated
fluorescent lamps . 23
Figure I.1 – Leakage current test arrangement for various fluorescent lamps . 36
Table 1 – Relation between r.m.s. working voltage and maximum peak voltage . 11
Table J.1 – Pulse voltages . 40
Table K.1 – Material specification . 41
Table K.2 – Transformer specification . 41
– 4 – IEC 61347-2-3:2011+AMD1:2016 CSV
© IEC 2016
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LAMP CONTROL GEAR –
Part 2-3: Particular requirements for a.c. and/or d.c.
supplied electronic control gear for fluorescent lamps
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This consolidated version of the official IEC Standard and its amendment has been prepared
for user convenience.
IEC 61347-2-3 edition 2.1 contains the second edition (2011-05) [documents 34C/955/FDIS and
34C/968/RVD], its corrigendum 1 (2011-09) and its amendment 1 (2016-07) [documents
34C/1206/FDIS and 34C/1241/RVD].
In this Redline version, a vertical line in the margin shows where the technical
content is modified by amendment 1. Additions are in green text, deletions are in
strikethrough red text. A separate Final version with all changes accepted is
available in this publication.
© IEC 2016
International Standard IEC 61347-2-3 has been prepared by subcommittee 34C: Auxiliaries
for lamps, of IEC technical committee 34: Lamps and related equipment.
This standard shall be used in conjunction with IEC 61347-1 (2007) and its Amendment 1
(2010).
This second edition constitutes a technical revision.
The significant revisions with respect to the first edition are:
– rectifying test conditions when dimming;
– construction requirements;
– measurement circuits and limits for HF leakage currents;
– modification of the structure to become a standard exclusively for a.c. and d.c. central
supplied electronic control gear for general lighting and Annex J cover centrally-
supplied emergency control gear.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This part 2 supplements or modifies the corresponding clauses in IEC 61347-1 so as to
convert that publication into the IEC standard: Particular requirements for a.c. and/or d.c.
supplied electronic control gear for fluorescent lamps.
NOTE In this standard, the following print types are used:
– Requirements proper: in roman type.
– Test specifications: in italic type.
– Explanatory matter: in smaller roman type.
A list of all parts of the IEC 61347 series, published under the general title: Lamp control
gear, can be found on the IEC website.
The committee has decided that the contents of the base publication and its amendment will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – IEC 61347-2-3:2011+AMD1:2016 CSV
© IEC 2016
INTRODUCTION
This second edition of IEC 61347-2-3, published in conjunction with IEC 61347-1, represents
an review of the first edition of IEC 61347-2-3. The formatting into separately published parts
provides for ease of future amendments and revisions. Additional requirements will be added
as and when a need for them is recognized.
This standard, and the parts which make up IEC 61347-2, in referring to any of the clauses of
IEC 61347-1, specify the extent to which such a clause is applicable and the order in which
the tests are to be performed; they also include additional requirements, as necessary. All
parts which make up IEC 61347-2 are intended to be self-contained and, therefore, do not
include references to each other. However, for the case of emergency lighting lamp control
gear, some cross-referencing has been necessary.
Where the requirements of any of the clauses of IEC 61347-1 are referred to in this standard
by the phrase ”The requirements of clause n of IEC 61347-1 apply”, this phrase is interpreted
as meaning that all requirements of the clause in question of part 1 apply, except any which
are clearly inapplicable to the specific type of lamp control gear covered by this particular part
of IEC 61347-2.
© IEC 2016
LAMP CONTROL GEAR –
Part 2-3: Particular requirements for a.c. and/or d.c.
supplied electronic control gear for fluorescent lamps
1 Scope
This part of IEC 61347 specifies particular safety requirements for electronic control gear for
use on a.c. supplies at 50 Hz or 60 Hz up to 1 000 V and/or d.c. supplies up to 1 000 V at 50
Hz or 60 Hz with lamp operating frequencies deviating from the supply frequency, associated
with fluorescent lamps as specified in IEC 60081 and IEC 60901, and other fluorescent lamps
for high-frequency operation.
Performance requirements are the subject of IEC 60929.
Particular requirements for electronic control gear with means protection against overheating
are given in Annex C.
For emergency lighting operation, particular requirements for control gear operated from a
central supply are given in Annex J. Performance requirements appropriate to the safe
operation of emergency lighting are also contained in Annex J.
Requirements for emergency lighting control gear operating from non-centralised power
supplies are given in IEC 61347-2-7.
NOTE Performance requirements detailed by Annex J are those considered to be safety-related with respect to
reliable emergency operation.
2 Normative references
For the purposes of this document, the normative references given in Clause 2 of
IEC 61347-1 which are mentioned in this standard apply, together with the following normative
references.
IEC 60929: 2011, AC and/or DC-supplied electronic control gear for tubular fluorescent lamps
– Performance requirements
IEC 61347-1:2007, Lamp control gear – Part 1: General and safety requirements
Amendment 1(2010)
IEC 61347-2-7,___ Lamp control gear – Part 2-7: Particular requirements for battery supplied
electronic control gear for emergency lighting (self-contained)
IEC 61547, Equipment for general lighting purposes – EMC immunity requirements
3 Terms and definitions
For the purposes of this document, the terms and definitions of Clause 3 of IEC 61347-1
apply, together with the following.
___________
To be published
– 8 – IEC 61347-2-3:2011+AMD1:2016 CSV
© IEC 2016
3.1
a.c. supplied electronic control gear
mains-supplied a.c. to a.c. invertor including stabilizing elements for starting and operating
one or more fluorescent lamps, generally at high frequency
3.2
maximum value of lamp power (of a controllable control gear)
lamp power (light output) which complies with 8.1 of IEC 60929, unless otherwise declared by
the manufacturer or responsible vendor
3.3
maximum allowed peak voltage
highest permitted peak voltage across any insulation under open-circuit condition and any
normal and abnormal operating conditions
The maximum peak voltage is related to the declared r.m.s. working voltage; see Table 1.
3.4
minimum value of lamp power (of a controllable control gear)
lowest percentage of the lamp power defined in 3.2 declared by the manufacturer or
responsible vendor
3.5
a.c./d.c. supplied electronic control gear for maintained emergency lighting
mains/battery-supplied a.c./d.c. to a.c. invertor including stabilizing elements for starting and
operating one or more fluorescent lamps, generally at high frequency for emergency lighting
3.6
cathode dummy resistor
cathode substitution resistor as specified on the relevant lamp data sheet of IEC 60081 or
IEC 60901 or as declared by the relevant lamp manufacturer or by the responsible vendor
3.7
d.c. supplied electronic control gear
d.c. supplied electronic control gear or invertor includes stabilisation elements for starting and
operating one or more tubular fluorescent lamps, generally at high frequency
4 General requirements
The requirements of Clause 4 of IEC 61347-1 apply, together with the following additional
requirement:
AC/d.c. electronic control gear for emergency lighting shall comply with the requirements of
Annex J.
5 General notes on tests
The requirements of Clause 5 of 61347-1 apply together with the following additional
requirement:
The following number of specimens shall be submitted for testing:
– one unit for the tests of Clause 6 to 12 and 15 to 22;
– 12 samples with each one or more units for the test of Clause 14, refer to IEC 61347-1,
14.5 (additional units or components, where necessary, may be required in consultation
with the manufacturer).
© IEC 2016
Tests to meet the safety requirements for a.c./d.c. supplied electronic control gear for
emergency lighting are made under the conditions specified in Annex J.
6 Classification
The requirements of Clause 6 of IEC 61347-1 apply.
7 Marking
Control gear which forms an integral part of the luminaire need not be marked.
7.1 Mandatory markings
In accordance with the requirements of 7.2 of IEC 61347-1, control gear, other than integral
integrated controlgear, shall be clearly and durably marked with the following mandatory
markings:
− items a), b), c), d), e), f), k), l), m), s), t) and u) of 7.1 of IEC 61347-1, together with
(hereby item s) in 7.1 has priority over the requirements of SELV controlgear in Table L.1);
– according to 15.4, the declaration of U can be based on a reduced number of
out
measurements.
– the symbol for earthing, as applicable;
– for controllable control gear, the control terminals shall be identified;
– a declaration of the maximum working voltage (r.m.s.) according to 12.2 between
• output terminals;
• any output terminal and earth.
Marking for each of these two values shall be in steps of 10 V when the working voltage is
equal to, or less than, 500 V, and in steps of 50 V when the working voltage is higher than
500 V. The marking of maximum working voltage is referenced in two situations, the maximum
between output terminals and the maximum between any output terminal and earth. It is
acceptable for only the higher of these two voltages to be marked.
Marking shall be U-OUT=.V.
7.2 Information to be provided, if applicable
In addition to the above mandatory markings, the following information, if applicable, shall be
given either on the controlgear, or be made available in the manufacturer’s catalogue or
similar:
– items h), i), j) and n) given in 7.1 of IEC 61347-1;
– information regarding voltage polarity reversal protection for d.c. supplied controlgear
only.
8 Protection against accidental contact with live parts
The requirements of Clause 10 of IEC 61347-1 apply.
9 Terminals
The requirements of Clause 8 of IEC 61347-1 apply.
– 10 – IEC 61347-2-3:2011+AMD1:2016 CSV
© IEC 2016
10 Provisions for earthing
The requirements of Clause 9 of IEC 61347-1 apply.
11 Moisture resistance and insulation
The requirements of Clause 11 of IEC 61347-1 apply together with the following additional
requirements:
The leakage current that may occur from contact with fluorescent lamps operated at high
frequency from a.c. supplied electronic control gear shall not exceed the values in Figure 5
when measured in accordance with Annex I. The values are in r.m.s. values.
The limits of leakage current values for frequencies between the values shown in Figure 5
should be obtained by calculation according to the formula in the figure (under consideration).
NOTE Limits of leakage current values for frequencies above 50 kHz are under consideration.
Compliance with these requirements is checked in accordance with Annex I.
12 Electric strength
The requirements of Clause 12 of IEC 61347-1 apply.
13 Thermal endurance test for windings
The requirements of Clause 13 of IEC 61347-1 do not apply.
14 Fault conditions
The requirements of Clause 14 of IEC 61347-1 apply.
An additional fault condition to be applied to d.c. supplied control gear is the supply voltage
polarity shall be reversed.
15 Protection of associated components
15.1 Maximum peak voltage under normal operation conditions
Under conditions of normal operation, verified with dummy cathode resistors inserted and
conditions of abnormal operation, as specified in Clause 16, the voltage at the output
terminals shall at no time exceed the maximum permitted peak value specified in Table 1.
© IEC 2016
Table 1 – Relation between r.m.s. working voltage and maximum peak voltage
Voltage at output terminals
RMS working voltage Maximum permitted peak voltage
V V
250 2 200
500 2 900
750 3 100
1 000 3 200
NOTE Linear interpolation between the given voltage steps is allowed.
15.2 Maximum working voltage under normal and abnormal operating conditions
Under normal operating conditions and abnormal operating conditions as specified in
Clause 16, except for the rectifying effect, and from 5 s after the switch on or beginning of the
starting process, the voltage at the output terminals shall not exceed the maximum working
voltage for which the control gear is declared.
15.3 Maximum working voltage and rectifying effect
In the case of a rectifying effect, i.e. abnormal operating condition according to 16.1 d), the
r.m.s. voltage at the output terminal shall not exceed the maximum permitted value for which
the control gear is designed for a period longer than 30 s after switch-on, or beginning of the
starting process.
For control gear which makes more than one attempt to start a failed lamp, the combined
duration of voltages above the maximum working voltage for which the ballast is declared
shall not exceed 30 s.
Circuit for testing the rectifying effect and the information regarding the recovery time t of
rr
the diode are given Figure 4 (4a, 4b and 4c).
15.4 Output voltage and abnormal conditions
For the tests of 15.1 and 15.2, the output voltages measured shall be those between any
output terminal and earth. Additionally, voltages that appear between output terminals shall
be measured in cases where the voltage is present across insulation barriers within
associated components.
For multi-lamp or multi-power controlgear only the combination that leads to the highest
voltage shall be measured.
If, from a similar review or declaration for all controlgear, it becomes clear that the voltage is
below 50 V, then only that terminal-terminal or terminal-earth combination is measured.
15.5 Isolation of input terminals of controllable electronic control gear
For controllable electronic control gear, the control input shall be isolated from the mains
circuit by insulation at least equal to basic insulation.
NOTE This requirement does not apply to those control gear where control signals are injected via the supply
terminals or where the control signals are completely isolated from the ballast by being transmitted remotely from
infra-red or radio wave transmitters.
If SELV is to be used, then double or reinforced insulation is required.
– 12 – IEC 61347-2-3:2011+AMD1:2016 CSV
© IEC 2016
16 Abnormal conditions
16.1 Abnormal conditions for a.c. and d.c. control gears
The control gear shall not impair safety when operated under abnormal conditions at any
voltage between 90 % and 110 % of the rated supply voltage.
Compliance is checked by the following test.
Each of the following conditions shall be applied with the control gear operating according to
the manufacturer's instructions (including a heat sink, if specified) for 1 h:
a) the lamp or one of the lamps is not inserted;
b) the lamp does not start because one of the cathodes is broken;
c) the lamp does not start although the cathode circuits are intact (de-activated lamp);
d) the lamp operates, but one of the cathodes is de-activated or broken (rectifying effect);
e) short circuit of the starter switch, if any.
For the test simulating operation with a de-activated lamp, a resistor is connected in place of
each lamp cathode. The resistor value is derived from the value of the nominal running
current of the lamp prescribed in the relevant lamp data sheet of IEC 60081 and IEC 60901
and substituted in the following equation:
11,0
R= Ω
2,1 × I
n
where
I is the rated lamp current of the lamp.
n
For lamps not covered by IEC 60081 and IEC 60901, the values declared by the lamp
manufacturer shall be used.
When testing electronic ballasts for the rectifying effect, the circuit shown in Figure 1 is used.
The anode of the rectifier is connected to the midpoints of appropriate equivalent resistors;
the cathode of the rectifier is connected to the short circuited lamp electrode. The direction of
the rectifying effect is chosen so as to give the most unfavourable conditions. If necessary,
the lamp is started using a suitable device.
During and at the end of the tests specified under items a) to e), the control gear shall show
no defect impairing safety nor shall any smoke be produced.
16.2 Additional abnormal conditions for d.c. supplied electronic control gear
If the d.c. supplied electronic control gear declared by the manufacturer as a protected control
gear against the reversal polarity of the supply voltage, then the following test is applied:
The d.c. supplied electronic control gear shall be connected for 1 h with the reversal supply
voltage at the maximum value of the rated voltage with the maximum lamp power declared by
the manufacturer.
During and at the end of the test the electronic control gear shall operate the lamp(s) normally
without any defects.
© IEC 2016
17 Behaviour of the control gear at end of lamp life
17.1 End of lamp life effects
At the end of lamp life, the control gear shall behave in such a way that no overheating of
lamp cap(s) occurs at any voltage between 90 % and 110 % of the rated supply voltage.
For the test simulating end of lamp life effects, three tests are described:
a) asymmetric pulse test (described in 17.2);
b) asymmetric power dissipation test (described in 17.3);
c) open filament test (described in 17.4).
Any of the three tests may be used to qualify electronic control gear. The control gear
manufacturer shall determine which of the three tests will be used to test a given control gear
based on the design of that particular control gear circuit. The chosen test method shall be
indicated in the control gear manufacturer’s literature.
NOTE 1 Checking control gear against their capability to cope with the partial rectifying effect is recommended by
IEC 61195, Annex E, and IEC 61199, Annex H.
NOTE 2 In Japan, only the requirements of 17.1 b) are applied for electronic control gear.
Lamps used in the ballast test circuits shall be new lamps seasoned for 100 h.
17.2 Asymmetric pulse test
The ballast controlgear shall have adequate protection to prevent lamp cap overheating at the
end of the lamp life cycle. Compliance is checked by the following test. The relevant values of
lamp power, maximum asymmetric power P at the cathodes and the designation of lamp
max
cap shall be taken from Annex E of IEC 60081 and Annex D of IEC 60901 respectively.
The following values of maximum cathode power P apply:
max
– for 13 mm (T4) lamps, P = 5,0 W;
max
– for 16 mm (T5) lamps, P = 7,5 W.
max
(Other diameters are under study.)
NOTE Amendment 6 of IEC 60081 is under preparation. Stage at the time of publication:
IEC CDV 60081 AMD6:2015.
Test procedure:
Refer to the schematic diagram in Figure 1.
If only one connection per electrode is available at the control gear and/or lamp, T1 shall be
removed and then the control gear shall be connected to J2 and the lamp to J4. The control
gear manufacturer should be asked which of the output terminals has to be connected to J4
and, in case two output terminals per electrode exist, whether they can be short-circuited or
be bridged with a resistor.
(1) Close switches S1 and S4, and set switch S2 to position A.
(2) Turn on the control gear under test and allow lamp(s) to warm up for 5 min.
(3) Close S3, open S1, and wait for 15 s. Open S4 and wait for 15 s.
(4) Measure the sum of the average power dissipated in the power resistors, R1A to R1C
and R2A and R2B, and the Zener diodes, D5 to D8.
– 14 – IEC 61347-2-3:2011+AMD1:2016 CSV
© IEC 2016
NOTE The power should be measured as the average value of the product of the voltage between
terminals J5 and J6 times the current flowing from J8 to J7. The voltage should be measured with a
differential voltage probe, and the current should be measured with a d.c. current probe. A digital
oscilloscope can be used for the multiplication and averaging functions. If the control gear operates in a
cycling mode, the averaging interval should be set to cover an integer number of cycles. (Each cycle is
typically greater than 1 s.) The sampling rate and number of samples included in the calculations should be
sufficient to avoid aliasing errors.
The power dissipation shall be below P .
max
If the power dissipation is greater than P , the control gear has failed and the test is
max
discontinued.
(5) Close S1 and S4.
(6) Set S2 to position B.
(7) Repeat steps (2), (3) and (4).
The control gear shall pass both position “A” and position “B” tests.
(8) For multi-lamp control gear, repeat steps (1) to (7) for each lamp position.
A multi-lamp control gear shall pass the tests for each lamp position.
(9) For control gear that operate multiple lamp types (e.g. 26 W, 32 W, 42 W), each lamp
type specified shall be tested. Repeat steps (1) to (8) for each lamp type.
Ballast
PN3636-FC2
J1
J3
1:1
Lamp
T1
7 1
J2 J4
S1
S2
B A
D1
MUR1100E
D2
MUR1100E
S4
R2A
R4 R6
500 Ω 30 W
365 kΩ 44,2 kΩ
1 %
1 % 1 %
R1A
R2B
R5
5 kΩ 25 W
U1 8 LM555
500 Ω 30 W
1 %
41,2 kΩ
1 % 4 S3
Vcc Reset
1 %
D3
J5 +
ST
D4
Q1
D5 W6 Discharge
R3 1N4148 1N4148
NB
200 V 3 6
R1B
Output Threshold
5 kΩ 25 W 30 Ω 2
_ D6 J9 +
Trigger
J6
1 %
200 V
9V Battery
GND Control
_
D7
J10
R1C 200 V C1
5 kΩ 25 W 0,1 µF C2 C3
D8
1 % 0,1 µF 0,1 µF 5 %
200 V
_
+
J7 J8
IEC 940/11
Figure 1 – Asymmetric pulse test circuit
© IEC 2016
NOTE FET Q1 should be on for 3 ms and off for 3 ms when S4 is closed, and on for 27 ms and off for 3 ms when
S4 is open.
A list of material and transformer specifications is given in Annex K. Any other transformer
components with the same functionality are permitted.
17.3 Asymmetric power test
The controlgear shall have adequate protection to prevent lamp cap overheating at the end of
the lamp life cycle. Compliance is checked by the following test. The relevant values of lamp
power, maximum cathode power P at the cathodes and the designation of lamp cap shall
max
be taken from Annex E of IEC 60081 and Annex D of IEC 60901 respectively.
The following values of maximum cathode power P apply:
max
– for 13 mm (T4) lamps, P = 5,0 W;
max
– for 16 mm (T5) lamps, P = 7,5 W.
max
(Other diameters are under study.)
NOTE Amendment 6 of IEC 60081 is under preparation. Stage at the time of publication:
IEC CDV 60081 AMD6:2015.
Test procedure:
Refer to the schematic diagram in Figure 2.
(1) Set switch S1 to position A.
(2) Set resistance of resistor R1 to 0 (zero) Ω.
(3) Start lamp(s) by turning on power to controlgear under test and allow lamp(s) to warm
up for 5 min.
(4) Increase the resistance of R1 rapidly, (within 15 s) until the power dissipated by resistor
R1 equals the test wattage power value of 10 W for a T4 lamp or 15 W for a T5 lamp
twice the asymmetric power P in Annex E of IEC 60081 and Annex D of IEC 60901
max
respectively. If the controlgear limits the power in R1 to a value less than the test
wattage power, set R1 at the value which produces the maximum wattage. If the
controlgear switches off before reaching the test wattage power, continue with (5). If the
controlgear does not switch off and limits the power in R1 to a value less than the test
wattage power, set R1 at the value which produces the maximum wattage power.
(5) If the test wattage value was reached in step (4), wait for an additional 15 s. If the test
wattage value was not reached in step (4), wait for an additional 30 s. Measure the
power in R1.
The power dissipation in resistor R1 shall be below or equal to P .
max
If the power dissipation in resistor R1 is greater than P , The control gear has failed
max
and the test is discontinued.
(6) Turn off power to control gear. Set switch S1 to position B.
(7) Repeat test procedure steps (3) to (5) above.
The control gear shall pass both position “A” and position “B” tests.
(8) For multi-lamp control gear, repeat test procedure steps (1) to (7) for each lamp
position.
A multi-lamp control gear shall pass the tests for each lamp position.
(9) For control gear that operate multiple lamp types (e.g. 26 W, 32 W, 42 W) each lamp
type specified shall be tested. Repeat steps (1) to (8) for each lamp type.
– 16 – IEC 61347-2-3:2011+AMD1:2016 CSV
© IEC 2016
D
C
R1
W
R3
D1
Lamp 1
B
S1
G
A
D2
R2
E F
IEC 647/04
NOTE 1 R2 = R3 = x Ω (this resistance is ½ resistance of hot cathode – refer to lamp data sheet).
NOTE 2 C, D, E and F represent cathode connections for the ballast.
NOTE 3 For instant start control gear, connection G is connected to one and the combined D and F are connected
to the other terminal.
Figure 2 – Asymmetric power detection circuit
17.4 Open filament test
17.4.1 Selection
The control gear shall have adequate protection to prevent lamp cap overheating at the end of
the lamp life cycle under open filament conditions. Compliance is checked by either test
procedure A or B as determined by the value of I below.
max
During the test, the following values of maximum lamp current I apply:
max
– for 13 mm (T4) lamps, I = 1 mA;
max
– for 16 mm (T5) lamps, I = 1,5 mA.
max
(Other diameters are under study.)
If these current values are exceeded, test procedure B shall be applied; otherwise, test
procedure A shall be applied.
17.4.2 Measurements to be carried out prior to test procedure A
Determine the r.m.s. currents, I (1), I (1), I (2), I (2), at the control gear outp
...
