High voltage direct current (HVDC) power transmission - System requirements for DC-side equipment - Part 1: Using line-commutated converters

IEC TS 63014-1:2018(E) is intended to provide an overall and consistent set of guidelines to facilitate the specification of equipment for the DC-side of a high-voltage direct current (HVDC) system using line-commutated converters. For point-to-point HVDC transmission systems, this document covers all DC-side equipment located between the converter valves and the DC overhead line or cable termination, excluding the converter valves themselves. For back-to-back HVDC systems, this document covers all DC-side equipment excluding the converter valves themselves.

General Information

Status
Published
Publication Date
07-Mar-2018
Current Stage
PPUB - Publication issued
Start Date
08-Mar-2018
Completion Date
08-Mar-2018
Ref Project

Buy Standard

Technical specification
IEC TS 63014-1:2018 - High voltage direct current (HVDC) power transmission - System requirements for DC-side equipment - Part 1: Using line-commutated converters
English language
87 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC TS 63014-1
Edition 1.0 2018-03
TECHNICAL
SPECIFICATION
colour
inside
High voltage direct current (HVDC) power transmission – System requirements
for DC-side equipment
Part 1: Using line-commutated converters
IEC TS 63014-1:2018-03(en)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2018 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC TS 63014-1
Edition 1.0 2018-03
TECHNICAL
SPECIFICATION
colour
inside
High voltage direct current (HVDC) power transmission – System requirements
for DC-side equipment
Part 1: Using line-commutated converters
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.200; 29.240.01 ISBN 978-2-8322-5451-6

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------

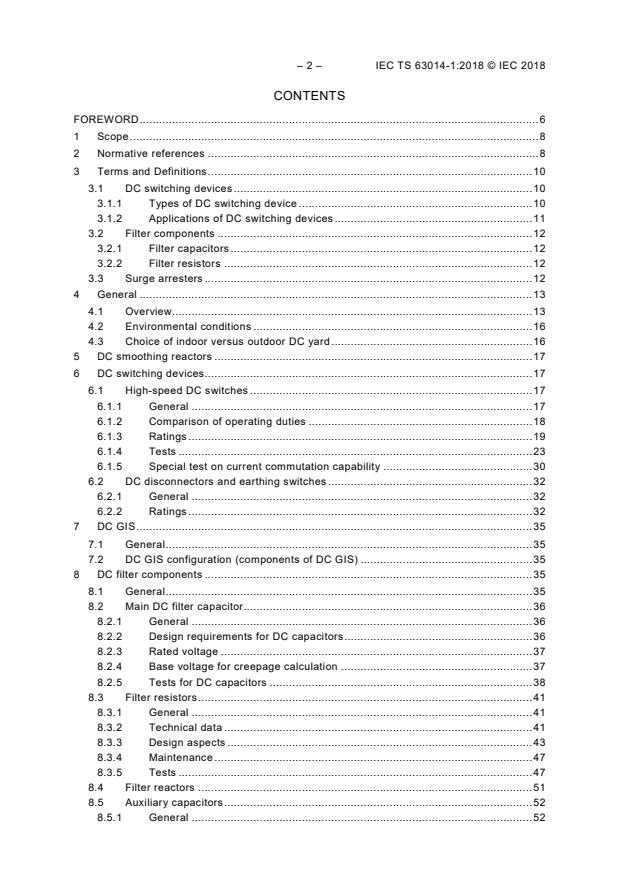

– 2 – IEC TS 63014-1:2018 © IEC 2018
CONTENTS

FOREWORD ........................................................................................................................... 6

1 Scope .............................................................................................................................. 8

2 Normative references ...................................................................................................... 8

3 Terms and Definitions .................................................................................................... 10

3.1 DC switching devices ............................................................................................ 10

3.1.1 Types of DC switching device ........................................................................ 10

3.1.2 Applications of DC switching devices ............................................................. 11

3.2 Filter components ................................................................................................. 12

3.2.1 Filter capacitors ............................................................................................. 12

3.2.2 Filter resistors ............................................................................................... 12

3.3 Surge arresters ..................................................................................................... 12

4 General ......................................................................................................................... 13

4.1 Overview............................................................................................................... 13

4.2 Environmental conditions ...................................................................................... 16

4.3 Choice of indoor versus outdoor DC yard .............................................................. 16

5 DC smoothing reactors .................................................................................................. 17

6 DC switching devices..................................................................................................... 17

6.1 High-speed DC switches ....................................................................................... 17

6.1.1 General ......................................................................................................... 17

6.1.2 Comparison of operating duties ..................................................................... 18

6.1.3 Ratings .......................................................................................................... 19

6.1.4 Tests ............................................................................................................. 23

6.1.5 Special test on current commutation capability .............................................. 30

6.2 DC disconnectors and earthing switches ............................................................... 32

6.2.1 General ......................................................................................................... 32

6.2.2 Ratings .......................................................................................................... 32

7 DC GIS .......................................................................................................................... 35

7.1 General ................................................................................................................. 35

7.2 DC GIS configuration (components of DC GIS) ..................................................... 35

8 DC filter components ..................................................................................................... 35

8.1 General ................................................................................................................. 35

8.2 Main DC filter capacitor......................................................................................... 36

8.2.1 General ......................................................................................................... 36

8.2.2 Design requirements for DC capacitors .......................................................... 36

8.2.3 Rated voltage ................................................................................................ 37

8.2.4 Base voltage for creepage calculation ........................................................... 37

8.2.5 Tests for DC capacitors ................................................................................. 38

8.3 Filter resistors ....................................................................................................... 41

8.3.1 General ......................................................................................................... 41

8.3.2 Technical data ............................................................................................... 41

8.3.3 Design aspects .............................................................................................. 43

8.3.4 Maintenance .................................................................................................. 47

8.3.5 Tests ............................................................................................................. 47

8.4 Filter reactors ....................................................................................................... 51

8.5 Auxiliary capacitors ............................................................................................... 52

8.5.1 General ......................................................................................................... 52

---------------------- Page: 4 ----------------------
IEC TS 63014-1:2018 © IEC 2018 – 3 –

8.5.2 Rated voltage of the auxiliary capacitor banks ............................................... 52

8.5.3 Base voltage for creepage calculation for auxiliary DC filter capacitors .......... 52

8.6 Series blocking filters ............................................................................................ 52

8.7 DC neutral bus capacitor ....................................................................................... 53

9 Coupling capacitors and line traps for power line carrier (PLC) ...................................... 53

10 DC surge arresters ........................................................................................................ 53

10.1 General ................................................................................................................. 53

10.2 Surge arrester specification .................................................................................. 53

10.2.1 General ......................................................................................................... 53

10.2.2 Continuous operating voltage (COV) .............................................................. 54

10.2.3 Protective characteristics ............................................................................... 54

10.2.4 Insulation withstand levels of arrester housing ............................................... 55

10.2.5 Energy dissipation capability ......................................................................... 55

10.3 Test requirements ................................................................................................. 55

11 Instrument transformers ................................................................................................. 55

11.1 DC current transformer ......................................................................................... 55

11.2 DC voltage transformer ......................................................................................... 55

11.3 Current transformers in DC filter circuits ............................................................... 55

12 DC insulators and bushings ........................................................................................... 55

12.1 Bushings ............................................................................................................... 55

12.2 Post insulators ...................................................................................................... 56

12.2.1 General ......................................................................................................... 56

12.2.2 Type tests ...................................................................................................... 56

12.2.3 Routine tests ................................................................................................. 58

12.2.4 Special tests (subject to agreement between the manufacturer and the

purchaser) ..................................................................................................... 58

12.3 Suspension insulators ........................................................................................... 58

13 Monitoring equipment for electrode line or dedicated metallic return .............................. 58

Annex A (informative) Overview of DC-side equipment ....................................................... 59

A.1 General ................................................................................................................. 59

A.2 DC smoothing reactor ........................................................................................... 60

A.3 Filter equipment .................................................................................................... 61

A.3.1 DC harmonic filters ........................................................................................ 61

A.3.2 Series DC blocking filters .............................................................................. 63

A.4 DC bushings ......................................................................................................... 64

A.5 Instrument transformers ........................................................................................ 65

A.5.1 General ......................................................................................................... 65

A.5.2 Direct voltage measurement .......................................................................... 65

A.5.3 DC current measurement ............................................................................... 66

A.6 Surge arresters ..................................................................................................... 69

A.7 Electrode line monitoring and protection equipment .............................................. 72

Annex B (informative) DC switching devices for HVDC converter stations ............................ 74

B.1 General ................................................................................................................. 74

B.2 Typical DC switching device applications .............................................................. 76

B.2.1 Metallic return transfer switch (MRTS) and earth return transfer switch

(ERTS) .......................................................................................................... 76

B.2.2 Neutral bus switch (NBS) ............................................................................... 78

B.2.3 Neutral bus earthing switch (NBES) ............................................................... 79

---------------------- Page: 5 ----------------------
– 4 – IEC TS 63014-1:2018 © IEC 2018

B.2.4 Bypass switch (BPS) ..................................................................................... 80

B.2.5 Converter paralleling switch ........................................................................... 81

B.2.6 Line paralleling switch ................................................................................... 82

B.3 Design .................................................................................................................. 83

Bibliography .......................................................................................................................... 87

Figure 1 – Scope of DC-side equipment for a back-to-back HVDC converter station

with one 12-pulse bridge per end .......................................................................................... 14

Figure 2 – Scope of DC-side equipment for a transmission HVDC converter station

with one 12-pulse bridge per pole ......................................................................................... 15

Figure 3 – Key for application of test voltages ....................................................................... 24

Figure 4 – Test circuit for commutation test .......................................................................... 31

Figure 5 – Typical arrangement of shunt DC filter ................................................................. 36

Figure 6 – Typical scheme of a resistor composed of one module ......................................... 43

Figure 7 – Transient current performance of resistor ............................................................. 51

Figure 8 – Operating voltage of a converter bus arrester (CB), rectifier operation ................. 54

Figure A.1 – Main items of DC yard equipment for a typical HVDC transmission

scheme ................................................................................................................................. 59

Figure A.2 – Some commonly used DC filter configurations .................................................. 62

Figure A.3 – Series blocking filter ......................................................................................... 64

Figure A.4 – Resistive voltage divider for measurement of direct voltage .............................. 65

Figure A.5 – Operating principle of zero-flux CT (simplified) ................................................. 67

Figure A.6 – Current measurement by resistive shunt using optical powering........................ 68

Figure A.7 – Optical current measurement ............................................................................ 68

Figure A.8 – Typical arrangement of surge arresters in a converter station with one 12-

pulse bridge per pole (only one pole shown) ......................................................................... 71

Figure A.9 – Electrode line monitoring by AC current injection .............................................. 73

Figure B.1 – Typical arrangement of DC switching devices for a bipolar transmission

scheme with one 12-pulse bridge per pole ............................................................................ 75

Figure B.2 – Typical arrangement of bypass switches and disconnectors for a bipolar

transmission scheme with two 12-pulse bridges per pole ...................................................... 76

Figure B.3 – Example arrangement of line paralleling switches for a bipolar HVDC

transmission scheme ............................................................................................................ 76

Figure B.4 – Example arrangement of converter paralleling switches for a bipolar

HVDC transmission scheme .................................................................................................. 82

Figure B.5 – Commutation switch based on the divergent current oscillation method,

without (left) and with (right) making switch .......................................................................... 84

Figure B.6 – Oscillogram of a commutation event ................................................................. 85

Figure B.7 – Commutation switch with pre-charged capacitor................................................ 86

Figure B.8 – Parallel arrangement of switches used at very high current ............................... 86

Table 1 – Summary of main parameters affecting specification of high-speed DC

switches................................................................................................................................ 19

Table 2 – Table of standard ratings in accordance with IEC 62271-100 and their

applicability to high-speed DC switches ................................................................................ 20

Table 3 – Test conditions for direct voltage test .................................................................... 25

Table 4 – Test conditions for partial discharge test ............................................................... 25

---------------------- Page: 6 ----------------------
IEC TS 63014-1:2018 © IEC 2018 – 5 –

Table 5 – Test conditions for polarity reversal test ................................................................ 26

Table 6 – Test conditions for RIV test ................................................................................... 27

Table 7 – Test conditions for lightning-impulse withstand test ............................................... 28

Table 8 – Test conditions for switching impulse withstand test .............................................. 29

Table 9 – Test conditions for power frequency withstand test ................................................ 29

Table 10 – Table of standard ratings in accordance with IEC 62271-102 and their

applicability to HVDC disconnectors and earthing switches ................................................... 32

Table 11 – Ratings for resistors ............................................................................................ 42

Table 12 – Recommended temperature and temperature rise limits for bolted and

welded connections .............................................................................................................. 46

Table B.1 – Summary of main parameters affecting specification of MRTS and ERTS .......... 78

Table B.2 – Summary of main parameters affecting specification of NBS .............................. 79

Table B.3 – Summary of main parameters affecting specification of NBES ............................ 80

Table B.4 –Summary of main parameters affecting specification of BPS ............................... 81

Table B.5 – Summary of main parameters affecting specification of CPS .............................. 82

Table B.6 – Summary of main parameters affecting specification of LPS .............................. 83

---------------------- Page: 7 ----------------------
– 6 – IEC TS 63014-1:2018 © IEC 2018
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HIGH VOLTAGE DIRECT CURRENT (HVDC) POWER TRANSMISSION –
SYSTEM REQUIREMENTS FOR DC-SIDE EQUIPMENT
Part 1: Using line-commutated converters
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC

Publication(s)"). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

The main task of IEC technical committees is to prepare International Standards. In

exceptional circumstances, a technical committee may propose the publication of a technical

specification when

• the required support cannot be obtained for the publication of an International Standard,

despite repeated efforts, or

• the subject is still under technical development or where, for any other reason, there is the

future but no immediate possibility of an agreement on an International Standard.

Technical specifications are subject to review within three years of publication to decide

whether they can be transformed into International Standards.

IEC TS 63014, which is a Technical Specification, has been prepared by IEC technical

committee 115: High Voltage Direct Current (HVDC) transmission for DC voltages above

100 kV.
---------------------- Page: 8 ----------------------
IEC TS 63014-1:2018 © IEC 2018 – 7 –
The text of this Technical Specification is based on the following documents:
Enquiry draft Report on voting
115/167/DTS 115/178/RVDTS

Full information on the voting for the approval of this technical specification can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 9 ----------------------
– 8 – IEC TS 63014-1:2018 © IEC 2018
HIGH VOLTAGE DIRECT CURRENT (HVDC) POWER TRANSMISSION –
SYSTEM REQUIREMENTS FOR DC-SIDE EQUIPMENT
Part 1: Using line-commutated converters
1 Scope

This Technical Specification is intended to provide an overall and consistent set of guidelines

to facilitate the specification of equipment for the DC-side of a high-voltage direct current

(HVDC) system using line-commutated converters. For point-to-point HVDC transmission

systems, this document covers all DC-side equipment located between the converter valves

and the DC overhead line or cable termination, excluding the converter valves themselves.

For back-to-back HVDC systems, this document covers all DC-side equipment excluding the

converter valves themselves. Throughout this publication, the terms 'direct voltage' and 'DC

voltage' are used interchangeably, as are 'direct current' and 'DC current'.

Traditionally, the largest items of such equipment, such as the DC smoothing reactor and DC

harmonic filters, have generally been located outdoors but increasingly the trend is to locate

such equipment indoors (although not in the valve hall itself) to provide protection from

pollution. Although product standards exist for some DC-side equipment types, many such

items of equipment have only standards written for AC applications and, in such cases, the

purpose of this document is to provide guidance as to how to specify the additional

requirements (particularly with regard to testing) for such equipment to cover their use in DC

conditions.

The converter itself is excluded from this scope, being covered by IEC 60700-1 [1] and

IEC 60700-2 [2].

Although this document includes requirements for DC disconnectors and certain types of

specialised DC switching devices (such as the Metallic Return Transfer Switch (MRTS)), it

excludes any type of DC circuit-breaker designed to interrupt fault currents.

DC-side equipment for HVDC systems based on voltage-sourced converter (VSC) technology

is excluded from this document and will be covered in a future Part 2 of IEC 63014.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
