Building intercom systems - Part 1-2: System requirements - Building intercom systems using the internet protocol (IP)

IEC 62820-1-2:2017 specifies the technical requirements for the composition, functions, performance and test methods of building intercom systems using the internet protocol (IP), and it is a supplement to IEC 62820-1-1. This document is applicable to the IP building intercom systems for both residential and commercial buildings.

Systèmes d'interphone de bâtiment - Partie 1-2: Exigences du système - Systèmes d'interphone de bâtiment utilisant le protocole internet (IP)

L'IEC 62820-1-2:2017 spécifie les exigences techniques relatives à la composition, aux fonctions, aux performances, et aux méthodes d'essais des systèmes d'interphone de bâtiment utilisant le protocole internet (IP) et complète l'IEC 62820-1-1. Le présent document s'applique aux systèmes d'interphone de bâtiment IP pour les bâtiments résidentiels comme pour les bâtiments commerciaux.

Vodne turbine, akumulacijske črpalke in črpalne turbine – Razpisna dokumentacija – 5. del: Smernice za tehnične specifikacije cevnih turbin

General Information

Status
Published
Publication Date
25-Jul-2017
Current Stage
PPUB - Publication issued
Start Date
26-Jul-2017
Completion Date
26-Jul-2017

Buy Standard

Standard
IEC 62820-1-2:2017 - Building intercom systems - Part 1-2: System requirements - Building intercom systems using the internet protocol (IP)
English and French language
43 pages
sale 15% off
Preview
sale 15% off
Preview
Technical report
IEC/TR 61366-5:1999
English language
31 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

IEC 62820-1-2
Edition 1.0 2017-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Building intercom systems –
Part 1-2: System requirements – Building intercom systems using the internet
protocol (IP)
Systèmes d'interphone de bâtiment –
Partie 1-2: Exigences du système – Systèmes d'interphone de bâtiment utilisant
le protocole internet (IP)
IEC 62820-1-2:2017-07(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2017 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: csc@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
65 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC

en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des

comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées

projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just

Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette

Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:

csc@iec.ch.
---------------------- Page: 2 ----------------------
IEC 62820-1-2
Edition 1.0 2017-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Building intercom systems –
Part 1-2: System requirements – Building intercom systems using the internet
protocol (IP)
Systèmes d'interphone de bâtiment –
Partie 1-2: Exigences du système – Systèmes d'interphone de bâtiment utilisant
le protocole internet (IP)
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.320 ISBN 978-2-8322-4548-4

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

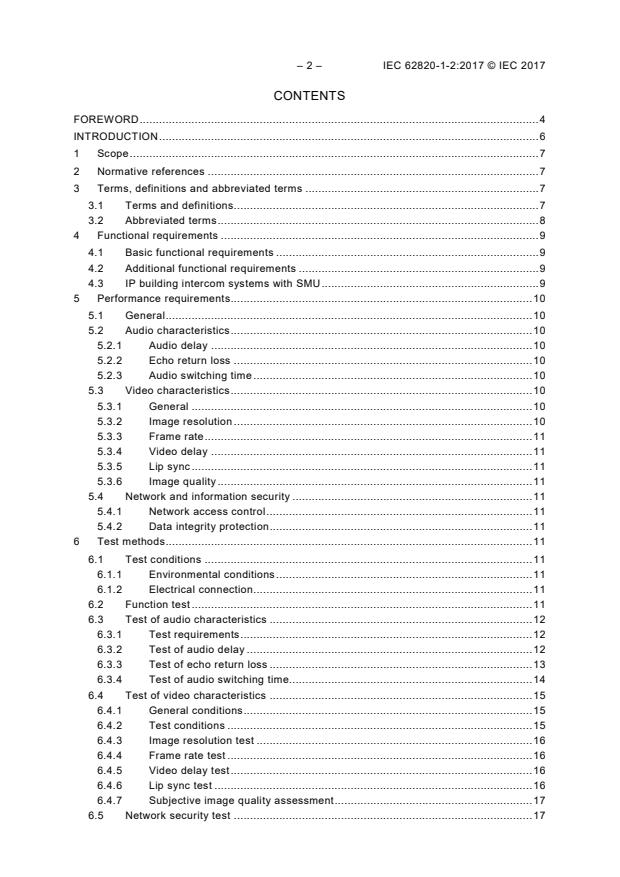

– 2 – IEC 62820-1-2:2017 © IEC 2017
CONTENTS

FOREWORD ........................................................................................................................... 4

INTRODUCTION ..................................................................................................................... 6

1 Scope .............................................................................................................................. 7

2 Normative references ...................................................................................................... 7

3 Terms, definitions and abbreviated terms ........................................................................ 7

3.1 Terms and definitions .............................................................................................. 7

3.2 Abbreviated terms ................................................................................................... 8

4 Functional requirements .................................................................................................. 9

4.1 Basic functional requirements ................................................................................. 9

4.2 Additional functional requirements .......................................................................... 9

4.3 IP building intercom systems with SMU ................................................................... 9

5 Performance requirements............................................................................................. 10

5.1 General ................................................................................................................. 10

5.2 Audio characteristics ............................................................................................. 10

5.2.1 Audio delay ................................................................................................... 10

5.2.2 Echo return loss ............................................................................................ 10

5.2.3 Audio switching time ...................................................................................... 10

5.3 Video characteristics ............................................................................................. 10

5.3.1 General ......................................................................................................... 10

5.3.2 Image resolution ............................................................................................ 10

5.3.3 Frame rate ..................................................................................................... 11

5.3.4 Video delay ................................................................................................... 11

5.3.5 Lip sync ......................................................................................................... 11

5.3.6 Image quality ................................................................................................. 11

5.4 Network and information security .......................................................................... 11

5.4.1 Network access control .................................................................................. 11

5.4.2 Data integrity protection ................................................................................. 11

6 Test methods ................................................................................................................. 11

6.1 Test conditions ..................................................................................................... 11

6.1.1 Environmental conditions ............................................................................... 11

6.1.2 Electrical connection ...................................................................................... 11

6.2 Function test ......................................................................................................... 11

6.3 Test of audio characteristics ................................................................................. 12

6.3.1 Test requirements .......................................................................................... 12

6.3.2 Test of audio delay ........................................................................................ 12

6.3.3 Test of echo return loss ................................................................................. 13

6.3.4 Test of audio switching time........................................................................... 14

6.4 Test of video characteristics ................................................................................. 15

6.4.1 General conditions ......................................................................................... 15

6.4.2 Test conditions .............................................................................................. 15

6.4.3 Image resolution test ..................................................................................... 16

6.4.4 Frame rate test .............................................................................................. 16

6.4.5 Video delay test ............................................................................................. 16

6.4.6 Lip sync test .................................................................................................. 16

6.4.7 Subjective image quality assessment ............................................................. 17

6.5 Network security test ............................................................................................ 17

---------------------- Page: 4 ----------------------
IEC 62820-1-2:2017 © IEC 2017 – 3 –

6.5.1 Network test system ...................................................................................... 17

6.5.2 Network access control test ........................................................................... 17

6.5.3 Data integrity protection test .......................................................................... 17

7 Documentation .............................................................................................................. 17

Annex A (normative) Subjective assessment of the IP BIS image quality ............................ 18

A.1 Test setup ............................................................................................................. 18

A.2 Regulation for experimental actions ...................................................................... 18

A.3 Evaluation scoring ................................................................................................ 19

Annex B (normative) Subjective assessment of echo return loss ........................................ 20

B.1 Test setup ............................................................................................................. 20

B.2 Evaluation scoring ................................................................................................ 20

Bibliography .......................................................................................................................... 21

Figure 1 – Test configuration of echo return loss and audio switching time diagram ........... 12

Figure 2 – Four groups of CSS signals .................................................................................. 13

Figure 3 – Test signal A ........................................................................................................ 14

Figure 4 – Test signal B ........................................................................................................ 14

Figure 5 – Audio switching time test process ........................................................................ 15

Figure 6 – Lip sync test signal .............................................................................................. 17

Figure 7 – Test method diagram ........................................................................................... 17

Figure A.1 – Test setup diagram ........................................................................................... 18

Table A.1 – Image quality 5-point evaluation form ................................................................. 19

Table B.1 – Subjective echo return loss evaluation form ....................................................... 20

---------------------- Page: 5 ----------------------
– 4 – IEC 62820-1-2:2017 © IEC 2017
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
BUILDING INTERCOM SYSTEMS –
Part 1-2: System requirements –
Building intercom systems using the internet protocol (IP)
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and in

addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and expenses

arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 62820-1-2 has been prepared by IEC technical committee 79: Alarm

and electronic security systems.
The text of this International Standard is based on the following documents:
FDIS Report on voting
79/577/FDIS 79/589/RVD

Full information on the voting for the approval of this International Standard can be found in the

report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts in the IEC 62820 series, published under the general title Building intercom

systems, can be found on the IEC website.
---------------------- Page: 6 ----------------------
IEC 62820-1-2:2017 © IEC 2017 – 5 –

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 7 ----------------------
– 6 – IEC 62820-1-2:2017 © IEC 2017
INTRODUCTION

The IEC 62820 series of standards set out the technical requirements for the composition,

functions, performance, and test methods of building intercom systems for building entry and

application guidelines and consist of five parts:
Part 1-1: System requirements – General;

Part 1-2: System requirements – Building intercom systems using the internet protocol (IP);

Part 2: Requirements for advanced security building intercom systems;
Part 3-1: Application guidelines – General;
Part 3-2: Application guidelines – Advanced security building intercom systems.
---------------------- Page: 8 ----------------------
IEC 62820-1-2:2017 © IEC 2017 – 7 –
BUILDING INTERCOM SYSTEMS –
Part 1-2: System requirements –
Building intercom systems using the internet protocol (IP)
1 Scope

This part of IEC 62820 specifies the technical requirements for the composition, functions,

performance and test methods of building intercom systems using the internet protocol (IP), and

it is a supplement to IEC 62820-1-1.

This document is applicable to the IP building intercom systems for both residential and

commercial buildings.

NOTE A BIS that has a mixture of IP and non-IP connections is not covered by IEC 62820-1-2 but covered by

IEC 62820-1-1.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies.

For undated references, the latest edition of the referenced document (including any

amendments) applies.

IEC 62820-1-1:2016, Building intercom systems – Part 1-1: System requirements – General

ITU-T P.501, Test signals for use in telephonometry
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions

For the purposes of this document, the definitions given in IEC 62820-1-1 and the following

apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1.1
audio delay
audio latency

one way delay (OWD) time of the transmitted audio signal from the microphone of one intercom

unit through other components in the system to the loudspeaker of other intercom unit

3.1.2
audio switching time

time, from one transmission direction to the other measured from the removal of the signal in the

first direction until the level in the second direction reaches 3 dB below its final value

---------------------- Page: 9 ----------------------
– 8 – IEC 62820-1-2:2017 © IEC 2017
3.1.3
echo return loss

ability of the local intercom unit to avoid retransmitting the audio signal received from the far

intercom unit back again to it
3.1.4
intercom unit

devices that are able to establish an audio connection or an audio and video connection between

each other (SMU, VCU and URU) and are specifically designed to be a component of a BIS

Note 1 to entry: Devices which can be connected to IP transmission network such as smartphones or tablets are not

considered as intercom units.
3.1.5
Internet Protocol

network layer-3 protocol in the OSI model containing addressing and control information to

enable data packets to be routed in a network and primary network layer protocol in the TCP/IP

protocol suite according to IETF RFC 791 and IETF RFC 2460 and any subsequent evolution

3.1.6
IP transmission network

communication network used to achieve the relevant functions of IP BIS, such as data

transmission and control
3.1.7
lip sync
temporal relationship between transmitted audio signal and video signal

Note 1 to entry: Lip sync value is used to demonstrate the relationship between audio and video signal

synchronization.
3.1.8
single talk

type of non simultaneous 2 way speech in which two parties communicate by alternating speech

spurts without interrupting each other
3.1.9
double talk

type of non simultaneous 2 way speech in which two parties communicate by alternating

speech spurts in which both parties may interrupt each other
3.1.10
subjective image quality assessment
method where people, as observers, evaluate the image quality

Note 1 to entry: Test environment, observer and evaluation method shall comply with certain standards, in the same

way the methodology for the subjective assessment of the quality of the television pictures adopted ITU-R

BT.500-13-(01/2012).
3.1.11
video delay

one way delay (OWD) time of the transmitted video signal from the camera of one intercom unit

through other components to the display on the other intercom unit
3.2 Abbreviated terms
ACR absolute category rating
BIS building intercom system
CSS composite source signal
---------------------- Page: 10 ----------------------
IEC 62820-1-2:2017 © IEC 2017 – 9 –
DCR degradation category rating
EUT equipment under test
FPS frames per second
FR frame rate
IP Internet protocol
LED light-emitting diode
LIG LED image generator
LRGP loudness rating guard-ring position
MRP mouth reference point
OSI open systems interconnection
OWD one way delay
PSG programmable signal generator
QoS quality of service
SMU security management unit
TVL television lines
URU user receiver unit
VCD video capture device
VCU visitor call unit
VRD video receiver device
4 Functional requirements
4.1 Basic functional requirements

Basic functional requirements of IP BIS shall comply with the requirements specified in

IEC 62820-1-1:2016, 4.1.
4.2 Additional functional requirements

In addition to the additional functional requirements specified in IEC62820-1-1:2016, 4.2, an IP

building intercom system may comply with the following requirements:
a) Intercom unit to intercom unit speech

URU may be able to make addressing calls to other URU and conduct two-way speech.

b) Voice message function

IP building intercom system may allow the caller to leave voice messages from the VCU.

c) Intercom unit to intercom unit video and speech
URU may be able to conduct two-way video and audio communication with other URU.
d) Video and voice messages function

IP building intercom system may allow the caller to leave video and voice messages from the

VCU.
4.3 IP building intercom systems with SMU

In addition to the functional requirements specified in 4.1 and 4.2, IP building intercom systems

with SMU may comply with the following requirements:
a) Automatic detection of device status
The SMU may detect the status of other devices in the system.
---------------------- Page: 11 ----------------------
– 10 – IEC 62820-1-2:2017 © IEC 2017
b) Remote configuration and update

The SMU may remotely configure the operating mode of the devices and update the firmware

and software of the devices.
c) Image storing and replaying function

When the URU with video function is communicating with an SMU equipped with a camera,

it may be able to store and replay the images captured by the SMU.
5 Performance requirements
5.1 General

The performance requirements of IP BIS shall comply with the requirements specified in

IEC 62820-1-1:2016, Clause 5.

The following requirements shall be fulfilled when the intercom devices are linked in a local

network, wired or wireless. In case some devices are linked through a public network (i.e.

Internet), where it is not possible to guarantee QoS, the requirements do not apply.

5.2 Audio characteristics
5.2.1 Audio delay
Audio delay between two intercom units shall not be more than 300 ms.
5.2.2 Echo return loss
This requirement may be evaluated in two ways.
1) Objective evaluation
Hands-free units: the echo return loss shall not be less than 45 dB.
Handset unit: the echo return loss shall not be less than 46 dB.
NOTE Non-simultaneous systems are evaluated by subjective test.
2) Subjective evaluation
The subjective evaluation of echo return loss shall be not less than 3 points.
5.2.3 Audio switching time
The audio switching time shall not be more than 200 ms.
NOTE This requirement does not apply to simultaneous talk and single talk BIS.
5.3 Video characteristics
5.3.1 General
Video characteristics of IP BIS shall comply with the requirements specified in
IEC 62820-1-1:2016, 5.2.2 to 5.2.5 and the following.
5.3.2 Image resolution

Image resolution (measured at the centre of the image) of IP BIS shall not be less than 130 TVL

for the visible area smaller than 4,0 inch (10,16 cm), not be less than 240 TVL for the visible

area equal or larger than 4,0 inch (10,16 cm) and smaller than 7,0 inch (17,78 cm), and not be

less than 320 TVL for the visible area of 7,0 inch (17,78 cm) or larger.
---------------------- Page: 12 ----------------------
IEC 62820-1-2:2017 © IEC 2017 – 11 –
5.3.3 Frame rate
Frame rate of digital video signals shall not be less than 15 FPS.
5.3.4 Video delay
The unit-to-unit video delay shall not be more than 300 ms.
5.3.5 Lip sync

Relative time difference of video and audio signal concurrent transmission should be between

–185 ms and +90 ms.
NOTE This only applies to Audio-Video systems and not to audio only systems.
5.3.6 Image quality

Images shall not present obvious phenomenon as image blur, mosaic effect or image fracture.

The average subjective image quality assessment shall not be less than 3 points.
5.4 Network and information security
5.4.1 Network access control

When a user or device accesses the network of IP BIS or manages the system, the system shall

identify the user or device, determine if access is granted as well as the access right.

Identification ways can vary, measures other than identification may be used provided that they

protect the system from unauthorized access.
5.4.2 Data integrity protection

The IP BIS may detect the integrity of the users’ alarm and unlocking control data. It also may

offer protection for the integrity of the users’ d
...

SLOVENSKI STANDARD
SIST IEC/TR 61366-5:1999
01-april-1999
9RGQHWXUELQHDNXPXODFLMVNHþUSDONHLQþUSDOQHWXUELQH±5D]SLVQDGRNXPHQWDFLMD
±GHO6PHUQLFH]DWHKQLþQHVSHFLILNDFLMHFHYQLKWXUELQ

Hydraulic turbines, storage pumps and pump-turbines - Tendering Documents - Part 5:

Guidelines for technical specifications for tubular turbines
Ta slovenski standard je istoveten z: IEC/TR 61366-5
ICS:
27.140 Vodna energija Hydraulic energy engineering
SIST IEC/TR 61366-5:1999 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST IEC/TR 61366-5:1999
---------------------- Page: 2 ----------------------
SIST IEC/TR 61366-5:1999
TECHNICAL
IEC
REPORT – TYPE 3
61366-5
First edition
1998-03
Hydraulic turbines, storage pumps
and pump-turbines –
Tendering Documents
Part 5:
Guidelines for technical specifications
for tubular turbines
Turbines hydrauliques, pompes d'accumulation
et pompes-turbines –
Document d'appel d'offres –
Partie 5:
Guide des spécifications techniques pour
les turbines tubulaires
 IEC 1998  Copyright - all rights reserved

No part of this publication may be reproduced or utilized in any form or by any means, electronic or

mechanical, including photocopying and microfilm, without permission in writing from the publisher.

International Electrotechnical Commission 3, rue de Varembé Geneva, Switzerland
Telefax: +41 22 919 0300 e-mail: inmail@iec.ch IEC web site http: //www.iec.ch
Commission Electrotechnique Internationale
PRICE CODE
International Electrotechnical Commission
For price, see current catalogue
---------------------- Page: 3 ----------------------
SIST IEC/TR 61366-5:1999
– 2 – 61366-5 © IEC:1998(E)
CONTENTS
Page

FOREWORD ................................................................................................................... 4

Clause

0 Introduction to technical specifications ......................................................................

1 Scope....................................................................................................................... 9

2 Reference documents ............................................................................................... 9

3 Technical requirements............................................................................................. 9

3.1 Scope of work.................................................................................................. 9

3.2 Limits of the contract ....................................................................................... 10

3.3 Supply by Employer ......................................................................................... 10

3.4 Design conditions ............................................................................................ 11

3.5 Technical performance and other guarantees................................................... 13

3.6 Mechanical design criteria ............................................................................... 16

3.7 Design documentation ..................................................................................... 17

3.8 Materials and construction ............................................................................... 18

3.9 Shop inspection and testing ............................................................................. 19

4 Technical specifications for fixed/embedded components.......................................... 20

4.1 Bulb structure and hatch cover......................................................................... 20

4.2 Stay ring (if employed in design) ...................................................................... 21

4.3 Discharge ring ................................................................................................. 21

4.4 Draft tube and draft tube liner .......................................................................... 22

4.5 Upstream and downstream pressure taps and pipes......................................... 22

5 Technical specifications for stationary/removable components .................................. 22

5.1 Inner and outer rings ....................................................................................... 22

5.2 Guide vanes .................................................................................................... 22

6 Technical specifications for guide vane regulating apparatus..................................... 23

6.1 Servomotors .................................................................................................... 23

6.2 Connecting rods .............................................................................................. 23

6.3 Regulating ring ................................................................................................ 23

6.4 Guide vane linkage .......................................................................................... 23

6.5 Guide vane overload protection........................................................................ 23

6.6 Locking devices............................................................................................... 24

6.7 Counter weight ................................................................................................ 24

7 Technical specifications for rotating parts, bearings, seals and gear box (if used)...... 24

7.1 Runner ............................................................................................................ 24

7.2 Runner blade regulating apparatus .................................................................. 24

7.3 Main shaft ....................................................................................................... 25

---------------------- Page: 4 ----------------------
SIST IEC/TR 61366-5:1999
61366-5 © IEC:1998(E) – 3 –

7.4 Turbine guide bearing...................................................................................... 26

7.5 Main shaft seal ................................................................................................ 26

7.6 Standstill (maintenance) seal ........................................................................... 26

7.7 Gearbox (if used)............................................................................................. 26

8 Technical specifications for thrust and counter-thurst bearing.................................... 27

8.1 Design data ..................................................................................................... 27

8.2 Bearing support ............................................................................................... 27

8.3 Bearing assembly ............................................................................................ 27

9 Technical specifications for miscellaneous components ............................................ 27

9.1 Walkways, access platforms and stairs ............................................................ 27

9.2 Lifting fixtures.................................................................................................. 28

9.3 Special tools.................................................................................................... 28

9.4 Standard tools ................................................................................................. 28

9.5 Nameplate....................................................................................................... 28

10 Technical specifications for auxiliary systems............................................................ 28

10.1 Bearing lubrication system ............................................................................... 28

10.2 Turbine drainage ............................................................................................. 28

10.3 Lubrication – guide vane regulating system ...................................................... 28

11 Technical specifications for instrumentation .............................................................. 29

11.1 Controls........................................................................................................... 29

11.2 Indication......................................................................................................... 29

11.3 Protection........................................................................................................ 29

12 Spare parts............................................................................................................... 29

13 Model acceptance tests ............................................................................................ 29

14 Site installation and commissioning tests .................................................................. 30

14.1 General ........................................................................................................... 30

14.2 Installation procedures..................................................................................... 30

14.3 Tests during installation ................................................................................... 31

14.4 Commissioning tests........................................................................................ 31

15 Field acceptance tests .............................................................................................. 31

15.1 Scope and reports ........................................................................................... 31

15.2 Inspection of cavitating pitting.......................................................................... 31

---------------------- Page: 5 ----------------------
SIST IEC/TR 61366-5:1999
– 4 – 61366-5 © IEC:1998(E)
INTERNATIONAL ELECTROTECHNICAL COMMISSION
___________
HYDRAULIC TURBINES, STORAGE PUMPS AND PUMP-TURBINES –
TENDERING DOCUMENTS –
Part 5: Guidelines for technical specifications
for tubular turbines
FOREWORD

1) The IEC (International Electrotechnical Commission) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of the IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, the IEC publishes International Standards. Their preparation is

entrusted to technical committees; any IEC National Committee interested in the subject dealt with may

participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. The IEC collaborates closely with the International Organization

for Standardization (ISO) in accordance with conditions determined by agreement between the two

organizations.

2) The formal decisions or agreements of the IEC on technical matters express, as nearly as possible, an

international consensus of opinion on the relevant subjects since each technical committee has representation

from all interested National Committees.

3) The documents produced have the form of recommendations for international use and are published in the form

of standards, technical reports or guides and they are accepted by the National Committees in that sense.

4) In order to promote international unification, IEC National Committees undertake to apply IEC International

Standards transparently to the maximum extent possible in their national and regional standards. Any

divergence between the IEC Standard and the corresponding national or regional standard shall be clearly

indicated in the latter.

5) The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any

equipment declared to be in conformity with one of its standards.

6) Attention is drawn to the possibility that some of the elements of this International Standard may be the subject

of patent rights. The IEC shall not be held responsible for identifying any or all such patent rights.

The main task of IEC technical committees is to prepare International Standards. In

exceptional circumstances, a technical committee may propose the publication of a technical

report of one of the following types:

• type 1, when the required support cannot be obtained for the publication of an International

Standard, despite repeated efforts;

• type 2, when the subject is still under technical development or where for any other reason

there is the future but no immediate possibility of an agreement on an International

Standard;

• type 3, when a technical committee has collected data of a different kind from that which is

normally published as an International Standard, for example "state of the art".

Technical reports of types 1 and 2 are subject to review within three years of publication to

decide whether they can be transformed into International Standards. Technical reports of

type 3 do not necessarily have to be reviewed until the data they provide are considered to be

no longer valid or useful.

IEC 61366-5, which is a technical report of type 3, has been prepared by IEC technical

committee 4: Hydraulic turbines.
---------------------- Page: 6 ----------------------
SIST IEC/TR 61366-5:1999
61366-5 © IEC:1998(E) – 5 –
The text of this technical report is based on the following documents:
Committee draft Report on voting
4/110/CDV 4/122/RVC

Full information on the voting for the approval of this technical report can be found in the report

on voting indicated in the above table.

Technical Report IEC 61366-5 is one of a series which deals with Tendering documents for

hydraulic turbines, storage pumps and pump-turbines. The series consists of seven parts:

Part 1: General and annexes (IEC 61366-1)

Part 2: Guidelines for technical specification for Francis turbines (IEC 61366-2)

Part 3: Guidelines for technical specification for Pelton turbines (IEC 61366-3)

Part 4: Guidelines for technical specification for Kaplan and propeller turbines (IEC 61366-4)

Part 5: Guidelines for technical specification for tubular turbines (IEC 61366-5)

Part 6: Guidelines for technical specification for pump-turbines (IEC 61366-6)
Part 7: Guidelines for technical specification for storage pumps (IEC 61366-7)

Parts 2 to 7 are "stand-alone" publications which when used with Part 1 contain guidelines for a

specific machine type (i.e. Parts 1 and 4 represent the combined guide for Kaplan and

propeller turbines). A summary of the proposed contents for a typical set of Tendering

documents is given in the following table 1 and annex A. Table 1 summarizes the arrangement

of each part of this guide and serves as a reference for the various chapters and sections of

the Tendering documents (see 3.2 of this part).
---------------------- Page: 7 ----------------------
SIST IEC/TR 61366-5:1999

Table 1 – Summary of guide for the preparation of Tendering documents for hydraulic turbines, storage pumps and pump-turbines

CONTENTS OF GUIDE IEC 61366-1 TO IEC 61366-7 SAMPLE TABLE OF CONTENTS OF TENDERING DOCUMENTS (TD)

(Example for the Francis turbines; see 61366-1, annex A)
Part Clause Title Chapter Title
1 General and annexes 1 Tendering requirements
1– 2 Project information
1 1 Object and scope of this guide 3 General conditions
1 2 Reference documents and definitions 4 Special conditions
1 3 Arrangement of Tendering documents 5 General requirements
1 4 Guidelines for tendering requirements 6 Technical specifications
1 5 Guidelines for project information 6.1 Technical requirements

1 6 Guidelines for general conditions, special conditions and general 6.1.1 Scope of work

requirements 6.1.2 Limits of the contract
6.1.3 Supply by Employer
1 Annexes 6.1.4 Design conditions
6.1.5 Performance and other guarantees

A Sample table of contents of Tendering documents for Francis turbines 6.1.6 Mechanical design criteria

B Comments on factors for evaluation of tenders 6.1.7 Design documentation
C Check list for tender form 6.1.8 Materials and construction
D Examples of technical data sheets 6.1.9 Shop inspection and testing

E Technical performance guarantees 6.2 Technical specifications for fixed/embedded components

F Example of cavitation pitting guarantees 6.3 Technical specifications for stationary/removable components

G Check list for model test specifications 6.4 Technical specifications for guide vane regulating apparatus

H Sand erosion considerations 6.5 Technical specifications for rotating parts, bearings and seals

6.6 Technical specifications for thrust bearings

2 to 7 Technical specifications 6.7 Technical specifications for miscellaneous components

6.8 Technical specifications for auxiliary systems
2 Francis turbines 6.9 Technical specifications for instrumentation
3 Pelton turbines 6.10 Spare parts
4 Kaplan and propeller turbines 6.11 Model tests
5 Tubular turbines 6.12 Installation and commissioning
6 Pump-turbines 6.13 Field acceptance tests
7 Storage pumps
---------------------- Page: 8 ----------------------
SIST IEC/TR 61366-5:1999
61366-5 © IEC:1998(E) – 7 –
HYDRAULIC TURBINES, STORAGE PUMPS AND PUMP-TURBINES –
TENDERING DOCUMENTS –
Part 2: Guidelines for technical specifications
for tubular turbines
0 Introduction to technical specifications

The main purpose of the technical specifications is to describe the specific technical

requirements for the hydraulic machine for which the Tendering documents (TD) are being

issued. To achieve clarity and to avoid confusion in contract administration, the Employer

should not specify anything in the technical specifications which is of importance only to the

preparation of the tender. Such information and instructions should be given only in the

instructions to Tenderers (ITT). Accordingly, the ITT may refer to other chapters and sections

of the Tendering documents but not vice versa. As a general rule the word "Tenderer" should

be confined in use only to TD Chapter 1 "Tendering requirements"; elsewhere the term

"Contractor" should be used.

Special attention should be given to items of a project specific nature such as materials,

protective coating systems, mechanical piping systems, electrical systems and instrumentation.

It is common for the Employer to use technical standards for such items which would apply to

all contracts for a particular project or projects. In this event, detailed technical standards

should be specified in TD Chapter 5 "General requirements".

Technical specifications for the various types of hydraulic machines included in this guide are

provided in the following parts:
– Francis turbines (Part 2);
– Pelton turbines (Part 3);
– Propeller and Kaplan turbines (Part 4);
– Tubular turbines (Part 5);
– Pump-turbines (Part 6);
– Storage pumps (Part 7).

The guidelines for preparation of tubular turbine specifications include technical specifications

for the following:

– Design conditions: Project arrangement, hydraulic conditions, mode of operation, generator

characteristics, transient behaviour data, stability of the system, noise, vibration, pressure

fluctuations and safety requirements.
– Technical performance and other guarantees:
ypower;
ydischarge;
yefficiency;
ymaximum momentary pressure;
yminimum momentary pressure;
ymaximum momentary overspeed;
ymaximum steady-state runaway speed;
---------------------- Page: 9 ----------------------
SIST IEC/TR 61366-5:1999
– 8 – 61366-5 © IEC:1998(E)
ycavitation pitting;
yhydraulic thrust;
ymaximum weights and dimensions for transportation, erection and maintenance.

– Mechanical design criteria: design standards, stresses and deflections and special design

considerations.
– Design documentation: Contractor’s input needed for the Employer's design, the

Contractor's drawings and data, Contractor's review of the Employer's design and technical

reports by Contractor.

– Materials and construction: material selection and standards, quality assurance procedures,

shop methods and personnel, corrosion protection and painting.

– Shop inspection and testing: general requirements and reports, material tests and

certificates, dimensional checks, shop assembly and tests.

– Fixed/embedded components: generator hatch cover or pit, stay ring, discharge ring (if

any), draft tube, draft tube liner foundations anchorage, upstream and downstream

pressure taps and pipes.

– Stationary/removable components: bulb nose, generator access shaft inner and outer guide

rings and guide vanes.

– Regulating apparatus: servomotor, counterweight, connecting rods, regulating ring, guide

vane linkage, system, guide vane overload protection and locking devices.

– Rotating parts, bearings and seals: runner, main shaft, guide bearing, main shaft seal, oil

head and runner blade regulation system with servomotor assembly with oil supply, linkage

system, crosshead and oilhead.

– Thrust and counter-thrust bearing: bearing support, thrust collar and counter-thrust bearing

pads and rings, oil sump and instrumentation.
– Gear box: gear box and related components.

– Miscellaneous components: walkways, platforms, lifting fixtures, special tools, standard

tools and nameplate.

– Auxiliary systems: water supply to main shaft seal, turbine drainage, lubrication-guide vane

regulating system, and oil supply to bearings.
– Instrumentation: controls, indication and protection.
– Spare parts: basic spare parts.
– Model acceptance tests: test requirements.

– Site installation and commissioning test: installation procedures and commissioning.

– Field acceptance tests: scope of field test scope and reports and inspection of cavitation

pitting.

An example of the proposed table of contents for Tendering documents for a Francis turbine is

given in annex A of IEC 61366-1. The example does not include technical specifications for the

control system, relief valves, or high and low pressure slide valves or gates which, at the

Employer's option, may be included in the Tendering documents for the turbine or may be

specified in separate documents.

Chapter 6 (technical specifications) of the Tendering documents should be arranged as follows:

6.1 Technical requirements;
6.2 Technical specifications for fixed/embedded components;
6.3 Technical specifications for stationary/removable components;
6.4 Technical specifications for guide vane regulating apparatus;
6.5 Technical specifications for rotating parts, guide bearings and seals;
6.6 Technical specifications for thrust bearing;
6.7 Technical specifications for gear box;
---------------------- Page: 10 ----------------------
SIST IEC/TR 61366-5:1999
61366-5 © IEC:1998(E) – 9 –
6.8 Technical specifications for miscellaneous components;
6.9 Technical specifications for auxiliary systems;
6.10 Technical specifications for instrumentation;
6.11 Spare parts;
6.12 Model acceptance tests
6.13 Site installation and commissioning
6.14 Field acceptance tests
1 Scope

This technical report, referred to herein as the Guide, is intended to assist in the preparation of

Tendering documents and tendering proposals and in the evaluation of tenders for hydraulic

machines. This part of IEC 61366 provides guidelines for tubular turbines.
2 Reference documents

IEC 60041:1992, Field acceptance tests to determine the hydraulic performance of hydraulic

turbines, storage pumps and pump-turbines

IEC 60193:1965, International code for model acceptance tests of hydraulic turbines

IEC 60308:1970, International code for testing of speed governing systems for hydraulic

turbines

IEC 60545:1976, Guide for commissioning, operation and maintenance of hydraulic turbines

IEC 60609:1978, Cavitation pitting evaluation in hydraulic turbines, storage pumps and pump-

turbines

IEC 60994:1991, Guide for field measurement of vibrations and pulsations in hydraulic

machines (turbines, storage pumps and pump turbines)
IEC 61362, Guide to specification of hydro-turbine control systems

ISO 3740:1980, Acoustics – Determination of sound power levels of noise sources – Guidelines

for the use of basic standards and for the preparation of noise test codes
3 Technical requirements
3.1 Scope of work

This subclause should describe the scope of work and the responsibilities which are to be

conferred upon the Contractor. The general statement of scope of work presented in

TD subsection 2.1 (5.1 ofIEC 61366-1) shall be consistent with what is presented here. In a

similar manner, pay items in the tender form, TD section 1.2 (4.2 of IEC 61366-1) should be

defined directly from TD subsection 6.1.1.

The scope of work should begin with a general statement which outlines the various elements

of the work including (where applicable) the design, model testing, supply of materials and

labour, fabrication, machining, quality assurance, quality control, shop assembly, shop testing,

spare parts, transportation to site, site installation, commissioning, acceptance testing,

warranty and other services specified or required for the items of work.
___________
To be published.
All references to Tendering documents (TD) apply to annex A of IEC 61366-1.
---------------------- Page: 11 ----------------------
SIST IEC/TR 61366-5:1999
– 10 – 61366-5 © IEC:1998(E)

The general statement should be followed by a specific and detailed list of the major items

which the Employer wishes to have as separate payment items in the tender form, for example:

Item Description

1 Six (6) complete bulb type Kaplan turbines each with a specified power of not less than

10 200 kW at the shaft coupling under a specified hydraulic energy of 98 J/kg (specified

head of 10 m);
2 Turbine model testing;
3 Tools, slings and handling devices required for maintenance of the turbines;
4 Transportation and delivery to site;
5 Site installation, commissioning, and acceptance testing of the turbines;
6 Preparation and submission of operation and maintenance manual and training of
Employer's operating and maintenance staff in optimum use of these manuals; and
7 Spare parts required for operation and maintenance."
3.2 Limits of the contract

This subclause, making reference to the Employer's drawings and data, should describe the

limits of the contract considering the following:
– details and location of the upstream high-pressure reference section;
– responsibility for connection of high-pressure reference section at site;
– details and location of the downstream low-pressure reference section;
– details and location of the upstream termination of the water passage liner;
– details and location of the downstream termination of the draft tube liner;
– orientation and location of the turbine/generator shaft flange interface;

– responsibility for flange coupling bolts, nuts and nut guards at generator/turbine coupling,

including drilling jig;
– responsibility for bolts, nuts, gaskets at piping termination;
– termination of governor piping;
– termination of drainage piping;
– termination of bearings lubricating oil piping;
– termination of shaft seal piping (if any);

– termination points and junction boxes for wiring power, control, indication, protection, and

lighting;
– compressed air for service and other functions.

NOTE – Contract limits will change considerably if other major items of equipment (such as speed governor system,

turbine downstream gate, generators, excitation systems, control metering and relaying systems, switchgear, and

power transformers) are included with the turbine equipment in a common set of Tendering documents.

3.3 Supply by Employer

This subclause should be complementary to 5.6 of IEC 61366-1 (TD 2.6) and should list the

items and services which will be the responsibility of the Employer. The following should be

considered:
– services during site installation and testing;
– temporary enclosures for site storage of turbine parts or for erection;

– installation in primary concrete of small items provided by the Contractor, such as anchors,

sole plates, and piping provided by the Contractor;
---------------------- Page: 12 ----------------------
SIST IEC/TR 61366-5:1999
61366-5 © IEC:1998(E) – 11 –

– concrete for embedment of turbine components - supply, placement and control including

monitoring and verification during and after concrete placement by others;
– grout injection, if required, either within or around turbine components;
– powerhouse crane and operator;
– connections to powerhouse air, oil and water piping systems;
– supply of filtered water for turbine shaft seal;
– electrical wiring and hardware external to specified termination points;
– electric motor starters and controls;

– control, annunciation and protection systems external to specified termination points;

– external lubricating oil storage, distribution, and purification systems;
– lubricants, bearing and governor oil to the Contractor's specifications.

It should be stated that any materials or services required for installation and commissioning of

the units, and not specifically mentioned in the above list of the Employer supplied items and

services are to be provided by the Contractor under the contract.
3.4 Design conditions
3.4.1 Project arrangement

The detailed project arrangement should contain the Employer's description together with

general arrangement drawings (by the Employer) of the powerhouse and waterways at the low

and high-pressure sides such as channels, galleries, penstocks, gear box, valves/gates, etc.

The description should be an extension of the applicable data provided in TD chapter 2 "Project

information". The data shall be sufficiently clear so that the Contractor is aware of physical

conditions which may influence the detailed design.

In any event, the Employer should retain responsibility for specifying values of all parameters

on which guarantees are based, as part of the overall design of the plant. This applies

particularly to the correct inlet and outlet conditions and in the coordination of the interaction

between the hydraulic machine an
...
