IEC 62282-3-202:2025

Fuel cell technologies - Part 3-202: Stationary fuel cell power systems - Performance test methods for small fuel cell power systems for multiple units operation

IEC 62282-3-202:2025 provides performance test methods specialized for the thermal and electrical characteristics of an energy management system to effectively share the heat and power of networked small stationary fuel cell power systems. These test methods are applied for each small stationary fuel cell power system. This document covers small stationary fuel cell power systems which can be complemented with a supplementary heat generator or a thermal storage system, or both, such as:
- output: rated electric power output of less than 10 kW for each system;
- output mode: grid-connected or independent operation or stand-alone operation with alternating current (AC) output not exceeding 240 V or direct current (DC) output;
- operating pressure: maximum allowable working pressure of less than 0,1 MPa (G) for the fuel and oxidant passages;
- fuel: gaseous fuel (natural gas, liquefied petroleum gas, propane, butane, hydrogen) or liquid fuel (kerosene, methanol); oxidant: air.
This document does not apply to small stationary fuel cell power systems with electricity storage other than (small scale) back-up power for safety, monitoring and control.

Technologies des piles à combustible - Partie 3-202: Systèmes à piles à combustible stationnaires - Méthodes d'essai des performances pour petits systèmes à piles à combustible destinés à l'exploitation d'unités multiples

l’IEC 622823-202:2025 fournit des méthodes d’essai des performances spécialisées pour les caractéristiques thermiques et électriques d’un système de gestion de l’énergie pour partager efficacement la chaleur et l’électricité des petits systèmes à piles à combustible stationnaires en réseau. Ces méthodes d’essai s’appliquent à chaque petit système à pile à combustible stationnaire. Le présent document couvre les petits systèmes à piles à combustible stationnaires qui peuvent être complétés par un générateur de chaleur
- supplémentaire ou un système de stockage thermique, ou les deux, tel que:
- puissance de sortie: puissance électrique de sortie assignée inférieure à 10 kW pour chaque système;
- mode de sortie: fonctionnement connecté au réseau ou indépendamment du réseau ou fonctionnement autonome avec sortie en courant alternatif ne dépassant pas 240 V ou sortie en courant continu;
- pression de fonctionnement: pression de fonctionnement admissible maximale inférieure à 0,1 MPa (G) pour les passages du combustible et de l’agent oxydant;
- combustible: gazeux (gaz naturel, gaz de pétrole liquéfié, propane, butane, hydrogène) ou liquide (kérosène, méthanol);
agent oxydant: air.
Le présent document ne s’applique pas aux petits systèmes à piles à combustible stationnaires avec un stockage d’énergie électrique autre qu’une alimentation de secours (à petite échelle) à des fins de sécurité, de surveillance et de contrôle.

General Information

• Status: Published
• Publication Date: 26-Mar-2025
• ICS: 27.070 - Fuel cells
• Technical Committee: TC 105 - Fuel cell technologies
• Drafting Committee: WG 212 - TC 105/WG 212
• Current Stage: PPUB - Publication issued
• Start Date: 27-Mar-2025
• Completion Date: 28-Mar-2025

Overview

IEC 62282-3-202:2025 is an international standard developed by the International Electrotechnical Commission (IEC) that specifies performance test methods for small stationary fuel cell power systems operated in multiple unit configurations. Focused on systems with rated electric power output below 10 kW, this standard addresses the thermal and electrical characteristics of energy management systems designed to efficiently share heat and power across a network of small fuel cell units. It applies to stationary fuel cells powered by various gaseous and liquid fuels, used under grid-connected, independent, or stand-alone modes with defined voltage limits.

This standard establishes consistent testing methods to verify system performance, including start-up and shut-down energy, ramp rates, heat recovery efficiency, and thermal storage properties. It excludes systems with electricity storage except for limited backup power functionalities. IEC 62282-3-202:2025 supports manufacturers, system integrators, and testing laboratories to conduct robust and repeatable assessments critical for advancing the adoption of fuel cell technologies in decentralized power applications.

Key Topics

• Scope and Application: Small stationary fuel cell systems below 10 kW output, including those paired with supplementary heat generators or thermal storage.
• Electric Performance Testing:
  • Power generation electrical efficiency at rated and partial loads.
  • Measurement of start-up and shut-down energy requirements.
  • Ramp-up and ramp-down rates between minimum and rated loads.
  • Hot restart waiting times for system reliability assessment.
• Thermal Performance Testing:
  • Heat recovery efficiency measurements.
  • Determination of hot water tank heat storage capacity and insulation performance.
  • Heat recovery temperature and pressure drop characteristics in the thermal circuit.
• Testing Conditions and Setup:
  • Standardized laboratory and operating conditions.
  • Fuel quality and composition guidelines.
  • Specific instrumentation and measurement point requirements with uncertainty analysis.
• Reporting Guidelines:
  • Format and content for summary, detailed, and full test reports.
• Fuel and Operating Parameters:
  • Use of natural gas, LPG, propane, butane, hydrogen, kerosene, and methanol as fuel sources.
  • Maximum allowable operating pressures of less than 0.1 MPa (gauge).
  • AC output not exceeding 240 V or DC output limits.

Applications

IEC 62282-3-202:2025 is essential for:

• Manufacturers and Developers: To validate the performance and reliability of small fuel cell power systems intended for residential, commercial, or small industrial stationary applications.
• Certification and Testing Laboratories: Providing harmonized test procedures that ensure replicable and internationally consistent assessments.
• System Integrators: Evaluating combined heat and power performance in multiple, networked small fuel cell units to optimize energy sharing and system management.
• Energy Managers and Utility Providers: Utilizing test data to support grid-connected or off-grid power solutions with small fuel cells, improving energy efficiency and sustainability.
• Research Institutions: Supporting experimental validation and performance benchmarking of emerging stationary fuel cell technologies under realistic operating conditions.

This standard contributes to the broader adoption of fuel cell technologies as distributed energy resources, enabling clean and efficient decentralized power and heat generation and enhancing energy system resilience.

Related Standards

• IEC 62282 Series: Covers various aspects of fuel cell technologies including terminology, safety, performance, and test methods across different fuel cell types and applications.
• ISO 20340: For performance evaluation of power generation systems, often complementary in setting comprehensive test regimes.
• IEC 60068: Environmental testing methods relevant for simulating operational conditions.
• ISO 17691: Guidance on energy efficiency testing in stationary power systems.
• Safety and Electrical Standards: National or regional electrical installation standards ensuring compliant system integration.

Incorporating IEC 62282-3-202:2025 within quality assurance and testing frameworks ensures small stationary fuel cell power systems are assessed against internationally recognized benchmarks, fostering confidence among manufacturers, consumers, and regulators. This helps accelerate the commercialization and deployment of sustainable fuel cell systems worldwide.

Standards Content (Sample)

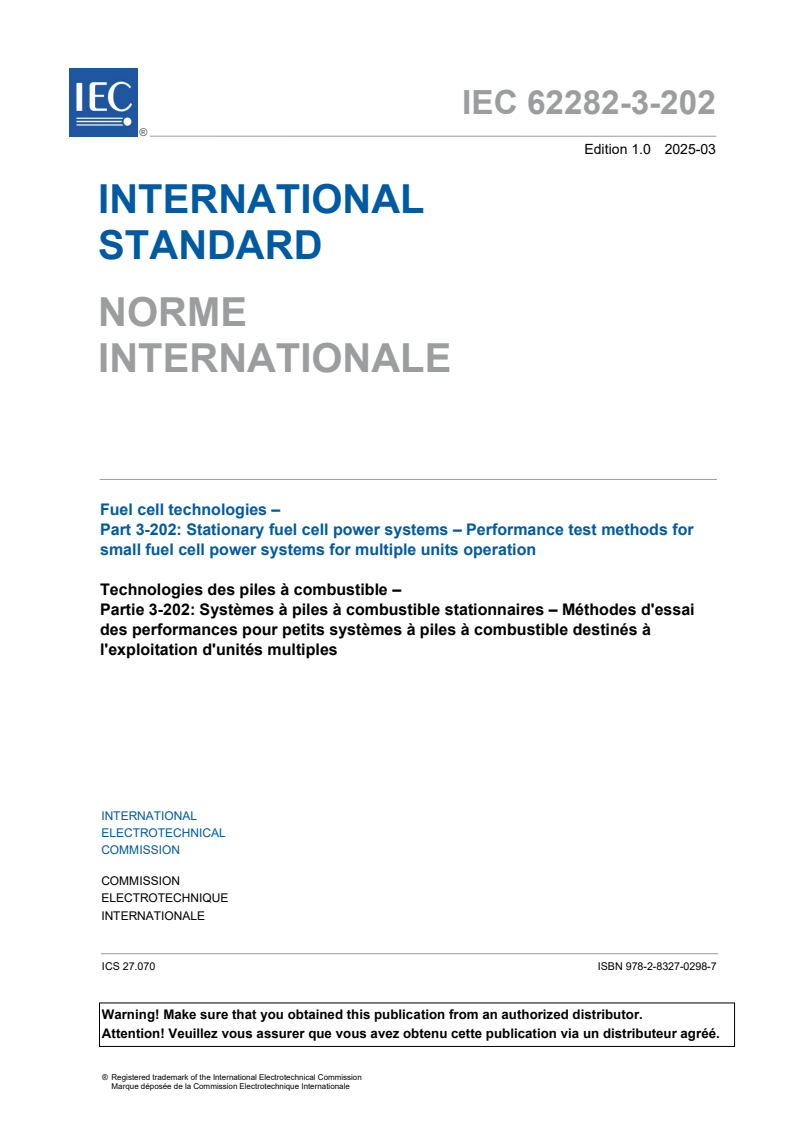

IEC 62282-3-202 ®
Edition 1.0 2025-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fuel cell technologies –
Part 3-202: Stationary fuel cell power systems – Performance test methods for
small fuel cell power systems for multiple units operation

Technologies des piles à combustible –
Partie 3-202: Systèmes à piles à combustible stationnaires – Méthodes d'essai
des performances pour petits systèmes à piles à combustible destinés à
l'exploitation d'unités multiples
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.

IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.

Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need

further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC -  IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications, symboles
en utilisant différents critères (numéro de référence, texte, graphiques et le glossaire. Avec un abonnement, vous aurez
comité d’études, …). Elle donne aussi des informations sur les toujours accès à un contenu à jour adapté à vos besoins.
projets et les publications remplacées ou retirées.

Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au monde,
Restez informé sur les nouvelles publications IEC. Just
avec plus de 22 500 articles terminologiques en anglais et en
Published détaille les nouvelles publications parues.
français, ainsi que les termes équivalents dans 25 langues
Disponible en ligne et une fois par mois par email.
additionnelles. Egalement appelé Vocabulaire

Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC 62282-3-202 ®
Edition 1.0 2025-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fuel cell technologies –
Part 3-202: Stationary fuel cell power systems – Performance test methods for

small fuel cell power systems for multiple units operation

Technologies des piles à combustible –

Partie 3-202: Systèmes à piles à combustible stationnaires – Méthodes d'essai

des performances pour petits systèmes à piles à combustible destinés à

l'exploitation d'unités multiples

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 27.070  ISBN 978-2-8327-0298-7

– 2 – IEC 62282-3-202:2025 © IEC 2025

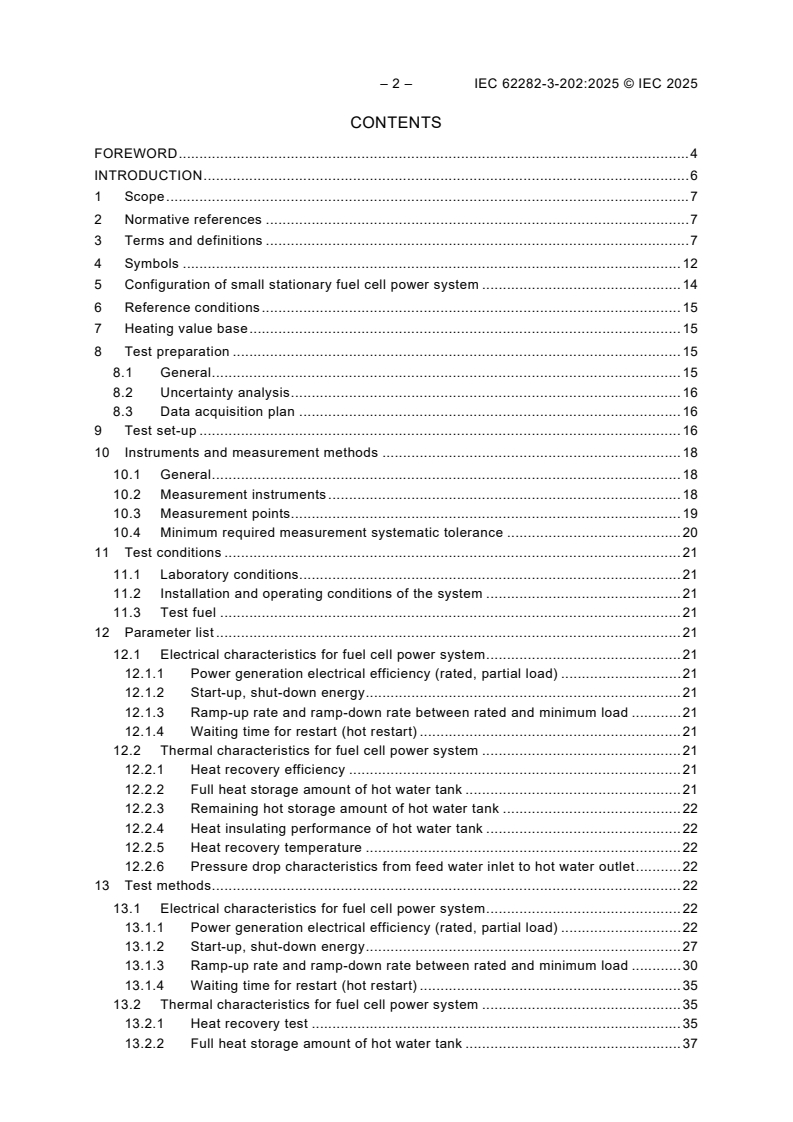

CONTENTS
