OPC Unified Architecture - Part 10: Programs

IEC 62541-10:2020 is available as IEC 62541-10:2020 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.IEC 62541-10:2020 defines the information model associated with Programs in the OPC Unified Architecture. This includes the description of the NodeClasses, standard Properties, Methods and Events and associated behaviour and information for Programs. The complete Address Space model including all NodeClasses and Attributes is specified in IEC 62541-3. The Services such as those used to invoke the Methods used to manage Programs are specified in IEC 62541 4. This third edition cancels and replaces the second edition published in 2015. This edition includes several clarifications and in addition the following significant technical changes with respect to the previous edition:
a) Changed ProgramType to ProgramStateMachineType. This is in line with the NodeSet (and thus implementations). In ProgramDiagnosticDataType: changed the definition of lastInputArguments and lastOutputArguments and added two additional fields for the argument values. Also changed StatusResult into StatusCode. Created new version of the type to ProgramDiagnostic2DataType.
b) Changed Optional modelling rule to OptionalPlaceHolder for Program control Methods. Following the clarification in IEC 62541-3, this now allows subtypes (or instances) to add arguments.

Architecture unifiée OPC - Partie 10: Programmes

IEC 62541-10:2020 est disponible sous forme de IEC 62541-10:2020 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.IEC 62541-10:2020 définit le modèle d'information associé avec des Programmes dans l'Architecture unifiée OPC. Elle comprend la description des NodeClasses, des Propriétés, Méthodes et Evénements normalisés et du comportement associé ainsi que des informations relatives aux Programmes. Le modèle d'espace d'adressage complet, comprenant toutes les NodeClasses et tous les Attributs, est spécifié dans l'IEC 62541-3. Les Services tels que ceux utilisés pour invoquer les Méthodes appliquées pour gérer les Programmes sont spécifiés dans l'IEC 62541-4. Cette troisième édition annule et remplace la deuxième édition parue en 2015.
Cette édition inclut plusieurs clarifications ainsi que les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) remplacement de ProgramType par ProgramStateMachineType, conformément au NodeSet (et donc aux mises en œuvre). Dans le programme ProgramDiagnosticDataType, modification des définitions de lastInputArguments et lastOutputArguments, et ajout de deux champs complémentaires pour les valeurs d'arguments. Remplacement également de StatusResult par StatusCode. Création d'une nouvelle version du type de ProgramDiagnostic2DataType;
b) remplacement de la règle de modélisation Facultative par OptionalPlaceHolder pour les Méthodes de Commande de Programme. Ceci fait suite à la clarification apportée dans l'IEC 62541-3, et permet aux sous-types (ou instances) d'ajouter des arguments.

General Information

Status
Published
Publication Date
06-Jul-2020
Current Stage
PPUB - Publication issued
Completion Date
07-Jul-2020
Ref Project

Buy Standard

Standard
IEC 62541-10:2020 - OPC Unified Architecture - Part 10: Programs
English and French language
92 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

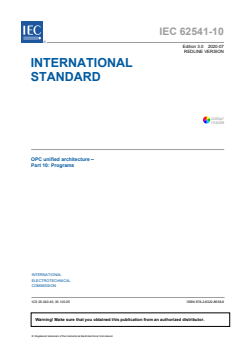

IEC 62541-10
Edition 3.0 2020-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
OPC unified architecture –
Part 10: Programs
Architecture unifiée OPC –
Partie 10: Programmes
IEC 62541-10:2020-07(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2020 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org

webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au

La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en

en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans

comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire

projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary

Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais

Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des

Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées

antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC 62541-10
Edition 3.0 2020-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
OPC unified architecture –
Part 10: Programs
Architecture unifiée OPC –
Partie 10: Programmes
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 25.040.40; 35.100.05 ISBN 978-2-8322-8576-3

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------
– 2 – IEC 62541-10:2020 © IEC 2020

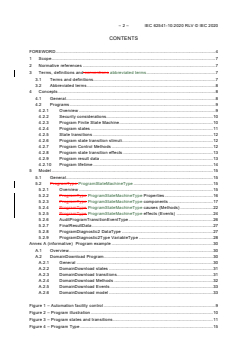

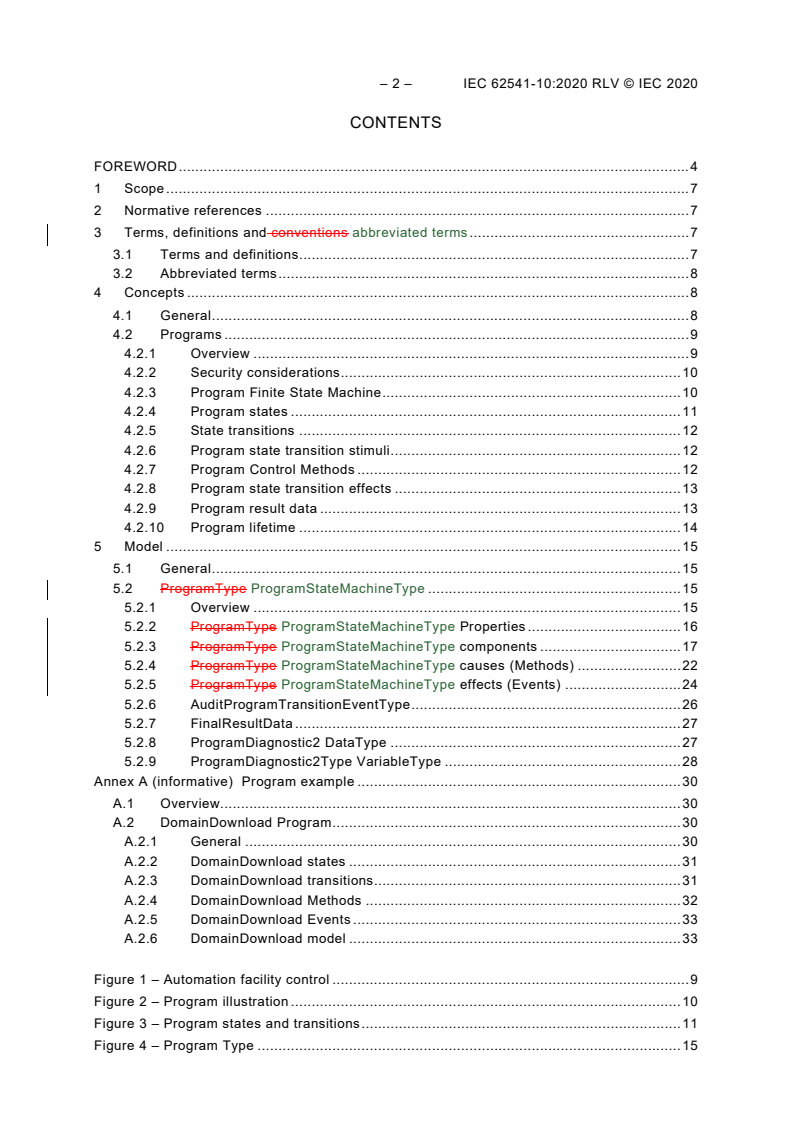

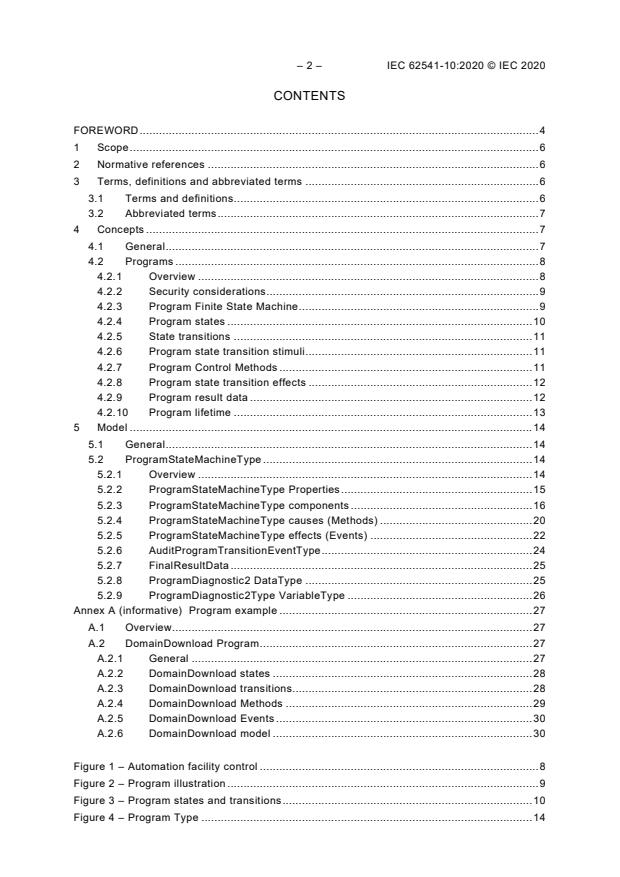

CONTENTS

FOREWORD ........................................................................................................................... 4

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms, definitions and abbreviated terms ........................................................................ 6

3.1 Terms and definitions .............................................................................................. 6

3.2 Abbreviated terms ................................................................................................... 7

4 Concepts ......................................................................................................................... 7

4.1 General ................................................................................................................... 7

4.2 Programs ................................................................................................................ 8

4.2.1 Overview ......................................................................................................... 8

4.2.2 Security considerations .................................................................................... 9

4.2.3 Program Finite State Machine .......................................................................... 9

4.2.4 Program states .............................................................................................. 10

4.2.5 State transitions ............................................................................................ 11

4.2.6 Program state transition stimuli ...................................................................... 11

4.2.7 Program Control Methods .............................................................................. 11

4.2.8 Program state transition effects ..................................................................... 12

4.2.9 Program result data ....................................................................................... 12

4.2.10 Program lifetime ............................................................................................ 13

5 Model ............................................................................................................................ 14

5.1 General ................................................................................................................. 14

5.2 ProgramStateMachineType ................................................................................... 14

5.2.1 Overview ....................................................................................................... 14

5.2.2 ProgramStateMachineType Properties ........................................................... 15

5.2.3 ProgramStateMachineType components ........................................................ 16

5.2.4 ProgramStateMachineType causes (Methods) ............................................... 20

5.2.5 ProgramStateMachineType effects (Events) .................................................. 22

5.2.6 AuditProgramTransitionEventType ................................................................. 24

5.2.7 FinalResultData ............................................................................................. 25

5.2.8 ProgramDiagnostic2 DataType ...................................................................... 25

5.2.9 ProgramDiagnostic2Type VariableType ......................................................... 26

Annex A (informative) Program example .............................................................................. 27

A.1 Overview............................................................................................................... 27

A.2 DomainDownload Program .................................................................................... 27

A.2.1 General ......................................................................................................... 27

A.2.2 DomainDownload states ................................................................................ 28

A.2.3 DomainDownload transitions.......................................................................... 28

A.2.4 DomainDownload Methods ............................................................................ 29

A.2.5 DomainDownload Events ............................................................................... 30

A.2.6 DomainDownload model ................................................................................ 30

Figure 1 – Automation facility control ...................................................................................... 8

Figure 2 – Program illustration ................................................................................................ 9

Figure 3 – Program states and transitions ............................................................................. 10

Figure 4 – Program Type ...................................................................................................... 14

---------------------- Page: 4 ----------------------
IEC 62541-10:2020 © IEC 2020 – 3 –

Figure 5 – Program FSM References .................................................................................... 16

Figure 6 – ProgramStateMachineType causes and effects .................................................... 20

Figure A.1 – Program example .............................................................................................. 27

Figure A.2 – DomainDownload state diagram ........................................................................ 28

Figure A.3 – DomainDownloadType partial state model ........................................................ 35

Figure A.4 – Ready To Running model .................................................................................. 38

Figure A.5 – Opening To Sending To Closing model ............................................................. 40

Figure A.6 – Running To Suspended model .......................................................................... 41

Figure A.7 – Suspended To Running model .......................................................................... 42

Figure A.8 – Running To Halted – Aborted model ................................................................. 42

Figure A.9 – Suspended To Aborted model ........................................................................... 43

Figure A.10 – Running To Completed model ......................................................................... 44

Figure A.11 – Sequence of operations .................................................................................. 45

Table 1 – Program Finite State Machine ............................................................................... 10

Table 2 – Program states ...................................................................................................... 11

Table 3 – Program state transitions ...................................................................................... 11

Table 4 – Program Control Methods ...................................................................................... 12

Table 5 – ProgramStateMachineType ................................................................................... 15

Table 6 – Program states ...................................................................................................... 17

Table 7 – Program transitions ............................................................................................... 18

Table 8 – ProgramStateMachineType causes ....................................................................... 21

Table 9 – ProgramTransitionEventType ................................................................................ 22

Table 10 – ProgramTransitionEvents .................................................................................... 23

Table 11 – AuditProgramTransitionEventType ...................................................................... 24

Table 12 – ProgramDiagnostic2DataType structure .............................................................. 25

Table 13 – ProgramDiagnostic2DataType definition .............................................................. 26

Table 14 – ProgramDiagnostic2Type VariableType ............................................................... 26

Table A.1 – DomainDownload states ..................................................................................... 29

Table A.2 – DomainDownload Type ...................................................................................... 31

Table A.3 – Transfer State Machine Type ............................................................................. 32

Table A.4 – Transfer State Machine – states ......................................................................... 33

Table A.5 – Finish State Machine Type ................................................................................. 33

Table A.6 – Finish State Machine – states ............................................................................ 34

Table A.7 – DomainDownload Type Property Attributes variable values ................................ 34

Table A.8 – Additional DomainDownload transition types ...................................................... 36

Table A.9 – Start Method additions ....................................................................................... 38

Table A.10 – StartArguments ................................................................................................ 39

Table A.11 – IntermediateResults Object .............................................................................. 40

Table A.12 – Intermediate result data Variables .................................................................... 41

Table A.13 – FinalResultData ............................................................................................... 43

---------------------- Page: 5 ----------------------
– 4 – IEC 62541-10:2020 © IEC 2020
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
OPC UNIFIED ARCHITECTURE –
Part 10: Programs
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC

Publication(s)"). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

IEC 62541-10 has been prepared by subcommittee 65E: Devices and integration in enterprise

systems, of IEC technical committee 65: Industrial-process measurement, control and

automation.
This third edition cancels and replaces the second edition published in 2015.

This edition includes several clarifications and in addition the following significant technical

changes with respect to the previous edition:

a) Changed ProgramType to ProgramStateMachineType. This is in line with the NodeSet

(and thus implementations). In ProgramDiagnosticDataType: changed the definition of

lastInputArguments and lastOutputArguments and added two additional fields for the

argument values. Also changed StatusResult into StatusCode. Created new version of the

type to ProgramDiagnostic2DataType.

b) Changed Optional modelling rule to OptionalPlaceHolder for Program control Methods.

Following the clarification in IEC 62541-3, this now allows subtypes (or instances) to add

arguments.
---------------------- Page: 6 ----------------------
IEC 62541-10:2020 © IEC 2020 – 5 –
The text of this standard is based on the following documents:
FDIS Report on voting
65E/719/FDIS 65E/735/RVD

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

Throughout this document and the other parts of the IEC 62541 series, certain document

conventions are used:

Italics are used to denote a defined term or definition that appears in Clause 3 in one of the

parts of the series.

Italics are also used to denote the name of a service input or output parameter or the name of

a structure or element of a structure that are usually defined in tables.

The italicized terms and names are also, with a few exceptions, written in camel-case (the

practice of writing compound words or phrases in which the elements are joined without

spaces, with each element's initial letter capitalized within the compound). For example the

defined term is AddressSpace instead of Address Space. This makes it easier to understand

that there is a single definition for AddressSpace, not separate definitions for Address and

Space.

A list of all parts of the IEC 62541 series, published under the general title OPC Unified

Architecture, can be found on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 7 ----------------------
– 6 – IEC 62541-10:2020 © IEC 2020
OPC UNIFIED ARCHITECTURE –
Part 10: Programs
1 Scope

This part of IEC 62451 defines the information model associated with Programs in the OPC

Unified Architecture. This includes the description of the NodeClasses, standard Properties,

Methods and Events and associated behaviour and information for Programs.

The complete Address Space model including all NodeClasses and Attributes is specified in

IEC 62541‑3. The Services such as those used to invoke the Methods used to manage

Programs are specified in IEC 62541‑4.
2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and

are indispensable for its application. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC TR 62541‑1, OPC Unified Architecture – Part 1: Overview and Concepts
IEC 62541‑3, OPC Unified Architecture – Part 3: Address Space Model
IEC 62541‑4, OPC Unified Architecture – Part 4: Services
IEC 62541‑5, OPC Unified Architecture – Part 5: Information Model
IEC 62541‑7, OPC Unified Architecture – Part 7: Profiles
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions

For the purposes of this document, the terms and definitions given in IEC TR 62541-1,

IEC 62541-3 and the following apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1.1
function

programmatic task performed by a Server or device, usually accomplished by computer code

execution
---------------------- Page: 8 ----------------------
IEC 62541-10:2020 © IEC 2020 – 7 –
3.1.2
finite state machine

sequence of states and valid state transitions along with the causes and effects of those state

transitions that define the actions of a Program in terms of discrete stages
3.1.3
ProgramStateMachineType
type definition of a Program and is a subtype of the FiniteStateMachineType
3.1.4
program control method

Method having specific semantics designed for the control of a Program by causing a state

transition
3.1.5
program invocation
unique Object instance of a Program existing on a Server

Note 1 to entry: A Program Invocation is distinguished from other Object instances of the same

ProgramStateMachineType by the object node’s unique browse path.
3.2 Abbreviated terms
DA data access
FSM finite state machine
HMI human–machine interface
UA Unified Architecture
4 Concepts
4.1 General

Integrated automation facilities manage their operations through the exchange of data and the

coordinated invocation of system Functions as illustrated in Figure 1. Services are required to

perform the data exchanges and to invoke the Functions that constitute system operation.

These Functions may be invoked through Human Machine Interfaces, cell controllers, or other

supervisory control and data acquisition type systems. OPC UA defines Methods and

Programs as an interoperable way to advertise, discover, and request these Functions. They

provide a normalizing mechanism for the semantic description, invocation, and result

reporting of these Functions. Together Methods and Programs complement the other OPC UA

Services and ObjectTypes to facilitate the operation of an automation environment using a

client-server hierarchy.
---------------------- Page: 9 ----------------------
– 8 – IEC 62541-10:2020 © IEC 2020
Figure 1 – Automation facility control

Methods and Programs model Functions typically have different scopes, behaviours, lifetimes,

and complexities in OPC Servers and the underlying systems. These Functions are not

normally characterized by the reading or writing of data which is accomplished with the OPC

UA Attribute service set.

Methods represent basic Functions in the Server that can be invoked by a Client. Programs,

by contrast, model more complex and stateful functionality in the system. For example, a

method call may be used to perform a calculation or reset a counter. A Program is used to run

and control a batch process, execute a machine tool part program, or manage a domain

download. Methods and their invocation mechanism are described in IEC 62541‑3 and

IEC 62541‑4.

This document describes the extensions to, or specific use of, the core capabilities defined in

IEC 62541‑5 as required for Programs.
4.2 Programs
4.2.1 Overview

Programs are complex Functions in a Server or underlying system that can be invoked and

managed by a Client. Programs can represent any level of functionality within a system or

process in which Client control or intervention is required and progress monitoring is desired.

Figure 2 illustrates the model.
---------------------- Page: 10 ----------------------
IEC 62541-10:2020 © IEC 2020 – 9 –
Figure 2 – Program illustration

Programs are stateful and transition through a prescribed sequence of states as they execute.

Their behaviour is defined by a Program Finite State Machine (PFSM). The elements of the

PFSM describe the phases of a Program’s execution in terms of valid transitions between a

set of states, the stimuli or causes of those transitions, and the resultant effects of the

transitions.
4.2.2 Security considerations

Since Programs can be used to perform advanced control algorithms or other actions, their

use should be restricted to personnel with appropriate access rights. It is recommended that

AuditUpdateMethodEvents are generated to allow monitoring the number of running Programs

in addition to their execution frequency.
4.2.3 Program Finite State Machine

The states, transitions, causes and effects that compose the Program Finite State Machine

are listed in Table 1 and illustrated in Figure 3.
---------------------- Page: 11 ----------------------
– 10 – IEC 62541-10:2020 © IEC 2020
Table 1 – Program Finite State Machine
No. Transition name Cause From state To state Effect
Report Transition 1
1 HaltedToReady Reset Method Halted Ready
Event/Result
Report Transition 2
2 ReadyToRunning Start Method Ready Running
Event/Result
Halt Method or Report Transition 3
3 RunningToHalted Running Halted
Internal (Error) Event/Result
Report Transition 4
4 RunningToReady Internal Running Ready
Event/Result
Suspend Report Transition 5
5 RunningToSuspended Running Suspended
Method Event/Result
Report Transition 6
6 SuspendedToRunning Resume Method Suspended Running
Event/Result
Report Transition 7
7 SuspendedToHalted Halt Method Suspended Halted
Event/Result
Report Transition 8
8 SuspendedToReady Internal Suspended Ready
Event/Result
Report Transition 9
9 ReadyToHalted Halt Method Ready Halted
Event/Result
Figure 3 – Program states and transitions
4.2.4 Program states

A standard set of base states is defined for Programs as part of the Program Finite State

Machine. These states represent the stages in which a Program can exist at an instant in time

as viewed by a Client. This state is the Program’s current stat
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
