IEC 62148-22:2023

Fibre optic active components and devices - Package and interface standards - Part 22: 25 Gbit/s directly modulated laser packages with temperature control unit

IEC 62148-22: 2023 defines the physical dimensions and interface specifications for directly modulated laser (DML) devices used in optical telecommunication and optical data transmission applications. The intent of this document is to adequately specify the physical requirements for DML devices so as to enable mechanical interchangeability of laser devices or transmitters complying with this document both at the printed circuit board and for any panel-mounting requirements.

Composants et dispositifs actifs fibroniques - Normes de boîtier et d'interface - Partie 22: Boîtiers pour laser à modulation 25 Gbit/s équipés d'une unité de régulation de température

IEC 62148-22: 2023 définit les dimensions physiques et les spécifications des interfaces pour les dispositifs laser à modulation directe (DML) utilisés dans les applications de télécommunications optiques et de transmission optique de données. L’objet du présent document est de spécifier de manière adéquate les exigences physiques des dispositifs DML de façon à permettre l’interchangeabilité mécanique des dispositifs laser ou des émetteurs conformes au présent document, tant au niveau de la carte de circuit imprimé que pour toute exigence de montage sur panneau.

General Information

• Status: Published
• Publication Date: 14-Feb-2023
• ICS: 33.180.20 - Fibre optic interconnecting devices
• Technical Committee: SC 86C - Fibre optic systems, sensing and active devices
• Current Stage: PPUB - Publication issued
• Start Date: 15-Feb-2023
• Completion Date: 24-Mar-2023

Overview

IEC 62148-22:2023 is an international standard published by the International Electrotechnical Commission (IEC) that defines the package and interface standards for 25 Gbit/s directly modulated laser (DML) packages equipped with temperature control units. This standard is part 22 of the IEC 62148 series, which addresses fibre optic active components and devices.

The primary purpose of IEC 62148-22:2023 is to specify the physical dimensions and interface specifications for DML devices used in optical telecommunication and optical data transmission systems. It ensures mechanical interchangeability of these laser devices or transmitters across different equipment, covering both printed circuit board (PCB) mounting and panel mounting requirements.

As high-speed optical communication evolves, standards like IEC 62148-22:2023 are crucial in promoting interoperability, consistent quality, and efficient integration of fibre optic laser components.

Key Topics

• Physical Dimensions
  Defines detailed mechanical outlines for various DML package types including:

  • TO-can packages (with 5-pin, 7-pin, and 8-pin configurations)
  • TOSA (Transmitter Optical Sub-Assembly) module packages featuring LC optical connectors
  • Pigtail packages with fiber connectors

• Interface Specifications
  Specifies the electrical and optical interfaces necessary to support reliable operation at 25 Gbit/s data rates, including:

  • Electrical pin assignments and functions for different pin configurations
  • Optical connector interface standards to facilitate easy integration
  • Temperature control unit integration in packages to enhance device stability and longevity

• Mechanical Interchangeability
  Enables manufacturers and system integrators to replace or upgrade laser components without redesigning the system housing or interface circuitry, supporting modular design and maintenance.

• Standard Compliance and References
  Lists normative references, ensuring alignment with other relevant IEC standards and industry practices for fiber optic components.

Applications

IEC 62148-22:2023 is highly relevant for various sectors and uses involving 25 Gbit/s optical transmission technologies, such as:

• Telecommunication Networks
  Use in high-speed fiber optic transceivers for broadband internet, long-haul and metro networks.

• Data Centers and Enterprise Networks
  Supports high-bandwidth connections in data center interconnects and server communications.

• Optical Modules Manufacturing
  Assists device manufacturers in designing laser modules compatible with broad market standards, reducing development time and cost.

• Test and Measurement Equipment
  Facilitates standardized interfaces in tools used for optical signal testing and diagnostics.

• Panel and PCB Design
  Guides engineers on dimensions and pin assignments for mounting DML packages, ensuring compatibility with system boards and enclosures.

Related Standards

IEC 62148-22:2023 complements other standards in the IEC 62148 series, which cover various aspects of fiber optic active components, including:

• IEC 62148-1 - General package and interface standards for fiber optic devices
• IEC 62148-21 - Specifications for directly modulated laser packages without temperature control
• IEC 60825 - Safety of laser products
• IEC 61754 series - Optical connector standards ensuring interoperability

This standard also aligns with overarching telecommunication and fiber optic standards maintained by organizations such as the International Telecommunication Union (ITU) and Optical Internetworking Forum (OIF).

---

Keywords: IEC 62148-22, directly modulated laser, DML packages, fiber optic laser standards, 25 Gbit/s optical transmission, temperature control, fiber optic components, TO-can package, TOSA module, optical telecommunication standards, optical data transmission, laser package dimensions, electrical and optical interface standards, IEC standards for fiber optics.

Standards Content (Sample)

IEC 62148-22 ®
Edition 1.0 2023-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic active components and devices – Package and interface standards –
Part 22: 25 Gbit/s directly modulated laser packages with temperature control
unit
Composants et dispositifs actifs fibroniques – Normes de boîtier et d’interface –
Partie 22: Boîtiers pour laser à modulation directe 25 Gbit/s équipés d’une unité
de régulation de température

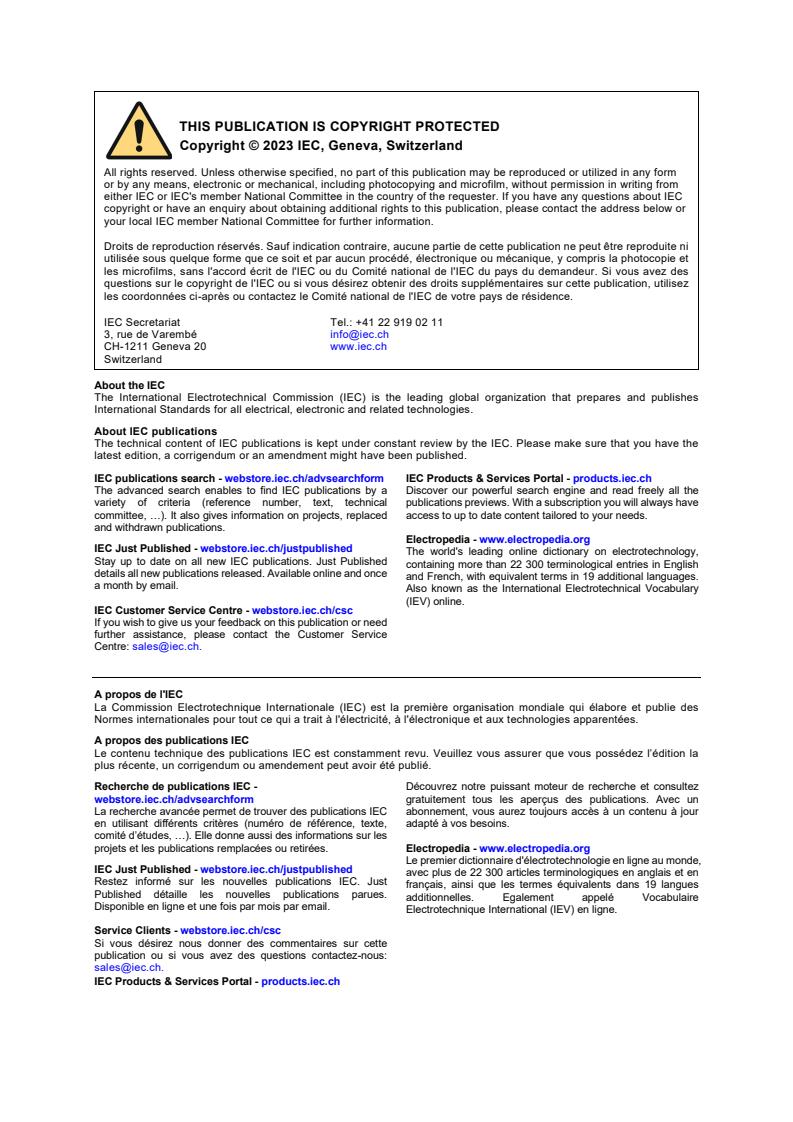

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et
les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Découvrez notre puissant moteur de recherche et consultez
webstore.iec.ch/advsearchform gratuitement tous les aperçus des publications. Avec un
La recherche avancée permet de trouver des publications IEC abonnement, vous aurez toujours accès à un contenu à jour
en utilisant différents critères (numéro de référence, texte, adapté à vos besoins.
comité d’études, …). Elle donne aussi des informations sur les
projets et les publications remplacées ou retirées. Electropedia - www.electropedia.org

Le premier dictionnaire d'électrotechnologie en ligne au monde,
IEC Just Published - webstore.iec.ch/justpublished
avec plus de 22 300 articles terminologiques en anglais et en
Restez informé sur les nouvelles publications IEC. Just
français, ainsi que les termes équivalents dans 19 langues
Published détaille les nouvelles publications parues.
additionnelles. Egalement appelé Vocabulaire
Disponible en ligne et une fois par mois par email.
Electrotechnique International (IEV) en ligne.

Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC Products & Services Portal - products.iec.ch

IEC 62148-22 ®
Edition 1.0 2023-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Fibre optic active components and devices – Package and interface standards –

Part 22: 25 Gbit/s directly modulated laser packages with temperature control

unit
Composants et dispositifs actifs fibroniques – Normes de boîtier et d’interface –

Partie 22: Boîtiers pour laser à modulation directe 25 Gbit/s équipés d’une unité

de régulation de température
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.180.20 ISBN 978-2-8322-6528-4

– 2 – IEC 62148-22:2023 © IEC 2023

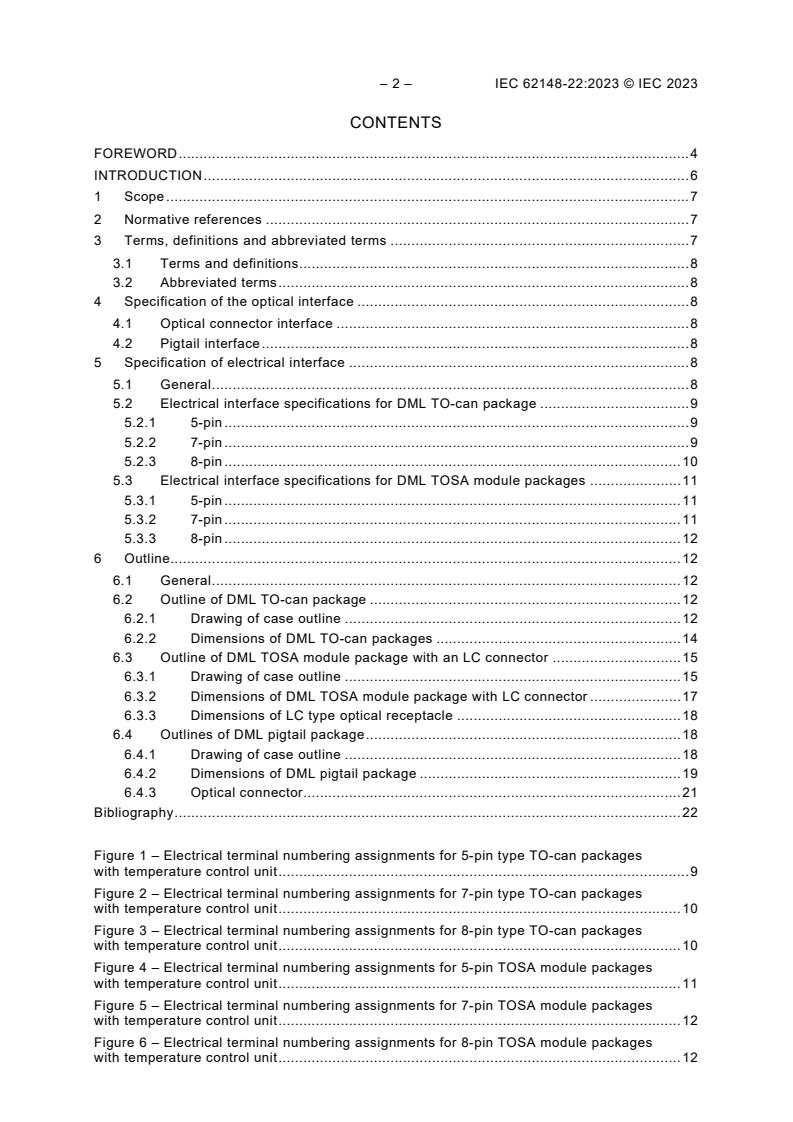

CONTENTS

FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms, definitions and abbreviated terms . 7
3.1 Terms and definitions . 8
3.2 Abbreviated terms . 8
4 Specification of the optical interface . 8
4.1 Optical connector interface . 8
4.2 Pigtail interface . 8
5 Specification of electrical interface . 8
5.1 General . 8
5.2 Electrical interface specifications for DML TO-can package . 9
5.2.1 5-pin . 9
5.2.2 7-pin . 9
5.2.3 8-pin . 10
5.3 Electrical interface specifications for DML TOSA module packages . 11
5.3.1 5-pin . 11
5.3.2 7-pin . 11
5.3.3 8-pin . 12
6 Outline. 12
6.1 General . 12
6.2 Outline of DML TO-can package . 12
6.2.1 Drawing of case outline . 12
6.2.2 Dimensions of DML TO-can packages . 14
6.3 Outline of DML TOSA module package with an LC connector . 15
6.3.1 Drawing of case outline . 15
6.3.2 Dimensions of DML TOSA module package with LC connector . 17
6.3.3 Dimensions of LC type optical receptacle . 18
6.4 Outlines of DML pigtail package . 18
6.4.1 Drawing of case outline . 18
6.4.2 Dimensions of DML pigtail package . 19
6.4.3 Optical connector. 21
Bibliography . 22

Figure 1 – Electrical terminal numbering assignments for 5-pin type TO-can packages
with temperature control unit . 9
Figure 2 – Electrical terminal numbering assignments for 7-pin type TO-can packages
with temperature control unit . 10
Figure 3 – Electrical terminal numbering assignments for 8-pin type TO-can packages
with temperature control unit . 10
Figure 4 – Electrical terminal numbering assignments for 5-pin TOSA module packages
with temperature control unit . 11
Figure 5 – Electrical terminal numbering assignments for 7-pin TOSA module packages
with temperature control unit . 12
Figure 6 – Electrical terminal numbering assignments for 8-pin TOSA module packages
with temperature control unit . 12

Figure 7 – Case outline of TO-can with spherical lens . 13
Figure 8 – Case outline of TO-can with aspherical lens . 13
Figure 9 – Pin configuration for 5-pin TO-can . 13
Figure 10 – Pin configuration for 7-pin TO-can . 14
Figure 11 – Pin configuration for 8-pin TO-can . 14
Figure 12 – Schematic diagram of DML TOSA module packages with LC connector . 17
Figure 13 – Schematic diagram and pin-out of DML pigtail package . 19

Table 1 – Pin function definitions for 5-pin type DML TO-can packages . 9
Table 2 – Pin function definitions for 7-pin type DML TO-can packages . 10
Table 3 – Pin function definitions for 8-pin type DML TO-can packages . 11
Table 4 – Dimensions of DML TO-can package . 15
Table 5 – Dimensions of DML TOSA module package with LC connector . 17
Table 6 – Pin out terminals of DML TOSA module packages with LC connector and
with flexible printed circuit board . 18
Table 7 – Dimensions of DML pigtail package . 20
Table 8 – Pin out terminals of DML pigtail package . 21

– 4 – IEC 62148-22:2023 © IEC 2023
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC ACTIVE COMPONENTS AND DEVICES –
PACKAGE AND INTERFACE STANDARDS –

Part 22: 25 Gbit/s directly modulated laser packages
with temperature control unit
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 62148-22 has been prepared by subcommittee 86C: Fibre optic systems and active devices,
of IEC technical committee 86: Fibre optics. It is an International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
86C/1851/FDIS 86C/1859/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.

This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
A list of all parts of the IEC 62148 series, published under the general title Fibre optic active
components and devices – Package and interface standards, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – IEC 62148-22:2023 © IEC 2023
INTRODUCTION
Fibre optic laser devices are used to convert electrical signals into optical signals. This
document covers the physical dimensions and interfaces for directly modulated laser (DML)
packages which are intended to be applied to 25 Gbit/s transceivers.

FIBRE OPTIC ACTIVE COMPONENTS AND DEVICES –
PACKAGE AND INTERFACE STANDARDS –

Part 22: 25 Gbit/s directly modulated laser packages
with temperature control unit
1 Scope
This part of IEC 62148 defines the physical dimensions and interface specifications for directly
modulated laser (DML) devices used in optical telecommunication and optical data transmission
applications.
The intent of this document is to adequately specify the physical requirements for DML devices
so as to enable mechanical interchangeability of laser devices or transmitters complying with
this document both at the printed circuit board and for any panel-mounting requirements.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60793-2-50, Optical fibres – Part 2-50: Product specifications – Sectional specification for
class B single-mode fibres
IEC 61753 (all parts), Fibre optic interconnecting devices and passive components –
Performance standard
IEC 61754 (all parts), Fibre optic interconnecting devices and passive components – Fibre optic
connector interfaces
IEC 61755 (all parts), Fibre optic interconnecting devices and passive components – Fibre optic
connector optical interfaces
IEC 61754-20, Fibre optic interconnecting devices and passive components – Fibre optic
connector interfaces – Part 20: Type LC connector family
IEC 62148-1, Fibre optic active components and devices – Package and interface standards –
Part 1: General and guidance
3 Terms, definitions and abbreviated terms
For the purposes of this document, the terms and definitions given in IEC 62148-1 and the
following apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp

– 8 – IEC 62148-22:2023 © IEC 2023
3.1 Terms and definitions
3.1.1
pigtail package
package type of photonic devices which has a length of fibre attachment for both optical input
and output ports
[SOURCE: IEC 62148-15:2021, 3.1.1]
3.1.2
TOSA module
optical module that converts electrical signals into optical signals and that is connected to an
optical fibre
[SOURCE: IEC 62148-18:2014 , 3.1.1]
3.2 Abbreviated terms
CAN airtight sealed metal container (see IEC 60747-1)
DML directly modulated laser
LD laser diode
MPD monitor photodiode
NC not connected
PD photodiode
RH heat resistor
RTH thermistor resistor
TEC thermo-electric cooler
TO transistor outline
TOSA transmitter optical subassembly
4 Specification of the optical interface
4.1 Optical connector interface
This document applies to the LC optical connector interfaces. Detailed dimensions of the optical
receptacle are specified in IEC 61754-20.
4.2 Pigtail interface
All single-mode optical fibres defined in IEC 60793-2-50 shall apply.
All optical connectors defined in the IEC 61753 series, IEC 61754 series, and IEC 61755 series
are applicable when a pigtail shall be terminated with an optical connector.
5 Specification of electrical interface
5.1 General
The specifications for the electrical interfaces of DML TO-can packages are described in 5.2.
The specifications for the electrical interfaces of DML for TOSA module and DML pigtail
packages are described in 5.3. The electrical interface specifications define only the basic
functionality of each pin.
5.2 Electrical interface specifications for DML TO-can package
5.2.1 5-pin
The electrical terminal numbering assignments for 5-pin type TO-can packages with
temperature control unit are shown in Figure 1. There are two different configurations.
Figure 1 a) shows the first configuration, where pin 1 is offset from the centre of the TO-can,
and Figure 1 b) shows the second configuration with a centred pin 1. The pin function definitions
for the two 5-pin TO-can packages are specified in Table 1.

a) With offset ground pin 1 b) With centred ground pin 1

Figure 1 – Electrical terminal numbering assignments for 5-pin type
TO-can packages with temperature control unit
Table 1 – Pin function definitions for 5-pin type DML TO-can packages
Function
Pin number Option 1 Option 2
1 Ground, MPD anode, and RH cathode Ground and RH cathode
2 LD anode LD anode
3 RH anode RH anode and MPD anode
4 MPD cathode MPD cathode
5 LD cathode LD cathode
5.2.2 7-pin
The electrical terminal numbering assignments for 7-pin type TO-can packages with
temperature control unit are shown in Figure 2. There are two different configurations.
Figure 2 a) shows the configuration with a centred pin 1, and Figure 2 b) shows the
configuration where pin 1 is offset from the centre. The pin function definitions for the two 7-pin
TO-can packages are specified in Table 2.

– 10 – IEC 62148-22:2023 © IEC 2023

a) With centred ground pin 1 b) With offset ground pin 1

Figure 2 – Electrical terminal numbering assignments for 7-pin type
TO-can packages with temperature control unit
Table 2 – Pin function definitions for 7-pin type DML TO-can packages
Function
Pin number
Option 1 Option 2 Option 3
Ground, RTH cathode, and Ground, RTH cathode, and
1 Ground
MPD cathode MPD anode
2 LD anode LD anode LD anode
3 RTH anode MPD cathode RTH anode
4 TEC anode TEC anode TEC cathode
5 TEC cathode TEC cathode TEC anode
6 MPD anode MPD anode MPD cathode
7 LD cathode LD cathode LD cathode

5.2.3 8-pin
The electrical terminal numbering assignments for 8-pin type TO-can packages with
temperature control unit are shown in Figure 3. The pin function definitions for 8-pin TO-can
packages are specified in Table 3.

Figure 3 – Electrical terminal numbering assignments for 8-pin type
TO-can packages with temperature control unit

Table 3 – Pin function definitions for 8-pin type DML TO-can packages
Function
Pin number
Option 1 Option 2 Option 3
Ground and RTH cathode Ground, RTH cathode, and Ground, RTH cathode, and
MPD anode MPD anode
2 RTH anode RTH anode RTH anode
3 MPD cathode MPD cathode MPD cathode
4 TEC cathode TEC cathode TEC cathode
5 TEC anode TEC anode TEC anode
MPD anode Ground, RTH cathode, and NC
MPD anode
7 LD cathode LD cathode LD cathode
8 LD anode LD anode LD anode
5.3 Electrical interface specifications for DML TOSA module packages
5.3.1 5-pin
The pin number assignments for 5-pin TOSA module packages are shown in Figure 4.
Figure 4 a) shows the configuration where pin 1 is offset from the centre, and Figure 4 b) shows
the configuration with pin 1 centred. The pin function definitions for DML TOSA module
packages are the same as specified in Table 1 for DML TO-can packages.

a) With offset ground pin 1 b) With centred ground pin 1

Figure 4 – Electrical terminal numbering assignments for 5-pin
TOSA module packages with temperature control unit
5.3.2 7-pin
The pin number assignments for 7-pin TOSA module packages are shown in Figure 5.
Figure 5 a) shows the configuration with pin 1 centred, and Figure 5 b) shows the configuration
with pin 1 offset from the centre. The pin function definitions for DML TOSA module packages
are the same as specified in Table 2 for DML TO-can packages.

– 12 – IEC 62148-22:2023 © IEC 2023

a) With centred ground pin 1 b) With offset ground pin 1

Figure 5 – Electrical terminal numbering assignments for 7-pin
TOSA module packages with temperature control unit
5.3.3 8-pin
The pin number assignments for 8-pin TOSA module packages are shown in Figure 6. The pin
function definitions for DML TOSA module packages are the same as specified in Table 3 for
DML TO-can packages.
Figure 6 – Electrical terminal numbering assignments for 8-pin
TOSA module packages with temperature control unit
6 Outline
6.1 General
The outline dimensions and electrical interface dimensions for DML TO-can packages are
specified in 6.2, those for DML TOSA module packages with LC connector are specified in 6.3,
and those for DML pigtail package are specified in 6.4.
6.2 Outline of DML TO-can package
6.2.1 Drawing of case outline
Figure 7 shows the case outline for DML TO-can packages with spherical lens, whereas
Figure 8 shows the case outline for DML TO-can packages with aspherical lens.

Figure 7 – Case outline of TO-can with spherical lens

Figure 8 – Case outline of TO-can with aspherical lens
Figure 9 a) and b) show the pin configuration for DML TO-can packages with 5 pins, Figure 10
a) and b) show the pin configuration for DML TO-can packages with 7 pins, and Figure 11 shows
the pin configuration for DML TO-can packages with 8 pins.

a) With offset ground pin 1 b) With centred ground pin 1

Figure 9 – Pin configuration for 5-pin TO-can

– 14 – IEC 62148-22:2023 © IEC 2023

a) With centred ground pin 1 b) With offset ground pin 1

Figure 10 – Pin configuration for 7-pin TO-can

Figure 11 – Pin configuration for 8-pin TO-can
6.2.2 Dimensions of DML TO-can packages
The dimensions of the various DML TO-can packages are specified in Table 4.

Table 4 – Dimensions of DML TO-can package
Dimensions
Reference Remarks
Minimum Maximum
5,5 mm 5,7 mm For TO-56
φD
5,92 mm 6,05 mm For TO-60
3,50 mm 3,62 mm For spherical lens
φD
4,8 mm 5,2 mm For aspherical lens
A 6,26 mm 6,46 mm —
K 0,05 mm 0,25 mm —
A 3,77 mm 4,99 mm Only for spherical lens
A 4,36 mm 5,73 mm
φb 0,25 mm 0,35 mm —
L 7,0 mm 10,5 mm —
φc 0,65 mm 0,75 mm Only for 5-pin type
φa 2,39 mm 2,69 mm Only for 5-pin type
β 40° 60° Only for 5-pin type
n 1,15 mm 1,50 mm Only for 7-pin type
p 1,1 mm 1,5 mm Only for 7-pin type
q 0,55 mm 0,75 mm Only for 7-pin type
B 0 mm 0,08 mm Only for 5-pin type
B 0 mm 0,08 mm Only for 7-pin type
x 0,03 mm 0,13 mm Only for 7-pin type
y 0,95 mm 1,15 mm Only for 7-pin type
z 1,65 mm 1,95 mm Only for 7-pin type
Φc 0,2 mm 0,3 mm Only for 8-pin type
Φb 0,25 mm 0,35 mm Only for 8-pin type
Φa 0,3 mm 0,4 mm Only for 8-pin type
n 1,605 mm 1,625 mm Only for 8-pin type
p 0,9 mm 1,1 mm Only for 8-pin type
q 0,74 mm 0,94 mm Only for 8-pin type
m 0,05 mm 0,25 mm Only for 8-pin type
v 1,3 mm 1,5 mm Only for 8-pin type
u 1,72 mm 1,92 mm Only for 8-pin type
r 0,50 mm 0,55 mm Only for 8-pin type

6.3 Outline of DML TOSA module package with an LC connector
6.3.1 Drawing of case outline
Figure 12 a), b), c) and d) show the case outline for DML TOSA module packages with LC
connector.
– 16 – IEC 62148-22:2023 © IEC 2023

a) Case outline of TOSA module packages with LC connector

b) Outline of flexible printed circuit board for 5-pin type with offset and centred ground pins

c) Outline of flexible printed circuit board for 7-pin type with centred and offset ground pins

d) Outline of flexible printed circuit board for 8-pin type
Figure 12 – Schematic diagram of DML TOSA module packages with LC connector
6.3.2 Dimensions of DML TOSA module package with LC connector
The dimensions of DML TOSA module packages with LC connector are specified in Table 5.
The pad terminals of the flexible printed circuit board used for these packages are specified in
Table 6.
Table 5 – Dimensions of DML TOSA module package with LC connector
Dimensions
Reference Remarks
Minimum Maximum
a 4,85 mm 4,95 mm —
b 5,07 mm 5,23 mm —
c 4,0 mm 4,1 mm —
d 9,6 mm 12,0 mm —
h
2,85 mm 2,95 mm —
g 2,97 mm 3,01 mm —
f 0,06 mm 0,20 mm —
y
0 ,4 mm 0 , 7 mm
—
L 9,0 mm 16,1 mm —
i
0,80 mm 1,25 mm —
i 0,5 mm 0,9 mm
—
j
0,25 mm 0,45 mm —
k 3,0 mm 5,7 mm —
S 0,65 mm 1,50 mm —
t
0,55 mm 0,70 mm —
S 1,0 mm 3,0 mm
—
φ 0,65 mm 0,75 mm Only for 5-pin type
c
φ 2,39 mm 2,69 mm Only for 5-pin type
a
β 40° 60° Only for 5-pin type
n 1,15 mm 1,50 mm Only for 7-pin type
p 1,1 mm 1,5 mm Only for 7-pin type
q 0,55 mm 0,75 mm Only for 7-pin type
B 0 mm 0,08 mm Only for 5-pin type
B 0 mm 0,08 mm Only for 7-pin type
x 0,03 mm 0,13 mm Only for 7-pin type
y 0,95 mm 1,15 mm Only for 7-pin type

– 18 – IEC 62148-22:2023 © IEC 2023
Dimensions
Reference Remarks
Minimum Maximum
z
1,65 mm 1,95 mm Only for 7-pin type
Φc 0,2 mm 0,3 mm Only for 8-pin type
Φb
0,25 mm 0,35 mm Only for 8-pin type
Φa 0,3 mm 0,4 mm Only for 8-pin type
n 1,605 mm 1,625 mm Only for 8-pin type
p 0,9 mm 1,1 mm Only for 8-pin type
q
0,74 mm 0,94 mm Only for 8-pin type
m 0,05 mm 0,25 mm Only for 8-pin type
v 1,3 mm 1,5 mm Only for 8-pin type
u 1,72 mm 1,92 mm Only for 8-pin type
r 0,50 mm 0,55 mm Only for 8-pin type

Table 6 – Pin out terminals of DML TOSA module packages
with LC connector and with flexible printed circuit board
Function
Pin
number
5 pin 7 pin option 1 7 pin option 2 8 pin
1 Ground TEC anode TEC anode Ground
2 MPD cathode TEC cathode TEC cathode RTH anode
Ground,RTH cathode
3 Ground and RH cathode Ground and MPD anode PD cathode
and MPD anode
4 LD cathode LD cathode LD cathode Ground
5 LD anode LD anode LD anode LD anode
Ground,RTH cathode
6 Ground Ground and MPD anode LD cathode
and MPD anode
MPD anode and RH
7 MPD cathode MPD cathode Ground
anode
8 Ground and RH cathode RTH anode Ground and MPD anode TEC anode
9 — — — TEC cathode
10 — — — Ground
6.3.3 Dimensions of LC type optical receptacle
IEC 61754-20 shall apply.
6.4 Outlines of DML pigtail package
6.4.1 Drawing of case outline
Figure 13 shows the case outline of a DML pigtail package.

NOTE The optical connector includes LC connectors as well as other optical connectors.
Figure 13 – Schematic diagram and pin-out of DML pigtail package
6.4.2 Dimensions of DML pigtail package
The dimensions of the DML pigtail package are specified in Table 7. The pinout terminals of the
DML pigtail package are specified in Table 8.

– 20 – IEC 62148-22:2023 © IEC 2023
Table 7 – Dimensions of DML pigtail package
Dimensions
mm
Reference
Min. Max.
a 9,9 10,9
b 5,1 5,2
d 19,5 21,5
h 2,97 3,01
g 2,85 2,95
f 4,85 4,95
L 15,1 16,1
k 5,5 5,7
S 0,65 1,25
S 2,4 2,6
i 1,00 1,25
i 0,5 0,9
j 0,35 0,45
t 0,6 0,7
φD 5,5 5,7
y 0,4 0,7
e 0,06 0,20
Φc 0,2 0,3
Φb
0,25 0,35
Φa 0,3 0,4
n 1,605 1,625
p 0,9 1,1
q
0,74 0,94
m 0,05 0,25
v 1,3 1,5
u 1,72 1,92
r 0,50 0,55
Table 8 – Pin out terminals of DML pigtail package
Pin number Function
1 Ground
2 RTH anode
3 PD cathode
4 Ground
5 LD anode
6 LD cathode
7 Ground
8 TEC anode
9 TEC cathode
10 Ground
6.4.3 Optical connector
Any type of optical connector may be used, including miniature duplex optical connectors, such
1 2
as SAC (see IEC 61754-36 ) and MDC (see IEC 61754-37 ).

___________
Under preparation. Stage at the time of publication: IEC/AFDIS 61754-36:2022.
Under preparation. Stage at the time of publication: IEC/AFDIS 61754-37:2022.
