IEC TS 63263:2025

Winding wires - Test methods - Electrical endurance under high frequency voltage impulses

IEC TS 63263:2025 describes a test method for evaluating the lifetime of winding wires under electrical high frequency voltage impulses (with partial discharges) at elevated temperatures. This method is only applicable as a comparative examination under a given sample preparation and testing environment. The comparative nature of this document lies in the fact that the lifetime under partial discharges depends on a large number of influencing factors in the sample preparation and test conditions which could not all be thoroughly investigated so far.
This document applies to round and rectangular magnet wires.

General Information

• Status: Published
• Publication Date: 07-Aug-2025
• ICS: 29.060.10 - Wires
• Technical Committee: TC 55 - Winding wires
• Drafting Committee: WG 1 - TC 55/WG 1
• Current Stage: PPUB - Publication issued
• Start Date: 08-Aug-2025
• Completion Date: 29-Aug-2025

Overview

IEC TS 63263:2025 - Winding wires: Electrical endurance under high frequency voltage impulses describes a standardized test method to evaluate the lifetime of magnet (winding) wires exposed to high‑frequency voltage impulses that generate partial discharges at elevated temperatures. The Technical Specification is intended as a comparative test procedure (not an absolute lifetime prediction) because lifetime under partial discharge depends on many specimen‑preparation and test‑condition variables.

The document applies to round and rectangular magnet wires and complements existing winding‑wire standards.

Key topics and technical requirements

• Scope & comparative nature: method for comparative endurance testing under defined preparation and environment; not an exhaustive lifetime model.
• Specimen types & preparation: guidance for wrapped and enameled round wires and rectangular wires; specimen preparation references IEC 60172:2020 and IEC 60851-5:2008.
• Test equipment:
  • Pulse power supply / impulse generator per slot (to avoid cross‑influence).
  • Timing device/fault detector to stop individual timers on failure.
  • Oven with forced air circulation (temperature control ±3 °C).
  • Oscilloscope with bandwidth >50 MHz and differential probe >50 MHz.
• Impulse wave characteristics:
  • Impulse repetition rate: at least 20 kHz ± 0.4 kHz.
  • Impulse rise time: ≤ 100 ns ± 10 ns.
  • Steady‑state impulse magnitude typically up to ±1 500 V; overshoot (Ua) controlled (recommended ≤ 3% of peak).
  • Duty cycle close to 50%.
• Failure criteria & measurement:
  • Timers stop when fault current exceeds set thresholds (e.g., >40 mA for round wire).
  • Optional breakdown voltage checks (example: 300 V/mil).
• Environment & handling: ambient test conditions and handling procedures to avoid contamination or mechanical damage.

Practical applications & users

Who uses IEC TS 63263:2025?

• Wire manufacturers validating enamel, tape‑wrapped or cured coatings.
• Motor, transformer and generator designers assessing winding wire durability under impulse stress and partial discharge.
• Test labs and quality control teams performing comparative evaluations between wire grades or process variants.
• R&D teams developing new insulation systems and accelerated test protocols.

Practical value:

• Enables comparative ranking of wire types and insulation processes when exposed to HF impulse and partial discharge stress.
• Helps identify materials/process changes that improve electrical endurance of winding wires.

Related standards

• IEC 60172:2020 - temperature index test procedures for winding wires
• IEC 60851‑5:2008 - winding wires - electrical properties (specimen prep)
• Series: IEC 60851 (test methods), IEC 60317 (wire specifications), IEC 60264 (packaging)

Keywords: IEC TS 63263:2025, winding wires, high frequency voltage impulses, partial discharges, magnet wire, electrical endurance, impulse test, test method.

Standards Content (Sample)

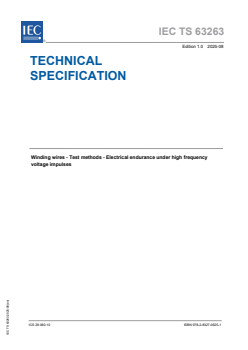

IEC TS 63263 ®
Edition 1.0 2025-08
TECHNICAL
SPECIFICATION
Winding wires - Test methods - Electrical endurance under high frequency
voltage impulses
ICS 29.060.10  ISBN 978-2-8327-0625-1

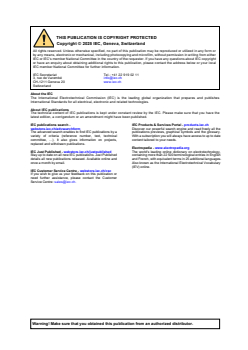

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either
IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC copyright
or have an enquiry about obtaining additional rights to this publication, please contact the address below or your local
IEC member National Committee for further information.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Discover our powerful search engine and read freely all the
publications previews, graphical symbols and the glossary.
The advanced search enables to find IEC publications by a
variety of criteria (reference number, text, technical With a subscription you will always have access to up to date
committee, …). It also gives information on projects, content tailored to your needs.
replaced and withdrawn publications.
Electropedia - www.electropedia.org
The world's leading online dictionary on electrotechnology,
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published containing more than 22 500 terminological entries in English
details all new publications released. Available online and and French, with equivalent terms in 25 additional languages.
once a month by email. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer
Service Centre: [e-mail].

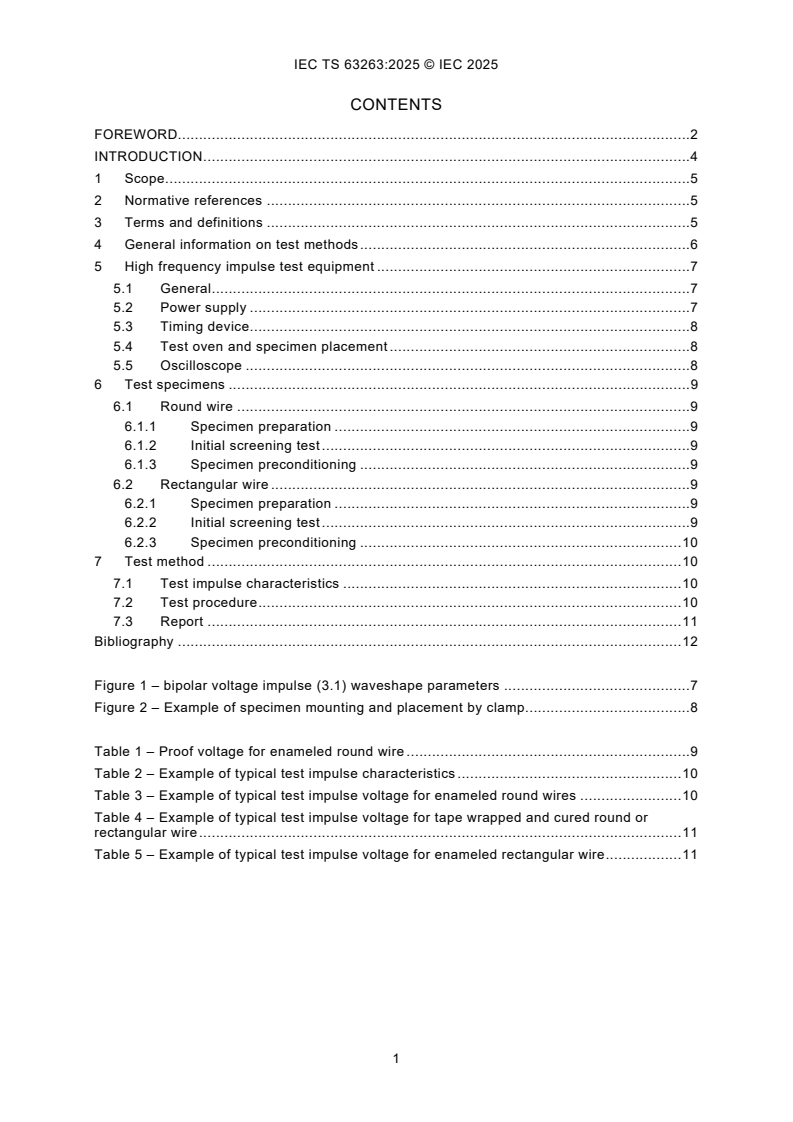

CONTENTS
FOREWORD. 2
INTRODUCTION . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 General information on test methods . 6
5 High frequency impulse test equipment . 7
5.1 General . 7
5.2 Power supply . 7
5.3 Timing device . 8
5.4 Test oven and specimen placement . 8
5.5 Oscilloscope . 8
6 Test specimens . 9
6.1 Round wire . 9
6.1.1 Specimen preparation . 9
6.1.2 Initial screening test . 9
6.1.3 Specimen preconditioning . 9
6.2 Rectangular wire . 9
6.2.1 Specimen preparation . 9
6.2.2 Initial screening test . 9
6.2.3 Specimen preconditioning . 10
7 Test method . 10
7.1 Test impulse characteristics . 10
7.2 Test procedure . 10
7.3 Report . 11
Bibliography . 12

Figure 1 – bipolar voltage impulse (3.1) waveshape parameters . 7
Figure 2 – Example of specimen mounting and placement by clamp . 8

Table 1 – Proof voltage for enameled round wire . 9
Table 2 – Example of typical test impulse characteristics . 10
Table 3 – Example of typical test impulse voltage for enameled round wires . 10
Table 4 – Example of typical test impulse voltage for tape wrapped and cured round or
rectangular wire . 11
Table 5 – Example of typical test impulse voltage for enameled rectangular wire . 11

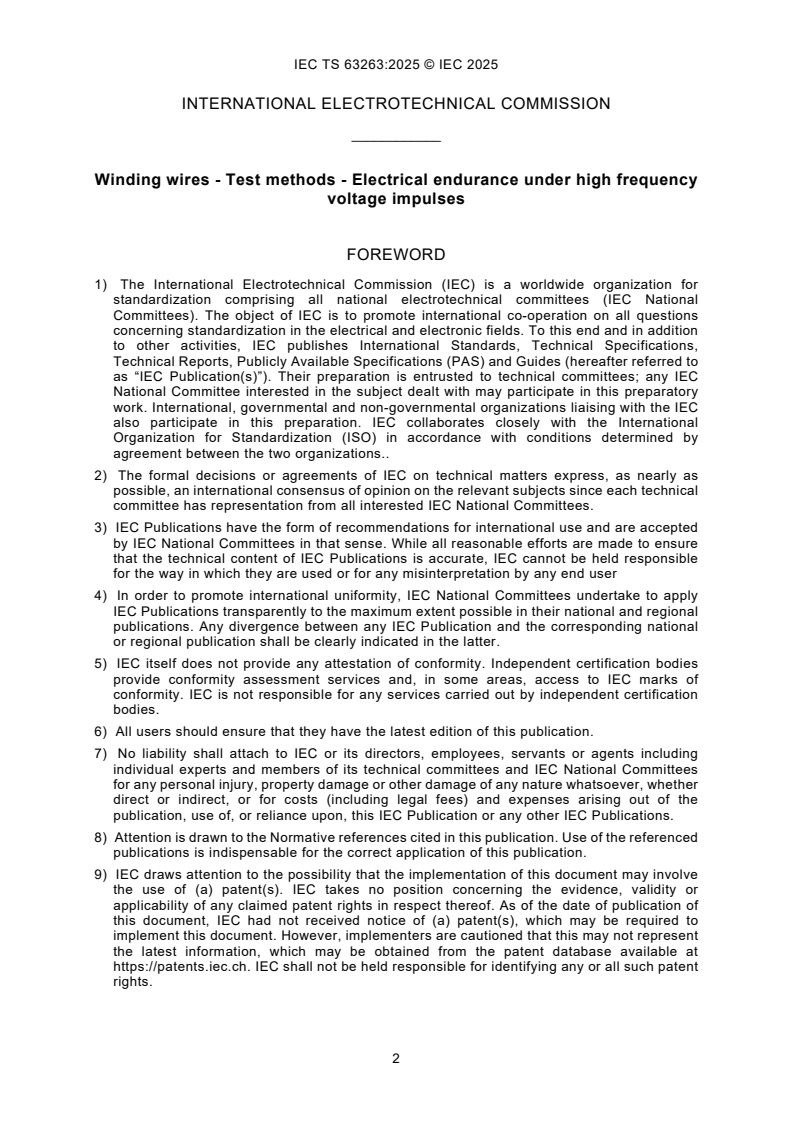

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
Winding wires - Test methods - Electrical endurance under high frequency
voltage impulses
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for
standardization comprising all national electrotechnical committees (IEC National
Committees). The object of IEC is to promote international co-operation on all questions
concerning standardization in the electrical and electronic fields. To this end and in addition
to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to
as “IEC Publication(s)”). Their preparation is entrusted to technical committees; any IEC
National Committee interested in the subject dealt with may participate in this preparatory
work. International, governmental and non-governmental organizations liaising with the IEC
also participate in this preparation. IEC collaborates closely with the International
Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as
possible, an international consensus of opinion on the relevant subjects since each technical
committee has representation from all interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted
by IEC National Committees in that sense. While all reasonable efforts are made to ensure
that the technical content of IEC Publications is accurate, IEC cannot be held responsible
for the way in which they are used or for any misinterpretation by any end user
4) In order to promote international uniformity, IEC National Committees undertake to apply
IEC Publications transparently to the maximum extent possible in their national and regional
publications. Any divergence between any IEC Publication and the corresponding national
or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies
provide conformity assessment services and, in some areas, access to IEC marks of
conformity. IEC is not responsible for any services carried out by independent certification
bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including
individual experts and members of its technical committees and IEC National Committees
for any personal injury, property damage or other damage of any nature whatsoever, whether
direct or indirect, or for costs (including legal fees) and expenses arising out of the
publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced
publications is indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve
the use of (a) patent(s). IEC takes no position concerning the evidence, validity or
applicability of any claimed patent rights in respect thereof. As of the date of publication of
this document, IEC had not received notice of (a) patent(s), which may be required to
implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at
https://patents.iec.ch. IEC shall not be held responsible for identifying any or all such patent

rights.
IEC TS 63263 has been prepared by IEC technical committee 55: Winding wires. It is a
Technical Specification.
The text of this Technical Specification is based on the following documents:
Draft Report on voting
55/2068/DTS 55/2073/RVDTS
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this Technical Specification is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
– reconfirmed,
– withdrawn, or
– revised.
INTRODUCTION
This Technical Specification forms an element of a series of standards which deals with
insulated wires used for windings in electrical equipment. The series has three groups
describing:
a)
...
