IEC 61196-1-209:2016

Coaxial communication cables - Part 1-209: Environmental test methods - Thermal cycling

IEC 61196-1-209:2016(E) specifies a test method to determine the ability of a coaxial cable to withstand the effects of temperature cycling on its transmission performance. The purpose of this procedure is to accelerate the effects of temperature cycling on a cable.

General Information

• Status: Published
• Publication Date: 22-Mar-2016
• ICS: 33.120.10 - Coaxial cables. Waveguides
• Technical Committee: SC 46A - Coaxial cables
• Drafting Committee: WG 3 - TC 46/SC 46A/WG 3
• Current Stage: PPUB - Publication issued
• Start Date: 23-Mar-2016
• Completion Date: 15-May-2016

Overview

IEC 61196-1-209:2016 specifies an environmental test method (thermal cycling) for assessing the ability of coaxial communication cables to withstand repeated temperature changes without unacceptable degradation of transmission performance. The procedure accelerates temperature-cycling effects to reveal potential dielectric, conductor or RF performance failures.

Key topics and requirements

• Scope: Defines a test to determine effects of temperature cycling on cable transmission performance and mechanical integrity.
• Reference test method: Uses the thermal profile in IEC 60068-2-14 with a default transition rate of 2 °C/min and a baseline of 20 cycles (one cycle = exposure at upper and lower limits).
• Sample size: Electrical and mechanical tests are performed on samples of 50 m ± 5 m unless otherwise specified; samples are loosely coiled in the chamber.
• Exposure time: Table-based exposure durations depend on specimen/fixture mass (exposure times range from 0.25 h to 8 h).
• Adjustments and acceleration:
  • Number of cycles is adjusted by transition-rate and temperature-range adjustment factors (formulas in Clauses 5.2). The transition-rate adjustment factor is limited to a maximum of 4.
  • Annex A provides a reliability acceleration factor (A_TC) for modelling accelerated test-to-use equivalence; when unknown, conservative exponents m = 2.5 and n = 1/3 are recommended.
• Measurements and acceptance:
  • Electrical tests (impedance, return loss, passive intermodulation, contact resistance, etc.) and mechanical monitoring (dielectric/conductor movement) are required.
  • Performance criteria and acceptance limits are to be specified in the detailed product specification.
• Test report must record initial/final measurements, sample details, connector type, test conditions (temperatures, rate, cycle count and duration), sample placement and any deviations.

Applications and users

IEC 61196-1-209 is used by:

• Cable manufacturers for qualification and design verification of coaxial cables.
• Independent test laboratories and quality assurance teams conducting environmental and reliability testing.
• System integrators and OEMs (telecom, broadcast, aerospace, defence, industrial RF systems) specifying environmental robustness in procurement and acceptance tests.
• R&D engineers modelling accelerated life testing and temperature-stress effects.

Related standards

• IEC 61196-1 - Generic specification for coaxial communication cables
• IEC 60068-2-14 - Environmental testing: Change of temperature
• IEC 62506 - Methods for product accelerated testing

Keywords: IEC 61196-1-209, thermal cycling, coaxial cables, environmental test methods, temperature cycling, accelerated testing, IEC 60068-2-14, transmission performance, test report.

Standards Content (Sample)

IEC 61196-1-209 ®
Edition 1.0 2016-03
INTERNATIONAL
STANDARD
Coaxial communication cables –
Part 1-209: Environmental test methods – Thermal cycling

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 61196-1-209 ®
Edition 1.0 2016-03
INTERNATIONAL
STANDARD
Coaxial communication cables –

Part 1-209: Environmental test methods – Thermal cycling

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.120.10 ISBN 978-2-8322-3250-7

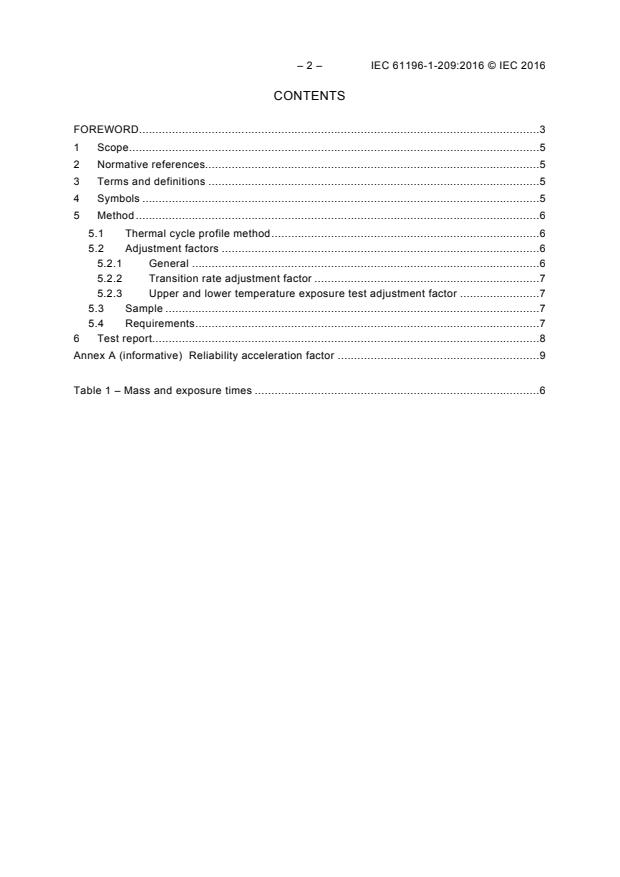

– 2 – IEC 61196-1-209:2016 © IEC 2016
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references. 5
3 Terms and definitions . 5
4 Symbols . 5
5 Method . 6
5.1 Thermal cycle profile method . 6
5.2 Adjustment factors . 6
5.2.1 General . 6
5.2.2 Transition rate adjustment factor . 7
5.2.3 Upper and lower temperature exposure test adjustment factor . 7
5.3 Sample . 7
5.4 Requirements . 7
6 Test report. 8
Annex A (informative) Reliability acceleration factor . 9

Table 1 – Mass and exposure times . 6

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
COAXIAL COMMUNICATION CABLES –

Part 1-209: Environmental test methods – Thermal cycling

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61196-1-209 has been prepared by subcommittee 46A: Coaxial
cables, of IEC technical committee 46: Cables, wires, waveguides, R.F. connectors, R.F. and
microwave passive components and accessories.
The text of this standard is based on the following documents:
FDIS Report on voting
46A/1298/FDIS 46A/1301/RVD
Full information on the voting for the approval of this st
...
