IEC 61140:2016

Protection against electric shock - Common aspects for installation and equipment

IEC 61140:2016 applies to the protection of persons and livestock against electric shock. The intent is to give fundamental principles and requirements which are common to electrical installations, systems and equipment or necessary for their coordination, without limitations with regard to the magnitude of the voltage or current, or the type of current, and for frequencies up to 1 000 Hz. It has the status of a basic safety publication in accordance with IEC Guide 104. This fourth edition cancels and replaces the third edition published in 2001 and Amendment 1:2004. This edition constitutes a technical revision.

Protection contre les chocs électriques - Aspects communs aux installations et aux matériels

L'IEC 61140:2016 est applicable à la protection des personnes et des animaux d'élevage contre les chocs électriques. Elle est destinée à donner des principes fondamentaux et des exigences communes aux installations, aux systèmes et aux matériels électriques, ou nécessaires à leur coordination sans limitation en ce qui concerne l'amplitude de tension ou de courant, ou le type de courant, et pour des fréquences jusqu'à 1 000 Hz. Elle a le statut d'une publication fondamentale de sécurité conformément au Guide IEC 104. Cette quatrième édition annule et remplace la troisième édition parue en 2001 et l'Amendement 1:2004. Cette édition constitue une révision technique.

General Information

• Status: Published
• Publication Date: 06-Jan-2016
• ICS: 13.260 - Protection against electric shock. Live working
• ICS: 29.020 - Electrical engineering in general
• ICS: 91.140.50 - Electricity supply systems
• Technical Committee: TC 64 - Electrical installations and protection against electric shock
• Drafting Committee: MT 17 - TC 64/MT 17
• Current Stage: PPUB - Publication issued
• Start Date: 07-Jan-2016
• Completion Date: 31-Jan-2016

Relations

• Revises: IEC 61140:2001 - Protection against electric shock - Common aspects for installation and equipment
• Effective Date: 05-Sep-2023
• Revises: IEC 61140:2001/AMD1:2004 - Amendment 1 - Protection against electric shock - Common aspects for installation and equipment
• Effective Date: 05-Sep-2023

Overview

IEC 61140:2016 - Protection against electric shock establishes fundamental principles and common requirements for protecting persons and livestock from electric shock. As a fourth-edition basic safety publication (IEC Guide 104), it applies to electrical installations, systems and equipment for voltages and currents of any magnitude, for frequencies up to 1 000 Hz. The standard defines how protective provisions and measures should be coordinated across equipment and installations to achieve basic, fault and additional protection.

Key topics and technical requirements

IEC 61140 organizes technical requirements around protective provisions and measures. Major topics include:

• Fundamental rule of protection for normal and single-fault conditions, and special additional protection.
• Basic and fault protection elements such as:
  • Basic and supplementary insulation, reinforced insulation
  • Protective barriers, enclosures and obstacles
  • Protective-equipotential-bonding and protective screening
  • Automatic disconnection of supply
• Enhanced and additional protective provisions:
  • Double/reinforced insulation, protective separation, limited current sources, protective impedance devices
  • Additional protection by residual current devices (RCD) - IΔn ≤ 30 mA (for additional protection)
  • Supplementary protective equipotential bonding
• Protective measures such as electrical separation, SELV and PELV systems, limitation of steady‑state touch current and charge energy, and non‑conducting environments.
• Co‑ordination of equipment classes (Class 0, I, II, III) with installation protective provisions.
• Touch currents, protective conductor currents and leakage currents: definitions, limits and coordination requirements for safety.
• Service, isolation and maintenance conditions, including devices intended to be operated or replaced by ordinary, skilled or instructed persons.
• Annexes and informative guidance: surveys of protective measures, values and definitions.

Applications and who uses this standard

IEC 61140 is used by a wide range of professionals and organizations concerned with electrical safety:

• Electrical designers and system integrators - to select and coordinate protective measures.
• Equipment manufacturers - for product classification (Class I/II/III) and compliance with insulation, bonding and touch-current requirements.
• Installers and contractors - for safe installation practices, earthing and bonding, and choosing RCD protection where needed.
• Safety engineers, auditors and regulators - for risk assessment, conformity verification and national implementation.
• Test laboratories - to evaluate touch currents, protective conductor currents and insulation measures.

Practical applications include building electrical installations, industrial power systems, medical device interfaces, control panels, and high-voltage installations where consistent protection strategies are required.

Related standards

IEC 61140 is a basic safety publication and is intended to be used alongside more specific IEC/ISO standards for equipment and installations (for example standards covering particular product families, earthing systems, or RCD testing). Always check national regulations and the latest IEC publications for harmonized requirements.

Standards Content (Sample)

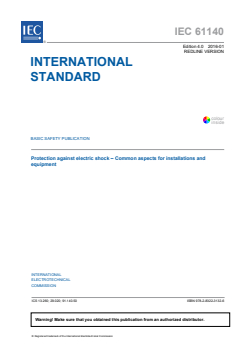

IEC 61140 ®
Edition 4.0 2016-01
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
BASIC SAFETY PUBLICATION
Protection against electric shock – Common aspects for installations and
equipment
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].

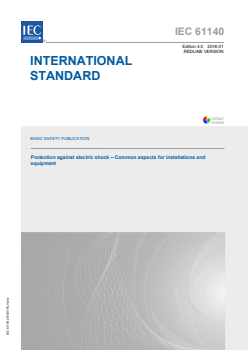

IEC 61140 ®
Edition 4.0 2016-01
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
BASIC SAFETY PUBLICATION
Protection against electric shock – Common aspects for installations and

equipment
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 13.260; 29.020; 91.140.50 ISBN 978-2-8322-3132-6

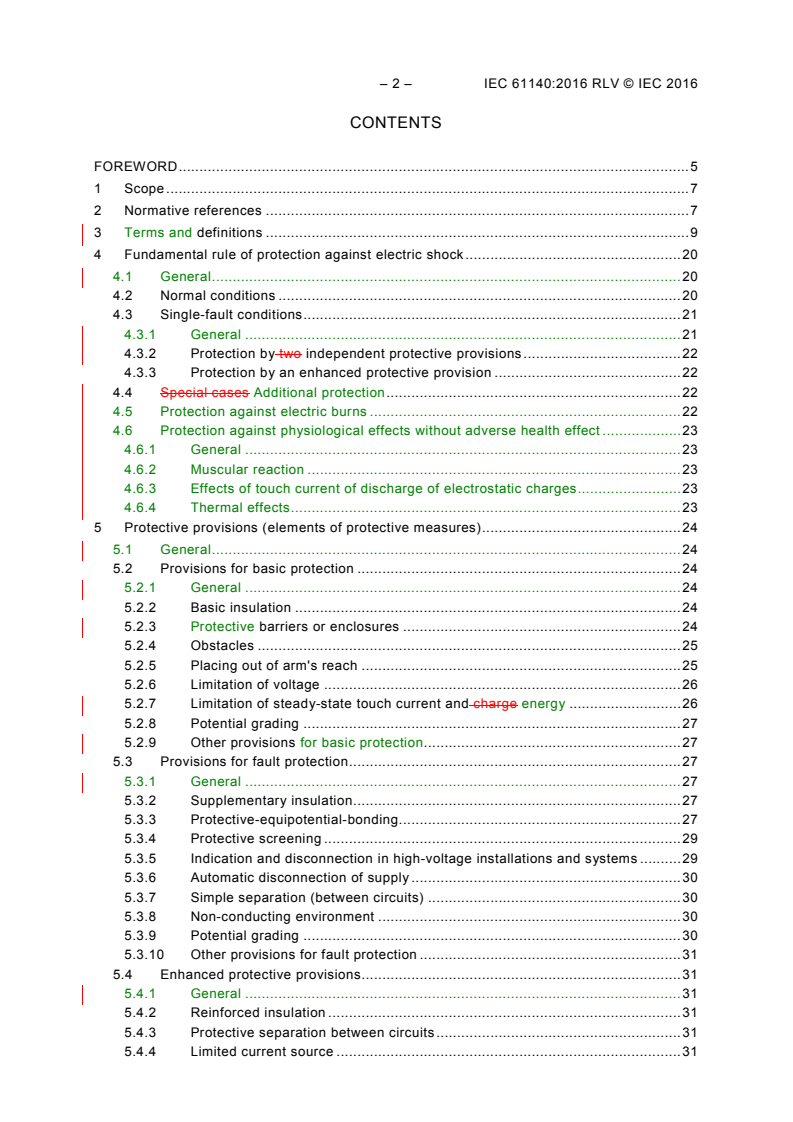

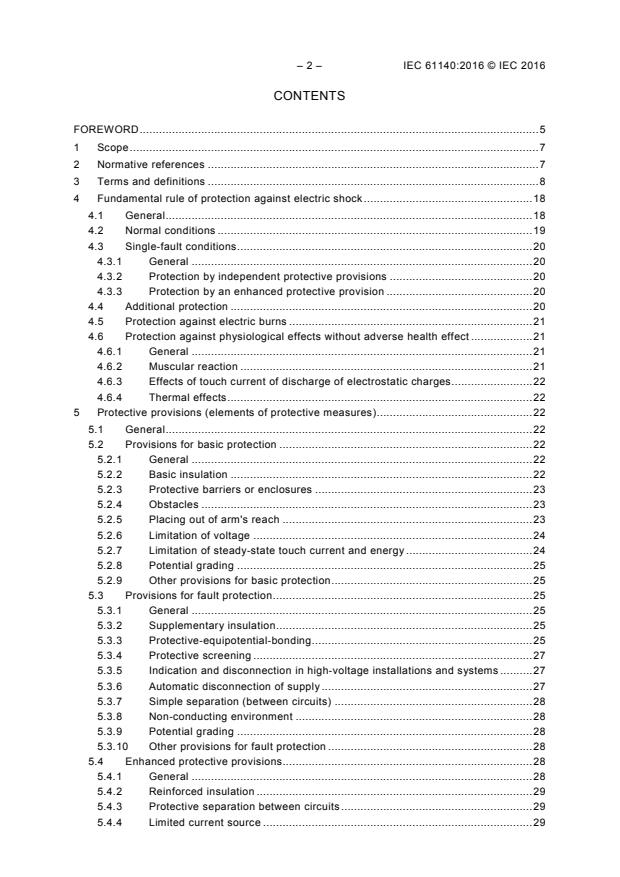

– 2 – IEC 61140:2016 RLV © IEC 2016
CONTENTS
FOREWORD . 5
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 9
4 Fundamental rule of protection against electric shock . 20
4.1 General . 20
4.2 Normal conditions . 20
4.3 Single-fault conditions . 21
4.3.1 General . 21
4.3.2 Protection by two independent protective provisions . 22
4.3.3 Protection by an enhanced protective provision . 22
4.4 Special cases Additional protection . 22
4.5 Protection against electric burns . 22
4.6 Protection against physiological effects without adverse health effect . 23
4.6.1 General . 23
4.6.2 Muscular reaction . 23
4.6.3 Effects of touch current of discharge of electrostatic charges . 23
4.6.4 Thermal effects . 23
5 Protective provisions (elements of protective measures) . 24
5.1 General . 24
5.2 Provisions for basic protection . 24
5.2.1 General . 24
5.2.2 Basic insulation . 24
5.2.3 Protective barriers or enclosures . 24
5.2.4 Obstacles . 25
5.2.5 Placing out of arm's reach . 25
5.2.6 Limitation of voltage . 26
5.2.7 Limitation of steady-state touch current and charge energy . 26
5.2.8 Potential grading . 27
5.2.9 Other provisions for basic protection . 27
5.3 Provisions for fault protection . 27
5.3.1 General . 27
5.3.2 Supplementary insulation . 27
5.3.3 Protective-equipotential-bonding . 27
5.3.4 Protective screening . 29
5.3.5 Indication and disconnection in high-voltage installations and systems . 29
5.3.6 Automatic disconnection of supply . 30
5.3.7 Simple separation (between circuits) . 30
5.3.8 Non-conducting environment . 30
5.3.9 Potential grading . 30
5.3.10 Other provisions for fault protection . 31
5.4 Enhanced protective provisions. 31
5.4.1 General . 31
5.4.2 Reinforced insulation . 31
5.4.3 Protective separation between circuits . 31
5.4.4 Limited current source . 31

5.4.5 Protective impedance device . 32
5.4.6 Other provisions for enhanced protection . 32
5.5 Provisions for additional protection . 32
5.5.1 Additional protection by residual current protective device (RCD)
I∆ ≤ 30 mA . 32
n
5.5.2 Additional protection by supplementary equipotential bonding . 32
6 Protective measures . 33
6.1 General . 33
6.2 Protection by automatic disconnection of supply . 33
6.3 Protection by double or reinforced insulation . 33
6.4 Protection by protective equipotential bonding . 33
6.5 Protection by electrical separation . 33
6.6 Protection by non-conducting environment (low-voltage) . 34
6.7 Protection by SELV system . 34
6.8 Protection by PELV system . 34
6.9 Protection by limitation of steady-state touch current and charge . 34
6.10 Additional protection . 35
6.10.1 Additional protection by residual current protective device (RCD)
I∆ ≤ 30 mA . 35
n
6.10.2 Additional protection by supplementary protective equipotential bonding . 35
6.11 Protection by other measures . 35
7 Co-ordination of between electrical equipment and of protective provisions within
an electrical installation . 35
7.1 General . 35
7.2 Class 0 equipment . 36
7.1.1 Insulation .
7.3 Class I equipment . 37
7.3.1 General . 37
7.3.2 Insulation . 37
7.3.3 Protective-equipotential-bonding Connection to the protective conductor . 37
7.3.4 Accessible surfaces of parts of insulating material . 37
7.3.5 Connection of a protective conductor . 38
7.4 Class II equipment . 38
7.4.1 General . 38
7.4.2 Insulation . 38
7.4.3 Protective bonding . 39
7.4.4 Marking . 39
7.5 Class III equipment . 39
7.5.1 General . 39
7.5.2 Voltages . 40
7.5.3 Protective bonding . 40
7.5.4 Marking . 40
7.6 Touch currents, protective conductor currents, leakage currents . 40
7.6.1 General . 40
7.6.2 Touch currents . 40
7.6.3 Protective conductor currents . 41
7.6.4 Other requirements . 43
7.6.5 Other effects . 43

– 4 – IEC 61140:2016 RLV © IEC 2016
7.7 Safety and boundary clearances and warning labels hazard marking for
high-voltage installations . 43
7.8 Functional earthing . 44
8 Special operating and servicing conditions . 44
8.1 General . 44
8.2 Devices to be operated manually and components intended to be replaced
manually . 44
8.2.1 General . 44
8.2.2 Devices to be operated or components intended to be replaced by
ordinary persons in low-voltage installations, systems and equipment . 44
8.2.3 Devices to be operated or components intended to be replaced by
skilled or instructed persons . 45
8.3 Electrical values after isolation . 45
8.4 Devices for isolation. 46
8.4.1 General . 46
8.4.2 Devices for isolation for low voltage . 46
8.4.3 Devices for isolation for high voltage . 47
Annex A (informative) Survey of protective measures as implemented by protective
provisions . 49
Annex B (informative) Values of maximum a.c. limits of protective conductor currents
for cases 7.5.2.2 a) and 7.5.2.2 b) .
Annex B (informative) Index of definitions terms . 56
Annex C (informative) List of notes concerning certain countries . 61
Bibliography . 62

Figure A.1 – Protective measures with basic and fault protection . 51
Figure A.2 – Protective measures with limited values of electrical quantities . 53
Figure A.3 – Protective measure: additional protection (in addition to basic and/or fault
protection) . 54

Table 1 – Limits for voltage bands . 21
Table 2 – Touch voltage thresholds for reaction . 23
Table 1 3 – Application of equipment in a low-voltage installation . 36
Table 4 – Maximum protective conductor current for frequencies up to 1 kHz . 41
Table 5 – Maximum protective conductor current for DC . 42
Table 6 – Minimum impulse withstand voltage of devices for isolation related to the
nominal voltage . 47

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PROTECTION AGAINST ELECTRIC SHOCK –
COMMON ASPECTS FOR INSTALLATION AND EQUIPMENT

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This redline version of the official IEC Standard allows the user to identify the changes
made to the previous edition. A vertical bar appears in the margin wherever a change
has been made. Additions are in green text, deletions are in strikethrough red text.

– 6 – IEC 61140:2016 RLV © IEC 2016
International Standard IEC 61140 has been prepared by IEC technical committee 64:
Electrical installations and protection against electric shock.
This fourth edition cancels and replaces the third edition published in 2001 and
Amendment 1:2004. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) Introduction of the content of IEC 60449
b) Better distinction between provisions and measures
c) Consideration of effects other than ventricular fibrillation
d) Additional protection was introduced
e) ELV defined as part of LV
f) Devices suitable for isolation required for automatic disconnection of supply (LV)
g) Requirements relating to current in the protective conductor were moved to the main body
of the standard
The text of this standard is based on the following documents:
FDIS Report on voting
64/2076/FDIS 64/2091/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
It has the status of a basic safety publication in accordance with IEC Guide 104.
The reader's attention is drawn to the fact that Annex C lists all of the “in-some-country”
clauses on differing practices of a less permanent nature relating to the subject of this
standard.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The “colour inside” logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this publication using a colour printer.

INTRODUCTION
PROTECTION AGAINST ELECTRIC SHOCK –
COMMON ASPECTS FOR INSTALLATIONS AND EQUIPMENT

1 Scope
This International Standard is a basic safety publication primarily intended for use by
technical committees in the preparation of standards in accordance with the principles laid
down in IEC Guide 104 and ISO/IEC Guide 51.
It is not intended to be used as a stand-alone standard.
According to IEC Guide 104, technical committees, when preparing, amending, or revising
their publications, are required to make use of any basic safety publication such as IEC 61140.
This International Standard applies to the protection of persons and animals livestock against
electric shock. The intent is to give fundamental principles and requirements which are
common to electrical installations, systems and equipment or necessary for their coordination,
without limitations with regard to the magnitude of the voltage or current, or the type of
current, and for frequencies up to 1 000 Hz.
This standard has been prepared for installations, systems and equipment without a voltage
limit.
NOTE Some clauses in this standard refer to low-voltage and high-voltage systems,
installations and equipment. For the purposes of this standard, low-voltage is any rated
voltage up to and including 1 000 V a.c. or 1 500 V d.c. High voltage is any rated voltage
exceeding 1 000 V a.c. or 1 500 V d.c.
The requirements of this standard apply only if they are incorporated, or are referred to, in the
relevant standards. It is not intended to be used as a stand-alone standard.
It should be noted that, for an efficient design and selection of protective measures, the type
of voltage that may occur and its waveform needs to be considered, i.e. a.c. or d.c. voltage,
sinusoidal, transient, phase controlled, superimposed d.c., as well as a possible mixture of
these forms. The installations or equipment may influence the waveform of the voltage, e.g.
by inverters or converters. The currents flowing under normal operating conditions and under
fault conditions depend on the described voltage.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60050(131): International Electrotechnical Vocabulary (IEV) – Chapter 131: Electric and
magnetic circuits
IEC 60050(195): 1998, International Electrotechnical Vocabulary (IEV) – Part 195: Earthing
and protection against electric shock
Amendment 1 (2001)
IEC 60050(351):1998, International Electrotechnical Vocabulary – Part 351: Automatic control

– 8 – IEC 61140:2016 RLV © IEC 2016
IEC 60050(826):1982, International Electrotechnical Vocabulary – Chapter 826: Electrical
installations of buildings
Amendment 2 (1995)
IEC 60038, IEC standard voltages
IEC 60068 (all parts), Environmental testing
IEC 60071-1:1993, Insulation coordination – Part 1: Definitions, principles and rules
IEC 60071-2:1996, Insulation coordination – Part 2: Application guide
IEC 60364-4-41, Electrical installations of buildings – Part 4: Protection for safety – Chapter
41: Protection against electric shock
IEC 60364-4-443:1995, Electrical installations of buildings – Part 4: Protection for safety –
Chapter 44: Protection against overvoltages − Section 443: Protection against overvoltages of
atmospheric origin or due to switching
IEC 60364-5-54:1980 2011, Low-voltage electrical installations of buildings – Part 5-54:
Selection and erection of electrical equipment – Chapter 54: Earthing arrangements and
protective conductors
IEC 60364-6-61:1986, Electrical installations of buildings – Part 6: Verification – Chapter 61:
Initial verification
IEC 60417, Graphical symbols for use on equipment
(available at http://www.graphical-symbols.info/equipment)
IEC 60417-2, Graphical symbols for use on equipment – Part 2: Symbol originals
IEC 60445, Basic and safety principles for man-machine interface, marking and identification
– Identification of equipment terminals, conductor terminations and conductors
IEC 60446:1999, Basic and safety principles for man-machine interface, marking and
identification – Identification of conductors by colours or numerals
IEC TS 60479-1:1994 2005, Effects of current on human beings and livestock – Part 1:
General aspects
IEC TR 60479-5, Effects of current on human beings and livestock – Part 5: Touch voltage
threshold values for physiological effects
IEC 60529:1989, Degrees of protection provided by enclosures (IP Code)
IEC 60601 (all parts), Medical electrical equipment
IEC 60601-1:1988, Medical electrical equipment − Part 1: General requirements for safety
IEC 60664 (all parts), Insulation coordination for equipment within low-voltage systems
IEC 60664-1:1992 2007, Insulation coordination for equipment within low-voltage systems –
Part 1: Principles, requirements and tests
IEC 60721 (all parts), Classification of environmental conditions

IEC 60990:1999, Methods of measurement of touch current and protective conductor current
IEC TS 61201:1992 2007, Extra-low-voltage (ELV) – Limit values Use of conventional touch
voltage limits – Application guide
IEC 62271-102, High-voltage switchgear and controlgear – Part 102: Alternating current
disconnectors and earthing switches
IEC Guide 104:1997, The preparation of safety publications and the use of basic safety
publications and group safety publications
ISO/IEC Guide 51:1999 2014, Safety aspects – Guidelines for their inclusion in standards
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
NOTE An index of definitions is given in Annex B.
3.1
electric shock
physiological effect resulting from an electric current through a human or animal body or
livestock
Note 1 to entry: Physiological effects include, for example, perception, muscular contractions and tetany, difficulty
in breathing, disturbances of heart function, immobilization, cardiac arrest, breathing arrest, burns or other cellular
damage.
Note 2 to entry: Physiological effects resulting from EMF are not considered in this standard.
[SOURCE: IEC 60050-195:1998, 195-01-04, modified – "through a human body or livestock"
replaces "passing through a human or animal body"; addition of 2 Notes to entry]
3.1.1
basic protection
protection against electric shock under fault-free conditions
[SOURCE: IEC 60050-195:1998, 195-06-01]
NOTE For low-voltage installations, systems and equipment, basic protection generally corresponds to protection
against direct contact as used in IEC 60364-4-41.
3.1.2
fault protection
protection against electric shock under single fault conditions
[SOURCE: IEC 60050-195:1998/AMD1:2001, 195-06-02]
NOTE For low-voltage installations, systems and equipment, basic protection generally corresponds to protection
against direct contact as used in IEC 60364-4-41.
3.1.3
additional protection
protection against electric shock in addition to basic protection and/or fault protection
[SOURCE:IEC 60050-826:2004, 826-12-07, modified – “protection against electric shock”
replaces “protective measure”]

– 10 – IEC 61140:2016 RLV © IEC 2016
3.1.4
single fault condition
condition in which one means for protection against electric shock is defective or one fault is
present which could cause a hazard
Note 1 to entry: If a single fault condition results in one or more other fault conditions, all are considered as one
single fault condition.
3.2
(electric) circuit
arrangement of devices or media through which electric current can flow
[IEV 131-01-01]
Note 1 to entry: See also IEC 60050-826:2004, 826-05-01 826-14-01 for electrical installations of buildings.
3.3
(electrical) equipment
item used for such purposes as generation, conversion, transmission, storage, distribution or
utilization of electric energy, such as electric machines, transformers, apparatus, switchgear
and controlgear, measuring instruments, protective devices, accessories for wiring systems,
appliances wiring systems, current-using equipment
[SOURCE: IEC 60050-826:2004, 826-07-01, modified 826-16-01]
3.4
live part
conductor or conductive part intended to be energized in normal operation conditions,
including a neutral conductor or mid-point conductor, but by convention not a PEN conductor
or PEM conductor or PEL conductor
Note 1 to entry: This concept does not necessarily imply a risk of electric shock.
NOTE 2 For definitions of PEM and PEL see IEV 195-02-13 and 195-02-14.
[SOURCE: IEC 60050-195:1998, 195-02-19, modified – “…normal conditions, including a
neutral conductor or mid-point conductor” replaces “normal operation, including a neutral
conductor.”]
3.5
hazardous-live-part
live part which, under certain conditions, can give a harmful electric shock
Note 1 to entry: In case of high voltage, a hazardous voltage may be present on the surface of solid insulation. In
such a case the surface is considered to be a hazardous-live-part.
[SOURCE: IEC 60050-195:1998, 195-06-05]
3.6
exposed-conductive-part
conductive part of equipment, which can be touched and which is not normally live, but which
can become live when basic insulation fails
Note 1 to entry: A conductive part of electrical equipment which can become live only through contact with an
exposed-conductive-part which has become live, is not considered to be an exposed-conductive-part itself.
[SOURCE: IEC 60050-195:1998, 195-06-10]

3.7
extraneous-conductive-part
conductive part not forming part of the electrical installation and liable to introduce an electric
potential, generally the electric potential of a local earth
[SOURCE: IEC 60050-195:1998, 195-06-11]
3.8
touch voltage
3.8.1
(effective) touch voltage
voltage between conductive parts when touched simultaneously by a person or an animal
human or livestock
Note 1 to entry: The value of the effective touch voltage may be appreciably influenced by the impedance of the
person or the animal livestock in electric contact with these conductive parts.
[SOURCE: IEC 60050-195:1998, 195-05-11, modified – “by a human or livestock” replaces “by
a person or an animal”]
3.8.2
prospective touch voltage
voltage between simultaneously accessible conductive parts when those conductive parts are
not being touched, by a person or an animal human or livestock
[SOURCE: IEC 60050-195:1998, 195-05-09, modified – “by a human or livestock” replaces “by
a person or an animal”]
3.9
touch current
electric current passing through a human body or through an animal body livestock when it
touches one or more accessible parts of an installation or of equipment
[SOURCE: IEC 60050-195:1998/AMD1:2001, 195-05-21, modified – “through livestock”
replaces “through an animal body”]
3.10
insulation
set of properties which characterize the ability of an insulation to provide its function
Note 1 to entry: Examples of relevant properties are: resistance, breakdown voltage.
Note 2 to entry: Insulation can be a solid, a liquid or a gas (e.g. air), or any combination.
[SOURCE: IEC 60050-151:2001, 151-15-42, modified – Note 2 to entry added]
3.10.1
basic insulation
insulation of hazardous-live-parts which provides basic protection
Note 1 to entry: This concept does not apply to insulation used exclusively for functional purposes.
[SOURCE: IEC 60050-195:1998, 195-06-06]
3.10.2
supplementary insulation
independent insulation applied in addition to basic insulation, for fault protection
[SOURCE: IEC 60050-195:1998, 195-06-07]

– 12 – IEC 61140:2016 RLV © IEC 2016
3.10.3
double insulation
insulation comprising both basic insulation and supplementary insulation
[SOURCE: IEC 60050-195:1998, 195-06-08]
3.10.4
reinforced insulation
insulation of hazardous-live-parts which provides a degree of protection against electric shock
equivalent to double insulation
Note 1 to entry: Reinforced insulation may comprise several layers which cannot be tested singly as basic
insulation or supplementary insulation.
[SOURCE: IEC 60050-195:1998, 195-06-09, modified – .provides “a degree” of …, deleted]
3.11
non-conducting environment
provision whereby a person or an animal human or livestock touching an exposed-conductive-
part that has become hazardous-live is protected by the high impedance of his environment
(e.g. insulating walls and floors) and by the absence of earthed conductive parts
[SOURCE: IEC 60050-195:1998, 195-06-21, modified – “animal” replaced by “livestock”]
3.12
(electrically) protective obstacle
part preventing unintentional direct contact by a human or livestock with a live part, but not
preventing direct such contact by deliberate action
[SOURCE: IEC 60050-195:1998, 195-06-16, modified – "direct contact" replaced by "contact"
and ”by a human or livestock with a live part”. introduced]
NOTE Direct contact is defined in IEV 195-06-03.
3.13
(electrically) protective barrier
part providing protection against direct contact by a human or livestock with a live part from
any usual direction of access
[SOURCE: IEC 60050-195:1998, 195-06-15, modified – "direct contact" replaced by "contact"
and “by a human or livestock with a live part” … introduced]
NOTE Direct contact is defined in IEV 195-06-03.
3.14
(electrically) protective enclosure
electrical enclosure surrounding internal parts of equipment to prevent access to hazardous- a
live-part from any direction
Note 1 to entry: In addition, an enclosure generally provides protection against internal or external influences, e.g.
ingress of dust or water or prevention of mechanical damage.
[SOURCE: IEC 60050-195:1998, 195-06-14, modified – "hazardous live-parts" replaced by "a
live-part" and Note 1 to entry added]
3.15
arm's reach
zone of accessibility to touch extending from any point on a surface where persons usually
stand or move about to the limits which a person can reach with the hand, in any direction,
without assistance
[SOURCE: IEC 60050-195:1998, 195-06-12]
3.16
equipotential bonding
provision of electric connections between conductive parts intended to achieve
equipotentiality
Note 1 to entry: The effectiveness of the equipotential bonding may depend on the frequency of the current in the
bonding.
[SOURCE: IEC 60050-195:1998, 195-01-10, modified – Note 1 to entry added]
3.16.1
protective-equipotential-bonding
equipotential bonding for the purposes of safety (e.g. protection against electric shock)
Note 1 to entry: Functional equipotential bonding is defined in IEC 60050-195:1998, 195-01-16.
[SOURCE: IEC 60050-195:1998, 195-01-15, modified – “(e.g. protection against electric
shock)” introduced and Note 1 to entry added]
3.16.2
equipotential bonding terminal
terminal provided on equipment or on a device and intended for the electric connection with
the equipotential bonding system
[SOURCE: IEC 60050-195:1998, 195-02-32]
3.16.3
protective bonding terminal
terminal intended for protective-equipotential-bonding purposes
3.16.4
protective conductor, PE
conductor provided for purposes of safety, for example protection against electric shock
[SOURCE: IEC 60050-195:1998, 195-02-09]
3.16.5
PE conductor
protective conductor provided for protective earthing
[SOURCE: IEC 60050-195:1998, 195-02-11, modified – term title changed]
3.16.6
PEN conductor
conductor combining the functions of both a protective earthing conductor and a neutral
conductor
[SOURCE: IEC 60050-195:1998, 195-02-12 modified]
3.16.7
PEM conductor
conductor combining the functions of both a protective earthing conductor and a mid-point
conductor
[SOURCE: IEC 60050-195:1998, 195-02-13]

– 14 – IEC 61140:2016 RLV © IEC 2016
3.16.8
PEL conductor
conductor combining the functions of both a protective earthing conductor and a line
conductor
[SOURCE: IEC 60050-195:1998, 195-02-14]
3.16.9
protective bonding conductor
protective conductor provided for protective-equipotential-bonding
[SOURCE: IEC 60050-195:1998, 195-02-10]
3.16.10
line conductor
DEPRECATED: phase conductor (in AC systems)
DEPRECATED: pole conductor (in DC systems)
conductor which is energized in normal operation and capable of contributing to the
transmission or distribution of electric energy but which is not a neutral or mid-point conductor
[SOURCE: IEC 60050-195:1998, 195-02-08]
3.16.11
neutral conductor
conductor electrically connected to the neutral point and capable of contributing to the
distribution of electric energy
[SOURCE: IEC 60050-195:1998, 195-02-06]
3.17
earth
NOTE The Concept "Earth" means embracing the planet and all its physical matter
3.17.1
earth (verb)
ground (verb) (US)
to make an electrical connection between local earth and a given point in a system,
installation or equipment
Note 1 to entry: The connection to local earth may be:
– intentional; or
– unintentional; or
– accidental
and may be permanent or temporary.
3.17.2
reference earth
reference ground (US)
part of the Earth considered as conductive, the electric potential of which is conventionally
taken as zero, being outside the zone of influence of any earthing arrangement
[SOURCE: IEC 60050-195:1998, 195-01-01, modified – Note deleted]

3.17.3
(local) earth
(local) ground (US)
part of the Earth which is in electric contact with an earth electrode and the electric potential
of which is not necessarily equal to zero
[SOURCE: IEC 60050-195:1998, 195-01-03]
3.17.4
earth electrode
ground electrode (US)
conductive part, which may be embedded in a specific conductive medium, e.g. concrete or
coke, in electric contact with the Earth
[SOURCE: IEC 60050-195:1998, 195-02-01]
3.17.5
earthing conductor
grounding conductor (US)
conductor which provides a conductive path, or part of the conductive path, between a given
point in a system or in an installation or in equipment and an earth electrode
[SOURCE: IEC 60050-195:1998, 195-02-03]
3.17.6
earthing arrangement
grounding arrangement (US)
all the electric connections and devices involved in the earthing of a system, an installation
and equipment
Note 1 to entry: This could be a locally limited arrangement of interconnected earth electrodes on the high-
voltage side.
[SOURCE: IEC 60050-195:1998, 195-02-20, modified – Note 1 to entry added]
3.17.7
protective earthing
protective grounding (US)
earthing a point or points in a system or in an installation or in equipment for purposes of
electrical safety
[SOURCE: IEC 60050-195:1998/AMD1:2001, 195-01-11]
3.17.8
functional earthing
functional grounding (US)
earthing a point or points in a system or in an installation or in equipment for purposes other
than electrical safety
[SOURCE: IEC 60050-195:1998/AMD1:2001, 195-01-13]

– 16 – IEC 61140:2016 RLV © IEC 2016
3.18
automatic disconnection of supply
interruption of one or more of the line conductors effected by the automatic operation of a
protective device in the event of a fault
Note 1 to entry: This does not necessarily mean an interruption in all conductors of the supply system.
[SOURCE: IEC 60050-195:1998, 195-04-10, modified – “in the event of a fault” replaces “in
case of a fault” and Note 1 to entry added]
3.19
enhanced protective provision
protective provision having a reliability of protection not less than that provided by two
independent protective provisions
3.20
(conduc
...

IEC 61140 ®
Edition 4.0 2016-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
BASIC SAFETY PUBLICATION
PUBLICATION FONDAMENTALE DE SÉCURITÉ
Protection against electric shock – Common aspects for installations and
equipment
Protection contre les chocs électriques – Aspects communs aux installations et
aux matériels
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 15
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
65 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des
comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées
projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC 61140 ®
Edition 4.0 2016-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
BASIC SAFETY PUBLICATION
PUBLICATION FONDAMENTALE DE SÉCURITÉ

Protection against electric shock – Common aspects for installations and

equipment
Protection contre les chocs électriques – Aspects communs aux installations et

aux matériels
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.260; 29.020; 91.140.50 ISBN 978-2-8322-3103-6

– 2 – IEC 61140:2016 © IEC 2016
CONTENTS
FOREWORD . 5
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 8
4 Fundamental rule of protection against electric shock . 18
4.1 General . 18
4.2 Normal conditions . 19
4.3 Single-fault conditions . 20
4.3.1 General . 20
4.3.2 Protection by independent protective provisions . 20
4.3.3 Protection by an enhanced protective provision . 20
4.4 Additional protection . 20
4.5 Protection against electric burns . 21
4.6 Protection against physiological effects without adverse health effect . 21
4.6.1 General . 21
4.6.2 Muscular reaction . 21
4.6.3 Effects of touch current of discharge of electrostatic charges . 22
4.6.4 Thermal effects . 22
5 Protective provisions (elements of protective measures) . 22
5.1 General . 22
5.2 Provisions for basic protection . 22
5.2.1 General . 22
5.2.2 Basic insulation . 22
5.2.3 Protective barriers or enclosures . 23
5.2.4 Obstacles . 23
5.2.5 Placing out of arm's reach . 23
5.2.6 Limitation of voltage . 24
5.2.7 Limitation of steady-state touch current and energy . 24
5.2.8 Potential grading . 25
5.2.9 Other provisions for basic protection . 25
5.3 Provisions for fault protection . 25
5.3.1 General . 25
5.3.2 Supplementary insulation . 25
5.3.3 Protective-equipotential-bonding . 25
5.3.4 Protective screening . 27
5.3.5 Indication and disconnection in high-voltage installations and systems . 27
5.3.6 Automatic disconnection of supply . 27
5.3.7 Simple separation (between circuits) . 28
5.3.8 Non-conducting environment . 28
5.3.9 Potential grading . 28
5.3.10 Other provisions for fault protection . 28
5.4 Enhanced protective provisions. 28
5.4.1 General . 28
5.4.2 Reinforced insulation . 29
5.4.3 Protective separation between circuits . 29
5.4.4 Limited current source . 29

5.4.5 Protective impedance device . 29
5.4.6 Other provisions for enhanced protection . 30
5.5 Provisions for additional protection . 30
5.5.1 Additional protection by residual current protective device (RCD)
I∆ ≤ 30 mA . 30
n
5.5.2 Additional protection by supplementary equipotential bonding . 30
6 Protective measures . 30
6.1 General . 30
6.2 Protection by automatic disconnection of supply . 31
6.3 Protection by double or reinforced insulation . 31
6.4 Protection by protective equipotential bonding . 31
6.5 Protection by electrical separation . 31
6.6 Protection by non-conducting environment (low-voltage) . 31
6.7 Protection by SELV system . 32
6.8 Protection by PELV system . 32
6.9 Protection by limitation of steady-state touch current and charge . 32
6.10 Additional protection . 32
6.10.1 Additional protection by residual current protective device (RCD)
I∆ ≤ 30 mA . 32
n
6.10.2 Additional protection by supplementary protective equipotential bonding . 32
6.11 Protection by other measures . 33
7 Co-ordination between electrical equipment and protective provisions within an
electrical installation . 33
7.1 General . 33
7.2 Class 0 equipment . 33
7.3 Class I equipment . 34
7.3.1 General . 34
7.3.2 Insulation . 34
7.3.3 Connection to the protective conductor . 34
7.3.4 Accessible surfaces of parts of insulating material . 34
7.3.5 Connection of a protective conductor . 35
7.4 Class II equipment . 35
7.4.1 General . 35
7.4.2 Insulation . 35
7.4.3 Protective bonding . 36
7.4.4 Marking . 36
7.5 Class III equipment . 36
7.5.1 General . 36
7.5.2 Voltages . 36
7.5.3 Protective bonding . 37
7.5.4 Marking . 37
7.6 Touch currents, protective conductor currents . 37
7.6.1 General . 37
7.6.2 Touch currents . 37
7.6.3 Protective conductor currents . 37
7.6.4 Other requirements . 39
7.6.5 Other effects . 39
7.7 Safety and boundary clearances and hazard marking for high-voltage
installations . 39

– 4 – IEC 61140:2016 © IEC 2016
7.8 Functional earthing . 40
8 Special operating and servicing conditions . 40
8.1 General . 40
8.2 Devices to be operated manually and components intended to be replaced
manually . 40
8.2.1 General . 40
8.2.2 Devices to be operated or components intended to be replaced by
ordinary persons in low-voltage installations, systems and equipment . 40
8.2.3 Devices to be operated or components intended to be replaced by
skilled or instructed persons . 41
8.3 Electrical values after isolation . 41
8.4 Devices for isolation. 42
8.4.1 General . 42
8.4.2 Devices for isolation for low voltage . 42
8.4.3 Devices for isolation for high voltage . 43
Annex A (informative) Survey of protective measures as implemented by protective
provisions . 45
Annex B (informative) Index of terms . 48
Annex C (informative) List of notes concerning certain countries . 53
Bibliography . 54

Figure A.1 – Protective measures with basic and fault protection . 45
Figure A.2 – Protective measures with limited values of electrical quantities . 46
Figure A.3 – Protective measure: additional protection (in addition to basic and/or fault
protection) . 47

Table 1 – Limits for voltage bands . 19
Table 2 – Touch voltage thresholds for reaction . 21
Table 3 – Application of equipment in a low-voltage installation . 33
Table 4 – Maximum protective conductor current for frequencies up to 1 kHz . 38
Table 5 – Maximum protective conductor current for DC . 38
Table 6 – Minimum impulse withstand voltage of devices for isolation related to the
nominal voltage . 43

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PROTECTION AGAINST ELECTRIC SHOCK –
COMMON ASPECTS FOR INSTALLATION AND EQUIPMENT

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61140 has been prepared by IEC technical committee 64:
Electrical installations and protection against electric shock.
This fourth edition cancels and replaces the third edition published in 2001 and
Amendment 1:2004. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) Introduction of the content of IEC 60449
b) Better distinction between provisions and measures
c) Consideration of effects other than ventricular fibrillation
d) Additional protection was introduced
e) ELV defined as part of LV
f) Devices suitable for isolation required for automatic disconnection of supply (LV)

– 6 – IEC 61140:2016 © IEC 2016
g) Requirements relating to current in the protective conductor were moved to the main body
of the standard
The text of this standard is based on the following documents:
FDIS Report on voting
64/2076/FDIS 64/2091/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
It has the status of a basic safety publication in accordance with IEC Guide 104.
The reader's attention is drawn to the fact that Annex C lists all of the “in-some-country”
clauses on differing practices of a less permanent nature relating to the subject of this
standard.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC website under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
PROTECTION AGAINST ELECTRIC SHOCK –
COMMON ASPECTS FOR INSTALLATIONS AND EQUIPMENT

1 Scope
This International Standard is a basic safety publication primarily intended for use by
technical committees in the preparation of standards in accordance with the principles laid
down in IEC Guide 104 and ISO/IEC Guide 51.
It is not intended to be used as a stand-alone standard.
According to IEC Guide 104, technical committees, when preparing, amending, or revising
their publications, are required to make use of any basic safety publication such as IEC 61140.
This International Standard applies to the protection of persons and livestock against electric
shock. The intent is to give fundamental principles and requirements which are common to
electrical installations, systems and equipment or necessary for their coordination, without
limitations with regard to the magnitude of the voltage or current, or the type of current, and
for frequencies up to 1 000 Hz.
Some clauses in this standard refer to low-voltage and high-voltage systems, installations and
equipment. For the purposes of this standard, low-voltage is any rated voltage up to and
including 1 000 V a.c. or 1 500 V d.c. High voltage is any rated voltage exceeding
1 000 V a.c. or 1 500 V d.c.
It should be noted that, for an efficient design and selection of protective measures, the type
of voltage that may occur and its waveform needs to be considered, i.e. a.c. or d.c. voltage,
sinusoidal, transient, phase controlled, superimposed d.c., as well as a possible mixture of
these forms. The installations or equipment may influence the waveform of the voltage, e.g.
by inverters or converters. The currents flowing under normal operating conditions and under
fault conditions depend on the described voltage.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60038, IEC standard voltages
IEC 60068 (all parts), Environmental testing
IEC 60071-1, Insulation coordination – Part 1: Definitions, principles and rules
IEC 60071-2, Insulation coordination – Part 2: Application guide
IEC 60364-5-54:2011, Low-voltage electrical installations – Part 5-54: Selection and erection
of electrical equipment – Earthing arrangements and protective conductors
IEC 60417, Graphical symbols for use on equipment
(available at http://www.graphical-symbols.info/equipment)

– 8 – IEC 61140:2016 © IEC 2016
IEC 60445, Basic and safety principles for man-machine interface, marking and identification
– Identification of equipment terminals, conductor terminations and conductors
IEC TS 60479-1:2005, Effects of current on human beings and livestock – Part 1: General
aspects
IEC TR 60479-5, Effects of current on human beings and livestock – Part 5: Touch voltage
threshold values for physiological effects
IEC 60529, Degrees of protection provided by enclosure (IP Code)
IEC 60664 (all parts), Insulation coordination for equipment within low-voltage systems
IEC 60664-1:2007, Insulation coordination for equipment within low-voltage systems – Part 1:
Principles, requirements and tests
IEC 60721 (all parts), Classification of environmental conditions
IEC 60990, Methods of measurement of touch current and protective conductor current
IEC TS 61201:2007, Use of conventional touch voltage limits – Application guide
IEC 62271-102, High-voltage switchgear and controlgear – Part 102: Alternating current
disconnectors and earthing switches
IEC Guide 104, The preparation of safety publications and the use of basic safety publications
and group safety publications
ISO/IEC Guide 51:2014, Safety aspects – Guidelines for their inclusion in standards
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
NOTE An index of definitions is given in Annex B.
3.1
electric shock
physiological effect resulting from an electric current through a human body or livestock
Note 1 to entry: Physiological effects include, for example, perception, muscular contractions and tetany, difficulty
in breathing, disturbances of heart function, immobilization, cardiac arrest, breathing arrest, burns or other cellular
damage.
Note 2 to entry: Physiological effects resulting from EMF are not considered in this standard.
[SOURCE: IEC 60050-195:1998, 195-01-04, modified – "through a human body or livestock"
replaces "passing through a human or animal body"; addition of 2 Notes to entry]
3.1.1
basic protection
protection against electric shock under fault-free conditions
[SOURCE: IEC 60050-195:1998, 195-06-01]

3.1.2
fault protection
protection against electric shock under single fault conditions
[SOURCE: IEC 60050-195:1998/AMD1:2001, 195-06-02]
3.1.3
additional protection
protection against electric shock in addition to basic protection and/or fault protection
[SOURCE:IEC 60050-826:2004, 826-12-07, modified – “protection against electric shock”
replaces “protective measure”]
3.1.4
single fault condition
condition in which one means for protection against electric shock is defective or one fault is
present which could cause a hazard
Note 1 to entry: If a single fault condition results in one or more other fault conditions, all are considered as one
single fault condition.
3.2
electric circuit
arrangement of devices or media through which electric current can flow
Note 1 to entry: See also IEC 60050-826:2004, 826-14-01 for electrical installations of buildings.
3.3
electrical equipment
item used for such purposes as generation, conversion, transmission, distribution or utilization
of electric energy, such as electric machines, transformers, switchgear and controlgear,
measuring instruments, protective devices, wiring systems, current-using equipment
[SOURCE: IEC 60050-826:2004, 826-16-01]
3.4
live part
conductive part intended to be energized in normal conditions, including a neutral conductor
or mid-point conductor, but by convention not a PEN conductor or PEM conductor or PEL
conductor
Note 1 to entry: This concept does not necessarily imply a risk of electric shock.
[SOURCE: IEC 60050-195:1998, 195-02-19, modified – “…normal conditions, including a
neutral conductor or mid-point conductor” replaces “normal operation, including a neutral
conductor.”]
3.5
hazardous-live-part
live part which, under certain conditions, can give a harmful electric shock
Note 1 to entry: In case of high voltage, a hazardous voltage may be present on the surface of solid insulation. In
such a case the surface is considered to be a hazardous-live-part.
[SOURCE: IEC 60050-195:1998, 195-06-05]
3.6
exposed-conductive-part
conductive part of equipment, which can be touched and which is not normally live, but which
can become live when basic insulation fails

– 10 – IEC 61140:2016 © IEC 2016
Note 1 to entry: A conductive part of electrical equipment which can become live only through contact with an
exposed-conductive-part which has become live, is not considered to be an exposed-conductive-part itself.
[SOURCE: IEC 60050-195:1998, 195-06-10]
3.7
extraneous-conductive-part
conductive part not forming part of the electrical installation and liable to introduce an electric
potential, generally the electric potential of a local earth
[SOURCE: IEC 60050-195:1998, 195-06-11]
3.8
touch voltage
3.8.1
(effective) touch voltage
voltage between conductive parts when touched simultaneously by a human or livestock
Note 1 to entry: The value of the effective touch voltage may be appreciably influenced by the impedance of the
person or the livestock in electric contact with these conductive parts.
[SOURCE: IEC 60050-195:1998, 195-05-11, modified – “by a human or livestock” replaces “by
a person or an animal”]
3.8.2
prospective touch voltage
voltage between simultaneously accessible conductive parts when those conductive parts are
not being touched, by a human or livestock
[SOURCE: IEC 60050-195:1998, 195-05-09, modified – “by a human or livestock” replaces “by
a person or an animal”]
3.9
touch current
electric current passing through a human body or through livestock when it touches one or
more accessible parts of an installation or of equipment
[SOURCE: IEC 60050-195:1998/AMD1:2001, 195-05-21, modified – “through livestock”
replaces “through an animal body”]
3.10
insulation
set of properties which characterize the ability of an insulation to provide its function
Note 1 to entry: Examples of relevant properties are: resistance, breakdown voltage.
Note 2 to entry: Insulation can be a solid, a liquid or a gas (e.g. air), or any combination.
[SOURCE: IEC 60050-151:2001, 151-15-42, modified – Note 2 to entry added]
3.10.1
basic insulation
insulation of hazardous-live-parts which provides basic protection
Note 1 to entry: This concept does not apply to insulation used exclusively for functional purposes.
[SOURCE: IEC 60050-195:1998, 195-06-06]

3.10.2
supplementary insulation
independent insulation applied in addition to basic insulation, for fault protection
[SOURCE: IEC 60050-195:1998, 195-06-07]
3.10.3
double insulation
insulation comprising both basic insulation and supplementary insulation
[SOURCE: IEC 60050-195:1998, 195-06-08]
3.10.4
reinforced insulation
insulation of hazardous-live-parts which provides protection against electric shock equivalent
to double insulation
Note 1 to entry: Reinforced insulation may comprise several layers which cannot be tested singly as basic
insulation or supplementary insulation.
[SOURCE: IEC 60050-195:1998, 195-06-09, modified – .provides “a degree” of …, deleted]
3.11
non-conducting environment
provision whereby a human or livestock touching an exposed-conductive-part that has
become hazardous-live is protected by the high impedance of his environment (e.g. insulating
walls and floors) and by the absence of earthed conductive parts
[SOURCE: IEC 60050-195:1998, 195-06-21, modified – “animal” replaced by “livestock”]
3.12
(electrically) protective obstacle
part preventing unintentional contact by a human or livestock with a live part, but not
preventing such contact by deliberate action
[SOURCE: IEC 60050-195:1998, 195-06-16, modified – "direct contact" replaced by "contact"
and ”by a human or livestock with a live part”. introduced]
3.13
(electrically) protective barrier
part providing protection against contact by a human or livestock with a live part from any
usual direction of access
[SOURCE: IEC 60050-195:1998, 195-06-15, modified – "direct contact" replaced by "contact"
and “by a human or livestock with a live part” … introduced]
3.14
(electrically) protective enclosure
electrical enclosure surrounding internal parts of equipment to prevent access to a live-part
from any direction
Note 1 to entry: In addition, an enclosure generally provides protection against internal or external influences, e.g.
ingress of dust or water or prevention of mechanical damage.
[SOURCE: IEC 60050-195:1998, 195-06-14, modified – "hazardous live-parts" replaced by "a
live-part" and Note 1 to entry added]

– 12 – IEC 61140:2016 © IEC 2016
3.15
arm's reach
zone of accessibility to touch extending from any point on a surface where persons usually
stand or move about to the limits which a person can reach with the hand, in any direction,
without assistance
[SOURCE: IEC 60050-195:1998, 195-06-12]
3.16
equipotential bonding
provision of electric connections between conductive parts intended to achieve
equipotentiality
Note 1 to entry: The effectiveness of the equipotential bonding may depend on the frequency of the current in the
bonding.
[SOURCE: IEC 60050-195:1998, 195-01-10, modified – Note 1 to entry added]
3.16.1
protective-equipotential-bonding
equipotential bonding for the purposes of safety (e.g. protection against electric shock)
Note 1 to entry: Functional equipotential bonding is defined in IEC 60050-195:1998, 195-01-16.
[SOURCE: IEC 60050-195:1998, 195-01-15, modified – “(e.g. protection against electric
shock)” introduced and Note 1 to entry added]
3.16.2
equipotential bonding terminal
terminal provided on equipment or on a device and intended for the electric connection with
the equipotential bonding system
[SOURCE: IEC 60050-195:1998, 195-02-32]
3.16.3
protective bonding terminal
terminal intended for protective-equipotential-bonding purposes
3.16.4
protective conductor
conductor provided for purposes of safety, for example protection against electric shock
[SOURCE: IEC 60050-195:1998, 195-02-09]
3.16.5
PE conductor
protective conductor provided for protective earthing
[SOURCE: IEC 60050-195:1998, 195-02-11, modified – term title changed]
3.16.6
PEN conductor
conductor combining the functions of both a protective earthing conductor and a neutral
conductor
[SOURCE: IEC 60050-195:1998, 195-02-12]

3.16.7
PEM conductor
conductor combining the functions of both a protective earthing conductor and a mid-point
conductor
[SOURCE: IEC 60050-195:1998, 195-02-13]
3.16.8
PEL conductor
conductor combining the functions of both a protective earthing conductor and a line
conductor
[SOURCE: IEC 60050-195:1998, 195-02-14]
3.16.9
protective bonding conductor
protective conductor provided for protective-equipotential-bonding
[SOURCE: IEC 60050-195:1998, 195-02-10]
3.16.10
line conductor
DEPRECATED: phase conductor (in AC systems)
DEPRECATED: pole conductor (in DC systems)
conductor which is energized in normal operation and capable of contributing to the
transmission or distribution of electric energy but which is not a neutral or mid-point conductor
[SOURCE: IEC 60050-195:1998, 195-02-08]
3.16.11
neutral conductor
conductor electrically connected to the neutral point and capable of contributing to the
distribution of electric energy
[SOURCE: IEC 60050-195:1998, 195-02-06]
3.17
earth
concept embracing the planet and all its physical matter
3.17.1
earth (verb)
ground (verb) (US)
to make an electrical connection between local earth and a given point in a system,
installation or equipment
Note 1 to entry: The connection to local earth may be:
– intentional; or
– unintentional; or
– accidental
and may be permanent or temporary.
3.17.2
reference earth
reference ground (US)
part of the Earth considered as conductive, the electric potential of which is conventionally
taken as zero, being outside the zone of influence of any earthing arrangement

– 14 – IEC 61140:2016 © IEC 2016
[SOURCE: IEC 60050-195:1998, 195-01-01, modified – Note deleted]
3.17.3
(local) earth
(local) ground (US)
part of the Earth which is in electric contact with an earth electrode and the electric potential
of which is not necessarily equal to zero
[SOURCE: IEC 60050-195:1998, 195-01-03]
3.17.4
earth electrode
ground electrode (US)
conductive part, which may be embedded in a specific conductive medium, e.g. concrete or
coke, in electric contact with the Earth
[SOURCE: IEC 60050-195:1998, 195-02-01]
3.17.5
earthing conductor
grounding conductor (US)
conductor which provides a conductive path, or part of the conductive path, between a given
point in a system or in an installation or in equipment and an earth electrode
[SOURCE: IEC 60050-195:1998, 195-02-03]
3.17.6
earthing arrangement
grounding arrangement (US)
all the electric connections and devices involved in the earthing of a system, an installation
and equipment
Note 1 to entry: This could be a locally limited arrangement of interconnected earth electrodes on the high-
voltage side.
[SOURCE: IEC 60050-195:1998, 195-02-20, modified – Note 1 to entry added]
3.17.7
protective earthing
protective grounding (US)
earthing a point or points in a system or in an installation or in equipment for purposes of
electrical safety
[SOURCE: IEC 60050-195:1998/AMD1:2001, 195-01-11]
3.17.8
functional earthing
functional grounding (US)
earthing a point or points in a system or in an installation or in equipment for purposes other
than electrical safety
[SOURCE: IEC 60050-195:1998/AMD1:2001, 195-01-13]
3.18
automatic disconnection of supply
interruption of one or more of the line conductors effected by the automatic operation of a
protective device in the event of a fault

Note 1 to entry: This does not necessarily mean an interruption in all conductors of the supply system.
[SOURCE: IEC 60050-195:1998, 195-04-10, modified – “in the event of a fault” replaces “in
case of a fault” and Note 1 to entry added]
3.19
enhanced protective provision
protective provision having a reliability of protection not less than that provided by two
independent protective provisions
3.20
(conductive) screen
(conductive) shield (US)
conductive part that encloses or separates electric circuits and/or conductors
[SOURCE: IEC 60050-195:1998/AMD1:2001, 195-02-38]
3.21
(electrically) protective screen
(electrically) protective shield (US)
conductive screen (shield) used to separate an electric circuit and/or conductors from
hazardous-live-parts
[SOURCE: IEC 60050-195:1998/AMD1:2001, 195-06-17]
3.22
(electri
...
