Smart manufacturing service platform - Service-oriented integration requirements of the manufacturing resource/capability

IEC PAS 63178:2018(E) provides the requirements of all relevant manufacturing resources integrated to the cloud manufacturing service platform, including integration of hard manufacturing resources, soft manufacturing resources and manufacturing capabilities.
This document is used for the integration of the relevant resources to the smart manufacturing service platform.

General Information

Status
Published
Publication Date
16-Jul-2018
Current Stage
PPUB - Publication issued
Completion Date
17-Jul-2018
Ref Project

Buy Standard

Technical specification
IEC PAS 63178:2018 - Smart manufacturing service platform - Service-oriented integration requirements of the manufacturing resource/capability
English language
17 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

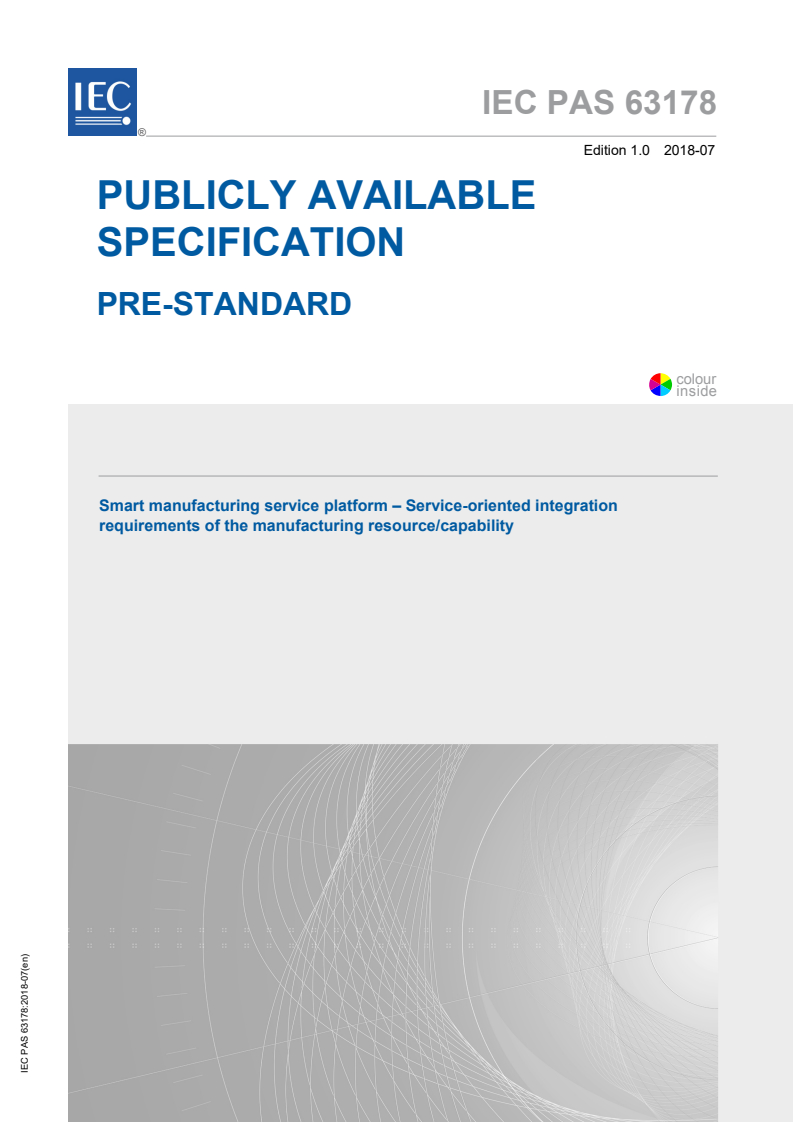

IEC PAS 63178
Edition 1.0 2018-07
PUBLICLY AVAILABLE
SPECIFICATION
PRE-STANDARD
colour
inside
Smart manufacturing service platform – Service-oriented integration
requirements of the manufacturing resource/capability
IEC PAS 63178:2018-07(en)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2018 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
---------------------- Page: 2 ----------------------

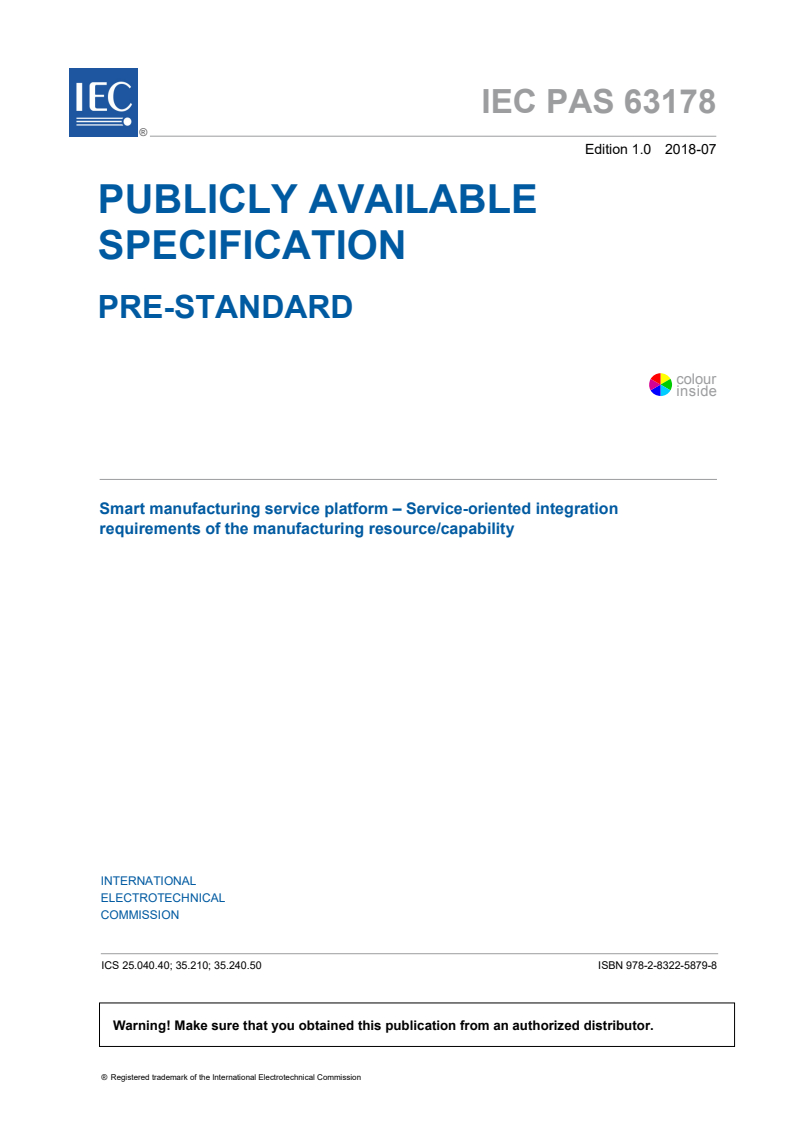

IEC PAS 63178
Edition 1.0 2018-07
PUBLICLY AVAILABLE
SPECIFICATION
PRE-STANDARD
colour
inside
Smart manufacturing service platform – Service-oriented integration
requirements of the manufacturing resource/capability
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 25.040.40; 35.210; 35.240.50 ISBN 978-2-8322-5879-8

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------

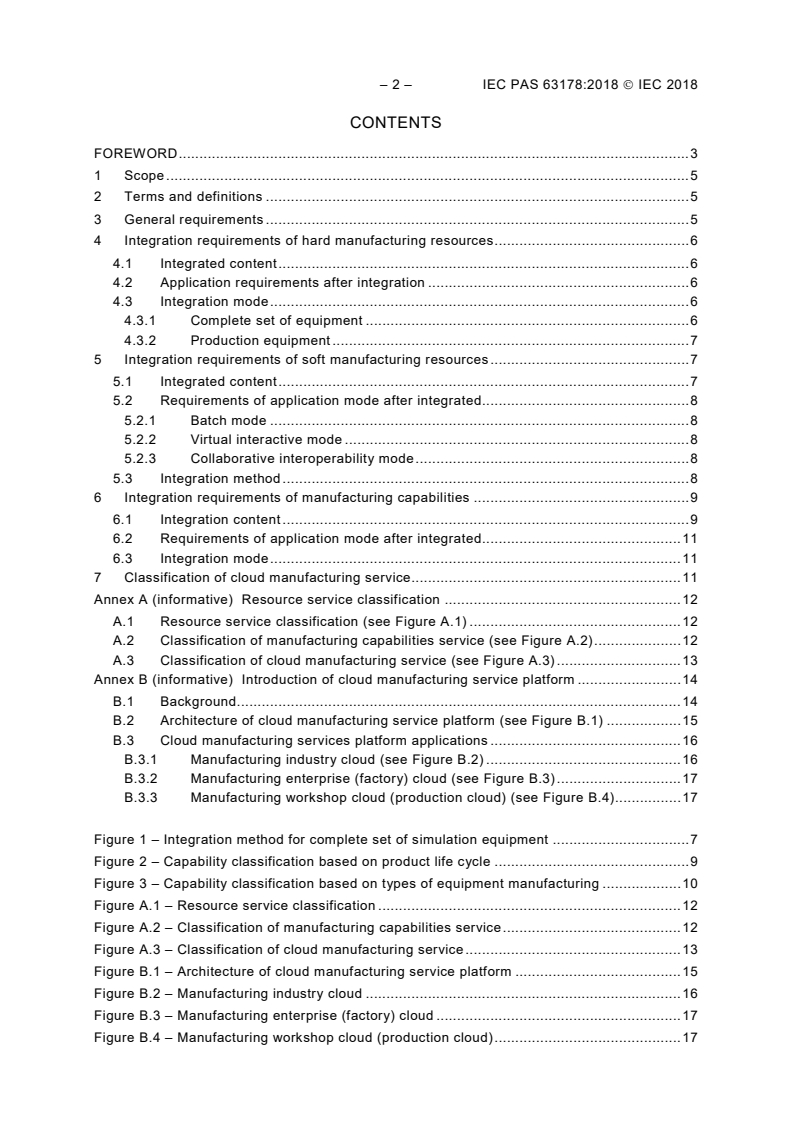

– 2 – IEC PAS 63178:2018  IEC 2018
CONTENTS

FOREWORD ........................................................................................................................... 3

1 Scope .............................................................................................................................. 5

2 Terms and definitions ...................................................................................................... 5

3 General requirements ...................................................................................................... 5

4 Integration requirements of hard manufacturing resources ............................................... 6

4.1 Integrated content ................................................................................................... 6

4.2 Application requirements after integration ............................................................... 6

4.3 Integration mode ..................................................................................................... 6

4.3.1 Complete set of equipment .............................................................................. 6

4.3.2 Production equipment ...................................................................................... 7

5 Integration requirements of soft manufacturing resources ................................................ 7

5.1 Integrated content ................................................................................................... 7

5.2 Requirements of application mode after integrated.................................................. 8

5.2.1 Batch mode ..................................................................................................... 8

5.2.2 Virtual interactive mode ................................................................................... 8

5.2.3 Collaborative interoperability mode .................................................................. 8

5.3 Integration method .................................................................................................. 8

6 Integration requirements of manufacturing capabilities .................................................... 9

6.1 Integration content .................................................................................................. 9

6.2 Requirements of application mode after integrated................................................ 11

6.3 Integration mode ................................................................................................... 11

7 Classification of cloud manufacturing service ................................................................. 11

Annex A (informative) Resource service classification ......................................................... 12

A.1 Resource service classification (see Figure A.1) ................................................... 12

A.2 Classification of manufacturing capabilities service (see Figure A.2) ..................... 12

A.3 Classification of cloud manufacturing service (see Figure A.3) .............................. 13

Annex B (informative) Introduction of cloud manufacturing service platform ......................... 14

B.1 Background........................................................................................................... 14

B.2 Architecture of cloud manufacturing service platform (see Figure B.1) .................. 15

B.3 Cloud manufacturing services platform applications .............................................. 16

B.3.1 Manufacturing industry cloud (see Figure B.2) ............................................... 16

B.3.2 Manufacturing enterprise (factory) cloud (see Figure B.3) .............................. 17

B.3.3 Manufacturing workshop cloud (production cloud) (see Figure B.4)................ 17

Figure 1 – Integration method for complete set of simulation equipment ................................. 7

Figure 2 – Capability classification based on product life cycle ............................................... 9

Figure 3 – Capability classification based on types of equipment manufacturing ................... 10

Figure A.1 – Resource service classification ......................................................................... 12

Figure A.2 – Classification of manufacturing capabilities service ........................................... 12

Figure A.3 – Classification of cloud manufacturing service .................................................... 13

Figure B.1 – Architecture of cloud manufacturing service platform ........................................ 15

Figure B.2 – Manufacturing industry cloud ............................................................................ 16

Figure B.3 – Manufacturing enterprise (factory) cloud ........................................................... 17

Figure B.4 – Manufacturing workshop cloud (production cloud) ............................................. 17

---------------------- Page: 4 ----------------------
IEC PAS 63178:2018  IEC 2018 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SMART MANUFACTURING SERVICE PLATFORM –
SERVICE-ORIENTED INTEGRATION REQUIREMENTS
OF THE MANUFACTURING RESOURCE/CAPABILITY
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

A PAS is a technical specification not fulfilling the requirements for a standard, but made

available to the public.
IEC PAS 63178 has been processed by subcommittee 65E: Devices and integration in

enterprise systems, of IEC technical committee 65: Industrial-process measurement, control

and automation.
The text of this PAS is based on the This PAS was approved for
following document: publication by the P-members of the
committee concerned as indicated in
the following document
Draft PAS Report on voting
65E/578/DPAS 65E/585/RVDPAS

Following publication of this PAS, which is a pre-standard publication, the technical committee

or subcommittee concerned may transform it into an International Standard.
---------------------- Page: 5 ----------------------
– 4 – IEC PAS 63178:2018  IEC 2018

This PAS shall remain valid for an initial maximum period of 2 years starting from the

publication date. The validity may be extended for a single period up to a maximum of 2 years,

at the end of which it shall be published as another type of normative document, or shall be

withdrawn.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 6 ----------------------
IEC PAS 63178:2018  IEC 2018 – 5 –
SMART MANUFACTURING SERVICE PLATFORM –
SERVICE-ORIENTED INTEGRATION REQUIREMENTS
OF THE MANUFACTURING RESOURCE/CAPABILITY
1 Scope

This PAS provides the requirements of all relevant manufacturing resources integrated to the

cloud manufacturing service platform, including integration of hard manufacturing resources,

soft manufacturing resources and manufacturing capabilities.

This document is used for the integration of the relevant resources to the smart manufacturing

service platform.
2 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
2.1
soft manufacturing resource
manufacturing resources that are based on software, data, models, knowledge
2.2
hard manufacturing resource

manufacturing equipment, computing equipment, materials, etc. used in a product life cycle

2.3
manufacturing capability

ability to complete various activities during the product life cycle, featured by the organic

combination of three main elements, human labour, management and technology
3 General requirements
The following requirements should be met:

a) Resource/capability integration to the smart manufacturing platform is generally divided

into hard manufacturing resource integration, soft manufacturing resource integration and

manufacturing capability integration.

b) Status data of soft/hard manufacturing resource and capability should be extracted, and

integrated to smart manufacturing platform through a wired or wireless network.

c) Physical manufacturing resource/capability should be transformed to logical ones. Logical

manufacturing resource/capability should be defined by unified description, which forms

description document of virtual manufacturing resource/capability.

d) Virtual manufacturing resource/capability should be integrated to the smart manufacturing

platform as a cloud service through a unified description of services and packaging

method.
---------------------- Page: 7 ----------------------
– 6 – IEC PAS 63178:2018  IEC 2018
4 Integration requirements of hard manufacturing resources
4.1 Integrated content

According to the business requirements in a manufacturing life-cycle, integrated hard

manufacturing resources typically include the following:

a) complete set of equipment, such as large-scale simulation test system and digital

production line, etc.;
b) production equipment, including mechanical equipment, electrical equipment,
environmental test equipment, etc.
4.2 Application requirements after integration
Integrated equipment/device should be applied in the following ways:
a) equipment/device status monitoring and resource utilization analysing;
b) equipment/device management;
c) equipment/device online renting and calling;
d) resource collaborative planning.
Integrated equipment/device should provide following information:
1) equipment/device general information;
2) equipment/device capability information;
3) equipment/device time information;
4) equipment/device status information;
5) equipment/device task information.
4.3 Integration mode
4.3.1 Complete set of equipment
4.3.1.1 Complete set of simulation test equipment

For the set of simulation test equipment which is well digitalized and has a complete set of

control systems, a local server with dual DNC can be added to connect and convert real time

network (reflective memory network) to research network, so that device is integrated and

instrumentation is realized, as shown in Figure 1.
---------------------- Page: 8 ----------------------
IEC PAS 63178:2018  IEC 2018 – 7 –
Figure 1 – Integration method for complete set of simulation equipment
4.3.1.2 Digital production line
For digital product line, there are generally two ways of integration:

• integrating distributed numerical control (DNC) centers, manufacturing execution systems

(MES) and enterprise resource planning (ERP) systems to realize high-end integration and

control of digital production line;

• integrating digital production line through digital manufacturing center database, which is

generated by fully or semi-automatically collecting data of working status for equipment,

which is realized by adding bar code labels to tools and materials and giving unified digital

labels to all kinds of production resources.
4.3.2 Production equipment

Production equipment integration has the following two situations based on whether it has

networking capabilities or not:

a) Install smart capture terminals and sensors or I/O signal capture devices on the

production device which does not have the networking capacity, and then equipment

should be integrated.

b) There are generally two types of integration for production equipment that has a

networking capacity:

1) integrated through deploying industrial data getaways which has a platform integration

functionality;

2) integrated through digital numerical control centers (DNC), manufacturing execution

systems (MES) and enterprise resource planning systems (ERP).
5 Integration requirements of soft manufacturing resources
