IEC 62502:2010

Analysis techniques for dependability - Event tree analysis (ETA)

IEC 62502:2010 specifies the consolidated basic principles of Event Tree Analysis (ETA) and provides guidance on modelling the consequences of an initiating event as well as analysing these consequences qualitatively and quantitatively in the context of dependability and risk related measures.

Techniques d'analyse de la sûrete de fonctionnement - Analyse par arbre d'evenement (AAE)

La CEI 62502:2010 spécifie les principes de base consolidés de l'Analyse par Arbre d'Evénement (AAE) et donne les lignes directrices pour la modélisation des conséquences d'un événement initiateur, ainsi que pour l'analyse de ces conséquences d'un point de vue qualitatif et quantitatif dans le cadre de mesures liées à la sûreté de fonctionnement et aux risques.

General Information

• Status: Published
• Publication Date: 26-Oct-2010
• ICS: 21.020 - Characteristics and design of machines, apparatus, equipment
• Technical Committee: TC 56 - Dependability
• Current Stage: PPUB - Publication issued
• Start Date: 27-Oct-2010
• Completion Date: 31-Oct-2010

Overview

IEC 62502:2010, titled Analysis Techniques for Dependability – Event Tree Analysis (ETA), is an international standard published by the International Electrotechnical Commission (IEC). It outlines the fundamental principles and comprehensive procedures for applying Event Tree Analysis (ETA) in dependability and risk assessment. The standard provides structured guidance on modeling the consequences of initiating events and analyzing these outcomes both qualitatively and quantitatively. Originally developed in the 1960s with significant applications in nuclear safety, ETA has become a widely accepted technique across multiple industries, including aviation, automotive, chemical processing, offshore oil and gas, defense, and transportation.

Key Topics

IEC 62502:2010 covers the core elements of applying ETA effectively and includes:

• Basic Principles and Terminology
  Detailed definitions of essential concepts, abbreviations, and graphical symbols used in event tree modeling ensure consistent interpretation.

• Event Tree Construction Process
  Step-by-step guidelines to develop event trees:

  • Define the system or activity of interest.
  • Identify initiating events.
  • Determine mitigating factors and physical phenomena.
  • Establish sequences and outcomes with quantitative evaluation.
  • Analyze outcomes for dependability and risk metrics.
  • Utilize results in decision-making processes.

• Qualitative and Quantitative Analysis
  Emphasis on managing dependencies between events-functional, structural, or physical-to ensure accurate reliability modeling. Techniques include linking with Fault Tree Analysis (FTA) for complex scenario assessments.

• Integration with Other Techniques
  Relationships between ETA, FTA, and Layer of Protection Analysis (LOPA) are addressed, enabling comprehensive risk and dependability evaluations.

• Benefits and Limitations
  The standard elaborates on the advantages of ETA such as straightforward math foundations and clear visualization of event sequences, along with its constraints related to handling dependent events and required expertise.

• Documentation Best Practices
  Clear guidance on documenting event trees, including graphical representation conventions, ensures traceability and clarity in dependability studies.

Applications

IEC 62502:2010 facilitates the use of Event Tree Analysis in various practical settings that require robust dependability and risk assessment:

• Nuclear and Power Industries
  Modeling accident sequences and system failures to enhance safety and regulatory compliance.

• Aviation and Transportation
  Analyzing failure propagation and safety event outcomes to improve system reliability and passenger safety.

• Chemical and Process Industries
  Evaluating safety-critical systems and potential incident consequences to mitigate hazards.

• Oil and Gas Production
  Assessing equipment and operational risks to prevent catastrophic failures.

• Defense Sector
  Assisting in reliability analysis of complex systems and mission-critical components.

The structured analyses supported by ETA per IEC 62502 help organizations identify vulnerabilities, prioritize risk reduction measures, and support regulatory submissions by providing transparent, traceable methodology.

Related Standards

IEC 62502:2010 aligns and complements other key dependability and risk assessment standards, including:

• IEC 60300 Series
  Addresses reliability, maintainability, and availability management, with explicit references to ETA as an assessment method.

• IEC 60300-3-1
  Provides guidance on dependability management, listing ETA among applicable techniques.

• IEC 60300-3-9
  Offers descriptions of dependability analysis techniques, including event tree principles.

• Complementary Methods
  Fault Tree Analysis (FTA) and Layer of Protection Analysis (LOPA), often used alongside ETA for comprehensive risk assessments.

By adhering to IEC 62502, practitioners ensure consistent and internationally recognized methods for conducting Event Tree Analysis, contributing to improved system safety, reliability, and regulatory acceptance globally.

---

Keywords: Event Tree Analysis, ETA, IEC 62502, dependability analysis, risk assessment, fault tree analysis, FTA, Layer of Protection Analysis, LOPA, system reliability, risk modeling, safety analysis, initiating events, quantitative analysis, qualitative analysis, international standard.

Standards Content (Sample)

IEC 62502 ®
Edition 1.0 2010-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Analysis techniques for dependability – Event tree analysis (ETA)

Techniques d’analyse de la sûreté de fonctionnement – Analyse par arbre
d’événement (AAE)
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: [e-mail]
Tél.: [phone]
Fax: [phone]
IEC 62502 ®
Edition 1.0 2010-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Analysis techniques for dependability – Event tree analysis (ETA)

Techniques d’analyse de la sûreté de fonctionnement – Analyse par arbre
d’événement (AAE)
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
X
CODE PRIX
ICS 21.020 ISBN 978-2-88912-212-7
– 2 – 62502 © IEC:2010

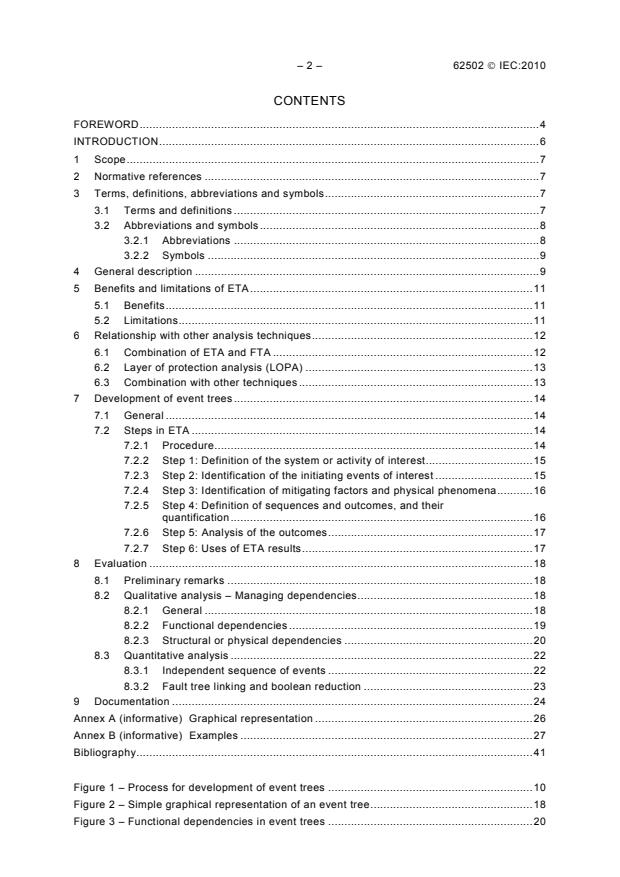

CONTENTS
FOREWORD.4
INTRODUCTION.6
1 Scope.7
2 Normative references .7
3 Terms, definitions, abbreviations and symbols.7
3.1 Terms and definitions .7
3.2 Abbreviations and symbols.8
3.2.1 Abbreviations .8
3.2.2 Symbols .9
4 General description .9
5 Benefits and limitations of ETA.11
5.1 Benefits.11
5.2 Limitations.11
6 Relationship with other analysis techniques.12
6.1 Combination of ETA and FTA .12
6.2 Layer of protection analysis (LOPA) .13
6.3 Combination with other techniques .13
7 Development of event trees .14
7.1 General .14
7.2 Steps in ETA .14
7.2.1 Procedure.14
7.2.2 Step 1: Definition of the system or activity of interest.15
7.2.3 Step 2: Identification of the initiating events of interest .15
7.2.4 Step 3: Identification of mitigating factors and physical phenomena.16
7.2.5 Step 4: Definition of sequences and outcomes, and their
quantification.16
7.2.6 Step 5: Analysis of the outcomes.17
7.2.7 Step 6: Uses of ETA results.17
8 Evaluation .18
8.1 Preliminary remarks .18
8.2 Qualitative analysis – Managing dependencies.18
8.2.1 General .18
8.2.2 Functional dependencies .19
8.2.3 Structural or physical dependencies .20
8.3 Quantitative analysis .22
8.3.1 Independent sequence of events .22
8.3.2 Fault tree linking and boolean reduction .23
9 Documentation .24
Annex A (informative) Graphical representation .26
Annex B (informative) Examples .27
Bibliography.41

Figure 1 – Process for development of event trees .
Figure 2 – Simple graphical representation of an event tree.18
Figure 3 – Functional dependencies in event trees .20

62502 © IEC:2010 – 3 –
Figure 4 – Modelling of structural or physical dependencies.21
Figure 5 – Sequence of events .22
Figure 6 – Fault tree linking .23
Figure A.1 – Frequently used graphical representation for event trees .26
Figure B.1 – Event tree for a typical fire incident in a diesel generator building.28
Figure B.2 – Simplified event tree for a fire event .29
Figure B.3 – Level-crossing system (LX).31
Figure B.4 – ETA for the level-crossing system.33
Figure B.5 – Simple example .36
Figure B.6 – Fault Tree for the Failure of System 1.36
Figure B.7 – Fault Tree for the Failure of System 2.37
Figure B.8 – Modified event tree .38
Figure B.9 – Event tree with "grouped faults" .39

Table A.1 – Graphical elements .26
Table B.1 – Symbols used in Annex B .29
Table B.2 – System overview.31
Table B.3 – Risk reduction parameters for accidents from Figure B.4 .34

– 4 – 62502 © IEC:2010
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ANALYSIS TECHNIQUES FOR DEPENDABILITY –
EVENT TREE ANALYSIS (ETA)
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62502 has been prepared by IEC technical committee 56:
Dependability.
The text of this standard is based on the following documents:
FDIS Report on voting
56/1380/FDIS 56/1389/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

62502 © IEC:2010 – 5 –
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – 62502 © IEC:2010
INTRODUCTION
This International Standard defines the basic principles and procedures for the dependability
technique known as Event Tree Analysis (ETA).
IEC 60300-3-1 explicitly lists ETA as an applicable method for general dependability
assessment. It is also used in risk and safety analysis studies. ETA is also briefly described in
the IEC 60300-3-9.
The basic principles of this methodology have not changed since the conception of the
technique in the 1960's. ETA was first successfully used in the nuclear industry in a study by
the U.S. Nuclear Regulatory Commission, the so-called WASH 1400 report in the year 1975
[31] .
Over the following years, ETA has gained widespread acceptance as a mature methodology
for dependability and risk analysis and is applied in diverse industry branches ranging from
the aviation industry, nuclear installations, the automotive industry, chemical processing,
offshore oil and gas production, to defence industry and transportation systems.
In contrast to some other dependability techniques such as Markov modelling, ETA is based
on relatively elementary mathematical principles. However, as mentioned in IEC 60300-3-1,
the implementation of ETA requires a high degree of expertise in the application of the
technique. This is due in part to the fact that particular care has to be taken when dealing with
dependent events. Furthermore, one can utilize the close relationship between Fault Tree
Analysis (FTA) and the qualitative and quantitative analysis of event trees.
This standard aims at defining the consolidated basic principles of the ETA and the current
usage of the technique as a means for assessing the dependability and risk related measures
of a system.
___________
Figures in square brackets refer to the bibliography.

62502 © IEC:2010 – 7 –
ANALYSIS TECHNIQUES FOR DEPENDABILITY –
EVENT TREE ANALYSIS (ETA)
1 Scope
This International Standard specifies the consolidated basic principles of Event Tree Analysis
(ETA) and provides guidance on modelling the consequences of an initiating event as well as
analysing these consequences qualitatively and quantitatively in the context of dependability
and risk related measures.
More specifically, this standard deals with the following topics in relation to event trees:
a) defining the essential terms and describing the usage of symbols and ways of graphical
representation;
b) specifying the procedural steps involved in the construction of the event tree;
c) elaborating on the assumptions, limitations and benefits of performing the analysis;
d) identifying relationships with other dependability and risk-related techniques and
elucidating suitable fields of applications;
e) giving guidelines for the qualitative and quantitative aspects of the evaluation;
f) providing practical examples.
This standard is applicable to all industries where the dependability and risk-related measures
for the consequences of an initiating event have to be assessed.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 60050-191:1990, International Electrotechnical Vocabulary – Chapter 191: Dependability
and quality of service
IEC 61025:2006, Fault tree analysis (FTA)
3 Terms, definitions, abbreviations and symbols
For the purposes of this document, the following terms and definitions, as well as those given
in IEC 60050-191, apply.
3.1 Terms and definitions
3.1.1
node
point in the graphical representation of the event tree depicting two or more possible
outcomes for the mitigating factor
NOTE The top event of the corresponding fault tree can directly be linked to a node.
3.1.2
common cause
cause of occurrence of multiple events
[IEC 61025:2006, 3.15]
– 8 – 62502 © IEC:2010
NOTE Under particular circumstances the timeframe should be specified in which the multiple events occur, such
as “occurrence of multiple events occurring simultaneously or within a very short time of each other”.
EXAMPLES Particular natural dangers (e.g. fire, flood), failures of an engineered system, biological infections or
human acts.
3.1.3
event
occurrence of a condition or an action
[IEC 61025:2006, 3.8]
3.1.4
headings
listed mitigating factors in a line above the depiction of the event tree
3.1.5
initiating event
event which is the starting point of the event tree and the sequence of events that may lead to
different possible outcomes
3.1.6
mitigating factor
system, function or other circumstantial factor mitigating the consequences of the initiating
event
NOTE Many industries have specific equivalent terms, e.g. lines of defense, protection lines, protection systems,
safety barriers, lines of assurance, risk reduction factor, etc.
3.1.7
outcome
possible result of the sequence of events after all reactions of relevant mitigating factors have
been considered and no further development of the event tree is required
3.1.8
sequence
chain of events, from the initiating event, through subsequent events, leading to a specific
outcome
3.1.9
top event
predefined undesired event which is the starting point of the fault tree analysis, and is of
primary interest in the analysis. It has the top position in the hierarchy of events in the fault
tree
NOTE It is the outcome of combinations of all input events.
3.1.10
branch
graphical representation of one out of two or more possible outcomes originating from a node
3.2 Abbreviations and symbols
3.2.1 Abbreviations
CCA Cause-Consequence Analysis
ETA Event Tree Analysis
FMEA Failure Mode and Effects Analysis
FTA Fault Tree Analysis
IRF Individual Risk of Fatality

62502 © IEC:2010 – 9 –
LESF Combination of two dependability techniques: Large Event Trees (LE)
with connected Small Fault Trees (SF)
LOPA Layers Of Protection Analysis
RBD Reliability Block Diagrams
PRA Probabilistic Risk Assessment
PRA/PSA Probabilistic Risk/Safety Analysis
SELF Combination of two dependability techniques: Small Event Trees (SE)
with connected Large Fault Trees (LF)
3.2.2 Symbols
A When used in italics, an upper case letter indicates that the event A has
occurred.
A When used in italics with a bar, an upper case letter indicates that the event
A has not occurred.
I When used in italics, this indicates that the initiating event has occurred.
E
O This denotes the outcome which results, if all of the events in the subscript
I ,A,B
E
(with upper case letters in italics separated by commas) have occurred in
the order of the events stated in the subscript (see an example in Figure 3).
α,K,δ Lower case Greek letters denote particular outcomes of the event tree.
“+” This symbol denotes a logical “OR”.
“.” This symbol denotes a logical “AND”.
P()A Probability of an event A. P(A) is a real number in the closed interval [0,1]
assigned to an event, see [25 ].
P()I . A.B .C
E
Probability that the initiating event I has occurred and event A has occurred
E
and event B has not occurred and event C has not occurred.
P()A | I
E
Conditional probability of event A given that the initiating event I has
E
occurred.
f
Frequency (the number of events per unit of time, see [ 25] ) .
f
Frequency of outcome δ .
δ
4 General description
Event tree analysis (ETA) is an inductive procedure to model the possible outcomes that
could ensue from a given initiating event and the status of the mitigating factors as well as to
identify and assess the frequency or probability of the various possible outcomes of a given
initiating event.
The graphical representation of an event tree requires that symbols, identifiers and labels be
used in a consistent manner. Since the representation of event trees varies with user
preference, a collection of commonly used graphical representations is given in An nex A.
Starting from an initiating event, the ETA deals with the question "What happens if.". Based
on this question, the analyst constructs a tree of the various possible outcomes. It is therefore
crucial that a comprehensive list of initiating events is compiled to ensure that the event trees
properly depict all the important event sequences for the system under consideration. Using

– 10 – 62502 © IEC:2010
this logic, the ETA can be described as a method of representing the mitigating factors in
response to the initiating event – taking into account applicable mitigating factors.
From the qualitative point of view, ETA helps to identify all potential accident scenarios
(fanning out like a tree with success- or failure-branches) and potential design or procedural
weaknesses. The success branch models the condition that the mitigating factor is operating
as intended. As with other analysis techniques, particular care has to be taken with the
modelling of dependencies, bearing in mind that the probabilities used for quantifying the
event tree are conditioned on the event sequence that occurred prior to the occurrence of the
event concerned. Clause 8 deals with these qualitative aspects of the analysis as well as the
basic quantitative rules for the calculations required to estimate the (dimensionless)
probabilities or frequencies (1/h) of each of the possible outcomes. Though one could, in
theory, model the effect of failures of the operator or software by an event tree, this standard
does not deal with their quantification since these issues are covered by other IEC
publications, e.g. IEC 62508 [23] and IEC 62429 [22].
The advantages of ETA as a dependability and risk-related technique, as well as the
limitations, are discussed in Clause 5. As an example of the limitations of ETA, the time-
dependent evolution has to be considered cautiously because it can be handled properly only
in particular cases. This limitation has led to the development of strongly related methods
such as the dynamic event tree analysis method, which facilitate the modelling of time-
dependent evolutions. This dynamic event tree analysis method will not be detailed in this
standard; however, references are included in the bibliography for further information.
ETA bears a close relationship with FTA whereby the top events of the FTA yield the
conditional probability for a particular node of the ETA. This is explained more fully in
Clause 6 which also covers the relationships between ETA and other analysis techniques
such as cause-consequence analysis (CCA) and layer of protection analysis (LOPA). CCA
combines cause analysis and consequence analysis hence using deductive and inductive
approaches. LOPA has been developed by the process industry as a special adaptation of the
ETA.
Since the first steps and a well constructed approach are crucial for success, Clause
describes the development of the event tree, starting with a precise system definition.
Furthermore, Clause 7 deals with the different aspects of the system (technical, operational,
human and functional) as well as the depth of the analysis. Another important issue is the
question of how to establish the list of relevant initiating events.
Figure 1 depicts the main steps in performing an ETA. Although seemingly a straightforward
process, the analyst has to bear in mind that the construction of an event tree is very much an
iterative process.
Step 3: Step 4:
Step 1:
Step 2:
Identification of Definition of Step 6:
Definition of
Identification
Step 5:
the mitigating sequences and Uses of Event
the system or
of the initiating
Analysis of
factors and outcomes, and Tree Analysis
activity of
events of
the outcomes
physical Results
their
interest
interest
phenomena
quantification
IEC  2293/10
Figure 1 – Process for development of event trees
Clause 9 briefly outlines the documentation required for the analysis and the results.
Annex A summarizes the most commonly used graphical representations for event trees.
Annex B provides examples of ETA that highlight its application in numerous fields and
provides guidance for conducting ETA.

62502 © IEC:2010 – 11 –
5 Benefits and limitations of ETA
5.1 Benefits
ETA has the following merits:
a) it is applicable to all types of systems;
b) it provides visualization of event chains following an initiating event;
c) it enables the assessment of multiple coexisting system faults (states causing inability to
perform a required function, e.g. defect of a surveillance system) or failures (termination
of the ability to perform a required function, e.g. the event of a valve being stuck open) as
well as other dependent events;
d) it functions simultaneously in the failure or success domain;
e) it identifies end events that might otherwise not be foreseen;
f) it identifies potential single-point failures, areas of system vulnerability, and low-payoff
countermeasures. This provides for optimized deployment of resources, and improved
control of risk through improved procedures and safety functions;
g) it allows for identification and traceability of failure propagation paths of a system;
h) it enables decomposition of large and complex systems into smaller more manageable
parts by clustering it into smaller functional units or subsystems.
The strength of ETA compared to many other analysis and risk-related techniques is its ability
to model the sequence and interaction of various mitigating factors that follow the occurrence
of the initiating event. Thus the system and its interactions with all mitigating factors in an
accident scenario become visible to the analyst for further risk evaluations.
5.2 Limitations
The following limitations associated with dependability analysis techniques in general also
apply to ETA:
a) the initiating events are not revealed by the analysis itself; it is an analytical task of the
people involved in using the method to compile a comprehensive list of initiating events;
b) it is the task of the people involved in the process to compile a comprehensive list of
possible operating scenarios;
c) hidden system dependencies might be overlooked leading to unduly optimistic estimates
of measures related to dependability and risk;
d) practical experience with the method as well as preceding system investigations are
needed to address correct handling of conditional probabilities and dependent events.
Further limitations particularly applicable to ETA are listed below:
e) time-dependent evolutions that involve time-dependence of the involved probabilities can
be handled only if the relevant systems display a genuine constant probability or failure
rate, or if, in the case of recovery and repair strategies, steady state unavailability is
assumed to be reached quickly. This aspect is to be taken into account when dealing with
periodically tested systems;
f) another difficult aspect of time dependent evolutions that involve dynamic situations, e.g.
the success criteria for mitigating factors vary depending on how the prior mitigating factors
have performed. Usually a conservative assumption is made to reflect the situation;
g) situations when being in a particular state for more than a specified time can result in a
fault state. This state is difficult to model in an event tree (e.g. slow loss of air from a
tire);
h) dependencies in the event tree, e.g. due to dependencies between the initiating event
and the mitigating factors, need careful consideration. However, there are few analysis

– 12 – 62502 © IEC:2010
techniques that alone are suitable for handling of dependencies (dependent failures). The
combination of FTA and ETA can prove beneficial for handling these aspects;
i) although multiple sequences to system failure may be identified, the different magnitude
of the accidents associated with particular outcomes may not be distinguishable without
additional analysis; however, awareness of such a need is required.
6 Relationship with other analysis techniques
6.1 Combination of ETA and FTA
In practice, ETA is sometimes performed as a stand-alone analysis and in other cases in
combination with FTA.
FTA is concerned with the identification and analysis of conditions and factors that cause, or
may potentially cause, or contribute to the occurrence of a defined undesirable event. For
further details see IEC 61025.
The combination of ETA and FTA overcomes many of the weaknesses of ETA, e.g. common
cause failures in the quantitative analysis can be taken into account. Thus, the combination of
ETA and FTA results in a powerful analytical technique for dependability and risk analyses.
The combination of ETA and FTA (sometimes referred to as Cause-Consequence Analysis
(CCA), see [3 0] an d [36]) is commonly used, e.g. FTA can be used to evaluate the frequency f
of an initiating event in an ETA. Note also that the conditional probabilities of events in an
event sequence are often calculated by FTA. One example where ETA and FTA are combined
is the so-called PRA (Probabilistic Risk Assessment) made for a nuclear power plant.
In principle, the propagation of any initiating event can be analysed by ETA. However, in one
or more cases, this may not be appropriate for some of the following reasons:
a) the resulting trees may become very complex;
b) it is sometimes easier to develop causal relationships rather than event sequences;
c) there are often separate teams dealing with operational (e.g. rules of procedure) and
technical analysis. However the interface and dependencies between the operational
domain (e.g. rules of procedure, maintenance rules) and the technical domain (system
under consideration) is not always clear at the beginning of the analysis. Thus for
practical procedures, the potential events at the interface between the operational and
technical domain are defined first. In particular, in safety applications, this is standard
procedure, as usually single failures are ruled out by design, e.g. by employing fail-safe
design, and so usually ETA should not lead directly to severe outcomes by a single
failure without any further possible mitigating factors.
One can choose between two approaches for combining event trees and fault trees. One
approach is the LESF approach. If the event tree tends to become unreasonably large, the
SELF approach can be used.
In the LESF approach, the states of all systems that support the system being analysed,
hereafter referred to as support systems, appear explicitly in the event trees. The top events
of the fault trees have associated boundary conditions which include the assumption that the
support systems are in the particular state appropriate to the event sequence being
evaluated. Separate fault trees are used for a given system for each set of boundary
conditions. These separate fault trees can be produced from a single fault tree that includes
the support systems and that, before being associated with a particular sequence, is
“conditioned” on the support system state associated with this sequence. This approach
generates LESF that explicitly represents the existing dependences. Since they are
associated with smaller fault trees, they are less demanding in terms of computer resources
and computer program sophistication. However, the complexity of the event trees increases
rapidly due to the combinatorial mathematics with the number of support systems and the

62502 © IEC:2010 – 13 –
number of support system states that are explicitly depicted in the tree. Furthermore, the
quantification process is more cumbersome and subject to possible omissions. An additional
consideration is that the LESF approach does not explicitly identify what specific
combinations of support system failures lead to system (also referred to as front line system)
failures. A simplified example of such a large event tree is presented in Figure B. 1. Se e [3 1]
for more details.
In the SELF approach, event trees with the initiating event and the mitigating functions,
performed by the various mitigating system as headings, are first developed and then
expanded to event trees with the status of front line systems as headings. The front line
system fault tree models are developed down to suitable boundaries with support systems.
The support system fault trees may be developed separately and integrated at a later stage
into the models for the front line system. This approach generates event trees that are concise
and that allow for a synthesized view of an accident sequence. Furthermore, subject to the
availability of computer programs, the small event trees may be more readily computerized.
However, dependencies and the corresponding importance of support systems are not
explicitly apparent. A theoretical example of such a small event tree is presented in Figure
B. 3. See [4] for more details.
6.2 Layer of protection analysis (LOPA)
LOPA is a particular standardized form of ETA, which is used as a simplified means for risk
analysis tailored for a particular application environment. LOPA is organized in the form of a
worksheet similar to the failure mode and effects analysis (FMEA); initiating events are
recorded in rows and the different protection layers (representing the standardized mitigating
factors) in columns. This means that any event sequence of a LOPA can also be treated as an
ETA. For risk analysis purposes, severity (or damage) levels are also integrated into the
worksheet.
Therefore, LOPA can be considered as an ETA with a restricted set of possible mitigating
factors tailored to a particular application environment. It is predominantly used in the process
industry. More details on LOPA can be found in [ 1 ] and [5 ] .
6.3 Combination with other techniques
ETA may be combined with any other technique that is helpful for the derivation of the
probability of the success or failure of the corresponding mitigating factors (e.g. Markov
techniques or reliability block diagrams (RBD), see [16]), but in these cases, the other
techniques only complement the ETA.
In cases of non-trivial or time dependencies of the system behaviour (see 8.3.2), one may
resort to the Markov techniques if its other specific restrictions are taken into account. For
further details, see [1 7] .
Another closely related dependability analysis technique is the failure mode and effects
analysis (FMEA), see [13], which is a formal, systematic procedure for the analysis of a
system to identify the potential failure modes, their causes and effects on system
performance. Generally, an FMEA helps to identify the severity of potential failure modes and
to establish that the design includes mitigating factors to reduce failure probabilities of the
respective system or function to an acceptable level. This may serve as a first step into the
development of an event tree by identifying the crucial failures of a system as possible
initiating events.
Markov modelling, RBD and FMEA are respectively standardized in IEC 61165 [ 17] ,
IEC 61078 [16] and IEC 60812 [1 5 ].

– 14 – 62502 © IEC:2010
7 Development of event trees
7.1 General
The events delineating the event sequences are usually characterized in terms of:
a) functions: the fulfilment (or not) of functions as mitigating factors;
b) systems: the intervention (or not) of systems as mitigating factors which are supposed to
take action for preventing the progression of the initiating event into an accident or in the
case of failure of the mitigating factors the mitigation of the accident itself;
c) phenomena: the occurrence or non-occurrence of physical phenomena.
Typically, the functions that are needed following an initiating event are identified first, and
then the systems (mitigating factors) that can perform these functions. The physical
phenomena describe evolution taking place inside and outside the system under
consideration (e.g. pressure and temperature transients, fire, toxic dispersion, etc.).
The scope and purpose of ETA should be clearly defined before entering the detailed steps of
7. 2.
7.2 Steps in ETA
7.2.1 Procedure
The procedure for performing ETA (see Figure 1) consists of the following six steps:
Step 1: Definition of the system or activity of interest (see 7. 2. 2)
Specify and clearly define the boundaries of the system or activity for which ETAs are to be
performed.
Step 2: Identification of the initiating events of interest (see 7. 2. 3)
Conduct a screening to identify the events of interest or categories of events that the analysis
will address. Categories include such things as collisions, fires, explosions, toxic releases,
etc.
Step 3: Identification of the mitigating factors and physical phenomena (see 7. 2. 4)
Identify the various mitigating factors that can influence the progression of the initiating event
to its outcomes. These mitigating factors include both engineered systems and human
actions/decisions. Also, identify physical phenomena or circumstantial events, such as ignition
or meteorological conditions that will affect the progression and finally the outcome of the
initiating event. The event tree will be based on and constructed to include all of these
mitigating factors and physical phenomena (see 7. 1 ) .
Step 4: Definition of sequences and outcomes, and their quantification (see 7. 2. 5) :
For each initiating event, define the various outcomes (e.g. accident scenarios) that can occur
and perform the actual quantitative analysis on the basis of the constructed event tree.
Step 5: Analysis of the outcomes (see 7. 2. 6)
The various outcomes are then analysed with respect to their consequences and their impact
on the results of the analysis.
Step 6: Uses of ETA results (see 7. 2. 7)
The qualitative and quantitative findings of the analysis are then translated into necessary
actions.
62502 © IEC:2010 – 15 –
7.2.2 Step 1: Definition of the system or activity of interest
An ETA focuses on ways in which an initiating event can progress to accidents through the
failures of various mitigating factors. A careful identification and investigation of mitigating
factors is thus an important first step in evaluating the effectiveness of a mitigating factor.
Very few practical systems operate in isolation. Most are connected to or interact with other
systems. By clearly defining the boundaries, in particular with support systems such as
electric power and compressed air, analysts can avoid overlooking key elements of a system
at interfaces, or penalizing a system by inadvertently associating other equipment with the
subject of the study.
Conceptually, ETAs can include all of the events and conditions that can contribute to a
specific outcome or can provide some level of protection against accidents of interest.
However, it is not practical to include all p
...
